XZU304H-PKTQL4 (2004)
Toyota Dyna/Toyoace

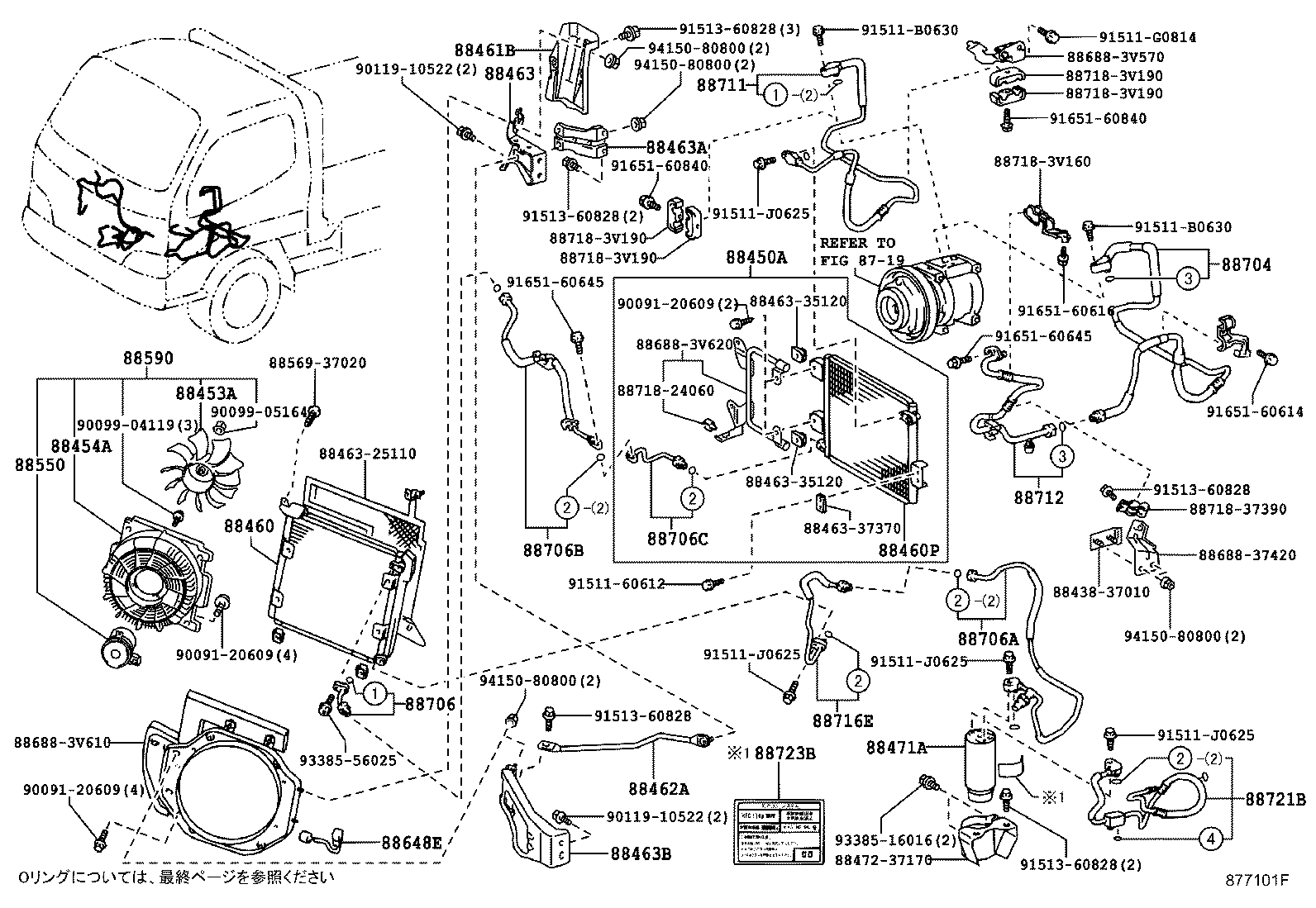

ILLUST NO. 1 OF 2(0406- )XZU304,305,334,344,354..DM6,T3,T4,T5..DCRL,DSLL
ｵｰﾌﾟﾝ ﾌﾚｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88450A - SUB CONDENSER ASSY | ||||
| 88450-37041 |
XZU306,308,346..DCB,VAN;XZU304,305,314,334,344,354..DCRL,DSLL |
1 | ||
| 88453A - FAN, COOLING | ||||
| 88453-37010 |
XZU304..175T;BZU300,340,RZU30#,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,EFI,LPG |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-37031 |
XZU304..175T;XZU304,334..DCRL,DSLL;BZU300,340,RZU30#,340,XZU305,314,344,354..SCB |
1 | ||
| 88461B - COVER, COOLER CONDENSER | ||||
| 53715-37180 |
XZU304..175T;XZU304,334..DCRL,DSLL;BZU300,340,RZU30#,340,XZU305,314,344,354..SCB |
1 | ||
| 88462A - HOLDER, CONDENSER | ||||
| 88462-37070 |
XZU304,334..DCRL,DSLL;BZU300,340,RZU30#,340,XZU305,314,344,354..SCB |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-37140 |
XZU304..175T;XZU304,334..DCRL,DSLL;BZU300,340,RZU30#,340,XZU305,314,344,354..SCB |
1 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-37150 |
XZU304..175T;XZU304,334..DCRL,DSLL;BZU300,340,RZU30#,340,XZU305,314,344,354..SCB |
1 | ||
| 88463B - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88463-37160 |
XZU304..175T;XZU304,334..DCRL,DSLL;BZU300,340,RZU30#,340,XZU305,314,344,354..SCB |
1 | ||
| 88471A - TANK, RECEIVER | ||||
| 88471-28100 |
XZU304,306,308,346..DCB..DSL ｱﾘ(ﾘﾔ ｸ-ﾗ) |
1 | ||
| 88471-34010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-37051 |
XZU304..175T;XZU304,305,314,334,344,354..DCRL,DSLL |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-37130 |
XZU304..175T;XZU304,305,314,334,344,354..DCRL,DSLL |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-37030 |
XZU304,305,308,314,334,338,344,348,354 |
1 | ||
| 88706 - PIPE SUB-ASSY, LIQUID | ||||
| 88716-3V550 |
XZU304..175T;XZU304,305,314,334,344,354..DCRL,DSLL |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88706-37161 |
XZU368,378,388..CBU,IV3;XZU304,306,308,346..(DCB,VAN)..DSL;XZU304,305,314,334,344,354..SCB..(DCRL,DSLL) |
1 | ||
| 88706-37171 |
XZU304,334..IV4 |
1 | ||
| 88706B - TUBE SUB-ASSY, LIQUID, B | ||||
| 88706-37230 |
XZU304,334..IV4 |
1 | ||
| 88706C - TUBE SUB-ASSY, LIQUID, C | ||||
| 88716-3V620 |
XZU304,305,314,334,344,354..DCRL,DSLL |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-37860 |
XZU304,305,308,314,334,338,344,348,354 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-3V430 |
XZU30#,31#,321,33#,34#,35# |
1 | ||
| 88712-3V510 |
XZU304,306,308,346..DCB..DSL ｱﾘ(ﾘﾔ ｸ-ﾗ) |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-3V570 |
XZU304..175T;XZU304,305,314,334,344,354..DCRL,DSLL |
1 | ||
| 88721B - HOSE, LIQUID, B | ||||
| 88721-37870 |
XZU308,378,388..SCB;XZU301,304,305,306,31#,321,33#,34#,35#,368 |
1 | ||
| 88721-37830 |
XZU304,306,308,346..DCB..DSL ｱﾘ(ﾘﾔ ｸ-ﾗ) |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-20030 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 88733-24010 |
XZU304,306,308,346..DCB..DSL ｱﾘ(ﾘﾔ ｸ-ﾗ) |
1 | ||
| 88733-30050 |
XZU304,306,308,346..DCB..DSL ｱﾘ(ﾘﾔ ｸ-ﾗ) |
1 | ||
| 88733-27010 |
XZU304,306,308,346..(DCB,VAN)..DSL;BZU300,340,RZU30#,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,EFI,LPG |
1 | ||
| Common parts | ||||
| 88438-37010 | ||||
| 88463-25110 | ||||
| 88463-35120 | ||||
| 88463-37370 | ||||
| 88472-37170 | ||||
| 88569-37020 | ||||
| 88688-37420 | ||||
| 88688-3V570 | ||||
| 88688-3V610 | ||||
| 88688-3V620 | ||||
| 88718-24060 | ||||
| 88718-37390 | ||||
| 88718-3V160 | ||||
| 88718-3V190 | ||||
| 90091-20609 | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90119-10522 | ||||
| 91511-60612 | ||||
| 91511-B0630 | ||||
| 91511-G0814 | ||||
| 91511-J0625 | ||||
| 91513-60828 | ||||
| 91651-60614 | ||||
| 91651-60616 | ||||
| 91651-60645 | ||||
| 91651-60840 | ||||
| 93385-16016 | ||||
| 93385-56025 | ||||
| 94150-80800 | ||||
| Linked diagrams | ||||
| 8719 | ||||
ILLUST NO. 1 OF 3(0406-0610)DCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88438-37080 | ||||
| 88688-3V210 | ||||
| 88688-3V260 | ||||
| 88688-3V272 | ||||
| 88718-24060 | ||||
| 88718-37730 | ||||
| 88718-37750 | ||||
| 90041-79141 | ||||
| 90091-20609 | ||||
| 90099-04119 | ||||
| 90099-05192 | ||||
| 90159-60187 | ||||
| 90179-14038 | ||||
| 91112-61435 | ||||
| 91511-B0630 | ||||
| 91511-J0625 | ||||
| 91513-60828 | ||||
| 91651-60616 | ||||
| 91651-60645 | ||||
| 91651-B0814 | ||||
| 94150-80800 | ||||
| Linked diagrams | ||||
| 8719 | ||||
ILLUST NO. 1 OF 3(0406-0610)DCB
ｱﾘ(ﾘﾔ ｸｰﾗ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88375-30290 | ||||
| 88438-37080 | ||||
| 88688-37750 | ||||
| 88688-37760 | ||||
| 88688-37770 | ||||
| 88688-37780 | ||||
| 88688-3V210 | ||||
| 88688-3V260 | ||||
| 88688-3V272 | ||||
| 88718-1A080 | ||||
| 88718-24060 | ||||
| 88718-32160 | ||||
| 88718-32220 | ||||
| 88718-37080 | ||||
| 88718-37280 | ||||
| 88718-37730 | ||||
| 88718-37750 | ||||
| 88718-37862 | ||||
| 88718-90K15 | ||||
| 90041-79141 | ||||
| 90099-04119 | ||||
| 90099-05192 | ||||
| 90159-60187 | ||||
| 90179-14038 | ||||
| 91112-61435 | ||||
| 91511-B0630 | ||||
| 91511-J0625 | ||||
| 91513-60828 | ||||
| 91651-40816 | ||||
| 91651-60616 | ||||
| 91651-60635 | ||||
| 91651-60645 | ||||
| 91651-B0814 | ||||
| 94130-60800 | ||||
| 94150-80800 | ||||
| Linked diagrams | ||||
| 8719 | ||||
