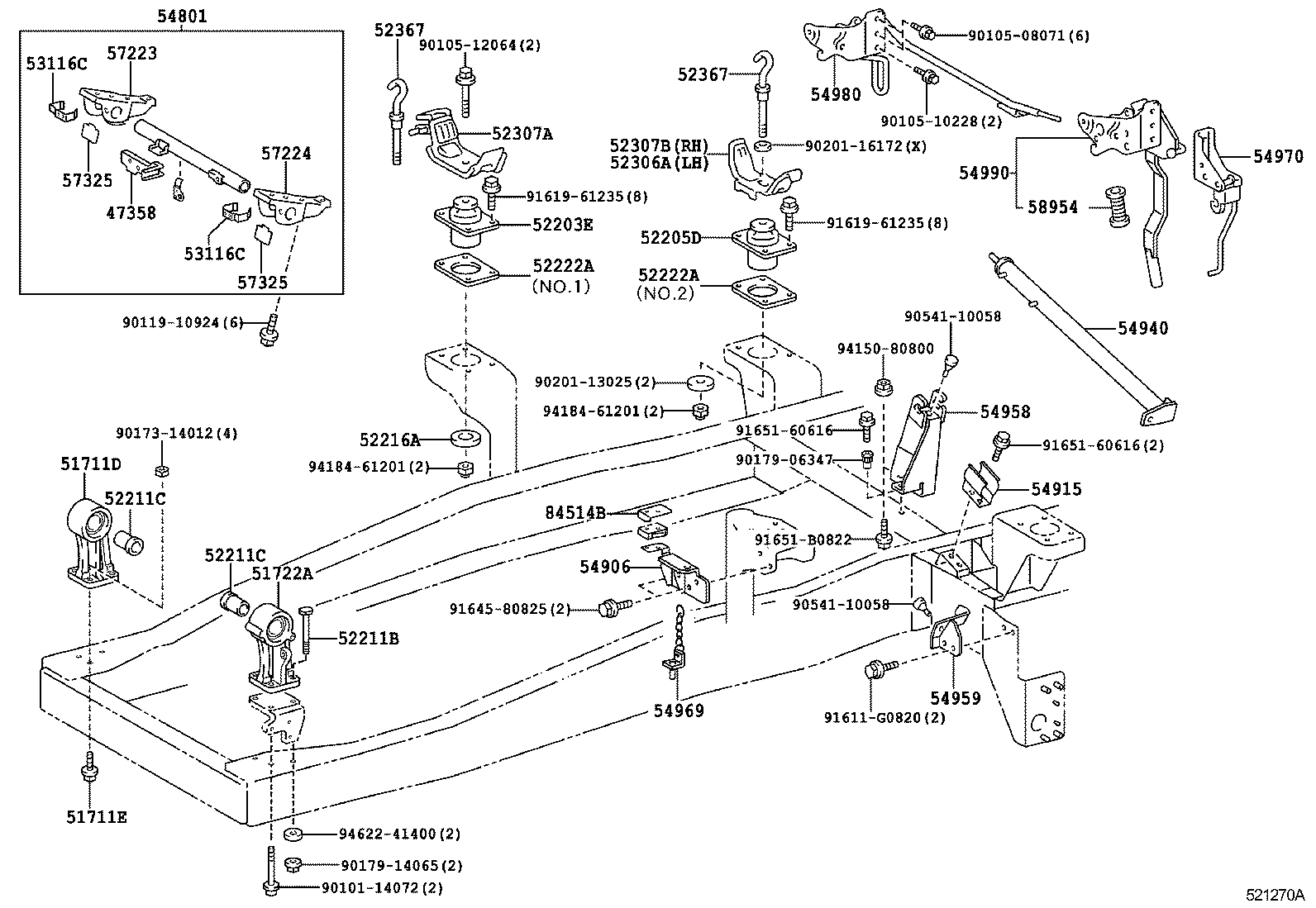

XZU304H-PKTQL4 (2004)
Toyota Dyna/Toyoace
(0406- )DCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47358 - TUBE, BOOSTER TO RESERVOIR, NO.2 | ||||
| 47358-37010 |
RZU300,XZU304,306,308,334,346,378,388..DCB,VAN |
1 | ||
| 51711D - BRACKET, CAB FRONT MOUNTING | ||||
| 51701-37100 |
XZU378,388..SCB;BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368 |
1 | ||
| 51711E - BOLT, HEXAGON(FOR CAB MOUNTING BARACKET) | ||||
| 90101-14075 |
XZU354,378,388..SCB..1NO;BZU300,340,RZU30#,340,XZU30#,33#,34#,368 |
2 | ||
| 51717A - PLATE, BODY SUPPORT BRACKET | ||||
| 51717-37100 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 51722A - BRACKET SUB-ASSY, CAB FRONT MOUNTING, LH | ||||
| 51702-37100 |
XZU378,388..SCB;BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368 |
1 | ||
| 52203E - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 | ||||
| 52203-37050 |
RZU300,XZU304,306,308,334,346,378,388..DCB,VAN |
2 | ||
| 52205D - CUSHIION SUB-ASSY, CAB MOUNTING, NO.3 UPPER | ||||
| 52203-37050 |
XZU304,334,378..IV4 |
2 | ||
| 52211B - BOLT(FOR BODY MOUNTING NO.1 CUSHION) | ||||
| 90109-14011 |
XZU378,388..SCB;BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368 |
2 | ||
| 52211C - SPACER(FOR BODY MOUNTING NO.1 CUSHION) | ||||
| 52211-37010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 52222A - SPACER, CAB REAR MOUNTING, UPPER | ||||
| 52222-37020 |
XZU304,334,378..IV4 NO.1 |
4 | ||
| 52222-37030 |
XZU304,334,378..IV4 NO.2 |
4 | ||
| 53116C - BRACKET, RADIATOR GRILLE, NO.2 | ||||
| 53116-37030 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 54801 - TUBE SUB-ASSY, TILT CAB, NO.1 | ||||
| 54801-37042 |
RZU300,XZU304,306,308,334,346,378,388..DCB,VAN |
1 | ||
| 57223 - BRACKET, FRONT MOUNTING, RH | ||||
| 57223-37010 |
BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 57223-37011 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 57224 - BRACKET, FRONT MOUNTING, LH | ||||
| 57224-37010 |
BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 57224-37011 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 57325 - REINFORCEMENT, FRONT MOUNTING | ||||
| 57325-37010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| Common parts | ||||
| 90101-10196 | ||||
| 90101-14072 | ||||
| 90101-14078 | ||||
| 90119-10924 | ||||
| 90173-14012 | ||||
| 90179-14065 | ||||
| 90201-10388 | ||||
| 90201-13025 | ||||
| 90440-16025 | ||||
| 91619-61230 | ||||
| 94184-01001 | ||||
| 94184-61201 | ||||
| 94622-41400 | ||||

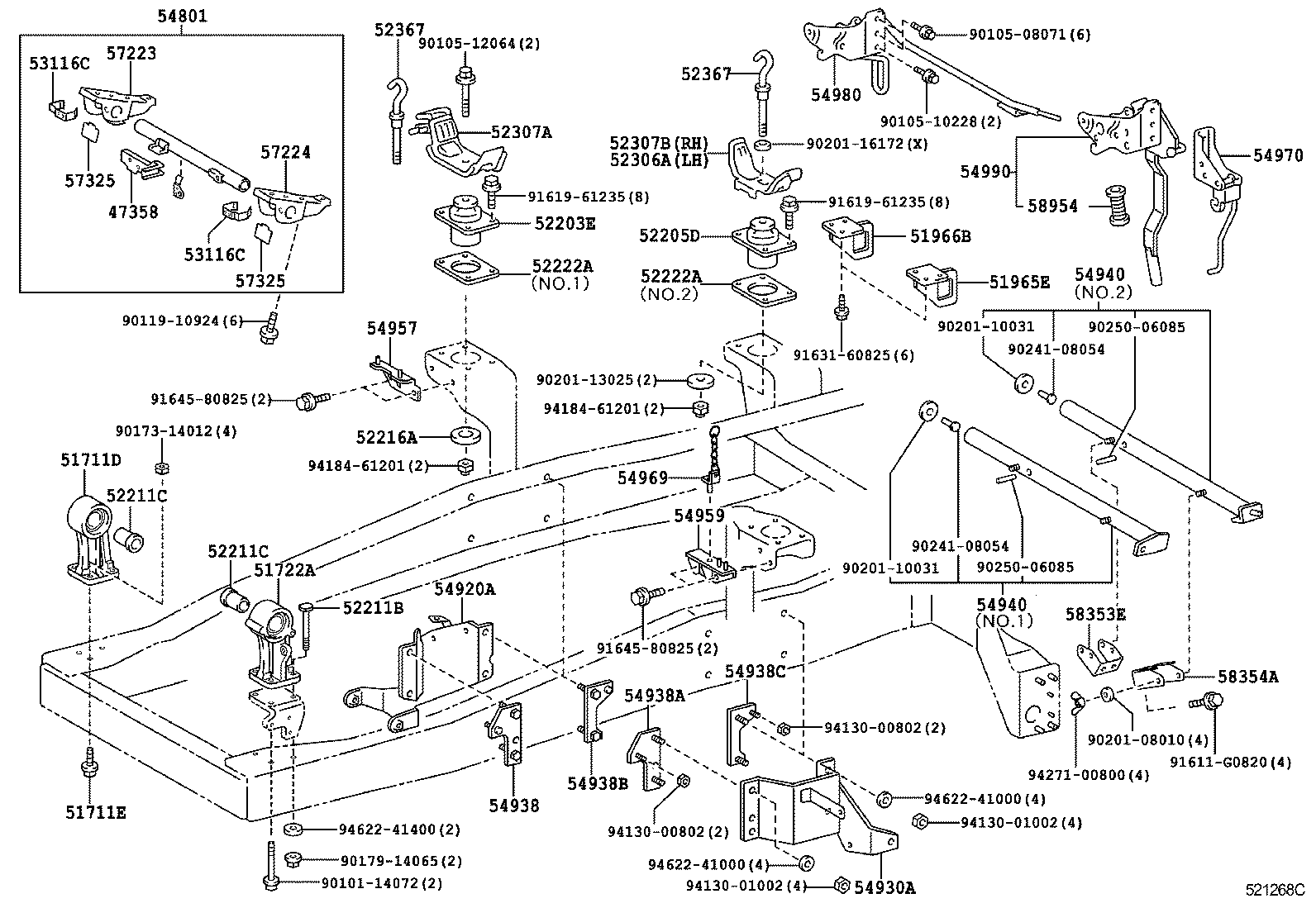

(0406- )XZU304,334..IV4
ｱﾘ(ｶﾝｲ ﾁﾙﾄ ｷｬﾌﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47358 - TUBE, BOOSTER TO RESERVOIR, NO.2 | ||||
| 47358-37010 |
RZU300,XZU304,306,308,334,346,378,388..DCB,VAN |
1 | ||
| 51711D - BRACKET, CAB FRONT MOUNTING | ||||
| 51701-37100 |
XZU378,388..SCB;BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368 |
1 | ||
| 51711E - BOLT, HEXAGON(FOR CAB MOUNTING BARACKET) | ||||
| 90101-14075 |
XZU354,378,388..SCB..1NO;BZU300,340,RZU30#,340,XZU30#,33#,34#,368 |
2 | ||
| 51722A - BRACKET SUB-ASSY, CAB FRONT MOUNTING, LH | ||||
| 51702-37100 |
XZU378,388..SCB;BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368 |
1 | ||
| 51965E - HOOK, REAR NO.1 | ||||
| 51965-37040 |
XZU304,334,378..IV4 |
1 | ||
| 51966B - HOOK, REAR NO.2 | ||||
| 51966-37010 |
XZU304,334,378..IV4 |
1 | ||
| 52203E - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 | ||||
| 52203-37050 |
RZU300,XZU304,306,308,334,346,378,388..DCB,VAN |
2 | ||
| 52205D - CUSHIION SUB-ASSY, CAB MOUNTING, NO.3 UPPER | ||||
| 52203-37050 |
XZU304,334,378..IV4 |
2 | ||
| 52211B - BOLT(FOR BODY MOUNTING NO.1 CUSHION) | ||||
| 90109-14011 |
XZU378,388..SCB;BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368 |
2 | ||
| 52211C - SPACER(FOR BODY MOUNTING NO.1 CUSHION) | ||||
| 52211-37010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 52211C - SPACER(FOR BODY MOUNTING NO.1 CUSHION) | ||||
| 52211-37010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 52216A - STOPPER, CAB MOUNTING CUSHION | ||||
| 52216-92601 |
XZU304,334,378..IV4 |
2 | ||
| 52222A - SPACER, CAB REAR MOUNTING, UPPER | ||||
| 52222-37020 |
XZU304,334,378..IV4 NO.1 |
4 | ||
| 52222-37030 |
XZU304,334,378..IV4 NO.2 |
4 | ||
| 52222A - SPACER, CAB REAR MOUNTING, UPPER | ||||
| 52222-37020 |
XZU304,334,378..IV4 NO.1 |
4 | ||
| 52222-37030 |
XZU304,334,378..IV4 NO.2 |
4 | ||
| 52306A - BRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.1 | ||||
| 52306-37040 |
XZU304,334,378..IV4 |
1 | ||
| 52307A - BRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.2 | ||||
| 52307-37010 |
XZU304,334,378..IV4 |
2 | ||
| 52307B - BRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.2 | ||||
| 52307-36021 |
XZU304,334,378..IV4 |
1 | ||
| 52367 - HOOK, CAB REAR MOUNTING | ||||
| 52367-37030 |
XZU304,334,378..IV4 |
2 | ||
| 52367 - HOOK, CAB REAR MOUNTING | ||||
| 52367-37030 |
XZU304,334,378..IV4 |
2 | ||
| 53116C - BRACKET, RADIATOR GRILLE, NO.2 | ||||
| 53116-37030 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 53116C - BRACKET, RADIATOR GRILLE, NO.2 | ||||
| 53116-37030 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 54801 - TUBE SUB-ASSY, TILT CAB, NO.1 | ||||
| 54801-37042 |
RZU300,XZU304,306,308,334,346,378,388..DCB,VAN |
1 | ||
| 54920A - BRACKET ASSY, TILT CAB CYLINDER, LOWER RH | ||||
| 54920-37181 |
XZU304,334..IV4 |
1 | ||
| 54920-37191 |
XZU304,334..IV4 ｱﾘ(ﾕｱﾂｼｷ ﾃﾞﾝﾄﾞｳ ﾁﾙﾄｷｬﾌﾞ) |
1 | ||
| 54930A - BRACKET ASSY, TILT CAB CYLINDER, LOWER LH | ||||
| 54930-37101 |
XZU304,334..IV4 |
1 | ||
| 54930-37110 |
XZU304,334..IV4 ｱﾘ(ﾕｱﾂｼｷ ﾃﾞﾝﾄﾞｳ ﾁﾙﾄｷｬﾌﾞ) |
1 | ||
| 54938 - PLATE, TILT CAB COIL SPRING SUPPORT | ||||
| 54938-37150 |
XZU304,334..IV4 |
1 | ||
| 54938-37020 |
XZU304,334..IV4 ｱﾘ(ﾕｱﾂｼｷ ﾃﾞﾝﾄﾞｳ ﾁﾙﾄｷｬﾌﾞ),NO.1 |
1 | ||
| 54938-37150 |
XZU304,334..IV4 ｱﾘ(ﾕｱﾂｼｷ ﾃﾞﾝﾄﾞｳ ﾁﾙﾄｷｬﾌﾞ),NO.2 |
1 | ||
| 54938A - PLATE, TILT CAB COIL SPRING SUPPORT, NO.2 | ||||
| 54938-37030 |
XZU304,334..IV4 ｱﾘ(ﾕｱﾂｼｷ ﾃﾞﾝﾄﾞｳ ﾁﾙﾄｷｬﾌﾞ),NO.1 |
1 | ||
| 54938-37061 |
XZU304,334..IV4 |
1 | ||
| 54938-37061 |
XZU304,334..IV4 ｱﾘ(ﾕｱﾂｼｷ ﾃﾞﾝﾄﾞｳ ﾁﾙﾄｷｬﾌﾞ),NO.2 |
1 | ||
| 54938B - PLATE, TILT CAB COIL SPRING SUPPORT, NO.3 | ||||
| 54938-37070 |
XZU304,334..IV4 |
1 | ||
| 54938C - PLATE, TILT CAB COIL SPRING SUPPORT, NO.4 | ||||
| 54938-37080 |
XZU304,334..IV4 |
1 | ||
| 54940 - STAY ASSY, TILT CAB | ||||
| 54940-37060 |
XZU304,334,378..IV4 ｱﾘ(ﾕｱﾂｼｷ ﾃﾞﾝﾄﾞｳ ﾁﾙﾄｷｬﾌﾞ) |
1 | ||
| 54940-37120 |
XZU304,334,378..IV4 NO.2 |
1 | ||
| 54940-37110 |
XZU304,334,378..IV4 NO.1 |
1 | ||
| 54940 - STAY ASSY, TILT CAB | ||||
| 54940-37060 |
XZU304,334,378..IV4 ｱﾘ(ﾕｱﾂｼｷ ﾃﾞﾝﾄﾞｳ ﾁﾙﾄｷｬﾌﾞ) |
1 | ||
| 54940-37120 |
XZU304,334,378..IV4 NO.2 |
1 | ||
| 54940-37110 |
XZU304,334,378..IV4 NO.1 |
1 | ||
| 54957 - GUSSET, TILT CAB STAY, UPPER | ||||
| 54957-37010 |
XZU304,334,378..IV4 |
1 | ||
| 54959 - BRACKET, TILT CAB STAY, NO.4 | ||||
| 54959-37080 |
XZU304,334,378..IV4 |
1 | ||
| 54959-37090 |
XZU304,334,378..IV4 ｱﾘ(ﾕｱﾂｼｷ ﾃﾞﾝﾄﾞｳ ﾁﾙﾄｷｬﾌﾞ) |
1 | ||
| 54969 - STOPPER, TILT CAB STAY | ||||
| 54969-37010 |
XZU304,334,378..IV4 |
1 | ||
| 54970 - LATCH ASSY, TILT CAB STOPPER | ||||
| 54970-37020 |
XZU304,334,378..IV4 |
1 | ||
| 54980 - LOCK ASSY, TILT CAB MOUNTING, RH | ||||
| 54980-37030 |
XZU304,334,378..IV4 |
1 | ||
| 54990 - LOCK ASSY, TILT CAB MOUNTING, LH | ||||
| 54990-37030 |
XZU304,334,378..IV4 |
1 | ||
| 57223 - BRACKET, FRONT MOUNTING, RH | ||||
| 57223-37010 |
BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 57223-37011 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 57224 - BRACKET, FRONT MOUNTING, LH | ||||
| 57224-37010 |
BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 57224-37011 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 57325 - REINFORCEMENT, FRONT MOUNTING | ||||
| 57325-37010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 57325 - REINFORCEMENT, FRONT MOUNTING | ||||
| 57325-37010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 58353E - STAY, REAR FLOOR, RH | ||||
| 58353-37021 |
XZU304,334,378..IV4 |
1 | ||
| 58353-37020 |
XZU304,334,378..IV4 |
1 | ||
| 58354A - STAY, REAR FLOOR, LH | ||||
| 58354-37041 |
XZU304,334,378..IV4 |
1 | ||
| 58354-37040 |
XZU304,334,378..IV4 |
1 | ||
| 58954 - COVER, REAR LOCK HANDLE GRIP | ||||
| 58954-95400 |
XZU304,334,378..IV4 |
1 | ||
| Common parts | ||||
| 90101-14072 | ||||
| 90105-08071 | ||||
| 90105-10228 | ||||
| 90105-12064 | ||||
| 90119-10924 | ||||
| 90173-14012 | ||||
| 90179-14065 | ||||
| 90201-08010 | ||||
| 90201-10031 | ||||
| 90201-13025 | ||||
| 90201-16172 | ||||
| 90241-08054 | ||||
| 90250-06085 | ||||
| 91611-G0820 | ||||
| 91619-61235 | ||||
| 91631-60825 | ||||
| 91645-80825 | ||||
| 94130-00802 | ||||
| 94130-01002 | ||||
| 94184-61201 | ||||
| 94271-00800 | ||||
| 94622-41000 | ||||
| 94622-41400 | ||||

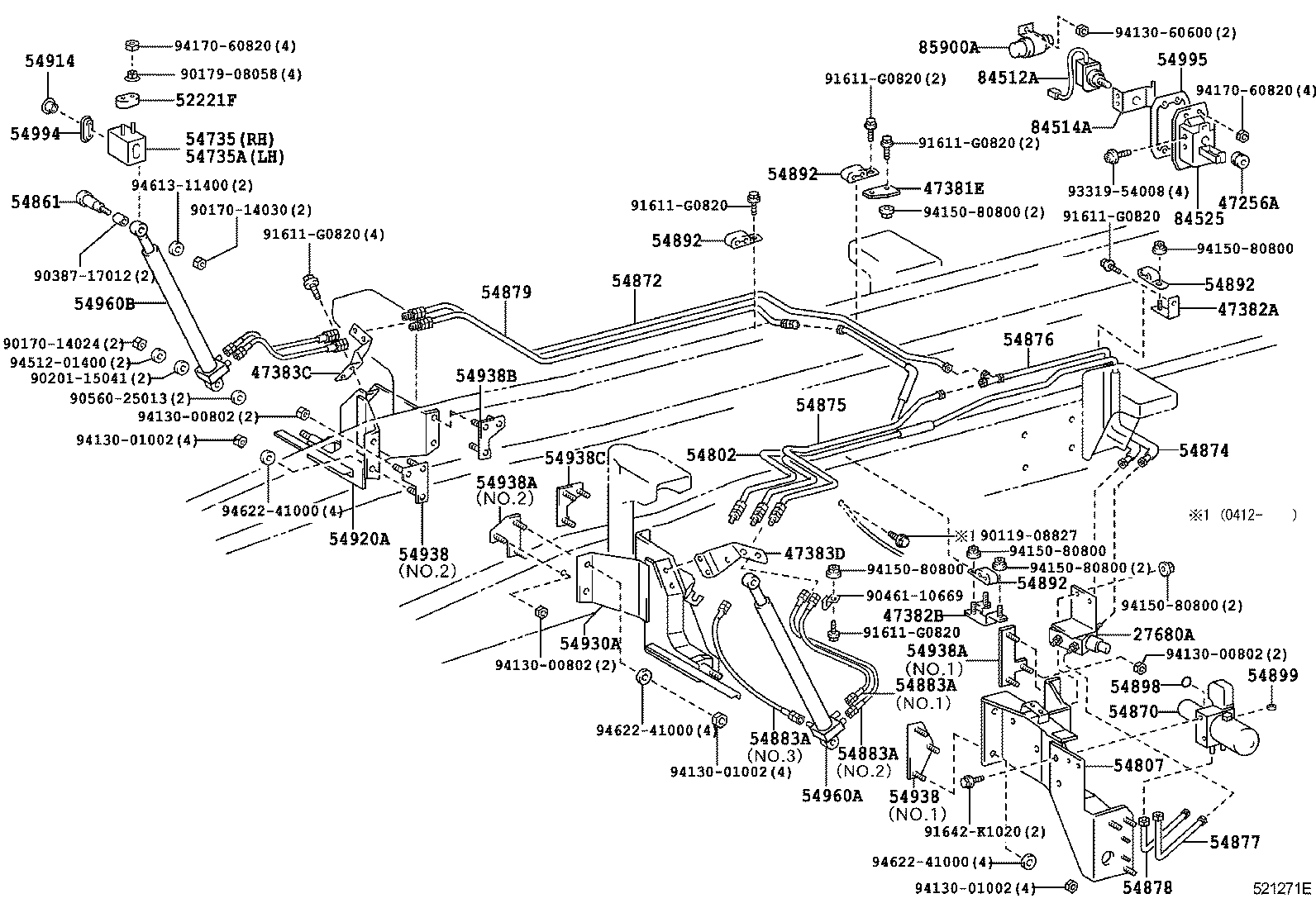

ILLUST NO. 1 OF 2(0406- )XZU304,334..IV4
ｱﾘ(ﾕｱﾂｼｷ ﾃﾞﾝﾄﾞｳ ﾁﾙﾄ ｷﾔﾌﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47358 - TUBE, BOOSTER TO RESERVOIR, NO.2 | ||||
| 47358-37010 |
RZU300,XZU304,306,308,334,346,378,388..DCB,VAN |
1 | ||
| 51711D - BRACKET, CAB FRONT MOUNTING | ||||
| 51701-37100 |
XZU378,388..SCB;BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368 |
1 | ||
| 51711E - BOLT, HEXAGON(FOR CAB MOUNTING BARACKET) | ||||
| 90101-14075 |
XZU354,378,388..SCB..1NO;BZU300,340,RZU30#,340,XZU30#,33#,34#,368 |
2 | ||
| 51722A - BRACKET SUB-ASSY, CAB FRONT MOUNTING, LH | ||||
| 51702-37100 |
XZU378,388..SCB;BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368 |
1 | ||
| 52203E - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 | ||||
| 52203-37050 |
RZU300,XZU304,306,308,334,346,378,388..DCB,VAN |
2 | ||
| 52205D - CUSHIION SUB-ASSY, CAB MOUNTING, NO.3 UPPER | ||||
| 52203-37050 |
XZU304,334,378..IV4 |
2 | ||
| 52211B - BOLT(FOR BODY MOUNTING NO.1 CUSHION) | ||||
| 90109-14011 |
XZU378,388..SCB;BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368 |
2 | ||
| 52211C - SPACER(FOR BODY MOUNTING NO.1 CUSHION) | ||||
| 52211-37010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 52211C - SPACER(FOR BODY MOUNTING NO.1 CUSHION) | ||||
| 52211-37010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 52216A - STOPPER, CAB MOUNTING CUSHION | ||||
| 52216-92601 |
XZU304,334,378..IV4 |
2 | ||
| 52222A - SPACER, CAB REAR MOUNTING, UPPER | ||||
| 52222-37020 |
XZU304,334,378..IV4 NO.1 |
4 | ||
| 52222-37030 |
XZU304,334,378..IV4 NO.2 |
4 | ||
| 52222A - SPACER, CAB REAR MOUNTING, UPPER | ||||
| 52222-37020 |
XZU304,334,378..IV4 NO.1 |
4 | ||
| 52222-37030 |
XZU304,334,378..IV4 NO.2 |
4 | ||
| 52306A - BRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.1 | ||||
| 52306-37040 |
XZU304,334,378..IV4 |
1 | ||
| 52307A - BRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.2 | ||||
| 52307-37010 |
XZU304,334,378..IV4 |
2 | ||
| 52307B - BRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.2 | ||||
| 52307-36021 |
XZU304,334,378..IV4 |
1 | ||
| 52367 - HOOK, CAB REAR MOUNTING | ||||
| 52367-37030 |
XZU304,334,378..IV4 |
2 | ||
| 52367 - HOOK, CAB REAR MOUNTING | ||||
| 52367-37030 |
XZU304,334,378..IV4 |
2 | ||
| 53116C - BRACKET, RADIATOR GRILLE, NO.2 | ||||
| 53116-37030 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 53116C - BRACKET, RADIATOR GRILLE, NO.2 | ||||
| 53116-37030 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 54801 - TUBE SUB-ASSY, TILT CAB, NO.1 | ||||
| 54801-37042 |
RZU300,XZU304,306,308,334,346,378,388..DCB,VAN |
1 | ||
| 54906 - BRACKET SUB-ASSY, TILT CAB STAY, LOWER | ||||
| 54906-37010 |
XZU304,334,378..IV4 |
1 | ||
| 54915 - SPRING, TILT CAB, NO.1 | ||||
| 54915-37140 |
XZU304,334,378..IV4 |
1 | ||
| 54940 - STAY ASSY, TILT CAB | ||||
| 54940-37060 |
XZU304,334,378..IV4 ｱﾘ(ﾕｱﾂｼｷ ﾃﾞﾝﾄﾞｳ ﾁﾙﾄｷｬﾌﾞ) |
1 | ||
| 54940-37120 |
XZU304,334,378..IV4 NO.2 |
1 | ||
| 54940-37110 |
XZU304,334,378..IV4 NO.1 |
1 | ||
| 54958 - BRACKET, TILT CAB STAY, NO.3 | ||||
| 54958-37090 |
XZU304,334..IV4 |
1 | ||
| 54959 - BRACKET, TILT CAB STAY, NO.4 | ||||
| 54959-37080 |
XZU304,334,378..IV4 |
1 | ||
| 54959-37090 |
XZU304,334,378..IV4 ｱﾘ(ﾕｱﾂｼｷ ﾃﾞﾝﾄﾞｳ ﾁﾙﾄｷｬﾌﾞ) |
1 | ||
| 54969 - STOPPER, TILT CAB STAY | ||||
| 54969-37010 |
XZU304,334,378..IV4 |
1 | ||
| 54970 - LATCH ASSY, TILT CAB STOPPER | ||||
| 54970-37020 |
XZU304,334,378..IV4 |
1 | ||
| 54980 - LOCK ASSY, TILT CAB MOUNTING, RH | ||||
| 54980-37030 |
XZU304,334,378..IV4 |
1 | ||
| 54990 - LOCK ASSY, TILT CAB MOUNTING, LH | ||||
| 54990-37030 |
XZU304,334,378..IV4 |
1 | ||
| 57223 - BRACKET, FRONT MOUNTING, RH | ||||
| 57223-37010 |
BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 57223-37011 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 57224 - BRACKET, FRONT MOUNTING, LH | ||||
| 57224-37010 |
BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 57224-37011 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 57325 - REINFORCEMENT, FRONT MOUNTING | ||||
| 57325-37010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 57325 - REINFORCEMENT, FRONT MOUNTING | ||||
| 57325-37010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 58954 - COVER, REAR LOCK HANDLE GRIP | ||||
| 58954-95400 |
XZU304,334,378..IV4 |
1 | ||
| 84514B - BRACKET, TILT CAB CONTROL SWITCH | ||||
| 84514-37070 |
XZU304,334,378..IV4 |
1 | ||
| Common parts | ||||
| 90101-14072 | ||||
| 90105-08071 | ||||
| 90105-10228 | ||||
| 90105-12064 | ||||
| 90119-10924 | ||||
| 90173-14012 | ||||
| 90179-06347 | ||||
| 90179-14065 | ||||
| 90201-13025 | ||||
| 90201-16172 | ||||
| 90541-10058 | ||||
| 91611-G0820 | ||||
| 91619-61235 | ||||
| 91645-80825 | ||||
| 91651-60616 | ||||
| 91651-B0822 | ||||
| 94150-80800 | ||||
| 94184-61201 | ||||
| 94622-41400 | ||||
ILLUST NO. 2 OF 2(0406- )XZU304,334..IV4
ｱﾘ(ﾕｱﾂｼｷ ﾃﾞﾝﾄﾞｳ ﾁﾙﾄ ｷﾔﾌﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27680A - SOLENOID ASSY | ||||
| 27680-78031 |
N04C..XZU304,334,378..IV4 |
1 | ||
| 47256A - GROMMET, CAP | ||||
| 47256-37010 |
XZU304,334,378..IV4 |
1 | ||
| 47381E - BRACKET, TUBE CLAMP | ||||
| 47381-37250 |
XZU304,334,378..IV4 |
2 | ||
| 47381-37251 |
XZU304,334,378..IV4 |
2 | ||
| 47382A - BRACKET, TUBE CLAMP, LH | ||||
| 47382-37040 |
XZU304,334,378..IV4 |
1 | ||
| 47382B - BRACKET, TUBE CLAMP, LH | ||||
| 47382-37020 |
XZU304,334..IV4 |
1 | ||
| 47383C - BRACKET, CONNECTOR, N0.1 | ||||
| 47383-37100 |
XZU304,334..IV4 |
1 | ||
| 47383D - BRACKET, CONNECTOR, NO.2 | ||||
| 47383-37141 |
XZU304,334..IV4 |
1 | ||
| 52221F - CUSHION, BODY MOUNTING, CENTER UPPER | ||||
| 52221-37010 |
XZU304,334,378..IV4 |
2 | ||
| 54735 - SUPPORT, TILT CAB CYLINDER CUSHION HINGE | ||||
| 54935-37020 |
XZU304,334,378..IV4 |
1 | ||
| 54735A - SUPPORT, TILT CAB CYLINDER CUSHION HINGE | ||||
| 54935-37030 |
XZU304,334,378..IV4 |
1 | ||
| 54802 - TUBE SUB-ASSY, TILT CAB, NO.2 | ||||
| 54802-37041 |
XZU304,334..IV4 |
1 | ||
| 54807 - BRACKET SUB-ASSY, TILT CAB PUMP | ||||
| 54807-37010 |
XZU304,334..IV4 |
1 | ||
| 54861 - PIN, TILT CAB CYLINDER MOUNTING, UPPER | ||||
| 54861-37010 |
XZU304,334,378..IV4 |
2 | ||
| 54870 - PUMP ASSY, TILT CAB | ||||
| 54870-37041 |
XZU304,334,378..IV4 |
1 | ||
| 54870-37040 |
XZU304,334,378..IV4 |
1 | ||
| 54872 - TUBE, TILT CAB, NO.1 | ||||
| 54801-37140 |
XZU304,334..IV4 |
1 | ||
| 54874 - TUBE, TILT CAB, NO.3 | ||||
| 54804-37031 |
XZU304,334..IV4 |
1 | ||
| 54875 - TUBE, TILT CAB, NO.4 | ||||
| 54803-37050 |
XZU304,334..IV4 |
1 | ||
| 54876 - TUBE, TILT CAB, NO.5 | ||||
| 54804-37050 |
XZU304,334..IV4 |
1 | ||
| 54877 - TUBE, TILT CAB, NO.6 | ||||
| 54808-37031 |
XZU304,334,378..IV4 |
1 | ||
| 54878 - TUBE, TILT CAB, NO.7 | ||||
| 54806-37051 |
XZU304,334,378..IV4 |
1 | ||
| 54879 - TUBE, TILT CAB, NO.8 | ||||
| 54802-37100 |
XZU304,334..IV4 |
1 | ||
| 54883A - HOSE, TILT CAB PUMP | ||||
| 54883-37150 |
XZU304,334..IV4 NO.2,ﾌﾞﾙｰ |
1 | ||
| 54883-37130 |
XZU304,334..IV4 NO.1 |
3 | ||
| 54883-37070 |
XZU304,334,378..IV4 NO.3,ﾎﾜｲﾄ |
1 | ||
| 54883A - HOSE, TILT CAB PUMP | ||||
| 54883-37150 |
XZU304,334..IV4 NO.2,ﾌﾞﾙｰ |
1 | ||
| 54883-37130 |
XZU304,334..IV4 NO.1 |
3 | ||
| 54883-37070 |
XZU304,334,378..IV4 NO.3,ﾎﾜｲﾄ |
1 | ||
| 54883A - HOSE, TILT CAB PUMP | ||||
| 54883-37150 |
XZU304,334..IV4 NO.2,ﾌﾞﾙｰ |
1 | ||
| 54883-37130 |
XZU304,334..IV4 NO.1 |
3 | ||
| 54883-37070 |
XZU304,334,378..IV4 NO.3,ﾎﾜｲﾄ |
1 | ||
| 54892 - CLAMP, TILT CAB PIPE | ||||
| 54892-37010 |
XZU304,334,378..IV4 |
5 | ||
| 54892 - CLAMP, TILT CAB PIPE | ||||
| 54892-37010 |
XZU304,334,378..IV4 |
5 | ||
| 54892 - CLAMP, TILT CAB PIPE | ||||
| 54892-37010 |
XZU304,334,378..IV4 |
5 | ||
| 54892 - CLAMP, TILT CAB PIPE | ||||
| 54892-37010 |
XZU304,334,378..IV4 |
5 | ||
| 54898 - GASKET, TILT CAB PUMP, NO.1 | ||||
| 54898-37010 |
XZU304,334,378..IV4 |
1 | ||
| 54899 - GASKET, TILT CAB PUMP, NO.2 | ||||
| 54899-37010 |
XZU304,334,378..IV4 |
1 | ||
| 54914 - JOINT, TILT CAB PIPE | ||||
| 54914-37050 |
XZU304,334,378..IV4 |
4 | ||
| 54920A - BRACKET ASSY, TILT CAB CYLINDER, LOWER RH | ||||
| 54920-37181 |
XZU304,334..IV4 |
1 | ||
| 54920-37191 |
XZU304,334..IV4 ｱﾘ(ﾕｱﾂｼｷ ﾃﾞﾝﾄﾞｳ ﾁﾙﾄｷｬﾌﾞ) |
1 | ||
| 54930A - BRACKET ASSY, TILT CAB CYLINDER, LOWER LH | ||||
| 54930-37101 |
XZU304,334..IV4 |
1 | ||
| 54930-37110 |
XZU304,334..IV4 ｱﾘ(ﾕｱﾂｼｷ ﾃﾞﾝﾄﾞｳ ﾁﾙﾄｷｬﾌﾞ) |
1 | ||
| 54938 - PLATE, TILT CAB COIL SPRING SUPPORT | ||||
| 54938-37150 |
XZU304,334..IV4 |
1 | ||
| 54938-37020 |
XZU304,334..IV4 ｱﾘ(ﾕｱﾂｼｷ ﾃﾞﾝﾄﾞｳ ﾁﾙﾄｷｬﾌﾞ),NO.1 |
1 | ||
| 54938-37150 |
XZU304,334..IV4 ｱﾘ(ﾕｱﾂｼｷ ﾃﾞﾝﾄﾞｳ ﾁﾙﾄｷｬﾌﾞ),NO.2 |
1 | ||
| 54938 - PLATE, TILT CAB COIL SPRING SUPPORT | ||||
| 54938-37150 |
XZU304,334..IV4 |
1 | ||
| 54938-37020 |
XZU304,334..IV4 ｱﾘ(ﾕｱﾂｼｷ ﾃﾞﾝﾄﾞｳ ﾁﾙﾄｷｬﾌﾞ),NO.1 |
1 | ||
| 54938-37150 |
XZU304,334..IV4 ｱﾘ(ﾕｱﾂｼｷ ﾃﾞﾝﾄﾞｳ ﾁﾙﾄｷｬﾌﾞ),NO.2 |
1 | ||
| 54938A - PLATE, TILT CAB COIL SPRING SUPPORT, NO.2 | ||||
| 54938-37030 |
XZU304,334..IV4 ｱﾘ(ﾕｱﾂｼｷ ﾃﾞﾝﾄﾞｳ ﾁﾙﾄｷｬﾌﾞ),NO.1 |
1 | ||
| 54938-37061 |
XZU304,334..IV4 |
1 | ||
| 54938-37061 |
XZU304,334..IV4 ｱﾘ(ﾕｱﾂｼｷ ﾃﾞﾝﾄﾞｳ ﾁﾙﾄｷｬﾌﾞ),NO.2 |
1 | ||
| 54938A - PLATE, TILT CAB COIL SPRING SUPPORT, NO.2 | ||||
| 54938-37030 |
XZU304,334..IV4 ｱﾘ(ﾕｱﾂｼｷ ﾃﾞﾝﾄﾞｳ ﾁﾙﾄｷｬﾌﾞ),NO.1 |
1 | ||
| 54938-37061 |
XZU304,334..IV4 |
1 | ||
| 54938-37061 |
XZU304,334..IV4 ｱﾘ(ﾕｱﾂｼｷ ﾃﾞﾝﾄﾞｳ ﾁﾙﾄｷｬﾌﾞ),NO.2 |
1 | ||
| 54938B - PLATE, TILT CAB COIL SPRING SUPPORT, NO.3 | ||||
| 54938-37070 |
XZU304,334..IV4 |
1 | ||
| 54938C - PLATE, TILT CAB COIL SPRING SUPPORT, NO.4 | ||||
| 54938-37080 |
XZU304,334..IV4 |
1 | ||
| 54960A - CYLINDER ASSY, TILT CAB | ||||
| 54960-37040 |
XZU304,334,378..IV4 |
1 | ||
| 54960B - CYLINDER ASSY, TILT CAB | ||||
| 54960-37050 |
XZU304,334,378..IV4 |
1 | ||
| 54994 - GUIDE, TILT CAB LOCK HOOK | ||||
| 54994-37040 |
XZU304,334,378..IV4 |
4 | ||
| 54995 - PACKING, TILT CAB CONTROL SWITCH BOX | ||||
| 54995-37010 |
XZU304,334,378..IV4 |
1 | ||
| 84512A - SWITCH, TILT CAB CONTROL | ||||
| 84512-37020 |
XZU304,334,378..IV4 |
1 | ||
| 84514A - BRACKET, TILT CAB CONTROL SWITCH | ||||
| 84514-37030 |
XZU304,334,378..IV4 |
1 | ||
| 84525 - BOX, TILT CAB CONTROL SWITCH | ||||
| 84525-37010 |
XZU304,334,378..IV4 |
1 | ||
| 85900A - RELAY ASSY, CONTROL UNIT | ||||
| 85900-37040 |
XZU304,334,378..IV4 |
1 | ||
| Common parts | ||||
| 90119-08827 | ||||
| 90170-14024 | ||||
| 90170-14030 | ||||
| 90179-08058 | ||||
| 90201-15041 | ||||
| 90387-17012 | ||||
| 90461-10669 | ||||
| 90560-25013 | ||||
| 91611-G0820 | ||||
| 91642-K1020 | ||||
| 93319-54008 | ||||
| 94130-00802 | ||||
| 94130-01002 | ||||
| 94130-60600 | ||||
| 94150-80800 | ||||
| 94170-60820 | ||||
| 94512-01400 | ||||
| 94613-11400 | ||||
| 94622-41000 | ||||
ILLUST NO. 1 OF 2(0406- )DCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90101-14072 | ||||
| 90101-14075 | ||||
| 90105-08071 | ||||
| 90105-10086 | ||||
| 90105-10228 | ||||
| 90105-12064 | ||||
| 90119-08830 | ||||
| 90119-10924 | ||||
| 90173-14012 | ||||
| 90179-14065 | ||||
| 90201-13025 | ||||
| 90201-16172 | ||||
| 90250-06085 | ||||
| 90541-10058 | ||||
| 91619-61235 | ||||
| 91651-60616 | ||||
| 91673-G1025 | ||||
| 94130-00802 | ||||
| 94184-61201 | ||||
| 94622-41400 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
