Toyota Dyna/toyoace XZU304 BRAKE BOOSTER & VACUUM TUBE

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
XZU304H-PKTQL4 (2004)
4703 - BRAKE BOOSTER & VACUUM TUBE

XZU304H-PKTQL4 (2004)

Toyota Dyna/Toyoace

Production Jun 2004 - Oct 2006

Engine N04C

Transmission 6FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

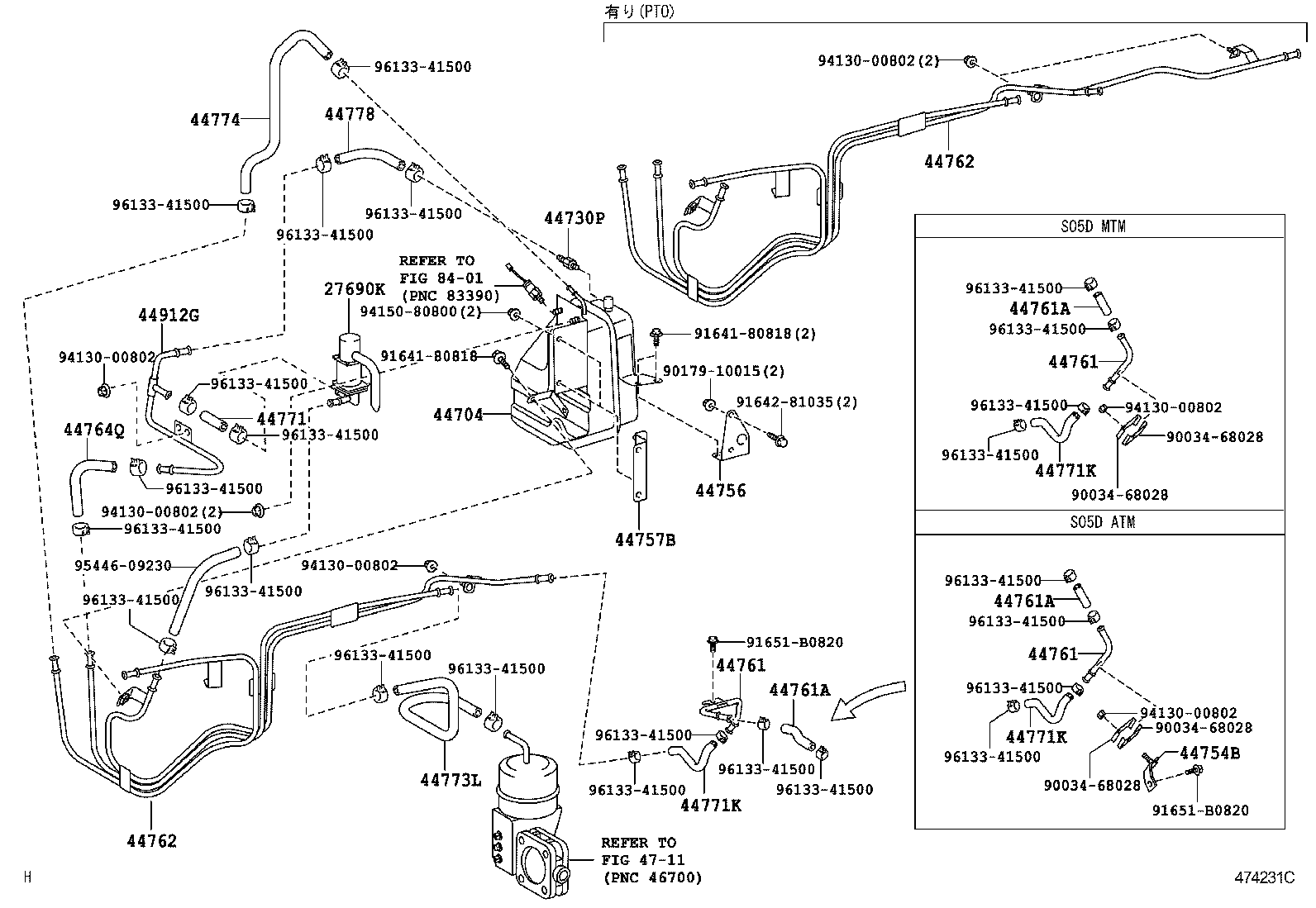

ILLUST NO. 2 OF 2(0406- )XZU304,306,308,346..DCB..DSL

Click highlighted areas on diagram

Part #	Description	Period	Qty
27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE)
27690-78032	S05D..XZU301,306..IV6;S05D..XZU301..20T..IV3..1NO;N04C..XZU304,305,354,388..(DM6,T3)..(20T,40T);N04C,S05D..XZU304,306,308,334,346,378..DCB,VAN	06/2004 - 12/2999	1
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-37080	XZU304,334,378..IV4	06/2004 - 08/2004	1
44704-37081	XZU304,334,378..IV4	09/2004 - 10/2006	1
44730P - VALVE ASSY, VACUUM CHECK, NO.1
44730-60050	XZU304,334,378..IV4	06/2004 - 08/2004	1
44762 - TUBE, BOOSTER VACUUM
44702-37160	XZU304,334..IV4	06/2004 - 10/2006	1
44702-37140	XZU304,306,308,346..DCB..DSL	06/2004 - 10/2006	1
44762 - TUBE, BOOSTER VACUUM
44702-37160	XZU304,334..IV4	06/2004 - 10/2006	1
44702-37140	XZU304,306,308,346..DCB..DSL	06/2004 - 10/2006	1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-37720	XZU304,334..IV4	06/2004 - 10/2006	1
90445-17039	XZU304,306,308,346..DCB..DSL	06/2004 - 10/2006	1
44771K - HOSE, VACUUM TUBE TO VACUUM PUMP
44771-37660	XZU304,334,378..IV4,IV7	06/2004 - 10/2006	1
44771K - HOSE, VACUUM TUBE TO VACUUM PUMP
44771-37660	XZU304,334,378..IV4,IV7	06/2004 - 10/2006	1
44771K - HOSE, VACUUM TUBE TO VACUUM PUMP
44771-37660	XZU304,334,378..IV4,IV7	06/2004 - 10/2006	1
44773L - HOSE, SOLENOID TO EXHAUST RETARDER
44771-37590	XZU304,306,308,346..DCB..DSL	06/2004 - 10/2006	1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-37260	XZU304,334,378..IV4	06/2004 - 10/2006	1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-37200	XZU304,334,378..IV4	06/2004 - 10/2006	1
Common parts
90034-68028
90179-10015
91641-80818
91642-81035
91651-B0820
94130-00802
94150-80800
95446-09230
96133-41500
Linked diagrams
4711
8401

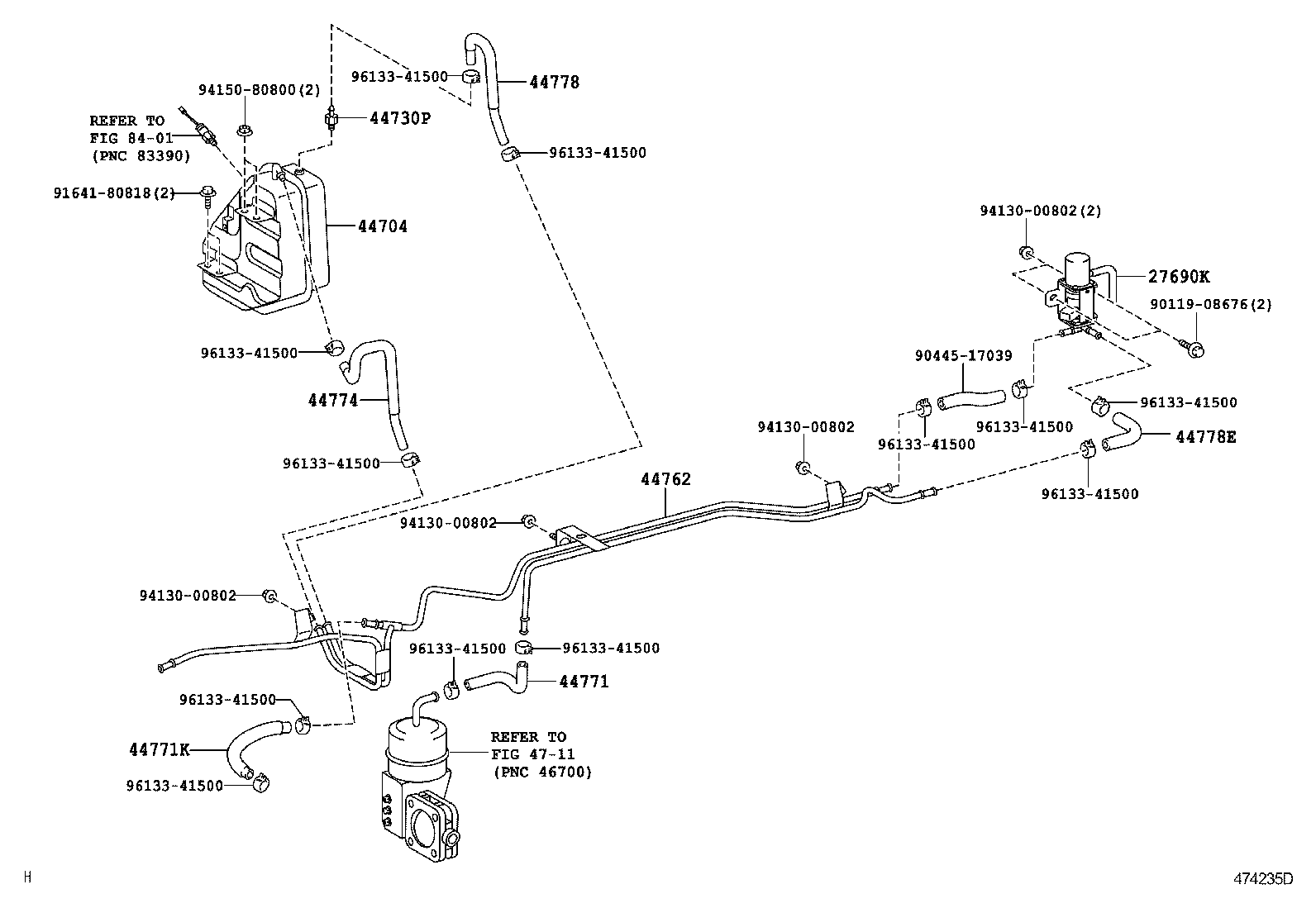

ILLUST NO. 2 OF 2(0406- )XZU304,334..IV4

Click highlighted areas on diagram

Part #	Description	Period	Qty
27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE)
27690-78032	S05D..XZU301,306..IV6;S05D..XZU301..20T..IV3..1NO;N04C..XZU304,305,354,388..(DM6,T3)..(20T,40T);N04C,S05D..XZU304,306,308,334,346,378..DCB,VAN	06/2004 - 12/2999	1
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-37080	XZU304,334,378..IV4	06/2004 - 08/2004	1
44704-37081	XZU304,334,378..IV4	09/2004 - 10/2006	1
44730P - VALVE ASSY, VACUUM CHECK, NO.1
44730-60050	XZU304,334,378..IV4	06/2004 - 08/2004	1
44762 - TUBE, BOOSTER VACUUM
44702-37160	XZU304,334..IV4	06/2004 - 10/2006	1
44702-37140	XZU304,306,308,346..DCB..DSL	06/2004 - 10/2006	1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-37720	XZU304,334..IV4	06/2004 - 10/2006	1
90445-17039	XZU304,306,308,346..DCB..DSL	06/2004 - 10/2006	1
44771K - HOSE, VACUUM TUBE TO VACUUM PUMP
44771-37660	XZU304,334,378..IV4,IV7	06/2004 - 10/2006	1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-37260	XZU304,334,378..IV4	06/2004 - 10/2006	1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-37200	XZU304,334,378..IV4	06/2004 - 10/2006	1
44778E - HOSE, CONNECTOR TUBE TO SOLENOID
44778-37060	XZU304,334..IV4	06/2004 - 10/2006	1
Common parts
90119-08676
90445-17039
91641-80818
94130-00802
94150-80800
96133-41500
Linked diagrams
4711
8401

ILLUST NO. 1 OF 2(0406- )XZU30#,33#,34#,354..03S,06S,DM3,DM6,T1,T2,T3,T4,T5

Click highlighted areas on diagram

Part #	Description	Period	Qty
44610 - BOOSTER ASSY, BRAKE
44610-37151	BZU300,340,RZU300,XZU301,304,31#,321,331,334,341,344,368,378,388..30T	06/2004 - 12/2999	1
44621V - SEAL, BOOSTER BODY
44621-36070	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T	06/2004 - 12/2999	1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20070	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 04/2001	1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20070	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 04/2001	1
44730B - CLAMP, VACUUM HOSE
44597-37020	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 03/2005	1
44597-37021	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	04/2005 - 12/2999	1
44597-37010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 05/2001	1
44730J - WAY(FOR BOOSTER VACUUM)
90414-10043	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
44730J - WAY(FOR BOOSTER VACUUM)
90414-10043	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
44734B - BRACKET, BOOSTER SUPPORT
44734-37010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 08/2000	1
44763B - TUBE, TUBE CONNECTOR TO TUBE CONNECTOR
44762-37070	XZU301,304,305,331,334,341,344,354..DM3,DM6,T1,T3,T4,T5	06/2004 - 12/2999	1
44768 - TUBE, BOOSTER VACUUM
44768-37110	XZU304,306,308,334,346,378,388;BZU300,340,RZU30#,340,XZU301,305,31#,321,331,336,338,341,344,348,35#,368..SCB	06/2004 - 12/2999	1
44776 - HOSE, BRAKE BOOSTER
44776-37050	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 06/2003	1
44776 - HOSE, BRAKE BOOSTER
44776-37050	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 06/2003	1
44776 - HOSE, BRAKE BOOSTER
44776-37050	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 06/2003	1
44776 - HOSE, BRAKE BOOSTER
44776-37050	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 06/2003	1
44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER
44776-37170	XZU304,306,308,334,346,378,388;BZU300,340,RZU30#,340,XZU301,305,31#,321,331,336,338,341,344,348,35#,368..SCB 長さ=380	06/2004 - 12/2999	1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-50010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T	06/2004 - 12/2999	1
Common parts
47371-37040
90179-08038
90179-10065
90464-00549
90466-15003
90467-16022
90480-22022
91611-B0816
96132-40700
96133-41500
Linked diagrams
3104
4702
8414

ILLUST NO. 2 OF 2(0406- )XZU304..T4..20T..IV3 ; (0406- )XZU341..T4..30T..IV3 ; (0406- )XZU3

Click highlighted areas on diagram

ﾀﾞﾝﾌﾟ OR ﾚｲﾄｳｼｬ OR ﾎﾞﾄﾙｶｰ

Part #	Description	Period	Qty
27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE)
27690-78032	S05D..XZU301,306..IV6;S05D..XZU301..20T..IV3..1NO;N04C..XZU304,305,354,388..(DM6,T3)..(20T,40T);N04C,S05D..XZU304,306,308,334,346,378..DCB,VAN	06/2004 - 12/2999	1
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-37080	XZU304,334,378..IV4	06/2004 - 08/2004	1
44704-37081	XZU304,334,378..IV4	09/2004 - 10/2006	1
44730P - VALVE ASSY, VACUUM CHECK, NO.1
44730-60050	XZU304,334,378..IV4	06/2004 - 08/2004	1
44762 - TUBE, BOOSTER VACUUM
44702-37160	XZU304,334..IV4	06/2004 - 10/2006	1
44702-37140	XZU304,306,308,346..DCB..DSL	06/2004 - 10/2006	1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-37720	XZU304,334..IV4	06/2004 - 10/2006	1
90445-17039	XZU304,306,308,346..DCB..DSL	06/2004 - 10/2006	1
44771K - HOSE, VACUUM TUBE TO VACUUM PUMP
44771-37660	XZU304,334,378..IV4,IV7	06/2004 - 10/2006	1
44771K - HOSE, VACUUM TUBE TO VACUUM PUMP
44771-37660	XZU304,334,378..IV4,IV7	06/2004 - 10/2006	1
44771K - HOSE, VACUUM TUBE TO VACUUM PUMP
44771-37660	XZU304,334,378..IV4,IV7	06/2004 - 10/2006	1
44773L - HOSE, SOLENOID TO EXHAUST RETARDER
44771-37590	XZU304,306,308,346..DCB..DSL	06/2004 - 10/2006	1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-37260	XZU304,334,378..IV4	06/2004 - 10/2006	1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-37200	XZU304,334,378..IV4	06/2004 - 10/2006	1
Common parts
90034-68028
90119-08676
90119-08830
91641-80818
91642-K1020
91651-B0820
94130-00802
96133-41500
Linked diagrams
4711
8401

ILLUST NO. 1 OF 2(0610-0612)ST ; (0610-0612)XZU30#,314,324,33#,34#,354

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
47371-37040
90119-08676
90179-08038
90179-10065
90464-00549
90466-15003
90480-22022
91611-B0816
94130-00802
96132-40700
96133-41500
Linked diagrams
4702
8414

ILLUST NO. 1 OF 2(0406- )CNG,DCR,DCRL,DSL,DSLL,LPG

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
47371-37040
90119-08676
90179-08038
90179-10065
90461-08642
90464-00549
90466-15003
90480-22022
91611-B0816
94130-00802
96132-40700
96133-41500
