Toyota Dyna/toyoace XZU304 POWER TAKE-OFF CASE & GEAR

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
XZU304H-PKTQL4 (2004)
3602 - POWER TAKE-OFF CASE & GEAR

XZU304H-PKTQL4 (2004)

Toyota Dyna/Toyoace

Production Jun 2004 - Oct 2006

Engine N04C

Transmission 6FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0406- )XZU304,334..DCRL,DSLL..CBU,IV3 ; (0406- )XZU301,305,306,331,336,341,3

Click highlighted areas on diagram

ﾊﾞｷｭｰﾑｼｷ25KG

Part #	Description	Period	Qty
36718 - GEAR, POWER TAKE-OFF IDLER
36718-37150	XZU304,334,378..IV4,IV7	06/2004 - 02/2006	1
36718-37151	XZU304,334,378..IV4,IV7	02/2006 - 10/2006	1
36728 - SHAFT, POWER TAKE-OFF IDLER
36728-37050	XZU304,334,378..IV4,IV7	06/2004 - 10/2006	1
Common parts
84210-12040
90031-19132
90031-70107
90033-87011
90101-08156
90119-08124
90119-10372
90179-14066
90201-08091
90201-15011
90407-51002
90501-29040
92132-81025
94130-61000
94512-01000
94531-01400

ILLUST NO. 1 OF 2(0406- )XZU368..DM5 ; (0406- )XZU304,334..5F..DSL ; (0406- )RZU30#,340,XZU

Click highlighted areas on diagram

ﾊﾞｷｭｰﾑｼｷ15KG

Part #	Description	Period	Qty
36718 - GEAR, POWER TAKE-OFF IDLER
36718-37150	XZU304,334,378..IV4,IV7	06/2004 - 02/2006	1
36718-37151	XZU304,334,378..IV4,IV7	02/2006 - 10/2006	1
36728 - SHAFT, POWER TAKE-OFF IDLER
36728-37050	XZU304,334,378..IV4,IV7	06/2004 - 10/2006	1
Common parts
82716-37480
90031-70107
90032-01147
90101-08156
90116-10103
90119-08124
90179-14066
90201-08091
90201-15011
90214-14001
90389-25003
90407-51002
90501-29040
94130-61000
94512-01000
94531-01400
Linked diagrams

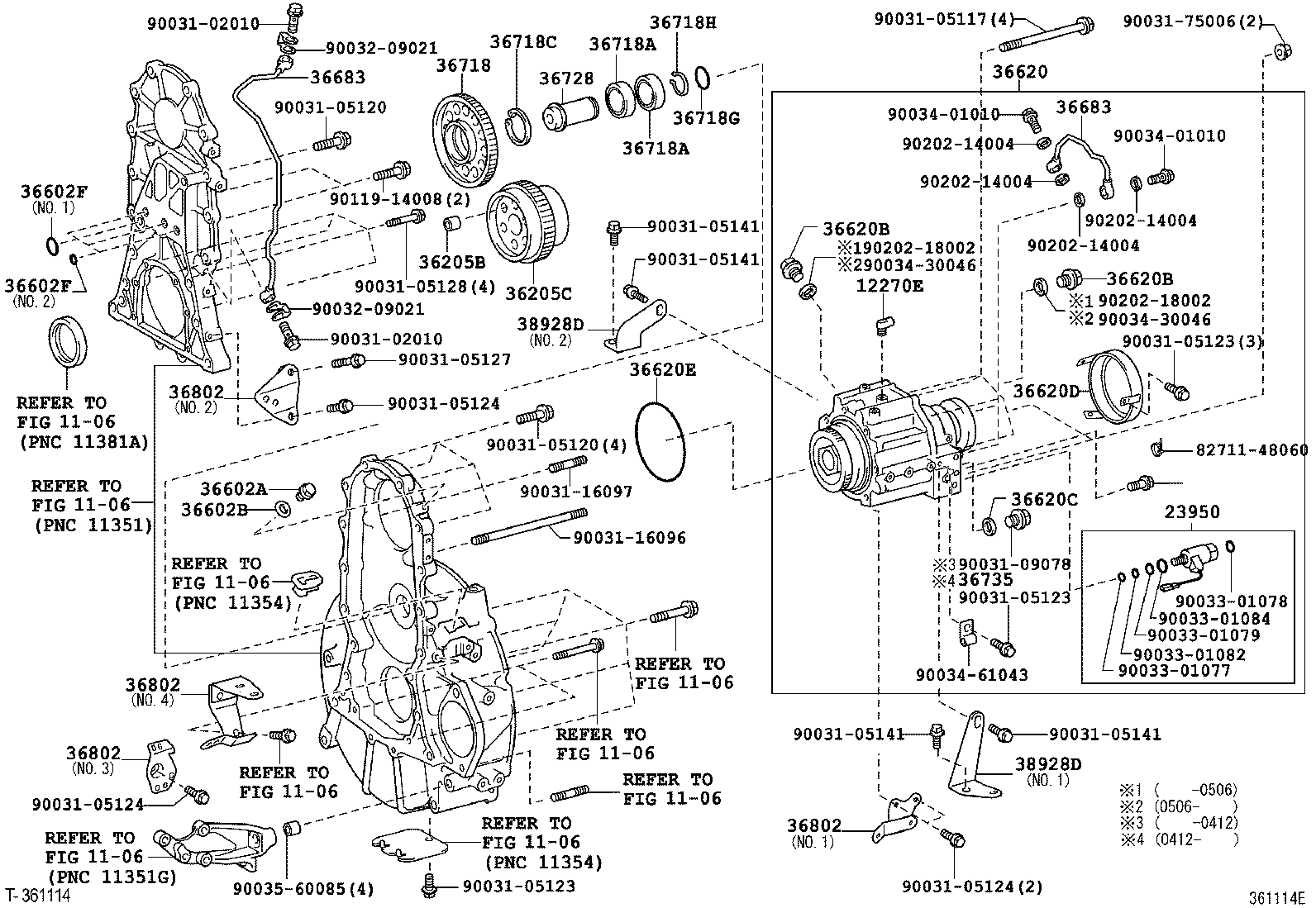

8413

(0406- )IV4

Click highlighted areas on diagram

Part #	Description	Period	Qty
12270E - SEPARATOR ASSY, OIL
12270-78020	N04C..XZU304,334,378..IV4	06/2004 - 10/2006	1
23950 - VALVE ASSY, SOLENOID(FOR POWER TAKE-OFF)
23950-78020	N04C..XZU304,334,378..IV4	06/2004 - 10/2006	1
36205B - COLLAR(FOR SPROCKET TRANSFER DRIVE)
90387-14013	XZU304,334,378..IV4,IV7	06/2004 - 10/2006	1
36205C - GEAR SUB-ASSY, POWER TAKE-OFF DRIVE
36205-37010	XZU304,334,378..IV4,IV7	06/2004 - 11/2005	1
36205-37012	XZU304,334,378..IV4,IV7	02/2006 - 10/2006	1
36205-37011	XZU304,334,378..IV4,IV7	11/2005 - 02/2006	1
36602A - PLUG (FOR CENTER POWER TAKE-OFF CASE)
90033-41027	XZU304,334,378..IV4,IV7	06/2004 - 10/2006	2
36602B - GASKET (FOR CENTER POWER TAKE-OFF CASE)
90034-30043	XZU304,334,378..IV4,IV7	06/2004 - 10/2006	2
36602F - RING, O(FOR CENTER POWER TAKE-OFF CASE)
90033-01086	XZU304,334,378..IV4,IV7 NO.1	06/2004 - 10/2006	1
90033-01089	XZU304,334,378..IV4,IV7 NO.2	06/2004 - 10/2006	3
36602F - RING, O(FOR CENTER POWER TAKE-OFF CASE)
90033-01086	XZU304,334,378..IV4,IV7 NO.1	06/2004 - 10/2006	1
90033-01089	XZU304,334,378..IV4,IV7 NO.2	06/2004 - 10/2006	3
36620 - POWER TAKE-OFF ASSY, CENTER
36620-37161	XZU304,334,378..IV4 ﾄﾞﾘﾌﾞﾝｷﾞﾔﾊｶｽﾞ= 53	06/2004 - 12/2004	1
36620-37163	XZU304,334,378..IV4 ﾄﾞﾘﾌﾞﾝｷﾞﾔﾊｶｽﾞ= 53	06/2005 - 02/2006	1
36620-37173	XZU304,334,378..IV4 ﾄﾞﾘﾌﾞﾝｷﾞﾔﾊｶｽﾞ= 47	06/2005 - 02/2006	1
36620-37172	XZU304,334,378..IV4 ﾄﾞﾘﾌﾞﾝｷﾞﾔﾊｶｽﾞ= 47	12/2004 - 06/2005	1
36620-37171	XZU304,334,378..IV4 ﾄﾞﾘﾌﾞﾝｷﾞﾔﾊｶｽﾞ= 47	06/2004 - 12/2004	1
36620-37174	XZU304,334,378..IV4 ﾄﾞﾘﾌﾞﾝｷﾞﾔﾊｶｽﾞ= 47	02/2006 - 05/2006	1
36620-37162	XZU304,334,378..IV4 ﾄﾞﾘﾌﾞﾝｷﾞﾔﾊｶｽﾞ= 53	12/2004 - 06/2005	1
36620-37164	XZU304,334,378..IV4 ﾄﾞﾘﾌﾞﾝｷﾞﾔﾊｶｽﾞ= 53	02/2006 - 05/2006	1
36620-37165	XZU304,334,378..IV4 ﾄﾞﾘﾌﾞﾝｷﾞﾔﾊｶｽﾞ= 53	05/2006 - 10/2006	1
36620-37175	XZU304,334,378..IV4 ﾄﾞﾘﾌﾞﾝｷﾞﾔﾊｶｽﾞ= 47	05/2006 - 10/2006	1
36620B - PLUG(FOR POWER TAKE-OFF)
90033-41020	XZU304,334,378..IV4	06/2004 - 10/2006	2
36620B - PLUG(FOR POWER TAKE-OFF)
90033-41020	XZU304,334,378..IV4	06/2004 - 10/2006	2
36620C - GASKET(FOR POWER TAKE-OFF)
90034-30032	XZU304,334,378..IV4	06/2004 - 05/2006	1
36620D - SHROUD SUB-ASSY, FAN(FOR POWER TAKE-OFF)
16701-78050	XZU304,334,378..IV4	06/2004 - 10/2006	1
36620E - RING,O (FOR POWER TAKE-OFF)
90033-01062	XZU304,334,378..IV4	06/2004 - 10/2006	1
36683 - TUBE, POWER TAKE-OFF LUBRICATION
36683-37070	XZU304,334,378..IV4 NO.2	06/2004 - 10/2006	1
36683-37040	XZU304,334,378..IV4 ﾄﾞﾘﾌﾞﾝｷﾞﾔﾊｶｽﾞ= 53,NO.1	06/2004 - 10/2006	1
36683-37051	XZU304,334,378..IV4 ﾄﾞﾘﾌﾞﾝｷﾞﾔﾊｶｽﾞ= 47,NO.1	06/2004 - 10/2006	1
36683 - TUBE, POWER TAKE-OFF LUBRICATION
36683-37070	XZU304,334,378..IV4 NO.2	06/2004 - 10/2006	1
36683-37040	XZU304,334,378..IV4 ﾄﾞﾘﾌﾞﾝｷﾞﾔﾊｶｽﾞ= 53,NO.1	06/2004 - 10/2006	1
36683-37051	XZU304,334,378..IV4 ﾄﾞﾘﾌﾞﾝｷﾞﾔﾊｶｽﾞ= 47,NO.1	06/2004 - 10/2006	1
36718 - GEAR, POWER TAKE-OFF IDLER
36718-37150	XZU304,334,378..IV4,IV7	06/2004 - 02/2006	1
36718-37151	XZU304,334,378..IV4,IV7	02/2006 - 10/2006	1
36718A - BEARING(FOR POWER TAKE-OFF IDLER GEAR FRONT)
90033-60025	XZU304,334,378..IV4,IV7	06/2004 - 10/2006	2
36718A - BEARING(FOR POWER TAKE-OFF IDLER GEAR FRONT)
90033-60025	XZU304,334,378..IV4,IV7	06/2004 - 10/2006	2
36718C - RING, HOLE SNAP(FOR POWER TAKE-OFF IDLER GEAR)
90035-21032	XZU304,334,378..IV4,IV7	06/2004 - 10/2006	1
36718G - RING, O(FOR POWER TAKE-OFF IDLE GEAR)
90033-01087	XZU304,334,378..IV4,IV7	06/2004 - 10/2006	1
36718H - RING, SHAFT SNAP(FOR POWER TAKE-OFF IDLE GEAR)
90035-20027	XZU304,334,378..IV4,IV7	06/2004 - 10/2006	1
36728 - SHAFT, POWER TAKE-OFF IDLER
36728-37050	XZU304,334,378..IV4,IV7	06/2004 - 10/2006	1
36735 - STOPPER, POWER TAKE-OFF CLUTCH KEY
36735-37010	XZU304,334,378..IV4	12/2004 - 05/2006	1
36802 - BRACKET SUB-ASSY, POWER TAKE-OFF CABLE
36802-37040	XZU304,334,378..IV4 NO.4	06/2004 - 10/2006	1
36802-37020	XZU304,334,378..IV4 NO.2	06/2004 - 10/2006	1
36802-37010	XZU304,334,378..IV4 NO.1	06/2004 - 10/2006	1
36802-37030	XZU304,334,378..IV4 NO.3	06/2004 - 10/2006	1
36802 - BRACKET SUB-ASSY, POWER TAKE-OFF CABLE
36802-37040	XZU304,334,378..IV4 NO.4	06/2004 - 10/2006	1
36802-37020	XZU304,334,378..IV4 NO.2	06/2004 - 10/2006	1
36802-37010	XZU304,334,378..IV4 NO.1	06/2004 - 10/2006	1
36802-37030	XZU304,334,378..IV4 NO.3	06/2004 - 10/2006	1
36802 - BRACKET SUB-ASSY, POWER TAKE-OFF CABLE
36802-37010	XZU304,334,378..IV4 NO.1	06/2004 - 10/2006	1
36802-37040	XZU304,334,378..IV4 NO.4	06/2004 - 10/2006	1
36802-37020	XZU304,334,378..IV4 NO.2	06/2004 - 10/2006	1
36802-37030	XZU304,334,378..IV4 NO.3	06/2004 - 10/2006	1
36802 - BRACKET SUB-ASSY, POWER TAKE-OFF CABLE
36802-37010	XZU304,334,378..IV4 NO.1	06/2004 - 10/2006	1
36802-37040	XZU304,334,378..IV4 NO.4	06/2004 - 10/2006	1
36802-37020	XZU304,334,378..IV4 NO.2	06/2004 - 10/2006	1
36802-37030	XZU304,334,378..IV4 NO.3	06/2004 - 10/2006	1
38928D - BRACKET, POWER TAKE-OFF PROTECTOR NO.1
38928-37011	XZU304,334,378..IV4 NO.1	06/2004 - 10/2006	1
38928-37020	XZU304,334,378..IV4 NO.2	06/2004 - 10/2006	1
38928D - BRACKET, POWER TAKE-OFF PROTECTOR NO.1
38928-37011	XZU304,334,378..IV4 NO.1	06/2004 - 10/2006	1
38928-37020	XZU304,334,378..IV4 NO.2	06/2004 - 10/2006	1
Common parts
82711-48060
90031-02010
90031-05117
90031-05120
90031-05123
90031-05124
90031-05127
90031-05128
90031-05141
90031-09078
90031-16096
90031-16097
90031-75006
90032-09021
90033-01077
90033-01078
90033-01079
90033-01082
90033-01084
90034-01010
90034-30046
90034-61043
90035-60085
90119-14008
90202-14004
90202-18002
Linked diagrams
1106

(0406-0610)6FC

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90170-10018
90462-10082
91551-80612
91551-80816
94531-01000

(0406-0610)XZU404,414..40T..IV3 ; (0501-0610)XZU414..T3..35T..IV3 ; (0610- )DM7,

Click highlighted areas on diagram

ﾏﾆｭｱﾙﾚﾊﾞｰｼｷ20KG

Part #	Description	Period	Qty	Price
Common parts
90031-16079
94130-61000
94512-01000
SU002-00719
SU002-00731
SU002-00737
SU002-00786
SU002-00861
SU002-00863

ILLUST NO. 2 OF 2(0406-0610)DCB ; (0610- )DCB..5F

Click highlighted areas on diagram

ﾊﾞｷｭｰﾑｼｷ 25KG

Part #	Description	Period	Qty	Price
Common parts
47371-37040
90119-08676
91641-80818
91645-80825
94130-00802
96133-41500
