XZU304H-PKTQL4 (2004)
Toyota Dyna/Toyoace

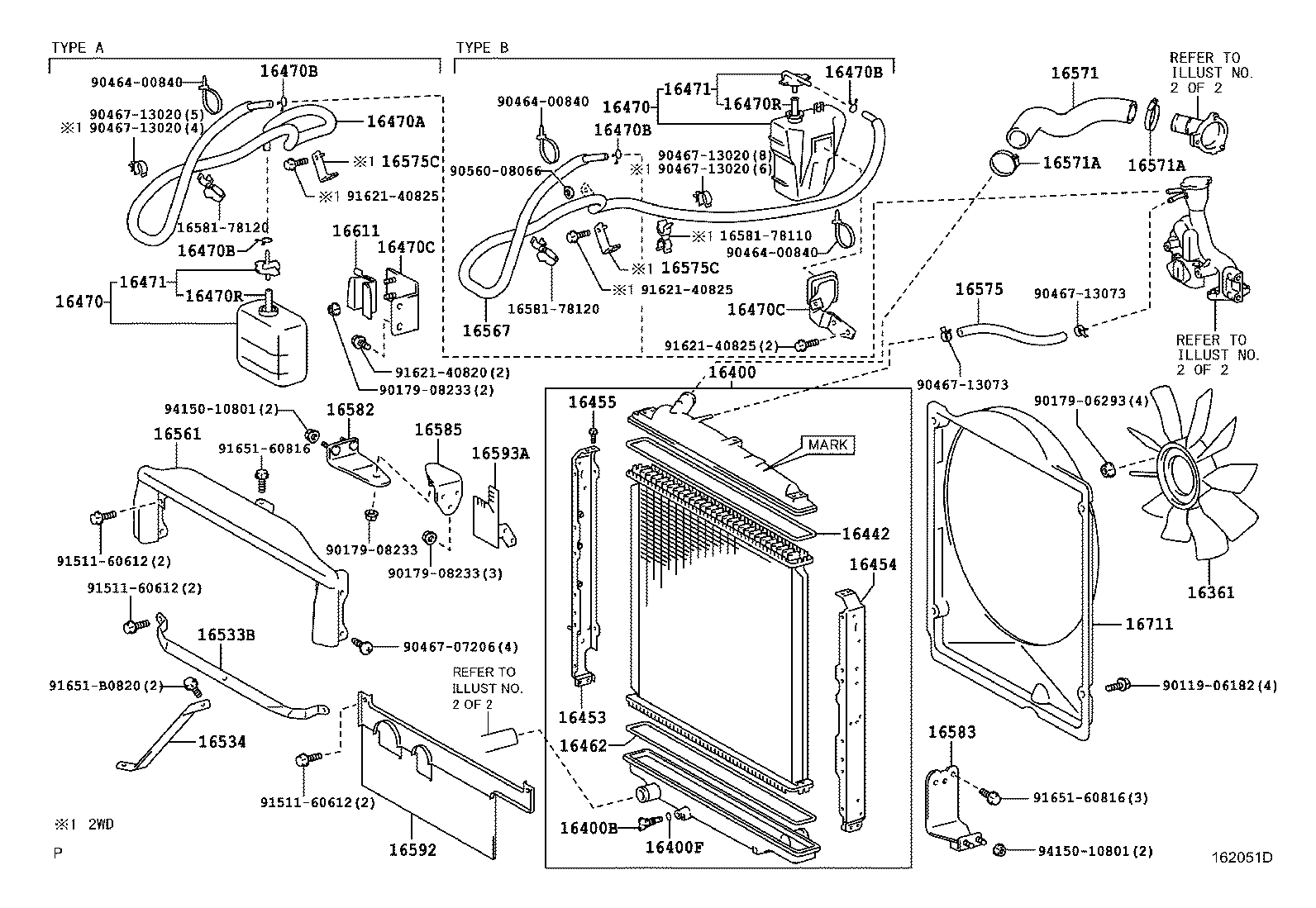

ILLUST NO. 1 OF 2(0406-0610)N04C..XZU304,308,334,338,348,368,378,388..DSL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-78050 |
N04C..XZU304,308,334,338,348,368,378,388..DSL |
1 | ||
| 16361-78100 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-78390 |
N04C..XZU304,334..6FC ﾏｰｸ=7839 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,305,306,308,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,305,306,308,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-78080 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,305,306,308,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16453 - PLATE, RADIATOR SIDE | ||||
| 16453-78281 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-78281 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,305,306,308,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 16455-67020 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,305,306,308,31#,321,33#,34#,35#,368,378,388 |
8 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16442-78080 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,305,306,308,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-78040 |
N04C..XZU304,334,378..IV4 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16470-78020 |
N04C..XZU304,334,378..IV4 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-78040 |
N04C..XZU304,334,378..IV4 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16470-78020 |
N04C..XZU304,334,378..IV4 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-78260 |
N04C..XZU304,334..IV4 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16567-78200 |
N04C..XZU304,334..IV4 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-78260 |
N04C..XZU304,334..IV4 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16567-78200 |
N04C..XZU304,334..IV4 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
N04C..XZU378..IV4;N04C,S05D..XZU306,308,346,378,388..SCB;N04C,S05D..XZU301,304,305,31#,321,33#,341,344,348,35#,368..20T,30T,35T,40T |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
N04C..XZU378..IV4;N04C,S05D..XZU306,308,346,378,388..SCB;N04C,S05D..XZU301,304,305,31#,321,33#,341,344,348,35#,368..20T,30T,35T,40T |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
N04C..XZU378..IV4;N04C,S05D..XZU306,308,346,378,388..SCB;N04C,S05D..XZU301,304,305,31#,321,33#,341,344,348,35#,368..20T,30T,35T,40T |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
N04C..XZU378..IV4;N04C,S05D..XZU306,308,346,378,388..SCB;N04C,S05D..XZU301,304,305,31#,321,33#,341,344,348,35#,368..20T,30T,35T,40T |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
N04C..XZU378..IV4;N04C,S05D..XZU306,308,346,378,388..SCB;N04C,S05D..XZU301,304,305,31#,321,33#,341,344,348,35#,368..20T,30T,35T,40T |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
N04C..XZU378..IV4;N04C,S05D..XZU306,308,346,378,388..SCB;N04C,S05D..XZU301,304,305,31#,321,33#,341,344,348,35#,368..20T,30T,35T,40T |
2 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
N04C,S05D..XZU304,306,308,334,346,378,388..DCB,VAN *H,L=180 |
1 | ||
| 90445-12078 |
N04C..XZU304,334,378..IV4 *H,L=150 |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
N04C,S05D..XZU304,306,308,334,346,378,388..DCB,VAN *H,L=180 |
1 | ||
| 90445-12078 |
N04C..XZU304,334,378..IV4 *H,L=150 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-78020 |
N04C..XZU304,334,378..IV4 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16405-78040 |
N04C..XZU304,334,378..IV4 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-78020 |
N04C..XZU304,334,378..IV4 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16405-78040 |
N04C..XZU304,334,378..IV4 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16533B - SUPPORT, RADIATOR, NO.1 | ||||
| 16533-78050 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16534 - SUPPORT, RADIATOR, NO.2 | ||||
| 16534-78060 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-78060 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-78120 |
N04C..XZU304,305,308,314,334,338,344,348,354 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-55014 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 90460-55014 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 16581-78140 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-55014 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 90460-55014 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 16581-78140 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 16575 - HOSE, RADIATOR, NO.5 | ||||
| 16575-78040 |
N04C..XZU304,305,308,314,334,338,344,348,354 |
1 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-78060 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16583 - BRACKET, RADIATOR, NO.2 | ||||
| 16583-78060 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16583-78061 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16585 - BRACKET, RADIATOR, NO.3 | ||||
| 16585-78060 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-78100 |
N04C..XZU304,305,308,314,334,338,344,348,354 |
1 | ||
| Common parts | ||||
| 16581-78120 | ||||
| 90119-06182 | ||||
| 90179-06293 | ||||
| 90179-08233 | ||||
| 90179-08249 | ||||
| 90464-00840 | ||||
| 90467-07206 | ||||
| 90467-13020 | ||||
| 90467-13073 | ||||
| 91511-60612 | ||||
| 91621-40816 | ||||
| 91651-60816 | ||||
| 91651-B0820 | ||||
| 91651-B0822 | ||||
| 94150-10801 | ||||
ILLUST NO. 1 OF 2(0406-0610)N04C..XZU304,334,378..IV4
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-78050 |
N04C..XZU304,308,334,338,348,368,378,388..DSL |
1 | ||
| 16361-78100 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-78390 |
N04C..XZU304,334..6FC ﾏｰｸ=7839 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,305,306,308,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,305,306,308,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-78080 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,305,306,308,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16453 - PLATE, RADIATOR SIDE | ||||
| 16453-78281 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-78281 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,305,306,308,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 16455-67020 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,305,306,308,31#,321,33#,34#,35#,368,378,388 |
8 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16442-78080 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,305,306,308,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-78040 |
N04C..XZU304,334,378..IV4 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16470-78020 |
N04C..XZU304,334,378..IV4 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-78040 |
N04C..XZU304,334,378..IV4 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16470-78020 |
N04C..XZU304,334,378..IV4 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-78260 |
N04C..XZU304,334..IV4 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16567-78200 |
N04C..XZU304,334..IV4 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
N04C..XZU378..IV4;N04C,S05D..XZU306,308,346,378,388..SCB;N04C,S05D..XZU301,304,305,31#,321,33#,341,344,348,35#,368..20T,30T,35T,40T |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
N04C..XZU378..IV4;N04C,S05D..XZU306,308,346,378,388..SCB;N04C,S05D..XZU301,304,305,31#,321,33#,341,344,348,35#,368..20T,30T,35T,40T |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
N04C..XZU378..IV4;N04C,S05D..XZU306,308,346,378,388..SCB;N04C,S05D..XZU301,304,305,31#,321,33#,341,344,348,35#,368..20T,30T,35T,40T |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
N04C..XZU378..IV4;N04C,S05D..XZU306,308,346,378,388..SCB;N04C,S05D..XZU301,304,305,31#,321,33#,341,344,348,35#,368..20T,30T,35T,40T |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16402-78010 |
N04C..XZU304,334,378..IV4 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 53261-37030 |
N04C..XZU304,334,378..IV4 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16402-78010 |
N04C..XZU304,334,378..IV4 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 53261-37030 |
N04C..XZU304,334,378..IV4 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
N04C,S05D..XZU304,306,308,334,346,378,388..DCB,VAN *H,L=180 |
1 | ||
| 90445-12078 |
N04C..XZU304,334,378..IV4 *H,L=150 |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
N04C,S05D..XZU304,306,308,334,346,378,388..DCB,VAN *H,L=180 |
1 | ||
| 90445-12078 |
N04C..XZU304,334,378..IV4 *H,L=150 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-78020 |
N04C..XZU304,334,378..IV4 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16405-78040 |
N04C..XZU304,334,378..IV4 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-78020 |
N04C..XZU304,334,378..IV4 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16405-78040 |
N04C..XZU304,334,378..IV4 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16533B - SUPPORT, RADIATOR, NO.1 | ||||
| 16533-78050 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16534 - SUPPORT, RADIATOR, NO.2 | ||||
| 16534-78060 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-78060 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-78120 |
N04C..XZU304,305,308,314,334,338,344,348,354 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-55014 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 90460-55014 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 16581-78140 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-55014 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 90460-55014 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 16581-78140 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 16575 - HOSE, RADIATOR, NO.5 | ||||
| 16575-78040 |
N04C..XZU304,305,308,314,334,338,344,348,354 |
1 | ||
| 16575C - BRACKET, WATER HOSE CLAMP, NO.1 | ||||
| 16575-78080 |
N04C..XZU304,334..IV4 |
1 | ||
| 16575C - BRACKET, WATER HOSE CLAMP, NO.1 | ||||
| 16575-78080 |
N04C..XZU304,334..IV4 |
1 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-78060 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16583 - BRACKET, RADIATOR, NO.2 | ||||
| 16583-78060 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16583-78061 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16585 - BRACKET, RADIATOR, NO.3 | ||||
| 16585-78060 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16592 - GUIDE, RADIATOR AIR, NO.3 | ||||
| 16592-78020 |
N04C..XZU304,334,378..IV4 |
1 | ||
| 16593A - GUIDE, RADIATOR AIR, NO.1 RH | ||||
| 16593-78090 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL |
1 | ||
| 16593-78091 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL |
1 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-61020 |
N04C..XZU304,334,378..IV4 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-78100 |
N04C..XZU304,305,308,314,334,338,344,348,354 |
1 | ||
| Common parts | ||||
| 16581-78110 | ||||
| 16581-78120 | ||||
| 90119-06182 | ||||
| 90179-06293 | ||||
| 90179-08233 | ||||
| 90464-00840 | ||||
| 90467-07206 | ||||
| 90467-13020 | ||||
| 90467-13073 | ||||
| 90560-08066 | ||||
| 91511-60612 | ||||
| 91621-40820 | ||||
| 91621-40825 | ||||
| 91651-60816 | ||||
| 91651-B0820 | ||||
| 94150-10801 | ||||
ILLUST NO. 1 OF 2(0406- )N04C..XZU304,305..20T..DCRL..1NO ; (0406- )N04C..XZU304,314,344,354..
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-78050 |
N04C..XZU304,308,334,338,348,368,378,388..DSL |
1 | ||
| 16361-78100 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-78390 |
N04C..XZU304,334..6FC ﾏｰｸ=7839 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,305,306,308,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,305,306,308,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-78080 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,305,306,308,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16453 - PLATE, RADIATOR SIDE | ||||
| 16453-78281 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-78281 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,305,306,308,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 16455-67020 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,305,306,308,31#,321,33#,34#,35#,368,378,388 |
8 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16442-78080 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,305,306,308,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-78040 |
N04C..XZU304,334,378..IV4 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16470-78020 |
N04C..XZU304,334,378..IV4 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-78040 |
N04C..XZU304,334,378..IV4 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16470-78020 |
N04C..XZU304,334,378..IV4 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-78260 |
N04C..XZU304,334..IV4 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16567-78200 |
N04C..XZU304,334..IV4 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-78260 |
N04C..XZU304,334..IV4 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16567-78200 |
N04C..XZU304,334..IV4 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
N04C..XZU378..IV4;N04C,S05D..XZU306,308,346,378,388..SCB;N04C,S05D..XZU301,304,305,31#,321,33#,341,344,348,35#,368..20T,30T,35T,40T |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
N04C..XZU378..IV4;N04C,S05D..XZU306,308,346,378,388..SCB;N04C,S05D..XZU301,304,305,31#,321,33#,341,344,348,35#,368..20T,30T,35T,40T |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
N04C..XZU378..IV4;N04C,S05D..XZU306,308,346,378,388..SCB;N04C,S05D..XZU301,304,305,31#,321,33#,341,344,348,35#,368..20T,30T,35T,40T |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
N04C..XZU378..IV4;N04C,S05D..XZU306,308,346,378,388..SCB;N04C,S05D..XZU301,304,305,31#,321,33#,341,344,348,35#,368..20T,30T,35T,40T |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
N04C..XZU378..IV4;N04C,S05D..XZU306,308,346,378,388..SCB;N04C,S05D..XZU301,304,305,31#,321,33#,341,344,348,35#,368..20T,30T,35T,40T |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
N04C..XZU378..IV4;N04C,S05D..XZU306,308,346,378,388..SCB;N04C,S05D..XZU301,304,305,31#,321,33#,341,344,348,35#,368..20T,30T,35T,40T |
2 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
N04C,S05D..XZU304,306,308,334,346,378,388..DCB,VAN *H,L=180 |
1 | ||
| 90445-12078 |
N04C..XZU304,334,378..IV4 *H,L=150 |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
N04C,S05D..XZU304,306,308,334,346,378,388..DCB,VAN *H,L=180 |
1 | ||
| 90445-12078 |
N04C..XZU304,334,378..IV4 *H,L=150 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-78020 |
N04C..XZU304,334,378..IV4 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16405-78040 |
N04C..XZU304,334,378..IV4 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-78020 |
N04C..XZU304,334,378..IV4 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16405-78040 |
N04C..XZU304,334,378..IV4 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16533B - SUPPORT, RADIATOR, NO.1 | ||||
| 16533-78050 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16534 - SUPPORT, RADIATOR, NO.2 | ||||
| 16534-78060 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-78060 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-78120 |
N04C..XZU304,305,308,314,334,338,344,348,354 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-55014 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 90460-55014 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 16581-78140 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-55014 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 90460-55014 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 16581-78140 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 16575 - HOSE, RADIATOR, NO.5 | ||||
| 16575-78040 |
N04C..XZU304,305,308,314,334,338,344,348,354 |
1 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-78060 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16583 - BRACKET, RADIATOR, NO.2 | ||||
| 16583-78060 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16583-78061 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16585 - BRACKET, RADIATOR, NO.3 | ||||
| 16585-78060 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16592 - GUIDE, RADIATOR AIR, NO.3 | ||||
| 16592-78020 |
N04C..XZU304,334,378..IV4 |
1 | ||
| 16593A - GUIDE, RADIATOR AIR, NO.1 RH | ||||
| 16593-78090 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL |
1 | ||
| 16593-78091 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-78100 |
N04C..XZU304,305,308,314,334,338,344,348,354 |
1 | ||
| Common parts | ||||
| 16581-78120 | ||||
| 90119-06182 | ||||
| 90179-06293 | ||||
| 90179-08233 | ||||
| 90179-08249 | ||||
| 90464-00840 | ||||
| 90467-07206 | ||||
| 90467-13020 | ||||
| 90467-13073 | ||||
| 91511-60612 | ||||
| 91621-40816 | ||||
| 91651-60816 | ||||
| 91651-B0820 | ||||
| 91651-B0822 | ||||
| 94150-10801 | ||||

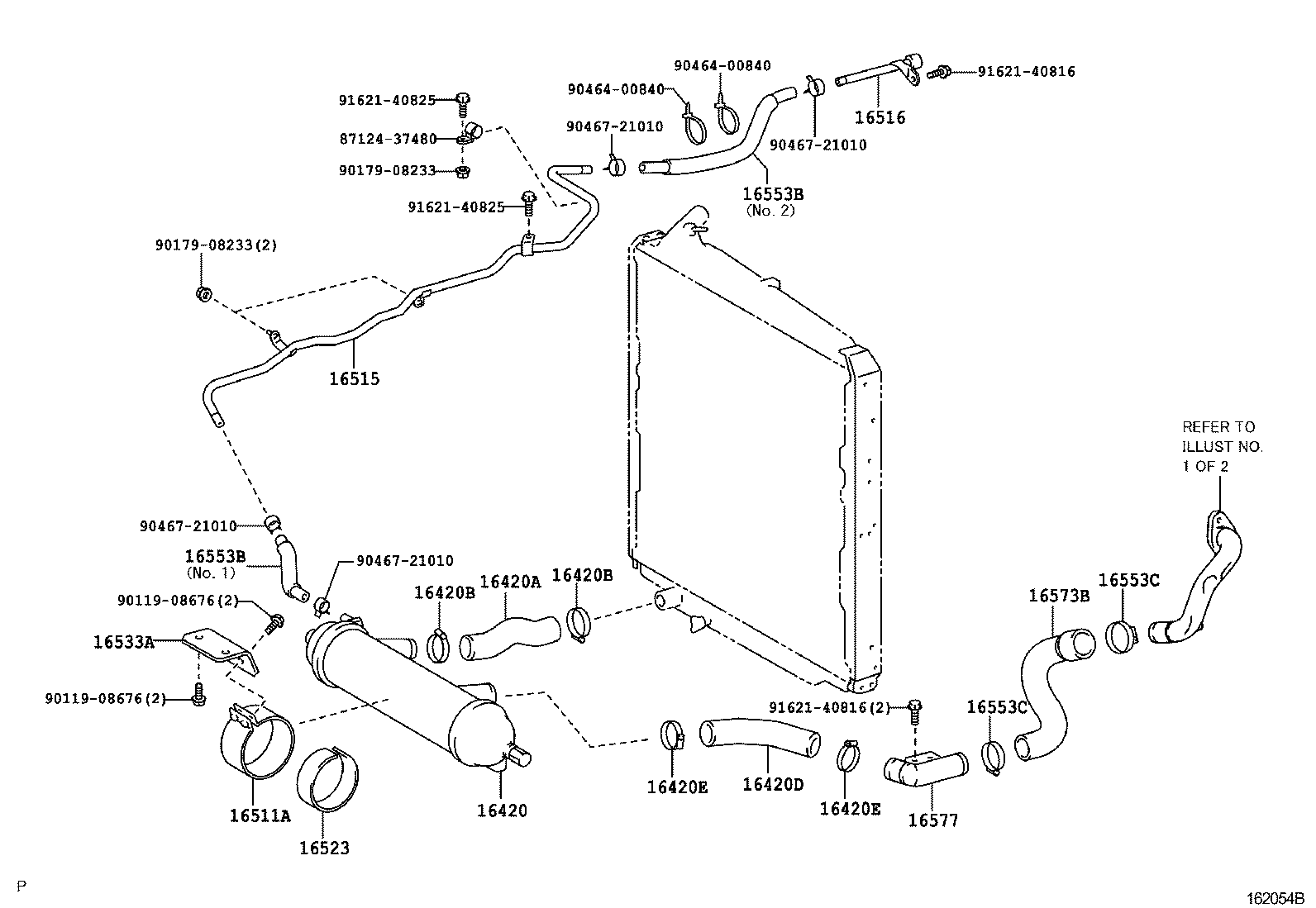

ILLUST NO. 2 OF 2(0406-0610)N04C..XZU304,334..IV4
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16420 - RADIATOR ASSY, SUB | ||||
| 16510-78040 |
N04C..XZU304,334..IV4 |
1 | ||
| 16510-78041 |
N04C..XZU304,334..IV4 |
1 | ||
| 16420A - HOSE, SUB RADIATOR, INLET | ||||
| 16551-78011 |
N04C..XZU304,334,378..IV4 |
1 | ||
| 16420B - CLAMP, SUB RADIATOR INLET HOSE | ||||
| 90460-55014 |
N04C..XZU304,334,378..IV4 |
2 | ||
| 16581-78140 |
N04C..XZU304,334,378..IV4 |
2 | ||
| 90460-55014 |
N04C..XZU304,334,378..IV4 |
2 | ||
| 16420B - CLAMP, SUB RADIATOR INLET HOSE | ||||
| 90460-55014 |
N04C..XZU304,334,378..IV4 |
2 | ||
| 16581-78140 |
N04C..XZU304,334,378..IV4 |
2 | ||
| 90460-55014 |
N04C..XZU304,334,378..IV4 |
2 | ||
| 16420D - HOSE, SUB RADIATOR, NO.2 | ||||
| 16552-78011 |
N04C..XZU304,334,378..IV4 |
1 | ||
| 16420E - CLAMP OR CLIP, SUB RADIATOR HOSE | ||||
| 90460-55014 |
N04C..XZU304,334,378..IV4 |
2 | ||
| 90460-55014 |
N04C..XZU304,334,378..IV4 |
2 | ||
| 16581-78140 |
N04C..XZU304,334,378..IV4 |
2 | ||
| 16420E - CLAMP OR CLIP, SUB RADIATOR HOSE | ||||
| 90460-55014 |
N04C..XZU304,334,378..IV4 |
2 | ||
| 90460-55014 |
N04C..XZU304,334,378..IV4 |
2 | ||
| 16581-78140 |
N04C..XZU304,334,378..IV4 |
2 | ||
| 16511A - BRACKET, SUB-RADIATOR | ||||
| 16511-58010 |
N04C..XZU304,334,378..IV4 |
1 | ||
| 16515 - PIPE, SUB RADIATOR, NO.1 | ||||
| 16515-78020 |
N04C..XZU304,334..IV4 |
1 | ||
| 16516 - PIPE, SUB RADIATOR, NO.2 | ||||
| 16516-78030 |
N04C..XZU304,334,378..IV4 |
1 | ||
| 16523 - CUSHION, SUB-RADIATOR SUPPORT | ||||
| 16523-58010 |
N04C..XZU304,334,378..IV4 |
1 | ||
| 16533A - SUPPORT, SUB-RADIATOR | ||||
| 16533-78060 |
N04C..XZU304,334,378..IV4 |
1 | ||
| 16553B - HOSE, SUB RADIATOR, NO.3 | ||||
| 16553-78060 |
N04C..XZU304,334..IV4 NO.1 |
1 | ||
| 16553-78050 |
N04C..XZU304,334..IV4 NO.2 |
1 | ||
| 16553B - HOSE, SUB RADIATOR, NO.3 | ||||
| 16553-78060 |
N04C..XZU304,334..IV4 NO.1 |
1 | ||
| 16553-78050 |
N04C..XZU304,334..IV4 NO.2 |
1 | ||
| 16553C - CLAMP, HOSE | ||||
| 90460-55014 |
N04C..XZU304,334,378..IV4 |
2 | ||
| 16581-78140 |
N04C..XZU304,334,378..IV4 |
2 | ||
| 90460-55014 |
N04C..XZU304,334,378..IV4 |
2 | ||
| 16553C - CLAMP, HOSE | ||||
| 90460-55014 |
N04C..XZU304,334,378..IV4 |
2 | ||
| 16581-78140 |
N04C..XZU304,334,378..IV4 |
2 | ||
| 90460-55014 |
N04C..XZU304,334,378..IV4 |
2 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-78040 |
N04C..XZU304,334..IV4 |
1 | ||
| 16577 - PIPE, RADIATOR, NO.7 | ||||
| 16577-78040 |
N04C..XZU304,334..IV4 |
1 | ||
| Common parts | ||||
| 87124-37480 | ||||
| 90119-08676 | ||||
| 90179-08233 | ||||
| 90464-00840 | ||||
| 90467-21010 | ||||
| 91621-40816 | ||||
| 91621-40825 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
