XZU304H-PKTQL4 (2004)

Toyota Dyna/Toyoace

Production Jun 2004 - Oct 2006
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0406-0610)N04C..XZU304,334,378..IV4

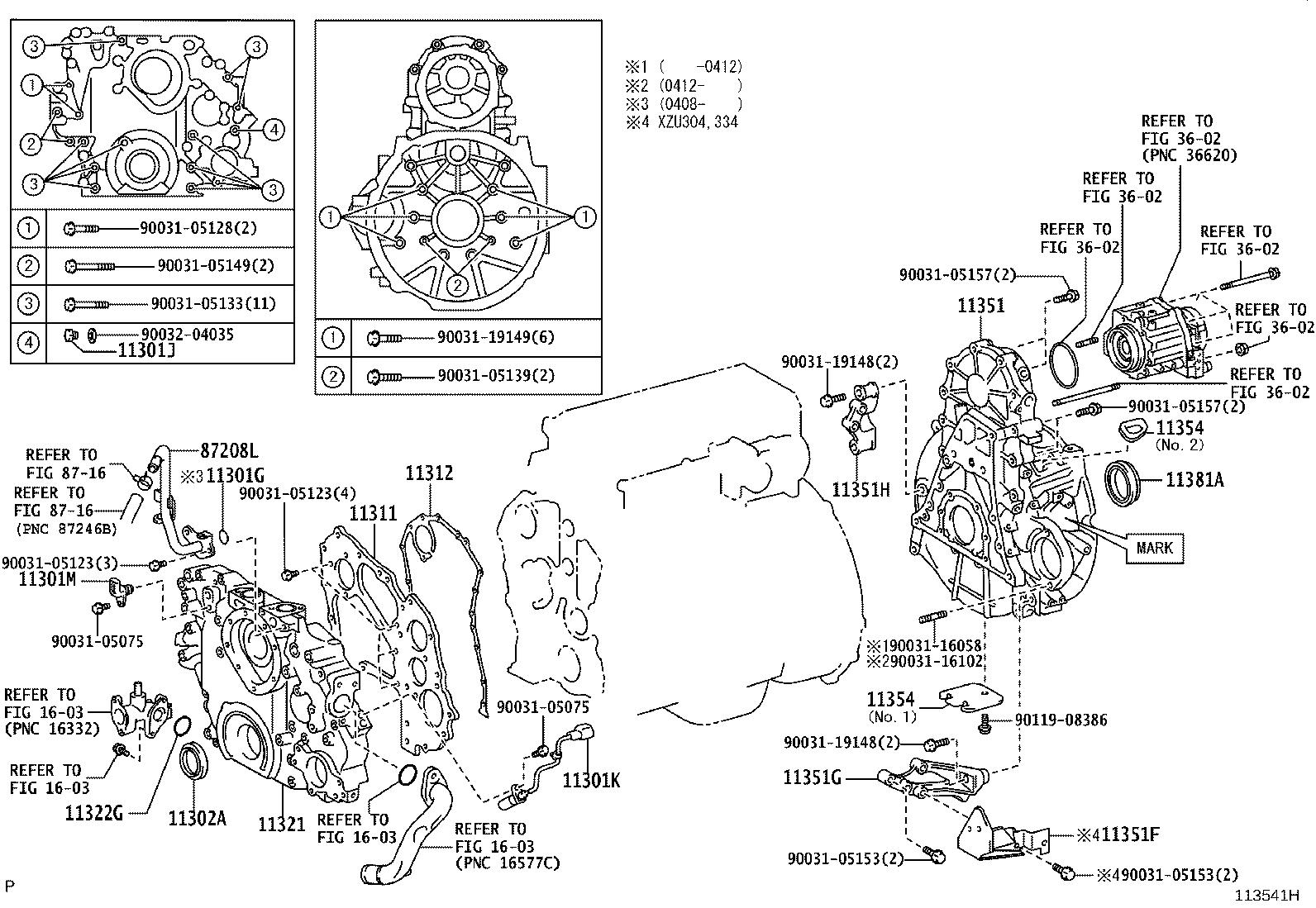

Click highlighted areas on diagram

diagram 11301G 11301J 11301K 11301M 11302A 11311 11312 11321 11322G 11351 11351F 11351G 11351H 11354 11354 11381A 1603 1603 1603 1603 3602 3602 3602 3602 3602 3602 8716 8716 87208L 9003105075 9003105075 9003105123 9003105123 9003105128 9003105133 9003105139 9003105149 9003105153 9003105153 9003105157 9003105157 9003116058 9003116102 9003119148 9003119148 9003119149 9003204035 9011908386
Part # Description Qty Price
11301G - RING, O(FOR TIMING GEAR CASE, UPPER)
90033-01086

N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388

 1
11301J - PLUG, W/HEAD STRAIGHT SCREW(FOR TIMING GEAR CASE)
90033-41004

N04C..XZU304,308,334,338,348,368,378,388..DSL

NO.1

 1
90033-41025

N04C..XZU304,308,334,338,348,368,378,388..DSL

NO.2

 1
90033-41004

N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90033-11040

N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388

 1
11311 - PLATE, FRONT END
11429-78020

N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388

 1
11312 - GASKET, FRONT END PLATE
11312-78011

N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388

 1
11321 - CASE, TIMING GEAR
11321-78086

N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388

 1
11321-78084

N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388

 1
11321-78085

N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388

 1
11321-78083

N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388

 1
11322G - RING, O(FOR TIMING GEAR COVER)
90033-01064

N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388

 1
11351 - HOUSING, FLYWHEEL
36602-37061

N04C..XZU304,334..IV4

ﾏｰｸ B**

 1
36602-37051

N04C..XZU304,334..IV4

ﾏｰｸ A**

 1
11351F - PLATE, STIFFENER, LH(FOR FLYWHEEL HOUSING)
33119-37081

N04C..XZU304,334..IV4

 1
11351G - STAY, LH(FOR FLYWHEEL HOUSING)
11353-78012

N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388

 1
11351H - STAY, RH(FOR FLYWHEEL HOUSING)
11353-78020

N04C..XZU304,334,378..IV4,IV7

 1
11354 - SEAL, FLYWHEEL HOUSING DUST
11354-78070

N04C..XZU304,308,334,338,348..ATM;N04C..XZU304,334,378..5F..(IV4,IV7)

NO.2

 1
11354-78030

N04C..XZU304,334,378..5F..(IV4,IV7);N04C,S05D..XZU301,304,306,308,33#,341,346,348,351..ATM

NO.1

 1
11354 - SEAL, FLYWHEEL HOUSING DUST
11354-78070

N04C..XZU304,308,334,338,348..ATM;N04C..XZU304,334,378..5F..(IV4,IV7)

NO.2

 1
11354-78030

N04C..XZU304,334,378..5F..(IV4,IV7);N04C,S05D..XZU301,304,306,308,33#,341,346,348,351..ATM

NO.1

 1
87208L - PIPE SUB-ASSY, WATER
87208-37420

XZU304,305,308,314,334,338,344,348,354,368,378,388

 1
Common parts
90031-05075
90031-05123
90031-05128
90031-05133
90031-05139
90031-05149
90031-05153
90031-05157
90031-16058
90031-16102
90031-19148
90031-19149
90032-04035
90119-08386
Linked diagrams
1603
3602
8716
