Toyota Dyna/toyoace XZU304 CYLINDER BLOCK

XZU304H-PKTQL4 (2004)

Toyota Dyna/Toyoace

Production Jun 2004 - Oct 2006

Engine N04C

Transmission 6FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(0406-0610)N04C..XZU304,308,334,338,348,368,378,388..DSL

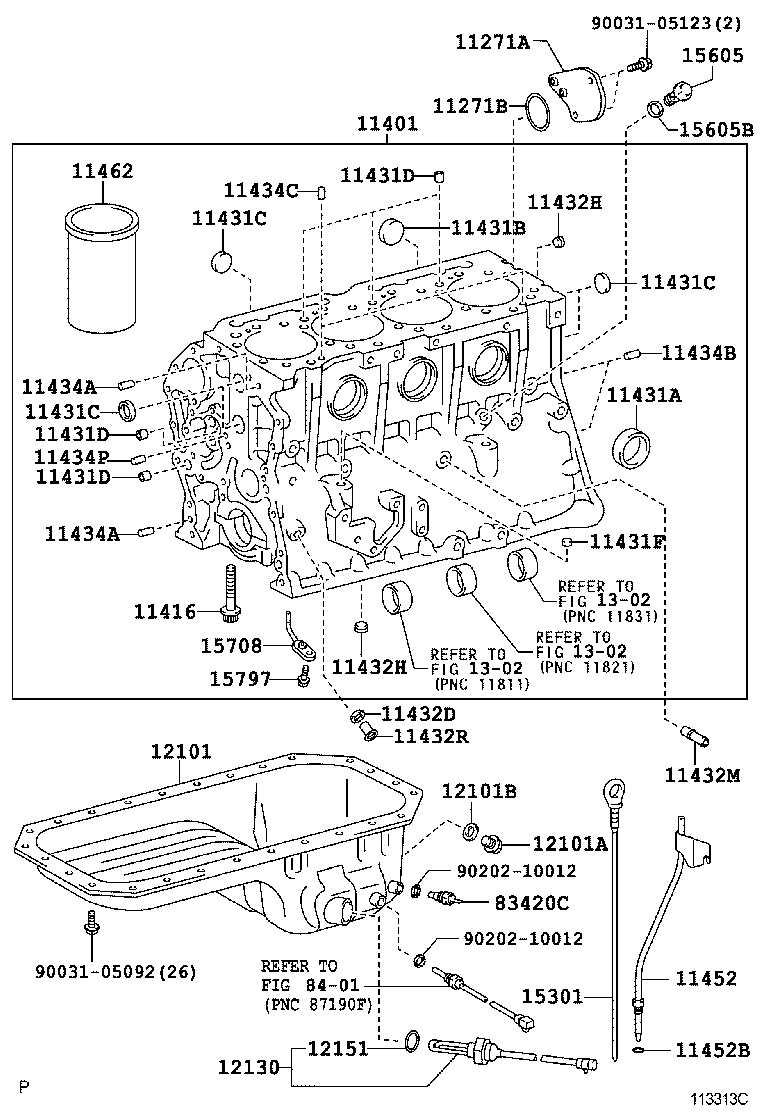

Click highlighted areas on diagram

Part #	Description	Period	Qty
11271A - COVER, CYLINDER BLOCK, REAR
11271-78020	N04C..XZU304,308,334,338,348,368,378,388..DSL	06/2004 - 08/2006	1
11271-78010	N04C..XZU304,308,334,338,348,368,378,388..DSL	08/2006 - 10/2006	1
11271B - RING, O(FOR CYLINDER BLOCK REAR PLATE)
90301-69001	N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388	06/2004 - 12/2999	1
11401 - BLOCK SUB-ASSY, CYLINDER
11401-78180	N04C..XZU304,308,334,338,348,368,378,388..DSL	06/2004 - 10/2006	1
11401-78190	N04C..XZU304,334,378..IV4,IV7	06/2004 - 10/2006	1
11432D - GASKET, W/HEAD TAPER SCREW PLUG
90202-10011	N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388	06/2004 - 12/2999	1
11432M - UNION(FOR CYLINDER BLOCK)
12229-78020	N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388	06/2004 - 12/2999	1
11432R - PLUG, W/HEAD STRAIGHT SCREW, NO.1(FOR CYLINDER BLOCK)
90033-41017	N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388	06/2004 - 12/2999	1
11452 - GUIDE, OIL LEVEL GAGE
11409-78040	N04C..XZU304,308,334,378,388..DCB,VAN	06/2004 - 10/2006	1
11492 - PLATE, WATER SEAL
11492-78010	N04C..XZU304,308,334,338,348,368,378,388..DSL	06/2004 - 10/2006	1
12101 - PAN SUB-ASSY, OIL
12101-78100	N04C..XZU304,334,378..IV4	06/2004 - 10/2006	1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90202-18002	N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 06/2005	1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-78090	N04C..XZU304,308,334,378,388..DCB,VAN	06/2004 - 10/2006	1
15471A - GASKET(FOR CLYINDER BLOCK)
15471-78011	N04C..XZU304,308,334,338,348,368,378,388..DSL	02/2005 - 10/2006	1
15471-78010	N04C..XZU304,308,334,338,348,368,378,388..DSL	06/2004 - 02/2005	1
15605B - GASKET(FOR OIL CHECK VALVE)
90034-30043	N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388	06/2004 - 12/2999	1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
11418-78020	N04C..XZU304,308,334,338,348,368,378,388..DSL	06/2004 - 10/2006	4
Common parts
90031-05092
90031-05123
90031-05124
Linked diagrams
1302

(0406-0610)N04C..XZU304,334,378..IV4

Click highlighted areas on diagram

Part #	Description	Period	Qty
11271A - COVER, CYLINDER BLOCK, REAR
11271-78020	N04C..XZU304,308,334,338,348,368,378,388..DSL	06/2004 - 08/2006	1
11271-78010	N04C..XZU304,308,334,338,348,368,378,388..DSL	08/2006 - 10/2006	1
11271B - RING, O(FOR CYLINDER BLOCK REAR PLATE)
90301-69001	N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388	06/2004 - 12/2999	1
11401 - BLOCK SUB-ASSY, CYLINDER
11401-78180	N04C..XZU304,308,334,338,348,368,378,388..DSL	06/2004 - 10/2006	1
11401-78190	N04C..XZU304,334,378..IV4,IV7	06/2004 - 10/2006	1
11432D - GASKET, W/HEAD TAPER SCREW PLUG
90202-10011	N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388	06/2004 - 12/2999	1
11432M - UNION(FOR CYLINDER BLOCK)
12229-78020	N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388	06/2004 - 12/2999	1
11432R - PLUG, W/HEAD STRAIGHT SCREW, NO.1(FOR CYLINDER BLOCK)
90033-41017	N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388	06/2004 - 12/2999	1
11452 - GUIDE, OIL LEVEL GAGE
11409-78040	N04C..XZU304,308,334,378,388..DCB,VAN	06/2004 - 10/2006	1
12101 - PAN SUB-ASSY, OIL
12101-78100	N04C..XZU304,334,378..IV4	06/2004 - 10/2006	1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90202-18002	N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 06/2005	1
12130 - HEATER ASSY, OIL PAN
12130-78031	N04C..XZU304,334,378..IV4	06/2004 - 10/2006	1
12151 - GASKET, OIL PAN
12151-78040	N04C..XZU304,334,378..IV4	06/2004 - 10/2006	1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-78090	N04C..XZU304,308,334,378,388..DCB,VAN	06/2004 - 10/2006	1
15605B - GASKET(FOR OIL CHECK VALVE)
90034-30043	N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388	06/2004 - 12/2999	1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
11418-78020	N04C..XZU304,308,334,338,348,368,378,388..DSL	06/2004 - 10/2006	4
83420C - GAGE ASSY, WATER TEMPERATURE SENDER
83420-20011	XZU304,334,378..IV4	06/2004 - 05/2005	1
83420-89102	XZU304,334,378..IV4	05/2005 - 10/2006	1
Common parts
90031-05092
90031-05123
90202-10012
Linked diagrams
1302
8401

XZU304H-PKTQL4 (2004)

(0406-0610)N04C..XZU304,308,334,338,348,368,378,388..DSL

(0406-0610)N04C..XZU304,334,378..IV4
