XZU304A-TYTMB6 (2006)

Toyota Dyna/Toyoace

Production Oct 2006 - Jun 2011
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

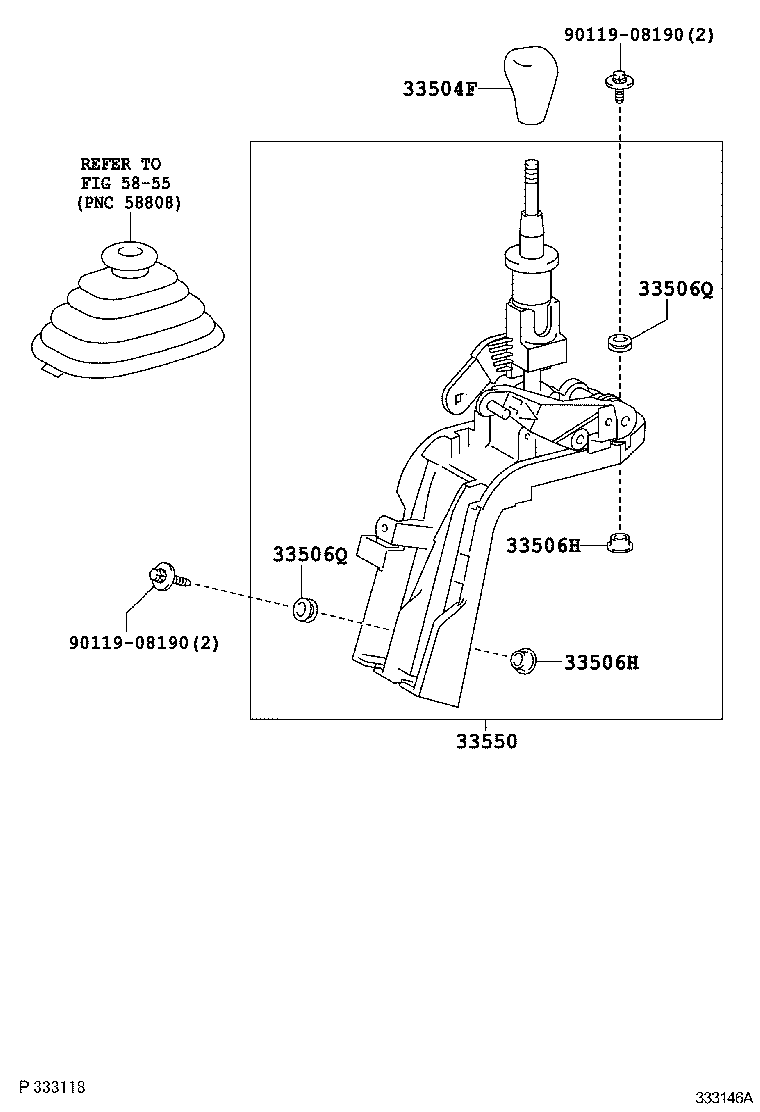

ILLUST NO. 1 OF 2(0610- )XZU378,388..DCB ; (0610- )BZU300,340,TRU300,340,500,XZU30#,314,324,33

Click highlighted areas on diagram

diagram 33504F 33506H 33506H 33506Q 33506Q 33550 5855 9011908190 9011908190
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-37060B0

XZU30#,314,324,33#,34#..6F

DK.CHARCOAL,TRIM1#

 1
33550 - FLOOR SHIFT ASSY, TRANSMISSION
33550-37270B0

XZU30#,314,324,33#,34#..6F

DK.CHARCOAL,TRIM1#

 1
33550-37230B0

XZU30#,33#,34#,354,50#,538,548,554..6FC

MD.CHARCOAL,TRIM1#

 1
Common parts
90119-08190
Linked diagrams
5855

ILLUST NO. 1 OF 2(0610- )6FC

Click highlighted areas on diagram

diagram 33550 33621C 33826A 35902 35902A 9011908C43 9155180816
Part # Description Qty Price
33550 - FLOOR SHIFT ASSY, TRANSMISSION
33550-37270B0

XZU30#,314,324,33#,34#..6F

DK.CHARCOAL,TRIM1#

 1
33550-37230B0

XZU30#,33#,34#,354,50#,538,548,554..6FC

MD.CHARCOAL,TRIM1#

 1
33621C - LABEL, CONTROL LEVER INFORMATION
33621-37050

XZU30#,33#,34#,354,50#,538,548,554..6FC

 1
33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2
33826-37B30

XZU30#,33#,34#,354,50#,538,548,554..6FC

 1
35902 - COVER SUB-ASSY, POSITION INDICATOR HOUSING
35902-37060B0

XZU30#,33#,34#,354,50#,538,548,554..6FC

MD.CHARCOAL,TRIM1#

 1
35902A - CLIP, COVER SUB-ASSY, POSITION INDICATOR HOUSING
90467-07191B0

XZU30#,33#,34#,354,50#,538,548,554..6FC

DK.CHARCOAL,TRIM1#

 1
Common parts
90119-08C43
91551-80816

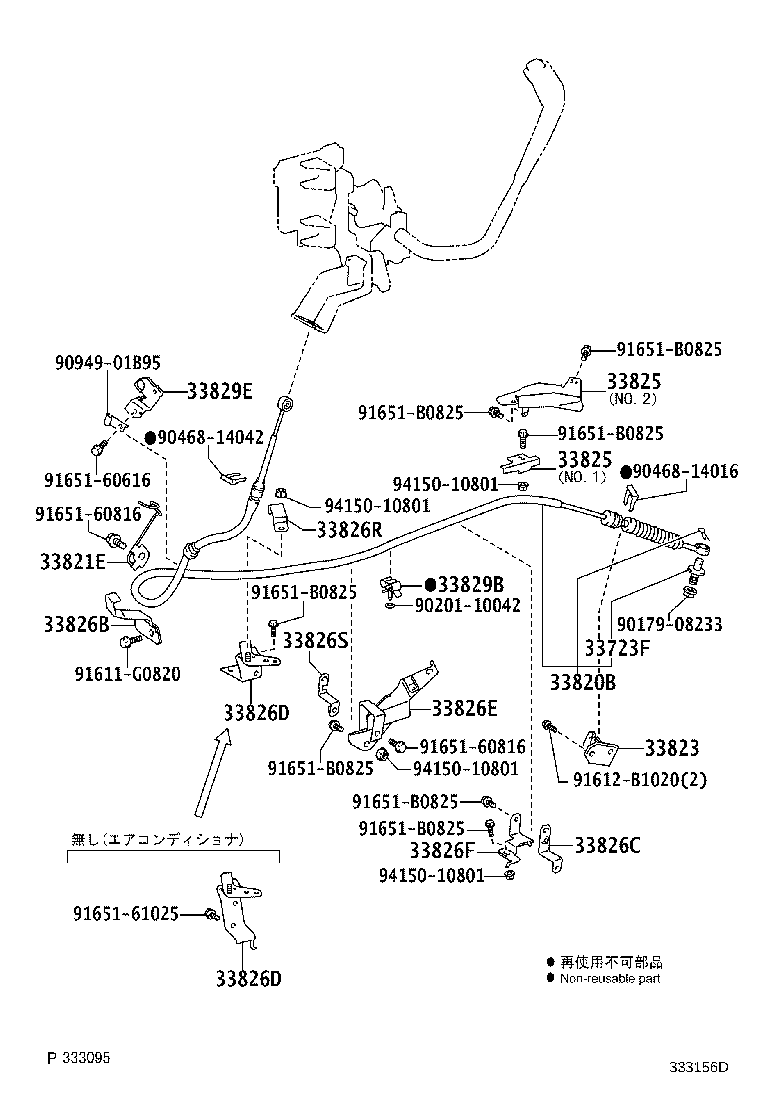

ILLUST NO. 2 OF 2(0610- )6FC..30T..4NO ; (0610- )XZU304,334..6FC..1NO

Click highlighted areas on diagram

diagram 33723F 33820B 33821E 33823 33825 33825 33826B 33826C 33826D 33826D 33826E 33826F 33826R 33826S 33829B 33829E 9017908233 9020110042 9046814016 9046814042 9094901B95 91611G0820 91612B1020 9165160616 9165160816 9165160816 9165161025 91651B0825 91651B0825 91651B0825 91651B0825 91651B0825 91651B0825 91651B0825 9415010801 9415010801 9415010801 9415010801
Part # Description Qty Price
33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)
33723-28010

XZU30#,33#,34#,354,50#,538,548,554..6FC

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-37F60

XZU304,334,344,354,504,554..SCB..6FC

 1
33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE)
33829-37260

BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-37760

XZU30#,33#,34#,354,50#,538,548,554..6FC

 1
33823-37A30

XZU30#,33#,34#..6F;XZU314,354,554..MTM..4NO

 1
33825 - INSULATOR, TRANSMISSION CONTROL CABLE
33825-37040

XZU30#,314,33#,34#,354,50#,538,548,554..CBU,IV3,IV6,IV7

NO.2

 1
33825-37031

XZU30#,314,324,33#,34#,354,50#,524,538,548,554

NO.1

 1
33825 - INSULATOR, TRANSMISSION CONTROL CABLE
33825-37040

XZU30#,314,33#,34#,354,50#,538,548,554..CBU,IV3,IV6,IV7

NO.2

 1
33825-37031

XZU30#,314,324,33#,34#,354,50#,524,538,548,554

NO.1

 1
33826B - BRACKET, TRANSMISSION CONTROL CABLE, NO.3
33826-37210

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
33826C - BRACKET, TRANSMISSION CONTROL CABLE, NO.4
33828-37060

XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
33826D - BRACKET, TRANSMISSION CONTROL CABLE, NO.5
33827-37241

XZU308,348,368,378,388;XZU304,314,324,33#,344,354,50#,524,538,548,554,568..DCRTH,DCRTJ,DCRUD,DCRUE

 1
33826D - BRACKET, TRANSMISSION CONTROL CABLE, NO.5
33827-37241

XZU308,348,368,378,388;XZU304,314,324,33#,344,354,50#,524,538,548,554,568..DCRTH,DCRTJ,DCRUD,DCRUE

 1
33826E - BRACKET, TRANSMISSION CONTROL CABLE, NO.6
33827-37220

XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
33826F - BRACKET, TRANSMISSION CONTROL CABLE, NO.7
33827-37150

XZU368,568;XZU344..35T;XZU304..30T..4NO;XZU304..DM3,DM6,T3;XZU334,354,378,388..1NO

 1
33826R - BRACKET, TRANSMISSION CONTROL CABLE, NO.8
33826-37580

XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
33826S - BRACKET, TRANSMISSION CONTROL CABLE, NO.9
33828-37030

XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
33829B - CLAMP, TRANSMISSION CONTROL CABLE
33829-37210

XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
33829E - BRACKET, TRANSMISSION CONTROL CABLE
33826-37A60

XZU30#,33#,34#,354,50#,538,548,554..6FC

 1
Common parts
90179-08233
90201-10042
90468-14016
90468-14042
90949-01B95
91611-G0820
91612-B1020
91651-60616
91651-60816
91651-61025
91651-B0825
94150-10801

(0610- )6FC

Click highlighted areas on diagram

diagram 33550 33621C 33723F 33820B 33823 3382637B80 33826A 33826B 33826C 33826D 33826E 33826F 33826R 33829B 33829B 35902 35902A 9011908C43 9017908233 9020110042 9020110042 9046814016 9046814042 9094901B95 9155180816 91612B1020 9165160616 91651B0825 9415010801 9415010801 9415010801 9415010801 9415010801
Part # Description Qty Price
Common parts
33826-37B80
90119-08C43
90179-08233
90201-10042
90468-14016
90468-14042
90949-01B95
91551-80816
91612-B1020
91651-60616
91651-B0825
94150-10801
