XZU304A-TYTMB3 (2006)
Toyota Dyna/Toyoace

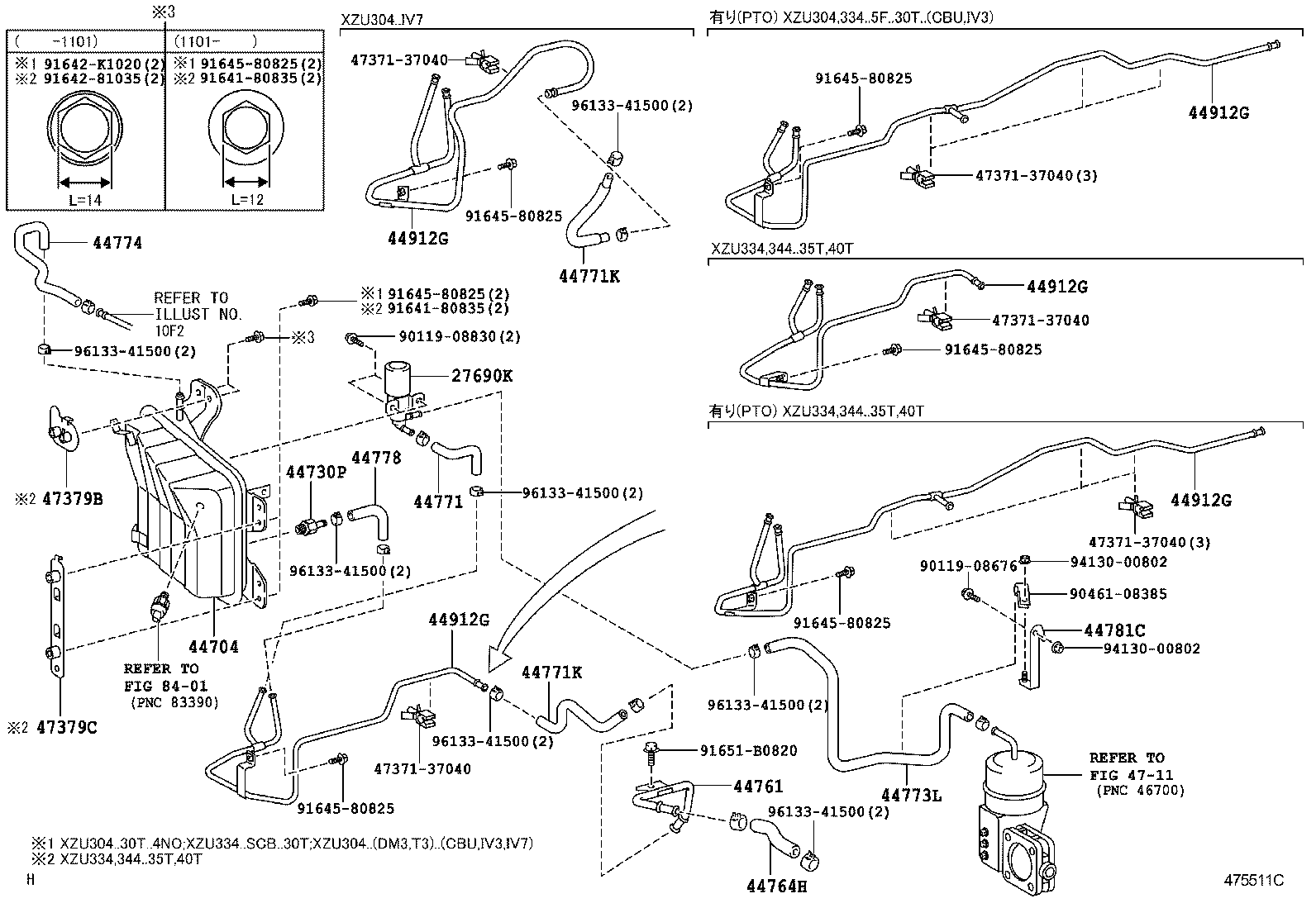

ILLUST NO. 2 OF 2(0610- )T3,T4..IV6 ; (0610- )XZU304..20T..1NO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27679D - BRACKET, EXHAUST BRAKE SOLENOID | ||||
| 27679-78041 |
N04C..XZU50#..T4..IV3;N04C..XZU304,354..T3..IV6;N04C..XZU348..SCB..T4..(DCRTJ,DCRUE)..IV3;N04C..XZU344..T4..30T..(DCRTJ,DCRUE)..IV3;N04C..XZU30#,33#,538,548..SCB..(DM6,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE)..(IV3,IV6) |
1 | ||
| 27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) | ||||
| 27690-78150 |
N04C..XZU334,378..DCB;N04C..XZU304..IV4,IV6;N04C..XZU308,348..DCB..CBU;N04C..XZU308,50#..T4..(IV3,IV6);N04C..XZU348..T4..(DCRTJ,DCRUE)..IV3;N04C..XZU344..T4..30T..(DCRTJ,DCRUE)..IV3;N04C..XZU354,388,508..(03S,06S,T3)..(20T,40T);N04C..XZU304,33#,538,548..(DM6,T4)..(DCRTJ,DCRTM,DCRUE)..IV3 ﾏｰｸ 27690−78150 |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-37251 |
XZU304..20T..1NO;XZU30#,354..(T3,T4)..IV6 |
1 | ||
| 44704-37250 |
XZU304..20T..1NO;XZU30#,354..(T3,T4)..IV6 |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-60050 |
BZU300,340,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-37540 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6 |
1 | ||
| 44762 - TUBE, BOOSTER VACUUM | ||||
| 44702-37310 |
XZU304..30T..IV6;XZU304..T4..30T..IV3;XZU304,334..(DM6,T4)..(IV3,IV6)..1NO |
1 | ||
| 44762 - TUBE, BOOSTER VACUUM | ||||
| 44702-37310 |
XZU304..30T..IV6;XZU304..T4..30T..IV3;XZU304,334..(DM6,T4)..(IV3,IV6)..1NO |
1 | ||
| 44762 - TUBE, BOOSTER VACUUM | ||||
| 44702-37310 |
XZU304..30T..IV6;XZU304..T4..30T..IV3;XZU304,334..(DM6,T4)..(IV3,IV6)..1NO |
1 | ||
| 44763J - HOSE, SOLENOID TO VACUUM TUBE | ||||
| 44771-37230 |
XZU50#..T4..IV3;XZU304,354..T3..IV6;XZU348..SCB..T4..(DCRTJ,DCRUE)..IV3;XZU344..T4..30T..(DCRTJ,DCRUE)..IV3;XZU30#,33#,538,548..SCB..(DM6,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE)..(IV3,IV6) |
1 | ||
| 44764H - HOSE(FOR CONNECTOR TO BRAKE BOOSTER TUBE) | ||||
| 95446-09120 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6 |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44776-37270 |
XZU304..20T..1NO;XZU30#,354..(T3,T4)..IV6 |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44776-37270 |
XZU304..20T..1NO;XZU30#,354..(T3,T4)..IV6 |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44776-37270 |
XZU304..20T..1NO;XZU30#,354..(T3,T4)..IV6 |
1 | ||
| 44771K - HOSE, VACUUM TUBE TO VACUUM PUMP | ||||
| 44771-37A50 |
XZU344..35T;XZU304..30T..4NO;XZU334,354..SCB..1NO;XZU304..(DM3,DM6,T3)..(CBU,IV3,IV6) |
1 | ||
| 44773L - HOSE, SOLENOID TO EXHAUST RETARDER | ||||
| 44771-37410 |
XZU304..20T..1NO;XZU30#,354..(T3,T4)..IV6 |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-37320 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..SCB |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-37060 |
BZU300;BZU340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 90119-08676 | ||||
| 91641-80835 | ||||
| 91642-81035 | ||||
| 91642-K1020 | ||||
| 91645-80825 | ||||
| 91651-B0820 | ||||
| 94130-00802 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(0610- )35T ; (0610- )XZU334..SCB ; (0610-)XZU304..30T..4NO ; (0610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) | ||||
| 27690-78150 |
N04C..XZU334,378..DCB;N04C..XZU304..IV4,IV6;N04C..XZU308,348..DCB..CBU;N04C..XZU308,50#..T4..(IV3,IV6);N04C..XZU348..T4..(DCRTJ,DCRUE)..IV3;N04C..XZU344..T4..30T..(DCRTJ,DCRUE)..IV3;N04C..XZU354,388,508..(03S,06S,T3)..(20T,40T);N04C..XZU304,33#,538,548..(DM6,T4)..(DCRTJ,DCRTM,DCRUE)..IV3 ﾏｰｸ 27690−78150 |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-37251 |
XZU304..20T..1NO;XZU30#,354..(T3,T4)..IV6 |
1 | ||
| 44704-37250 |
XZU304..20T..1NO;XZU30#,354..(T3,T4)..IV6 |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-60050 |
BZU300,340,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-37540 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6 |
1 | ||
| 44764H - HOSE(FOR CONNECTOR TO BRAKE BOOSTER TUBE) | ||||
| 95446-09120 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6 |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44776-37270 |
XZU304..20T..1NO;XZU30#,354..(T3,T4)..IV6 |
1 | ||
| 44771K - HOSE, VACUUM TUBE TO VACUUM PUMP | ||||
| 44771-37A50 |
XZU344..35T;XZU304..30T..4NO;XZU334,354..SCB..1NO;XZU304..(DM3,DM6,T3)..(CBU,IV3,IV6) |
1 | ||
| 44771K - HOSE, VACUUM TUBE TO VACUUM PUMP | ||||
| 44771-37A50 |
XZU344..35T;XZU304..30T..4NO;XZU334,354..SCB..1NO;XZU304..(DM3,DM6,T3)..(CBU,IV3,IV6) |
1 | ||
| 44773L - HOSE, SOLENOID TO EXHAUST RETARDER | ||||
| 44771-37410 |
XZU304..20T..1NO;XZU30#,354..(T3,T4)..IV6 |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-37320 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..SCB |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-37060 |
BZU300;BZU340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 90119-08676 | ||||
| 90119-08830 | ||||
| 90461-08385 | ||||
| 91641-80835 | ||||
| 91642-81035 | ||||
| 91642-K1020 | ||||
| 91645-80825 | ||||
| 91651-B0820 | ||||
| 94130-00802 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 4711 | ||||
| 8401 | ||||

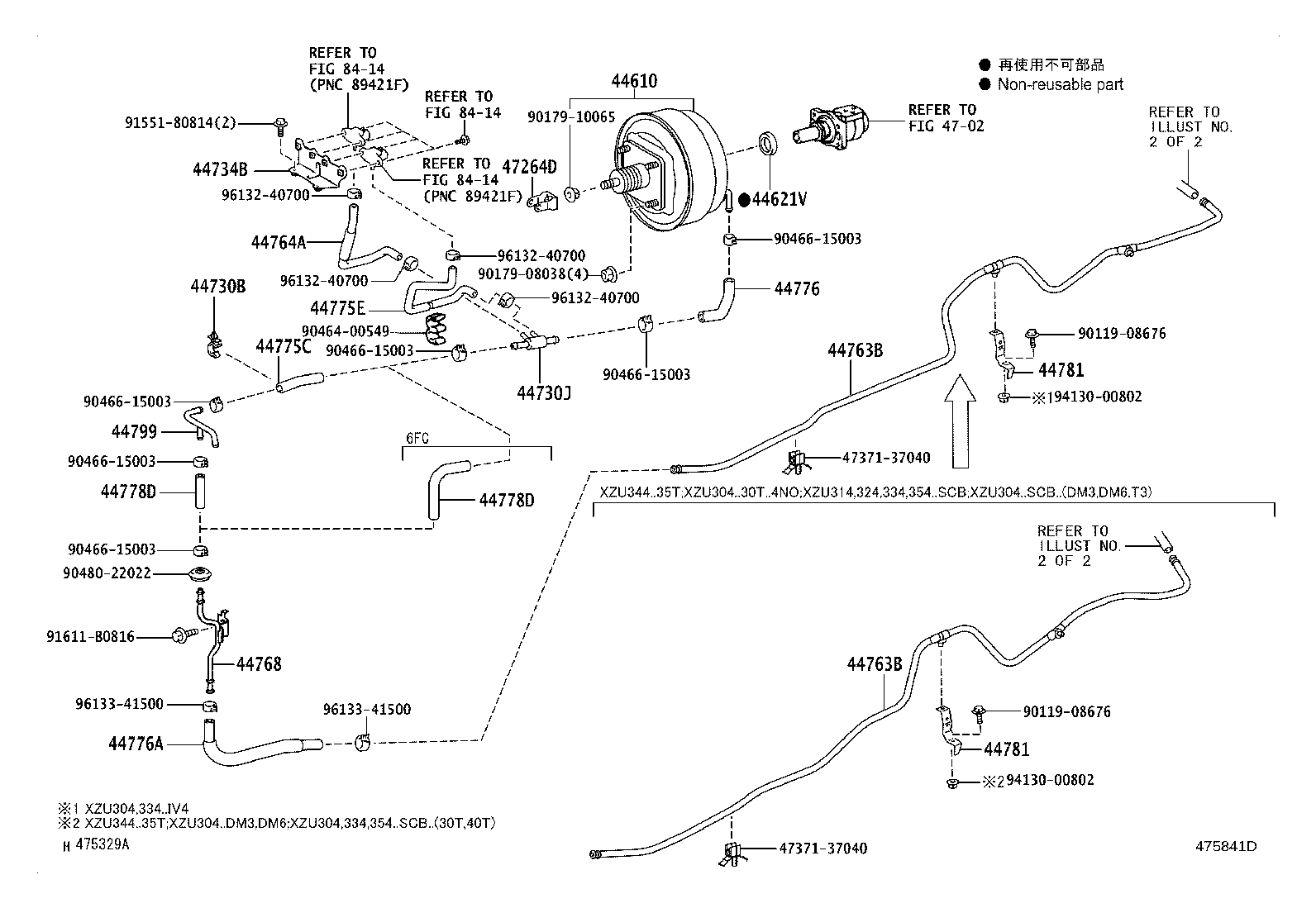

ILLUST NO. 1 OF 2(0610-0612)ST ; (0610-0612)XZU30#,314,324,33#,34#,354
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-37171 |
XZU504..ST;BZU300,340,TRU300,340,500,XZU30#,324,338,34#,354,368,378,388,568..20T |
1 | ||
| 44621V - SEAL, BOOSTER BODY | ||||
| 44621-36070 |
XZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568 |
1 | ||
| 44730B - CLAMP, VACUUM HOSE | ||||
| 44597-37021 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 44730J - WAY(FOR BOOSTER VACUUM) | ||||
| 90414-10043 |
XZU50#,538,548,554..5F;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,524,568 |
1 | ||
| 44734B - BRACKET, BOOSTER SUPPORT | ||||
| 44734-37011 |
XZU50#,538,548,554..5F;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,524,568 |
1 | ||
| 44763B - TUBE, TUBE CONNECTOR TO TUBE CONNECTOR | ||||
| 44764-37650 |
XZU344..35T;XZU304..30T..4NO;XZU334,354..SCB..1NO;XZU304..SCB..(DM3,DM6,T3) |
1 | ||
| 44764-37651 |
XZU344..35T;XZU304..30T..4NO;XZU334,354..SCB..1NO;XZU304..SCB..(DM3,DM6,T3) |
1 | ||
| 44763B - TUBE, TUBE CONNECTOR TO TUBE CONNECTOR | ||||
| 44764-37650 |
XZU344..35T;XZU304..30T..4NO;XZU334,354..SCB..1NO;XZU304..SCB..(DM3,DM6,T3) |
1 | ||
| 44764-37651 |
XZU344..35T;XZU304..30T..4NO;XZU334,354..SCB..1NO;XZU304..SCB..(DM3,DM6,T3) |
1 | ||
| 44764A - HOSE, BOOSTER VACUUM | ||||
| 44776-37240 |
XZU50#,538,548,554..5F;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,524,568 |
1 | ||
| 44768 - TUBE, BOOSTER VACUUM | ||||
| 44768-37110 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 44775E - HOSE, WAY TO CONNECTOR | ||||
| 44776-37251 |
XZU50#,538,548,554..5F;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,524,568 |
1 | ||
| 44776-37250 |
XZU50#,538,548,554..5F;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,524,568 |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-37260 |
XZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568 |
1 | ||
| 44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER | ||||
| 44776-37170 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 44778D - HOSE, VACUUM TUBE TO CONNECTOR TUBE | ||||
| 44778-37211 |
XZU30#,33#,34#,354..6FC |
1 | ||
| 44778-37210 |
XZU30#,33#,34#,354..6FC |
1 | ||
| 44778D - HOSE, VACUUM TUBE TO CONNECTOR TUBE | ||||
| 44778-37211 |
XZU30#,33#,34#,354..6FC |
1 | ||
| 44778-37210 |
XZU30#,33#,34#,354..6FC |
1 | ||
| 44781 - BRACKET, HOSE | ||||
| 44781-37171 |
XZU30#,314,324,33#,34#,354,50#,524,538,548,554 |
1 | ||
| 44781-37170 |
XZU30#,314,324,33#,34#,354,50#,524,538,548,554 |
1 | ||
| 44781 - BRACKET, HOSE | ||||
| 44781-37171 |
XZU30#,314,324,33#,34#,354,50#,524,538,548,554 |
1 | ||
| 44781-37170 |
XZU30#,314,324,33#,34#,354,50#,524,538,548,554 |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-50010 |
XZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568 |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 90119-08676 | ||||
| 90179-08038 | ||||
| 90179-10065 | ||||
| 90464-00549 | ||||
| 90466-15003 | ||||
| 90480-22022 | ||||
| 91611-B0816 | ||||
| 94130-00802 | ||||
| 96132-40700 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 8414 | ||||
ILLUST NO. 1 OF 2(0612- )ST ; (0612- )XZU30#,314,324,33#,34#,354
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-37171 |
XZU504..ST;BZU300,340,TRU300,340,500,XZU30#,324,338,34#,354,368,378,388,568..20T |
1 | ||
| 44621V - SEAL, BOOSTER BODY | ||||
| 44621-36070 |
XZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568 |
1 | ||
| 44730B - CLAMP, VACUUM HOSE | ||||
| 44597-37021 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 44730J - WAY(FOR BOOSTER VACUUM) | ||||
| 90414-10043 |
XZU50#,538,548,554..5F;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,524,568 |
1 | ||
| 44734B - BRACKET, BOOSTER SUPPORT | ||||
| 44734-37011 |
XZU50#,538,548,554..5F;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,524,568 |
1 | ||
| 44763B - TUBE, TUBE CONNECTOR TO TUBE CONNECTOR | ||||
| 44764-37650 |
XZU344..35T;XZU304..30T..4NO;XZU334,354..SCB..1NO;XZU304..SCB..(DM3,DM6,T3) |
1 | ||
| 44764-37651 |
XZU344..35T;XZU304..30T..4NO;XZU334,354..SCB..1NO;XZU304..SCB..(DM3,DM6,T3) |
1 | ||
| 44763B - TUBE, TUBE CONNECTOR TO TUBE CONNECTOR | ||||
| 44764-37650 |
XZU344..35T;XZU304..30T..4NO;XZU334,354..SCB..1NO;XZU304..SCB..(DM3,DM6,T3) |
1 | ||
| 44764-37651 |
XZU344..35T;XZU304..30T..4NO;XZU334,354..SCB..1NO;XZU304..SCB..(DM3,DM6,T3) |
1 | ||
| 44764A - HOSE, BOOSTER VACUUM | ||||
| 44776-37240 |
XZU50#,538,548,554..5F;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,524,568 |
1 | ||
| 44768 - TUBE, BOOSTER VACUUM | ||||
| 44768-37110 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 44775E - HOSE, WAY TO CONNECTOR | ||||
| 44776-37251 |
XZU50#,538,548,554..5F;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,524,568 |
1 | ||
| 44776-37250 |
XZU50#,538,548,554..5F;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,524,568 |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-37260 |
XZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568 |
1 | ||
| 44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER | ||||
| 44776-37170 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 44778D - HOSE, VACUUM TUBE TO CONNECTOR TUBE | ||||
| 44778-37211 |
XZU30#,33#,34#,354..6FC |
1 | ||
| 44778-37210 |
XZU30#,33#,34#,354..6FC |
1 | ||
| 44778D - HOSE, VACUUM TUBE TO CONNECTOR TUBE | ||||
| 44778-37211 |
XZU30#,33#,34#,354..6FC |
1 | ||
| 44778-37210 |
XZU30#,33#,34#,354..6FC |
1 | ||
| 44781 - BRACKET, HOSE | ||||
| 44781-37171 |
XZU30#,314,324,33#,34#,354,50#,524,538,548,554 |
1 | ||
| 44781-37170 |
XZU30#,314,324,33#,34#,354,50#,524,538,548,554 |
1 | ||
| 44781 - BRACKET, HOSE | ||||
| 44781-37171 |
XZU30#,314,324,33#,34#,354,50#,524,538,548,554 |
1 | ||
| 44781-37170 |
XZU30#,314,324,33#,34#,354,50#,524,538,548,554 |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-50010 |
XZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568 |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 90119-08676 | ||||
| 90179-08038 | ||||
| 90179-10065 | ||||
| 90464-00549 | ||||
| 90466-15003 | ||||
| 90480-22022 | ||||
| 91551-80814 | ||||
| 91611-B0816 | ||||
| 94130-00802 | ||||
| 96132-40700 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 8414 | ||||
ILLUST NO. 2 OF 2(0610- )XZU50#..T4..IV3 ; (0610- )XZU348..SCB..T4..DCRTJ,DCRUE..IV3 ; (0610-
ｺｳｼｮ ｻｷﾞｮｳｼｬ OR ﾚｲﾄｳｼｬ OR ﾎﾞﾄﾙｶｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27679D - BRACKET, EXHAUST BRAKE SOLENOID | ||||
| 27679-78041 |
N04C..XZU50#..T4..IV3;N04C..XZU304,354..T3..IV6;N04C..XZU348..SCB..T4..(DCRTJ,DCRUE)..IV3;N04C..XZU344..T4..30T..(DCRTJ,DCRUE)..IV3;N04C..XZU30#,33#,538,548..SCB..(DM6,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE)..(IV3,IV6) |
1 | ||
| 27679-78041 |
N04C..XZU50#..T4..IV3;N04C..XZU304,354..T3..IV6;N04C..XZU348..SCB..T4..(DCRTJ,DCRUE)..IV3;N04C..XZU344..T4..30T..(DCRTJ,DCRUE)..IV3;N04C..XZU30#,33#,538,548..SCB..(DM6,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE)..(IV3,IV6) |
1 | ||
| 27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) | ||||
| 27690-78150 |
N04C..XZU334,378..DCB;N04C..XZU304..IV4,IV6;N04C..XZU308,348..DCB..CBU;N04C..XZU308,50#..T4..(IV3,IV6);N04C..XZU348..T4..(DCRTJ,DCRUE)..IV3;N04C..XZU344..T4..30T..(DCRTJ,DCRUE)..IV3;N04C..XZU354,388,508..(03S,06S,T3)..(20T,40T);N04C..XZU304,33#,538,548..(DM6,T4)..(DCRTJ,DCRTM,DCRUE)..IV3 ﾏｰｸ 27690−78150 |
1 | ||
| 27690-78150 |
N04C..XZU334,378..DCB;N04C..XZU304..IV4,IV6;N04C..XZU308,348..DCB..CBU;N04C..XZU308,50#..T4..(IV3,IV6);N04C..XZU348..T4..(DCRTJ,DCRUE)..IV3;N04C..XZU344..T4..30T..(DCRTJ,DCRUE)..IV3;N04C..XZU354,388,508..(03S,06S,T3)..(20T,40T);N04C..XZU304,33#,538,548..(DM6,T4)..(DCRTJ,DCRTM,DCRUE)..IV3 ﾏｰｸ 27690−78150 |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-37251 |
XZU304..20T..1NO;XZU30#,354..(T3,T4)..IV6 |
1 | ||
| 44704-37251 |
XZU304..20T..1NO;XZU30#,354..(T3,T4)..IV6 |
1 | ||
| 44704-37250 |
XZU304..20T..1NO;XZU30#,354..(T3,T4)..IV6 |
1 | ||
| 44704-37250 |
XZU304..20T..1NO;XZU30#,354..(T3,T4)..IV6 |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-60050 |
BZU300,340,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 44730-60050 |
BZU300,340,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-37540 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6 |
1 | ||
| 44761-37540 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6 |
1 | ||
| 44762 - TUBE, BOOSTER VACUUM | ||||
| 44702-37310 |
XZU304..30T..IV6;XZU304..T4..30T..IV3;XZU304,334..(DM6,T4)..(IV3,IV6)..1NO |
1 | ||
| 44702-37310 |
XZU304..30T..IV6;XZU304..T4..30T..IV3;XZU304,334..(DM6,T4)..(IV3,IV6)..1NO |
1 | ||
| 44762 - TUBE, BOOSTER VACUUM | ||||
| 44702-37310 |
XZU304..30T..IV6;XZU304..T4..30T..IV3;XZU304,334..(DM6,T4)..(IV3,IV6)..1NO |
1 | ||
| 44702-37310 |
XZU304..30T..IV6;XZU304..T4..30T..IV3;XZU304,334..(DM6,T4)..(IV3,IV6)..1NO |
1 | ||
| 44763J - HOSE, SOLENOID TO VACUUM TUBE | ||||
| 44771-37230 |
XZU50#..T4..IV3;XZU304,354..T3..IV6;XZU348..SCB..T4..(DCRTJ,DCRUE)..IV3;XZU344..T4..30T..(DCRTJ,DCRUE)..IV3;XZU30#,33#,538,548..SCB..(DM6,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE)..(IV3,IV6) |
1 | ||
| 44771-37230 |
XZU50#..T4..IV3;XZU304,354..T3..IV6;XZU348..SCB..T4..(DCRTJ,DCRUE)..IV3;XZU344..T4..30T..(DCRTJ,DCRUE)..IV3;XZU30#,33#,538,548..SCB..(DM6,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE)..(IV3,IV6) |
1 | ||
| 44764H - HOSE(FOR CONNECTOR TO BRAKE BOOSTER TUBE) | ||||
| 95446-09120 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6 |
1 | ||
| 95446-09120 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6 |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44776-37270 |
XZU304..20T..1NO;XZU30#,354..(T3,T4)..IV6 |
1 | ||
| 44776-37270 |
XZU304..20T..1NO;XZU30#,354..(T3,T4)..IV6 |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44776-37270 |
XZU304..20T..1NO;XZU30#,354..(T3,T4)..IV6 |
1 | ||
| 44776-37270 |
XZU304..20T..1NO;XZU30#,354..(T3,T4)..IV6 |
1 | ||
| 44771K - HOSE, VACUUM TUBE TO VACUUM PUMP | ||||
| 44771-37A50 |
XZU344..35T;XZU304..30T..4NO;XZU334,354..SCB..1NO;XZU304..(DM3,DM6,T3)..(CBU,IV3,IV6) |
1 | ||
| 44771-37A50 |
XZU344..35T;XZU304..30T..4NO;XZU334,354..SCB..1NO;XZU304..(DM3,DM6,T3)..(CBU,IV3,IV6) |
1 | ||
| 44773L - HOSE, SOLENOID TO EXHAUST RETARDER | ||||
| 44771-37410 |
XZU304..20T..1NO;XZU30#,354..(T3,T4)..IV6 |
1 | ||
| 44771-37410 |
XZU304..20T..1NO;XZU30#,354..(T3,T4)..IV6 |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-37320 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..SCB |
1 | ||
| 44774-37320 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..SCB |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-37060 |
BZU300;BZU340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 44778-37060 |
BZU300;BZU340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 90119-08676 | ||||
| 91642-K1020 | ||||
| 91645-80825 | ||||
| 91651-B0820 | ||||
| 94130-00802 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
