XZU304A-TYTMB3 (2006)
Toyota Dyna/Toyoace

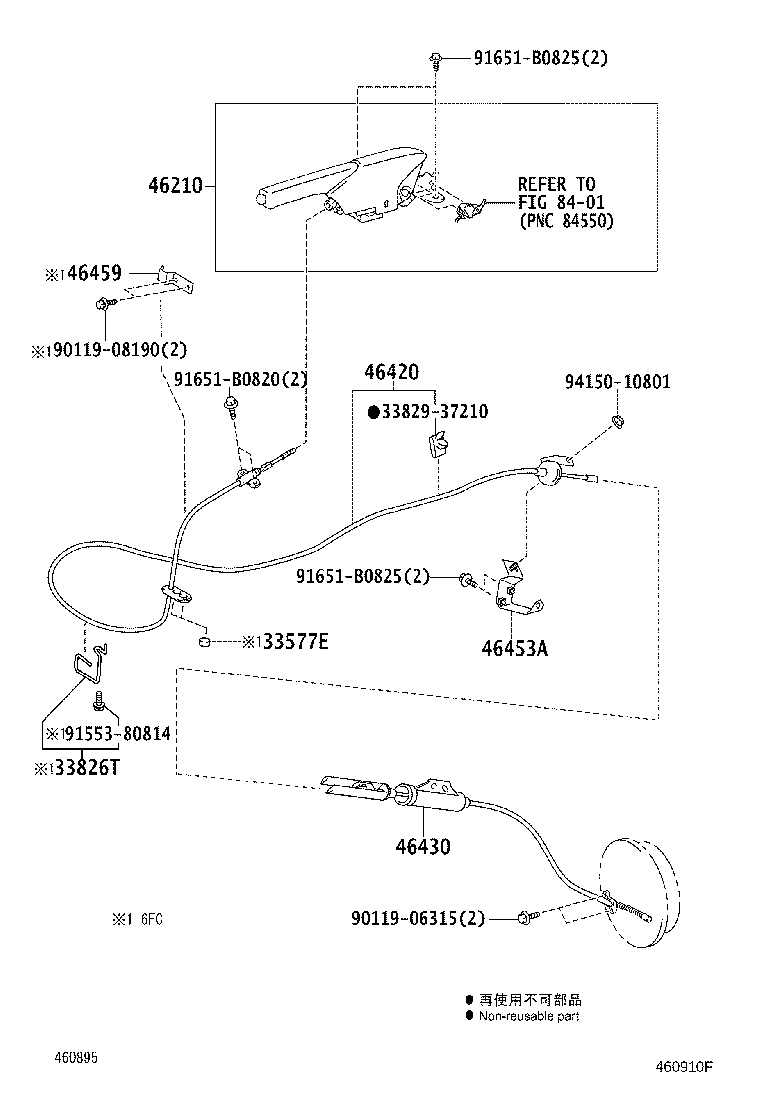

ILLUST NO. 1 OF 2(0610- )XZU304..20T..DCRTJ,DCRTM..1NO ; (0610- )DM6,T3..20T,35T,40T..DCRTK,LP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33577E - GROMMET, SHIFT CABLE | ||||
| 33577-37050 |
XZU30#,33#,34#,354,50#,538,548,554..6FC |
2 | ||
| 33826T - BRACKET, TRANSMISSION CONTROL CABLE, NO.2 | ||||
| 33829-37250 |
XZU30#,33#,34#,354,50#,538,548,554..6FC |
1 | ||
| 46210 - LEVER ASSY, PARKING BRAKE | ||||
| 46210-37120B0 |
XZU308..IV6;XZU334..T3..5F..IV3;XZU304..6FC..20T..IV3..1NO;BZU300,340,XZU304,354..5F..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ),DK.CHARCOAL,TRIM1# |
1 | ||
| 46210-37110B0 |
XZU504..DCRTJ,DCRUD;XZU50#,538,548,554..6FC;XZU508..(03S,06S,T2)..5F;XZU508,538,548..DCRUD,DCRUE;XZU504,524,554..(DM5,DM7,T5)..(DCRTH,DCRUE);BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568..CBU,IV3,IV4,IV6 DK.CHARCOAL,TRIM1# |
1 | ||
| 46210-37121B0 |
XZU308..IV6;XZU334..T3..5F..IV3;XZU304..6FC..20T..IV3..1NO;BZU300,340,XZU304,354..5F..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ),DK.CHARCOAL,TRIM1# |
1 | ||
| 46210-37123B0 |
XZU308..IV6;XZU334..T3..MTM..IV3;XZU304..6FC..20T..IV3..1NO;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ),DK.CHARCOAL,TRIM1# |
1 | ||
| 46210-37111B0 |
XZU34#..6FC;XZU308..T2,T4;XZU33#..6F,6FC;XZU338..5F..DCRTH;XZU338,348..T2..5F;XZU304..5F..30T..IV6;XZU308..T5..(6F,6FC);XZU304..6FC..30T..DCRTJ;XZU308,334..(T3,T5)..5F..DCRTK;XZU304,324..(DM6,DM7,T4)..20T..DCRTJ;XZU354,368,378,388,50#,538,548,554,568;BZU300,340,TRU300,340,500,XZU304,314,324,34#,524..(DCRTH,DCRTK,DCRTM,DCRUE,EFI,LPG)..(CBU,IV3,IV4,IV6) DK.CHARCOAL,TRIM1# |
1 | ||
| 46210-37124B0 |
XZU308..IV6;XZU334..T3..MTM..IV3;XZU304..6FC..20T..IV3..1NO;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ),DK.CHARCOAL,TRIM1# |
1 | ||
| 46210-37122B0 |
XZU308..IV6;XZU334..T3..MTM..IV3;XZU304..6FC..20T..IV3..1NO;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ),DK.CHARCOAL,TRIM1# |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-37560 |
XZU344..35T;XZU304..30T..4NO;XZU334,354..SCB..1NO;XZU304..SCB..(DM3,DM6,T3) |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-37B00 |
XZU304..6FC..20T..1NO |
1 | ||
| 46430-37C10 |
XZU304..T5..30T..DCRUE;XZU304,334..(DM3,DM6,T3,T4)..6F |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37190 |
XZU344..35T;XZU304..30T..4NO;XZU304..DM3,DM6,T3;BZU300,340,TRU300,340,500,XZU334,354..1NO |
1 | ||
| 46459 - GUIDE, CABLE | ||||
| 46459-37030 |
XZU30#,33#,34#,354,50#,538,548,554..6FC |
1 | ||
| Common parts | ||||
| 33829-37210 | ||||
| 90119-06315 | ||||
| 90119-08190 | ||||
| 91553-80814 | ||||
| 91651-B0820 | ||||
| 91651-B0825 | ||||
| 94150-10801 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(0610- )XZU354,554..6FC ; (0610- )BZU300,340,TRU300,340,500,XZU30#,33#,34#,50
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33577E - GROMMET, SHIFT CABLE | ||||
| 33577-37050 |
XZU30#,33#,34#,354,50#,538,548,554..6FC |
2 | ||
| 33826T - BRACKET, TRANSMISSION CONTROL CABLE, NO.2 | ||||
| 33829-37250 |
XZU30#,33#,34#,354,50#,538,548,554..6FC |
1 | ||
| 46210 - LEVER ASSY, PARKING BRAKE | ||||
| 46210-37120B0 |
XZU308..IV6;XZU334..T3..5F..IV3;XZU304..6FC..20T..IV3..1NO;BZU300,340,XZU304,354..5F..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ),DK.CHARCOAL,TRIM1# |
1 | ||
| 46210-37110B0 |
XZU504..DCRTJ,DCRUD;XZU50#,538,548,554..6FC;XZU508..(03S,06S,T2)..5F;XZU508,538,548..DCRUD,DCRUE;XZU504,524,554..(DM5,DM7,T5)..(DCRTH,DCRUE);BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568..CBU,IV3,IV4,IV6 DK.CHARCOAL,TRIM1# |
1 | ||
| 46210-37121B0 |
XZU308..IV6;XZU334..T3..5F..IV3;XZU304..6FC..20T..IV3..1NO;BZU300,340,XZU304,354..5F..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ),DK.CHARCOAL,TRIM1# |
1 | ||
| 46210-37123B0 |
XZU308..IV6;XZU334..T3..MTM..IV3;XZU304..6FC..20T..IV3..1NO;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ),DK.CHARCOAL,TRIM1# |
1 | ||
| 46210-37111B0 |
XZU34#..6FC;XZU308..T2,T4;XZU33#..6F,6FC;XZU338..5F..DCRTH;XZU338,348..T2..5F;XZU304..5F..30T..IV6;XZU308..T5..(6F,6FC);XZU304..6FC..30T..DCRTJ;XZU308,334..(T3,T5)..5F..DCRTK;XZU304,324..(DM6,DM7,T4)..20T..DCRTJ;XZU354,368,378,388,50#,538,548,554,568;BZU300,340,TRU300,340,500,XZU304,314,324,34#,524..(DCRTH,DCRTK,DCRTM,DCRUE,EFI,LPG)..(CBU,IV3,IV4,IV6) DK.CHARCOAL,TRIM1# |
1 | ||
| 46210-37124B0 |
XZU308..IV6;XZU334..T3..MTM..IV3;XZU304..6FC..20T..IV3..1NO;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ),DK.CHARCOAL,TRIM1# |
1 | ||
| 46210-37122B0 |
XZU308..IV6;XZU334..T3..MTM..IV3;XZU304..6FC..20T..IV3..1NO;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ),DK.CHARCOAL,TRIM1# |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-37560 |
XZU344..35T;XZU304..30T..4NO;XZU334,354..SCB..1NO;XZU304..SCB..(DM3,DM6,T3) |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-37B00 |
XZU304..6FC..20T..1NO |
1 | ||
| 46430-37C10 |
XZU304..T5..30T..DCRUE;XZU304,334..(DM3,DM6,T3,T4)..6F |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37190 |
XZU344..35T;XZU304..30T..4NO;XZU304..DM3,DM6,T3;BZU300,340,TRU300,340,500,XZU334,354..1NO |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37190 |
XZU344..35T;XZU304..30T..4NO;XZU304..DM3,DM6,T3;BZU300,340,TRU300,340,500,XZU334,354..1NO |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37190 |
XZU344..35T;XZU304..30T..4NO;XZU304..DM3,DM6,T3;BZU300,340,TRU300,340,500,XZU334,354..1NO |
1 | ||
| 46459 - GUIDE, CABLE | ||||
| 46459-37030 |
XZU30#,33#,34#,354,50#,538,548,554..6FC |
1 | ||
| Common parts | ||||
| 33829-37210 | ||||
| 90119-08190 | ||||
| 90461-08225 | ||||
| 91553-80814 | ||||
| 91651-40814 | ||||
| 91651-B0820 | ||||
| 91651-B0825 | ||||
| 94150-10801 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(0610- )XZU314,324,354,524,554..5F..4NO ; (1003- )6F
MYY5A,MYY6S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46210 - LEVER ASSY, PARKING BRAKE | ||||
| 46210-37120B0 |
XZU308..IV6;XZU334..T3..5F..IV3;XZU304..6FC..20T..IV3..1NO;BZU300,340,XZU304,354..5F..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ),DK.CHARCOAL,TRIM1# |
1 | ||
| 46210-37110B0 |
XZU504..DCRTJ,DCRUD;XZU50#,538,548,554..6FC;XZU508..(03S,06S,T2)..5F;XZU508,538,548..DCRUD,DCRUE;XZU504,524,554..(DM5,DM7,T5)..(DCRTH,DCRUE);BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568..CBU,IV3,IV4,IV6 DK.CHARCOAL,TRIM1# |
1 | ||
| 46210-37121B0 |
XZU308..IV6;XZU334..T3..5F..IV3;XZU304..6FC..20T..IV3..1NO;BZU300,340,XZU304,354..5F..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ),DK.CHARCOAL,TRIM1# |
1 | ||
| 46210-37123B0 |
XZU308..IV6;XZU334..T3..MTM..IV3;XZU304..6FC..20T..IV3..1NO;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ),DK.CHARCOAL,TRIM1# |
1 | ||
| 46210-37111B0 |
XZU34#..6FC;XZU308..T2,T4;XZU33#..6F,6FC;XZU338..5F..DCRTH;XZU338,348..T2..5F;XZU304..5F..30T..IV6;XZU308..T5..(6F,6FC);XZU304..6FC..30T..DCRTJ;XZU308,334..(T3,T5)..5F..DCRTK;XZU304,324..(DM6,DM7,T4)..20T..DCRTJ;XZU354,368,378,388,50#,538,548,554,568;BZU300,340,TRU300,340,500,XZU304,314,324,34#,524..(DCRTH,DCRTK,DCRTM,DCRUE,EFI,LPG)..(CBU,IV3,IV4,IV6) DK.CHARCOAL,TRIM1# |
1 | ||
| 46210-37124B0 |
XZU308..IV6;XZU334..T3..MTM..IV3;XZU304..6FC..20T..IV3..1NO;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ),DK.CHARCOAL,TRIM1# |
1 | ||
| 46210-37122B0 |
XZU308..IV6;XZU334..T3..MTM..IV3;XZU304..6FC..20T..IV3..1NO;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ),DK.CHARCOAL,TRIM1# |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-37560 |
XZU344..35T;XZU304..30T..4NO;XZU334,354..SCB..1NO;XZU304..SCB..(DM3,DM6,T3) |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-37B00 |
XZU304..6FC..20T..1NO |
1 | ||
| 46430-37C10 |
XZU304..T5..30T..DCRUE;XZU304,334..(DM3,DM6,T3,T4)..6F |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37190 |
XZU344..35T;XZU304..30T..4NO;XZU304..DM3,DM6,T3;BZU300,340,TRU300,340,500,XZU334,354..1NO |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37190 |
XZU344..35T;XZU304..30T..4NO;XZU304..DM3,DM6,T3;BZU300,340,TRU300,340,500,XZU334,354..1NO |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37190 |
XZU344..35T;XZU304..30T..4NO;XZU304..DM3,DM6,T3;BZU300,340,TRU300,340,500,XZU334,354..1NO |
1 | ||
| Common parts | ||||
| 33829-37210 | ||||
| 91651-B0820 | ||||
| 91651-B0825 | ||||
| 94150-10801 | ||||
| 96160-01200 | ||||
| Linked diagrams | ||||
| 8401 | ||||

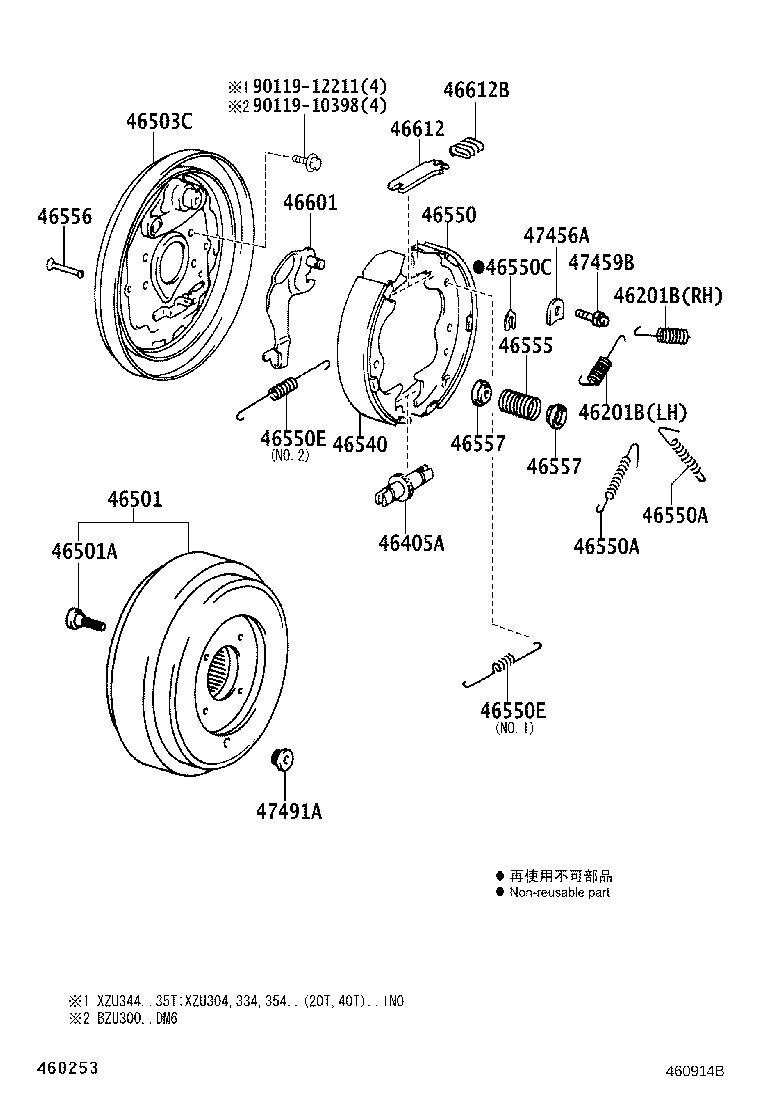

ILLUST NO. 2 OF 2(0610- )XZU354,554..6FC ; (0610- )BZU300,340,TRU300,340,500,XZU30#,33#,34#,50
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46501 - DRUM SUB-ASSY, PARKING BRAKE | ||||
| 46501-37112 |
XZU304..6FC..20T..1NO |
1 | ||
| 46511-37080 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM) | ||||
| 90031-01170 |
XZU354..1NO;XZU354,554..6FC;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548..5F,6FC |
4 | ||
| SU002-00970 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
4 | ||
| 46503C - PLATE SUB-ASSY, PARKING BRAKE | ||||
| 46503-37691 |
XZU334,344,354..35T,40T;XZU304..20T..(DCRTJ,DCRTM)..1NO |
1 | ||
| SU002-00296 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-37040 |
XZU304..20T..(DCRTJ,DCRTM)..1NO;BZU300,XZU334,344,354..(DM6,T3)..(20T,35T,40T)..(DCRTK,LPG) |
1 | ||
| SU002-00286 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-37040 |
XZU304..20T..(DCRTJ,DCRTM)..1NO;BZU300,XZU334,344,354..(DM6,T3)..(20T,35T,40T)..(DCRTK,LPG) |
1 | ||
| SU002-00286 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90905-06020 |
XZU304..20T..(DCRTJ,DCRTM)..1NO;BZU300,XZU334,344,354..(DM6,T3)..(20T,35T,40T)..(DCRTK,LPG) |
2 | ||
| SU002-00287 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
2 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90905-06020 |
XZU304..20T..(DCRTJ,DCRTM)..1NO;BZU300,XZU334,344,354..(DM6,T3)..(20T,35T,40T)..(DCRTK,LPG) |
2 | ||
| SU002-00287 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
2 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| SU002-00299 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 90213-06003 |
XZU354..1NO;XZU354,554..6FC;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548..5F,6FC |
1 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| SU002-00288 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 90506-14054 |
XZU304..20T..(DCRTJ,DCRTM)..1NO;BZU300,XZU334,344,354..(DM6,T3)..(20T,35T,40T)..(DCRTK,LPG) NO.2 |
1 | ||
| 90506-23049 |
XZU304..20T..(DCRTJ,DCRTM)..1NO;BZU300,XZU334,344,354..(DM6,T3)..(20T,35T,40T)..(DCRTK,LPG) NO.1 |
1 | ||
| 46555 - SPRING, BRAKE SHOE HOLD DOWN | ||||
| 90501-16108 |
XZU304..20T..(DCRTJ,DCRTM)..1NO;BZU300,XZU334,344,354..(DM6,T3)..(20T,35T,40T)..(DCRTK,LPG) |
2 | ||
| SU002-00925 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
2 | ||
| 46556 - PIN, SHOE HOLD DOWN SPRING | ||||
| 47447-20030 |
XZU304..20T..(DCRTJ,DCRTM)..1NO;BZU300,XZU334,344,354..(DM6,T3)..(20T,35T,40T)..(DCRTK,LPG) |
2 | ||
| SU002-00297 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
2 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| SU002-00303 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
4 | ||
| 47449-20011 |
XZU354..1NO;XZU354,554..6FC;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548..5F,6FC |
4 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| SU002-00303 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
4 | ||
| 47449-20011 |
XZU354..1NO;XZU354,554..6FC;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548..5F,6FC |
4 | ||
| 46601 - LEVER SUB-ASSY, PARKING BRAKE SHOE | ||||
| SU002-00293 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 46601-36051 |
XZU304..20T..(DCRTJ,DCRTM)..1NO;BZU300,XZU334,344,354..(DM6,T3)..(20T,35T,40T)..(DCRTK,LPG) |
1 | ||
| 46612 - STRUT, PARKING BRAKE SHOE LEVER | ||||
| SU002-00294 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 46612-36050 |
XZU304..20T..(DCRTJ,DCRTM)..1NO;BZU300,XZU334,344,354..(DM6,T3)..(20T,35T,40T)..(DCRTK,LPG) |
1 | ||
| 46612B - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-10010 |
XZU304..20T..(DCRTJ,DCRTM)..1NO;BZU300,XZU334,344,354..(DM6,T3)..(20T,35T,40T)..(DCRTK,LPG) |
1 | ||
| SU002-00295 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| Common parts | ||||
| 90119-10339 | ||||
| 90119-12211 | ||||
| 94613-11200 | ||||
ILLUST NO. 2 OF 2(0610- )XZU304..20T..DCRTJ,DCRTM..1NO ; (0610- )DM6,T3..20T,35T,40T..DCRTK,LP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201B - SPRING, TENSION | ||||
| 90507-20020 |
XZU304..20T..(DCRTJ,DCRTM)..1NO;BZU300,XZU334,344,354..(DM6,T3)..(20T,35T,40T)..(DCRTK,LPG) 右側 |
1 | ||
| 90507-20021 |
XZU304..20T..(DCRTJ,DCRTM)..1NO;BZU300,XZU334,344,354..(DM6,T3)..(20T,35T,40T)..(DCRTK,LPG) 左側 |
1 | ||
| 46201B - SPRING, TENSION | ||||
| 90507-20020 |
XZU304..20T..(DCRTJ,DCRTM)..1NO;BZU300,XZU334,344,354..(DM6,T3)..(20T,35T,40T)..(DCRTK,LPG) 右側 |
1 | ||
| 90507-20021 |
XZU304..20T..(DCRTJ,DCRTM)..1NO;BZU300,XZU334,344,354..(DM6,T3)..(20T,35T,40T)..(DCRTK,LPG) 左側 |
1 | ||
| 46405A - SCREW SET, SHOE ADJUSTING, RH | ||||
| SU002-00289 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 47405-36010 |
XZU304..20T..(DCRTJ,DCRTM)..1NO;BZU300,XZU334,344,354..(DM6,T3)..(20T,35T,40T)..(DCRTK,LPG) |
1 | ||
| 46501 - DRUM SUB-ASSY, PARKING BRAKE | ||||
| 46501-37112 |
XZU304..6FC..20T..1NO |
1 | ||
| 46511-37080 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM) | ||||
| 90031-01170 |
XZU354..1NO;XZU354,554..6FC;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548..5F,6FC |
4 | ||
| SU002-00970 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
4 | ||
| 46503C - PLATE SUB-ASSY, PARKING BRAKE | ||||
| 46503-37691 |
XZU334,344,354..35T,40T;XZU304..20T..(DCRTJ,DCRTM)..1NO |
1 | ||
| SU002-00296 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-37040 |
XZU304..20T..(DCRTJ,DCRTM)..1NO;BZU300,XZU334,344,354..(DM6,T3)..(20T,35T,40T)..(DCRTK,LPG) |
1 | ||
| SU002-00286 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-37040 |
XZU304..20T..(DCRTJ,DCRTM)..1NO;BZU300,XZU334,344,354..(DM6,T3)..(20T,35T,40T)..(DCRTK,LPG) |
1 | ||
| SU002-00286 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90905-06020 |
XZU304..20T..(DCRTJ,DCRTM)..1NO;BZU300,XZU334,344,354..(DM6,T3)..(20T,35T,40T)..(DCRTK,LPG) |
2 | ||
| SU002-00287 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
2 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90905-06020 |
XZU304..20T..(DCRTJ,DCRTM)..1NO;BZU300,XZU334,344,354..(DM6,T3)..(20T,35T,40T)..(DCRTK,LPG) |
2 | ||
| SU002-00287 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
2 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| SU002-00299 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 90213-06003 |
XZU354..1NO;XZU354,554..6FC;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548..5F,6FC |
1 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| SU002-00288 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 90506-14054 |
XZU304..20T..(DCRTJ,DCRTM)..1NO;BZU300,XZU334,344,354..(DM6,T3)..(20T,35T,40T)..(DCRTK,LPG) NO.2 |
1 | ||
| 90506-23049 |
XZU304..20T..(DCRTJ,DCRTM)..1NO;BZU300,XZU334,344,354..(DM6,T3)..(20T,35T,40T)..(DCRTK,LPG) NO.1 |
1 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| SU002-00288 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 90506-14054 |
XZU304..20T..(DCRTJ,DCRTM)..1NO;BZU300,XZU334,344,354..(DM6,T3)..(20T,35T,40T)..(DCRTK,LPG) NO.2 |
1 | ||
| 90506-23049 |
XZU304..20T..(DCRTJ,DCRTM)..1NO;BZU300,XZU334,344,354..(DM6,T3)..(20T,35T,40T)..(DCRTK,LPG) NO.1 |
1 | ||
| 46555 - SPRING, BRAKE SHOE HOLD DOWN | ||||
| 90501-16108 |
XZU304..20T..(DCRTJ,DCRTM)..1NO;BZU300,XZU334,344,354..(DM6,T3)..(20T,35T,40T)..(DCRTK,LPG) |
2 | ||
| SU002-00925 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
2 | ||
| 46556 - PIN, SHOE HOLD DOWN SPRING | ||||
| 47447-20030 |
XZU304..20T..(DCRTJ,DCRTM)..1NO;BZU300,XZU334,344,354..(DM6,T3)..(20T,35T,40T)..(DCRTK,LPG) |
2 | ||
| SU002-00297 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
2 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| SU002-00303 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
4 | ||
| 47449-20011 |
XZU354..1NO;XZU354,554..6FC;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548..5F,6FC |
4 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| SU002-00303 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
4 | ||
| 47449-20011 |
XZU354..1NO;XZU354,554..6FC;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548..5F,6FC |
4 | ||
| 46601 - LEVER SUB-ASSY, PARKING BRAKE SHOE | ||||
| SU002-00293 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 46601-36051 |
XZU304..20T..(DCRTJ,DCRTM)..1NO;BZU300,XZU334,344,354..(DM6,T3)..(20T,35T,40T)..(DCRTK,LPG) |
1 | ||
| 46612 - STRUT, PARKING BRAKE SHOE LEVER | ||||
| SU002-00294 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 46612-36050 |
XZU304..20T..(DCRTJ,DCRTM)..1NO;BZU300,XZU334,344,354..(DM6,T3)..(20T,35T,40T)..(DCRTK,LPG) |
1 | ||
| 46612B - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-10010 |
XZU304..20T..(DCRTJ,DCRTM)..1NO;BZU300,XZU334,344,354..(DM6,T3)..(20T,35T,40T)..(DCRTK,LPG) |
1 | ||
| SU002-00295 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| SU002-00292 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 47456-20030 |
XZU304..20T..(DCRTJ,DCRTM)..1NO;BZU300,XZU334,344,354..(DM6,T3)..(20T,35T,40T)..(DCRTK,LPG) |
1 | ||
| 47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE) | ||||
| 47459-30010 |
XZU304..20T..(DCRTJ,DCRTM)..1NO;BZU300,XZU334,344,354..(DM6,T3)..(20T,35T,40T)..(DCRTK,LPG) |
1 | ||
| 47491A - PLUG, SHOE ADJUSTING HOLE(FOR PARKING BRAKE SHOE) | ||||
| 47491-22020 |
XZU304..20T..(DCRTJ,DCRTM)..1NO;BZU300,XZU334,344,354..(DM6,T3)..(20T,35T,40T)..(DCRTK,LPG) |
1 | ||
| Common parts | ||||
| 90119-10398 | ||||
| 90119-12211 | ||||
ILLUST NO. 2 OF 2(0610- )XZU314,324,354,368,378,388,524,554,568..5F..20T,30T ; (1003- )6F
MYY5A,MYY6S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46405A - SCREW SET, SHOE ADJUSTING, RH | ||||
| SU002-00289 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 47405-36010 |
XZU304..20T..(DCRTJ,DCRTM)..1NO;BZU300,XZU334,344,354..(DM6,T3)..(20T,35T,40T)..(DCRTK,LPG) |
1 | ||
| 46501 - DRUM SUB-ASSY, PARKING BRAKE | ||||
| 46501-37112 |
XZU304..6FC..20T..1NO |
1 | ||
| 46511-37080 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM) | ||||
| 90031-01170 |
XZU354..1NO;XZU354,554..6FC;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548..5F,6FC |
4 | ||
| SU002-00970 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
4 | ||
| 46503C - PLATE SUB-ASSY, PARKING BRAKE | ||||
| 46503-37691 |
XZU334,344,354..35T,40T;XZU304..20T..(DCRTJ,DCRTM)..1NO |
1 | ||
| SU002-00296 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 46524 - COVER, PARKING BRAKE DUST | ||||
| 46524-37030 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-37040 |
XZU304..20T..(DCRTJ,DCRTM)..1NO;BZU300,XZU334,344,354..(DM6,T3)..(20T,35T,40T)..(DCRTK,LPG) |
1 | ||
| SU002-00286 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-37040 |
XZU304..20T..(DCRTJ,DCRTM)..1NO;BZU300,XZU334,344,354..(DM6,T3)..(20T,35T,40T)..(DCRTK,LPG) |
1 | ||
| SU002-00286 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90905-06020 |
XZU304..20T..(DCRTJ,DCRTM)..1NO;BZU300,XZU334,344,354..(DM6,T3)..(20T,35T,40T)..(DCRTK,LPG) |
2 | ||
| SU002-00287 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
2 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90905-06020 |
XZU304..20T..(DCRTJ,DCRTM)..1NO;BZU300,XZU334,344,354..(DM6,T3)..(20T,35T,40T)..(DCRTK,LPG) |
2 | ||
| SU002-00287 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
2 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| SU002-00299 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 90213-06003 |
XZU354..1NO;XZU354,554..6FC;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548..5F,6FC |
1 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| SU002-00288 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 90506-14054 |
XZU304..20T..(DCRTJ,DCRTM)..1NO;BZU300,XZU334,344,354..(DM6,T3)..(20T,35T,40T)..(DCRTK,LPG) NO.2 |
1 | ||
| 90506-23049 |
XZU304..20T..(DCRTJ,DCRTM)..1NO;BZU300,XZU334,344,354..(DM6,T3)..(20T,35T,40T)..(DCRTK,LPG) NO.1 |
1 | ||
| 46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN) | ||||
| SU002-00291 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 46555 - SPRING, BRAKE SHOE HOLD DOWN | ||||
| 90501-16108 |
XZU304..20T..(DCRTJ,DCRTM)..1NO;BZU300,XZU334,344,354..(DM6,T3)..(20T,35T,40T)..(DCRTK,LPG) |
2 | ||
| SU002-00925 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
2 | ||
| 46556 - PIN, SHOE HOLD DOWN SPRING | ||||
| 47447-20030 |
XZU304..20T..(DCRTJ,DCRTM)..1NO;BZU300,XZU334,344,354..(DM6,T3)..(20T,35T,40T)..(DCRTK,LPG) |
2 | ||
| SU002-00297 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
2 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| SU002-00303 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
4 | ||
| 47449-20011 |
XZU354..1NO;XZU354,554..6FC;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548..5F,6FC |
4 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| SU002-00303 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
4 | ||
| 47449-20011 |
XZU354..1NO;XZU354,554..6FC;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548..5F,6FC |
4 | ||
| 46601 - LEVER SUB-ASSY, PARKING BRAKE SHOE | ||||
| SU002-00293 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 46601-36051 |
XZU304..20T..(DCRTJ,DCRTM)..1NO;BZU300,XZU334,344,354..(DM6,T3)..(20T,35T,40T)..(DCRTK,LPG) |
1 | ||
| 46612 - STRUT, PARKING BRAKE SHOE LEVER | ||||
| SU002-00294 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 46612-36050 |
XZU304..20T..(DCRTJ,DCRTM)..1NO;BZU300,XZU334,344,354..(DM6,T3)..(20T,35T,40T)..(DCRTK,LPG) |
1 | ||
| 46612B - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-10010 |
XZU304..20T..(DCRTJ,DCRTM)..1NO;BZU300,XZU334,344,354..(DM6,T3)..(20T,35T,40T)..(DCRTK,LPG) |
1 | ||
| SU002-00295 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| SU002-00292 |
XZU30#,33#,34#..6F;XZU314,324,354,368,378,388,524,554,568..MTM..(20T,30T) |
1 | ||
| 47456-20030 |
XZU304..20T..(DCRTJ,DCRTM)..1NO;BZU300,XZU334,344,354..(DM6,T3)..(20T,35T,40T)..(DCRTK,LPG) |
1 | ||
| Common parts | ||||
| 90119-06931 | ||||
| 90177-12003 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
