XZU304A-TYTMB3 (2006)
Toyota Dyna/Toyoace
(0610-1010)N04C..XZU378..IV4 ; (0610-1010)N04C..XZU304..T3,T4,T5..IV3,IV4 ; (0610-1
24V 80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-78190 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6,IV7 24V 60A |
1 | ||
| 27060-78190 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6,IV7 24V 60A |
1 | ||
| 27060-78140 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6,IV7 24V 60A |
1 | ||
| 27060-78140 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6,IV7 24V 60A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90031-05093 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 90031-05093 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6,IV7 24V 60A |
1 | ||
| 27370-75060 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6,IV7 24V 60A |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-42021 |
N04C..XZU368..DM5..IV3;N04C..XZU308,348,378,388..DCB..IV3;N04C..XZU304,314,324,354,524,554,568..DM3,DM5,DM6,DM7;N04C..XZU30#,33#,34#,368,378,388,50#,538,548,568..(03S,06S,DM5,T2,T3,T4,T5)..(CBU,IV6,IV7) |
1 | ||
| 27387-42021 |
N04C..XZU368..DM5..IV3;N04C..XZU308,348,378,388..DCB..IV3;N04C..XZU304,314,324,354,524,554,568..DM3,DM5,DM6,DM7;N04C..XZU30#,33#,34#,368,378,388,50#,538,548,568..(03S,06S,DM5,T2,T3,T4,T5)..(CBU,IV6,IV7) |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-89108 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6,IV7 24V 60A |
1 | ||
| 27411-89108 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6,IV7 24V 60A |
1 | ||
| Common parts | ||||
| 90099-05171 | ||||
| 90099-05284 | ||||
| 90179-06158 | ||||
(0610-1010)N04C..CBU,IV3,IV6,IV7
24V 60A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-78190 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6,IV7 24V 60A |
1 | ||
| 27060-78140 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6,IV7 24V 60A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90031-05093 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-17240 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6,IV7 |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-17080 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6,IV7 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6,IV7 24V 60A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-89108 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6,IV7 24V 60A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-58060 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6,IV7 |
1 | ||
| Common parts | ||||
| 90179-06158 | ||||

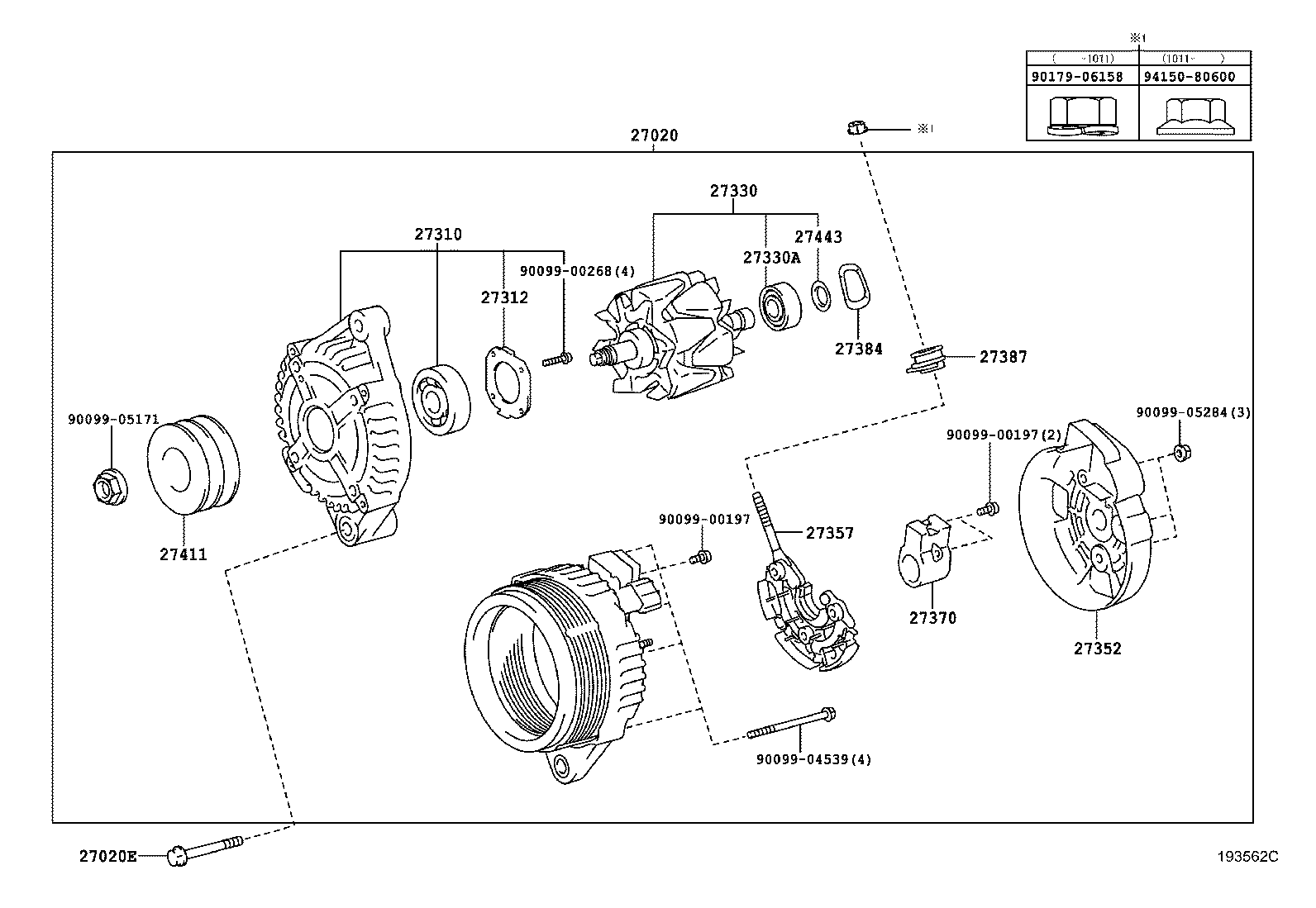

(1010- )N04C..XZU378..IV4 ; (1010- )N04C..XZU304..T3,T4,T5..IV3,IV4 ; (1010-
24V 80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-78190 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6,IV7 24V 60A |
1 | ||
| 27060-78190 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6,IV7 24V 60A |
1 | ||
| 27060-78140 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6,IV7 24V 60A |
1 | ||
| 27060-78140 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6,IV7 24V 60A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90031-05093 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 90031-05093 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-78190 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6,IV7 24V 60A |
1 | ||
| 27310-78190 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6,IV7 24V 60A |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-42010 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6,IV7 |
1 | ||
| 27312-42010 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6,IV7 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-17240 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6,IV7 |
1 | ||
| 27330-17240 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6,IV7 |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6,IV7 24V 60A |
1 | ||
| 90099-10140 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6,IV7 24V 60A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-17080 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6,IV7 |
1 | ||
| 27357-17080 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6,IV7 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6,IV7 24V 60A |
1 | ||
| 27370-75060 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6,IV7 24V 60A |
1 | ||
| 27384 - WASHER | ||||
| 27384-50030 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 27384-50030 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-42021 |
N04C..XZU368..DM5..IV3;N04C..XZU308,348,378,388..DCB..IV3;N04C..XZU304,314,324,354,524,554,568..DM3,DM5,DM6,DM7;N04C..XZU30#,33#,34#,368,378,388,50#,538,548,568..(03S,06S,DM5,T2,T3,T4,T5)..(CBU,IV6,IV7) |
1 | ||
| 27387-42021 |
N04C..XZU368..DM5..IV3;N04C..XZU308,348,378,388..DCB..IV3;N04C..XZU304,314,324,354,524,554,568..DM3,DM5,DM6,DM7;N04C..XZU30#,33#,34#,368,378,388,50#,538,548,568..(03S,06S,DM5,T2,T3,T4,T5)..(CBU,IV6,IV7) |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-89108 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6,IV7 24V 60A |
1 | ||
| 27411-89108 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6,IV7 24V 60A |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 27443-63020 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| Common parts | ||||
| 90099-00197 | ||||
| 90099-00268 | ||||
| 90099-04539 | ||||
| 90099-05171 | ||||
| 90099-05284 | ||||
| 90179-06158 | ||||
| 94150-80600 | ||||
(1010- )N04C..CBU,IV3,IV6,IV7
24V 60A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-78190 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6,IV7 24V 60A |
1 | ||
| 27060-78140 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6,IV7 24V 60A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90031-05093 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-58330 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6,IV7 |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6,IV7 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-78190 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6,IV7 24V 60A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10219 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6,IV7 |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-42010 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6,IV7 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-17240 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6,IV7 |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6,IV7 24V 60A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-17080 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6,IV7 |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-58050 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6,IV7 |
1 | ||
| 27365A - PLATE, RECTIFIER | ||||
| 27365-55080 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6,IV7 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6,IV7 24V 60A |
1 | ||
| 27384 - WASHER | ||||
| 27384-50030 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-42021 |
N04C..XZU368..DM5..IV3;N04C..XZU308,348,378,388..DCB..IV3;N04C..XZU304,314,324,354,524,554,568..DM3,DM5,DM6,DM7;N04C..XZU30#,33#,34#,368,378,388,50#,538,548,568..(03S,06S,DM5,T2,T3,T4,T5)..(CBU,IV6,IV7) |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-46220 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6,IV7 |
1 | ||
| 27389 - INSULATOR, TERMINAL | ||||
| 27389-42010 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6,IV7 |
4 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-89108 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6,IV7 24V 60A |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-58060 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6,IV7 |
1 | ||
| Common parts | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00246 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90099-05267 | ||||
| 90179-06158 | ||||
| 93319-14025 | ||||
(1010- )
24V 60A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00246 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90099-05267 | ||||
| 90179-06158 | ||||
| 93319-14025 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 1107 | ||||
(1010- )N04C..SCB..IV3
24V 80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-00197 | ||||
| 90099-00268 | ||||
| 90099-04539 | ||||
| 90099-05171 | ||||
| 90099-05284 | ||||
| 90179-06158 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 1107 | ||||
