XZU304A-TYMMX3 (2003)
Toyota Dyna/Toyoace

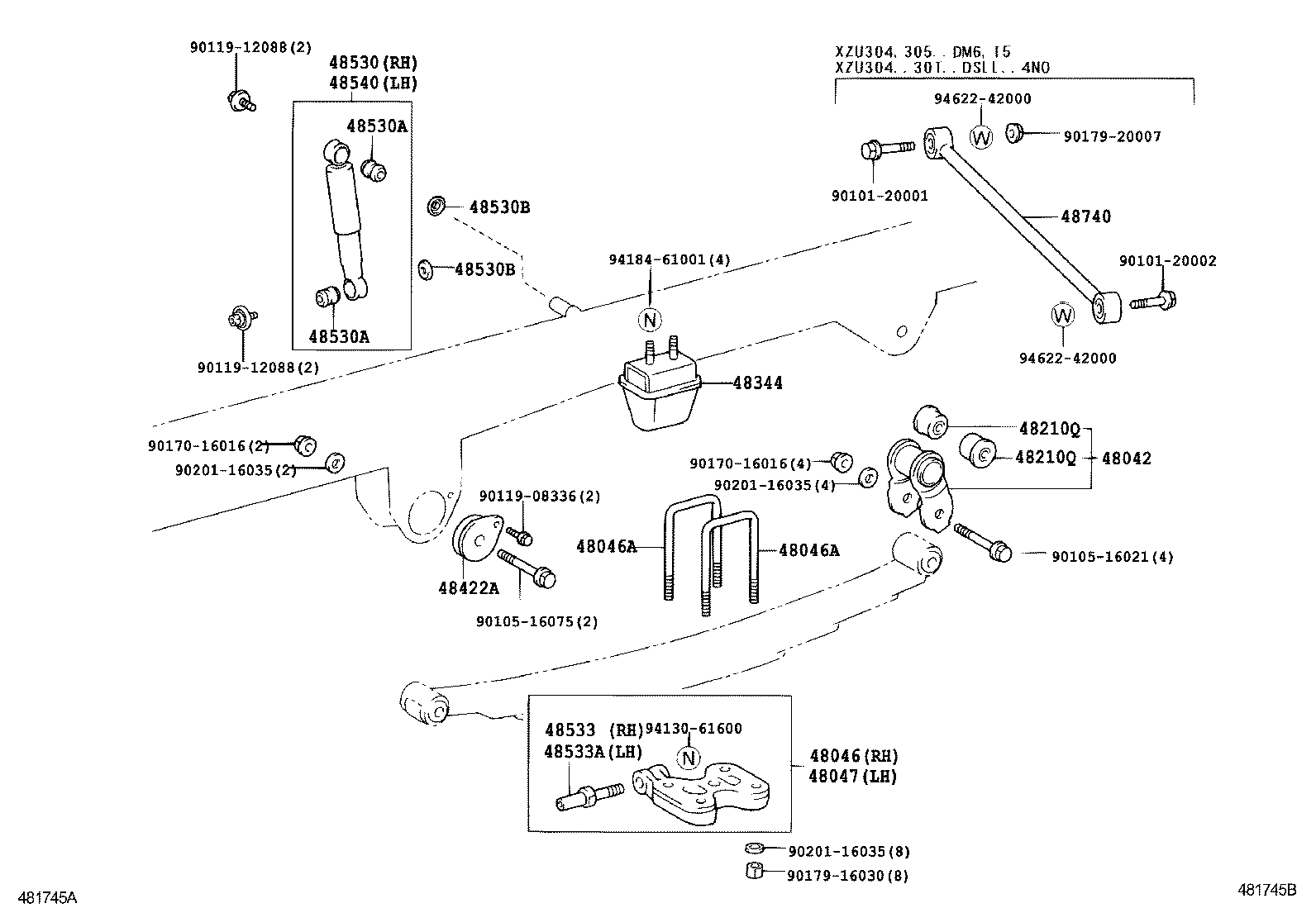

ILLUST NO. 1 OF 3(9905-0406)XZU341..LPG ; (9905-0406)XZU302..CNG,DSL ; (9905-0406)RZU300,XZU300,301,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2 | ||||
| 48042-37020 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T |
2 | ||
| 48042-37020 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T |
2 | ||
| 48042-37020 |
XZU304,305,344 |
2 | ||
| 48042-37020 |
XZU304,305,344 |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-37080 |
XZU304,305..DM6,T4,T5 |
1 | ||
| 48046-37080 |
XZU304,305..DM6,T4,T5 |
1 | ||
| 48046-37080 |
XZU336,368..T4;BZU300,RZU300,XZU301..T4..30T;XZU304..(DM6,T4,T5)..(DCRL,DSLL);BZU300,XZU301,305,306..(DM3,DM6,T5)..WT |
1 | ||
| 48046-37080 |
XZU336,368..T4;BZU300,RZU300,XZU301..T4..30T;XZU304..(DM6,T4,T5)..(DCRL,DSLL);BZU300,XZU301,305,306..(DM3,DM6,T5)..WT |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16068 |
XZU304,305..DM6,T5;XZU304..30T..DSLL..4NO 長さ=270 |
4 | ||
| 90117-16068 |
XZU304,305..DM6,T5;XZU304..30T..DSLL..4NO 長さ=270 |
4 | ||
| 90117-16068 |
XZU304..IV7..4NO;XZU304..T4..DCRL..IV3;BZU300,XZU301,304,305..DM3,DM6;BZU300,RZU300,XZU301,304,368..(T4,T5)..30T 長さ=270 |
4 | ||
| 90117-16068 |
XZU304..IV7..4NO;XZU304..T4..DCRL..IV3;BZU300,XZU301,304,305..DM3,DM6;BZU300,RZU300,XZU301,304,368..(T4,T5)..30T 長さ=270 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16068 |
XZU304,305..DM6,T5;XZU304..30T..DSLL..4NO 長さ=270 |
4 | ||
| 90117-16068 |
XZU304,305..DM6,T5;XZU304..30T..DSLL..4NO 長さ=270 |
4 | ||
| 90117-16068 |
XZU304..IV7..4NO;XZU304..T4..DCRL..IV3;BZU300,XZU301,304,305..DM3,DM6;BZU300,RZU300,XZU301,304,368..(T4,T5)..30T 長さ=270 |
4 | ||
| 90117-16068 |
XZU304..IV7..4NO;XZU304..T4..DCRL..IV3;BZU300,XZU301,304,305..DM3,DM6;BZU300,RZU300,XZU301,304,368..(T4,T5)..30T 長さ=270 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-37080 |
XZU304,305..DM6,T4,T5 |
1 | ||
| 48047-37080 |
XZU304,305..DM6,T4,T5 |
1 | ||
| 48047-37080 |
XZU336,368..T4;BZU300,RZU300,XZU301..T4..30T;XZU304..(DM6,T4,T5)..(DCRL,DSLL);BZU300,XZU301,305,306..(DM3,DM6,T5)..WT |
1 | ||
| 48047-37080 |
XZU336,368..T4;BZU300,RZU300,XZU301..T4..30T;XZU304..(DM6,T4,T5)..(DCRL,DSLL);BZU300,XZU301,305,306..(DM3,DM6,T5)..WT |
1 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T |
4 | ||
| 90389-16026 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T |
4 | ||
| 90389-16026 |
XZU304,305,344 |
4 | ||
| 90389-16026 |
XZU304,305,344 |
4 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T |
4 | ||
| 90389-16026 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T |
4 | ||
| 90389-16026 |
XZU304,305,344 |
4 | ||
| 90389-16026 |
XZU304,305,344 |
4 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-37050 |
XZU304,305..DM6,T5;XZU304..30T..DSLL..4NO |
2 | ||
| 48344-37050 |
XZU304,305..DM6,T5;XZU304..30T..DSLL..4NO |
2 | ||
| 48344-37050 |
XZU304..IV7..4NO;BZU300,XZU301,304,305..DM3,DM6;BZU300,RZU300,XZU301,304..(T4,T5)..30T |
2 | ||
| 48344-37050 |
XZU304..IV7..4NO;BZU300,XZU301,304,305..DM3,DM6;BZU300,RZU300,XZU301,304..(T4,T5)..30T |
2 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-37050 |
XZU304,305..DM6,T5;XZU304..30T..DSLL..4NO |
2 | ||
| 48344-37050 |
XZU304,305..DM6,T5;XZU304..30T..DSLL..4NO |
2 | ||
| 48344-37050 |
XZU304..IV7..4NO;BZU300,XZU301,304,305..DM3,DM6;BZU300,RZU300,XZU301,304..(T4,T5)..30T |
2 | ||
| 48344-37050 |
XZU304..IV7..4NO;BZU300,XZU301,304,305..DM3,DM6;BZU300,RZU300,XZU301,304..(T4,T5)..30T |
2 | ||
| 48422A - SUPPORT, REAR SPRING PIN | ||||
| 48422-36090 |
BZU300,RZU30#,XZU30#,31#,321,334,336,338,35#,368..03S,06S,DM2,DM3,DM5,DM6,DM7,T1,T2,T4,T5 |
2 | ||
| 48422-36090 |
BZU300,RZU30#,XZU30#,31#,321,334,336,338,35#,368..03S,06S,DM2,DM3,DM5,DM6,DM7,T1,T2,T4,T5 |
2 | ||
| 48422-36090 |
XZU304,305..DM6,T4,T5 |
2 | ||
| 48422-36090 |
XZU304,305..DM6,T4,T5 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80672 |
XZU304,305..DM6,T4,T5 ﾏｰｸ 48531−37020 |
1 | ||
| 48531-80672 |
XZU304,305..DM6,T4,T5 ﾏｰｸ 48531−37020 |
1 | ||
| 48531-80672 |
RZU300..DM5..CBU;RZU300,XZU306..(T2,T4,T5)..(CBU,IV3);BZU300,RZU301,XZU301,304,305,308,31#,334,336,338,35#,368..(DM2,DM3,DM5,DM6,T2,T4,T5)..WT ﾏｰｸ 48531−37020 |
1 | ||
| 48531-80672 |
RZU300..DM5..CBU;RZU300,XZU306..(T2,T4,T5)..(CBU,IV3);BZU300,RZU301,XZU301,304,305,308,31#,334,336,338,35#,368..(DM2,DM3,DM5,DM6,T2,T4,T5)..WT ﾏｰｸ 48531−37020 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90385-19011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90385-19011 |
XZU304,305,344 |
4 | ||
| 90385-19011 |
XZU304,305,344 |
4 | ||
| 90385-19011 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 90385-19011 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90385-19011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90385-19011 |
XZU304,305,344 |
4 | ||
| 90385-19011 |
XZU304,305,344 |
4 | ||
| 90385-19011 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 90385-19011 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90948-03011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90948-03011 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 90948-03011 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 90948-03011 |
XZU304,305,344 |
4 | ||
| 90948-03011 |
XZU304,305,344 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90948-03011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90948-03011 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 90948-03011 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 90948-03011 |
XZU304,305,344 |
4 | ||
| 90948-03011 |
XZU304,305,344 |
4 | ||
| 48533 - PIN, REAR SHOCK ABSORBER LOWER PIVOT, RH | ||||
| 48522-37030 |
BZU300,RZU30#,XZU30#,31#,321,334,336,338,35#,368..(03S,06S,DM2,DM3,DM5,DM6,DM7,T2,T4,T5)..WT |
1 | ||
| 48522-37030 |
BZU300,RZU30#,XZU30#,31#,321,334,336,338,35#,368..(03S,06S,DM2,DM3,DM5,DM6,DM7,T2,T4,T5)..WT |
1 | ||
| 48522-37030 |
XZU304,305..DM6,T4,T5 |
1 | ||
| 48522-37030 |
XZU304,305..DM6,T4,T5 |
1 | ||
| 48533A - PIN, REAR SHOCK ABSORBER LOWER PIVOT, LH | ||||
| 48522-37030 |
XZU304,305..DM6,T4,T5 |
1 | ||
| 48522-37030 |
XZU304,305..DM6,T4,T5 |
1 | ||
| 48522-37030 |
BZU300,RZU30#,XZU30#,31#,321,334,336,338,35#,368..(03S,06S,DM2,DM3,DM5,DM6,DM7,T2,T4,T5)..WT |
1 | ||
| 48522-37030 |
BZU300,RZU30#,XZU30#,31#,321,334,336,338,35#,368..(03S,06S,DM2,DM3,DM5,DM6,DM7,T2,T4,T5)..WT |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80672 |
XZU304,305..DM6,T4,T5 ﾏｰｸ 48531−37020 |
1 | ||
| 48531-80672 |
XZU304,305..DM6,T4,T5 ﾏｰｸ 48531−37020 |
1 | ||
| 48531-80672 |
RZU300..DM5..CBU;RZU300,XZU306..(T2,T4,T5)..(CBU,IV3);BZU300,RZU301,XZU301,304,305,308,31#,334,336,338,35#,368..(DM2,DM3,DM5,DM6,T2,T4,T5)..WT ﾏｰｸ 48531−37020 |
1 | ||
| 48531-80672 |
RZU300..DM5..CBU;RZU300,XZU306..(T2,T4,T5)..(CBU,IV3);BZU300,RZU301,XZU301,304,305,308,31#,334,336,338,35#,368..(DM2,DM3,DM5,DM6,T2,T4,T5)..WT ﾏｰｸ 48531−37020 |
1 | ||
| 48740 - ROD ASSY, REAR LATERAL CONTROL | ||||
| 48740-37010 |
XZU304,305..DM6,T5;XZU304..30T..DSLL..4NO |
1 | ||
| 48740-37010 |
XZU304,305..DM6,T5;XZU304..30T..DSLL..4NO |
1 | ||
| Common parts | ||||
| 90101-20001 | ||||
| 90101-20002 | ||||
| 90105-16021 | ||||
| 90105-16075 | ||||
| 90119-08336 | ||||
| 90119-12088 | ||||
| 90170-16016 | ||||
| 90179-16030 | ||||
| 90179-20007 | ||||
| 90201-16035 | ||||
| 91645-C1032 | ||||
| 94130-61600 | ||||
| 94184-61001 | ||||
| 94622-42000 | ||||
ILLUST NO. 1 OF 3(0310-0406)XZU304,305..DM6,T4,T5
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2 | ||||
| 48042-37020 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T |
2 | ||
| 48042-37020 |
XZU304,305,344 |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-37080 |
XZU304,305..DM6,T4,T5 |
1 | ||
| 48046-37080 |
XZU336,368..T4;BZU300,RZU300,XZU301..T4..30T;XZU304..(DM6,T4,T5)..(DCRL,DSLL);BZU300,XZU301,305,306..(DM3,DM6,T5)..WT |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16068 |
XZU304,305..DM6,T5;XZU304..30T..DSLL..4NO 長さ=270 |
4 | ||
| 90117-16068 |
XZU304..IV7..4NO;XZU304..T4..DCRL..IV3;BZU300,XZU301,304,305..DM3,DM6;BZU300,RZU300,XZU301,304,368..(T4,T5)..30T 長さ=270 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16068 |
XZU304,305..DM6,T5;XZU304..30T..DSLL..4NO 長さ=270 |
4 | ||
| 90117-16068 |
XZU304..IV7..4NO;XZU304..T4..DCRL..IV3;BZU300,XZU301,304,305..DM3,DM6;BZU300,RZU300,XZU301,304,368..(T4,T5)..30T 長さ=270 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-37080 |
XZU304,305..DM6,T4,T5 |
1 | ||
| 48047-37080 |
XZU336,368..T4;BZU300,RZU300,XZU301..T4..30T;XZU304..(DM6,T4,T5)..(DCRL,DSLL);BZU300,XZU301,305,306..(DM3,DM6,T5)..WT |
1 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T |
4 | ||
| 90389-16026 |
XZU304,305,344 |
4 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T |
4 | ||
| 90389-16026 |
XZU304,305,344 |
4 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-37050 |
XZU304,305..DM6,T5;XZU304..30T..DSLL..4NO |
2 | ||
| 48344-37050 |
XZU304..IV7..4NO;BZU300,XZU301,304,305..DM3,DM6;BZU300,RZU300,XZU301,304..(T4,T5)..30T |
2 | ||
| 48422A - SUPPORT, REAR SPRING PIN | ||||
| 48422-36090 |
BZU300,RZU30#,XZU30#,31#,321,334,336,338,35#,368..03S,06S,DM2,DM3,DM5,DM6,DM7,T1,T2,T4,T5 |
2 | ||
| 48422-36090 |
XZU304,305..DM6,T4,T5 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80672 |
XZU304,305..DM6,T4,T5 ﾏｰｸ 48531−37020 |
1 | ||
| 48531-80672 |
RZU300..DM5..CBU;RZU300,XZU306..(T2,T4,T5)..(CBU,IV3);BZU300,RZU301,XZU301,304,305,308,31#,334,336,338,35#,368..(DM2,DM3,DM5,DM6,T2,T4,T5)..WT ﾏｰｸ 48531−37020 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
XZU304,305,344 |
4 | ||
| 90385-19011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90385-19011 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
XZU304,305,344 |
4 | ||
| 90385-19011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90385-19011 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90948-03011 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 90948-03011 |
XZU304,305,344 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90948-03011 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 90948-03011 |
XZU304,305,344 |
4 | ||
| 48533 - PIN, REAR SHOCK ABSORBER LOWER PIVOT, RH | ||||
| 48522-37030 |
BZU300,RZU30#,XZU30#,31#,321,334,336,338,35#,368..(03S,06S,DM2,DM3,DM5,DM6,DM7,T2,T4,T5)..WT |
1 | ||
| 48522-37030 |
XZU304,305..DM6,T4,T5 |
1 | ||
| 48533A - PIN, REAR SHOCK ABSORBER LOWER PIVOT, LH | ||||
| 48522-37030 |
XZU304,305..DM6,T4,T5 |
1 | ||
| 48522-37030 |
BZU300,RZU30#,XZU30#,31#,321,334,336,338,35#,368..(03S,06S,DM2,DM3,DM5,DM6,DM7,T2,T4,T5)..WT |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80672 |
XZU304,305..DM6,T4,T5 ﾏｰｸ 48531−37020 |
1 | ||
| 48531-80672 |
RZU300..DM5..CBU;RZU300,XZU306..(T2,T4,T5)..(CBU,IV3);BZU300,RZU301,XZU301,304,305,308,31#,334,336,338,35#,368..(DM2,DM3,DM5,DM6,T2,T4,T5)..WT ﾏｰｸ 48531−37020 |
1 | ||
| 48740 - ROD ASSY, REAR LATERAL CONTROL | ||||
| 48740-37010 |
XZU304,305..DM6,T5;XZU304..30T..DSLL..4NO |
1 | ||
| Common parts | ||||
| 90101-20001 | ||||
| 90101-20002 | ||||
| 90105-16021 | ||||
| 90105-16075 | ||||
| 90119-08336 | ||||
| 90119-12088 | ||||
| 90170-16016 | ||||
| 90179-16030 | ||||
| 90179-20007 | ||||
| 90201-16035 | ||||
| 94130-61600 | ||||
| 94184-61001 | ||||
| 94622-42000 | ||||
(0406- )XZU30#,334,336,338..DM3,DM6,T2,T4,T5..WT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2 | ||||
| 48042-37020 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T |
2 | ||
| 48042-37020 |
XZU304,305,344 |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-37080 |
XZU304,305..DM6,T4,T5 |
1 | ||
| 48046-37080 |
XZU336,368..T4;BZU300,RZU300,XZU301..T4..30T;XZU304..(DM6,T4,T5)..(DCRL,DSLL);BZU300,XZU301,305,306..(DM3,DM6,T5)..WT |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16068 |
XZU304,305..DM6,T5;XZU304..30T..DSLL..4NO 長さ=270 |
4 | ||
| 90117-16068 |
XZU304..IV7..4NO;XZU304..T4..DCRL..IV3;BZU300,XZU301,304,305..DM3,DM6;BZU300,RZU300,XZU301,304,368..(T4,T5)..30T 長さ=270 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16068 |
XZU304,305..DM6,T5;XZU304..30T..DSLL..4NO 長さ=270 |
4 | ||
| 90117-16068 |
XZU304..IV7..4NO;XZU304..T4..DCRL..IV3;BZU300,XZU301,304,305..DM3,DM6;BZU300,RZU300,XZU301,304,368..(T4,T5)..30T 長さ=270 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-37080 |
XZU304,305..DM6,T4,T5 |
1 | ||
| 48047-37080 |
XZU336,368..T4;BZU300,RZU300,XZU301..T4..30T;XZU304..(DM6,T4,T5)..(DCRL,DSLL);BZU300,XZU301,305,306..(DM3,DM6,T5)..WT |
1 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T |
4 | ||
| 90389-16026 |
XZU304,305,344 |
4 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T |
4 | ||
| 90389-16026 |
XZU304,305,344 |
4 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-37050 |
XZU304,305..DM6,T5;XZU304..30T..DSLL..4NO |
2 | ||
| 48344-37050 |
XZU304..IV7..4NO;BZU300,XZU301,304,305..DM3,DM6;BZU300,RZU300,XZU301,304..(T4,T5)..30T |
2 | ||
| 48422A - SUPPORT, REAR SPRING PIN | ||||
| 48422-36090 |
BZU300,RZU30#,XZU30#,31#,321,334,336,338,35#,368..03S,06S,DM2,DM3,DM5,DM6,DM7,T1,T2,T4,T5 |
2 | ||
| 48422-36090 |
XZU304,305..DM6,T4,T5 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80672 |
XZU304,305..DM6,T4,T5 ﾏｰｸ 48531−37020 |
1 | ||
| 48531-80672 |
RZU300..DM5..CBU;RZU300,XZU306..(T2,T4,T5)..(CBU,IV3);BZU300,RZU301,XZU301,304,305,308,31#,334,336,338,35#,368..(DM2,DM3,DM5,DM6,T2,T4,T5)..WT ﾏｰｸ 48531−37020 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
XZU304,305,344 |
4 | ||
| 90385-19011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90385-19011 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
XZU304,305,344 |
4 | ||
| 90385-19011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90385-19011 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90948-03011 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 90948-03011 |
XZU304,305,344 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90948-03011 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 90948-03011 |
XZU304,305,344 |
4 | ||
| 48533 - PIN, REAR SHOCK ABSORBER LOWER PIVOT, RH | ||||
| 48522-37030 |
BZU300,RZU30#,XZU30#,31#,321,334,336,338,35#,368..(03S,06S,DM2,DM3,DM5,DM6,DM7,T2,T4,T5)..WT |
1 | ||
| 48522-37030 |
XZU304,305..DM6,T4,T5 |
1 | ||
| 48533A - PIN, REAR SHOCK ABSORBER LOWER PIVOT, LH | ||||
| 48522-37030 |
XZU304,305..DM6,T4,T5 |
1 | ||
| 48522-37030 |
BZU300,RZU30#,XZU30#,31#,321,334,336,338,35#,368..(03S,06S,DM2,DM3,DM5,DM6,DM7,T2,T4,T5)..WT |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80672 |
XZU304,305..DM6,T4,T5 ﾏｰｸ 48531−37020 |
1 | ||
| 48531-80672 |
RZU300..DM5..CBU;RZU300,XZU306..(T2,T4,T5)..(CBU,IV3);BZU300,RZU301,XZU301,304,305,308,31#,334,336,338,35#,368..(DM2,DM3,DM5,DM6,T2,T4,T5)..WT ﾏｰｸ 48531−37020 |
1 | ||
| 48802 - LINK SUB-ASSY, STABILIZER | ||||
| 48802-37010 |
XZU346,368..SCB..(T2,T3,T4);BZU300,RZU30#,XZU30#,334,336,338,348..(03S,06S,DM3,DM5,DM6,T2,T4,T5)..WT |
2 | ||
| 48802D - BUSH, STABILIZER LINK | ||||
| 90385-13009 |
XZU346,368..SCB..(T2,T3,T4);BZU300,RZU30#,XZU30#,334,336,338,348..(03S,06S,DM3,DM5,DM6,T2,T4,T5)..WT |
2 | ||
| 48802E - SPACER(FOR REAR STABILIZER BAR) | ||||
| 90560-10044 |
XZU346,368..SCB..(T2,T3,T4);BZU300,RZU30#,XZU30#,334,336,338,348..(03S,06S,DM3,DM5,DM6,T2,T4,T5)..WT |
2 | ||
| 48805 - BAR SUB-ASSY, REAR STABILIZER | ||||
| 48805-37030 |
XZU368..T4;BZU300,RZU30#,XZU30#,334,336,338..(03S,06S,DM3,DM5,DM6,T2,T4,T5)..WT |
1 | ||
| 48805A - BUSH(FOR REAR STABILIZER BAR) | ||||
| 90385-13009 |
XZU346,368..SCB..(T2,T3,T4);BZU300,RZU30#,XZU30#,334,336,338,348..(03S,06S,DM3,DM5,DM6,T2,T4,T5)..WT |
2 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48815-37060 |
XZU346,368..SCB..(T2,T3,T4);BZU300,RZU30#,XZU30#,334,336,338,348..(03S,06S,DM3,DM5,DM6,T2,T4,T5)..WT |
2 | ||
| 48823R - COVER, STABILIZER LINK(FOR REAR) | ||||
| 48823-37011 |
XZU346,368..SCB..(T2,T3,T4);BZU300,RZU30#,XZU30#,334,336,338,348..(03S,06S,DM3,DM5,DM6,T2,T4,T5)..WT |
2 | ||
| 48830C - SPACER(FOR REAR STABILIZER LINK) | ||||
| 90560-10044 |
XZU346,368..SCB..(T2,T3,T4);BZU300,RZU30#,XZU30#,334,336,338,348..(03S,06S,DM3,DM5,DM6,T2,T4,T5)..WT |
2 | ||
| 48832A - BRACKET, REAR STABILIZER BAR, NO.1 | ||||
| 48832-37020 |
XZU368..T4;BZU300,RZU30#,XZU30#,334,336,338..(03S,06S,DM3,DM5,DM6,T2,T4,T5)..WT |
2 | ||
| Common parts | ||||
| 90105-10438 | ||||
| 90105-16021 | ||||
| 90105-16075 | ||||
| 90119-08336 | ||||
| 90119-10740 | ||||
| 90119-12088 | ||||
| 90170-16016 | ||||
| 90179-16030 | ||||
| 90201-16035 | ||||
| 91512-81045 | ||||
| 94130-61600 | ||||
| 94150-81000 | ||||
| 94184-61001 | ||||
ILLUST NO. 2 OF 3(0610- )DM6
3-LEAF
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 3 OF 3(0610- )
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 2(9905-0406)XZU400..40T ; (9905-0406)XZU410..IV6; (0005-0406)40TOV ; (0406-0505)XZU
MAIN 7+HELPER 6-LEAF
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 2(9905-0406)XZU400..40T ; (9905-0406)XZU410..IV6; (0005-0406)40TOV ; (0406-0505)XZU
MAIN 7+HELPER 6-LEAF,ｷﾖｳｶ ｽﾌﾟﾘﾝｸﾞ
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 2(0406-0610)XZU413,414,421,424..20T..IV3 ; (0406-0610)XZU401,411,423..T4..20T..IV3 ;
MAIN 2+HELPER 2-LEAF,TYPE:D
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 2(9905-0406)BU410,420,430,BZU410,XZU401,410,411,412,42#..30T,35T..IV3 ; (0406-0705)X
MAIN 2+HELPER 2-LEAF,TYPE:B
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 2(0406-0610)XZU40#,411,413,414,42#,433..T4..30T,35T ; (0406-0705)BZU410..30T ; (0610
MAIN 2+HEALPER 2-LEAF,TYPE:A
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 2(0406-0505)XZU414..40T..IV3 ; (0406-0610)XZU414..40T..CBU ; (0406-0610)XZU413,423,4
MAIN 2+HELPER 3-LEAF ｷﾖｳｶ
| Part # | Description | Qty | Price |
|---|
Part Price Details
Loading price information...
Part Number:
Price:
