XZU304A-TYMMX3 (2003)
Toyota Dyna/Toyoace
Production
Oct 2003
-
May 2007
Engine
N04C
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

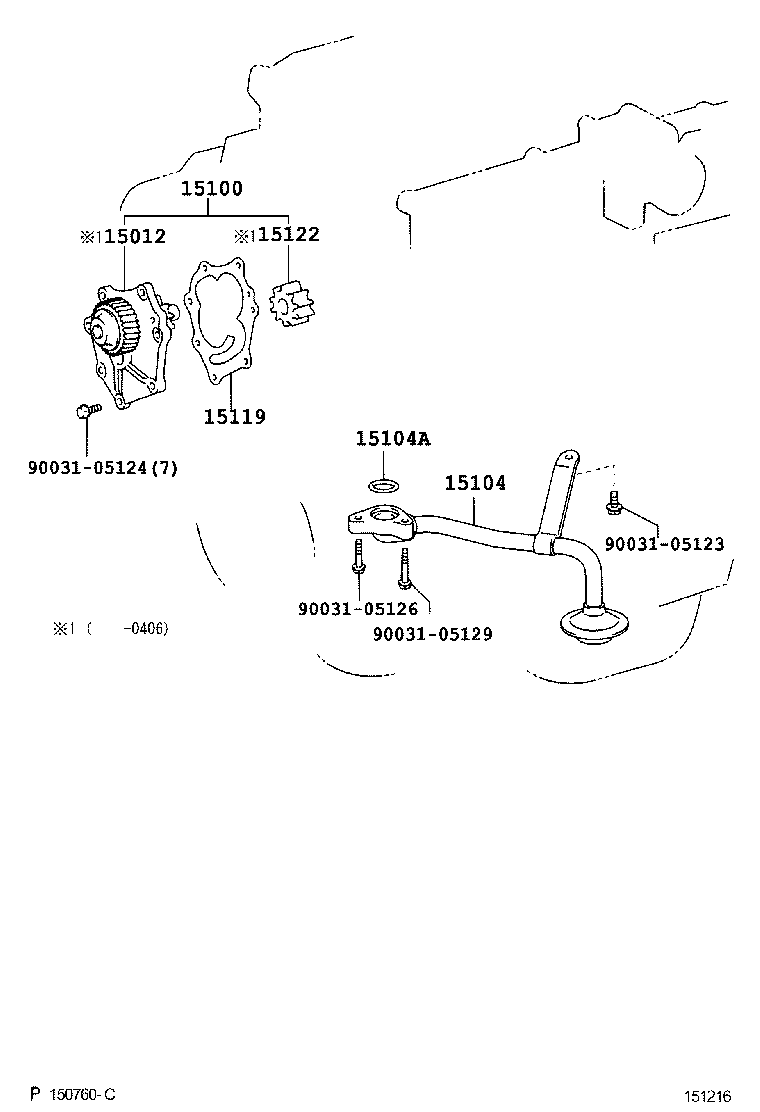

(0310- )N04C
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15012 - COVER SUB-ASSY, OIL PUMP | ||||
| 25621-78010 |
N04C..XZU304,305,344 |
1 | ||
| 15100 - PUMP ASSY, OIL | ||||
| 15100-78030 |
N04C..XZU304,305,344 |
1 | ||
| 15100-78030 |
N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388 |
1 | ||
| 15104 - STRAINER SUB-ASSY, OIL | ||||
| 15401-78030 |
N04C..XZU304,305,344 |
1 | ||
| 15401-78030 |
N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388 |
1 | ||
| 15104A - RING, O(FOR OIL STRAINER) | ||||
| 90301-21003 |
N04C..XZU304,305,344 |
1 | ||
| 90301-21003 |
N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388 |
1 | ||
| 15119 - GASKET, OIL PUMP COVER | ||||
| 15193-78010 |
N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388 |
1 | ||
| 15193-78010 |
N04C..XZU304,305,344 |
1 | ||
| 15122 - GEAR, OIL PUMP DRIVEN | ||||
| 13519-78040 |
N04C..XZU304,305,344 |
1 | ||
| Common parts | ||||
| 90031-05123 | ||||
| 90031-05124 | ||||
| 90031-05126 | ||||
| 90031-05129 | ||||

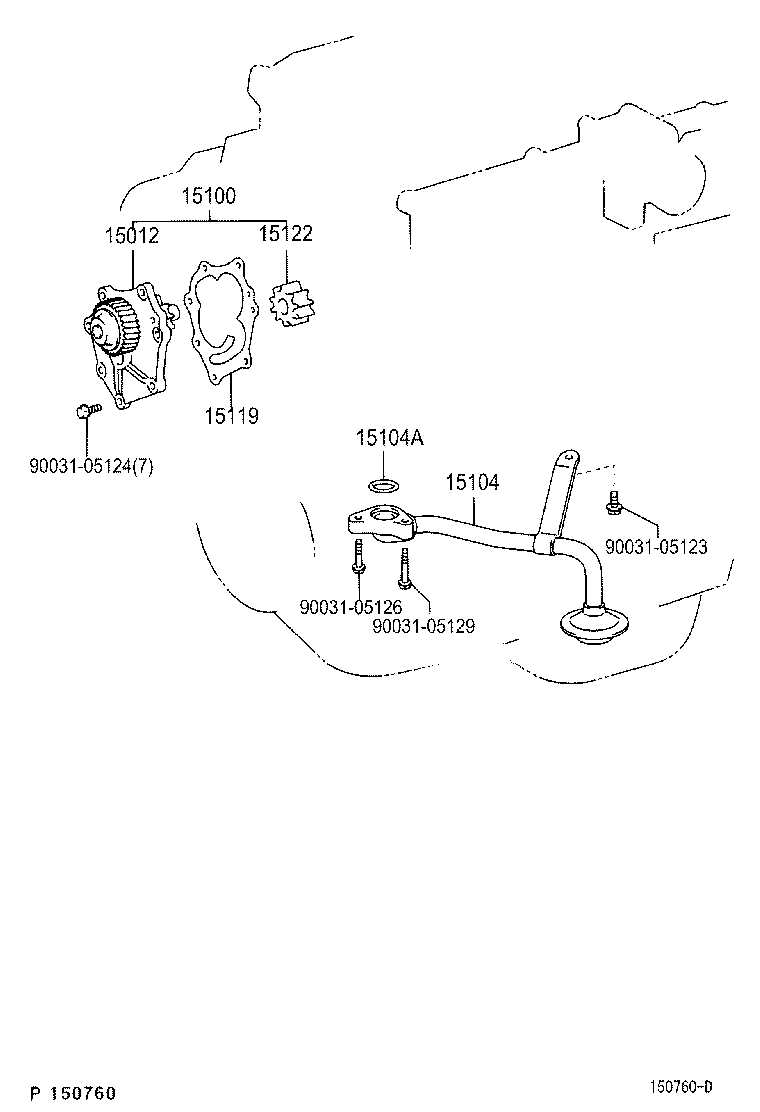

(0610- )N04C
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90031-05123 | ||||
| 90031-05124 | ||||
| 90031-05126 | ||||
| 90031-05129 | ||||
(0310- )N04C
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90031-05123 | ||||
| 90031-05124 | ||||
| 90031-05126 | ||||
| 90031-05129 | ||||
