XZU304A-TYMML3 (2003)

Toyota Dyna/Toyoace

Production Oct 2003 - Oct 2006
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

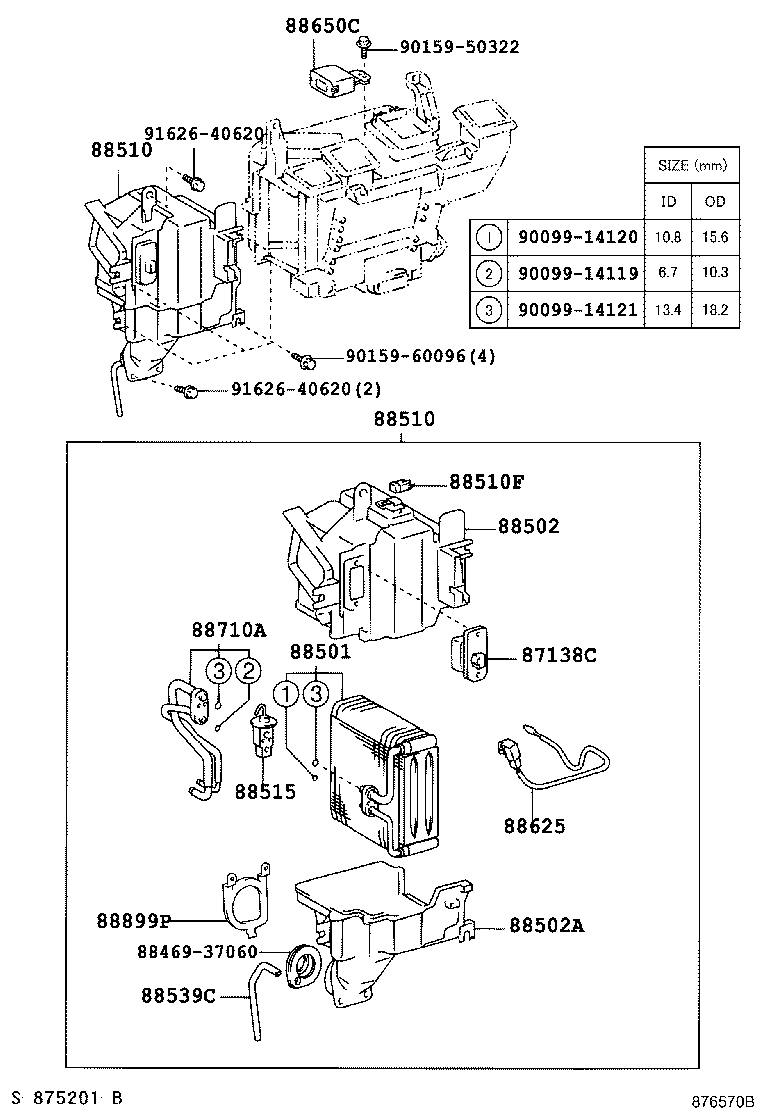

ILLUST NO. 1 OF 2(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3

Click highlighted areas on diagram

ﾌﾛﾝﾄ--ﾏﾆﾕｱﾙ ｴｱｺﾝ

diagram 87116A 87138C 8846937060 88501 88502 88502A 88510 88510 88510F 88515 88539C 88578B 88578C 88578V 88625 8862628010 88650C 88650E 88710A 88710B 88899P 9008082005 9009900968 9009900968 9009904493 9009904497 9009914119 9009914120 9009914121 9015950322 9015950322 9015960096 9162640620 9162640620 9331914006
Part # Description Qty Price
87138C - RESISTOR, BLOWER
87138-37090

XZU304,305,344

 1
87138-37090

XZU30#,31#,321,33#,34#,35#,368,378,388

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-37060

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388

 1
88501-37060

XZU304,305,344

 1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-37050

XZU304,305,344

 1
88502-37050

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388

 1
88502A - CASE SUB-ASSY, COOLING UNIT
88502-37040

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388

 1
88502-37040

XZU304,305,344

 1
88510 - UNIT ASSY, COOLER
88510-37120

XZU30#,31#,321,33#,34#,35#,368,378,388

 1
88510-37120

XZU304,305,344

 1
88510 - UNIT ASSY, COOLER
88510-37120

XZU30#,31#,321,33#,34#,35#,368,378,388

 1
88510-37120

XZU304,305,344

 1
88510F - HOLDER, FUSE
82630-95J03

XZU304,305,344

 1
82630-95J03

XZU30#,31#,321,33#,34#,35#,368,378,388

 1
88515 - VALVE, COOLER EXPANSION
88515-16060

BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382

 1
88515-28160

XZU304,305,344

 1
88515-28160

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388

 1
88539C - HOSE, COOLER UNIT DRAIN, NO.2
88539-37060

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388

ﾌﾛﾝﾄ

 1
88539-37060

XZU304,305,344

 1
88625 - THERMISTOR, COOLER, NO.1
88625-20460

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388

 1
88625-20460

XZU304,305,344

 1
88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER
88650-37120

XZU30#,31#,321,33#,34#,35#,368,378,388

 1
88650-37120

XZU304,305,344

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-37340

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388

 1
88710-37340

XZU304,305,344

 1
88710B - TUBE ASSY, AIR CONDITIONER
88710-37350

XZU304,305,344

 1
Common parts
88469-37060
88626-28010
90080-82005
90099-00968
90099-04493
90099-04497
90099-14119
90099-14120
90099-14121
90159-50322
90159-60096
91626-40620
93319-14006

ILLUST NO. 1 OF 2(9905-0406)XZU301,302,341,342 ; (9905-0406)BU30#,346,RZU300,340,XZU300,304,306,307,

Click highlighted areas on diagram

ﾌﾛﾝﾄ--ｵ-ﾄ ｴｱｺﾝ,ﾌﾟﾂｼﾕｼｷ ﾏﾆﾕｱﾙ ｴｱｺﾝ

diagram 87116A 87165C 8846937060 88501 88502 88502A 88510 88510F 88515 88539C 88578V 88625 8862628010 88650 88710A 88710B 88899P 9009900968 9009904493 9009904497 9009914119 9009914120 9009914121 9015950322 9015960096 9162640620 9162640620 9331914006
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-37060

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388

 1
88501-37060

XZU304,305,344

 1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-37050

XZU304,305,344

 1
88502-37050

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388

 1
88502A - CASE SUB-ASSY, COOLING UNIT
88502-37040

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388

 1
88502-37040

XZU304,305,344

 1
88510 - UNIT ASSY, COOLER
88510-37120

XZU30#,31#,321,33#,34#,35#,368,378,388

 1
88510-37120

XZU304,305,344

 1
88510F - HOLDER, FUSE
82630-95J03

XZU304,305,344

 1
82630-95J03

XZU30#,31#,321,33#,34#,35#,368,378,388

 1
88515 - VALVE, COOLER EXPANSION
88515-16060

BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382

 1
88515-28160

XZU304,305,344

 1
88515-28160

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388

 1
88539C - HOSE, COOLER UNIT DRAIN, NO.2
88539-37060

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388

ﾌﾛﾝﾄ

 1
88539-37060

XZU304,305,344

 1
88625 - THERMISTOR, COOLER, NO.1
88625-20460

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388

 1
88625-20460

XZU304,305,344

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-37340

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388

 1
88710-37340

XZU304,305,344

 1
88710B - TUBE ASSY, AIR CONDITIONER
88710-37350

XZU304,305,344

 1
Common parts
88469-37060
88626-28010
90099-00968
90099-04493
90099-04497
90099-14119
90099-14120
90099-14121
90159-50322
90159-60096
91626-40620
93319-14006

ILLUST NO. 1 OF 2(0310-0406)XZU304,305,344

Click highlighted areas on diagram

ﾌﾛﾝﾄ--ﾏﾆﾕｱﾙ ｴｱｺﾝ

diagram 87138C 8846937060 88501 88502 88502A 88510 88510 88510F 88515 88539C 88625 88650C 88710A 88899P 9009914119 9009914120 9009914121 9015950322 9015960096 9162640620 9162640620
Part # Description Qty Price
87138C - RESISTOR, BLOWER
87138-37090

XZU304,305,344

 1
87138-37090

XZU30#,31#,321,33#,34#,35#,368,378,388

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-37060

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388

 1
88501-37060

XZU304,305,344

 1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-37050

XZU304,305,344

 1
88502-37050

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388

 1
88502A - CASE SUB-ASSY, COOLING UNIT
88502-37040

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388

 1
88502-37040

XZU304,305,344

 1
88510 - UNIT ASSY, COOLER
88510-37120

XZU30#,31#,321,33#,34#,35#,368,378,388

 1
88510-37120

XZU304,305,344

 1
88510 - UNIT ASSY, COOLER
88510-37120

XZU30#,31#,321,33#,34#,35#,368,378,388

 1
88510-37120

XZU304,305,344

 1
88510F - HOLDER, FUSE
82630-95J03

XZU304,305,344

 1
82630-95J03

XZU30#,31#,321,33#,34#,35#,368,378,388

 1
88515 - VALVE, COOLER EXPANSION
88515-16060

BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382

 1
88515-28160

XZU304,305,344

 1
88515-28160

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388

 1
88539C - HOSE, COOLER UNIT DRAIN, NO.2
88539-37060

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388

ﾌﾛﾝﾄ

 1
88539-37060

XZU304,305,344

 1
88625 - THERMISTOR, COOLER, NO.1
88625-20460

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388

 1
88625-20460

XZU304,305,344

 1
88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER
88650-37120

XZU30#,31#,321,33#,34#,35#,368,378,388

 1
88650-37120

XZU304,305,344

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-37340

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388

 1
88710-37340

XZU304,305,344

 1
Common parts
88469-37060
90099-14119
90099-14120
90099-14121
90159-50322
90159-60096
91626-40620

ILLUST NO. 1 OF 2(0406- )XZU30#,31#,321,33#,34#,35#,368,378,388

Click highlighted areas on diagram

ﾌﾛﾝﾄ--ﾏﾆﾕｱﾙ ｴｱｺﾝ

diagram 87116A 87138C 8846937060 88501 88502 88502A 88510 88510F 88515 88539C 88578B 88578C 88578V 88625 8862628010 88650C 88710A 88710B 9009900968 9009904493 9009904497 9009914119 9009914120 9009914121 9015950322 9015960096 9162640620 9162640620
Part # Description Qty Price
87138C - RESISTOR, BLOWER
87138-37090

XZU304,305,344

 1
87138-37090

XZU30#,31#,321,33#,34#,35#,368,378,388

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-37060

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388

 1
88501-37060

XZU304,305,344

 1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-37050

XZU304,305,344

 1
88502-37050

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388

 1
88502A - CASE SUB-ASSY, COOLING UNIT
88502-37040

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388

 1
88502-37040

XZU304,305,344

 1
88510 - UNIT ASSY, COOLER
88510-37120

XZU30#,31#,321,33#,34#,35#,368,378,388

 1
88510-37120

XZU304,305,344

 1
88510F - HOLDER, FUSE
82630-95J03

XZU304,305,344

 1
82630-95J03

XZU30#,31#,321,33#,34#,35#,368,378,388

 1
88515 - VALVE, COOLER EXPANSION
88515-16060

BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382

 1
88515-28160

XZU304,305,344

 1
88515-28160

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388

 1
88539C - HOSE, COOLER UNIT DRAIN, NO.2
88539-37060

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388

ﾌﾛﾝﾄ

 1
88539-37060

XZU304,305,344

 1
88625 - THERMISTOR, COOLER, NO.1
88625-20460

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388

 1
88625-20460

XZU304,305,344

 1
88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER
88650-37120

XZU30#,31#,321,33#,34#,35#,368,378,388

 1
88650-37120

XZU304,305,344

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-37340

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388

 1
88710-37340

XZU304,305,344

 1
88710B - TUBE ASSY, AIR CONDITIONER
88710-37350

XZU304,305,344

 1
Common parts
88469-37060
88626-28010
90099-00968
90099-04493
90099-04497
90099-14119
90099-14120
90099-14121
90159-50322
90159-60096
91626-40620

ILLUST NO. 1 OF 2(0610-1003)XZU368,378,388,568..SCB ; (0610-1003)XZU30#,314,334,34#,354..SCB..DCRTK,

Click highlighted areas on diagram

ﾌﾛﾝﾄ

diagram 87138C 8846937060 88501 88502 88502A 88510 88510F 88515 88539C 88625 88650C 88710A 88710B 9009914119 9009914120 9009914121 9015950322 9015960096 9155480614 9155480614
Part # Description Qty Price
Common parts
88469-37060
90099-14119
90099-14120
90099-14121
90159-50322
90159-60096
91554-80614

ILLUST NO. 1 OF 2(0406- )XZU488 ; (0406- )XZU414..DCB ; (0406- )DCR,DCRL,DCRTL,DSL,DSLL

Click highlighted areas on diagram

diagram 87116A 87138C 8846937060 88501 88502 88502A 88510 88510F 88515 88539C 88625 88650C 88710A 88710B 9009900968 9009914119 9009914120 9009914121 9015950322 9015960096 9162640620 9162640620
Part # Description Qty Price
Common parts
88469-37060
90099-00968
90099-14119
90099-14120
90099-14121
90159-50322
90159-60096
91626-40620
