XZU304A-TYMML3 (2003)
Toyota Dyna/Toyoace
(0310- )XZU304,305,314,334,344,354
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44348D - HOSE, OIL RESERVOIR TO PUMP, NO.2 | ||||
| 44348-37320 |
XZU304,305,344 |
1 | ||
| 44348-37320 |
XZU304,305,308,314,334,338,344,348,354 |
1 | ||
| 44369 - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-37090 |
XZU304,305,344 NO.2 |
1 | ||
| 44369-37090 |
XZU378,388..SCB;XZU30#,31#,321,33#,34#,35#,368 NO.2 |
1 | ||
| 44369-37080 |
XZU304,305,344 NO.1 |
1 | ||
| 44369-37080 |
XZU378,388..SCB;XZU30#,31#,321,33#,34#,35#,368 NO.1 |
1 | ||
| 44369 - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-37090 |
XZU304,305,344 NO.2 |
1 | ||
| 44369-37090 |
XZU378,388..SCB;XZU30#,31#,321,33#,34#,35#,368 NO.2 |
1 | ||
| 44369-37080 |
XZU304,305,344 NO.1 |
1 | ||
| 44369-37080 |
XZU378,388..SCB;XZU30#,31#,321,33#,34#,35#,368 NO.1 |
1 | ||
| 44406B - BOLT, UNION(FOR RETURN TUBE) | ||||
| 90401-14003 |
XZU304,305,344 |
1 | ||
| 90401-14003 |
BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35# |
1 | ||
| 44406C - GASKET(FOR RETURN TUBE) | ||||
| 90430-14235 |
BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35# |
2 | ||
| 90430-14235 |
XZU304,305,344 |
2 | ||
| 44406C - GASKET(FOR RETURN TUBE) | ||||
| 90430-14235 |
BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35# |
2 | ||
| 90430-14235 |
XZU304,305,344 |
2 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90401-14003 |
XZU304,305,344 |
1 | ||
| 90401-14003 |
BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35# |
1 | ||
| 44410B - GASKET(FOR PRESSURE FEED TUBE) | ||||
| 90430-14235 |
XZU304,305,344 |
2 | ||
| 90430-14235 |
BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35# |
2 | ||
| 44410B - GASKET(FOR PRESSURE FEED TUBE) | ||||
| 90430-14235 |
XZU304,305,344 |
2 | ||
| 90430-14235 |
BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35# |
2 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-37250 |
XZU304,305,344 |
1 | ||
| 44411-37250 |
XZU304,305,334,344,354..DM6,T1,T3,T4,T5 |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16027 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 90401-16027 |
XZU304,305,344 |
1 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 44327-30030 |
XZU304,305,308,314,334,338,344,348,354,368,378,388 |
1 | ||
| 44327-30030 |
XZU304,305,344 |
1 | ||
| 90430-16168 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
2 | ||
| 44412 - HOSE, RETURN | ||||
| 44412-37150 |
XZU304,305,344 |
1 | ||
| 44412-37150 |
XZU304,305,308,334,338,344,348,354..03S,06S,DM6,T1,T2,T3,T4,T5 |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-37450 |
XZU304,305,344 |
1 | ||
| 44416-37450 |
XZU304,305,334,344,354..DM6,T1,T3,T4,T5 |
1 | ||
| 44423 - TUBE, OIL PUMP TO GEAR BOX | ||||
| 44423-37081 |
XZU304,305,308,314,334,338,344,348,354,368,378,388 |
1 | ||
| 44423-37081 |
XZU304,305,344 |
1 | ||
| 44447A - BRACKET, HOSE SUPPORT, NO.1 | ||||
| 44447-37220 |
XZU304,305,308,314,334,338,344,348,354,368,378,388 |
1 | ||
| 44447-37220 |
XZU304,305,344 |
1 | ||
| 44448C - CLAMP, PRESSURE FEED, NO.2 | ||||
| 44448-37060 |
XZU304,305,344 NO.3 |
1 | ||
| 44448-37040 |
XZU304,305,344 NO.2 |
1 | ||
| 44448-37030 |
XZU304,305,314,334,344,354 NO.1 |
1 | ||
| 44448-37030 |
XZU304,305,344 NO.1 |
1 | ||
| 44448-37060 |
XZU304,305,308,314,334,338,344,348,354,368,378,388 NO.3 |
1 | ||
| 44448-37040 |
XZU304,305,308,314,334,338,344,348,354,368,378,388 NO.2 |
1 | ||
| 44448C - CLAMP, PRESSURE FEED, NO.2 | ||||
| 44448-37060 |
XZU304,305,344 NO.3 |
1 | ||
| 44448-37040 |
XZU304,305,344 NO.2 |
1 | ||
| 44448-37030 |
XZU304,305,314,334,344,354 NO.1 |
1 | ||
| 44448-37030 |
XZU304,305,344 NO.1 |
1 | ||
| 44448-37060 |
XZU304,305,308,314,334,338,344,348,354,368,378,388 NO.3 |
1 | ||
| 44448-37040 |
XZU304,305,308,314,334,338,344,348,354,368,378,388 NO.2 |
1 | ||
| 44448C - CLAMP, PRESSURE FEED, NO.2 | ||||
| 44448-37060 |
XZU304,305,344 NO.3 |
1 | ||
| 44448-37040 |
XZU304,305,344 NO.2 |
1 | ||
| 44448-37030 |
XZU304,305,314,334,344,354 NO.1 |
1 | ||
| 44448-37030 |
XZU304,305,344 NO.1 |
1 | ||
| 44448-37060 |
XZU304,305,308,314,334,338,344,348,354,368,378,388 NO.3 |
1 | ||
| 44448-37040 |
XZU304,305,308,314,334,338,344,348,354,368,378,388 NO.2 |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 90119-08873 | ||||
| 90464-00671 | ||||
| 90467-16019 | ||||
| 90467-21010 | ||||
| 90959-01597 | ||||
| 90959-01598 | ||||
| 91651-60816 | ||||
| 91651-B0820 | ||||
| 94125-41600 | ||||

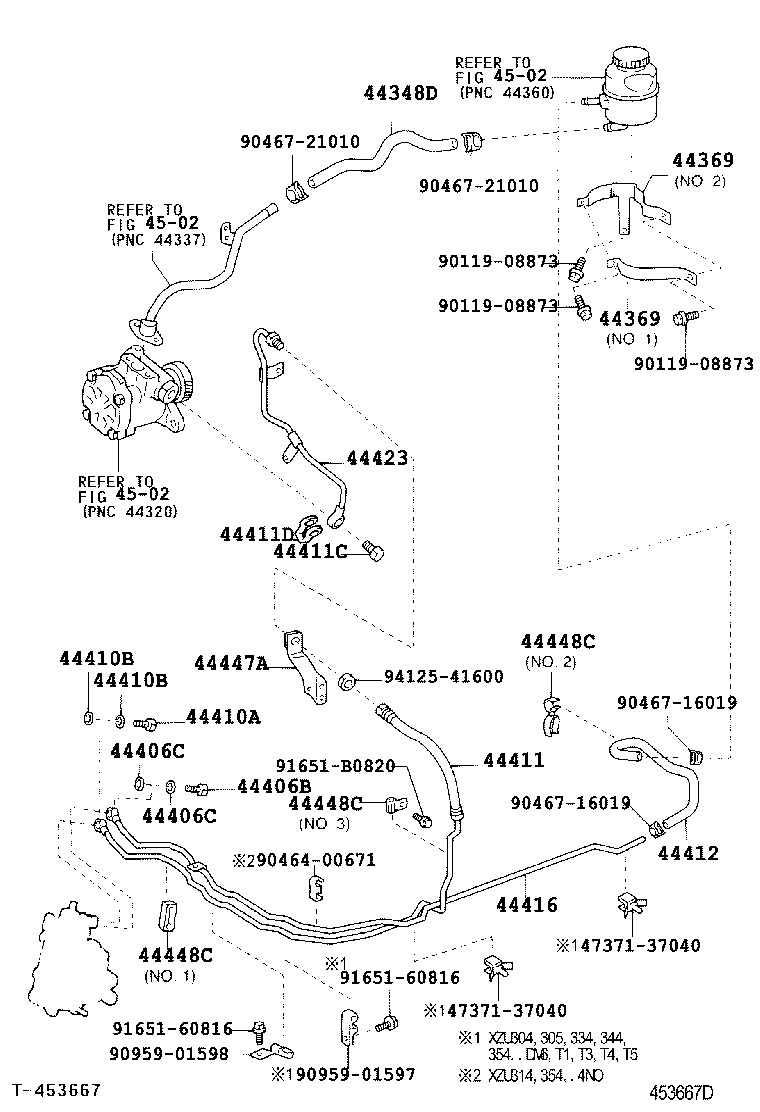

| Linked diagrams | ||||
| 4502 | ||||
