XZU304A-TYMMB6 (2006)

Toyota Dyna/Toyoace

Production Oct 2006 - Jun 2011
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(0610- )N04C

Click highlighted areas on diagram

diagram 12303 12311 12315 12361 12361 12371 12371 12381 12382 12501 12501 12511 12511 12514 12514A 1903 6177637060 6177637060 8202 8202 8831737030 88345 88345 88345 88345 9003105060 9003105109 9003105130 9003105141 9003105141 9003105142 9003105142 9003105142 9003105142 9003105143 9003105144 9003105146 9003105146 9003105146 9003105146 9003105146 9003105146 9003105146 9003105148 9003105148 9003119116 9011912344 9017912024 9017912024 9415081000 9415081000
Part # Description Qty Price
12303 - BRACKET SUB-ASSY, ENGINE MOUNTING, REAR
12303-78010

N04C..XZU314;N04C..XZU304,334..SCB..(5F,6FC);N04C..XZU308,338,34#,354,368,378,388,50#,538,548,554,568..5F,6FC

 1
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-78060

N04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554..20T,30T

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-78040

N04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554..20T,30T

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-58130

N04C..XZU304,314,324,334,344,354,368,378,388,504,524,554,568

右側 & 左側

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-58130

N04C..XZU304,314,324,334,344,354,368,378,388,504,524,554,568

右側 & 左側

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-78010

N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-78010

N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-78030

N04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554..20T,30T

 1
12382 - STABILIZER, ENGINE MOUNTING, LH
12381-78030

N04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554..20T,30T

 1
12501 - BRACKET SUB-ASSY, ALTERNATOR
12511-78121

N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
12511-78120

N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
12501 - BRACKET SUB-ASSY, ALTERNATOR
12511-78121

N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
12511-78120

N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
12514 - BAR, ALTERNATOR BELT ADJUSTING
12514-78140

N04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554..CBU,IV3,IV6,IV7

ﾏｰｸ=001

 1
12514-78260

N04C..XZU30#,314,324,33#,34#,354,50#,524,538,548,554..CBU,IV3,IV6,IV7

ﾏｰｸ=038

 1
12514A - SLIDER, FAN BELT ADJUSTING
12519-78050

N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

PNC 12514=ﾏｰｸ 038 OR 039 OR 040 OR 041

 1
12519-78020

N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

PNC 12514=ﾏｰｸ 001 OR 002 OR 003 OR 004

 1
Common parts
61776-37060
88317-37030
90031-05060
90031-05109
90031-05130
90031-05141
90031-05142
90031-05143
90031-05144
90031-05146
90031-05148
90031-19116
90119-12344
90179-12024
94150-81000
Linked diagrams
1903
8202

ILLUST NO. 2 OF 3(0610- )N04C..XZU314 ; (0610- )N04C..XZU30#,33#,34#,354,368,378,388,50#,538,5

Click highlighted areas on diagram

diagram 1228178070 1228178070 1228178070 1228178070 12321 12321 12321 12321 12321 12321 12321 12321 12325 12325 12325 12325 12325 12325 12325 12325 8411337050 9003105088 9003105088 9003105088 9003105088 9003105088 9003105088 9003105088 9003105088 9003105088 9003105088 9003119136 9003119136 9003119136 9003119136 9003119136 9003119136 9003201153 9003201153 9003201153 9003201153 9003201153 9003201153 9003201153 9003201153 9003201153 9003201153 9003201153 9003201153 9003201153 9003201153 9165160816
Part # Description Qty Price

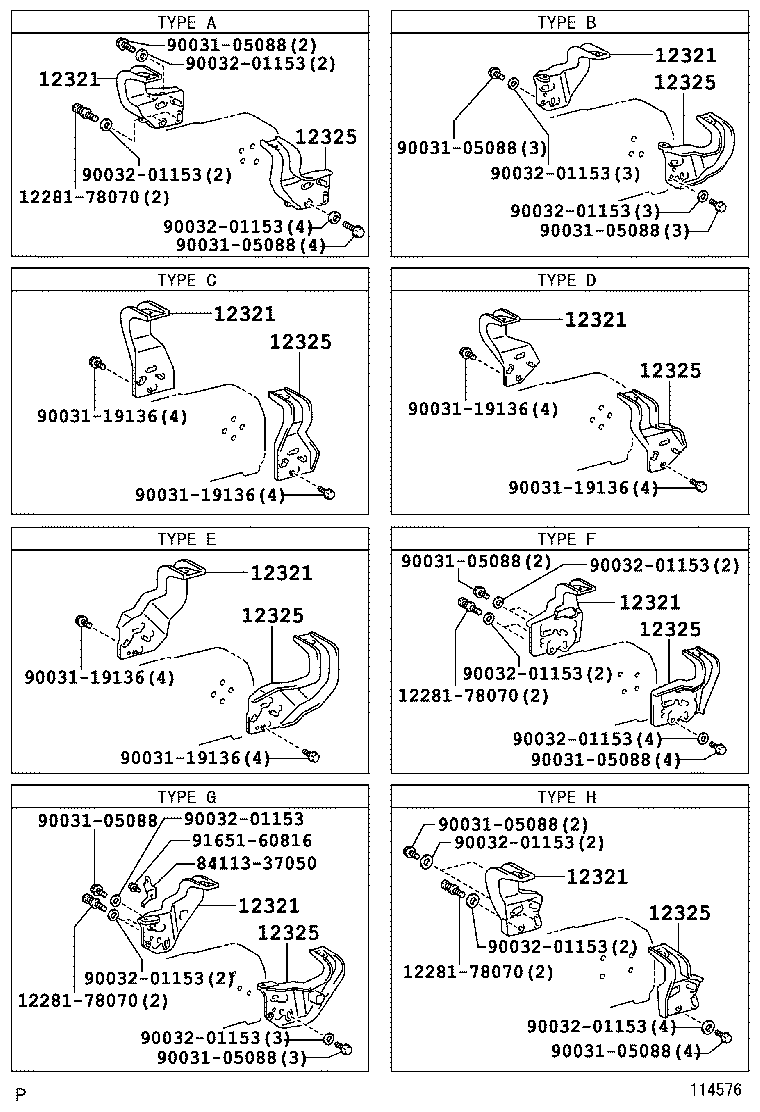

12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-78220

N04C..XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6)

TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-78220

N04C..XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6)

TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-78220

N04C..XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6)

TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-78220

N04C..XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6)

TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-78220

N04C..XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6)

TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-78220

N04C..XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6)

TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-78220

N04C..XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6)

TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-78220

N04C..XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6)

TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1
12325 - BRACKET, ENGINE MOUNTING, NO.3
12325-78200

N04C..XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6)

TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1
12325 - BRACKET, ENGINE MOUNTING, NO.3
12325-78200

N04C..XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6)

TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1
12325 - BRACKET, ENGINE MOUNTING, NO.3
12325-78200

N04C..XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6)

TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1
12325 - BRACKET, ENGINE MOUNTING, NO.3
12325-78200

N04C..XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6)

TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1
12325 - BRACKET, ENGINE MOUNTING, NO.3
12325-78200

N04C..XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6)

TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1
12325 - BRACKET, ENGINE MOUNTING, NO.3
12325-78200

N04C..XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6)

TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1
12325 - BRACKET, ENGINE MOUNTING, NO.3
12325-78200

N04C..XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6)

TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1
12325 - BRACKET, ENGINE MOUNTING, NO.3
12325-78200

N04C..XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV6)

TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1
Common parts
12281-78070
84113-37050
90031-05088
90031-19136
90032-01153
91651-60816

ILLUST NO. 1 OF 2(0610- )N04C..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

Click highlighted areas on diagram

diagram 12303 12311 12315 12361 12361 12371 12371 12381 12382 12501 12514 12514A 1903 6177637060 6177637060 9003105060 9003105109 9003105130 9003105143 9003105144 9003105146 9003119116 9011912344 9017912024 9017912024 9415081000 9415081000
Part # Description Qty Price
Common parts
61776-37060
90031-05060
90031-05109
90031-05130
90031-05143
90031-05144
90031-05146
90031-19116
90119-12344
90179-12024
94150-81000
Linked diagrams
1903

ILLUST NO. 2 OF 2(0610- )N04C..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

Click highlighted areas on diagram

diagram 1228178070 1228178070 1228178070 12321 12321 12321 12321 12321 12325 12325 12325 12325 12325 8411337050 9003105088 9003105088 9003105088 9003105088 9003105088 9003105088 9003105088 9003105088 9003119136 9003119136 9003201153 9003201153 9003201153 9003201153 9003201153 9003201153 9003201153 9003201153 9003201153 9003201153 9003201153 9165160816
Part # Description Qty Price
Common parts
12281-78070
84113-37050
90031-05088
90031-19136
90032-01153
91651-60816
