Toyota Dyna/toyoace XZU304 BRAKE TUBE & CLAMP

XZU304A-TYMMB3 (2006)

Toyota Dyna/Toyoace

Production Oct 2006 - Jun 2011

Engine N04C

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 4 OF 4(0610- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
44540 - ACTUATOR ASSY, ABS & TRACTION
44050-37040	XZU504..ST;XZU30#,314,324,33#,34#,354,368,378,388,568	10/2006 - 12/2999	1
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-37030	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 06/2011	1
Common parts
90099-05277
90119-08676

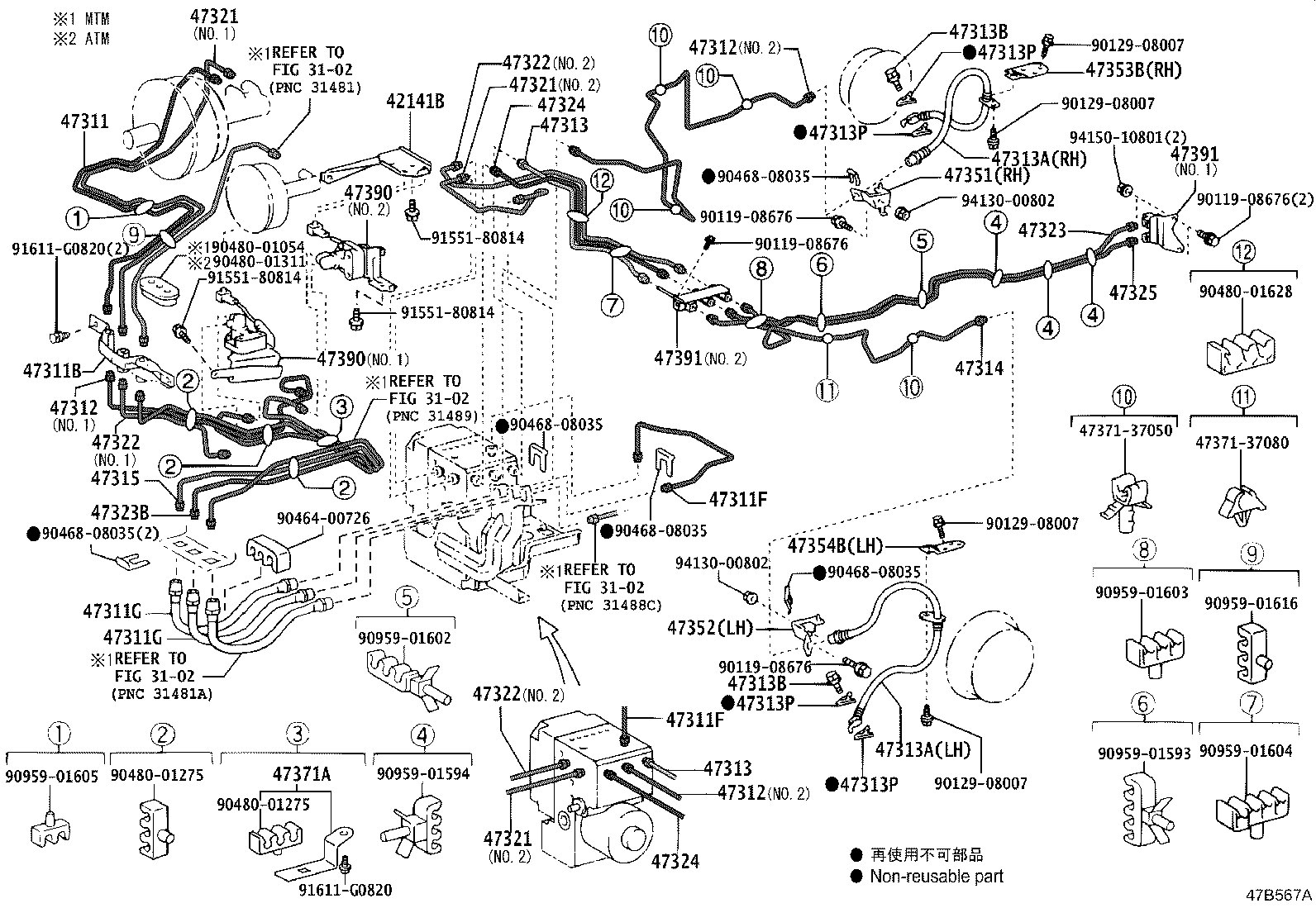

ILLUST NO. 1 OF 4(0610- )ST ; (0610- )6FC..30T..4NO ; (0610- )XZU344..20T,30T ; (0610- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-37162	XZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568	10/2006 - 12/2999	1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
47391-37010	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	1
47311F - TUBE, FRONT BRAKE, FRAME NO.1
47311-37440	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	1
47311F - TUBE, FRONT BRAKE, FRAME NO.1
47311-37440	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	1
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02D83	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	2
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02D83	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	2
47312 - TUBE, FRONT BRAKE, NO.2
47312-37060	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV6 NO.1	10/2006 - 06/2011	1
47312-37530	XZU308..IV6;XZU334..T3..5F..IV3;BZU300,340,XZU304,354..5F..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	10/2006 - 01/2008	1
47312-37750	BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T NO.2	10/2006 - 06/2011	1
47312-37531	XZU308..IV6;XZU334..T3..MTM..IV3;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	02/2008 - 06/2011	1
47312 - TUBE, FRONT BRAKE, NO.2
47312-37060	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV6 NO.1	10/2006 - 06/2011	1
47312-37530	XZU308..IV6;XZU334..T3..5F..IV3;BZU300,340,XZU304,354..5F..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	10/2006 - 01/2008	1
47312-37750	BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T NO.2	10/2006 - 06/2011	1
47312-37531	XZU308..IV6;XZU334..T3..MTM..IV3;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	02/2008 - 06/2011	1
47312 - TUBE, FRONT BRAKE, NO.2
47312-37060	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV6 NO.1	10/2006 - 06/2011	1
47312-37530	XZU308..IV6;XZU334..T3..5F..IV3;BZU300,340,XZU304,354..5F..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	10/2006 - 01/2008	1
47312-37750	BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T NO.2	10/2006 - 06/2011	1
47312-37531	XZU308..IV6;XZU334..T3..MTM..IV3;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	02/2008 - 06/2011	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-37440	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-37440	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02B27	BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T 左側	10/2006 - 12/2999	1
90947-02A72	BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T 右側	10/2006 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02B27	BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T 左側	10/2006 - 12/2999	1
90947-02A72	BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T 右側	10/2006 - 12/2999	1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	4
47314 - TUBE, FRONT BRAKE, NO.4
47314-37570	TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T	10/2006 - 12/2999	1
47321 - TUBE, REAR BRAKE, NO.1
47321-37160	XZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568 NO.1	10/2006 - 12/2999	1
47321-37420	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2	10/2006 - 12/2999	1
47321 - TUBE, REAR BRAKE, NO.1
47321-37160	XZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568 NO.1	10/2006 - 12/2999	1
47321-37420	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2	10/2006 - 12/2999	1
47321 - TUBE, REAR BRAKE, NO.1
47321-37160	XZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568 NO.1	10/2006 - 12/2999	1
47321-37420	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2	10/2006 - 12/2999	1
47322 - TUBE, REAR BRAKE, NO.2
47322-37200	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV6 NO.1	10/2006 - 06/2011	1
47322-37610	XZU308..IV6;XZU334..T3..5F..IV3;BZU300,340,XZU304,354..5F..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	10/2006 - 01/2008	1
47322-37611	XZU308..IV6;XZU334..T3..MTM..IV3;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	02/2008 - 06/2011	1
47322-37580	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2	10/2006 - 06/2011	1
47322 - TUBE, REAR BRAKE, NO.2
47322-37200	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV6 NO.1	10/2006 - 06/2011	1
47322-37610	XZU308..IV6;XZU334..T3..5F..IV3;BZU300,340,XZU304,354..5F..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	10/2006 - 01/2008	1
47322-37611	XZU308..IV6;XZU334..T3..MTM..IV3;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	02/2008 - 06/2011	1
47322-37580	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2	10/2006 - 06/2011	1
47322 - TUBE, REAR BRAKE, NO.2
47322-37200	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV6 NO.1	10/2006 - 06/2011	1
47322-37610	XZU308..IV6;XZU334..T3..5F..IV3;BZU300,340,XZU304,354..5F..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	10/2006 - 01/2008	1
47322-37611	XZU308..IV6;XZU334..T3..MTM..IV3;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	02/2008 - 06/2011	1
47322-37580	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2	10/2006 - 06/2011	1
47323 - TUBE, REAR BRAKE, NO.3
47323-37530	XZU344..35T;XZU334,354..1NO;XZU304..30T..4NO;XZU304..DM3,DM6,T3	10/2006 - 12/2999	1
47324 - TUBE, REAR BRAKE, NO.4
47324-37240	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	1
47324 - TUBE, REAR BRAKE, NO.4
47324-37240	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	1
47325 - TUBE, REAR BRAKE, NO.5
47325-37320	XZU344..35T;XZU334,354..1NO;XZU304..30T..4NO;XZU304..DM3,DM6,T3	10/2006 - 12/2999	1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-37130	BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T	10/2006 - 12/2999	1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-37050	BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T	10/2006 - 12/2999	1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-37150	BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T	10/2006 - 12/2999	1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47354-37160	BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T	10/2006 - 12/2999	1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-37030	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	1
47391 - WAY, BRAKE TUBE
47391-37310	XZU344..35T;XZU304..30T..4NO;XZU304..(DM3,DM6,T3)..(CBU,IV3,IV4,IV6);BZU300,340,TRU300,340,500,XZU334,354..1NO NO.2	10/2006 - 12/2999	1
47391-37310	XZU334..T3..MTM..IV3;XZU304..6FC..20T..IV3..1NO;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	10/2006 - 12/2999	1
47391-37400	XZU308..IV6;XZU334..T3..MTM..IV3;XZU304..6FC..20T..IV3..1NO;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.2	10/2006 - 12/2999	1
47391-37300	XZU344..35T;XZU304..30T..4NO;XZU304..(DM3,DM6,T3)..(CBU,IV3,IV4,IV6);BZU300,340,TRU300,340,500,XZU314,324,334,354,368,378,388,524,554,568 NO.1	10/2006 - 12/2999	1
47391 - WAY, BRAKE TUBE
47391-37310	XZU344..35T;XZU304..30T..4NO;XZU304..(DM3,DM6,T3)..(CBU,IV3,IV4,IV6);BZU300,340,TRU300,340,500,XZU334,354..1NO NO.2	10/2006 - 12/2999	1
47391-37310	XZU334..T3..MTM..IV3;XZU304..6FC..20T..IV3..1NO;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	10/2006 - 12/2999	1
47391-37400	XZU308..IV6;XZU334..T3..MTM..IV3;XZU304..6FC..20T..IV3..1NO;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.2	10/2006 - 12/2999	1
47391-37300	XZU344..35T;XZU304..30T..4NO;XZU304..(DM3,DM6,T3)..(CBU,IV3,IV4,IV6);BZU300,340,TRU300,340,500,XZU314,324,334,354,368,378,388,524,554,568 NO.1	10/2006 - 12/2999	1
Common parts
47371-37050
47371-37080
90119-08676
90129-08007
90464-00447
90464-00726
90468-08035
90480-01054
90480-01275
90480-01311
90480-01628
90959-01603
90959-01604
90959-01605
90959-01616
90959-01622
91611-G0820
94130-00802
Linked diagrams
3102

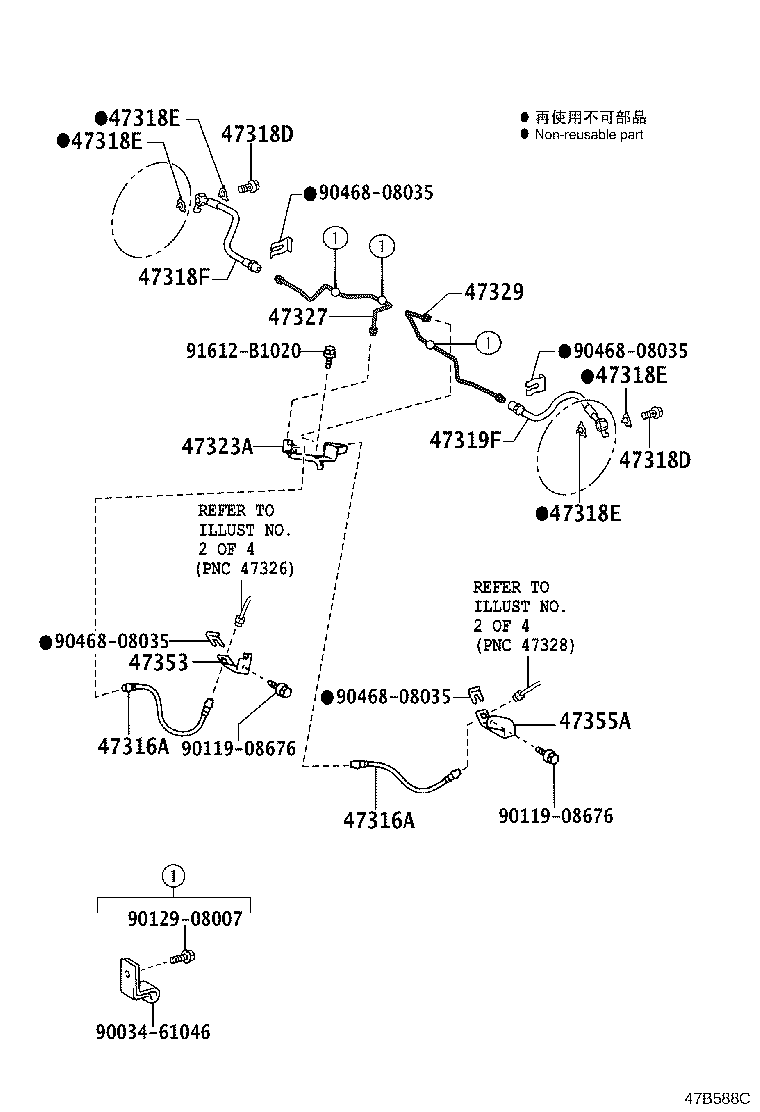

ILLUST NO. 1 OF 4(0610- )XZU308,354..IV6 ; (0610- )XZU304..6FC..20T..IV3..1NO ; (0610- )XZU

Click highlighted areas on diagram

ｱﾘ(ﾌﾞﾚｰｷﾛｯｸ)

Part #	Description	Period	Qty
42141B - ATTACHMENT, SKID CONTROL WIRE, NO.1
42141-37140	XZU308..IV6;XZU334..T3..MTM..IV3;XZU304..6FC..20T..IV3..1NO;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO	10/2006 - 12/2999	1
47311 - TUBE, FRONT BRAKE, NO.1
47311-37162	XZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568	10/2006 - 12/2999	1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
47391-37010	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	1
47311F - TUBE, FRONT BRAKE, FRAME NO.1
47311-37440	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	1
47311F - TUBE, FRONT BRAKE, FRAME NO.1
47311-37440	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	1
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02D83	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	2
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02D83	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	2
47312 - TUBE, FRONT BRAKE, NO.2
47312-37060	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV6 NO.1	10/2006 - 06/2011	1
47312-37530	XZU308..IV6;XZU334..T3..5F..IV3;BZU300,340,XZU304,354..5F..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	10/2006 - 01/2008	1
47312-37750	BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T NO.2	10/2006 - 06/2011	1
47312-37531	XZU308..IV6;XZU334..T3..MTM..IV3;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	02/2008 - 06/2011	1
47312 - TUBE, FRONT BRAKE, NO.2
47312-37060	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV6 NO.1	10/2006 - 06/2011	1
47312-37530	XZU308..IV6;XZU334..T3..5F..IV3;BZU300,340,XZU304,354..5F..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	10/2006 - 01/2008	1
47312-37750	BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T NO.2	10/2006 - 06/2011	1
47312-37531	XZU308..IV6;XZU334..T3..MTM..IV3;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	02/2008 - 06/2011	1
47312 - TUBE, FRONT BRAKE, NO.2
47312-37060	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV6 NO.1	10/2006 - 06/2011	1
47312-37530	XZU308..IV6;XZU334..T3..5F..IV3;BZU300,340,XZU304,354..5F..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	10/2006 - 01/2008	1
47312-37750	BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T NO.2	10/2006 - 06/2011	1
47312-37531	XZU308..IV6;XZU334..T3..MTM..IV3;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	02/2008 - 06/2011	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-37440	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-37440	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02B27	BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T 左側	10/2006 - 12/2999	1
90947-02A72	BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T 右側	10/2006 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02B27	BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T 左側	10/2006 - 12/2999	1
90947-02A72	BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T 右側	10/2006 - 12/2999	1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	4
47314 - TUBE, FRONT BRAKE, NO.4
47314-37570	TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T	10/2006 - 12/2999	1
47315 - TUBE, FRONT BRAKE, NO.5
47323-37540	XZU308..IV6;XZU334..T3..5F..IV3;BZU300,340,XZU304,354..5F..(IV3,IV6,IV7)..1NO	10/2006 - 01/2008	1
47323-37541	XZU308..IV6;XZU334..T3..MTM..IV3;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO	02/2008 - 06/2011	1
47321 - TUBE, REAR BRAKE, NO.1
47321-37160	XZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568 NO.1	10/2006 - 12/2999	1
47321-37420	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2	10/2006 - 12/2999	1
47321 - TUBE, REAR BRAKE, NO.1
47321-37160	XZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568 NO.1	10/2006 - 12/2999	1
47321-37420	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2	10/2006 - 12/2999	1
47321 - TUBE, REAR BRAKE, NO.1
47321-37160	XZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568 NO.1	10/2006 - 12/2999	1
47321-37420	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2	10/2006 - 12/2999	1
47322 - TUBE, REAR BRAKE, NO.2
47322-37200	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV6 NO.1	10/2006 - 06/2011	1
47322-37610	XZU308..IV6;XZU334..T3..5F..IV3;BZU300,340,XZU304,354..5F..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	10/2006 - 01/2008	1
47322-37611	XZU308..IV6;XZU334..T3..MTM..IV3;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	02/2008 - 06/2011	1
47322-37580	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2	10/2006 - 06/2011	1
47322 - TUBE, REAR BRAKE, NO.2
47322-37200	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV6 NO.1	10/2006 - 06/2011	1
47322-37610	XZU308..IV6;XZU334..T3..5F..IV3;BZU300,340,XZU304,354..5F..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	10/2006 - 01/2008	1
47322-37611	XZU308..IV6;XZU334..T3..MTM..IV3;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	02/2008 - 06/2011	1
47322-37580	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2	10/2006 - 06/2011	1
47322 - TUBE, REAR BRAKE, NO.2
47322-37200	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV6 NO.1	10/2006 - 06/2011	1
47322-37610	XZU308..IV6;XZU334..T3..5F..IV3;BZU300,340,XZU304,354..5F..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	10/2006 - 01/2008	1
47322-37611	XZU308..IV6;XZU334..T3..MTM..IV3;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	02/2008 - 06/2011	1
47322-37580	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 NO.2	10/2006 - 06/2011	1
47323 - TUBE, REAR BRAKE, NO.3
47323-37530	XZU344..35T;XZU334,354..1NO;XZU304..30T..4NO;XZU304..DM3,DM6,T3	10/2006 - 12/2999	1
47323B - TUBE, REAR BRAKE, NO.3
47313-37461	XZU308..IV6;XZU334..T3..5F..IV3;BZU300,340,XZU304,354..5F..(IV3,IV6,IV7)..1NO	10/2006 - 01/2008	1
47313-37462	XZU308..IV6;XZU334..T3..MTM..IV3;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO	02/2008 - 06/2011	1
47324 - TUBE, REAR BRAKE, NO.4
47324-37240	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	1
47324 - TUBE, REAR BRAKE, NO.4
47324-37240	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	1
47325 - TUBE, REAR BRAKE, NO.5
47325-37320	XZU344..35T;XZU334,354..1NO;XZU304..30T..4NO;XZU304..DM3,DM6,T3	10/2006 - 12/2999	1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-37130	BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T	10/2006 - 12/2999	1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-37050	BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T	10/2006 - 12/2999	1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-37150	BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T	10/2006 - 12/2999	1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47354-37160	BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T	10/2006 - 12/2999	1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-37030	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	1
47390 - VALVE ASSY, HILL HOLDER BRAKE LOCK
47390-37040	XZU308,354..IV6;XZU304..6FC..20T..IV3..1NO;XZU304,334..(DM6,T3)..MTM..(IV3,IV6,IV7) NO.2	10/2006 - 12/2999	1
47390-37030	XZU308,354..IV6;XZU304..6FC..20T..IV3..1NO;XZU304,334..(DM6,T3)..MTM..(IV3,IV6,IV7) NO.1	10/2006 - 12/2999	1
47390 - VALVE ASSY, HILL HOLDER BRAKE LOCK
47390-37040	XZU308,354..IV6;XZU304..6FC..20T..IV3..1NO;XZU304,334..(DM6,T3)..MTM..(IV3,IV6,IV7) NO.2	10/2006 - 12/2999	1
47390-37030	XZU308,354..IV6;XZU304..6FC..20T..IV3..1NO;XZU304,334..(DM6,T3)..MTM..(IV3,IV6,IV7) NO.1	10/2006 - 12/2999	1
47391 - WAY, BRAKE TUBE
47391-37310	XZU344..35T;XZU304..30T..4NO;XZU304..(DM3,DM6,T3)..(CBU,IV3,IV4,IV6);BZU300,340,TRU300,340,500,XZU334,354..1NO NO.2	10/2006 - 12/2999	1
47391-37310	XZU334..T3..MTM..IV3;XZU304..6FC..20T..IV3..1NO;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	10/2006 - 12/2999	1
47391-37400	XZU308..IV6;XZU334..T3..MTM..IV3;XZU304..6FC..20T..IV3..1NO;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.2	10/2006 - 12/2999	1
47391-37300	XZU344..35T;XZU304..30T..4NO;XZU304..(DM3,DM6,T3)..(CBU,IV3,IV4,IV6);BZU300,340,TRU300,340,500,XZU314,324,334,354,368,378,388,524,554,568 NO.1	10/2006 - 12/2999	1
47391 - WAY, BRAKE TUBE
47391-37310	XZU344..35T;XZU304..30T..4NO;XZU304..(DM3,DM6,T3)..(CBU,IV3,IV4,IV6);BZU300,340,TRU300,340,500,XZU334,354..1NO NO.2	10/2006 - 12/2999	1
47391-37310	XZU334..T3..MTM..IV3;XZU304..6FC..20T..IV3..1NO;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.1	10/2006 - 12/2999	1
47391-37400	XZU308..IV6;XZU334..T3..MTM..IV3;XZU304..6FC..20T..IV3..1NO;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ),NO.2	10/2006 - 12/2999	1
47391-37300	XZU344..35T;XZU304..30T..4NO;XZU304..(DM3,DM6,T3)..(CBU,IV3,IV4,IV6);BZU300,340,TRU300,340,500,XZU314,324,334,354,368,378,388,524,554,568 NO.1	10/2006 - 12/2999	1
Common parts
47371-37050
47371-37080
90119-08676
90129-08007
90464-00726
90468-08035
90480-01054
90480-01275
90480-01311
90480-01628
90959-01593
90959-01594
90959-01602
90959-01603
90959-01604
90959-01605
90959-01616
91551-80814
91611-G0820
94130-00802
94150-10801
Linked diagrams
3102

ILLUST NO. 2 OF 4(0610- )35T ; (0610- )XZU304..30T..4NO ; (0610- )XZU304..SCB..DM3,DM6,T3

Click highlighted areas on diagram

Part #	Description	Period	Qty
47312F - TUBE, FRONT BRAKE, FRAME, NO.2
47312-37501	XZU304..30T..4NO;XZU304..SCB..(DM3,DM6,T3);BZU300,TRU300,500,XZU354..1NO	10/2006 - 12/2999	1
47312-37501	XZU304..30T..4NO;XZU304..SCB..(DM3,DM6,T3);BZU300,TRU300,500,XZU354..1NO	10/2006 - 12/2999	1
47312F - TUBE, FRONT BRAKE, FRAME, NO.2
47312-37501	XZU304..30T..4NO;XZU304..SCB..(DM3,DM6,T3);BZU300,TRU300,500,XZU354..1NO	10/2006 - 12/2999	1
47312-37501	XZU304..30T..4NO;XZU304..SCB..(DM3,DM6,T3);BZU300,TRU300,500,XZU354..1NO	10/2006 - 12/2999	1
47312F - TUBE, FRONT BRAKE, FRAME, NO.2
47312-37501	XZU304..30T..4NO;XZU304..SCB..(DM3,DM6,T3);BZU300,TRU300,500,XZU354..1NO	10/2006 - 12/2999	1
47312-37501	XZU304..30T..4NO;XZU304..SCB..(DM3,DM6,T3);BZU300,TRU300,500,XZU354..1NO	10/2006 - 12/2999	1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10229	XZU368,568;XZU304..30T..4NO;XZU304..DM3,DM6,T3;BZU300,340,TRU300,340,500,XZU334,34#,354,378,388,548..1NO	10/2006 - 12/2999	1
90412-10229	XZU368,568;XZU304..30T..4NO;XZU304..DM3,DM6,T3;BZU300,340,TRU300,340,500,XZU334,34#,354,378,388,548..1NO	10/2006 - 12/2999	1
47322A - TUBE, REAR BRAKE, FRAME NO.2
47322-37881	XZU304..30T..4NO;XZU304..SCB..(DM3,DM6,T3);BZU300,TRU300,500,XZU354..1NO	01/2009 - 12/2999	1
47322-37881	XZU304..30T..4NO;XZU304..SCB..(DM3,DM6,T3);BZU300,TRU300,500,XZU354..1NO	01/2009 - 12/2999	1
47322-37880	XZU304..30T..4NO;XZU304..SCB..(DM3,DM6,T3);BZU300,TRU300,500,XZU354..1NO	10/2006 - 12/2008	1
47322-37880	XZU304..30T..4NO;XZU304..SCB..(DM3,DM6,T3);BZU300,TRU300,500,XZU354..1NO	10/2006 - 12/2008	1
47322A - TUBE, REAR BRAKE, FRAME NO.2
47322-37881	XZU304..30T..4NO;XZU304..SCB..(DM3,DM6,T3);BZU300,TRU300,500,XZU354..1NO	01/2009 - 12/2999	1
47322-37881	XZU304..30T..4NO;XZU304..SCB..(DM3,DM6,T3);BZU300,TRU300,500,XZU354..1NO	01/2009 - 12/2999	1
47322-37880	XZU304..30T..4NO;XZU304..SCB..(DM3,DM6,T3);BZU300,TRU300,500,XZU354..1NO	10/2006 - 12/2008	1
47322-37880	XZU304..30T..4NO;XZU304..SCB..(DM3,DM6,T3);BZU300,TRU300,500,XZU354..1NO	10/2006 - 12/2008	1
47322A - TUBE, REAR BRAKE, FRAME NO.2
47322-37881	XZU304..30T..4NO;XZU304..SCB..(DM3,DM6,T3);BZU300,TRU300,500,XZU354..1NO	01/2009 - 12/2999	1
47322-37881	XZU304..30T..4NO;XZU304..SCB..(DM3,DM6,T3);BZU300,TRU300,500,XZU354..1NO	01/2009 - 12/2999	1
47322-37880	XZU304..30T..4NO;XZU304..SCB..(DM3,DM6,T3);BZU300,TRU300,500,XZU354..1NO	10/2006 - 12/2008	1
47322-37880	XZU304..30T..4NO;XZU304..SCB..(DM3,DM6,T3);BZU300,TRU300,500,XZU354..1NO	10/2006 - 12/2008	1
47326 - TUBE, REAR BRAKE, NO.6
47326-37490	XZU368,568..T4;XZU304..30T..4NO;XZU304..DM3,DM6,T3;BZU300,340,TRU300,340,500,XZU334,34#,354,378,388,548..1NO	10/2006 - 06/2011	1
47326-37490	XZU368,568..T4;XZU304..30T..4NO;XZU304..DM3,DM6,T3;BZU300,340,TRU300,340,500,XZU334,34#,354,378,388,548..1NO	10/2006 - 06/2011	1
47328 - TUBE, REAR BRAKE, NO.8
47328-37340	XZU368,568..T4;XZU304..30T..4NO;XZU304..DM3,DM6,T3;BZU300,340,TRU300,340,500,XZU334,34#,354,378,388,548..1NO	10/2006 - 06/2011	1
47328-37340	XZU368,568..T4;XZU304..30T..4NO;XZU304..DM3,DM6,T3;BZU300,340,TRU300,340,500,XZU334,34#,354,378,388,548..1NO	10/2006 - 06/2011	1
Common parts
90119-08A46
90464-00778
90464-00833
90480-01620
90480-01621
90959-01593
90959-01594

ILLUST NO. 3 OF 4(0610- )BZU300,XZU304..T4..30T ; (0610- )BZU300,XZU30#..DM3,DM6,T5 ; (0610-

Click highlighted areas on diagram

Part #	Description	Period	Qty
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02B29	XZU354,368,568..T3,T4;BZU300,340,TRU300,340,500,XZU30#,33#,34#,378,388,50#,538,548..WT	10/2006 - 12/2999	2
90947-02B29	XZU354,368,568..T3,T4;BZU300,340,TRU300,340,500,XZU30#,33#,34#,378,388,50#,538,548..WT	10/2006 - 12/2999	2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02B29	XZU354,368,568..T3,T4;BZU300,340,TRU300,340,500,XZU30#,33#,34#,378,388,50#,538,548..WT	10/2006 - 12/2999	2
90947-02B29	XZU354,368,568..T3,T4;BZU300,340,TRU300,340,500,XZU30#,33#,34#,378,388,50#,538,548..WT	10/2006 - 12/2999	2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10015	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..WT	10/2006 - 12/2999	2
90401-10015	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..WT	10/2006 - 12/2999	2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10015	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..WT	10/2006 - 12/2999	2
90401-10015	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..WT	10/2006 - 12/2999	2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-30010	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..WT	10/2006 - 12/2999	4
47389-30010	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..WT	10/2006 - 12/2999	4
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-30010	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..WT	10/2006 - 12/2999	4
47389-30010	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..WT	10/2006 - 12/2999	4
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-30010	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..WT	10/2006 - 12/2999	4
47389-30010	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..WT	10/2006 - 12/2999	4
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-30010	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..WT	10/2006 - 12/2999	4
47389-30010	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..WT	10/2006 - 12/2999	4
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02E73	XZU368,568..T4;BZU300,TRU300,500,XZU30#,338,50#,538..(03S,06S,DM3,DM5,DM6,T2,T4,T5)..WT	10/2006 - 12/2999	1
90947-02E73	XZU368,568..T4;BZU300,TRU300,500,XZU30#,338,50#,538..(03S,06S,DM3,DM5,DM6,T2,T4,T5)..WT	10/2006 - 12/2999	1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02E72	XZU368,568..T4;BZU300,TRU300,500,XZU30#,338,50#,538..(03S,06S,DM3,DM5,DM6,T2,T4,T5)..WT	10/2006 - 12/2999	1
90947-02E72	XZU368,568..T4;BZU300,TRU300,500,XZU30#,338,50#,538..(03S,06S,DM3,DM5,DM6,T2,T4,T5)..WT	10/2006 - 12/2999	1
47323A - WAY, NO.3(FOR REAR BRAKE TUBE)
90412-12051	XZU354,368,568..T3,T4;BZU300,340,TRU300,340,500,XZU30#,33#,34#,378,388,50#,538,548..WT	10/2006 - 12/2999	1
90412-12051	XZU354,368,568..T3,T4;BZU300,340,TRU300,340,500,XZU30#,33#,34#,378,388,50#,538,548..WT	10/2006 - 12/2999	1
47327 - TUBE, REAR BRAKE, NO.7
47327-37850	BZU300,XZU304..T4..30T;BZU300,XZU30#..DM3,DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,538..5F..(DCRUD,DCRUE);TRU300,XZU338,368,504,568..SCB..T4..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI)	10/2006 - 12/2999	1
47327-37850	BZU300,XZU304..T4..30T;BZU300,XZU30#..DM3,DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,538..5F..(DCRUD,DCRUE);TRU300,XZU338,368,504,568..SCB..T4..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI)	10/2006 - 12/2999	1
47329 - TUBE, REAR BRAKE, NO.9
47329-37630	BZU300,XZU304..T4..30T;BZU300,XZU30#..DM3,DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,538..5F..(DCRUD,DCRUE);TRU300,XZU338,368,504,568..SCB..T4..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI)	10/2006 - 12/2999	1
47329-37630	BZU300,XZU304..T4..30T;BZU300,XZU30#..DM3,DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,538..5F..(DCRUD,DCRUE);TRU300,XZU338,368,504,568..SCB..T4..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI)	10/2006 - 12/2999	1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47353-37110	XZU354,368,568..T3,T4;BZU300,340,TRU300,340,500,XZU30#,33#,34#,378,388,50#,538,548..WT	10/2006 - 12/2999	1
47353-37110	XZU354,368,568..T3,T4;BZU300,340,TRU300,340,500,XZU30#,33#,34#,378,388,50#,538,548..WT	10/2006 - 12/2999	1
47355A - BRACKET, FLEXIBLE HOSE, NO.5
47353-37240	XZU354,368,568..T3,T4;BZU300,340,TRU300,340,500,XZU30#,33#,34#,378,388,50#,538,548..(DCB,SCB)..WT	10/2006 - 12/2999	1
47353-37240	XZU354,368,568..T3,T4;BZU300,340,TRU300,340,500,XZU30#,33#,34#,378,388,50#,538,548..(DCB,SCB)..WT	10/2006 - 12/2999	1
Common parts
90034-61046
90119-08676
90129-08007
90468-08035
91612-B1020

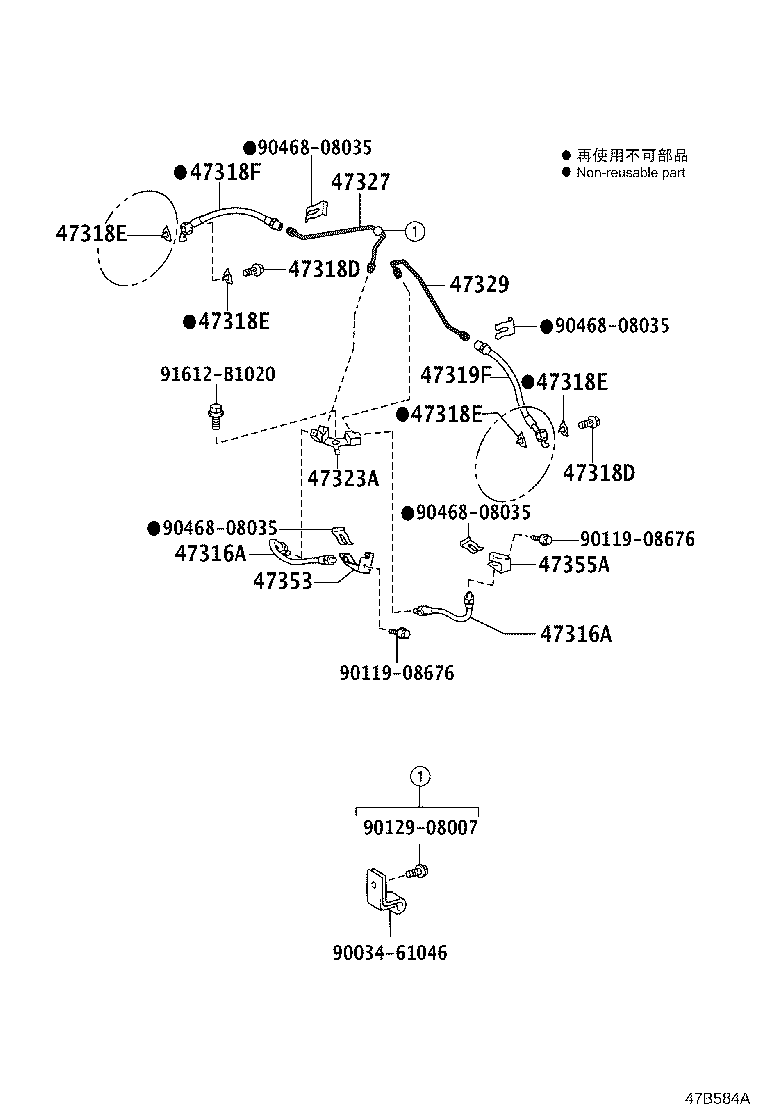

ILLUST NO. 3 OF 4(0610- )XZU548..DCRUE ; (0610- )BZU300,TRU300,XZU304..T3 ; (0610- )BZU340,

Click highlighted areas on diagram

Part #	Description	Period	Qty
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02B29	XZU354,368,568..T3,T4;BZU300,340,TRU300,340,500,XZU30#,33#,34#,378,388,50#,538,548..WT	10/2006 - 12/2999	2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02B29	XZU354,368,568..T3,T4;BZU300,340,TRU300,340,500,XZU30#,33#,34#,378,388,50#,538,548..WT	10/2006 - 12/2999	2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10015	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..WT	10/2006 - 12/2999	2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10015	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..WT	10/2006 - 12/2999	2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-30010	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..WT	10/2006 - 12/2999	4
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-30010	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..WT	10/2006 - 12/2999	4
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-30010	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..WT	10/2006 - 12/2999	4
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-30010	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..WT	10/2006 - 12/2999	4
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02E73	XZU368,568..T4;BZU300,TRU300,500,XZU30#,338,50#,538..(03S,06S,DM3,DM5,DM6,T2,T4,T5)..WT	10/2006 - 12/2999	1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02E72	XZU368,568..T4;BZU300,TRU300,500,XZU30#,338,50#,538..(03S,06S,DM3,DM5,DM6,T2,T4,T5)..WT	10/2006 - 12/2999	1
47323A - WAY, NO.3(FOR REAR BRAKE TUBE)
90412-12051	XZU354,368,568..T3,T4;BZU300,340,TRU300,340,500,XZU30#,33#,34#,378,388,50#,538,548..WT	10/2006 - 12/2999	1
47327 - TUBE, REAR BRAKE, NO.7
47327-37850	BZU300,XZU304..T4..30T;BZU300,XZU30#..DM3,DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,538..5F..(DCRUD,DCRUE);TRU300,XZU338,368,504,568..SCB..T4..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI)	10/2006 - 12/2999	1
47329 - TUBE, REAR BRAKE, NO.9
47329-37630	BZU300,XZU304..T4..30T;BZU300,XZU30#..DM3,DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,538..5F..(DCRUD,DCRUE);TRU300,XZU338,368,504,568..SCB..T4..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI)	10/2006 - 12/2999	1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47353-37110	XZU354,368,568..T3,T4;BZU300,340,TRU300,340,500,XZU30#,33#,34#,378,388,50#,538,548..WT	10/2006 - 12/2999	1
47355A - BRACKET, FLEXIBLE HOSE, NO.5
47353-37240	XZU354,368,568..T3,T4;BZU300,340,TRU300,340,500,XZU30#,33#,34#,378,388,50#,538,548..(DCB,SCB)..WT	10/2006 - 12/2999	1
Common parts
90034-61046
90119-08676
90129-08007
90468-08035
91612-B1020

XZU304A-TYMMB3 (2006)

ILLUST NO. 4 OF 4(0610- )

ILLUST NO. 1 OF 4(0610- )ST ; (0610- )6FC..30T..4NO ; (0610- )XZU344..20T,30T ; (0610- )

ILLUST NO. 1 OF 4(0610- )XZU308,354..IV6 ; (0610- )XZU304..6FC..20T..IV3..1NO ; (0610- )XZU

ILLUST NO. 2 OF 4(0610- )35T ; (0610- )XZU304..30T..4NO ; (0610- )XZU304..SCB..DM3,DM6,T3

ILLUST NO. 3 OF 4(0610- )BZU300,XZU304..T4..30T ; (0610- )BZU300,XZU30#..DM3,DM6,T5 ; (0610-

ILLUST NO. 3 OF 4(0610- )XZU548..DCRUE ; (0610- )BZU300,TRU300,XZU304..T3 ; (0610- )BZU340,

Part Price Details
