Toyota Dyna/toyoace XZU304 VANE PUMP & RESERVOIR (POWER STEERING)

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
XZU304-TQMQL3 (2003)
4502 - VANE PUMP & RESERVOIR (POWER STEERING)

XZU304-TQMQL3 (2003)

Toyota Dyna/Toyoace

Production Oct 2003 - Oct 2006

Engine N04C

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9905-0406)XZU341 ; (9905-0406)XZU300,301,302,306,307,31#,32#,33#,340,342,346,347,3

Click highlighted areas on diagram

Part #	Description	Period	Qty
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-12030	XZU304,305,344	10/2003 - 06/2004	1
44305-12030	BZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
44310C - RING, O(FOR VANE PUMP)
90301-60002	XZU304,305,344	10/2003 - 06/2004	1
90301-60002	BZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
44310D - RING, O(FOR VANE PUMP UNION)
90301-15019	XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
90301-15019	XZU304,305,344	10/2003 - 06/2004	1
44310D - RING, O(FOR VANE PUMP UNION)
90301-15019	XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
90301-15019	XZU304,305,344	10/2003 - 06/2004	1
44320 - PUMP ASSY, VANE
44310-37170	XZU304,305,344	10/2003 - 06/2004	1
44310-37170	XZU304,305,314,334,344,354..175T,20T,30T	06/2004 - 12/2999	1
44320 - PUMP ASSY, VANE
44310-37170	XZU304,305,344	10/2003 - 06/2004	1
44310-37170	XZU304,305,314,334,344,354..175T,20T,30T	06/2004 - 12/2999	1
44337 - UNION, POWER STEERING SUCTION PORT
44337-37260	XZU304,305,308,314,334,338,344,348,354,368,378,388	06/2004 - 12/2999	1
44337-37260	XZU304,305,344	10/2003 - 06/2004	1
44337 - UNION, POWER STEERING SUCTION PORT
44337-37260	XZU304,305,308,314,334,338,344,348,354,368,378,388	06/2004 - 12/2999	1
44337-37260	XZU304,305,344	10/2003 - 06/2004	1
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-37130	XZU304,305,344	10/2003 - 06/2004	1
44360-37130	BZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
44363 - STRAINER, OIL(FOR VANE PUMP)
44363-37130	XZU304,305,344	10/2003 - 06/2004	1
44363-37130	BZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
Common parts
90029-11402
90031-05008
90119-10901

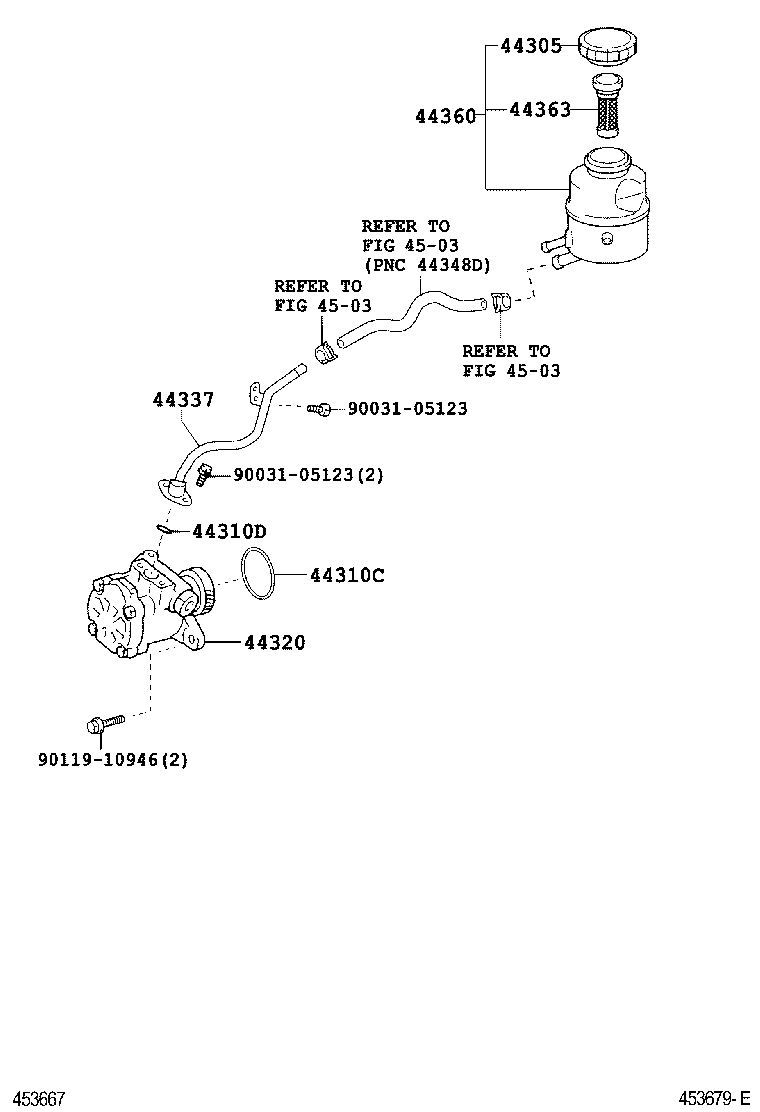

(0310- )XZU304,305,308,314,334,338,344,348,354,368,378,388

Click highlighted areas on diagram

Part #	Description	Period	Qty
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-12030	XZU304,305,344	10/2003 - 06/2004	1
44305-12030	BZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
44310C - RING, O(FOR VANE PUMP)
90301-60002	XZU304,305,344	10/2003 - 06/2004	1
90301-60002	BZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
44310D - RING, O(FOR VANE PUMP UNION)
90301-15019	XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
90301-15019	XZU304,305,344	10/2003 - 06/2004	1
44320 - PUMP ASSY, VANE
44310-37170	XZU304,305,344	10/2003 - 06/2004	1
44310-37170	XZU304,305,314,334,344,354..175T,20T,30T	06/2004 - 12/2999	1
44337 - UNION, POWER STEERING SUCTION PORT
44337-37260	XZU304,305,308,314,334,338,344,348,354,368,378,388	06/2004 - 12/2999	1
44337-37260	XZU304,305,344	10/2003 - 06/2004	1
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-37130	XZU304,305,344	10/2003 - 06/2004	1
44360-37130	BZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
44363 - STRAINER, OIL(FOR VANE PUMP)
44363-37130	XZU304,305,344	10/2003 - 06/2004	1
44363-37130	BZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
Common parts
90031-05123
90119-10946
Linked diagrams
4503

(0310-0406)XZU414,415 ; (0406- )DCR,DCRL,DSL,DSLL ; (0610- )DCRTJ,DCRTK,DCRTL

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90031-05123
90119-10946
Linked diagrams
4503

XZU304-TQMQL3 (2003)

(9905-0406)XZU341 ; (9905-0406)XZU300,301,302,306,307,31#,32#,33#,340,342,346,347,3

(0310- )XZU304,305,308,314,334,338,344,348,354,368,378,388

(0310-0406)XZU414,415 ; (0406- )DCR,DCRL,DSL,DSLL ; (0610- )DCRTJ,DCRTK,DCRTL
