XZU304-TQMQL3 (2003)
Toyota Dyna/Toyoace

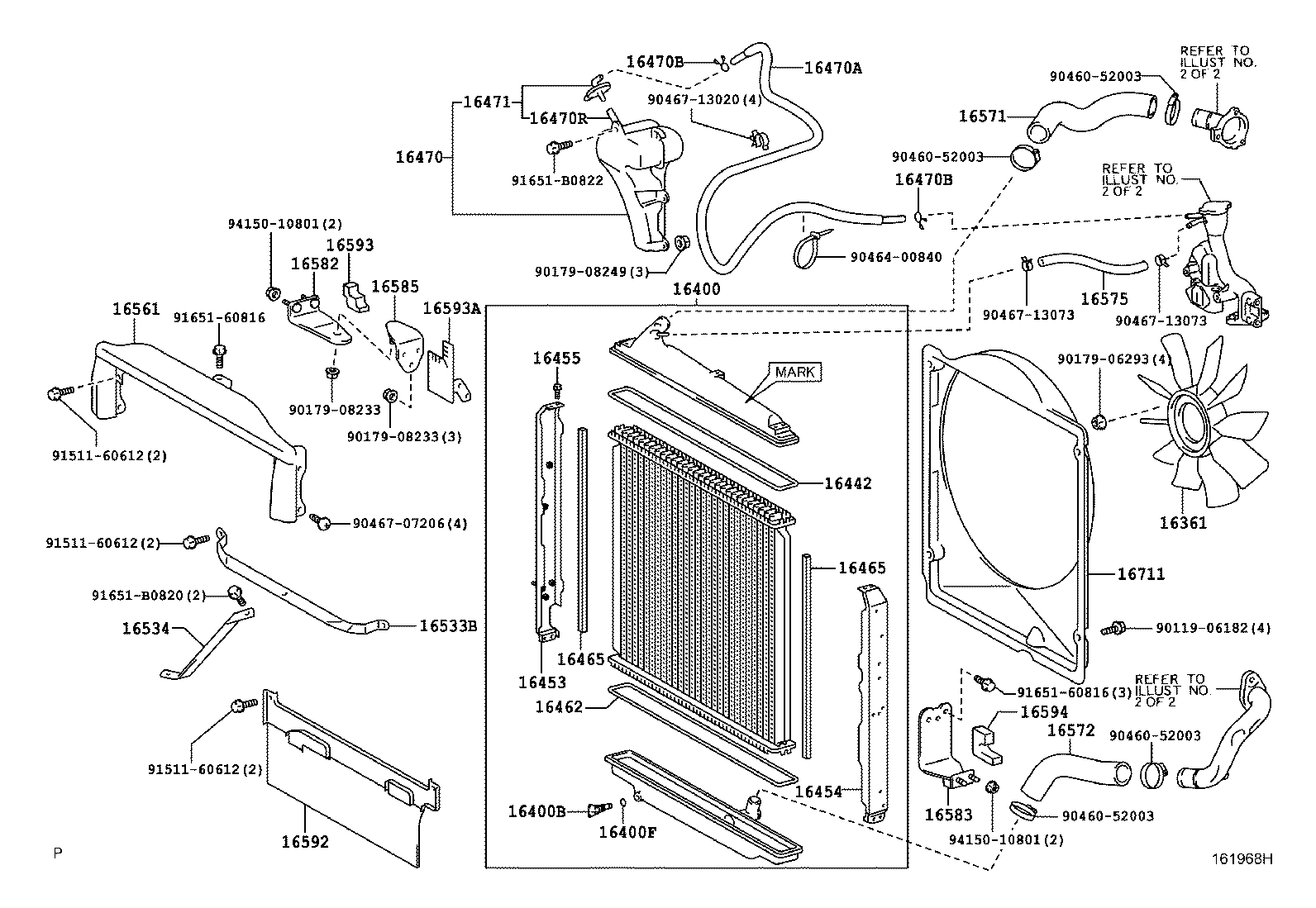

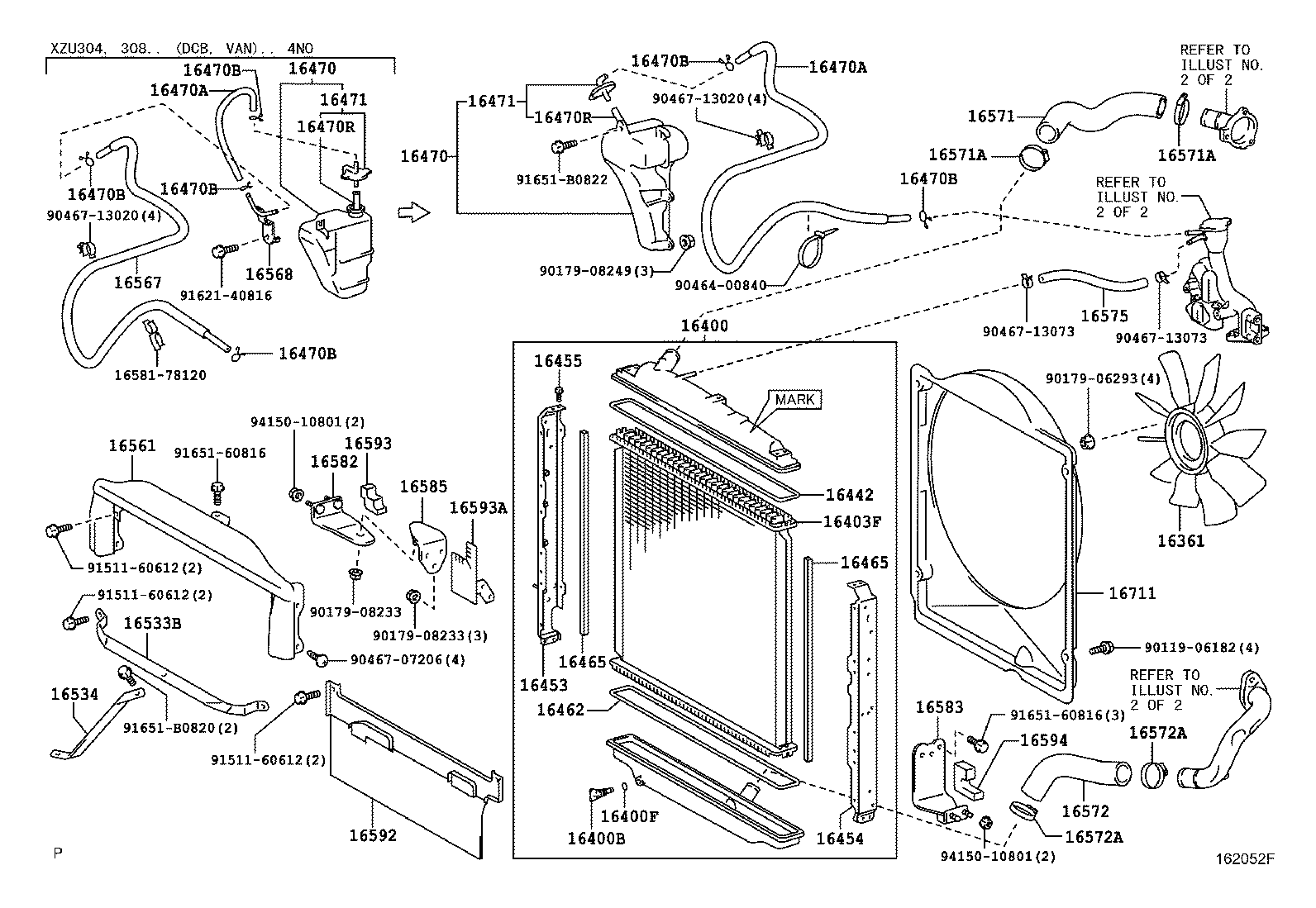

ILLUST NO. 1 OF 2(0310-0406)N04C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-78050 |
N04C..XZU304,308,334,338,348,368,378,388..DSL |
1 | ||
| 16361-78100 |
N04C..XZU304,305,344 |
1 | ||
| 16361-78100 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-78340 |
N04C..XZU304,308,334,338,348..5F..DSL ﾏｰｸ=7834 |
1 | ||
| 16400-78281 |
N04C..XZU304,305,344 ﾏｰｸ=7828 |
1 | ||
| 16400-78280 |
N04C..XZU304,305,344 ﾏｰｸ=7828 |
1 | ||
| 16400-78281 |
N04C..XZU304,305,314,334,344,354..SCB..(DCRL,DSLL) ﾏｰｸ=7828 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,305,306,308,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16417-15210 |
N04C..XZU304,305,344 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,305,306,308,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16418-15520 |
N04C..XZU304,305,344 |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-78080 |
N04C..XZU304,305,344 |
1 | ||
| 16442-78080 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,305,306,308,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16453 - PLATE, RADIATOR SIDE | ||||
| 16453-78281 |
N04C..XZU304,305,344 |
1 | ||
| 16453-78281 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-78281 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,305,306,308,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16454-78281 |
N04C..XZU304,305,344 |
1 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 16455-67020 |
N04C..XZU304,305,344 |
8 | ||
| 16455-67020 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,305,306,308,31#,321,33#,34#,35#,368,378,388 |
8 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16442-78080 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,305,306,308,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16442-78080 |
N04C..XZU304,305,344 |
1 | ||
| 16465 - PACKING, RADIATOR | ||||
| 16465-78080 |
N04C..XZU304,305,344 |
2 | ||
| 16465-78080 |
N04C..XZU304..SCB..DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C..XZU305,314,334,344,354,368,378,388..(DCRL,DSLL)..(CBU,IV3,IV6) |
2 | ||
| 16465 - PACKING, RADIATOR | ||||
| 16465-78080 |
N04C..XZU304,305,344 |
2 | ||
| 16465-78080 |
N04C..XZU304..SCB..DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C..XZU305,314,334,344,354,368,378,388..(DCRL,DSLL)..(CBU,IV3,IV6) |
2 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-78010 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..SCB |
1 | ||
| 16470-78010 |
N04C..XZU304,305,344 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-78170 |
N04C..XZU304,305,344 長さ=1555 |
1 | ||
| 16567-78170 |
N04C..XZU304,305,314,334,344,354..SCB..(DCRL,DSLL) 長さ=1555 |
1 | ||
| 16567-78190 |
N04C..XZU304,308,334,338,348..SCB..DSL |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
N04C..XZU378..IV4;N04C,S05D..XZU306,308,346,378,388..SCB;N04C,S05D..XZU301,304,305,31#,321,33#,341,344,348,35#,368..20T,30T,35T,40T |
2 | ||
| 90467-11085 |
N04C..XZU304,305,344 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
N04C..XZU378..IV4;N04C,S05D..XZU306,308,346,378,388..SCB;N04C,S05D..XZU301,304,305,31#,321,33#,341,344,348,35#,368..20T,30T,35T,40T |
2 | ||
| 90467-11085 |
N04C..XZU304,305,344 |
2 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..SCB 長さ=315 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-78010 |
N04C..XZU304,305,344 |
1 | ||
| 16405-78010 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..SCB |
1 | ||
| 16533B - SUPPORT, RADIATOR, NO.1 | ||||
| 16533-78050 |
N04C..XZU304,305,344 |
1 | ||
| 16533-78050 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16534 - SUPPORT, RADIATOR, NO.2 | ||||
| 16534-78060 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16534-78060 |
N04C..XZU304,305,344 |
1 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-78060 |
N04C..XZU304,305,344 |
1 | ||
| 16561-78060 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-78120 |
N04C..XZU304,305,344 |
1 | ||
| 16571-78120 |
N04C..XZU304,305,308,314,334,338,344,348,354 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-78160 |
N04C..XZU304,305,344 |
1 | ||
| 16572-78160 |
N04C..XZU304,305,308,314,334,338,344,348,354..CBU,IV3,IV6,IV7 |
1 | ||
| 16575 - HOSE, RADIATOR, NO.5 | ||||
| 16575-78040 |
N04C..XZU304,305,308,314,334,338,344,348,354 |
1 | ||
| 16575-78040 |
N04C..XZU304,305,344 |
1 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-78060 |
N04C..XZU304,305,344 |
1 | ||
| 16582-78060 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16583 - BRACKET, RADIATOR, NO.2 | ||||
| 16583-78060 |
N04C..XZU304,305,344 |
1 | ||
| 16583-78060 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16583-78061 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16585 - BRACKET, RADIATOR, NO.3 | ||||
| 16585-78060 |
N04C..XZU304,305,344 |
1 | ||
| 16585-78060 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16592 - GUIDE, RADIATOR AIR, NO.3 | ||||
| 16592-78010 |
N04C..XZU304,334,368,378,388..(DCRL,DSLL)..(CBU,IV3,IV7);N04C,S05D..XZU301,305,306,31#,321,331,336,341,344,346,35# |
1 | ||
| 16592-78010 |
N04C..XZU304,305,344 |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-78070 |
N04C..XZU304,305,344 |
1 | ||
| 16593-78070 |
N04C..XZU304,305,334,344,354..SCB..(DM6,T3,T4,T5)..(DCRL,DSLL) |
1 | ||
| 16593A - GUIDE, RADIATOR AIR, NO.1 RH | ||||
| 16593-78090 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL |
1 | ||
| 16593-78091 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL |
1 | ||
| 16593-78090 |
N04C..XZU304,305,344 |
1 | ||
| 16594 - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-78090 |
N04C..XZU304,305,344 |
1 | ||
| 16594-78090 |
N04C..XZU304,334..SCB..(DCRL,DSLL);N04C,S05D..XZU301,305,306,331,336,341,344,346,354..03S,DM3,DM6,T2,T3,T4,T5 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-78100 |
N04C..XZU304,305,344 |
1 | ||
| 16711-78100 |
N04C..XZU304,305,308,314,334,338,344,348,354 |
1 | ||
| Common parts | ||||
| 90119-06182 | ||||
| 90179-06293 | ||||
| 90179-08233 | ||||
| 90179-08249 | ||||
| 90460-52003 | ||||
| 90464-00840 | ||||
| 90467-07206 | ||||
| 90467-13020 | ||||
| 90467-13073 | ||||
| 91511-60612 | ||||
| 91651-60816 | ||||
| 91651-B0820 | ||||
| 91651-B0822 | ||||
| 94150-10801 | ||||

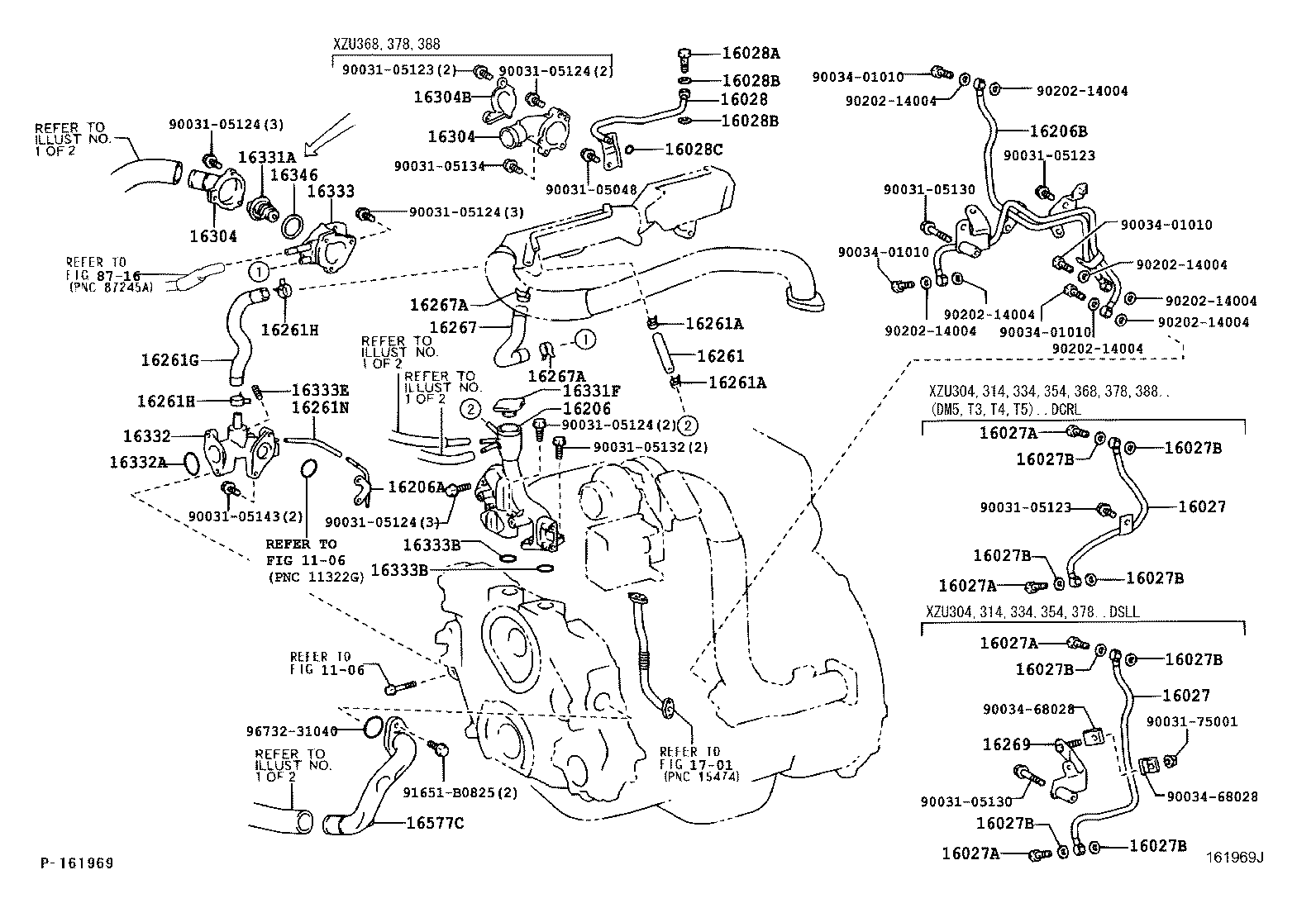

ILLUST NO. 2 OF 2(0310- )N04C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16268-78010 |
N04C..XZU304,344..DSLL |
1 | ||
| 16268-78010 |
N04C..XZU304,314,334,344,354,378..DSLL |
1 | ||
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16268-78010 |
N04C..XZU304,344..DSLL |
1 | ||
| 16268-78010 |
N04C..XZU304,314,334,344,354,378..DSLL |
1 | ||
| 16027A - BOLT, UNION(FOR TURBO WATER PIPE) | ||||
| 90034-01010 |
N04C..XZU304..DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C..XZU314,334,344,354,368,378,388..DCRL,DSLL |
2 | ||
| 90034-01010 |
N04C..XZU344;N04C..XZU304..DSLL;N04C..XZU304..(T3,T4,T5)..DCRL |
2 | ||
| 16027A - BOLT, UNION(FOR TURBO WATER PIPE) | ||||
| 90034-01010 |
N04C..XZU304..DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C..XZU314,334,344,354,368,378,388..DCRL,DSLL |
2 | ||
| 90034-01010 |
N04C..XZU344;N04C..XZU304..DSLL;N04C..XZU304..(T3,T4,T5)..DCRL |
2 | ||
| 16027A - BOLT, UNION(FOR TURBO WATER PIPE) | ||||
| 90034-01010 |
N04C..XZU304..DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C..XZU314,334,344,354,368,378,388..DCRL,DSLL |
2 | ||
| 90034-01010 |
N04C..XZU344;N04C..XZU304..DSLL;N04C..XZU304..(T3,T4,T5)..DCRL |
2 | ||
| 16027A - BOLT, UNION(FOR TURBO WATER PIPE) | ||||
| 90034-01010 |
N04C..XZU304..DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C..XZU314,334,344,354,368,378,388..DCRL,DSLL |
2 | ||
| 90034-01010 |
N04C..XZU344;N04C..XZU304..DSLL;N04C..XZU304..(T3,T4,T5)..DCRL |
2 | ||
| 16027B - GASKET(FOR TURBO WATER PIPE) | ||||
| 90202-14004 |
N04C..XZU344;N04C..XZU304..DSLL;N04C..XZU304..(T3,T4,T5)..DCRL |
4 | ||
| 90202-14004 |
N04C..XZU304..DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C..XZU314,334,344,354,368,378,388..DCRL,DSLL |
4 | ||
| 16027B - GASKET(FOR TURBO WATER PIPE) | ||||
| 90202-14004 |
N04C..XZU344;N04C..XZU304..DSLL;N04C..XZU304..(T3,T4,T5)..DCRL |
4 | ||
| 90202-14004 |
N04C..XZU304..DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C..XZU314,334,344,354,368,378,388..DCRL,DSLL |
4 | ||
| 16027B - GASKET(FOR TURBO WATER PIPE) | ||||
| 90202-14004 |
N04C..XZU344;N04C..XZU304..DSLL;N04C..XZU304..(T3,T4,T5)..DCRL |
4 | ||
| 90202-14004 |
N04C..XZU304..DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C..XZU314,334,344,354,368,378,388..DCRL,DSLL |
4 | ||
| 16027B - GASKET(FOR TURBO WATER PIPE) | ||||
| 90202-14004 |
N04C..XZU344;N04C..XZU304..DSLL;N04C..XZU304..(T3,T4,T5)..DCRL |
4 | ||
| 90202-14004 |
N04C..XZU304..DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C..XZU314,334,344,354,368,378,388..DCRL,DSLL |
4 | ||
| 16027B - GASKET(FOR TURBO WATER PIPE) | ||||
| 90202-14004 |
N04C..XZU344;N04C..XZU304..DSLL;N04C..XZU304..(T3,T4,T5)..DCRL |
4 | ||
| 90202-14004 |
N04C..XZU304..DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C..XZU314,334,344,354,368,378,388..DCRL,DSLL |
4 | ||
| 16027B - GASKET(FOR TURBO WATER PIPE) | ||||
| 90202-14004 |
N04C..XZU344;N04C..XZU304..DSLL;N04C..XZU304..(T3,T4,T5)..DCRL |
4 | ||
| 90202-14004 |
N04C..XZU304..DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C..XZU314,334,344,354,368,378,388..DCRL,DSLL |
4 | ||
| 16027B - GASKET(FOR TURBO WATER PIPE) | ||||
| 90202-14004 |
N04C..XZU344;N04C..XZU304..DSLL;N04C..XZU304..(T3,T4,T5)..DCRL |
4 | ||
| 90202-14004 |
N04C..XZU304..DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C..XZU314,334,344,354,368,378,388..DCRL,DSLL |
4 | ||
| 16027B - GASKET(FOR TURBO WATER PIPE) | ||||
| 90202-14004 |
N04C..XZU344;N04C..XZU304..DSLL;N04C..XZU304..(T3,T4,T5)..DCRL |
4 | ||
| 90202-14004 |
N04C..XZU304..DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C..XZU314,334,344,354,368,378,388..DCRL,DSLL |
4 | ||
| 16028 - PIPE SUB-ASSY, TURBO WATER, NO.2 | ||||
| 16206-78040 |
N04C..XZU304,344..DSLL;N04C..XZU304,305..20T..DCRL..1NO |
1 | ||
| 16206-78040 |
N04C..XZU304,305..20T..DCRL..1NO;N04C..XZU304,314,334,344,354,378..DSLL |
1 | ||
| 16028A - BOLT, UNION(FOR TURBO WATER PIPE NO.2) | ||||
| 90034-01010 |
N04C..XZU304,305,344 |
1 | ||
| 90034-01010 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL |
1 | ||
| 16028B - GASKET(FOR TURBO WATER PIPE NO.2) | ||||
| 90202-14004 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL |
2 | ||
| 90202-14004 |
N04C..XZU304,305,344 |
2 | ||
| 16028B - GASKET(FOR TURBO WATER PIPE NO.2) | ||||
| 90202-14004 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL |
2 | ||
| 90202-14004 |
N04C..XZU304,305,344 |
2 | ||
| 16028C - RING, O(FOR TURBO WATER PIPE) | ||||
| 90301-09006 |
N04C..XZU304,305,344 |
1 | ||
| 90301-09006 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL |
1 | ||
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-78020 |
N04C..XZU304,305,344 |
1 | ||
| 16206A - PIPE SUB-ASSY, WATER BY-PASS, NO.2 | ||||
| 16206-78030 |
N04C..XZU304,305,344 |
1 | ||
| 16206-78030 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 90034-45092 |
N04C..XZU304,305,344 長さ=61 |
1 | ||
| 90034-45092 |
N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388 長さ=61 |
1 | ||
| 16261-78170 |
N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388 長さ=59 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90034-67027 |
N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388 |
2 | ||
| 90034-67027 |
N04C..XZU304,305,344 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90034-67027 |
N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388 |
2 | ||
| 90034-67027 |
N04C..XZU304,305,344 |
2 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 90034-45091 |
N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388 |
1 | ||
| 90034-45091 |
N04C..XZU304,305,344 |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90034-67032 |
N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388 |
2 | ||
| 90467-21010 |
N04C..XZU304,305,344 |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90034-67032 |
N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388 |
2 | ||
| 90467-21010 |
N04C..XZU304,305,344 |
2 | ||
| 16261N - HOSE, WATER BY-PASS, NO.2 | ||||
| 90034-45083 |
N04C..XZU304,305,344 |
1 | ||
| 90034-45083 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 90034-45093 |
N04C..XZU304,305,344 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-21010 |
N04C..XZU304,305,344 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-21010 |
N04C..XZU304,305,344 |
2 | ||
| 16269 - SUPPORT, WATER BY-PASS PIPE | ||||
| 16269-78010 |
N04C..XZU304,314,334,344,354,378..DSLL |
1 | ||
| 16269-78010 |
N04C..XZU304,344..DSLL |
1 | ||
| 16304 - OUTLET SUB-ASSY, WATER | ||||
| 16304-78070 |
N04C..XZU304,305,344 |
1 | ||
| 16304 - OUTLET SUB-ASSY, WATER | ||||
| 16304-78070 |
N04C..XZU304,305,344 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90038-33013 |
N04C..XZU304,305,344 *WAX 82−95 |
1 | ||
| 90038-33015 |
N04C..XZU304,305,344 *WAX 82−95 |
1 | ||
| 16331F - CAP SUB-ASSY(FOR WATER OUTLET) | ||||
| 16545-78010 |
N04C..XZU304,305,344 |
1 | ||
| 16332 - PIPE, WATER OUTLET, NO.1 | ||||
| 16306-78010 |
N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388 |
1 | ||
| 16306-78010 |
N04C..XZU304,305,344 |
1 | ||
| 16332A - RING, O(FOR WATER OUTLET PIPE) | ||||
| 90033-01064 |
N04C..XZU304,305,344 |
1 | ||
| 90033-01064 |
N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16303-78050 |
N04C..XZU304,308,334,338,348,368,378,388..DSL |
1 | ||
| 16303-78020 |
N04C..XZU304,305,344 |
1 | ||
| 16333B - RING, O(FOR WATER OUTLET HOUSING) | ||||
| 90033-01068 |
N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388 |
2 | ||
| 90033-01068 |
N04C..XZU304,305,344 |
2 | ||
| 16333B - RING, O(FOR WATER OUTLET HOUSING) | ||||
| 90033-01068 |
N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388 |
2 | ||
| 90033-01068 |
N04C..XZU304,305,344 |
2 | ||
| 16333E - PLUG, DRAIN COCK | ||||
| 90910-09080 |
N04C..XZU304,305,344 |
1 | ||
| 90910-09080 |
N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388 |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-78030 |
N04C..XZU304,305,344 |
1 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-78060 |
N04C..XZU304,305,344 |
1 | ||
| 16577-78060 |
N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388 |
1 | ||
| Common parts | ||||
| 90031-05048 | ||||
| 90031-05123 | ||||
| 90031-05124 | ||||
| 90031-05130 | ||||
| 90031-05132 | ||||
| 90031-05134 | ||||
| 90031-05143 | ||||
| 90031-75001 | ||||
| 90034-01010 | ||||
| 90034-68028 | ||||
| 90202-14004 | ||||
| 91651-B0825 | ||||
| 96732-31040 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 1701 | ||||
| 8716 | ||||
ILLUST NO. 1 OF 2(0406-0610)N04C..XZU304,308,334,338,348,368,378,388..DSL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-78050 |
N04C..XZU304,308,334,338,348,368,378,388..DSL |
1 | ||
| 16361-78100 |
N04C..XZU304,305,344 |
1 | ||
| 16361-78100 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-78340 |
N04C..XZU304,308,334,338,348..5F..DSL ﾏｰｸ=7834 |
1 | ||
| 16400-78281 |
N04C..XZU304,305,344 ﾏｰｸ=7828 |
1 | ||
| 16400-78280 |
N04C..XZU304,305,344 ﾏｰｸ=7828 |
1 | ||
| 16400-78281 |
N04C..XZU304,305,314,334,344,354..SCB..(DCRL,DSLL) ﾏｰｸ=7828 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,305,306,308,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16417-15210 |
N04C..XZU304,305,344 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,305,306,308,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16418-15520 |
N04C..XZU304,305,344 |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-78080 |
N04C..XZU304,305,344 |
1 | ||
| 16442-78080 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,305,306,308,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16453 - PLATE, RADIATOR SIDE | ||||
| 16453-78281 |
N04C..XZU304,305,344 |
1 | ||
| 16453-78281 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-78281 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,305,306,308,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16454-78281 |
N04C..XZU304,305,344 |
1 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 16455-67020 |
N04C..XZU304,305,344 |
8 | ||
| 16455-67020 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,305,306,308,31#,321,33#,34#,35#,368,378,388 |
8 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16442-78080 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,305,306,308,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16442-78080 |
N04C..XZU304,305,344 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-78010 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..SCB |
1 | ||
| 16470-78010 |
N04C..XZU304,305,344 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-78010 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..SCB |
1 | ||
| 16470-78010 |
N04C..XZU304,305,344 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-78170 |
N04C..XZU304,305,344 長さ=1555 |
1 | ||
| 16567-78170 |
N04C..XZU304,305,314,334,344,354..SCB..(DCRL,DSLL) 長さ=1555 |
1 | ||
| 16567-78190 |
N04C..XZU304,308,334,338,348..SCB..DSL |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-78170 |
N04C..XZU304,305,344 長さ=1555 |
1 | ||
| 16567-78170 |
N04C..XZU304,305,314,334,344,354..SCB..(DCRL,DSLL) 長さ=1555 |
1 | ||
| 16567-78190 |
N04C..XZU304,308,334,338,348..SCB..DSL |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
N04C..XZU378..IV4;N04C,S05D..XZU306,308,346,378,388..SCB;N04C,S05D..XZU301,304,305,31#,321,33#,341,344,348,35#,368..20T,30T,35T,40T |
2 | ||
| 90467-11085 |
N04C..XZU304,305,344 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
N04C..XZU378..IV4;N04C,S05D..XZU306,308,346,378,388..SCB;N04C,S05D..XZU301,304,305,31#,321,33#,341,344,348,35#,368..20T,30T,35T,40T |
2 | ||
| 90467-11085 |
N04C..XZU304,305,344 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
N04C..XZU378..IV4;N04C,S05D..XZU306,308,346,378,388..SCB;N04C,S05D..XZU301,304,305,31#,321,33#,341,344,348,35#,368..20T,30T,35T,40T |
2 | ||
| 90467-11085 |
N04C..XZU304,305,344 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
N04C..XZU378..IV4;N04C,S05D..XZU306,308,346,378,388..SCB;N04C,S05D..XZU301,304,305,31#,321,33#,341,344,348,35#,368..20T,30T,35T,40T |
2 | ||
| 90467-11085 |
N04C..XZU304,305,344 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
N04C..XZU304,305,344 |
2 | ||
| 90467-11085 |
N04C..XZU378..IV4;N04C,S05D..XZU306,308,346,378,388..SCB;N04C,S05D..XZU301,304,305,31#,321,33#,341,344,348,35#,368..20T,30T,35T,40T |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
N04C..XZU378..IV4;N04C,S05D..XZU306,308,346,378,388..SCB;N04C,S05D..XZU301,304,305,31#,321,33#,341,344,348,35#,368..20T,30T,35T,40T |
2 | ||
| 90467-11085 |
N04C..XZU304,305,344 |
2 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..SCB 長さ=315 |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..SCB 長さ=315 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-78010 |
N04C..XZU304,305,344 |
1 | ||
| 16405-78010 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..SCB |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-78010 |
N04C..XZU304,305,344 |
1 | ||
| 16405-78010 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..SCB |
1 | ||
| 16533B - SUPPORT, RADIATOR, NO.1 | ||||
| 16533-78050 |
N04C..XZU304,305,344 |
1 | ||
| 16533-78050 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16534 - SUPPORT, RADIATOR, NO.2 | ||||
| 16534-78060 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16534-78060 |
N04C..XZU304,305,344 |
1 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-78060 |
N04C..XZU304,305,344 |
1 | ||
| 16561-78060 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-78120 |
N04C..XZU304,305,344 |
1 | ||
| 16571-78120 |
N04C..XZU304,305,308,314,334,338,344,348,354 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-55014 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 90460-55014 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 16581-78140 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-55014 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 90460-55014 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 16581-78140 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-78160 |
N04C..XZU304,305,344 |
1 | ||
| 16572-78160 |
N04C..XZU304,305,308,314,334,338,344,348,354..CBU,IV3,IV6,IV7 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-55014 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV6,IV7 |
2 | ||
| 90460-55014 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV6,IV7 |
2 | ||
| 16581-78140 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV6,IV7 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-55014 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV6,IV7 |
2 | ||
| 90460-55014 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV6,IV7 |
2 | ||
| 16581-78140 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV6,IV7 |
2 | ||
| 16575 - HOSE, RADIATOR, NO.5 | ||||
| 16575-78040 |
N04C..XZU304,305,308,314,334,338,344,348,354 |
1 | ||
| 16575-78040 |
N04C..XZU304,305,344 |
1 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-78060 |
N04C..XZU304,305,344 |
1 | ||
| 16582-78060 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16583 - BRACKET, RADIATOR, NO.2 | ||||
| 16583-78060 |
N04C..XZU304,305,344 |
1 | ||
| 16583-78060 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16583-78061 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16585 - BRACKET, RADIATOR, NO.3 | ||||
| 16585-78060 |
N04C..XZU304,305,344 |
1 | ||
| 16585-78060 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-78070 |
N04C..XZU304,305,344 |
1 | ||
| 16593-78070 |
N04C..XZU304,305,334,344,354..SCB..(DM6,T3,T4,T5)..(DCRL,DSLL) |
1 | ||
| 16594 - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-78090 |
N04C..XZU304,305,344 |
1 | ||
| 16594-78090 |
N04C..XZU304,334..SCB..(DCRL,DSLL);N04C,S05D..XZU301,305,306,331,336,341,344,346,354..03S,DM3,DM6,T2,T3,T4,T5 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-78100 |
N04C..XZU304,305,344 |
1 | ||
| 16711-78100 |
N04C..XZU304,305,308,314,334,338,344,348,354 |
1 | ||
| Common parts | ||||
| 16581-78120 | ||||
| 90119-06182 | ||||
| 90179-06293 | ||||
| 90179-08233 | ||||
| 90179-08249 | ||||
| 90464-00840 | ||||
| 90467-07206 | ||||
| 90467-13020 | ||||
| 90467-13073 | ||||
| 91511-60612 | ||||
| 91621-40816 | ||||
| 91651-60816 | ||||
| 91651-B0820 | ||||
| 91651-B0822 | ||||
| 94150-10801 | ||||
ILLUST NO. 1 OF 2(0406- )N04C..XZU304,305..20T..DCRL..1NO ; (0406- )N04C..XZU304,314,344,354..
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-78050 |
N04C..XZU304,308,334,338,348,368,378,388..DSL |
1 | ||
| 16361-78100 |
N04C..XZU304,305,344 |
1 | ||
| 16361-78100 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-78340 |
N04C..XZU304,308,334,338,348..5F..DSL ﾏｰｸ=7834 |
1 | ||
| 16400-78281 |
N04C..XZU304,305,344 ﾏｰｸ=7828 |
1 | ||
| 16400-78280 |
N04C..XZU304,305,344 ﾏｰｸ=7828 |
1 | ||
| 16400-78281 |
N04C..XZU304,305,314,334,344,354..SCB..(DCRL,DSLL) ﾏｰｸ=7828 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,305,306,308,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16417-15210 |
N04C..XZU304,305,344 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,305,306,308,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16418-15520 |
N04C..XZU304,305,344 |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-78080 |
N04C..XZU304,305,344 |
1 | ||
| 16442-78080 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,305,306,308,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16453 - PLATE, RADIATOR SIDE | ||||
| 16453-78281 |
N04C..XZU304,305,344 |
1 | ||
| 16453-78281 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-78281 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,305,306,308,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16454-78281 |
N04C..XZU304,305,344 |
1 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 16455-67020 |
N04C..XZU304,305,344 |
8 | ||
| 16455-67020 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,305,306,308,31#,321,33#,34#,35#,368,378,388 |
8 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16442-78080 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,305,306,308,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16442-78080 |
N04C..XZU304,305,344 |
1 | ||
| 16465 - PACKING, RADIATOR | ||||
| 16465-78080 |
N04C..XZU304,305,344 |
2 | ||
| 16465-78080 |
N04C..XZU304..SCB..DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C..XZU305,314,334,344,354,368,378,388..(DCRL,DSLL)..(CBU,IV3,IV6) |
2 | ||
| 16465 - PACKING, RADIATOR | ||||
| 16465-78080 |
N04C..XZU304,305,344 |
2 | ||
| 16465-78080 |
N04C..XZU304..SCB..DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C..XZU305,314,334,344,354,368,378,388..(DCRL,DSLL)..(CBU,IV3,IV6) |
2 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-78010 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..SCB |
1 | ||
| 16470-78010 |
N04C..XZU304,305,344 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-78010 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..SCB |
1 | ||
| 16470-78010 |
N04C..XZU304,305,344 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-78170 |
N04C..XZU304,305,344 長さ=1555 |
1 | ||
| 16567-78170 |
N04C..XZU304,305,314,334,344,354..SCB..(DCRL,DSLL) 長さ=1555 |
1 | ||
| 16567-78190 |
N04C..XZU304,308,334,338,348..SCB..DSL |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-78170 |
N04C..XZU304,305,344 長さ=1555 |
1 | ||
| 16567-78170 |
N04C..XZU304,305,314,334,344,354..SCB..(DCRL,DSLL) 長さ=1555 |
1 | ||
| 16567-78190 |
N04C..XZU304,308,334,338,348..SCB..DSL |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
N04C..XZU304,305,344 |
2 | ||
| 90467-11085 |
N04C..XZU378..IV4;N04C,S05D..XZU306,308,346,378,388..SCB;N04C,S05D..XZU301,304,305,31#,321,33#,341,344,348,35#,368..20T,30T,35T,40T |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
N04C..XZU304,305,344 |
2 | ||
| 90467-11085 |
N04C..XZU378..IV4;N04C,S05D..XZU306,308,346,378,388..SCB;N04C,S05D..XZU301,304,305,31#,321,33#,341,344,348,35#,368..20T,30T,35T,40T |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
N04C..XZU304,305,344 |
2 | ||
| 90467-11085 |
N04C..XZU378..IV4;N04C,S05D..XZU306,308,346,378,388..SCB;N04C,S05D..XZU301,304,305,31#,321,33#,341,344,348,35#,368..20T,30T,35T,40T |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
N04C..XZU304,305,344 |
2 | ||
| 90467-11085 |
N04C..XZU378..IV4;N04C,S05D..XZU306,308,346,378,388..SCB;N04C,S05D..XZU301,304,305,31#,321,33#,341,344,348,35#,368..20T,30T,35T,40T |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
N04C..XZU304,305,344 |
2 | ||
| 90467-11085 |
N04C..XZU378..IV4;N04C,S05D..XZU306,308,346,378,388..SCB;N04C,S05D..XZU301,304,305,31#,321,33#,341,344,348,35#,368..20T,30T,35T,40T |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
N04C..XZU304,305,344 |
2 | ||
| 90467-11085 |
N04C..XZU378..IV4;N04C,S05D..XZU306,308,346,378,388..SCB;N04C,S05D..XZU301,304,305,31#,321,33#,341,344,348,35#,368..20T,30T,35T,40T |
2 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..SCB 長さ=315 |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..SCB 長さ=315 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-78010 |
N04C..XZU304,305,344 |
1 | ||
| 16405-78010 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..SCB |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-78010 |
N04C..XZU304,305,344 |
1 | ||
| 16405-78010 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..SCB |
1 | ||
| 16533B - SUPPORT, RADIATOR, NO.1 | ||||
| 16533-78050 |
N04C..XZU304,305,344 |
1 | ||
| 16533-78050 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16534 - SUPPORT, RADIATOR, NO.2 | ||||
| 16534-78060 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16534-78060 |
N04C..XZU304,305,344 |
1 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-78060 |
N04C..XZU304,305,344 |
1 | ||
| 16561-78060 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-78120 |
N04C..XZU304,305,344 |
1 | ||
| 16571-78120 |
N04C..XZU304,305,308,314,334,338,344,348,354 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-55014 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 90460-55014 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 16581-78140 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-55014 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 90460-55014 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 16581-78140 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-78160 |
N04C..XZU304,305,344 |
1 | ||
| 16572-78160 |
N04C..XZU304,305,308,314,334,338,344,348,354..CBU,IV3,IV6,IV7 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-55014 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV6,IV7 |
2 | ||
| 90460-55014 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV6,IV7 |
2 | ||
| 16581-78140 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV6,IV7 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-55014 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV6,IV7 |
2 | ||
| 90460-55014 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV6,IV7 |
2 | ||
| 16581-78140 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV6,IV7 |
2 | ||
| 16575 - HOSE, RADIATOR, NO.5 | ||||
| 16575-78040 |
N04C..XZU304,305,308,314,334,338,344,348,354 |
1 | ||
| 16575-78040 |
N04C..XZU304,305,344 |
1 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-78060 |
N04C..XZU304,305,344 |
1 | ||
| 16582-78060 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16583 - BRACKET, RADIATOR, NO.2 | ||||
| 16583-78060 |
N04C..XZU304,305,344 |
1 | ||
| 16583-78060 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16583-78061 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16585 - BRACKET, RADIATOR, NO.3 | ||||
| 16585-78060 |
N04C..XZU304,305,344 |
1 | ||
| 16585-78060 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 16592 - GUIDE, RADIATOR AIR, NO.3 | ||||
| 16592-78010 |
N04C..XZU304,334,368,378,388..(DCRL,DSLL)..(CBU,IV3,IV7);N04C,S05D..XZU301,305,306,31#,321,331,336,341,344,346,35# |
1 | ||
| 16592-78010 |
N04C..XZU304,305,344 |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-78070 |
N04C..XZU304,305,344 |
1 | ||
| 16593-78070 |
N04C..XZU304,305,334,344,354..SCB..(DM6,T3,T4,T5)..(DCRL,DSLL) |
1 | ||
| 16593A - GUIDE, RADIATOR AIR, NO.1 RH | ||||
| 16593-78090 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL |
1 | ||
| 16593-78091 |
N04C..XZU304,305,314,334,344,354,368,378,388..DCRL,DSLL |
1 | ||
| 16593-78090 |
N04C..XZU304,305,344 |
1 | ||
| 16594 - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-78090 |
N04C..XZU304,305,344 |
1 | ||
| 16594-78090 |
N04C..XZU304,334..SCB..(DCRL,DSLL);N04C,S05D..XZU301,305,306,331,336,341,344,346,354..03S,DM3,DM6,T2,T3,T4,T5 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-78100 |
N04C..XZU304,305,344 |
1 | ||
| 16711-78100 |
N04C..XZU304,305,308,314,334,338,344,348,354 |
1 | ||
| Common parts | ||||
| 16581-78120 | ||||
| 90119-06182 | ||||
| 90179-06293 | ||||
| 90179-08233 | ||||
| 90179-08249 | ||||
| 90464-00840 | ||||
| 90467-07206 | ||||
| 90467-13020 | ||||
| 90467-13073 | ||||
| 91511-60612 | ||||
| 91621-40816 | ||||
| 91651-60816 | ||||
| 91651-B0820 | ||||
| 91651-B0822 | ||||
| 94150-10801 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
