XZU304-TQMQL3 (2003)
Toyota Dyna/Toyoace

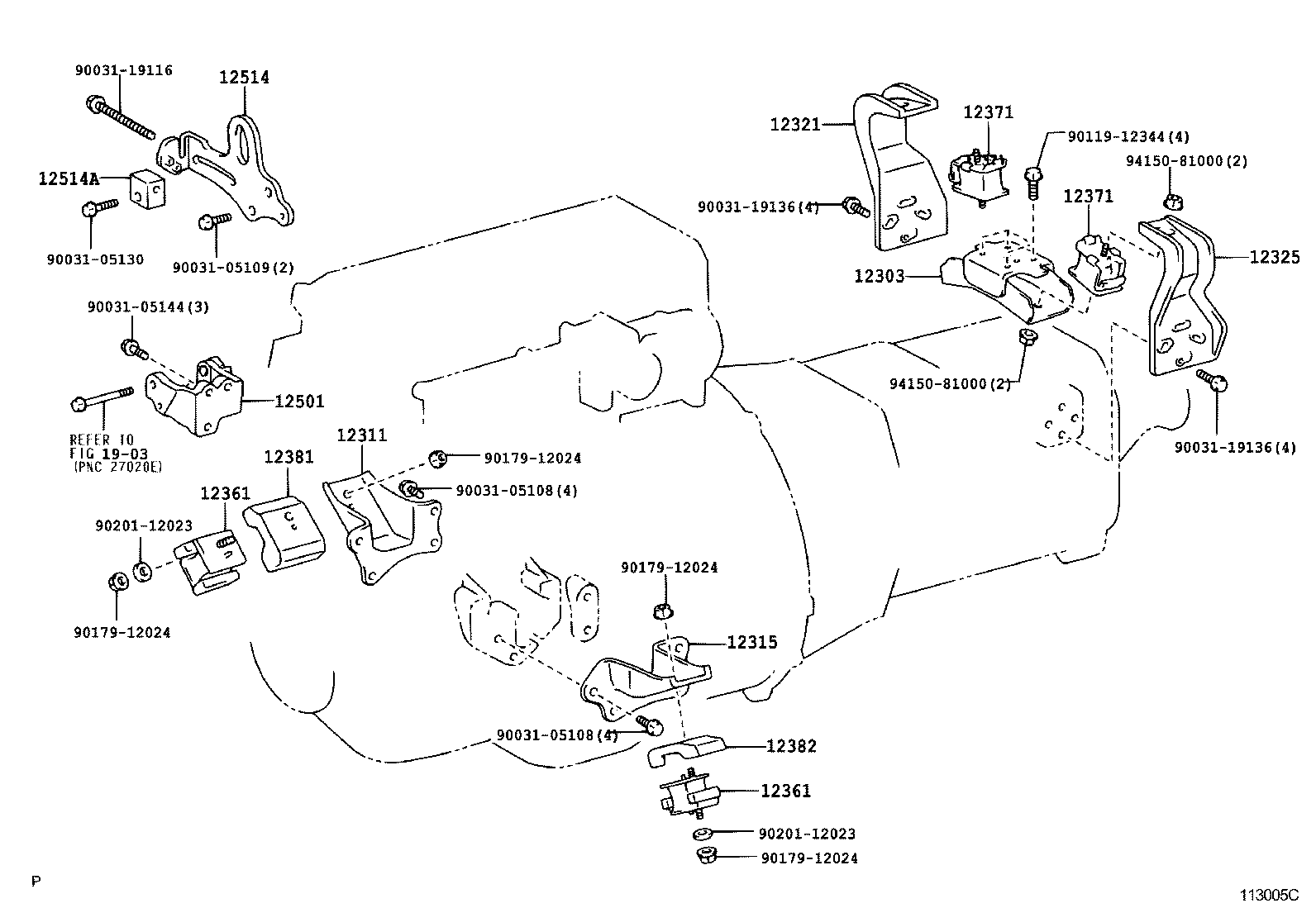

(0310-0406)N04C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12303 - BRACKET SUB-ASSY, ENGINE MOUNTING, REAR | ||||
| 12303-78010 |
N04C..XZU304,305,344 |
1 | ||
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-78060 |
N04C..XZU304,305,344 |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-78040 |
N04C..XZU304,305,344 |
1 | ||
| 12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1 | ||||
| 12321-78220 |
N04C..XZU304,305,344 |
1 | ||
| 12321-58230 |
N04C..XZU304,308,334,338,348..5F..DSL TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 12325 - BRACKET, ENGINE MOUNTING, NO.3 | ||||
| 12325-58190 |
N04C..XZU304,308,334,338,348..5F..DSL TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 12325-78200 |
N04C..XZU304,305,344 |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-58130 |
N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388 |
2 | ||
| 12361-58130 |
N04C..XZU304,305,344 |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-58130 |
N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388 |
2 | ||
| 12361-58130 |
N04C..XZU304,305,344 |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-78010 |
N04C..XZU304,305,344 |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-78010 |
N04C..XZU304,305,344 |
2 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-78030 |
N04C..XZU304,305,308,314,334,338,344,348,354..175T,20T,30T |
1 | ||
| 12381-78030 |
N04C..XZU304,305,344 |
1 | ||
| 12382 - STABILIZER, ENGINE MOUNTING, LH | ||||
| 12381-78030 |
N04C..XZU304,305,308,314,334,338,344,348,354..175T,20T,30T |
1 | ||
| 12381-78030 |
N04C..XZU304,305,344 |
1 | ||
| 12501 - BRACKET SUB-ASSY, ALTERNATOR | ||||
| 12501-78062 |
N04C..XZU304,305,344 |
1 | ||
| 12501-78110 |
N04C..XZU388..T4..DCRL..IV3;N04C..XZU304..30T..DCRL..IV3..4NO;N04C..XZU304,308,344..SCB..T4..IV3;N04C..XZU334,338,348,368..T4..5F..20T..IV3 ｱﾘ(ﾚｲﾄｳ ﾖｳ ｵﾙﾀﾈｰﾀ) |
1 | ||
| 12501-78071 |
N04C..XZU304,344..(T3,T4,T5)..IV3 ｱﾘ(24V-80A ｵﾙﾀﾈ-ﾀ) |
1 | ||
| 12501-78130 |
N04C..XZU378..IV4;N04C..XZU308,378,388..SCB..IV3;N04C..XZU304,334,338,344,348,368..(T2,T3,T4,T5)..(IV3,IV4) ｱﾘ(24V-80A ｵﾙﾀﾈ-ﾀ) |
1 | ||
| 12501-78120 |
N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388..CBU,IV3,IV6,IV7 |
1 | ||
| 12501-78111 |
N04C..XZU388..T4..DCRL..IV3;N04C..XZU304..30T..DCRL..IV3..4NO;N04C..XZU304,308,344..SCB..T4..IV3;N04C..XZU334,338,348,368..T4..5F..20T..IV3 ｱﾘ(ﾚｲﾄｳ ﾖｳ ｵﾙﾀﾈｰﾀ) |
1 | ||
| 12514 - BAR, ALTERNATOR BELT ADJUSTING | ||||
| 12514-78072 |
N04C..XZU304,305,344 |
1 | ||
| 12514-78082 |
N04C..XZU308..SCB..IV3;N04C..XZU304,334,338,344,348..(T2,T3,T4,T5)..(IV3,IV4) ｱﾘ(24V-80A ｵﾙﾀﾈ-ﾀ) |
1 | ||
| 12514-78072 |
N04C..XZU304,305,308,314,334,338,344,348,354..CBU,IV3,IV6,IV7 |
1 | ||
| 12514-78082 |
N04C..XZU304,344..(T3,T4,T5)..IV3 ｱﾘ(24V-80A ｵﾙﾀﾈ-ﾀ) |
1 | ||
| 12514A - SLIDER, FAN BELT ADJUSTING | ||||
| 12519-78020 |
N04C..XZU304,305,344 |
1 | ||
| 12519-78020 |
N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388 |
1 | ||
| Common parts | ||||
| 90031-05108 | ||||
| 90031-05109 | ||||
| 90031-05130 | ||||
| 90031-05144 | ||||
| 90031-19116 | ||||
| 90031-19136 | ||||
| 90119-12344 | ||||
| 90179-12024 | ||||
| 90201-12023 | ||||
| 94150-81000 | ||||
| Linked diagrams | ||||
| 1903 | ||||
ILLUST NO. 1 OF 2(0406- )N04C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12303 - BRACKET SUB-ASSY, ENGINE MOUNTING, REAR | ||||
| 12303-78010 |
N04C..XZU304,305,344 |
1 | ||
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-78060 |
N04C..XZU304,305,344 |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-78040 |
N04C..XZU304,305,344 |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-58130 |
N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388 |
2 | ||
| 12361-58130 |
N04C..XZU304,305,344 |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-58130 |
N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388 |
2 | ||
| 12361-58130 |
N04C..XZU304,305,344 |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-78010 |
N04C..XZU304,305,344 |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-78010 |
N04C..XZU304,305,344 |
2 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-78030 |
N04C..XZU304,305,308,314,334,338,344,348,354..175T,20T,30T |
1 | ||
| 12381-78030 |
N04C..XZU304,305,344 |
1 | ||
| 12382 - STABILIZER, ENGINE MOUNTING, LH | ||||
| 12381-78030 |
N04C..XZU304,305,308,314,334,338,344,348,354..175T,20T,30T |
1 | ||
| 12381-78030 |
N04C..XZU304,305,344 |
1 | ||
| 12501 - BRACKET SUB-ASSY, ALTERNATOR | ||||
| 12501-78062 |
N04C..XZU304,305,344 |
1 | ||
| 12501-78110 |
N04C..XZU388..T4..DCRL..IV3;N04C..XZU304..30T..DCRL..IV3..4NO;N04C..XZU304,308,344..SCB..T4..IV3;N04C..XZU334,338,348,368..T4..5F..20T..IV3 ｱﾘ(ﾚｲﾄｳ ﾖｳ ｵﾙﾀﾈｰﾀ) |
1 | ||
| 12501-78071 |
N04C..XZU304,344..(T3,T4,T5)..IV3 ｱﾘ(24V-80A ｵﾙﾀﾈ-ﾀ) |
1 | ||
| 12501-78130 |
N04C..XZU378..IV4;N04C..XZU308,378,388..SCB..IV3;N04C..XZU304,334,338,344,348,368..(T2,T3,T4,T5)..(IV3,IV4) ｱﾘ(24V-80A ｵﾙﾀﾈ-ﾀ) |
1 | ||
| 12501-78120 |
N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388..CBU,IV3,IV6,IV7 |
1 | ||
| 12501-78111 |
N04C..XZU388..T4..DCRL..IV3;N04C..XZU304..30T..DCRL..IV3..4NO;N04C..XZU304,308,344..SCB..T4..IV3;N04C..XZU334,338,348,368..T4..5F..20T..IV3 ｱﾘ(ﾚｲﾄｳ ﾖｳ ｵﾙﾀﾈｰﾀ) |
1 | ||
| 12501 - BRACKET SUB-ASSY, ALTERNATOR | ||||
| 12501-78062 |
N04C..XZU304,305,344 |
1 | ||
| 12501-78110 |
N04C..XZU388..T4..DCRL..IV3;N04C..XZU304..30T..DCRL..IV3..4NO;N04C..XZU304,308,344..SCB..T4..IV3;N04C..XZU334,338,348,368..T4..5F..20T..IV3 ｱﾘ(ﾚｲﾄｳ ﾖｳ ｵﾙﾀﾈｰﾀ) |
1 | ||
| 12501-78071 |
N04C..XZU304,344..(T3,T4,T5)..IV3 ｱﾘ(24V-80A ｵﾙﾀﾈ-ﾀ) |
1 | ||
| 12501-78130 |
N04C..XZU378..IV4;N04C..XZU308,378,388..SCB..IV3;N04C..XZU304,334,338,344,348,368..(T2,T3,T4,T5)..(IV3,IV4) ｱﾘ(24V-80A ｵﾙﾀﾈ-ﾀ) |
1 | ||
| 12501-78120 |
N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388..CBU,IV3,IV6,IV7 |
1 | ||
| 12501-78111 |
N04C..XZU388..T4..DCRL..IV3;N04C..XZU304..30T..DCRL..IV3..4NO;N04C..XZU304,308,344..SCB..T4..IV3;N04C..XZU334,338,348,368..T4..5F..20T..IV3 ｱﾘ(ﾚｲﾄｳ ﾖｳ ｵﾙﾀﾈｰﾀ) |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-78090 |
N04C..XZU388..T4..DCRL..IV3;N04C..XZU304..30T..DCRL..IV3..4NO;N04C..XZU304,308,344..SCB..T4..IV3;N04C..XZU334,338,348,368..T4..5F..20T..IV3 NO.2 |
1 | ||
| 12511-78080 |
N04C..XZU388..T4..DCRL..IV3;N04C..XZU304..30T..DCRL..IV3..4NO;N04C..XZU304,308,344..SCB..T4..IV3;N04C..XZU334,338,348,368..T4..5F..20T..IV3 NO.1 |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-78090 |
N04C..XZU388..T4..DCRL..IV3;N04C..XZU304..30T..DCRL..IV3..4NO;N04C..XZU304,308,344..SCB..T4..IV3;N04C..XZU334,338,348,368..T4..5F..20T..IV3 NO.2 |
1 | ||
| 12511-78080 |
N04C..XZU388..T4..DCRL..IV3;N04C..XZU304..30T..DCRL..IV3..4NO;N04C..XZU304,308,344..SCB..T4..IV3;N04C..XZU334,338,348,368..T4..5F..20T..IV3 NO.1 |
1 | ||
| 12514 - BAR, ALTERNATOR BELT ADJUSTING | ||||
| 12514-78072 |
N04C..XZU304,305,344 |
1 | ||
| 12514-78082 |
N04C..XZU308..SCB..IV3;N04C..XZU304,334,338,344,348..(T2,T3,T4,T5)..(IV3,IV4) ｱﾘ(24V-80A ｵﾙﾀﾈ-ﾀ) |
1 | ||
| 12514-78072 |
N04C..XZU304,305,308,314,334,338,344,348,354..CBU,IV3,IV6,IV7 |
1 | ||
| 12514-78082 |
N04C..XZU304,344..(T3,T4,T5)..IV3 ｱﾘ(24V-80A ｵﾙﾀﾈ-ﾀ) |
1 | ||
| 12514A - SLIDER, FAN BELT ADJUSTING | ||||
| 12519-78020 |
N04C..XZU304,305,344 |
1 | ||
| 12519-78020 |
N04C..XZU304,305,308,314,334,338,344,348,354,368,378,388 |
1 | ||
| 88345 - BRACKET, COMPRESSOR MOUNTING | ||||
| 88345-37170 |
XZU388..T4..DCRL..IV3;XZU304..30T..DCRL..IV3..4NO;XZU304,308,344..SCB..T4..IV3;XZU334,338,348,368..T4..5F..20T..IV3 ｱﾘ(ﾚｲﾄｳ ﾖｳ ｵﾙﾀﾈｰﾀ) |
1 | ||
| 88345-37170 |
XZU304,308,334,338,344,348,368,378,388..SCB..(T2,T3,T4,T5)..IV3 ｱﾘ(ﾚｲﾄｳﾖｳｺﾝﾌﾟﾚｯｻ),NO.1 |
1 | ||
| 88345-37190 |
XZU304,308,334,338,344,348,368,378,388..SCB..(T2,T3,T4,T5)..IV3 ｱﾘ(ﾚｲﾄｳﾖｳｺﾝﾌﾟﾚｯｻ),NO.3 |
1 | ||
| 88345-37180 |
XZU304,308,334,338,344,348,368,378,388..SCB..(T2,T3,T4,T5)..IV3 ｱﾘ(ﾚｲﾄｳﾖｳｺﾝﾌﾟﾚｯｻ),NO.2 |
1 | ||
| 88345 - BRACKET, COMPRESSOR MOUNTING | ||||
| 88345-37170 |
XZU388..T4..DCRL..IV3;XZU304..30T..DCRL..IV3..4NO;XZU304,308,344..SCB..T4..IV3;XZU334,338,348,368..T4..5F..20T..IV3 ｱﾘ(ﾚｲﾄｳ ﾖｳ ｵﾙﾀﾈｰﾀ) |
1 | ||
| 88345-37170 |
XZU304,308,334,338,344,348,368,378,388..SCB..(T2,T3,T4,T5)..IV3 ｱﾘ(ﾚｲﾄｳﾖｳｺﾝﾌﾟﾚｯｻ),NO.1 |
1 | ||
| 88345-37190 |
XZU304,308,334,338,344,348,368,378,388..SCB..(T2,T3,T4,T5)..IV3 ｱﾘ(ﾚｲﾄｳﾖｳｺﾝﾌﾟﾚｯｻ),NO.3 |
1 | ||
| 88345-37180 |
XZU304,308,334,338,344,348,368,378,388..SCB..(T2,T3,T4,T5)..IV3 ｱﾘ(ﾚｲﾄｳﾖｳｺﾝﾌﾟﾚｯｻ),NO.2 |
1 | ||
| 88345 - BRACKET, COMPRESSOR MOUNTING | ||||
| 88345-37170 |
XZU388..T4..DCRL..IV3;XZU304..30T..DCRL..IV3..4NO;XZU304,308,344..SCB..T4..IV3;XZU334,338,348,368..T4..5F..20T..IV3 ｱﾘ(ﾚｲﾄｳ ﾖｳ ｵﾙﾀﾈｰﾀ) |
1 | ||
| 88345-37170 |
XZU304,308,334,338,344,348,368,378,388..SCB..(T2,T3,T4,T5)..IV3 ｱﾘ(ﾚｲﾄｳﾖｳｺﾝﾌﾟﾚｯｻ),NO.1 |
1 | ||
| 88345-37190 |
XZU304,308,334,338,344,348,368,378,388..SCB..(T2,T3,T4,T5)..IV3 ｱﾘ(ﾚｲﾄｳﾖｳｺﾝﾌﾟﾚｯｻ),NO.3 |
1 | ||
| 88345-37180 |
XZU304,308,334,338,344,348,368,378,388..SCB..(T2,T3,T4,T5)..IV3 ｱﾘ(ﾚｲﾄｳﾖｳｺﾝﾌﾟﾚｯｻ),NO.2 |
1 | ||
| 88345 - BRACKET, COMPRESSOR MOUNTING | ||||
| 88345-37170 |
XZU388..T4..DCRL..IV3;XZU304..30T..DCRL..IV3..4NO;XZU304,308,344..SCB..T4..IV3;XZU334,338,348,368..T4..5F..20T..IV3 ｱﾘ(ﾚｲﾄｳ ﾖｳ ｵﾙﾀﾈｰﾀ) |
1 | ||
| 88345-37170 |
XZU304,308,334,338,344,348,368,378,388..SCB..(T2,T3,T4,T5)..IV3 ｱﾘ(ﾚｲﾄｳﾖｳｺﾝﾌﾟﾚｯｻ),NO.1 |
1 | ||
| 88345-37190 |
XZU304,308,334,338,344,348,368,378,388..SCB..(T2,T3,T4,T5)..IV3 ｱﾘ(ﾚｲﾄｳﾖｳｺﾝﾌﾟﾚｯｻ),NO.3 |
1 | ||
| 88345-37180 |
XZU304,308,334,338,344,348,368,378,388..SCB..(T2,T3,T4,T5)..IV3 ｱﾘ(ﾚｲﾄｳﾖｳｺﾝﾌﾟﾚｯｻ),NO.2 |
1 | ||
| Common parts | ||||
| 61776-37060 | ||||
| 88317-37030 | ||||
| 90031-05108 | ||||
| 90031-05109 | ||||
| 90031-05130 | ||||
| 90031-05141 | ||||
| 90031-05142 | ||||
| 90031-05143 | ||||
| 90031-05144 | ||||
| 90031-05146 | ||||
| 90031-05148 | ||||
| 90031-19116 | ||||
| 90119-12344 | ||||
| 90179-12024 | ||||
| 90201-12023 | ||||
| 94150-81000 | ||||
| Linked diagrams | ||||
| 1903 | ||||
ILLUST NO. 2 OF 2(0406- )N04C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1 | ||||
| 12321-78220 |
N04C..XZU304,305,344 |
1 | ||
| 12321-58230 |
N04C..XZU304,308,334,338,348..5F..DSL TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1 | ||||
| 12321-78220 |
N04C..XZU304,305,344 |
1 | ||
| 12321-58230 |
N04C..XZU304,308,334,338,348..5F..DSL TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1 | ||||
| 12321-78220 |
N04C..XZU304,305,344 |
1 | ||
| 12321-58230 |
N04C..XZU304,308,334,338,348..5F..DSL TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1 | ||||
| 12321-78220 |
N04C..XZU304,305,344 |
1 | ||
| 12321-58230 |
N04C..XZU304,308,334,338,348..5F..DSL TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1 | ||||
| 12321-78220 |
N04C..XZU304,305,344 |
1 | ||
| 12321-58230 |
N04C..XZU304,308,334,338,348..5F..DSL TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1 | ||||
| 12321-78220 |
N04C..XZU304,305,344 |
1 | ||
| 12321-58230 |
N04C..XZU304,308,334,338,348..5F..DSL TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1 | ||||
| 12321-78220 |
N04C..XZU304,305,344 |
1 | ||
| 12321-58230 |
N04C..XZU304,308,334,338,348..5F..DSL TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1 | ||||
| 12321-78220 |
N04C..XZU304,305,344 |
1 | ||
| 12321-58230 |
N04C..XZU304,308,334,338,348..5F..DSL TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 12325 - BRACKET, ENGINE MOUNTING, NO.3 | ||||
| 12325-58190 |
N04C..XZU304,308,334,338,348..5F..DSL TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 12325-78200 |
N04C..XZU304,305,344 |
1 | ||
| 12325 - BRACKET, ENGINE MOUNTING, NO.3 | ||||
| 12325-58190 |
N04C..XZU304,308,334,338,348..5F..DSL TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 12325-78200 |
N04C..XZU304,305,344 |
1 | ||
| 12325 - BRACKET, ENGINE MOUNTING, NO.3 | ||||
| 12325-58190 |
N04C..XZU304,308,334,338,348..5F..DSL TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 12325-78200 |
N04C..XZU304,305,344 |
1 | ||
| 12325 - BRACKET, ENGINE MOUNTING, NO.3 | ||||
| 12325-58190 |
N04C..XZU304,308,334,338,348..5F..DSL TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 12325-78200 |
N04C..XZU304,305,344 |
1 | ||
| 12325 - BRACKET, ENGINE MOUNTING, NO.3 | ||||
| 12325-58190 |
N04C..XZU304,308,334,338,348..5F..DSL TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 12325-78200 |
N04C..XZU304,305,344 |
1 | ||
| 12325 - BRACKET, ENGINE MOUNTING, NO.3 | ||||
| 12325-58190 |
N04C..XZU304,308,334,338,348..5F..DSL TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 12325-78200 |
N04C..XZU304,305,344 |
1 | ||
| 12325 - BRACKET, ENGINE MOUNTING, NO.3 | ||||
| 12325-58190 |
N04C..XZU304,308,334,338,348..5F..DSL TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 12325-78200 |
N04C..XZU304,305,344 |
1 | ||
| 12325 - BRACKET, ENGINE MOUNTING, NO.3 | ||||
| 12325-58190 |
N04C..XZU304,308,334,338,348..5F..DSL TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 12325-78200 |
N04C..XZU304,305,344 |
1 | ||
| Common parts | ||||
| 12281-78020 | ||||
| 12281-78060 | ||||
| 12281-78070 | ||||
| 84113-37050 | ||||
| 90031-05088 | ||||
| 90031-19136 | ||||
| 90032-01153 | ||||
| 90119-10571 | ||||
| 91651-60816 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
