XZU304-TQMQL (2003)
Toyota Dyna/Toyoace

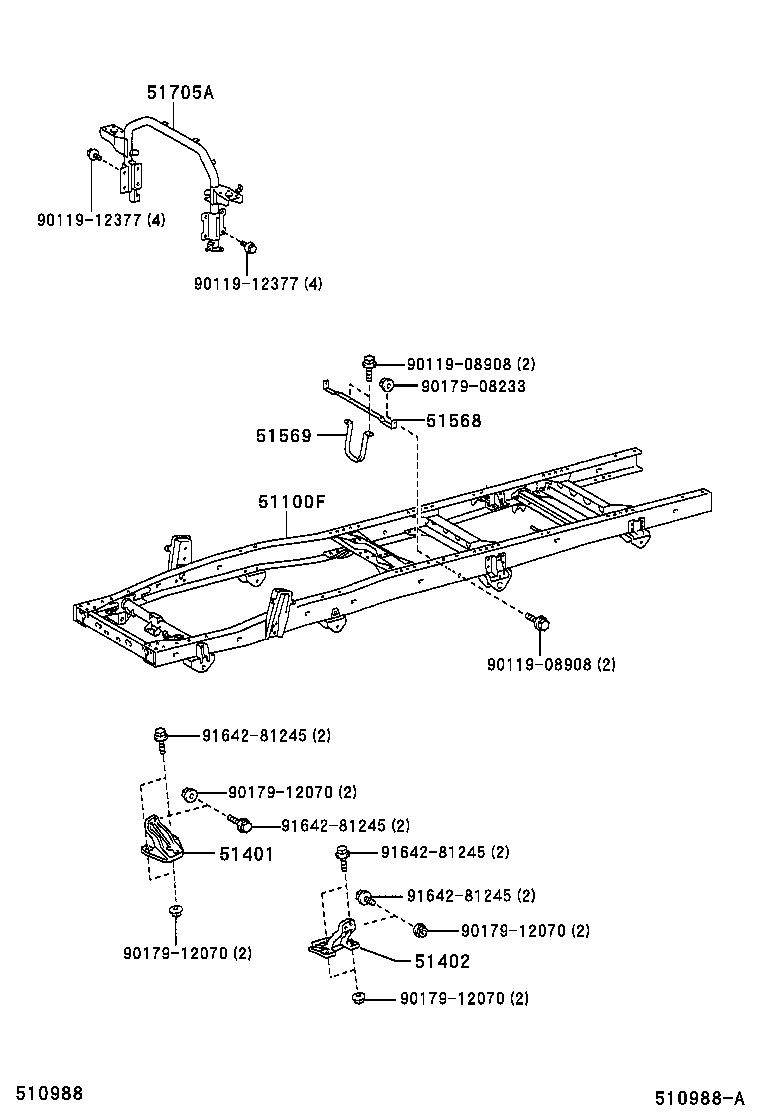

ILLUST NO. 1 OF 4(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3
ﾌﾚ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51100F - FRAME SUB-ASSY | ||||
| 51001-37C40 |
XZU304,305..DM6,T5;XZU304..30T..DSLL..4NO |
1 | ||
| 51001-37F20 |
XZU304..WT..DSL |
1 | ||
| 51001-37F30 |
XZU304,305..(DM6,T4,T5)..(DCRL,DSLL) |
1 | ||
| 51001-37F21 |
XZU304..WT..DSL |
1 | ||
| 51001-37F31 |
XZU304,305..(DM6,T4,T5)..(DCRL,DSLL) |
1 | ||
ILLUST NO. 3 OF 4(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3
ｻｽﾍﾟﾝｼﾖﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-10446 | ||||
| 90105-14065 | ||||
| 90119-10740 | ||||
| 90119-14100 | ||||
| 90119-14104 | ||||
| 90119-14107 | ||||
| 90119-16008 | ||||
| 90119-16012 | ||||
| 90179-14061 | ||||
| 90179-16029 | ||||
| 90182-10003 | ||||
| 91612-61030 | ||||
| 91642-81235 | ||||
| 94622-11400 | ||||
| 94622-41400 | ||||
| 94622-41600 | ||||
ILLUST NO. 4 OF 4(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3
ﾌﾟﾛﾍﾟﾗｼﾔﾌﾄ ｶﾞ-ﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51568 - BRACKET, PROPELLER SHAFT GUARD | ||||
| 51568-37560 |
XZU304,305 |
1 | ||
| 51568 - BRACKET, PROPELLER SHAFT GUARD | ||||
| 51568-37560 |
XZU304,305 |
1 | ||
| 51568 - BRACKET, PROPELLER SHAFT GUARD | ||||
| 51568-37560 |
XZU304,305 |
1 | ||
| 51568 - BRACKET, PROPELLER SHAFT GUARD | ||||
| 51568-37560 |
XZU304,305 |
1 | ||
| 51568 - BRACKET, PROPELLER SHAFT GUARD | ||||
| 51568-37560 |
XZU304,305 |
1 | ||
| 51568 - BRACKET, PROPELLER SHAFT GUARD | ||||
| 51568-37560 |
XZU304,305 |
1 | ||
| 51568 - BRACKET, PROPELLER SHAFT GUARD | ||||
| 51568-37560 |
XZU304,305 |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37310 |
XZU304,305 |
1 | ||
| 51569-37370 |
XZU368;XZU30#,354,378..(03S,06S,DM3,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37310 |
XZU304,305 |
1 | ||
| 51569-37370 |
XZU368;XZU30#,354,378..(03S,06S,DM3,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37310 |
XZU304,305 |
1 | ||
| 51569-37370 |
XZU368;XZU30#,354,378..(03S,06S,DM3,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37310 |
XZU304,305 |
1 | ||
| 51569-37370 |
XZU368;XZU30#,354,378..(03S,06S,DM3,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37310 |
XZU304,305 |
1 | ||
| 51569-37370 |
XZU368;XZU30#,354,378..(03S,06S,DM3,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37310 |
XZU304,305 |
1 | ||
| 51569-37370 |
XZU368;XZU30#,354,378..(03S,06S,DM3,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37310 |
XZU304,305 |
1 | ||
| 51569-37370 |
XZU368;XZU30#,354,378..(03S,06S,DM3,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37310 |
XZU304,305 |
1 | ||
| 51569-37370 |
XZU368;XZU30#,354,378..(03S,06S,DM3,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37310 |
XZU304,305 |
1 | ||
| 51569-37370 |
XZU368;XZU30#,354,378..(03S,06S,DM3,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37310 |
XZU304,305 |
1 | ||
| 51569-37370 |
XZU368;XZU30#,354,378..(03S,06S,DM3,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| Common parts | ||||
| 90119-08908 | ||||

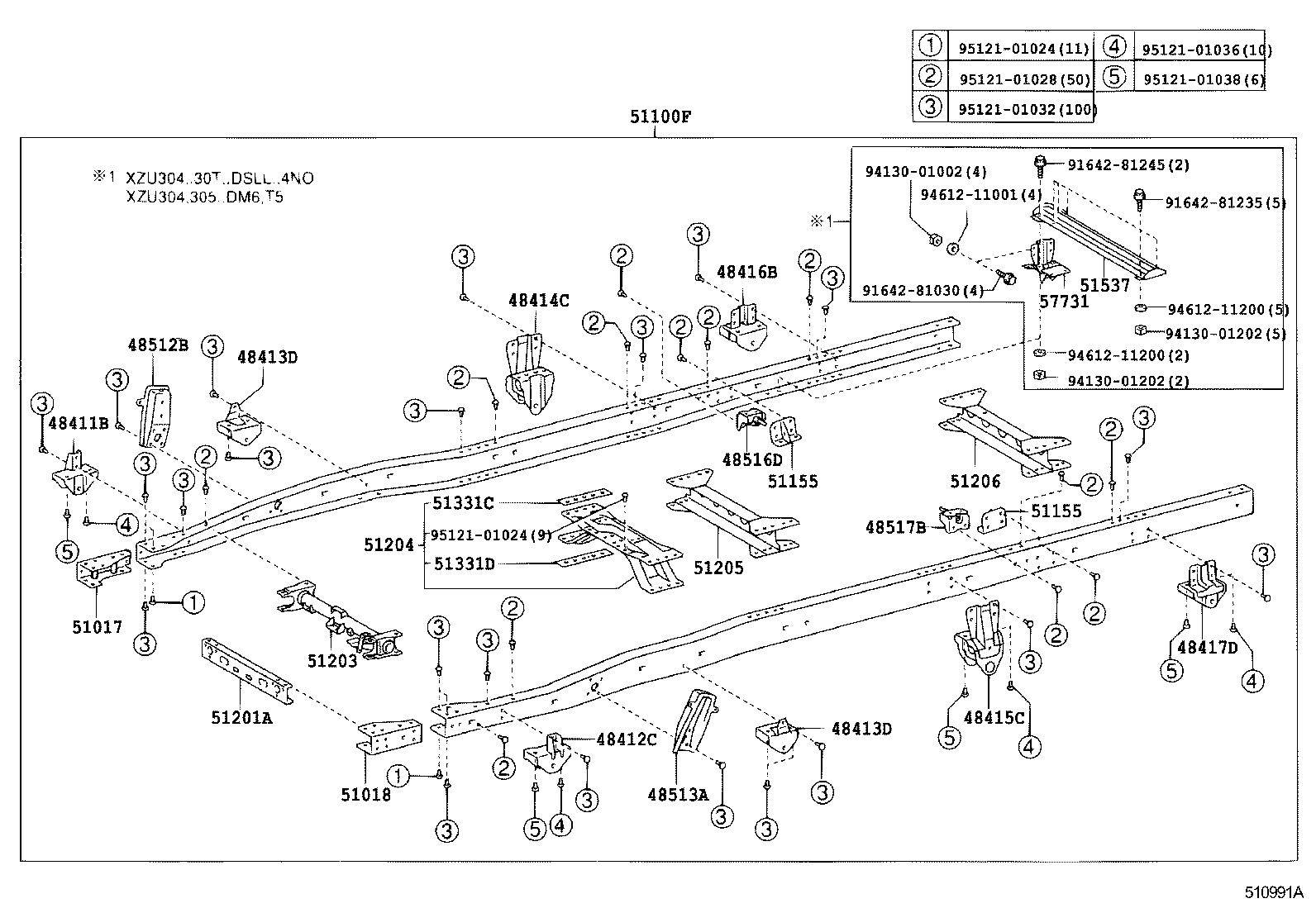

ILLUST NO. 2 OF 4(9905-0406)XZU347,382 ; (9905-0406)RZU300..DCB ;(9905-0406)BZU300,RZU300,XZU300,30
ﾌﾚ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48411B - BRACKET, SPRING, NO.1 RH | ||||
| 48411-37070 |
XZU304,305,344 |
1 | ||
| 48411-37070 |
XZU304,305,344 |
1 | ||
| 48411-37070 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
1 | ||
| 48411-37070 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
1 | ||
| 48411B - BRACKET, SPRING, NO.1 RH | ||||
| 48411-37070 |
XZU304,305,344 |
1 | ||
| 48411-37070 |
XZU304,305,344 |
1 | ||
| 48411-37070 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
1 | ||
| 48411-37070 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
1 | ||
| 48412C - BRACKET, SPRING, NO.1 LH | ||||
| 48412-37060 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
1 | ||
| 48412-37060 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
1 | ||
| 48412-37060 |
XZU304,305,344 |
1 | ||
| 48412-37060 |
XZU304,305,344 |
1 | ||
| 48412C - BRACKET, SPRING, NO.1 LH | ||||
| 48412-37060 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
1 | ||
| 48412-37060 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
1 | ||
| 48412-37060 |
XZU304,305,344 |
1 | ||
| 48412-37060 |
XZU304,305,344 |
1 | ||
| 48413D - BRACKET, SPRING, NO.2 | ||||
| 48413-37060 |
XZU304,305,344 |
2 | ||
| 48413-37060 |
XZU304,305,344 |
2 | ||
| 48413-37060 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
2 | ||
| 48413-37060 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
2 | ||
| 48414C - BRACKET, SPRING, NO.3 RH | ||||
| 48414-37050 |
XZU304,305..DM6,T4,T5 |
1 | ||
| 48414-37050 |
XZU304,305..DM6,T4,T5 |
1 | ||
| 48414-37050 |
XZU336,368..DM5,T4;BZU300,RZU300,XZU301..T4..30T;XZU304..(DM6,T4,T5)..(DCRL,DSLL);BZU300,XZU301,305,306,308..(DM3,DM6,T5)..WT |
1 | ||
| 48414-37050 |
XZU336,368..DM5,T4;BZU300,RZU300,XZU301..T4..30T;XZU304..(DM6,T4,T5)..(DCRL,DSLL);BZU300,XZU301,305,306,308..(DM3,DM6,T5)..WT |
1 | ||
| 48415C - BRACKET, SPRING, NO.3 LH | ||||
| 48414-37050 |
XZU304,305..DM6,T4,T5 |
1 | ||
| 48414-37050 |
XZU304,305..DM6,T4,T5 |
1 | ||
| 48414-37050 |
XZU336,368..DM5,T4;BZU300,RZU300,XZU301..T4..30T;XZU304..(DM6,T4,T5)..(DCRL,DSLL);BZU300,XZU301,305,306,308..(DM3,DM6,T5)..WT |
1 | ||
| 48414-37050 |
XZU336,368..DM5,T4;BZU300,RZU300,XZU301..T4..30T;XZU304..(DM6,T4,T5)..(DCRL,DSLL);BZU300,XZU301,305,306,308..(DM3,DM6,T5)..WT |
1 | ||
| 48416B - BRACKET, SPRING, NO.4 RH | ||||
| 48416-37050 |
XZU304,305..DM6,T4,T5 |
1 | ||
| 48416-37050 |
XZU304,305..DM6,T4,T5 |
1 | ||
| 48416-37050 |
XZU336,368..DM5,T4;BZU300,RZU300,XZU301..T4..30T;XZU304..(DM6,T4,T5)..(DCRL,DSLL);BZU300,XZU301,305,306,308..(DM3,DM6,T5)..WT |
1 | ||
| 48416-37050 |
XZU336,368..DM5,T4;BZU300,RZU300,XZU301..T4..30T;XZU304..(DM6,T4,T5)..(DCRL,DSLL);BZU300,XZU301,305,306,308..(DM3,DM6,T5)..WT |
1 | ||
| 48417D - BRACKET, SPRING, NO.4 LH | ||||
| 48416-37050 |
XZU304,305..DM6,T4,T5 |
1 | ||
| 48416-37050 |
XZU304,305..DM6,T4,T5 |
1 | ||
| 48416-37050 |
XZU336,368..DM5,T4;BZU300,RZU300,XZU301..T4..30T;XZU304..(DM6,T4,T5)..(DCRL,DSLL);BZU300,XZU301,305,306,308..(DM3,DM6,T5)..WT |
1 | ||
| 48416-37050 |
XZU336,368..DM5,T4;BZU300,RZU300,XZU301..T4..30T;XZU304..(DM6,T4,T5)..(DCRL,DSLL);BZU300,XZU301,305,306,308..(DM3,DM6,T5)..WT |
1 | ||
| 48512B - BRACKET, FRONT SHOCK ABSORBER, UPPER RH | ||||
| 48512-37050 |
XZU304,305,344 |
1 | ||
| 48512-37050 |
XZU304,305,344 |
1 | ||
| 48512-37050 |
RZU300..DM5;BZU300,340,XZU301,304,305,31#,321,331,334,341,344,35# |
1 | ||
| 48512-37050 |
RZU300..DM5;BZU300,340,XZU301,304,305,31#,321,331,334,341,344,35# |
1 | ||
| 48513A - BRACKET, FRONT SHOCK ABSORBER, UPPER LH | ||||
| 48512-37130 |
XZU301,304,305,31#,321,331,334,341,344,35# |
1 | ||
| 48512-37130 |
XZU301,304,305,31#,321,331,334,341,344,35# |
1 | ||
| 48512-37130 |
XZU304,305,344 |
1 | ||
| 48512-37130 |
XZU304,305,344 |
1 | ||
| 48516D - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-37010 |
XZU304,305,344 |
1 | ||
| 48505-37010 |
XZU304,305,344 |
1 | ||
| 48505-37010 |
XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT |
1 | ||
| 48505-37010 |
XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT |
1 | ||
| 48517B - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH | ||||
| 48505-37010 |
XZU304,305,344 |
1 | ||
| 48505-37010 |
XZU304,305,344 |
1 | ||
| 48505-37010 |
XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT |
1 | ||
| 48505-37010 |
XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT |
1 | ||
| 51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH | ||||
| 51017-37130 |
XZU304,305,344 |
1 | ||
| 51017-37130 |
XZU304,305,344 |
1 | ||
| 51017-37130 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
1 | ||
| 51017-37130 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
1 | ||
| 51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH | ||||
| 51018-37020 |
XZU304,305,344 |
1 | ||
| 51018-37020 |
XZU304,305,344 |
1 | ||
| 51018-37021 |
XZU304,305,344 |
1 | ||
| 51018-37021 |
XZU304,305,344 |
1 | ||
| 51018-37021 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU30#,33#,34#,368,378,388 |
1 | ||
| 51018-37021 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU30#,33#,34#,368,378,388 |
1 | ||
| 51155 - STIFFENER, FRAME SIDE RAIL, REAR RH | ||||
| 51155-37060 |
XZU304,305,344 |
2 | ||
| 51155-37060 |
XZU304,305,344 |
2 | ||
| 51155-37060 |
XZU368..T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..(20T,30T)..WT |
2 | ||
| 51155-37060 |
XZU368..T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..(20T,30T)..WT |
2 | ||
| 51155 - STIFFENER, FRAME SIDE RAIL, REAR RH | ||||
| 51155-37060 |
XZU304,305,344 |
2 | ||
| 51155-37060 |
XZU304,305,344 |
2 | ||
| 51155-37060 |
XZU368..T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..(20T,30T)..WT |
2 | ||
| 51155-37060 |
XZU368..T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..(20T,30T)..WT |
2 | ||
| 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT | ||||
| 51211-37090 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU30#,33#,34# |
1 | ||
| 51211-37090 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU30#,33#,34# |
1 | ||
| 51211-37090 |
XZU304,305,344 |
1 | ||
| 51211-37090 |
XZU304,305,344 |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51202-37080 |
BU30#,346,RZU300,340,XZU30#,33#,34#,350 |
1 | ||
| 51202-37080 |
BU30#,346,RZU300,340,XZU30#,33#,34#,350 |
1 | ||
| 51202-37150 |
XZU304,305,344 |
1 | ||
| 51202-37150 |
XZU304,305,344 |
1 | ||
| 51202-37150 |
XZU30#,33#,34#,354..03S,06S,DM3,DM6,T1,T2,T3,T4,T5 |
1 | ||
| 51202-37150 |
XZU30#,33#,34#,354..03S,06S,DM3,DM6,T1,T2,T3,T4,T5 |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-37120 |
XZU304,305,344 |
1 | ||
| 51203-37120 |
XZU304,305,344 |
1 | ||
| 51203-37120 |
RZU30#,340,XZU301,304,305,331,334,341,344..(175T,20T,30T)..(CBU,IV3,IV6,IV7) |
1 | ||
| 51203-37120 |
RZU30#,340,XZU301,304,305,331,334,341,344..(175T,20T,30T)..(CBU,IV3,IV6,IV7) |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51205-37060 |
XZU354,368..T3,T4;BZU300,RZU30#,XZU30#,33#,378..WT..(CBU,IV3,IV6,IV7) |
1 | ||
| 51205-37060 |
XZU354,368..T3,T4;BZU300,RZU30#,XZU30#,33#,378..WT..(CBU,IV3,IV6,IV7) |
1 | ||
| 51205-37130 |
XZU304,305..DM6,T5;XZU304..30T..DSLL..4NO |
1 | ||
| 51205-37130 |
XZU304,305..DM6,T5;XZU304..30T..DSLL..4NO |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51205-37060 |
XZU354,368..T3,T4;BZU300,RZU30#,XZU30#,33#,378..WT..(CBU,IV3,IV6,IV7) |
1 | ||
| 51205-37060 |
XZU354,368..T3,T4;BZU300,RZU30#,XZU30#,33#,378..WT..(CBU,IV3,IV6,IV7) |
1 | ||
| 51205-37130 |
XZU304,305..DM6,T5;XZU304..30T..DSLL..4NO |
1 | ||
| 51205-37130 |
XZU304,305..DM6,T5;XZU304..30T..DSLL..4NO |
1 | ||
| 51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5 | ||||
| 51206-37010 |
XZU304,305,344 |
1 | ||
| 51206-37010 |
XZU304,305,344 |
1 | ||
| 51206-37010 |
XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT |
1 | ||
| 51206-37010 |
XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT |
1 | ||
| 51331C - GUSSET, FRAME NO.3 CROSSMEMBER | ||||
| 51331-37020 |
XZU304,305,344 |
2 | ||
| 51331-37020 |
XZU304,305,344 |
2 | ||
| 51331-37020 |
BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344..175T,20T,30T |
2 | ||
| 51331-37020 |
BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344..175T,20T,30T |
2 | ||
| 51331D - GUSSET, FRAME NO.3 CROSSMEMBER | ||||
| 51331-37030 |
XZU304,305,344 |
2 | ||
| 51331-37030 |
XZU304,305,344 |
2 | ||
| 51331-37030 |
BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344..175T,20T,30T |
2 | ||
| 51331-37030 |
BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344..175T,20T,30T |
2 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51421-37050 |
XZU304,305,344 |
1 | ||
| 51421-37050 |
XZU304,305,344 |
1 | ||
| 51421-37050 |
BZU300,340,XZU304,305,334,344..175T,20T,30T TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51421-37050 |
BZU300,340,XZU304,305,334,344..175T,20T,30T TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51422-37110 |
XZU304,305,344 |
1 | ||
| 51422-37110 |
XZU304,305,344 |
1 | ||
| 51422-37110 |
BZU300,340,XZU304,305,334,344..175T,20T,30T TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51422-37110 |
BZU300,340,XZU304,305,334,344..175T,20T,30T TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 | ||||
| 51705-37400 |
XZU304,305,344 |
1 | ||
| 51705-37400 |
XZU304,305,344 |
1 | ||
| 51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 | ||||
| 51705-37400 |
XZU304,305,344 |
1 | ||
| 51705-37400 |
XZU304,305,344 |
1 | ||
| Common parts | ||||
| 90119-12135 | ||||
| 90119-12377 | ||||
| 90179-08200 | ||||
| 90179-12070 | ||||
| 90179-12087 | ||||
| 90201-12056 | ||||
| 90467-09181C1 | ||||
| 91112-81440 | ||||
| 91642-81245 | ||||
| 94130-01202 | ||||
| 94130-01402 | ||||
| 94622-11200 | ||||
| 94622-11400 | ||||
| 95121-01024 | ||||
| 95121-01026 | ||||
| 95121-01028 | ||||
| 95121-01032 | ||||
| 95121-01036 | ||||
| 95121-01038 | ||||
| 95121-01040 | ||||
| 95121-01042 | ||||
ILLUST NO. 1 OF 2(0310-0406)XZU304,305
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51100F - FRAME SUB-ASSY | ||||
| 51001-37C40 |
XZU304,305..DM6,T5;XZU304..30T..DSLL..4NO |
1 | ||
| 51001-37F20 |
XZU304..WT..DSL |
1 | ||
| 51001-37F30 |
XZU304,305..(DM6,T4,T5)..(DCRL,DSLL) |
1 | ||
| 51001-37F21 |
XZU304..WT..DSL |
1 | ||
| 51001-37F31 |
XZU304,305..(DM6,T4,T5)..(DCRL,DSLL) |
1 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51421-37050 |
XZU304,305,344 |
1 | ||
| 51421-37050 |
BZU300,340,XZU304,305,334,344..175T,20T,30T TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51422-37110 |
XZU304,305,344 |
1 | ||
| 51422-37110 |
BZU300,340,XZU304,305,334,344..175T,20T,30T TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51568 - BRACKET, PROPELLER SHAFT GUARD | ||||
| 51568-37560 |
XZU304,305 |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37310 |
XZU304,305 |
1 | ||
| 51569-37370 |
XZU368;XZU30#,354,378..(03S,06S,DM3,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 | ||||
| 51705-37400 |
XZU304,305,344 |
1 | ||
| Common parts | ||||
| 90119-08908 | ||||
| 90119-12377 | ||||
| 90179-08233 | ||||
| 90179-12070 | ||||
| 91642-81245 | ||||
ILLUST NO. 2 OF 2(0310-0406)XZU304,305..DM6,T4,T5
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48411B - BRACKET, SPRING, NO.1 RH | ||||
| 48411-37070 |
XZU304,305,344 |
1 | ||
| 48411-37070 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
1 | ||
| 48412C - BRACKET, SPRING, NO.1 LH | ||||
| 48412-37060 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
1 | ||
| 48412-37060 |
XZU304,305,344 |
1 | ||
| 48413D - BRACKET, SPRING, NO.2 | ||||
| 48413-37060 |
XZU304,305,344 |
2 | ||
| 48413-37060 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
2 | ||
| 48413D - BRACKET, SPRING, NO.2 | ||||
| 48413-37060 |
XZU304,305,344 |
2 | ||
| 48413-37060 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
2 | ||
| 48414C - BRACKET, SPRING, NO.3 RH | ||||
| 48414-37050 |
XZU304,305..DM6,T4,T5 |
1 | ||
| 48414-37050 |
XZU336,368..DM5,T4;BZU300,RZU300,XZU301..T4..30T;XZU304..(DM6,T4,T5)..(DCRL,DSLL);BZU300,XZU301,305,306,308..(DM3,DM6,T5)..WT |
1 | ||
| 48415C - BRACKET, SPRING, NO.3 LH | ||||
| 48414-37050 |
XZU304,305..DM6,T4,T5 |
1 | ||
| 48414-37050 |
XZU336,368..DM5,T4;BZU300,RZU300,XZU301..T4..30T;XZU304..(DM6,T4,T5)..(DCRL,DSLL);BZU300,XZU301,305,306,308..(DM3,DM6,T5)..WT |
1 | ||
| 48416B - BRACKET, SPRING, NO.4 RH | ||||
| 48416-37050 |
XZU304,305..DM6,T4,T5 |
1 | ||
| 48416-37050 |
XZU336,368..DM5,T4;BZU300,RZU300,XZU301..T4..30T;XZU304..(DM6,T4,T5)..(DCRL,DSLL);BZU300,XZU301,305,306,308..(DM3,DM6,T5)..WT |
1 | ||
| 48417D - BRACKET, SPRING, NO.4 LH | ||||
| 48416-37050 |
XZU304,305..DM6,T4,T5 |
1 | ||
| 48416-37050 |
XZU336,368..DM5,T4;BZU300,RZU300,XZU301..T4..30T;XZU304..(DM6,T4,T5)..(DCRL,DSLL);BZU300,XZU301,305,306,308..(DM3,DM6,T5)..WT |
1 | ||
| 48512B - BRACKET, FRONT SHOCK ABSORBER, UPPER RH | ||||
| 48512-37050 |
XZU304,305,344 |
1 | ||
| 48512-37050 |
RZU300..DM5;BZU300,340,XZU301,304,305,31#,321,331,334,341,344,35# |
1 | ||
| 48513A - BRACKET, FRONT SHOCK ABSORBER, UPPER LH | ||||
| 48512-37130 |
XZU301,304,305,31#,321,331,334,341,344,35# |
1 | ||
| 48512-37130 |
XZU304,305,344 |
1 | ||
| 48516D - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-37010 |
XZU304,305,344 |
1 | ||
| 48505-37010 |
XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT |
1 | ||
| 48517B - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH | ||||
| 48505-37010 |
XZU304,305,344 |
1 | ||
| 48505-37010 |
XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT |
1 | ||
| 51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH | ||||
| 51017-37130 |
XZU304,305,344 |
1 | ||
| 51017-37130 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
1 | ||
| 51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH | ||||
| 51018-37020 |
XZU304,305,344 |
1 | ||
| 51018-37021 |
XZU304,305,344 |
1 | ||
| 51018-37021 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU30#,33#,34#,368,378,388 |
1 | ||
| 51100F - FRAME SUB-ASSY | ||||
| 51001-37C40 |
XZU304,305..DM6,T5;XZU304..30T..DSLL..4NO |
1 | ||
| 51001-37F20 |
XZU304..WT..DSL |
1 | ||
| 51001-37F30 |
XZU304,305..(DM6,T4,T5)..(DCRL,DSLL) |
1 | ||
| 51001-37F21 |
XZU304..WT..DSL |
1 | ||
| 51001-37F31 |
XZU304,305..(DM6,T4,T5)..(DCRL,DSLL) |
1 | ||
| 51155 - STIFFENER, FRAME SIDE RAIL, REAR RH | ||||
| 51155-37060 |
XZU304,305,344 |
2 | ||
| 51155-37060 |
XZU368..T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..(20T,30T)..WT |
2 | ||
| 51155 - STIFFENER, FRAME SIDE RAIL, REAR RH | ||||
| 51155-37060 |
XZU304,305,344 |
2 | ||
| 51155-37060 |
XZU368..T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..(20T,30T)..WT |
2 | ||
| 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT | ||||
| 51211-37090 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU30#,33#,34# |
1 | ||
| 51211-37090 |
XZU304,305,344 |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51202-37150 |
XZU304,305,344 |
1 | ||
| 51202-37080 |
BU30#,346,RZU300,340,XZU30#,33#,34#,350 |
1 | ||
| 51202-37150 |
XZU30#,33#,34#,354..03S,06S,DM3,DM6,T1,T2,T3,T4,T5 |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-37120 |
XZU304,305,344 |
1 | ||
| 51203-37120 |
RZU30#,340,XZU301,304,305,331,334,341,344..(175T,20T,30T)..(CBU,IV3,IV6,IV7) |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51205-37060 |
XZU354,368..T3,T4;BZU300,RZU30#,XZU30#,33#,378..WT..(CBU,IV3,IV6,IV7) |
1 | ||
| 51205-37130 |
XZU304,305..DM6,T5;XZU304..30T..DSLL..4NO |
1 | ||
| 51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5 | ||||
| 51206-37010 |
XZU304,305,344 |
1 | ||
| 51206-37010 |
XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT |
1 | ||
| 51331C - GUSSET, FRAME NO.3 CROSSMEMBER | ||||
| 51331-37020 |
XZU304,305,344 |
2 | ||
| 51331-37020 |
BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344..175T,20T,30T |
2 | ||
| 51331D - GUSSET, FRAME NO.3 CROSSMEMBER | ||||
| 51331-37030 |
XZU304,305,344 |
2 | ||
| 51331-37030 |
BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344..175T,20T,30T |
2 | ||
| 51537 - BRACKET, LATERAL ROD SUPPORT | ||||
| 51537-37010 |
XZU304,305..DM6,T5;XZU304..30T..DSLL..4NO |
1 | ||
| 57731 - BRACKET, LATERAL ROD | ||||
| 57731-37011 |
XZU304,305..DM6,T5;XZU304..30T..DSLL..4NO |
1 | ||
| Common parts | ||||
| 91642-81030 | ||||
| 91642-81235 | ||||
| 91642-81245 | ||||
| 94130-01002 | ||||
| 94130-01202 | ||||
| 94612-11001 | ||||
| 94612-11200 | ||||
| 95121-01024 | ||||
| 95121-01028 | ||||
| 95121-01032 | ||||
| 95121-01036 | ||||
| 95121-01038 | ||||
ILLUST NO. 2 OF 4(0406- )BZU300,RZU30#,XZU301,304,305,334..DM3,DM5,DM6,T2,T4,T5..WT
ﾌﾚｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48411B - BRACKET, SPRING, NO.1 RH | ||||
| 48411-37070 |
XZU304,305,344 |
1 | ||
| 48411-37070 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
1 | ||
| 48412C - BRACKET, SPRING, NO.1 LH | ||||
| 48412-37060 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
1 | ||
| 48412-37060 |
XZU304,305,344 |
1 | ||
| 48413D - BRACKET, SPRING, NO.2 | ||||
| 48413-37060 |
XZU304,305,344 |
2 | ||
| 48413-37060 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
2 | ||
| 48413D - BRACKET, SPRING, NO.2 | ||||
| 48413-37060 |
XZU304,305,344 |
2 | ||
| 48413-37060 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
2 | ||
| 48414C - BRACKET, SPRING, NO.3 RH | ||||
| 48414-37050 |
XZU304,305..DM6,T4,T5 |
1 | ||
| 48414-37050 |
XZU336,368..DM5,T4;BZU300,RZU300,XZU301..T4..30T;XZU304..(DM6,T4,T5)..(DCRL,DSLL);BZU300,XZU301,305,306,308..(DM3,DM6,T5)..WT |
1 | ||
| 48415C - BRACKET, SPRING, NO.3 LH | ||||
| 48414-37050 |
XZU304,305..DM6,T4,T5 |
1 | ||
| 48414-37050 |
XZU336,368..DM5,T4;BZU300,RZU300,XZU301..T4..30T;XZU304..(DM6,T4,T5)..(DCRL,DSLL);BZU300,XZU301,305,306,308..(DM3,DM6,T5)..WT |
1 | ||
| 48416B - BRACKET, SPRING, NO.4 RH | ||||
| 48416-37050 |
XZU304,305..DM6,T4,T5 |
1 | ||
| 48416-37050 |
XZU336,368..DM5,T4;BZU300,RZU300,XZU301..T4..30T;XZU304..(DM6,T4,T5)..(DCRL,DSLL);BZU300,XZU301,305,306,308..(DM3,DM6,T5)..WT |
1 | ||
| 48417D - BRACKET, SPRING, NO.4 LH | ||||
| 48416-37050 |
XZU304,305..DM6,T4,T5 |
1 | ||
| 48416-37050 |
XZU336,368..DM5,T4;BZU300,RZU300,XZU301..T4..30T;XZU304..(DM6,T4,T5)..(DCRL,DSLL);BZU300,XZU301,305,306,308..(DM3,DM6,T5)..WT |
1 | ||
| 48512B - BRACKET, FRONT SHOCK ABSORBER, UPPER RH | ||||
| 48512-37050 |
XZU304,305,344 |
1 | ||
| 48512-37050 |
RZU300..DM5;BZU300,340,XZU301,304,305,31#,321,331,334,341,344,35# |
1 | ||
| 48513A - BRACKET, FRONT SHOCK ABSORBER, UPPER LH | ||||
| 48512-37130 |
XZU301,304,305,31#,321,331,334,341,344,35# |
1 | ||
| 48512-37130 |
XZU304,305,344 |
1 | ||
| 48516D - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-37010 |
XZU304,305,344 |
1 | ||
| 48505-37010 |
XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT |
1 | ||
| 48517B - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH | ||||
| 48505-37010 |
XZU304,305,344 |
1 | ||
| 48505-37010 |
XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT |
1 | ||
| 51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH | ||||
| 51017-37130 |
XZU304,305,344 |
1 | ||
| 51017-37130 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344 |
1 | ||
| 51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH | ||||
| 51018-37020 |
XZU304,305,344 |
1 | ||
| 51018-37021 |
XZU304,305,344 |
1 | ||
| 51018-37021 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU30#,33#,34#,368,378,388 |
1 | ||
| 51100F - FRAME SUB-ASSY | ||||
| 51001-37C40 |
XZU304,305..DM6,T5;XZU304..30T..DSLL..4NO |
1 | ||
| 51001-37F20 |
XZU304..WT..DSL |
1 | ||
| 51001-37F30 |
XZU304,305..(DM6,T4,T5)..(DCRL,DSLL) |
1 | ||
| 51001-37F21 |
XZU304..WT..DSL |
1 | ||
| 51001-37F31 |
XZU304,305..(DM6,T4,T5)..(DCRL,DSLL) |
1 | ||
| 51155 - STIFFENER, FRAME SIDE RAIL, REAR RH | ||||
| 51155-37060 |
XZU304,305,344 |
2 | ||
| 51155-37060 |
XZU368..T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..(20T,30T)..WT |
2 | ||
| 51155 - STIFFENER, FRAME SIDE RAIL, REAR RH | ||||
| 51155-37060 |
XZU304,305,344 |
2 | ||
| 51155-37060 |
XZU368..T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..(20T,30T)..WT |
2 | ||
| 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT | ||||
| 51211-37090 |
XZU354..1NO;BZU300,340,RZU30#,340,XZU30#,33#,34# |
1 | ||
| 51211-37090 |
XZU304,305,344 |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51202-37150 |
XZU304,305,344 |
1 | ||
| 51202-37080 |
BU30#,346,RZU300,340,XZU30#,33#,34#,350 |
1 | ||
| 51202-37150 |
XZU30#,33#,34#,354..03S,06S,DM3,DM6,T1,T2,T3,T4,T5 |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-37120 |
XZU304,305,344 |
1 | ||
| 51203-37120 |
RZU30#,340,XZU301,304,305,331,334,341,344..(175T,20T,30T)..(CBU,IV3,IV6,IV7) |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51205-37060 |
XZU354,368..T3,T4;BZU300,RZU30#,XZU30#,33#,378..WT..(CBU,IV3,IV6,IV7) |
1 | ||
| 51205-37130 |
XZU304,305..DM6,T5;XZU304..30T..DSLL..4NO |
1 | ||
| 51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5 | ||||
| 51206-37010 |
XZU304,305,344 |
1 | ||
| 51206-37010 |
XZU354,368..T3,T4;BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..WT |
1 | ||
| 51331C - GUSSET, FRAME NO.3 CROSSMEMBER | ||||
| 51331-37020 |
XZU304,305,344 |
2 | ||
| 51331-37020 |
BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344..175T,20T,30T |
2 | ||
| 51331D - GUSSET, FRAME NO.3 CROSSMEMBER | ||||
| 51331-37030 |
XZU304,305,344 |
2 | ||
| 51331-37030 |
BZU300,340,RZU30#,340,XZU301,304,305,331,334,341,344..175T,20T,30T |
2 | ||
| Common parts | ||||
| 91552-81022 | ||||
| 95121-01024 | ||||
| 95121-01026 | ||||
| 95121-01028 | ||||
| 95121-01032 | ||||
| 95121-01036 | ||||
| 95121-01038 | ||||
ILLUST NO. 1 OF 4(0406- )BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#,368,378
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51100F - FRAME SUB-ASSY | ||||
| 51001-37C40 |
XZU304,305..DM6,T5;XZU304..30T..DSLL..4NO |
1 | ||
| 51001-37F20 |
XZU304..WT..DSL |
1 | ||
| 51001-37F30 |
XZU304,305..(DM6,T4,T5)..(DCRL,DSLL) |
1 | ||
| 51001-37F21 |
XZU304..WT..DSL |
1 | ||
| 51001-37F31 |
XZU304,305..(DM6,T4,T5)..(DCRL,DSLL) |
1 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51421-37050 |
XZU304,305,344 |
1 | ||
| 51421-37050 |
BZU300,340,XZU304,305,334,344..175T,20T,30T TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51422-37110 |
XZU304,305,344 |
1 | ||
| 51422-37110 |
BZU300,340,XZU304,305,334,344..175T,20T,30T TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 | ||||
| 51705-37400 |
XZU304,305,344 |
1 | ||
| Common parts | ||||
| 90119-12377 | ||||
| 90179-08200 | ||||
| 90179-12070 | ||||
| 90179-12087 | ||||
| 90467-09101 | ||||
| 91642-81245 | ||||
ILLUST NO. 4 OF 4(0406- )
ﾌﾟﾛﾍﾟﾗｼﾔﾌﾄｶﾞｰﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51568 - BRACKET, PROPELLER SHAFT GUARD | ||||
| 51568-37560 |
XZU304,305 |
1 | ||
| 51568 - BRACKET, PROPELLER SHAFT GUARD | ||||
| 51568-37560 |
XZU304,305 |
1 | ||
| 51568 - BRACKET, PROPELLER SHAFT GUARD | ||||
| 51568-37560 |
XZU304,305 |
1 | ||
| 51568 - BRACKET, PROPELLER SHAFT GUARD | ||||
| 51568-37560 |
XZU304,305 |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37310 |
XZU304,305 |
1 | ||
| 51569-37370 |
XZU368;XZU30#,354,378..(03S,06S,DM3,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37310 |
XZU304,305 |
1 | ||
| 51569-37370 |
XZU368;XZU30#,354,378..(03S,06S,DM3,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37310 |
XZU304,305 |
1 | ||
| 51569-37370 |
XZU368;XZU30#,354,378..(03S,06S,DM3,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37310 |
XZU304,305 |
1 | ||
| 51569-37370 |
XZU368;XZU30#,354,378..(03S,06S,DM3,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37310 |
XZU304,305 |
1 | ||
| 51569-37370 |
XZU368;XZU30#,354,378..(03S,06S,DM3,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37310 |
XZU304,305 |
1 | ||
| 51569-37370 |
XZU368;XZU30#,354,378..(03S,06S,DM3,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37310 |
XZU304,305 |
1 | ||
| 51569-37370 |
XZU368;XZU30#,354,378..(03S,06S,DM3,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37310 |
XZU304,305 |
1 | ||
| 51569-37370 |
XZU368;XZU30#,354,378..(03S,06S,DM3,DM6,T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| Common parts | ||||
| 90119-08908 | ||||
| 90179-08233 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
