XZU304-TQMMW3 (2003)
Toyota Dyna/Toyoace
ILLUST NO. 2 OF10(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3
ﾄﾗﾝｽﾐﾂｼﾖﾝ & ﾄﾗﾝｽﾌｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-37020 |
XZU304,305,344 |
1 | ||
| 84210-37020 |
XZU304,305,344 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-37020 |
XZU304,305,344 |
1 | ||
| 84210-37020 |
XZU304,305,344 |
1 | ||
| 84540C - SWITCH ASSY, NEUTRAL (FOR EXHAUST BRAKE) | ||||
| 84540-37040 |
XZU304,305,344 |
1 | ||
| 84540-37040 |
XZU304,305,344 |
1 | ||
| 84540C - SWITCH ASSY, NEUTRAL (FOR EXHAUST BRAKE) | ||||
| 84540-37040 |
XZU304,305,344 |
1 | ||
| 84540-37040 |
XZU304,305,344 |
1 | ||
ILLUST NO. 4 OF10(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3

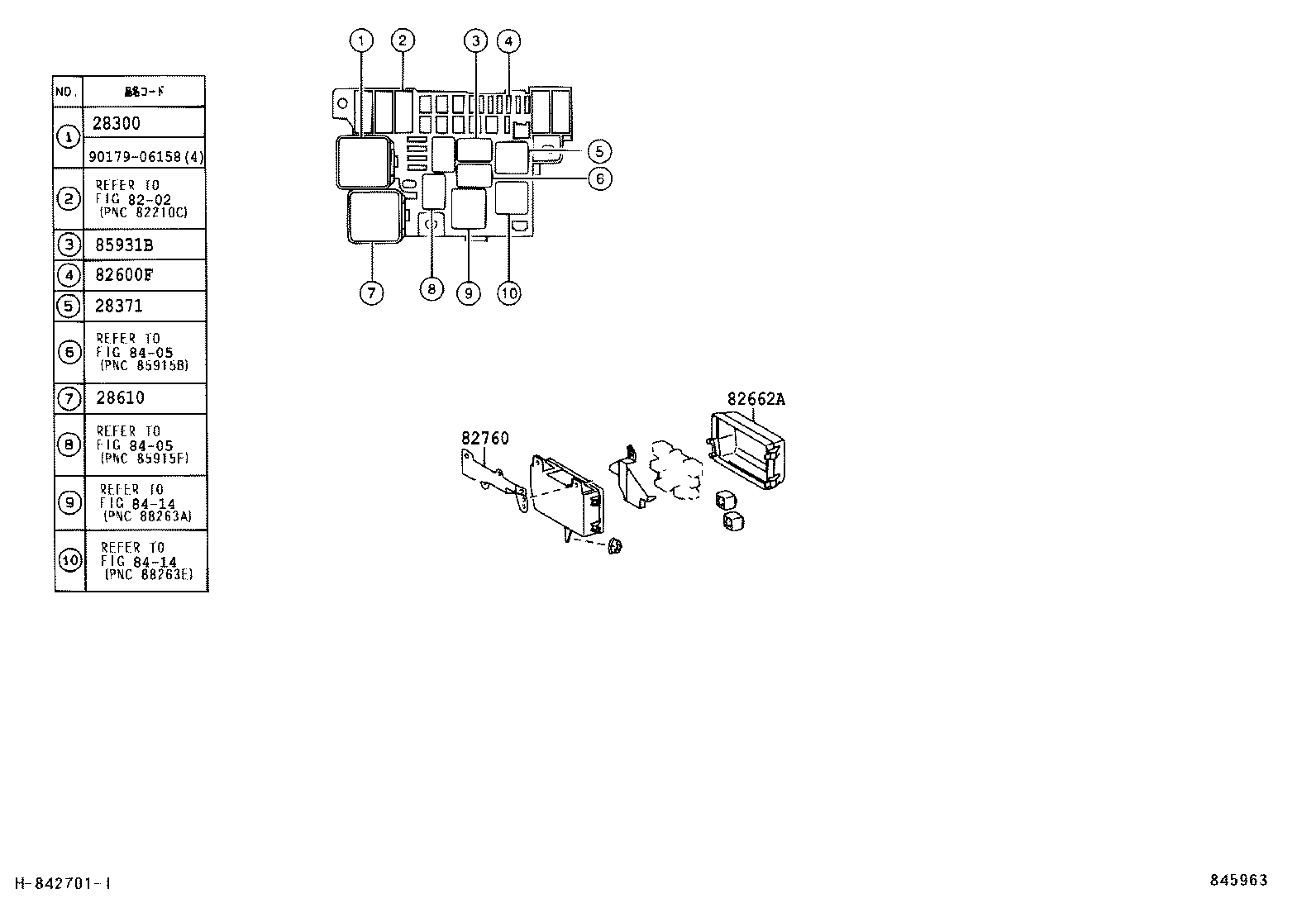

R/B NO.2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-78020 |
N04C..XZU304,305,344 品番ﾗﾍﾞﾙ=28300−78020 |
1 | ||
| 28300-78020 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 品番ﾗﾍﾞﾙ=28300−78020 |
1 | ||
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-78020 |
N04C..XZU304,305,344 品番ﾗﾍﾞﾙ=28300−78020 |
1 | ||
| 28300-78020 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 品番ﾗﾍﾞﾙ=28300−78020 |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02018 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 90987-02018 |
N04C..XZU304,305,344 |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-58230 |
N04C..XZU344;N04C..XZU304..DSLL;N04C..XZU304..(T3,T4,T5)..DCRL |
1 | ||
| 28610-58230 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,306,308,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
XZU304,305,344 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09013 |
XZU304,305,344 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09009 |
XZU304,305,344 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09010 |
XZU304,305,344 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09011 |
XZU304,305,344 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-37251 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 82662-37250 |
XZU304,305,344 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-37251 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 82662-37250 |
XZU304,305,344 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-37251 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 82662-37250 |
XZU304,305,344 |
1 | ||
| 82760 - BRACKET ASSY, RELAY BLOCK | ||||
| 82760-37010 |
XZU304,305,344 |
1 | ||
| 82760-37010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..SCB |
1 | ||
| 82760 - BRACKET ASSY, RELAY BLOCK | ||||
| 82760-37010 |
XZU304,305,344 |
1 | ||
| 82760-37010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..SCB |
1 | ||
| 82760 - BRACKET ASSY, RELAY BLOCK | ||||
| 82760-37010 |
XZU304,305,344 |
1 | ||
| 82760-37010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..SCB |
1 | ||
| 82760 - BRACKET ASSY, RELAY BLOCK | ||||
| 82760-37010 |
XZU304,305,344 |
1 | ||
| 82760-37010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..SCB |
1 | ||
| 82760 - BRACKET ASSY, RELAY BLOCK | ||||
| 82760-37010 |
XZU304,305,344 |
1 | ||
| 82760-37010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..SCB |
1 | ||
| 82760 - BRACKET ASSY, RELAY BLOCK | ||||
| 82760-37010 |
XZU304,305,344 |
1 | ||
| 82760-37010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..SCB |
1 | ||
| 85931B - RELAY, FUEL HEATER | ||||
| 90987-02017 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 90987-02017 |
XZU304,305,344 |
1 | ||
| Common parts | ||||
| 82715-26520 | ||||
| 82717-37010 | ||||
| 82729-37160 | ||||
| 90179-06158 | ||||
| 90179-06171 | ||||
| 90179-08233 | ||||
| 90179-10015 | ||||
| 91512-81016 | ||||
| 91651-60816 | ||||
| 91651-B0820 | ||||
| 91651-B0825 | ||||
| 94130-00802 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8405 | ||||
| 8414 | ||||
ILLUST NO. 5 OF10(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ & ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02019 |
N04C..XZU304,305,344 |
1 | ||
| 90987-02019 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 28371D - RELAY, IGNITION, NO.3 | ||||
| 90987-02018 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 90987-02018 |
N04C..XZU304,305,344 |
1 | ||
| 28371F - RELAY, IGNITION, NO.5 | ||||
| 90987-02019 |
N04C..XZU304..SCB..(DSL,DSLL);N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,306,308,31#,321,33#,34#,35#,368,378,388..SCB..(4FC,5F)..(20T,30T)..(CBU,IV3) |
1 | ||
| 90987-02019 |
N04C..XZU344;N04C..XZU304..DSLL;N04C..XZU304..(T3,T4,T5)..DCRL |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-37140 |
XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T |
1 | ||
| 81980-37140 |
XZU304,305,344 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
XZU304,305,344 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09013 |
XZU304,305,344 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09009 |
XZU304,305,344 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09010 |
XZU304,305,344 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09011 |
XZU304,305,344 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-37340 |
XZU304,305,344 |
1 | ||
| 82683-37340 |
XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV6,IV7 |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 90986-01005 |
XZU304,305,344 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-25030 |
XZU304,305,344 |
1 | ||
| 84340-25030 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 84640C - SWITCH ASSY, EXHAUST RETARDER | ||||
| 84640-37050 |
XZU304,305,344 |
1 | ||
| 84640-37050 |
BZU300..T4..20T..IV3;BZU340,RZU301,340,XZU305..5F..20T..IV3;XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..5F |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04007 |
XZU304,305,344 |
1 | ||
| 90987-04007 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02018 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 90987-02018 |
XZU304,305,344 |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02018 |
XZU304,305,344 |
1 | ||
| 90987-02018 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02019 |
XZU304,305,344 |
1 | ||
| 90987-02019 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02017 |
XZU304,305,344 |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90987-02018 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 90987-02018 |
XZU304,305,344 |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02017 |
XZU304,305,344 |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90987-02018 |
XZU304,305,344 |
1 | ||
| 90987-02018 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 85985 - RELAY, KEY REMINDER | ||||
| 80590-37090 |
XZU304,305,344 |
1 | ||
| 80590-37090 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02017 |
XZU304,305,344 |
1 | ||
| 90987-02017 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 86650L - BUZZER ASSY, VACUUM WARNING | ||||
| 86650-37060 |
XZU304,305,344 |
1 | ||
| 89280 - SENSOR ASSY, CLUTCH PEDAL STROKE | ||||
| 89280-37010 |
XZU304,305,344 |
1 | ||
| Common parts | ||||
| 91611-B0816 | ||||
| 91621-J0814 | ||||
| 91651-B0820 | ||||
| 93319-15010 | ||||
| 93568-55016 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 3102 | ||||
| 8202 | ||||
ILLUST NO. 6 OF10(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3

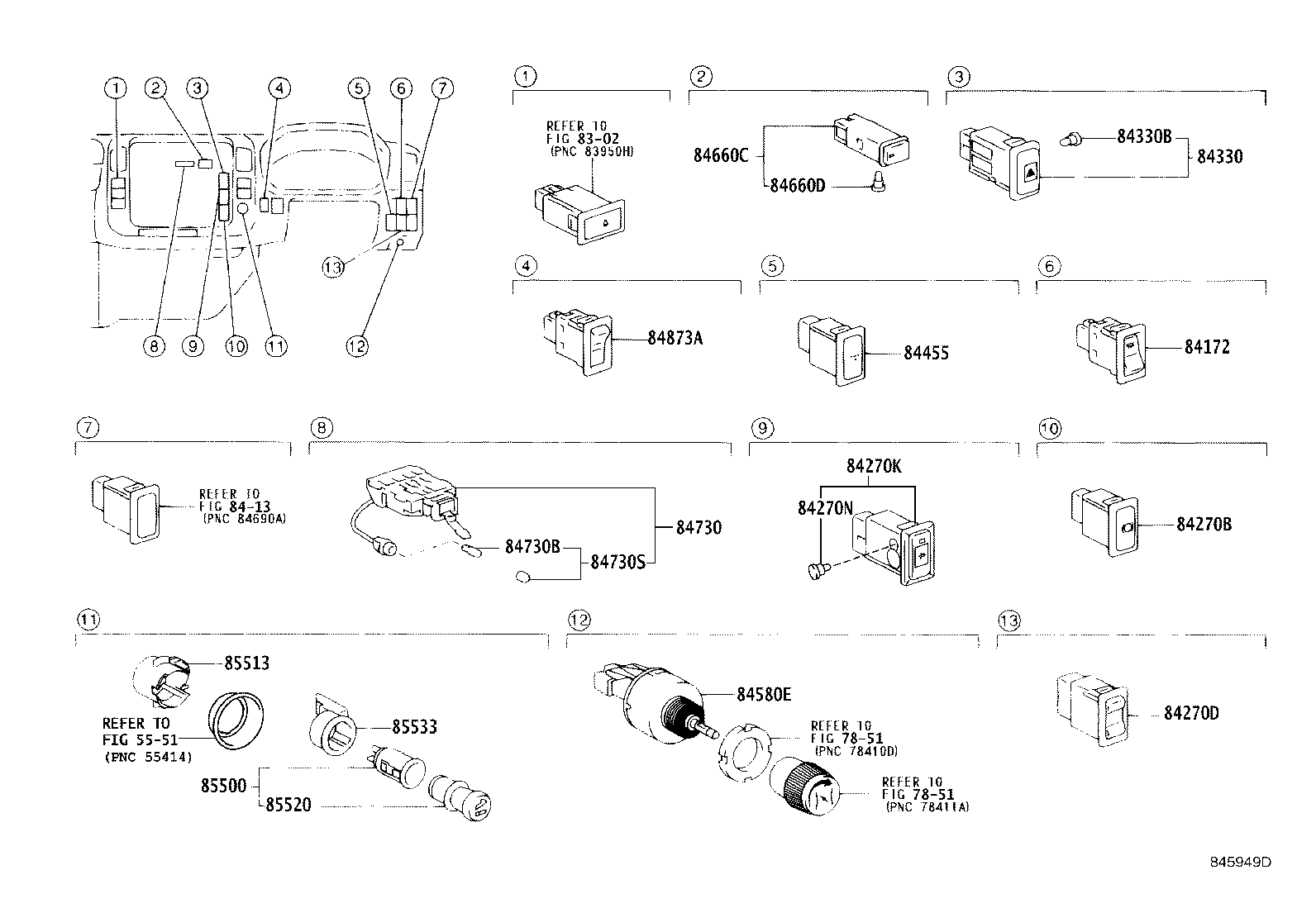

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ ｽｲﾂﾁ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84172 - SWITCH, ROOM LAMP | ||||
| 84270-37010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..SCB |
1 | ||
| 84270-37010 |
XZU304,305,344 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-37090 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 84332-37090 |
XZU304,305,344 |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10570 |
XZU304,305,344 28V 0.67W |
1 | ||
| 84999-10570 |
XZU30#,31#,321,33#,34#,35#,368,378,388 28V 0.67W |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-37010 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 84660-37010 |
XZU304,305,344 |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-37010 |
XZU304,305,344 28V 0.87W |
1 | ||
| 88607-37010 |
XZU30#,31#,321,33#,34#,35#,368,378,388 28V 0.87W |
1 | ||
| 84873A - SWITCH, RETRACTABLE OUTER MIRROR | ||||
| 84873-37020 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 84873-37020 |
XZU304,305,344 |
1 | ||
| Linked diagrams | ||||
| 8302 | ||||
| 8413 | ||||
| 8420 | ||||
ILLUST NO. 1 OF10(0310-0406)XZU304,305,344 ; (0406- )XZU304,305,308,314,334,338,344,348,354,368,3
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-37020 |
XZU304,305,344 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-37040 |
XZU304,305,344 |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-37020 |
XZU304,305,344 ﾌﾛﾝﾄ |
1 | ||
| 89425-37030 |
XZU378..IV4;XZU30#,31#,321,33#,34#,35#,388..CBU,IV3,IV6,IV7 ﾘﾔ |
1 | ||
| 89425-37021 |
XZU378..IV4;XZU30#,31#,321,33#,34#,35#,388 ﾌﾛﾝﾄ |
1 | ||
| 89425-37031 |
XZU378..IV4;XZU30#,31#,321,33#,34#,35#,388..CBU,IV3,IV6,IV7 ﾘﾔ |
1 | ||
| 89425-37020 |
XZU378..IV4;XZU30#,31#,321,33#,34#,35#,388 ﾌﾛﾝﾄ |
1 | ||
| 89425-37030 |
XZU304,305,344 ﾘﾔ |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-37020 |
XZU304,305,344 ﾌﾛﾝﾄ |
1 | ||
| 89425-37030 |
XZU378..IV4;XZU30#,31#,321,33#,34#,35#,388..CBU,IV3,IV6,IV7 ﾘﾔ |
1 | ||
| 89425-37021 |
XZU378..IV4;XZU30#,31#,321,33#,34#,35#,388 ﾌﾛﾝﾄ |
1 | ||
| 89425-37031 |
XZU378..IV4;XZU30#,31#,321,33#,34#,35#,388..CBU,IV3,IV6,IV7 ﾘﾔ |
1 | ||
| 89425-37020 |
XZU378..IV4;XZU30#,31#,321,33#,34#,35#,388 ﾌﾛﾝﾄ |
1 | ||
| 89425-37030 |
XZU304,305,344 ﾘﾔ |
1 | ||
| 89480A - SENSOR ASSY, DIFFERENTIAL PRESSURE | ||||
| 89480-37010 |
XZU304,305,344 |
1 | ||
| 89480-37010 |
XZU30#,31#,321,33#,34#,35#,388 |
1 | ||
| 89480A - SENSOR ASSY, DIFFERENTIAL PRESSURE | ||||
| 89480-37010 |
XZU304,305,344 |
1 | ||
| 89480-37010 |
XZU30#,31#,321,33#,34#,35#,388 |
1 | ||
| Common parts | ||||
| 90034-30041 | ||||
| 90119-08676 | ||||
| 90179-08233 | ||||
| 90202-10012 | ||||
ILLUST NO. 5 OF10(0310-0406)XZU304,305,344
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ & ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02019 |
N04C..XZU304,305,344 |
1 | ||
| 90987-02019 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 28371D - RELAY, IGNITION, NO.3 | ||||
| 90987-02018 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 90987-02018 |
N04C..XZU304,305,344 |
1 | ||
| 28371F - RELAY, IGNITION, NO.5 | ||||
| 90987-02019 |
N04C..XZU304..SCB..(DSL,DSLL);N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,306,308,31#,321,33#,34#,35#,368,378,388..SCB..(4FC,5F)..(20T,30T)..(CBU,IV3) |
1 | ||
| 90987-02019 |
N04C..XZU344;N04C..XZU304..DSLL;N04C..XZU304..(T3,T4,T5)..DCRL |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-37140 |
XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T |
1 | ||
| 81980-37140 |
XZU304,305,344 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
XZU304,305,344 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09013 |
XZU304,305,344 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09009 |
XZU304,305,344 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09008 |
XZU304,305,344 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09011 |
XZU304,305,344 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-37340 |
XZU304,305,344 |
1 | ||
| 82683-37340 |
XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV6,IV7 |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 90986-01005 |
XZU304,305,344 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-25030 |
XZU304,305,344 |
1 | ||
| 84340-25030 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 84640C - SWITCH ASSY, EXHAUST RETARDER | ||||
| 84640-37050 |
XZU304,305,344 |
1 | ||
| 84640-37050 |
BZU300..T4..20T..IV3;BZU340,RZU301,340,XZU305..5F..20T..IV3;XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..5F |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04007 |
XZU304,305,344 |
1 | ||
| 90987-04007 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02018 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 90987-02018 |
XZU304,305,344 |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02018 |
XZU304,305,344 |
1 | ||
| 90987-02018 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02019 |
XZU304,305,344 |
1 | ||
| 90987-02019 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02017 |
XZU304,305,344 |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90987-02018 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 90987-02018 |
XZU304,305,344 |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02017 |
XZU304,305,344 |
1 | ||
| 85985 - RELAY, KEY REMINDER | ||||
| 80590-37090 |
XZU304,305,344 |
1 | ||
| 80590-37090 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 86210E - CONVERTER ASSY, VOLTAGE | ||||
| 86210-37020 |
XZU304,305,344 |
1 | ||
| 86210-37020 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02017 |
XZU304,305,344 |
1 | ||
| 90987-02017 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 86650L - BUZZER ASSY, VACUUM WARNING | ||||
| 86650-37060 |
XZU304,305,344 |
1 | ||
| 86650R - BUZZER ASSY, ES START | ||||
| 86650-37130 |
XZU30#,31#,321,33#,34#,35#,368,378,388..5F |
1 | ||
| 86650-37130 |
XZU304,305,344 |
1 | ||
| 89280 - SENSOR ASSY, CLUTCH PEDAL STROKE | ||||
| 89280-37010 |
XZU304,305,344 |
1 | ||
| Common parts | ||||
| 90179-06178 | ||||
| 91611-B0816 | ||||
| 91621-J0814 | ||||
| 91651-B0820 | ||||
| 93568-55016 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 3102 | ||||
| 8202 | ||||
ILLUST NO. 6 OF10(0310-0406)XZU304,305,344
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84172 - SWITCH, ROOM LAMP | ||||
| 84270-37010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..SCB |
1 | ||
| 84270-37010 |
XZU304,305,344 |
1 | ||
| 84270D - SWITCH ASSY, ES START TIMING | ||||
| 84270-37110 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F |
1 | ||
| 84270-37110 |
XZU304,305,344 |
1 | ||
| 84270K - SWITCH ASSY, DPR | ||||
| 84270-37120 |
XZU304,305,344 |
1 | ||
| 84270-37120 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 84270N - BULB, DPR SWICH ASSY | ||||
| 90010-01104 |
XZU304,305,344 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-37090 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 84332-37090 |
XZU304,305,344 |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10570 |
XZU304,305,344 28V 0.67W |
1 | ||
| 84999-10570 |
XZU30#,31#,321,33#,34#,35#,368,378,388 28V 0.67W |
1 | ||
| 84455 - SWITCH, WARM UP | ||||
| 84455-37060 |
XZU304,305,344 |
1 | ||
| 84455-37060 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 84580E - SWITCH ASSY, THROTTLE POSITION | ||||
| 84581-37010 |
XZU304,305,344 |
1 | ||
| 84581-37010 |
XZU30#,31#,321,33#,34#,35#,368,378,388..DCB,SCB |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-37010 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 84660-37010 |
XZU304,305,344 |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-37010 |
XZU304,305,344 28V 0.87W |
1 | ||
| 88607-37010 |
XZU30#,31#,321,33#,34#,35#,368,378,388 28V 0.87W |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-37050 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 84732-37050 |
XZU304,305,344 |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-16020 |
XZU304,305,344 24V 1.8W |
1 | ||
| 84730S - BULB, HEATER BLOWER SWITCH | ||||
| 90010-01153 |
XZU304,305,344 24V 1.8W,ｷｬｯﾌﾟ付き |
1 | ||
| 84873A - SWITCH, RETRACTABLE OUTER MIRROR | ||||
| 84873-37020 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 84873-37020 |
XZU304,305,344 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-36020 |
XZU304,305,344 |
1 | ||
| 85500-36020 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
XZU304,305,344 |
1 | ||
| 85513-12020 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-95400 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 85520-95400 |
XZU304,305,344 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-26010 |
XZU304,305,344 |
1 | ||
| 85533-26010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| Linked diagrams | ||||
| 5551 | ||||
| 7851 | ||||
| 8302 | ||||
| 8413 | ||||
ILLUST NO. 4 OF10(0310-0406)XZU304,305,344
R/B NO.2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-78020 |
N04C..XZU304,305,344 品番ﾗﾍﾞﾙ=28300−78020 |
1 | ||
| 28300-78020 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 品番ﾗﾍﾞﾙ=28300−78020 |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02018 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 90987-02018 |
N04C..XZU304,305,344 |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-58230 |
N04C..XZU344;N04C..XZU304..DSLL;N04C..XZU304..(T3,T4,T5)..DCRL |
1 | ||
| 28610-58230 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,306,308,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
XZU304,305,344 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09013 |
XZU304,305,344 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09009 |
XZU304,305,344 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09010 |
XZU304,305,344 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09011 |
XZU304,305,344 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-37251 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 82662-37250 |
XZU304,305,344 |
1 | ||
| 82760 - BRACKET ASSY, RELAY BLOCK | ||||
| 82760-37010 |
XZU304,305,344 |
1 | ||
| 82760-37010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..SCB |
1 | ||
| 85931B - RELAY, FUEL HEATER | ||||
| 90987-02017 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 90987-02017 |
XZU304,305,344 |
1 | ||
| Common parts | ||||
| 90179-06158 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8405 | ||||
| 8414 | ||||
ILLUST NO. 2 OF10(0310-0406)XZU304,305,344 ; (0406- )XZU304,334..5F..DCRL,DSLL ; (0406- )XZU30
ﾄﾗﾝｽﾐﾂｼﾖﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-37020 |
XZU304,305,344 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-37020 |
XZU304,305,344 |
1 | ||
| 84540C - SWITCH ASSY, NEUTRAL (FOR EXHAUST BRAKE) | ||||
| 84540-37040 |
XZU304,305,344 |
1 | ||
| 84540C - SWITCH ASSY, NEUTRAL (FOR EXHAUST BRAKE) | ||||
| 84540-37040 |
XZU304,305,344 |
1 | ||
| Common parts | ||||
| 82711-1E340 | ||||
| 91651-60816 | ||||
ILLUST NO. 5 OF10(0406- )XZU30#,31#,321,33#,34#,35#,368,378,388
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ & ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02019 |
N04C..XZU304,305,344 |
1 | ||
| 90987-02019 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 28371D - RELAY, IGNITION, NO.3 | ||||
| 90987-02018 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 90987-02018 |
N04C..XZU304,305,344 |
1 | ||
| 28371F - RELAY, IGNITION, NO.5 | ||||
| 90987-02019 |
N04C..XZU304..SCB..(DSL,DSLL);N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,306,308,31#,321,33#,34#,35#,368,378,388..SCB..(4FC,5F)..(20T,30T)..(CBU,IV3) |
1 | ||
| 90987-02019 |
N04C..XZU344;N04C..XZU304..DSLL;N04C..XZU304..(T3,T4,T5)..DCRL |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-37140 |
XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T |
1 | ||
| 81980-37140 |
XZU304,305,344 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
XZU304,305,344 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09013 |
XZU304,305,344 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09009 |
XZU304,305,344 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09008 |
XZU304,305,344 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09011 |
XZU304,305,344 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-37340 |
XZU304,305,344 |
1 | ||
| 82683-37340 |
XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV6,IV7 |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 90986-01005 |
XZU304,305,344 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-25030 |
XZU304,305,344 |
1 | ||
| 84340-25030 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 84640C - SWITCH ASSY, EXHAUST RETARDER | ||||
| 84640-37050 |
XZU304,305,344 |
1 | ||
| 84640-37050 |
BZU300..T4..20T..IV3;BZU340,RZU301,340,XZU305..5F..20T..IV3;XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..5F |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04007 |
XZU304,305,344 |
1 | ||
| 90987-04007 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02018 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 90987-02018 |
XZU304,305,344 |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02018 |
XZU304,305,344 |
1 | ||
| 90987-02018 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02019 |
XZU304,305,344 |
1 | ||
| 90987-02019 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02017 |
XZU304,305,344 |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90987-02018 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 90987-02018 |
XZU304,305,344 |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02017 |
XZU304,305,344 |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90987-02018 |
XZU304,305,344 |
1 | ||
| 90987-02018 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 85985 - RELAY, KEY REMINDER | ||||
| 80590-37090 |
XZU304,305,344 |
1 | ||
| 80590-37090 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 86210E - CONVERTER ASSY, VOLTAGE | ||||
| 86210-37020 |
XZU304,305,344 |
1 | ||
| 86210-37020 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 86210E - CONVERTER ASSY, VOLTAGE | ||||
| 86210-37020 |
XZU304,305,344 |
1 | ||
| 86210-37020 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02017 |
XZU304,305,344 |
1 | ||
| 90987-02017 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 86650L - BUZZER ASSY, VACUUM WARNING | ||||
| 86650-37060 |
XZU304,305,344 |
1 | ||
| 86650R - BUZZER ASSY, ES START | ||||
| 86650-37130 |
XZU30#,31#,321,33#,34#,35#,368,378,388..5F |
1 | ||
| 86650-37130 |
XZU304,305,344 |
1 | ||
| 89280 - SENSOR ASSY, CLUTCH PEDAL STROKE | ||||
| 89280-37010 |
XZU304,305,344 |
1 | ||
| Common parts | ||||
| 90179-06178 | ||||
| 90387-09027 | ||||
| 91551-80820 | ||||
| 91611-B0816 | ||||
| 91621-J0814 | ||||
| 91651-B0814 | ||||
| 91651-B0820 | ||||
| 93568-55016 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 3102 | ||||
ILLUST NO. 6 OF10(0406- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-37020 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 84172 - SWITCH, ROOM LAMP | ||||
| 84270-37010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..SCB |
1 | ||
| 84270-37010 |
XZU304,305,344 |
1 | ||
| 84270D - SWITCH ASSY, ES START TIMING | ||||
| 84270-37110 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F |
1 | ||
| 84270-37110 |
XZU304,305,344 |
1 | ||
| 84270K - SWITCH ASSY, DPR | ||||
| 84270-37120 |
XZU304,305,344 |
1 | ||
| 84270-37120 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 84270N - BULB, DPR SWICH ASSY | ||||
| 90010-01104 |
XZU304,305,344 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-37090 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 84332-37090 |
XZU304,305,344 |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10570 |
XZU304,305,344 28V 0.67W |
1 | ||
| 84999-10570 |
XZU30#,31#,321,33#,34#,35#,368,378,388 28V 0.67W |
1 | ||
| 84455 - SWITCH, WARM UP | ||||
| 84455-37060 |
XZU304,305,344 |
1 | ||
| 84455-37060 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 84580E - SWITCH ASSY, THROTTLE POSITION | ||||
| 84581-37010 |
XZU304,305,344 |
1 | ||
| 84581-37010 |
XZU30#,31#,321,33#,34#,35#,368,378,388..DCB,SCB |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-37010 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 84660-37010 |
XZU304,305,344 |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-37010 |
XZU304,305,344 28V 0.87W |
1 | ||
| 88607-37010 |
XZU30#,31#,321,33#,34#,35#,368,378,388 28V 0.87W |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-37050 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 84732-37050 |
XZU304,305,344 |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-16020 |
XZU304,305,344 24V 1.8W |
1 | ||
| 84730S - BULB, HEATER BLOWER SWITCH | ||||
| 90010-01153 |
XZU304,305,344 24V 1.8W,ｷｬｯﾌﾟ付き |
1 | ||
| 84873A - SWITCH, RETRACTABLE OUTER MIRROR | ||||
| 84873-37020 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 84873-37020 |
XZU304,305,344 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-36020 |
XZU304,305,344 |
1 | ||
| 85500-36020 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
XZU304,305,344 |
1 | ||
| 85513-12020 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-95400 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 85520-95400 |
XZU304,305,344 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-26010 |
XZU304,305,344 |
1 | ||
| 85533-26010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| Linked diagrams | ||||
| 5551 | ||||
| 7851 | ||||
| 8302 | ||||
| 8413 | ||||
| 8420 | ||||
ILLUST NO. 4 OF10(0406- )SCB
R/B NO.2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-78020 |
N04C..XZU304,305,344 品番ﾗﾍﾞﾙ=28300−78020 |
1 | ||
| 28300-78020 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 品番ﾗﾍﾞﾙ=28300−78020 |
1 | ||
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-78020 |
N04C..XZU304,305,344 品番ﾗﾍﾞﾙ=28300−78020 |
1 | ||
| 28300-78020 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 品番ﾗﾍﾞﾙ=28300−78020 |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02018 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 90987-02018 |
N04C..XZU304,305,344 |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02018 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 90987-02018 |
N04C..XZU304,305,344 |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-58230 |
N04C..XZU344;N04C..XZU304..DSLL;N04C..XZU304..(T3,T4,T5)..DCRL |
1 | ||
| 28610-58230 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,306,308,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-58230 |
N04C..XZU344;N04C..XZU304..DSLL;N04C..XZU304..(T3,T4,T5)..DCRL |
1 | ||
| 28610-58230 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,306,308,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
XZU304,305,344 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09013 |
XZU304,305,344 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09009 |
XZU304,305,344 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09010 |
XZU304,305,344 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09011 |
XZU304,305,344 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
XZU304,305,344 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09013 |
XZU304,305,344 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09009 |
XZU304,305,344 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09010 |
XZU304,305,344 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09011 |
XZU304,305,344 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-37251 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 82662-37250 |
XZU304,305,344 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-37251 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 82662-37250 |
XZU304,305,344 |
1 | ||
| 82760 - BRACKET ASSY, RELAY BLOCK | ||||
| 82760-37010 |
XZU304,305,344 |
1 | ||
| 82760-37010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..SCB |
1 | ||
| 82760 - BRACKET ASSY, RELAY BLOCK | ||||
| 82760-37010 |
XZU304,305,344 |
1 | ||
| 82760-37010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..SCB |
1 | ||
| 85931B - RELAY, FUEL HEATER | ||||
| 90987-02017 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 90987-02017 |
XZU304,305,344 |
1 | ||
| 85931B - RELAY, FUEL HEATER | ||||
| 90987-02017 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 90987-02017 |
XZU304,305,344 |
1 | ||
| Common parts | ||||
| 90179-06158 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8405 | ||||
| 8414 | ||||
ILLUST NO. 6 OF10(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ ｽｲﾂﾁ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84270D - SWITCH ASSY, ES START TIMING | ||||
| 84270-37110 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F |
1 | ||
| 84270-37110 |
XZU304,305,344 |
1 | ||
| 84270E - SWITCH ASSY, TIRE LAMP | ||||
| 84270-37020 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 84455 - SWITCH, WARM UP | ||||
| 84455-37060 |
XZU304,305,344 |
1 | ||
| 84455-37060 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-37050 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 84732-37050 |
XZU304,305,344 |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-16020 |
XZU304,305,344 24V 1.8W |
1 | ||
| 84730S - BULB, HEATER BLOWER SWITCH | ||||
| 90010-01153 |
XZU304,305,344 24V 1.8W,ｷｬｯﾌﾟ付き |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-36020 |
XZU304,305,344 |
1 | ||
| 85500-36020 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
XZU304,305,344 |
1 | ||
| 85513-12020 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-95400 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 85520-95400 |
XZU304,305,344 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-26010 |
XZU304,305,344 |
1 | ||
| 85533-26010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| Linked diagrams | ||||
| 5551 | ||||
ILLUST NO. 2 OF11(9905-0406)BU400,410,420,430,BZU410,XZU382,40#,410,411,412,42#,430..MTM ; (0406-070
ﾄﾗﾝｽﾐﾂｼﾖﾝ & ﾄﾗﾝｽﾌｱ
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 4 OF11(0310-0406)XZU414,415 ; (0406-0705)DCR,DCRL,DSL,DSLL
R/B NO.2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-26520 | ||||
| 90179-06158 | ||||
| 90179-06171 | ||||
| 91642-81025 | ||||
| Linked diagrams | ||||
| 8405 | ||||
| 8414 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
