3102 - CLUTCH PEDAL & FLEXIBLE HOSE

XZU304-TQMMW (2003)

Toyota Dyna/Toyoace

Production Oct 2003 - Oct 2006

Engine N04C

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9905-0406)MTM

Click highlighted areas on diagram

Part #	Description	Period	Qty
31301 - PEDAL SUB-ASSY, CLUTCH
31301-37161	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,XZU368..(T3,T4)..(DCRL,DSL,LPG);RZU30#,340,XZU301,304,305,306,331,334,336,341,344,346,378,388..(DM5,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3) ｱﾘ(PTO ｸﾗﾂﾁｽｲﾂﾁ)	06/2004 - 12/2999	1
31301-37161	XZU304,305,344 ｱﾘ(PTO ｸﾗﾂﾁｽｲﾂﾁ)	10/2003 - 06/2004	1
31301-37160	BU306,346,XZU30#,322,33#,34#..(DM6,T2,T3,T4,T5)..MTM..(CBU,IV3) ｱﾘ(PTO ｸﾗﾂﾁｽｲﾂﾁ)	05/1999 - 07/1999	1
31301-37170	XZU31#,35#,368..5F;BZU300,340,RZU30#,340,XZU30#,321,33#,34#,378,388..(03S,06S,DM3,DM6,DM7,T1,T2,T3,T4,T5)..5F	06/2004 - 12/2999	1
31301-37170	XZU304,305,344	10/2003 - 06/2004	1
31301A - SPRING(FOR CLUTCH PEDAL)
90959-03257	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382..MTM	05/1999 - 12/2000	1
90959-03344	XZU304,305,344	10/2003 - 06/2004	1
90959-03344	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F	06/2004 - 05/2005	1
90959-03394	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F	06/2005 - 12/2999	1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F	06/2004 - 12/2999	1
90541-06036	XZU304,305,344	10/2003 - 06/2004	1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F	06/2004 - 12/2999	2
90386-13007	XZU304,305,344	10/2003 - 06/2004	2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F	06/2004 - 12/2999	2
90386-13007	XZU304,305,344	10/2003 - 06/2004	2
31321 - PAD, CLUTCH PEDAL
31321-14020	XZU304,305,344	10/2003 - 06/2004	1
31321-14020	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F	06/2004 - 12/2999	1
31323 - BRACKET, CLUTCH PEDAL
31302-37011	XZU304,305,344	10/2003 - 06/2004	1
31302-37011	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F	06/2004 - 12/2999	1
31302-37010	BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382..MTM	05/1999 - 11/1999	1
31324 - SHAFT, CLUTCH PEDAL
91112-61070	XZU304,305,344	10/2003 - 06/2004	1
91112-61070	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F	06/2004 - 12/2999	1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10004	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F	06/2004 - 12/2999	1
90387-10004	XZU304,305,344	10/2003 - 06/2004	1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006	XZU304,305,344 長さ=23.5	10/2003 - 06/2004	1
90240-08006	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F 長さ=23.5	06/2004 - 12/2999	1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F	06/2004 - 12/2999	1
90386-08002	XZU304,305,344	10/2003 - 06/2004	1
38979A - BRACKET, POWER TAKE-OFF CLUTCH SWITCH
38979-37011	XZU304,305,344	10/2003 - 06/2004	1
38979-37010	BU306,346,XZU30#,322,33#,34#..(DM6,T2,T3,T4,T5)..MTM..(CBU,IV3)	05/1999 - 07/1999	1
38979-37011	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,XZU368..(T3,T4)..(DCRL,DSL,LPG);RZU30#,340,XZU301,304,305,306,331,334,336,341,344,346,378,388..(DM5,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3)	06/2004 - 12/2999	1
Common parts
90179-06204
90468-14017
91641-80818
94120-41000
94130-61000
94531-01000
Linked diagrams
8401
8413

ILLUST NO. 2 OF 2(0310-0406)XZU304,305,344

Click highlighted areas on diagram

Part #	Description	Period	Qty

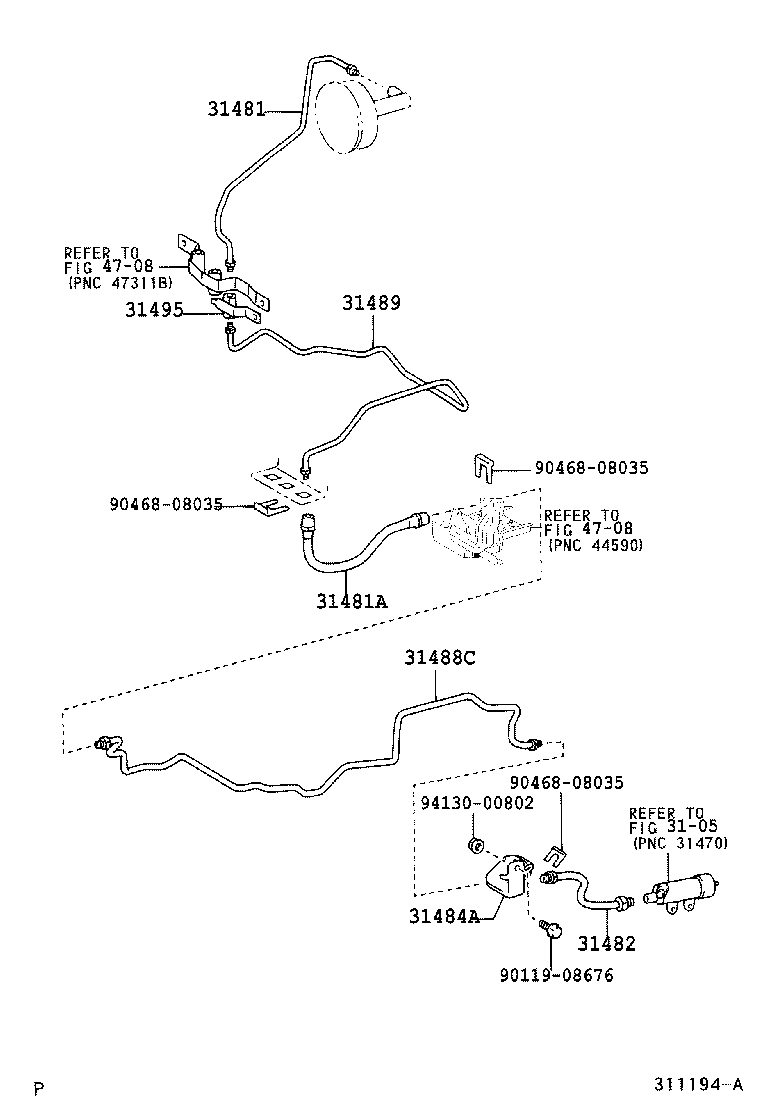

31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-37121	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F	06/2004 - 12/2999	1
31481-37120	XZU304,305,344	10/2003 - 02/2004	1
31481-37121	XZU304,305,344	02/2004 - 06/2004	1
31481A - HOSE, CLUTCH, NO.1
90931-01148	XZU304,305,344	10/2003 - 06/2004	1
90931-01148	XZU30#,31#,321,33#,34#,35#,368,378,388..5F ｱﾘ(ABS)	06/2004 - 12/2999	1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
90931-01149	XZU304,305,344	10/2003 - 06/2004	1
90931-01149	XZU368,378,388;XZU304,305,314,334,344,354..(DCRL,DSLL)..(CBU,IV3,IV6)	06/2004 - 02/2006	1
31486-37050	XZU368,378,388;XZU304,305,314,334,344,354..(DCRL,DSLL)..(CBU,IV3,IV6)	03/2006 - 12/2999	1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-37260	XZU304,305,344	10/2003 - 06/2004	1
31484-37260	XZU30#,31#,321,33#,34#,35#..5F	06/2004 - 12/2999	1
31488C - TUBE, FLEXIBLE HOSE TO FLEXIBLE HOSE
31482-37170	XZU304,305,344	10/2003 - 06/2004	1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31481-37130	XZU304,305,344	10/2003 - 06/2004	1
31481-37130	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F..(CBU,IV3,IV4,IV6)	06/2004 - 12/2999	1
31495 - WAY, CLUTCH TUBE
31495-37010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F	06/2004 - 12/2999	1
31495-37010	XZU304,305,344	10/2003 - 06/2004	1
Common parts
90119-08676
90468-08035
94130-00802
Linked diagrams
3105
4708

ILLUST NO. 1 OF 2(0406- )5F

Click highlighted areas on diagram

Part #	Description	Period	Qty
31301 - PEDAL SUB-ASSY, CLUTCH
31301-37161	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,XZU368..(T3,T4)..(DCRL,DSL,LPG);RZU30#,340,XZU301,304,305,306,331,334,336,341,344,346,378,388..(DM5,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3) ｱﾘ(PTO ｸﾗﾂﾁｽｲﾂﾁ)	06/2004 - 12/2999	1
31301-37161	XZU304,305,344 ｱﾘ(PTO ｸﾗﾂﾁｽｲﾂﾁ)	10/2003 - 06/2004	1
31301-37160	BU306,346,XZU30#,322,33#,34#..(DM6,T2,T3,T4,T5)..MTM..(CBU,IV3) ｱﾘ(PTO ｸﾗﾂﾁｽｲﾂﾁ)	05/1999 - 07/1999	1
31301-37170	XZU31#,35#,368..5F;BZU300,340,RZU30#,340,XZU30#,321,33#,34#,378,388..(03S,06S,DM3,DM6,DM7,T1,T2,T3,T4,T5)..5F	06/2004 - 12/2999	1
31301-37170	XZU304,305,344	10/2003 - 06/2004	1
31301A - SPRING(FOR CLUTCH PEDAL)
90959-03257	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382..MTM	05/1999 - 12/2000	1
90959-03344	XZU304,305,344	10/2003 - 06/2004	1
90959-03344	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F	06/2004 - 05/2005	1
90959-03394	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F	06/2005 - 12/2999	1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F	06/2004 - 12/2999	1
90541-06036	XZU304,305,344	10/2003 - 06/2004	1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F	06/2004 - 12/2999	2
90386-13007	XZU304,305,344	10/2003 - 06/2004	2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F	06/2004 - 12/2999	2
90386-13007	XZU304,305,344	10/2003 - 06/2004	2
31321 - PAD, CLUTCH PEDAL
31321-14020	XZU304,305,344	10/2003 - 06/2004	1
31321-14020	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F	06/2004 - 12/2999	1
31323 - BRACKET, CLUTCH PEDAL
31302-37011	XZU304,305,344	10/2003 - 06/2004	1
31302-37011	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F	06/2004 - 12/2999	1
31302-37010	BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382..MTM	05/1999 - 11/1999	1
31324 - SHAFT, CLUTCH PEDAL
91112-61070	XZU304,305,344	10/2003 - 06/2004	1
91112-61070	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F	06/2004 - 12/2999	1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10004	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F	06/2004 - 12/2999	1
90387-10004	XZU304,305,344	10/2003 - 06/2004	1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006	XZU304,305,344 長さ=23.5	10/2003 - 06/2004	1
90240-08006	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F 長さ=23.5	06/2004 - 12/2999	1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F	06/2004 - 12/2999	1
90386-08002	XZU304,305,344	10/2003 - 06/2004	1
38979A - BRACKET, POWER TAKE-OFF CLUTCH SWITCH
38979-37011	XZU304,305,344	10/2003 - 06/2004	1
38979-37010	BU306,346,XZU30#,322,33#,34#..(DM6,T2,T3,T4,T5)..MTM..(CBU,IV3)	05/1999 - 07/1999	1
38979-37011	BZU300..DM6,T3;BZU300..T4..LPG;BZU340,XZU368..(T3,T4)..(DCRL,DSL,LPG);RZU30#,340,XZU301,304,305,306,331,334,336,341,344,346,378,388..(DM5,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3)	06/2004 - 12/2999	1
Common parts
90179-06204
90468-14017
91641-80818
91651-B0820
94120-41000
94130-61000
94531-01000
Linked diagrams
8401
8413

ILLUST NO. 2 OF 2(0406- )XZU30#,31#,321,33#,34#,35#,368,378,388

Click highlighted areas on diagram

Part #	Description	Period	Qty
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-37121	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F	06/2004 - 12/2999	1
31481-37120	XZU304,305,344	10/2003 - 02/2004	1
31481-37121	XZU304,305,344	02/2004 - 06/2004	1
31481A - HOSE, CLUTCH, NO.1
90931-01148	XZU304,305,344	10/2003 - 06/2004	1
90931-01148	XZU30#,31#,321,33#,34#,35#,368,378,388..5F ｱﾘ(ABS)	06/2004 - 12/2999	1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
90931-01149	XZU304,305,344	10/2003 - 06/2004	1
90931-01149	XZU368,378,388;XZU304,305,314,334,344,354..(DCRL,DSLL)..(CBU,IV3,IV6)	06/2004 - 02/2006	1
31486-37050	XZU368,378,388;XZU304,305,314,334,344,354..(DCRL,DSLL)..(CBU,IV3,IV6)	03/2006 - 12/2999	1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
90931-01149	XZU304,305,344	10/2003 - 06/2004	1
90931-01149	XZU368,378,388;XZU304,305,314,334,344,354..(DCRL,DSLL)..(CBU,IV3,IV6)	06/2004 - 02/2006	1
31486-37050	XZU368,378,388;XZU304,305,314,334,344,354..(DCRL,DSLL)..(CBU,IV3,IV6)	03/2006 - 12/2999	1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-37260	XZU304,305,344	10/2003 - 06/2004	1
31484-37260	XZU30#,31#,321,33#,34#,35#..5F	06/2004 - 12/2999	1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-37260	XZU304,305,344	10/2003 - 06/2004	1
31484-37260	XZU30#,31#,321,33#,34#,35#..5F	06/2004 - 12/2999	1
31488C - TUBE, FLEXIBLE HOSE TO FLEXIBLE HOSE
31482-37170	XZU304,305,344	10/2003 - 06/2004	1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31481-37130	XZU304,305,344	10/2003 - 06/2004	1
31481-37130	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F..(CBU,IV3,IV4,IV6)	06/2004 - 12/2999	1
31495 - WAY, CLUTCH TUBE
31495-37010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F	06/2004 - 12/2999	1
31495-37010	XZU304,305,344	10/2003 - 06/2004	1
Common parts
90119-08676
90468-08035
94130-00802
Linked diagrams
3105
4708

ILLUST NO. 1 OF 2(9905-0705)MTM..CNG,DCR,DCRL,DSL,DSLL,LPG,TDEFI

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90179-06204
90468-14017
91111-41035
91651-B0820
94120-41000
94130-61000
94531-01000
Linked diagrams
3103
8401
8413
