Toyota Dyna/toyoace XZU304 BRAKE TUBE & CLAMP

XZU304-TQMMS3 (2004)

Toyota Dyna/Toyoace

Production Jun 2004 - Oct 2006

Engine N04C

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

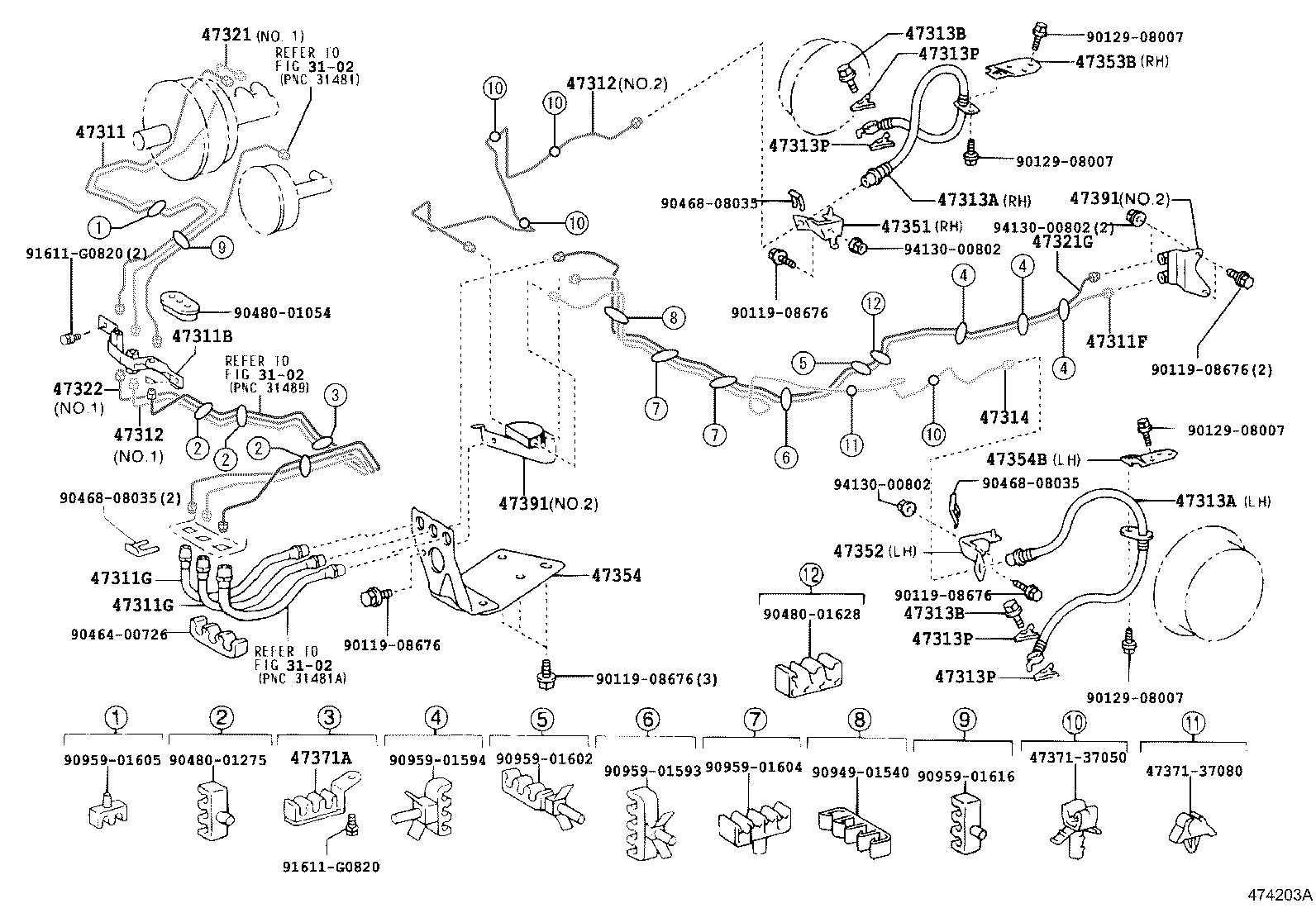

ILLUST NO. 1 OF 5(0406- )XZU301,304,305,331,334,341,344,354..DM3,DM6,T1,T3,T4,T5..CBU,IV3,IV4,IV6

Click highlighted areas on diagram

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-37160	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 06/2003	1
47311-37162	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	04/2006 - 12/2999	1
47311-37161	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 03/2006	1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
47391-37010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
47311F - TUBE, FRONT BRAKE, FRAME NO.1
47311-37460	XZU306,308..03S..ATM;XZU306..(SCB,VAN)..(03S,T4)..5F..(CBU,IV3);XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..DSL NO.2	06/2004 - 10/2006	1
47311-37440	XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 NO.1	06/2004 - 12/2999	1
47311F - TUBE, FRONT BRAKE, FRAME NO.1
47311-37460	XZU306,308..03S..ATM;XZU306..(SCB,VAN)..(03S,T4)..5F..(CBU,IV3);XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..DSL NO.2	06/2004 - 10/2006	1
47311-37440	XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 NO.1	06/2004 - 12/2999	1
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02D83	XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 ｱﾘ(ABS)	06/2004 - 12/2999	2
90947-02E01	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..DSL ﾅｼ(ABS)	06/2004 - 10/2006	2
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02D83	XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 ｱﾘ(ABS)	06/2004 - 12/2999	2
90947-02E01	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..DSL ﾅｼ(ABS)	06/2004 - 10/2006	2
47312 - TUBE, FRONT BRAKE, NO.2
47312-37580	XZU351..DM5..5F;XZU301,304..T4..(5F,6FC)..20T..DSL ﾅｼ(ABS)	06/2004 - 10/2006	1
47312-37060	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 NO.1	06/2004 - 12/2999	1
47312-37490	XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T NO.2	06/2004 - 12/2999	1
47312 - TUBE, FRONT BRAKE, NO.2
47312-37580	XZU351..DM5..5F;XZU301,304..T4..(5F,6FC)..20T..DSL ﾅｼ(ABS)	06/2004 - 10/2006	1
47312-37060	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 NO.1	06/2004 - 12/2999	1
47312-37490	XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T NO.2	06/2004 - 12/2999	1
47312 - TUBE, FRONT BRAKE, NO.2
47312-37580	XZU351..DM5..5F;XZU301,304..T4..(5F,6FC)..20T..DSL ﾅｼ(ABS)	06/2004 - 10/2006	1
47312-37060	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 NO.1	06/2004 - 12/2999	1
47312-37490	XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T NO.2	06/2004 - 12/2999	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-37140	XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
47313-37440	XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 ｱﾘ(ABS)	06/2004 - 12/2999	1
47313-37470	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..DSL ﾅｼ(ABS)	06/2004 - 10/2006	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-37140	XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
47313-37440	XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 ｱﾘ(ABS)	06/2004 - 12/2999	1
47313-37470	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..DSL ﾅｼ(ABS)	06/2004 - 10/2006	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02B27	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T 左側	06/2004 - 12/2999	1
90947-02A72	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T 右側	06/2004 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02B27	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T 左側	06/2004 - 12/2999	1
90947-02A72	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T 右側	06/2004 - 12/2999	1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	4
47314 - TUBE, FRONT BRAKE, NO.4
47314-37610	XZU351..DM5..5F;XZU301,304..T4..(5F,6FC)..20T..DSL ﾅｼ(ABS)	06/2004 - 10/2006	1
47314-37570	XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,31#,321,331,334,341,344,35#..SCB..(20T,30T) ｱﾘ(ABS)	06/2004 - 12/2999	1
47321 - TUBE, REAR BRAKE, NO.1
47321-37160	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 NO.1	06/2004 - 12/2999	1
47321-37420	XZU30#,31#,321,33#,34#,35#,368,378,388 ｱﾘ(ABS),NO.2	06/2004 - 12/2999	1
47321 - TUBE, REAR BRAKE, NO.1
47321-37160	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 NO.1	06/2004 - 12/2999	1
47321-37420	XZU30#,31#,321,33#,34#,35#,368,378,388 ｱﾘ(ABS),NO.2	06/2004 - 12/2999	1
47321 - TUBE, REAR BRAKE, NO.1
47321-37160	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 NO.1	06/2004 - 12/2999	1
47321-37420	XZU30#,31#,321,33#,34#,35#,368,378,388 ｱﾘ(ABS),NO.2	06/2004 - 12/2999	1
47323 - TUBE, REAR BRAKE, NO.3
47323-37050	XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
47323-37530	XZU301..(DM6,T3,T4,T5)..IV3;XZU301,354..(DM3,DM6,T3,T4,T5)..(CBU,IV6);XZU304,305,306,308,33#,34#..CBU,IV3,IV4,IV7 ｱﾘ(ABS)	06/2004 - 12/2999	1
47323-37200	XZU306..SCB..T4..5F..(CBU,IV3);RZU301,XZU301,304,308..SCB..T4..(5F,6FC)..20T..(DSL,LPG) ﾅｼ(ABS)	06/2004 - 12/2999	1
47324 - TUBE, REAR BRAKE, NO.4
47324-37290	XZU341..LPG;XZU340..35T,40T;XZU331..T3..IV3;XZU301..20T..IV7;BU30#,XZU30#,330..(T3,T4,T5)..WT..(DSL,DSLL,LPG)..(IV3,IV7)	05/1999 - 11/2000	1
47324-37240	XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
47324 - TUBE, REAR BRAKE, NO.4
47324-37290	XZU341..LPG;XZU340..35T,40T;XZU331..T3..IV3;XZU301..20T..IV7;BU30#,XZU30#,330..(T3,T4,T5)..WT..(DSL,DSLL,LPG)..(IV3,IV7)	05/1999 - 11/2000	1
47324-37240	XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
47325 - TUBE, REAR BRAKE, NO.5
47325-37150	XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
47325-37210	XZU306..SCB..T4..5F..(CBU,IV3);RZU301,XZU301,304,308..SCB..T4..(5F,6FC)..20T..(DSL,LPG) ﾅｼ(ABS)	06/2004 - 12/2999	1
47325-37320	XZU301..(DM6,T3,T4,T5)..IV3;XZU301,354..(DM3,DM6,T3,T4,T5)..(CBU,IV6);XZU304,305,306,308,33#,34#..CBU,IV3,IV4,IV7 ｱﾘ(ABS)	06/2004 - 12/2999	1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-37130	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T	06/2004 - 12/2999	1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-37050	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T	06/2004 - 12/2999	1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-37150	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T	06/2004 - 12/2999	1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47354-37160	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T	06/2004 - 12/2999	1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-37030	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6	06/2004 - 12/2999	1
47391 - WAY, BRAKE TUBE
47391-37310	XZU306..SCB..T4..5F..(CBU,IV3);XZU301,304,308..SCB..T4..(5F,6FC)..20T..DSL NO.3	06/2004 - 10/2006	1
47391-37350	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..DSL NO.4	06/2004 - 10/2006	1
47391-37310	XZU30#,33#,34#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV6) NO.2	06/2004 - 12/2999	1
47391-37300	XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 NO.1	06/2004 - 12/2999	1
47391 - WAY, BRAKE TUBE
47391-37310	XZU306..SCB..T4..5F..(CBU,IV3);XZU301,304,308..SCB..T4..(5F,6FC)..20T..DSL NO.3	06/2004 - 10/2006	1
47391-37350	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..DSL NO.4	06/2004 - 10/2006	1
47391-37310	XZU30#,33#,34#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV6) NO.2	06/2004 - 12/2999	1
47391-37300	XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 NO.1	06/2004 - 12/2999	1
Common parts
47371-37050
47371-37080
90119-08676
90129-08007
90464-00726
90468-08035
90480-01054
90480-01275
90480-01628
90959-01593
90959-01594
90959-01602
90959-01603
90959-01604
90959-01605
90959-01616
91611-G0820
94130-00802
Linked diagrams
3102

ILLUST NO. 1 OF 5(0406- )XZU301,304..T4..5F,6FC..20T..DSL

Click highlighted areas on diagram

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-37160	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 06/2003	1
47311-37162	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	04/2006 - 12/2999	1
47311-37161	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 03/2006	1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
47391-37010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
47311F - TUBE, FRONT BRAKE, FRAME NO.1
47311-37460	XZU306,308..03S..ATM;XZU306..(SCB,VAN)..(03S,T4)..5F..(CBU,IV3);XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..DSL NO.2	06/2004 - 10/2006	1
47311-37440	XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 NO.1	06/2004 - 12/2999	1
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02D83	XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 ｱﾘ(ABS)	06/2004 - 12/2999	2
90947-02E01	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..DSL ﾅｼ(ABS)	06/2004 - 10/2006	2
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02D83	XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 ｱﾘ(ABS)	06/2004 - 12/2999	2
90947-02E01	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..DSL ﾅｼ(ABS)	06/2004 - 10/2006	2
47312 - TUBE, FRONT BRAKE, NO.2
47312-37580	XZU351..DM5..5F;XZU301,304..T4..(5F,6FC)..20T..DSL ﾅｼ(ABS)	06/2004 - 10/2006	1
47312-37060	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 NO.1	06/2004 - 12/2999	1
47312-37490	XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T NO.2	06/2004 - 12/2999	1
47312 - TUBE, FRONT BRAKE, NO.2
47312-37580	XZU351..DM5..5F;XZU301,304..T4..(5F,6FC)..20T..DSL ﾅｼ(ABS)	06/2004 - 10/2006	1
47312-37060	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 NO.1	06/2004 - 12/2999	1
47312-37490	XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T NO.2	06/2004 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02B27	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T 左側	06/2004 - 12/2999	1
90947-02A72	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T 右側	06/2004 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02B27	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T 左側	06/2004 - 12/2999	1
90947-02A72	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T 右側	06/2004 - 12/2999	1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	4
47314 - TUBE, FRONT BRAKE, NO.4
47314-37610	XZU351..DM5..5F;XZU301,304..T4..(5F,6FC)..20T..DSL ﾅｼ(ABS)	06/2004 - 10/2006	1
47314-37570	XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,31#,321,331,334,341,344,35#..SCB..(20T,30T) ｱﾘ(ABS)	06/2004 - 12/2999	1
47321 - TUBE, REAR BRAKE, NO.1
47321-37160	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 NO.1	06/2004 - 12/2999	1
47321-37420	XZU30#,31#,321,33#,34#,35#,368,378,388 ｱﾘ(ABS),NO.2	06/2004 - 12/2999	1
47321G - TUBE, REAR BRAKE, FRAME NO.1
47321-37430	XZU306,308..03S..ATM;XZU306..(SCB,VAN)..(03S,T4)..5F..(CBU,IV3);XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..DSL	06/2004 - 10/2006	1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-37130	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T	06/2004 - 12/2999	1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-37050	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T	06/2004 - 12/2999	1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-37150	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T	06/2004 - 12/2999	1
47354 - BRACKET, FRONT FLEXIBLE HOSE
47351-37240	BU306,346,XZU30#,33#,34#	05/1999 - 06/1999	1
47354-37150	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..DSL	06/2004 - 10/2006	1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47354-37160	BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T	06/2004 - 12/2999	1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-37030	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6	06/2004 - 12/2999	1
47391 - WAY, BRAKE TUBE
47391-37310	XZU306..SCB..T4..5F..(CBU,IV3);XZU301,304,308..SCB..T4..(5F,6FC)..20T..DSL NO.3	06/2004 - 10/2006	1
47391-37350	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..DSL NO.4	06/2004 - 10/2006	1
47391-37310	XZU30#,33#,34#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV6) NO.2	06/2004 - 12/2999	1
47391-37300	XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 NO.1	06/2004 - 12/2999	1
47391 - WAY, BRAKE TUBE
47391-37310	XZU306..SCB..T4..5F..(CBU,IV3);XZU301,304,308..SCB..T4..(5F,6FC)..20T..DSL NO.3	06/2004 - 10/2006	1
47391-37350	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..DSL NO.4	06/2004 - 10/2006	1
47391-37310	XZU30#,33#,34#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV6) NO.2	06/2004 - 12/2999	1
47391-37300	XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 NO.1	06/2004 - 12/2999	1
Common parts
47371-37050
47371-37080
90119-08676
90129-08007
90464-00726
90468-08035
90480-01054
90480-01275
90480-01628
90949-01540
90959-01593
90959-01594
90959-01602
90959-01604
90959-01605
90959-01616
91611-G0820
94130-00802
Linked diagrams
3102

ILLUST NO. 2 OF 5(0406- )XZU30#,33#,34#,354..DM3,DM6,T1,T2,T3,T4,T5..CBU,IV3,IV6,IV7

Click highlighted areas on diagram

W(ABS) 4X2 SHORT,S/LONG,LONG

Part #	Description	Period	Qty
47312F - TUBE, FRONT BRAKE, FRAME, NO.2
47312-37080	BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7)	05/1999 - 06/2002	1
47312-37500	XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7)	06/2004 - 05/2006	1
47312-37501	XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7)	05/2006 - 12/2999	1
47312F - TUBE, FRONT BRAKE, FRAME, NO.2
47312-37080	BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7)	05/1999 - 06/2002	1
47312-37500	XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7)	06/2004 - 05/2006	1
47312-37501	XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7)	05/2006 - 12/2999	1
47312F - TUBE, FRONT BRAKE, FRAME, NO.2
47312-37080	BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7)	05/1999 - 06/2002	1
47312-37500	XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7)	06/2004 - 05/2006	1
47312-37501	XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7)	05/2006 - 12/2999	1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90413-12009	XZU362..DM5,DM7;XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#..(DM3,T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
90412-10229	XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;RZU301,XZU305,331,336,341,344,346,354,378,388..(5F,6FC)..1NO;XZU304,306,308,334,338,348,368..(DCB,SCB)..(CBU,IV3,IV4,IV7) NO.4	06/2004 - 12/2999	1
47322A - TUBE, REAR BRAKE, FRAME NO.2
47322-37220	BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7)	05/1999 - 06/2002	1
47322-37590	XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7)	06/2004 - 05/2006	1
47322-37880	XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7)	05/2006 - 12/2999	1
47322A - TUBE, REAR BRAKE, FRAME NO.2
47322-37220	BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7)	05/1999 - 06/2002	1
47322-37590	XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7)	06/2004 - 05/2006	1
47322-37880	XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7)	05/2006 - 12/2999	1
47322A - TUBE, REAR BRAKE, FRAME NO.2
47322-37220	BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7)	05/1999 - 06/2002	1
47322-37590	XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7)	06/2004 - 05/2006	1
47322-37880	XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7)	05/2006 - 12/2999	1
47326 - TUBE, REAR BRAKE, NO.6
47326-37490	XZU30#,33#,34#,354,368,378,388..(DM3,DM6,T2,T3,T4,T5)..WT	06/2004 - 12/2999	1
47328 - TUBE, REAR BRAKE, NO.8
47328-37340	XZU30#,33#,34#,354,368,378,388..(DM3,DM6,T2,T3,T4,T5)..WT	06/2004 - 12/2999	1
Common parts
90119-08A46
90464-00778
90464-00833
90480-01620
90480-01621
90959-01593
90959-01594

ILLUST NO. 5 OF 5(0406- )RZU301,XZU301,304,308..SCB,VAN..03S,06S,T4..5F,6FC..20T..DSL,LPG

Click highlighted areas on diagram

W(LSPV)

Part #	Description	Period	Qty
04477 - BUSH & BOOT KIT, LOAD SENSING SPRING
04477-37010	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
04477-37010	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
04477-37010	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	1
04477-37010	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	1
47910 - VALVE ASSY, LOAD SENSING PROPORTIONING
47910-37090	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	1
47910-37090	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	1
47910-37090	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
47910-37090	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
47920 - SPRING ASSY, LOAD SENSING
47920-37070	XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(03S,06S,T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
47920-37070	XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(03S,06S,T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
47920-37070	XZU306,308..03S..ATM;XZU306..(SCB,VAN)..(03S,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	1
47920-37070	XZU306,308..03S..ATM;XZU306..(SCB,VAN)..(03S,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	1
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	2
90387-08099	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	2
90387-08099	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	2
90387-08099	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	2
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	2
90387-08099	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	2
90387-08099	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	2
90387-08099	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	2
47920B - CLIP(FOR LOAD SENSING VALVE BOOT)
90467-31110	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
90467-31110	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
90467-31110	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	1
90467-31110	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	1
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	2
90202-10103	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	2
90202-10103	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	2
90202-10103	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	2
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	2
90202-10103	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	2
90202-10103	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	2
90202-10103	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	2
47924 - BUSH, LOAD SENSING VALVE
47924-35010	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	2
47924-35010	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	2
47924-35010	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	2
47924-35010	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	2
47924 - BUSH, LOAD SENSING VALVE
47924-35010	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	2
47924-35010	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	2
47924-35010	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	2
47924-35010	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	2
47931 - BRACKET, LOAD SENSING VALVE
47931-37020	XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(03S,06S,T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
47931-37020	XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(03S,06S,T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
47933 - BRACKET, LOAD SENSING SHACKLE, NO.1
47933-37060	XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(03S,06S,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
47933-37060	XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(03S,06S,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
47933-37060	XZU306,308..03S..ATM;XZU306..(SCB,VAN)..(03S,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	1
47933-37060	XZU306,308..03S..ATM;XZU306..(SCB,VAN)..(03S,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	1
47935 - SHACKLE, LOAD SENSING SPRING, NO.1
47935-35030	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	1
47935-35030	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	1
47935-35030	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
47935-35030	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE)
90387-08099	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
90387-08099	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
90387-08099	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	1
90387-08099	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	1
47936 - SHACKLE, LOAD SENSING SPRING, NO.2
47936-26020	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
47936-26020	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
47936-26020	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	1
47936-26020	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	1
47937 - PLATE, LOAD SENSING VALVE SET
47937-60010	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	1
47937-60010	XZU306,308..03S..ATM;XZU306,351..(SCB,VAN)..(03S,DM5,T4)..5F..(CBU,IV3);RZU301,XZU301,304,308..(SCB,VAN)..(03S,06S,T4)..(5F,6FC)..20T..(DSL,LPG)	06/2004 - 12/2999	1
47937-60010	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
47937-60010	XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7)	05/1999 - 11/2000	1
Common parts
90119-08A33
90170-08016
90179-08204
90201-08062
90201-23360
91131-50840
91611-B0816
94130-00802
94612-10800

ILLUST NO. 4 OF 5(0406- )XZU30#,31#,321,33#,34#,35#,368,378,388

Click highlighted areas on diagram

W(ABS)

Part #	Description	Period	Qty
44540 - ACTUATOR ASSY, ABS & TRACTION
44540-37010	BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 03/2000	1
44050-37040	XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
Common parts
90099-05277
90119-08676

ILLUST NO. 4 OF 4(0610- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90099-05277
90119-08676

ILLUST NO. 2 OF 4(0610- )XZU30#,50#..T2,T4,T5..20T..WT

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90480-01620
90480-01621
90959-01594

ILLUST NO. 3 OF 3(7708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
91131-50840
91611-40816
91651-40820
94110-40800
94110-41000
94141-40800
94512-00800
94512-01000
95381-02020

ILLUST NO. 2 OF 3(7708- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90179-08146
90461-06009
90461-06178
90461-06487
90461-08058
90461-10076
90461-10625
90461-12124
90462-10033
90480-01047
90480-08343
90949-01006
90949-01019
90949-01034
90949-01035
91611-40812
91611-40820
91611-40825
91611-60614
91615-41040
91616-40820
91651-40820
91651-60614
91661-40614
94110-40800
96221-20905
96221-20906

XZU304-TQMMS3 (2004)

ILLUST NO. 1 OF 5(0406- )XZU301,304,305,331,334,341,344,354..DM3,DM6,T1,T3,T4,T5..CBU,IV3,IV4,IV6

ILLUST NO. 1 OF 5(0406- )XZU301,304..T4..5F,6FC..20T..DSL

ILLUST NO. 2 OF 5(0406- )XZU30#,33#,34#,354..DM3,DM6,T1,T2,T3,T4,T5..CBU,IV3,IV6,IV7

ILLUST NO. 5 OF 5(0406- )RZU301,XZU301,304,308..SCB,VAN..03S,06S,T4..5F,6FC..20T..DSL,LPG

ILLUST NO. 4 OF 5(0406- )XZU30#,31#,321,33#,34#,35#,368,378,388

ILLUST NO. 4 OF 4(0610- )

ILLUST NO. 2 OF 4(0610- )XZU30#,50#..T2,T4,T5..20T..WT

ILLUST NO. 3 OF 3(7708- )

ILLUST NO. 2 OF 3(7708- )

Part Price Details
