XZU304-TQMMS3 (2004)

Toyota Dyna/Toyoace

Production Jun 2004 - Oct 2006
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0406- )RZU301,XZU304,31#,35#,378..SCB..DM5,T3,T4,T5..5F,6FC..IV3,IV6

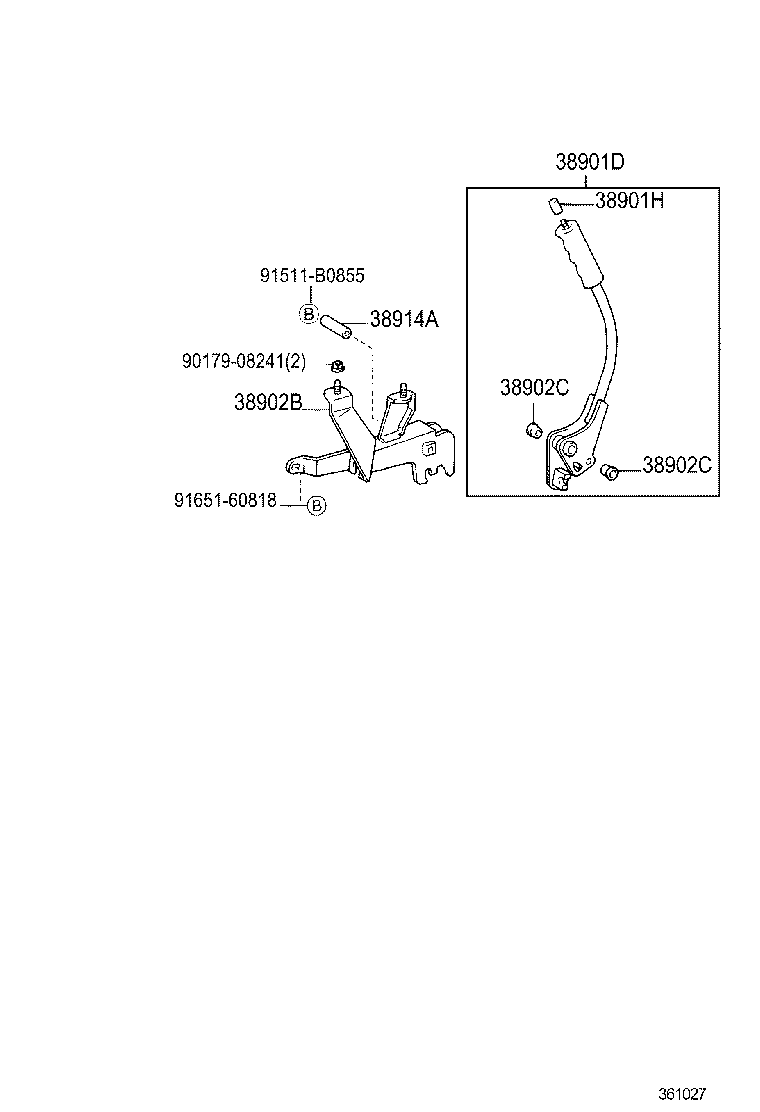

Click highlighted areas on diagram

ﾚﾊﾞｰﾉﾐ

diagram 38901D 38901H 38902B 38902C 38902C 38914A 9017908241 91511B0855 9165160818
Part # Description Qty Price
38902B - BRACKET SUB-ASSY, VALVE CONTROL LEVER
38902-37040

RZU300..DM5;XZU351..6FC..CBU;XZU341..T3..5F..20T..IV3;XZU306,346..DCB..5F..IV3;XZU301,306,368..SCB..(T2,T3,T4,T5)..WT..IV3;RZU301,XZU304,31#,35#,378..SCB..(DM5,T3,T4,T5)..(5F,6FC)..(IV3,IV6)

 1
38902-37040

RZU300..DM5;XZU351..6FC..CBU;XZU341..T3..5F..20T..IV3;XZU306,346..DCB..5F..IV3;XZU301,306,368..SCB..(T2,T3,T4,T5)..WT..IV3;RZU301,XZU304,31#,35#,378..SCB..(DM5,T3,T4,T5)..(5F,6FC)..(IV3,IV6)

 1
38902-37040

RZU300..DM5;XZU351..6FC..CBU;XZU341..T3..5F..20T..IV3;XZU306,346..DCB..5F..IV3;XZU301,306,368..SCB..(T2,T3,T4,T5)..WT..IV3;RZU301,XZU304,31#,35#,378..SCB..(DM5,T3,T4,T5)..(5F,6FC)..(IV3,IV6)

 1
38902C - BUSH (FOR VALVE CONTROL LEVER)
90386-12034

XZU354;XZU301..5F..IV6;XZU368..DM5..CBU;XZU306..SCB..(IV3,IV6);XZU341..T3..5F..20T..IV3;XZU306,346..DCB..5F..IV3;RZU300,XZU301,31#,321,351..DM2,DM3,DM5,DM7;RZU301,XZU301,304,368,378..SCB..(DM5,T3,T4,T5)..(5F,6FC)..WT..(IV3,IV7)

 2
90386-12034

XZU354;XZU301..5F..IV6;XZU368..DM5..CBU;XZU306..SCB..(IV3,IV6);XZU341..T3..5F..20T..IV3;XZU306,346..DCB..5F..IV3;RZU300,XZU301,31#,321,351..DM2,DM3,DM5,DM7;RZU301,XZU301,304,368,378..SCB..(DM5,T3,T4,T5)..(5F,6FC)..WT..(IV3,IV7)

 2
90386-12034

XZU354;XZU301..5F..IV6;XZU368..DM5..CBU;XZU306..SCB..(IV3,IV6);XZU341..T3..5F..20T..IV3;XZU306,346..DCB..5F..IV3;RZU300,XZU301,31#,321,351..DM2,DM3,DM5,DM7;RZU301,XZU301,304,368,378..SCB..(DM5,T3,T4,T5)..(5F,6FC)..WT..(IV3,IV7)

 2
38902C - BUSH (FOR VALVE CONTROL LEVER)
90386-12034

XZU354;XZU301..5F..IV6;XZU368..DM5..CBU;XZU306..SCB..(IV3,IV6);XZU341..T3..5F..20T..IV3;XZU306,346..DCB..5F..IV3;RZU300,XZU301,31#,321,351..DM2,DM3,DM5,DM7;RZU301,XZU301,304,368,378..SCB..(DM5,T3,T4,T5)..(5F,6FC)..WT..(IV3,IV7)

 2
90386-12034

XZU354;XZU301..5F..IV6;XZU368..DM5..CBU;XZU306..SCB..(IV3,IV6);XZU341..T3..5F..20T..IV3;XZU306,346..DCB..5F..IV3;RZU300,XZU301,31#,321,351..DM2,DM3,DM5,DM7;RZU301,XZU301,304,368,378..SCB..(DM5,T3,T4,T5)..(5F,6FC)..WT..(IV3,IV7)

 2
90386-12034

XZU354;XZU301..5F..IV6;XZU368..DM5..CBU;XZU306..SCB..(IV3,IV6);XZU341..T3..5F..20T..IV3;XZU306,346..DCB..5F..IV3;RZU300,XZU301,31#,321,351..DM2,DM3,DM5,DM7;RZU301,XZU301,304,368,378..SCB..(DM5,T3,T4,T5)..(5F,6FC)..WT..(IV3,IV7)

 2
38914A - PIPE, VALVE CONTROL LEVER
38914-37010

XZU354;XZU301..5F..IV6;XZU368..DM5..CBU;XZU306..SCB..(IV3,IV6);XZU341..T3..5F..20T..IV3;XZU306,346..DCB..5F..IV3;RZU300,XZU301,31#,321,351..DM2,DM3,DM5,DM7;RZU301,XZU301,304,368,378..SCB..(DM5,T3,T4,T5)..(5F,6FC)..WT..(IV3,IV7)

 1
38914-37010

XZU354;XZU301..5F..IV6;XZU368..DM5..CBU;XZU306..SCB..(IV3,IV6);XZU341..T3..5F..20T..IV3;XZU306,346..DCB..5F..IV3;RZU300,XZU301,31#,321,351..DM2,DM3,DM5,DM7;RZU301,XZU301,304,368,378..SCB..(DM5,T3,T4,T5)..(5F,6FC)..WT..(IV3,IV7)

 1
38914-37010

XZU354;XZU301..5F..IV6;XZU368..DM5..CBU;XZU306..SCB..(IV3,IV6);XZU341..T3..5F..20T..IV3;XZU306,346..DCB..5F..IV3;RZU300,XZU301,31#,321,351..DM2,DM3,DM5,DM7;RZU301,XZU301,304,368,378..SCB..(DM5,T3,T4,T5)..(5F,6FC)..WT..(IV3,IV7)

 1
Common parts
90179-08241
91511-B0855
91651-60818
