XZU304-TQMMS3 (2004)
Toyota Dyna/Toyoace
ILLUST NO. 2 OF 2(0406- )XZU304,305,308,334,338,344,348,354..03S,06S,DM6,T1,T2,T3,T4,T5..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33820J - CLIP(FOR TRANSMISSION CONTROL CABLE) | ||||
| 90468-17001 |
BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382..MTM TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33820-3V380 |
XZU304,308,334,338,348..5F..DSL |
1 | ||
| 33820-3V381 |
XZU304,308,334,338,348..5F..DSL |
1 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33830-37080 |
XZU304,308,334,338,348..5F..DSL |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-37650 |
XZU304,308,334,338,348..5F..DSL |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-37650 |
XZU304,308,334,338,348..5F..DSL |
1 | ||
| 33825 - INSULATOR, TRANSMISSION CONTROL CABLE | ||||
| 33825-37030 |
XZU304,305,308,314,334,338,344,348,354 NO.1 |
1 | ||
| 33825-37040 |
XZU304,305,308,314,334,338,344,348,354..CBU,IV3,IV6,IV7 NO.2 |
1 | ||
| 33825-37031 |
XZU304,305,308,314,334,338,344,348,354 NO.1 |
1 | ||
| 33825 - INSULATOR, TRANSMISSION CONTROL CABLE | ||||
| 33825-37030 |
XZU304,305,308,314,334,338,344,348,354 NO.1 |
1 | ||
| 33825-37040 |
XZU304,305,308,314,334,338,344,348,354..CBU,IV3,IV6,IV7 NO.2 |
1 | ||
| 33825-37031 |
XZU304,305,308,314,334,338,344,348,354 NO.1 |
1 | ||
| 33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2 | ||||
| 33826-37180 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 33826B - BRACKET, TRANSMISSION CONTROL CABLE, NO.3 | ||||
| 33826-37210 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 33826C - BRACKET, TRANSMISSION CONTROL CABLE, NO.4 | ||||
| 33826-37610 |
BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35# |
1 | ||
| 33826C - BRACKET, TRANSMISSION CONTROL CABLE, NO.4 | ||||
| 33826-37610 |
BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35# |
1 | ||
| 33826D - BRACKET, TRANSMISSION CONTROL CABLE, NO.5 | ||||
| 33827-37110 |
XZU304,305,308,31#,321,334,338,344,348,35#,368,378,388 |
1 | ||
| 33826F - BRACKET, TRANSMISSION CONTROL CABLE, NO.7 | ||||
| 33827-37150 |
XZU368;XZU304,305,308,334,338,344,348,354,378,388..03S,06S,DM6,T1,T2,T3,T4,T5 |
1 | ||
| 33826R - BRACKET, TRANSMISSION CONTROL CABLE, NO.8 | ||||
| 33828-37020 |
XZU304,305,308,314,334,338,344,348,354,368,378,388 NO.2 |
1 | ||
| 33826-37580 |
XZU304,305,314,334,344,354 NO.1 |
1 | ||
| 33826R - BRACKET, TRANSMISSION CONTROL CABLE, NO.8 | ||||
| 33828-37020 |
XZU304,305,308,314,334,338,344,348,354,368,378,388 NO.2 |
1 | ||
| 33826-37580 |
XZU304,305,314,334,344,354 NO.1 |
1 | ||
| 33826R - BRACKET, TRANSMISSION CONTROL CABLE, NO.8 | ||||
| 33828-37020 |
XZU304,305,308,314,334,338,344,348,354,368,378,388 NO.2 |
1 | ||
| 33826-37580 |
XZU304,305,314,334,344,354 NO.1 |
1 | ||
| 33826R - BRACKET, TRANSMISSION CONTROL CABLE, NO.8 | ||||
| 33828-37020 |
XZU304,305,308,314,334,338,344,348,354,368,378,388 NO.2 |
1 | ||
| 33826-37580 |
XZU304,305,314,334,344,354 NO.1 |
1 | ||
| 33826S - BRACKET, TRANSMISSION CONTROL CABLE, NO.9 | ||||
| 33828-37030 |
XZU304,305,308,31#,321,334,338,344,348,35#,368,378,388 |
1 | ||
| 33827 - BRACKET, TRANSMISSION CONTROL CABLE, NO.3 | ||||
| 33827-37240 |
XZU304..5F..IV4;XZU304..20T..DSL;XZU334..(4FC,5F)..(DSL,DSLL);XZU301,306,308,311,321,331,336,338,341,346,348,351,368,378,388 |
1 | ||
| 33827-37241 |
XZU304..5F..IV4;XZU304..20T..DSL;XZU334..(4FC,5F)..(DSL,DSLL);XZU301,306,308,311,321,331,336,338,341,346,348,351,368,378,388 |
1 | ||
| 33827 - BRACKET, TRANSMISSION CONTROL CABLE, NO.3 | ||||
| 33827-37240 |
XZU304..5F..IV4;XZU304..20T..DSL;XZU334..(4FC,5F)..(DSL,DSLL);XZU301,306,308,311,321,331,336,338,341,346,348,351,368,378,388 |
1 | ||
| 33827-37241 |
XZU304..5F..IV4;XZU304..20T..DSL;XZU334..(4FC,5F)..(DSL,DSLL);XZU301,306,308,311,321,331,336,338,341,346,348,351,368,378,388 |
1 | ||
| 33829B - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-37210 |
XZU304,305,308,314,334,338,344,348,354,368,378,388 |
1 | ||
| Common parts | ||||
| 90119-10883 | ||||
| 90179-08038 | ||||
| 90179-08233 | ||||
| 90201-10042 | ||||
| 90468-14004 | ||||
| 90468-14016 | ||||
| 90949-01B94 | ||||
| 91611-B0816 | ||||
| 91611-G0820 | ||||
| 91651-60816 | ||||
| 91651-61025 | ||||
| 91651-B0825 | ||||
| 94150-80800 | ||||
| 94185-60800 | ||||
| Linked diagrams | ||||
| 4601 | ||||

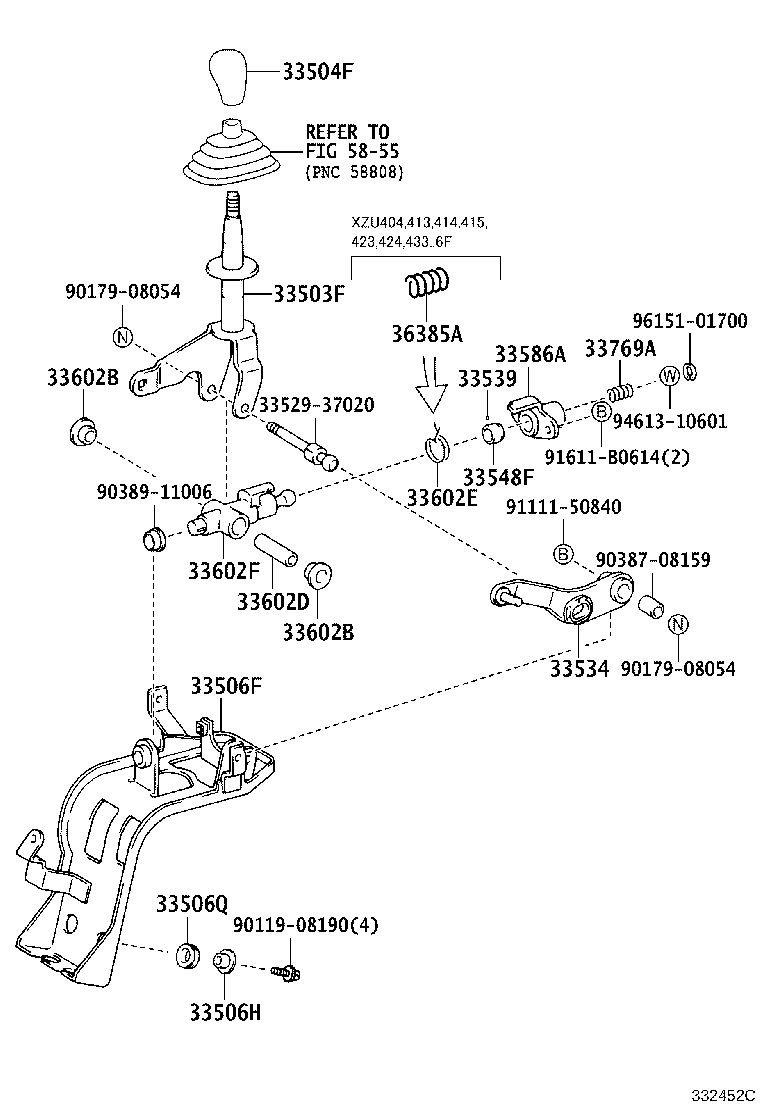

ILLUST NO. 1 OF 2(0406-0610)MTM
ｶﾄｳｼｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 33529-37020 | ||||
| 90119-08190 | ||||
| 90179-08054 | ||||
| 90387-08159 | ||||
| 90389-11006 | ||||
| 91111-50840 | ||||
| 91611-B0614 | ||||
| 94613-10601 | ||||
| 96151-01700 | ||||
| Linked diagrams | ||||
| 5855 | ||||
ILLUST NO. 1 OF 2(0406- )MTM..CNG,DCR,DCRL,DSL,DSLL,LPG
ｺﾃｲｼｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08190 | ||||
| Linked diagrams | ||||
| 5855 | ||||
