XZU304-TQMMS3 (2004)
Toyota Dyna/Toyoace
(0406- )N04C
24V 80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

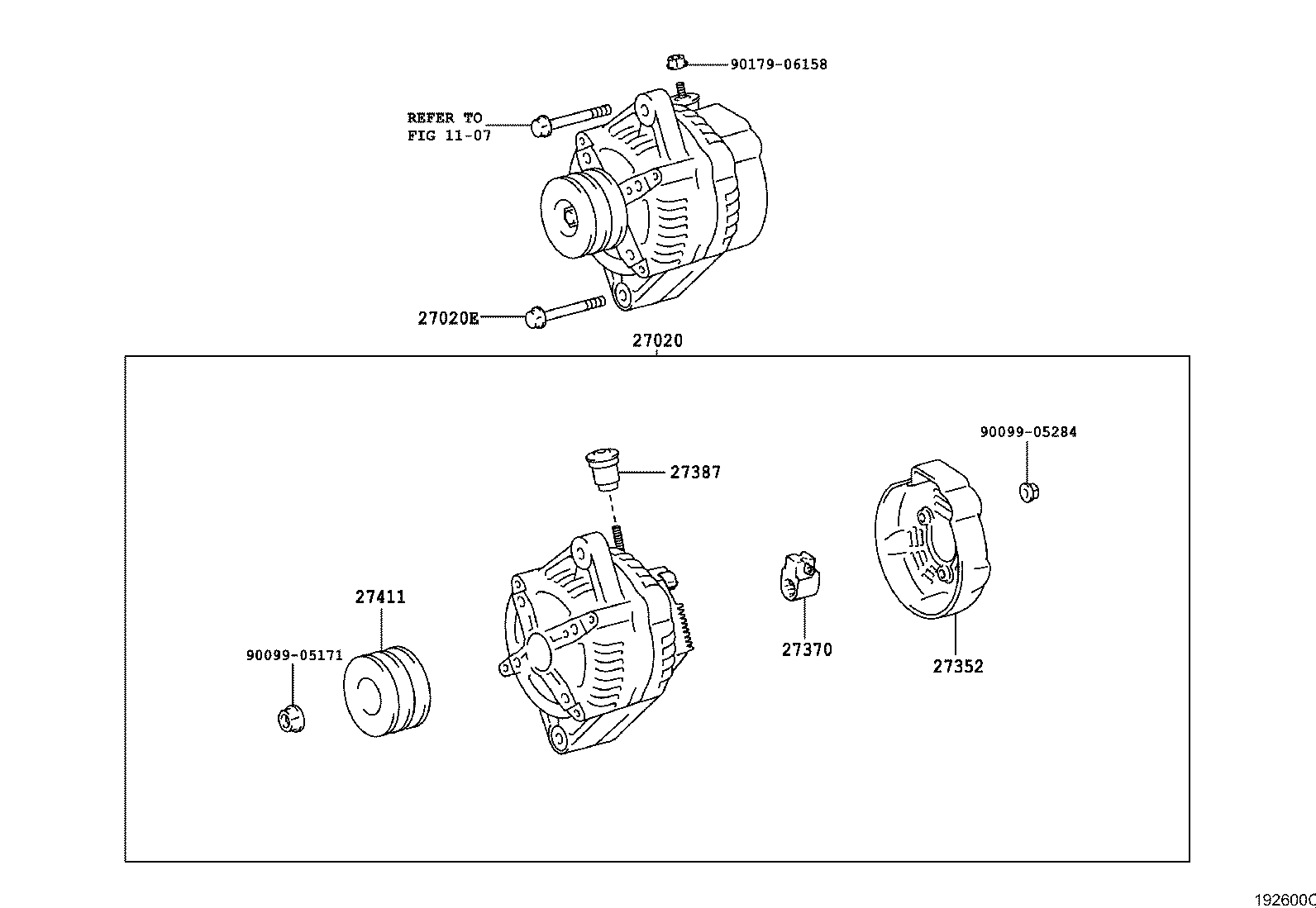

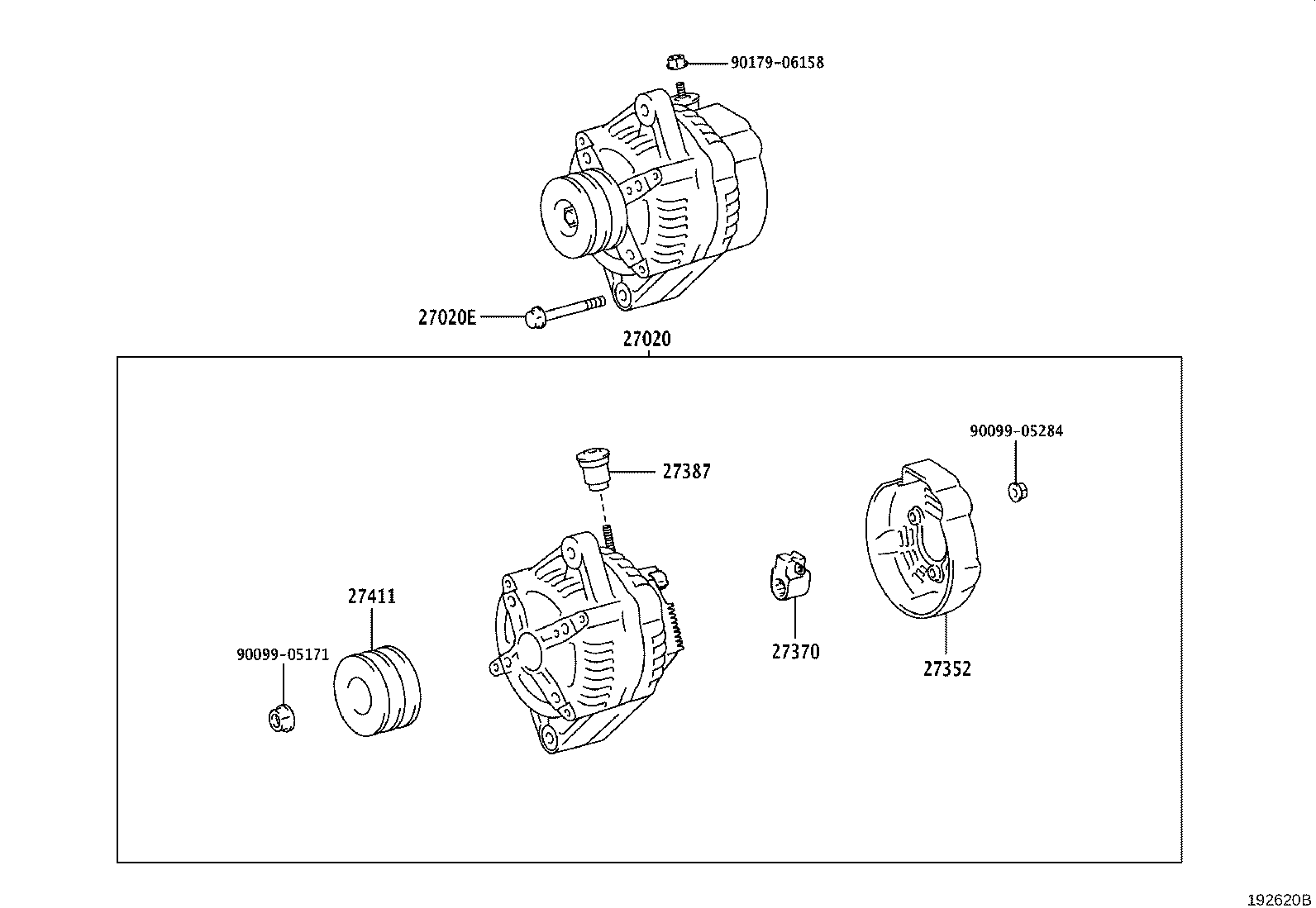

| 27020 - ALTERNATOR ASSY | ||||
| 27060-78110 |
N04C..XZU378..IV4;N04C..XZU308,378,388..SCB..IV3;N04C..XZU304,334,338,344,348,368..(T2,T3,T4,T5)..(IV3,IV4) 24V 80A |
1 | ||
| 27352 - COVER, FRAME BRUSH | ||||
| 27352-89104 |
N04C..XZU378..IV4;N04C..XZU308,378,388..SCB..IV3;N04C..XZU304,334,338,344,348,368..(T2,T3,T4,T5)..(IV3,IV4) |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-58460 |
N04C..XZU378..IV4;N04C,S05D..XZU306,308,346,378,388..SCB..IV3;N04C,S05D..XZU301,304,33#,341,344,348,368..(T2,T3,T4,T5)..(IV3,IV4) 24V 80A |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-20130 |
N04C..XZU378..IV4;N04C..XZU308,378,388..SCB..IV3;N04C..XZU304,334,338,344,348,368..(T2,T3,T4,T5)..(IV3,IV4) |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-89109 |
N04C..XZU378..IV4;N04C..XZU308,378,388..SCB..IV3;N04C..XZU304,334,338,344,348,368..(T2,T3,T4,T5)..(IV3,IV4) 24V 80A |
1 | ||
| Common parts | ||||
| 90099-05171 | ||||
| 90099-05284 | ||||
| 90179-06158 | ||||
(0610-1010)N04C..CBU,IV3,IV6,IV7
24V 60A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-06158 | ||||
(0406-0610)N04C..IV3,IV5 ; (0610-1010)N04C..SCB..IV3
24V 80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-05171 | ||||
| 90099-05284 | ||||
| 90179-06158 | ||||
| Linked diagrams | ||||
| 1107 | ||||
