XZU304-TQMMB3 (2006)

Toyota Dyna/Toyoace

Production Oct 2006 - Jun 2011
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(0610- )XZU30#,368,50#,568..SCB..DM3,DM5,T2,T3,T4,T5..CBU,IV3,IV7

Click highlighted areas on diagram

ﾌｭｰｴﾙ ﾀﾝｸ(780X320X385)

diagram 77017B 77023 77026B 77100A 77100B 77100U 77154 77169A 77169B 77178 77244C 77249 77380 77701U 8401 8401 8401 93319A4010 93319A4010 9613251100
Part # Description Qty Price
77017B - TUBE SUB-ASSY, FUEL TANK VENT
77017-37010

XZU378..IV4;XZU308,378..SCB;XZU304,314,324,33#,34#,354,388,50#,524,538,548,554..DCB,SCB

 1
77017-37010

XZU378..IV4;XZU308,378..SCB;XZU304,314,324,33#,34#,354,388,50#,524,538,548,554..DCB,SCB

 1
77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE
77023-60010

XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
77023-60010

XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
77026B - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77026-37010

XZU308,378..SCB;TRU300,340,500,XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7)

 1
77026-37010

XZU308,378..SCB;TRU300,340,500,XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7)

 1
77100A - PLUG(FOR FUEL TANK)
90105-12116

TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
90105-12116

TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
90430-12245

TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
77100U - TANK SUB-ASSY, FUEL
77001-37510

XZU568..DM5;XZU304..30T..IV6;XZU554..6FC..IV3;XZU554..DCRUE..IV3;XZU368..T4..DCRTK..IV3;XZU304..T5..30T..DCRUE..IV3;XZU304,334,50#..(DM6,T4)..(IV3,IV6);XZU308,338,354,524,538..SCB..(DM7,T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE)..(IV3,IV6)

690X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=70L)

 1
77001-37510

XZU568..DM5;XZU304..30T..IV6;XZU554..6FC..IV3;XZU554..DCRUE..IV3;XZU368..T4..DCRTK..IV3;XZU304..T5..30T..DCRUE..IV3;XZU304,334,50#..(DM6,T4)..(IV3,IV6);XZU308,338,354,524,538..SCB..(DM7,T3,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE)..(IV3,IV6)

690X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=70L)

 1
77001-37470

XZU378..30T..IV3;XZU334..T3..(DCRTJ,DCRUE)..IV3;XZU314,324,338,354,524,554..DM5,DM7,T2;XZU30#,368,50#,568..SCB..(DM3,DM5,T2,T3,T4,T5)..(CBU,IV3,IV7)

780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)

 1
77001-37470

XZU378..30T..IV3;XZU334..T3..(DCRTJ,DCRUE)..IV3;XZU314,324,338,354,524,554..DM5,DM7,T2;XZU30#,368,50#,568..SCB..(DM3,DM5,T2,T3,T4,T5)..(CBU,IV3,IV7)

780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L)

 1
77154 - PLATE, FUEL TANK EVAP/VENT TUBE SUPPORT
77154-25010

XZU308,378..SCB;TRU300,340,500,XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7)

 1
77154-25010

XZU308,378..SCB;TRU300,340,500,XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7)

 1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-14020

XZU348,388;XZU30#,314,324,33#,344,354,368,378,50#,524,538,548,554,568..SCB

 1
77169-14020

XZU348,388;XZU30#,314,324,33#,344,354,368,378,50#,524,538,548,554,568..SCB

 1
77169B - GASKET, FUEL SUCTION TUBE SET, NO.1
77169-14020

XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
77169-14020

XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
77178 - GASKET, FUEL TANK FILLER PIPE, LOWER
77178-44010

XZU308,378..SCB;TRU300,340,500,XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7)

 1
77178-44010

XZU308,378..SCB;TRU300,340,500,XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7)

 1
77244C - JOINT, FUEL TUBE, NO.2
77244-37010

XZU378..IV4;XZU308,378..SCB;XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..DCB,SCB

 1
77244-37010

XZU378..IV4;XZU308,378..SCB;XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..DCB,SCB

 1
77249 - HOSE, FUEL EMISSION
77249-37190

XZU348,388;XZU30#,314,324,33#,344,354,368,378,50#,524,538,548,554,568..SCB

 1
77249-37190

XZU348,388;XZU30#,314,324,33#,344,354,368,378,50#,524,538,548,554,568..SCB

 1
77380 - VALVE ASSY, FUEL CUT OFF
77380-26010

XZU308,378..SCB;TRU300,340,500,XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7)

 1
77380-26010

XZU308,378..SCB;TRU300,340,500,XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7)

 1
77701U - HOSE, FUEL (FOR CHECK VALVE)
95333-06040

XZU348,388;XZU30#,314,324,33#,344,354,368,378,50#,524,538,548,554,568..SCB

*H,L=340

 1
95333-06040

XZU348,388;XZU30#,314,324,33#,344,354,368,378,50#,524,538,548,554,568..SCB

*H,L=340

 1
Common parts
93319-A4010
96132-51100
Linked diagrams
8401

ILLUST NO. 2 OF 3(0610- )XZU304,314,324,338,34#,354,388,504,524,548,554..DM3,DM5,DM7,T2,T3,T4,T5.

Click highlighted areas on diagram

ﾌｭｰｴﾙ ﾀﾝｸ ｽﾃ-

diagram 77601A 77601A 77601A 77601A 77611A 77611A 77611A 77611A 77616C 77616C 77616C 77616C 77633 77633 77633 77633 9017910015 9017910015 9017910015 9164281040 9164281040 91645C1032 91645C1032 91645C1032 9413000802 9413000802 9413000802 9413000802 9413000802 9413000802 9413000802 9413000802
Part # Description Qty Price
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-37041

XZU378..IV4;XZU388..T3..20T..IV3;XZU304..(DM3,T4)..CBU;XZU334,34#,548..T2,T4;XZU304..IV3,IV4,IV6,IV7;XZU308,334,34#,50#,548..(T3,T5)..(IV3,IV4);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4)

 2
77601-37041

XZU378..IV4;XZU388..T3..20T..IV3;XZU304..(DM3,T4)..CBU;XZU334,34#,548..T2,T4;XZU304..IV3,IV4,IV6,IV7;XZU308,334,34#,50#,548..(T3,T5)..(IV3,IV4);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4)

 2
77601-37041

XZU378..IV4;XZU388..T3..20T..IV3;XZU304..(DM3,T4)..CBU;XZU334,34#,548..T2,T4;XZU304..IV3,IV4,IV6,IV7;XZU308,334,34#,50#,548..(T3,T5)..(IV3,IV4);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4)

 2
77601-37040

XZU378..IV4;XZU388..T3..20T..IV3;XZU304,334,34#,548..DM3,DM6,T2,T4;XZU30#,334,34#,50#,548..(T3,T5)..(IV3,IV4,IV6,IV7);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4)

 2
77601-37040

XZU378..IV4;XZU388..T3..20T..IV3;XZU304,334,34#,548..DM3,DM6,T2,T4;XZU30#,334,34#,50#,548..(T3,T5)..(IV3,IV4,IV6,IV7);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4)

 2
77601-37040

XZU378..IV4;XZU388..T3..20T..IV3;XZU304,334,34#,548..DM3,DM6,T2,T4;XZU30#,334,34#,50#,548..(T3,T5)..(IV3,IV4,IV6,IV7);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4)

 2
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-37041

XZU378..IV4;XZU388..T3..20T..IV3;XZU304..(DM3,T4)..CBU;XZU334,34#,548..T2,T4;XZU304..IV3,IV4,IV6,IV7;XZU308,334,34#,50#,548..(T3,T5)..(IV3,IV4);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4)

 2
77601-37041

XZU378..IV4;XZU388..T3..20T..IV3;XZU304..(DM3,T4)..CBU;XZU334,34#,548..T2,T4;XZU304..IV3,IV4,IV6,IV7;XZU308,334,34#,50#,548..(T3,T5)..(IV3,IV4);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4)

 2
77601-37041

XZU378..IV4;XZU388..T3..20T..IV3;XZU304..(DM3,T4)..CBU;XZU334,34#,548..T2,T4;XZU304..IV3,IV4,IV6,IV7;XZU308,334,34#,50#,548..(T3,T5)..(IV3,IV4);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4)

 2
77601-37040

XZU378..IV4;XZU388..T3..20T..IV3;XZU304,334,34#,548..DM3,DM6,T2,T4;XZU30#,334,34#,50#,548..(T3,T5)..(IV3,IV4,IV6,IV7);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4)

 2
77601-37040

XZU378..IV4;XZU388..T3..20T..IV3;XZU304,334,34#,548..DM3,DM6,T2,T4;XZU30#,334,34#,50#,548..(T3,T5)..(IV3,IV4,IV6,IV7);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4)

 2
77601-37040

XZU378..IV4;XZU388..T3..20T..IV3;XZU304,334,34#,548..DM3,DM6,T2,T4;XZU30#,334,34#,50#,548..(T3,T5)..(IV3,IV4,IV6,IV7);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4)

 2
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-37041

XZU378..IV4;XZU388..T3..20T..IV3;XZU304..(DM3,T4)..CBU;XZU334,34#,548..T2,T4;XZU304..IV3,IV4,IV6,IV7;XZU308,334,34#,50#,548..(T3,T5)..(IV3,IV4);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4)

 2
77601-37041

XZU378..IV4;XZU388..T3..20T..IV3;XZU304..(DM3,T4)..CBU;XZU334,34#,548..T2,T4;XZU304..IV3,IV4,IV6,IV7;XZU308,334,34#,50#,548..(T3,T5)..(IV3,IV4);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4)

 2
77601-37041

XZU378..IV4;XZU388..T3..20T..IV3;XZU304..(DM3,T4)..CBU;XZU334,34#,548..T2,T4;XZU304..IV3,IV4,IV6,IV7;XZU308,334,34#,50#,548..(T3,T5)..(IV3,IV4);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4)

 2
77601-37040

XZU378..IV4;XZU388..T3..20T..IV3;XZU304,334,34#,548..DM3,DM6,T2,T4;XZU30#,334,34#,50#,548..(T3,T5)..(IV3,IV4,IV6,IV7);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4)

 2
77601-37040

XZU378..IV4;XZU388..T3..20T..IV3;XZU304,334,34#,548..DM3,DM6,T2,T4;XZU30#,334,34#,50#,548..(T3,T5)..(IV3,IV4,IV6,IV7);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4)

 2
77601-37040

XZU378..IV4;XZU388..T3..20T..IV3;XZU304,334,34#,548..DM3,DM6,T2,T4;XZU30#,334,34#,50#,548..(T3,T5)..(IV3,IV4,IV6,IV7);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4)

 2
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-37041

XZU378..IV4;XZU388..T3..20T..IV3;XZU304..(DM3,T4)..CBU;XZU334,34#,548..T2,T4;XZU304..IV3,IV4,IV6,IV7;XZU308,334,34#,50#,548..(T3,T5)..(IV3,IV4);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4)

 2
77601-37041

XZU378..IV4;XZU388..T3..20T..IV3;XZU304..(DM3,T4)..CBU;XZU334,34#,548..T2,T4;XZU304..IV3,IV4,IV6,IV7;XZU308,334,34#,50#,548..(T3,T5)..(IV3,IV4);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4)

 2
77601-37041

XZU378..IV4;XZU388..T3..20T..IV3;XZU304..(DM3,T4)..CBU;XZU334,34#,548..T2,T4;XZU304..IV3,IV4,IV6,IV7;XZU308,334,34#,50#,548..(T3,T5)..(IV3,IV4);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4)

 2
77601-37040

XZU378..IV4;XZU388..T3..20T..IV3;XZU304,334,34#,548..DM3,DM6,T2,T4;XZU30#,334,34#,50#,548..(T3,T5)..(IV3,IV4,IV6,IV7);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4)

 2
77601-37040

XZU378..IV4;XZU388..T3..20T..IV3;XZU304,334,34#,548..DM3,DM6,T2,T4;XZU30#,334,34#,50#,548..(T3,T5)..(IV3,IV4,IV6,IV7);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4)

 2
77601-37040

XZU378..IV4;XZU388..T3..20T..IV3;XZU304,334,34#,548..DM3,DM6,T2,T4;XZU30#,334,34#,50#,548..(T3,T5)..(IV3,IV4,IV6,IV7);XZU308,314,324,338,354,368,378,388,50#,524,538,554,568..SCB..(DM5,DM7,T2,T3,T4)

 2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010

XZU378..IV4;XZU308,378..SCB;XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..DCB,SCB

 2
77629-36010

XZU378..IV4;XZU308,378..SCB;XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..DCB,SCB

 2
77629-36010

XZU378..IV4;XZU308,378..SCB;XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..DCB,SCB

 2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010

XZU378..IV4;XZU308,378..SCB;XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..DCB,SCB

 2
77629-36010

XZU378..IV4;XZU308,378..SCB;XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..DCB,SCB

 2
77629-36010

XZU378..IV4;XZU308,378..SCB;XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..DCB,SCB

 2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010

XZU378..IV4;XZU308,378..SCB;XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..DCB,SCB

 2
77629-36010

XZU378..IV4;XZU308,378..SCB;XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..DCB,SCB

 2
77629-36010

XZU378..IV4;XZU308,378..SCB;XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..DCB,SCB

 2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010

XZU378..IV4;XZU308,378..SCB;XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..DCB,SCB

 2
77629-36010

XZU378..IV4;XZU308,378..SCB;XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..DCB,SCB

 2
77629-36010

XZU378..IV4;XZU308,378..SCB;XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..DCB,SCB

 2
77616C - SEAT, FUEL TANK BAND
77616-36030

XZU378..IV4;XZU304,334,348,388;TRU300,340,XZU308,314,324,338,344,354,368,378,50#,524,538,548,554,568..SCB

 2
77616-36030

XZU378..IV4;XZU304,334,348,388;TRU300,340,XZU308,314,324,338,344,354,368,378,50#,524,538,548,554,568..SCB

 2
77616-36030

XZU378..IV4;XZU304,334,348,388;TRU300,340,XZU308,314,324,338,344,354,368,378,50#,524,538,548,554,568..SCB

 2
77616C - SEAT, FUEL TANK BAND
77616-36030

XZU378..IV4;XZU304,334,348,388;TRU300,340,XZU308,314,324,338,344,354,368,378,50#,524,538,548,554,568..SCB

 2
77616-36030

XZU378..IV4;XZU304,334,348,388;TRU300,340,XZU308,314,324,338,344,354,368,378,50#,524,538,548,554,568..SCB

 2
77616-36030

XZU378..IV4;XZU304,334,348,388;TRU300,340,XZU308,314,324,338,344,354,368,378,50#,524,538,548,554,568..SCB

 2
77616C - SEAT, FUEL TANK BAND
77616-36030

XZU378..IV4;XZU304,334,348,388;TRU300,340,XZU308,314,324,338,344,354,368,378,50#,524,538,548,554,568..SCB

 2
77616-36030

XZU378..IV4;XZU304,334,348,388;TRU300,340,XZU308,314,324,338,344,354,368,378,50#,524,538,548,554,568..SCB

 2
77616-36030

XZU378..IV4;XZU304,334,348,388;TRU300,340,XZU308,314,324,338,344,354,368,378,50#,524,538,548,554,568..SCB

 2
77616C - SEAT, FUEL TANK BAND
77616-36030

XZU378..IV4;XZU304,334,348,388;TRU300,340,XZU308,314,324,338,344,354,368,378,50#,524,538,548,554,568..SCB

 2
77616-36030

XZU378..IV4;XZU304,334,348,388;TRU300,340,XZU308,314,324,338,344,354,368,378,50#,524,538,548,554,568..SCB

 2
77616-36030

XZU378..IV4;XZU304,334,348,388;TRU300,340,XZU308,314,324,338,344,354,368,378,50#,524,538,548,554,568..SCB

 2
77633 - STAY, FUEL TANK
77501-37080

XZU388..T3..20T..IV3;XZU304,334,34#,548..DM3,DM6,T2,T4;XZU30#,334,34#,50#,548..(T3,T5)..(IV3,IV6,IV7);XZU308,314,324,338,354,378,388,50#,524,538,554..SCB..(DM5,DM7,T2,T3,T4)

 2
77501-37080

XZU388..T3..20T..IV3;XZU304,334,34#,548..DM3,DM6,T2,T4;XZU30#,334,34#,50#,548..(T3,T5)..(IV3,IV6,IV7);XZU308,314,324,338,354,378,388,50#,524,538,554..SCB..(DM5,DM7,T2,T3,T4)

 2
77501-37080

XZU388..T3..20T..IV3;XZU304,334,34#,548..DM3,DM6,T2,T4;XZU30#,334,34#,50#,548..(T3,T5)..(IV3,IV6,IV7);XZU308,314,324,338,354,378,388,50#,524,538,554..SCB..(DM5,DM7,T2,T3,T4)

 2
77633 - STAY, FUEL TANK
77501-37080

XZU388..T3..20T..IV3;XZU304,334,34#,548..DM3,DM6,T2,T4;XZU30#,334,34#,50#,548..(T3,T5)..(IV3,IV6,IV7);XZU308,314,324,338,354,378,388,50#,524,538,554..SCB..(DM5,DM7,T2,T3,T4)

 2
77501-37080

XZU388..T3..20T..IV3;XZU304,334,34#,548..DM3,DM6,T2,T4;XZU30#,334,34#,50#,548..(T3,T5)..(IV3,IV6,IV7);XZU308,314,324,338,354,378,388,50#,524,538,554..SCB..(DM5,DM7,T2,T3,T4)

 2
77501-37080

XZU388..T3..20T..IV3;XZU304,334,34#,548..DM3,DM6,T2,T4;XZU30#,334,34#,50#,548..(T3,T5)..(IV3,IV6,IV7);XZU308,314,324,338,354,378,388,50#,524,538,554..SCB..(DM5,DM7,T2,T3,T4)

 2
77633 - STAY, FUEL TANK
77501-37080

XZU388..T3..20T..IV3;XZU304,334,34#,548..DM3,DM6,T2,T4;XZU30#,334,34#,50#,548..(T3,T5)..(IV3,IV6,IV7);XZU308,314,324,338,354,378,388,50#,524,538,554..SCB..(DM5,DM7,T2,T3,T4)

 2
77501-37080

XZU388..T3..20T..IV3;XZU304,334,34#,548..DM3,DM6,T2,T4;XZU30#,334,34#,50#,548..(T3,T5)..(IV3,IV6,IV7);XZU308,314,324,338,354,378,388,50#,524,538,554..SCB..(DM5,DM7,T2,T3,T4)

 2
77501-37080

XZU388..T3..20T..IV3;XZU304,334,34#,548..DM3,DM6,T2,T4;XZU30#,334,34#,50#,548..(T3,T5)..(IV3,IV6,IV7);XZU308,314,324,338,354,378,388,50#,524,538,554..SCB..(DM5,DM7,T2,T3,T4)

 2
77633 - STAY, FUEL TANK
77501-37080

XZU388..T3..20T..IV3;XZU304,334,34#,548..DM3,DM6,T2,T4;XZU30#,334,34#,50#,548..(T3,T5)..(IV3,IV6,IV7);XZU308,314,324,338,354,378,388,50#,524,538,554..SCB..(DM5,DM7,T2,T3,T4)

 2
77501-37080

XZU388..T3..20T..IV3;XZU304,334,34#,548..DM3,DM6,T2,T4;XZU30#,334,34#,50#,548..(T3,T5)..(IV3,IV6,IV7);XZU308,314,324,338,354,378,388,50#,524,538,554..SCB..(DM5,DM7,T2,T3,T4)

 2
77501-37080

XZU388..T3..20T..IV3;XZU304,334,34#,548..DM3,DM6,T2,T4;XZU30#,334,34#,50#,548..(T3,T5)..(IV3,IV6,IV7);XZU308,314,324,338,354,378,388,50#,524,538,554..SCB..(DM5,DM7,T2,T3,T4)

 2
Common parts
90179-10015
91642-81040
91645-C1032
94130-00802

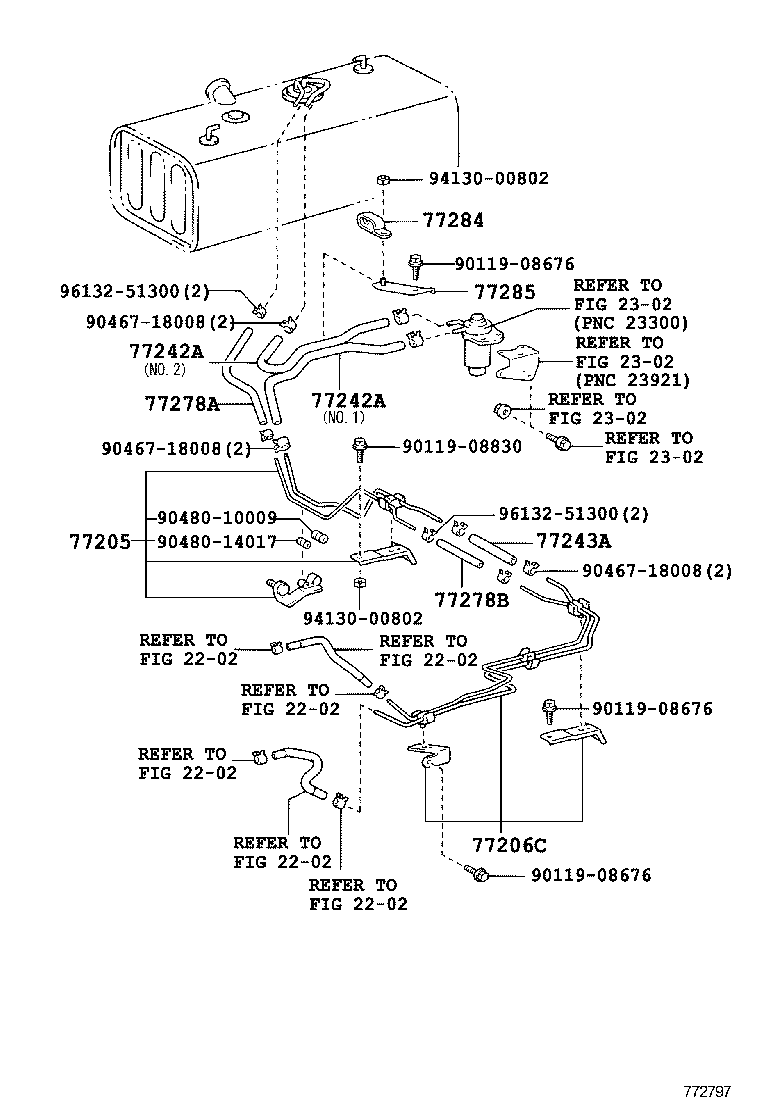

ILLUST NO. 3 OF 3(0610- )XZU30#,33#,538..SCB..DM6,T4..5F,6FC..DCRTJ,DCRTK,DCRTM,DCRUE..IV3,IV6

Click highlighted areas on diagram

ﾌｭｰｴﾙ ﾁｭｰﾌﾞ

diagram 2202 2202 2202 2202 2202 2202 2302 2302 2302 2302 77205 77206C 77242A 77242A 77243A 77278A 77278B 77284 77285 9011908676 9011908676 9011908676 9011908830 9046718008 9046718008 9046718008 9048010009 9048014017 9413000802 9413000802 9613251300 9613251300
Part # Description Qty Price
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-37A80

XZU334..T4..DCRTJ..CBU;XZU334..(DCRTJ,DCRTK)..IV3;XZU304..(DM3,DM6,T4)..(5F,6FC);XZU30#,50#..(T3,T5)..(5F,6FC)..(IV3,IV6,IV7);XZU308,338,34#,354,50#,538,548..SCB..(T2,T3,T4)..(5F,6FC)

 1
77205-37A80

XZU334..T4..DCRTJ..CBU;XZU334..(DCRTJ,DCRTK)..IV3;XZU304..(DM3,DM6,T4)..(5F,6FC);XZU30#,50#..(T3,T5)..(5F,6FC)..(IV3,IV6,IV7);XZU308,338,34#,354,50#,538,548..SCB..(T2,T3,T4)..(5F,6FC)

 1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77206-37C90

XZU344..(20T,30T)..(DCRTJ,DCRTK);XZU30#,338,348,50#,538,548..SCB..(T2,T3,T4,T5)..(5F,6FC)..20T..(CBU,IV3)

 1
77206-37C90

XZU344..(20T,30T)..(DCRTJ,DCRTK);XZU30#,338,348,50#,538,548..SCB..(T2,T3,T4,T5)..(5F,6FC)..20T..(CBU,IV3)

 1
77206-37D10

XZU50#..T4..IV3;XZU30#,338,538..SCB..T4..(5F,6FC)..20T..(DCRTJ,DCRTK,DCRTM,DCRUE)..(IV3,IV6)

ﾎﾞﾄﾙｶｰ

 1
77206-37D10

XZU50#..T4..IV3;XZU30#,338,538..SCB..T4..(5F,6FC)..20T..(DCRTJ,DCRTK,DCRTM,DCRUE)..(IV3,IV6)

ﾎﾞﾄﾙｶｰ

 1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
77259-37250

XZU50#..T4..IV3;XZU304,354..T3..IV6;XZU30#,33#,538..SCB..(DM6,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE)..(IV3,IV6)

NO.1

 1
77259-37250

XZU50#..T4..IV3;XZU304,354..T3..IV6;XZU30#,33#,538..SCB..(DM6,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE)..(IV3,IV6)

NO.1

 1
77279-37010

XZU50#..T4..IV3;XZU304,354..T3..IV6;XZU30#,33#,538..SCB..(DM6,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE)..(IV3,IV6)

NO.2

 1
77279-37010

XZU50#..T4..IV3;XZU304,354..T3..IV6;XZU30#,33#,538..SCB..(DM6,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE)..(IV3,IV6)

NO.2

 1
95332-12022

XZU378..IV4;XZU30#,324,33#,50#,524,538..SCB..(DM3,DM7,T2,T3,T4,T5)..(CBU,IV3,IV7)

*H,L=220,内径=12

 1
95332-12022

XZU378..IV4;XZU30#,324,33#,50#,524,538..SCB..(DM3,DM7,T2,T3,T4,T5)..(CBU,IV3,IV7)

*H,L=220,内径=12

 1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
77259-37250

XZU50#..T4..IV3;XZU304,354..T3..IV6;XZU30#,33#,538..SCB..(DM6,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE)..(IV3,IV6)

NO.1

 1
77259-37250

XZU50#..T4..IV3;XZU304,354..T3..IV6;XZU30#,33#,538..SCB..(DM6,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE)..(IV3,IV6)

NO.1

 1
77279-37010

XZU50#..T4..IV3;XZU304,354..T3..IV6;XZU30#,33#,538..SCB..(DM6,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE)..(IV3,IV6)

NO.2

 1
77279-37010

XZU50#..T4..IV3;XZU304,354..T3..IV6;XZU30#,33#,538..SCB..(DM6,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE)..(IV3,IV6)

NO.2

 1
95332-12022

XZU378..IV4;XZU30#,324,33#,50#,524,538..SCB..(DM3,DM7,T2,T3,T4,T5)..(CBU,IV3,IV7)

*H,L=220,内径=12

 1
95332-12022

XZU378..IV4;XZU30#,324,33#,50#,524,538..SCB..(DM3,DM7,T2,T3,T4,T5)..(CBU,IV3,IV7)

*H,L=220,内径=12

 1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12016

XZU50#..T4..IV3;XZU304,354..T3..IV6;XZU30#,33#,538..SCB..(DM6,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE)..(IV3,IV6)

*H,L=160,内径=12

 1
95332-12016

XZU50#..T4..IV3;XZU304,354..T3..IV6;XZU30#,33#,538..SCB..(DM6,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE)..(IV3,IV6)

*H,L=160,内径=12

 1
95332-12016

XZU308,314..CBU,IV3;XZU304,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..(03S,06S,DM3,DM5,DM7,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7)

*H,L=160,内径=12,NO.1

 1
95332-12016

XZU308,314..CBU,IV3;XZU304,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..(03S,06S,DM3,DM5,DM7,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7)

*H,L=160,内径=12,NO.1

 1
95332-12020

XZU378,388..SCB;XZU30#,33#,34#,368,50#,538,548,568..(DM3,DM5,T2,T3,T4,T5)..(CBU,IV3,IV7)

*H,L=200,内径=12,NO.2

 1
95332-12020

XZU378,388..SCB;XZU30#,33#,34#,368,50#,538,548,568..(DM3,DM5,T2,T3,T4,T5)..(CBU,IV3,IV7)

*H,L=200,内径=12,NO.2

 1
95332-12030

XZU30#,33#,34#,50#,538,548..(DM3,T2,T3,T4,T5)..(CBU,IV3,IV7)

*H,L=300,内径=12,NO.3

 1
95332-12030

XZU30#,33#,34#,50#,538,548..(DM3,T2,T3,T4,T5)..(CBU,IV3,IV7)

*H,L=300,内径=12,NO.3

 1
77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
95333-08030

XZU30#,314,33#,354,50#,538,554..SCB

*H,L=240,内径=7.6

 1
95333-08030

XZU30#,314,33#,354,50#,538,554..SCB

*H,L=240,内径=7.6

 1
77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2)
95337-08020

XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

*H,L=160,内径=7.6

 1
95337-08020

XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

*H,L=160,内径=7.6

 1
77284 - CLAMP, FUEL TUBE
90034-61050

XZU50#..T4..IV3;XZU304,354..T3..IV6;XZU30#,33#,538..SCB..(DM6,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE)..(IV3,IV6)

 1
90034-61050

XZU50#..T4..IV3;XZU304,354..T3..IV6;XZU30#,33#,538..SCB..(DM6,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE)..(IV3,IV6)

 1
77285 - BRACKET, FUEL TUBE
77281-37190

XZU50#..T4..IV3;XZU304,354..T3..IV6;XZU30#,33#,538..SCB..(DM6,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE)..(IV3,IV6)

 1
77281-37190

XZU50#..T4..IV3;XZU304,354..T3..IV6;XZU30#,33#,538..SCB..(DM6,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE)..(IV3,IV6)

 1
Common parts
90119-08676
90119-08830
90467-18008
90480-10009
90480-14017
94130-00802
96132-51300
Linked diagrams
2202
2302

ILLUST NO. 1 OF 2(0610- )DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

Click highlighted areas on diagram

ﾌｭｰｴﾙ ﾀﾝｸ(100L)

diagram 77017B 77026B 77100A 77100B 77100U 77154 77169A 77178 77244D 77249 77249A 77380 77601A 77601A 77611A 77611A 77616C 77616C 77633 77633 77633 8401 8401 8401 9017910015 9017910015 9164281040 91645C1032 93319A4010 93319A4010 9413000802 9413000802 9413000802 9413000802 9613251100
Part # Description Qty Price
Common parts
90179-10015
91642-81040
91645-C1032
93319-A4010
94130-00802
96132-51100
Linked diagrams
8401

ILLUST NO. 1 OF 2(0610- )DCR

Click highlighted areas on diagram

ﾌｭｰｴﾙ ﾀﾝｸ(100L)

diagram 77017B 77018 77022A 77022A 77100A 77100B 77100U 77135A 77197 77244C 77601A 77601A 77611A 77611A 77616C 77616C 77633 77633 77701U 8401 8401 8401 9017910015 9017910015 9017910015 9162640616 9164281040 91645C1032 93319A4010 9413000802 9413000802 9413000802 9413000802 9613251100 9613251300
Part # Description Qty Price
Common parts
90179-10015
91626-40616
91642-81040
91645-C1032
93319-A4010
94130-00802
96132-51100
96132-51300
Linked diagrams
8401
