XZU304-TQMMB3 (2006)
Toyota Dyna/Toyoace
(0610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

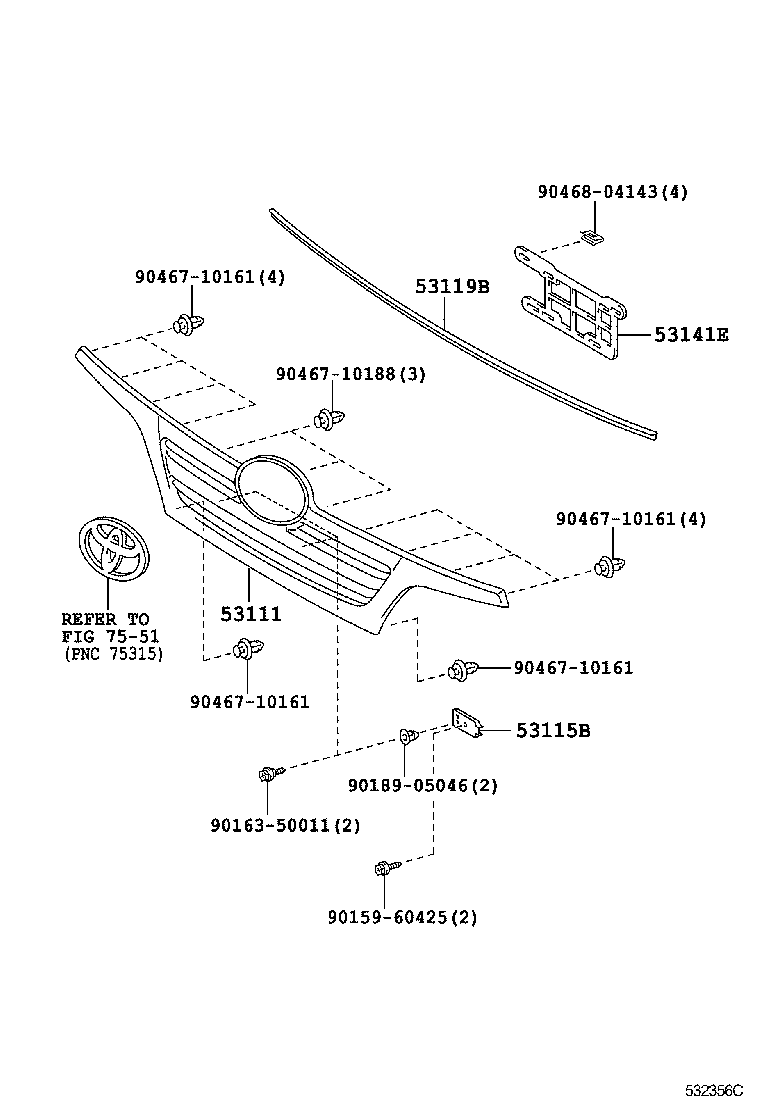

| 53111 - GRILLE, RADIATOR | ||||
| 53111-37700 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 塗装不要,ｼﾞｭｼ (ﾄｿｳ ﾅｼ) |
1 | ||
| 53111-37710B1 |
XZU348,504..WT..(DCRTH,DCRUD)..IV3;XZU508..T4..5F..(DCRTH,DCRUD)..IV3;BZU300,340,XZU304,344,368,388,568..T4..MTM..20T..(DCRTJ,DCRUE,LPG)..IV3 COBALT GREEN,9A7 |
1 | ||
| 53111-37710B0 |
BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..SCB..(T2,T3,T4,T5)..(CBU,IV3) SILVER ME.,199 |
1 | ||
| 53111-37710J0 |
BZU300,340,TRU300,340..DM5,T3,T4;TRU500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..(03S,06S,DM3,DM5,DM7,T2,T3,T4,T5)..(CBU,IV3) BLUE,8P0 |
1 | ||
| 53111-37710H0 |
BZU300,340,TRU300,340..DM5,T3,T4;TRU500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..(03S,06S,DM3,DM5,DM7,T2,T3,T4,T5)..(CBU,IV3) TURQUOISE,766 |
1 | ||
| 53111-37710A0 |
BZU300,340,TRU300,340..DM5,T3,T4;TRU500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..(03S,06S,DM3,DM5,DM7,T2,T3,T4,T5)..(CBU,IV3) WHITE,058 |
1 | ||
| 53111-37720 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 ﾒｯｷ,ﾒﾂｷ |
1 | ||
| 53119B - PROTECTOR, RADIATOR GRILLE | ||||
| 53119-37080B0 |
XZU348,504..WT..(DCRTH,DCRUD)..IV3;XZU508..T4..5F..(DCRTH,DCRUD)..IV3;BZU300,340,XZU304,344,368,388,568..T4..MTM..20T..(DCRTJ,DCRUE,LPG)..IV3 ﾄｿｳ ｸﾞﾘﾙ ﾖｳ,GRAY,058 ,199 ,766 ,8P0 ,9A7 |
1 | ||
| 53119-37080B0 |
XZU308,548..CBU;XZU308..6FC..IV3;XZU344..DCRTK..CBU;XZU548..DCRTJ..IV3;XZU308..T2..5F..IV3;XZU308..DCB..5F..(DCRTJ,DCRUE)..IV3;XZU308,344..5F..(20T,35T)..(DCRTH,DCRTK,DCRTM)..IV3;BZU300,340,TRU300,XZU344..(DM5,T3,T4)..(DCRTJ,DCRUE,EFI,LPG);TRU340,500,XZU304,314,324,33#,348,354,368,378,388,50#,524,538,554,568..(03S,06S,DM3,DM5,DM7,T2,T3,T4,T5)..(CBU,IV3) GRAY |
1 | ||
| 53119-37080B0 |
XZU348,504..WT..(DCRTH,DCRUD)..IV3;XZU508..T4..5F..(DCRTH,DCRUD)..IV3;BZU300,340,XZU304,344,368,388,568..T4..MTM..20T..(DCRTJ,DCRUE,LPG)..IV3 ﾒｯｷ ｸﾞﾘﾙ ﾖｳ,GRAY,058 ,199 ,766 ,8P0 ,9A7 |
1 | ||
| 53119-37100C0 |
XZU348,504..WT..(DCRTH,DCRUD)..IV3;XZU508..T4..5F..(DCRTH,DCRUD)..IV3;BZU300,340,XZU304,344,368,388,568..T4..MTM..20T..(DCRTJ,DCRUE,LPG)..IV3 ｼﾞｭｼ(ﾄｿｳﾅｼ) ｸﾞﾘﾙ ﾖｳ,BLACK,058 ,199 ,766 ,8P0 ,9A7 |
1 | ||
| 53119-37100C0 |
XZU308,548..CBU;XZU308..6FC..IV3;XZU344..DCRTK..CBU;XZU548..DCRTJ..IV3;XZU308..T2..5F..IV3;XZU308..DCB..5F..(DCRTJ,DCRUE)..IV3;XZU308,344..5F..(20T,35T)..(DCRTH,DCRTK,DCRTM)..IV3;BZU300,340,TRU300,XZU344..(DM5,T3,T4)..(DCRTJ,DCRUE,EFI,LPG);TRU340,500,XZU304,314,324,33#,348,354,368,378,388,50#,524,538,554,568..(03S,06S,DM3,DM5,DM7,T2,T3,T4,T5)..(CBU,IV3) BLACK |
1 | ||
| 53121A - MOULDING, RADIATOR GRILLE | ||||
| 53121-37020 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| Common parts | ||||
| 90159-60413 | ||||
| 90467-10161 | ||||
| 90467-10188 | ||||
| Linked diagrams | ||||
| 5251 | ||||
| 7551 | ||||
(0610- )DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-60425 | ||||
| 90163-50011 | ||||
| 90189-05046 | ||||
| 90467-10161 | ||||
| 90467-10188 | ||||
| 90468-04143 | ||||
| Linked diagrams | ||||
| 7551 | ||||
