XZU304-TQMMB3 (2006)

Toyota Dyna/Toyoace

Production Oct 2006 - Jun 2011
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(9905- )

Click highlighted areas on diagram

diagram
Part # Description Qty Price

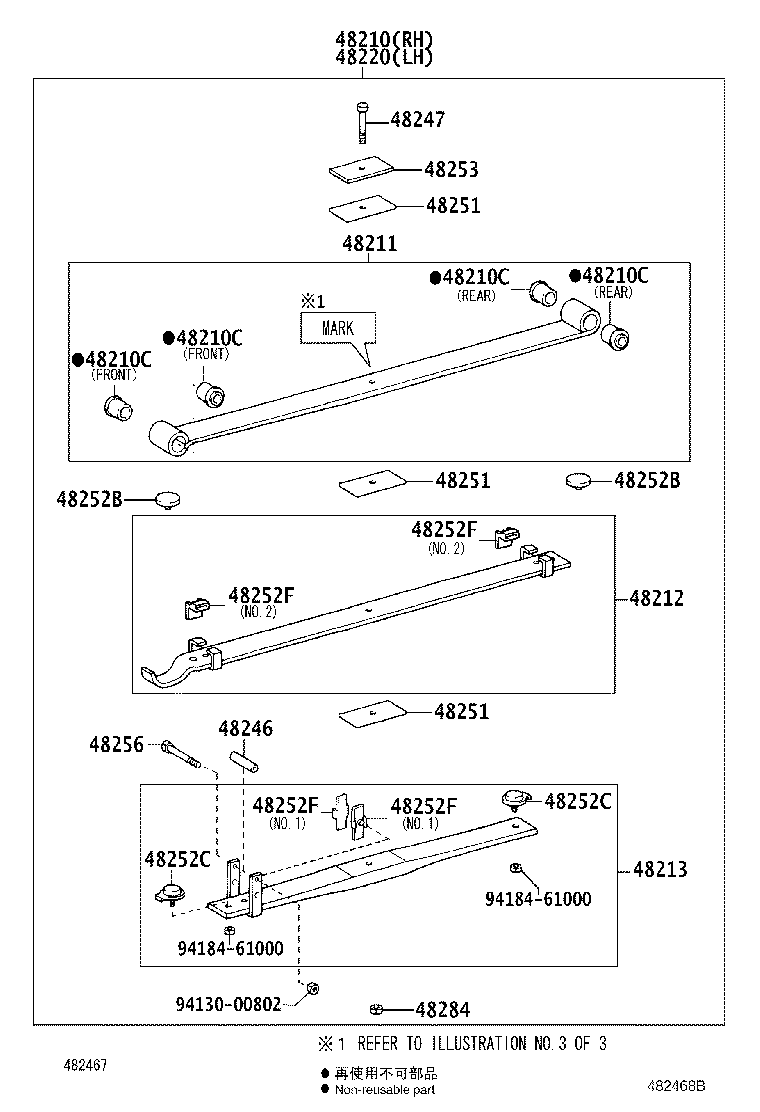

ILLUST NO. 2 OF 3(0610- )BZU300,TRU300,500,XZU30#,338,50#,538..T2,T4,T5..20T..WT

Click highlighted areas on diagram

3-LEAF

diagram 48210 48210C 48210C 48210C 48210C 48211 48212 48213 48220 48246 48247 48251 48251 48251 48252B 48252B 48252C 48252C 48252F 48252F 48252F 48252F 48253 48256 48284 9413000802 9418461000 9418461000
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-37E90

XZU508..T4..6FC..DCRTJ..IV3;XZU508..T4..5F..(DCRTH,DCRTJ)..IV3;XZU30#,504..SCB..T4..20T..(DCRTH,DCRTJ)..IV3

6枚ﾘｰﾌ,厚さ=86.0

 1
48210-37890

TRU500..T2;XZU304,504..T4..20T..(DCRTH,DCRTJ)

3枚ﾘｰﾌ,厚さ=61.0

 1
48210-3V010

BZU300,TRU300,500,XZU30#,50#..T4..20T..(DCRTH,DCRTJ,EFI,LPG)

3枚ﾘｰﾌ,ｲﾗｽﾄｻﾝｼｮｳ ﾏｰｸ = R-3V010,厚さ=65.0

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16026

XZU508..T4..6FC..DCRTJ..IV3;XZU508..T4..5F..(DCRTH,DCRTJ)..IV3;XZU30#,504..SCB..T4..20T..(DCRTH,DCRTJ)..IV3

ﾒｲﾝ 5+ﾍﾙﾊﾟｰ 1-ﾘｰﾌ,ﾘﾔ

 4
90389-16024

BZU300,TRU300,500,XZU30#,314,324,338,354,368,50#,524,538,554,568..03S,06S,DM3,DM5,DM6,DM7,T2,T4,T5

ﾌﾛﾝﾄ

 4
90389-16027

XZU508..T4..5F..IV3;XZU508..T4..6FC..DCRTJ..IV3;XZU30#,504..SCB..T4..20T..(DCRTH,DCRTJ,DCRUD,DCRUE)..IV3

3-LEAF,ﾘﾔ

 4
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16026

XZU508..T4..6FC..DCRTJ..IV3;XZU508..T4..5F..(DCRTH,DCRTJ)..IV3;XZU30#,504..SCB..T4..20T..(DCRTH,DCRTJ)..IV3

ﾒｲﾝ 5+ﾍﾙﾊﾟｰ 1-ﾘｰﾌ,ﾘﾔ

 4
90389-16024

BZU300,TRU300,500,XZU30#,314,324,338,354,368,50#,524,538,554,568..03S,06S,DM3,DM5,DM6,DM7,T2,T4,T5

ﾌﾛﾝﾄ

 4
90389-16027

XZU508..T4..5F..IV3;XZU508..T4..6FC..DCRTJ..IV3;XZU30#,504..SCB..T4..20T..(DCRTH,DCRTJ,DCRUD,DCRUE)..IV3

3-LEAF,ﾘﾔ

 4
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16026

XZU508..T4..6FC..DCRTJ..IV3;XZU508..T4..5F..(DCRTH,DCRTJ)..IV3;XZU30#,504..SCB..T4..20T..(DCRTH,DCRTJ)..IV3

ﾒｲﾝ 5+ﾍﾙﾊﾟｰ 1-ﾘｰﾌ,ﾘﾔ

 4
90389-16024

BZU300,TRU300,500,XZU30#,314,324,338,354,368,50#,524,538,554,568..03S,06S,DM3,DM5,DM6,DM7,T2,T4,T5

ﾌﾛﾝﾄ

 4
90389-16027

XZU508..T4..5F..IV3;XZU508..T4..6FC..DCRTJ..IV3;XZU30#,504..SCB..T4..20T..(DCRTH,DCRTJ,DCRUD,DCRUE)..IV3

3-LEAF,ﾘﾔ

 4
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16026

XZU508..T4..6FC..DCRTJ..IV3;XZU508..T4..5F..(DCRTH,DCRTJ)..IV3;XZU30#,504..SCB..T4..20T..(DCRTH,DCRTJ)..IV3

ﾒｲﾝ 5+ﾍﾙﾊﾟｰ 1-ﾘｰﾌ,ﾘﾔ

 4
90389-16024

BZU300,TRU300,500,XZU30#,314,324,338,354,368,50#,524,538,554,568..03S,06S,DM3,DM5,DM6,DM7,T2,T4,T5

ﾌﾛﾝﾄ

 4
90389-16027

XZU508..T4..5F..IV3;XZU508..T4..6FC..DCRTJ..IV3;XZU30#,504..SCB..T4..20T..(DCRTH,DCRTJ,DCRUD,DCRUE)..IV3

3-LEAF,ﾘﾔ

 4
48211 - LEAF, REAR SPRING, NO.1
48201-37890

XZU304,504..T4..20T..(DCRTH,DCRTJ)..IV3

3-LEAF

 2
48201-37E90

XZU508..T4..6FC..DCRTJ..IV3;XZU508..T4..5F..(DCRTH,DCRTJ)..IV3;XZU30#,504..SCB..T4..20T..(DCRTH,DCRTJ)..IV3

6-LEAF

 2
48201-3V010

BZU300,TRU300,500,XZU30#,50#..T4..20T..(DCRTH,DCRTJ,EFI,LPG)

ｲﾗｽﾄｻﾝｼｮｳ ﾏｰｸ = R-3V010

 2
48212 - LEAF, REAR SPRING, NO.2
48202-3V010

BZU300,TRU300,500,XZU30#,50#..T4..20T..(DCRTH,DCRTJ,EFI,LPG)

ｲﾗｽﾄｻﾝｼｮｳ ﾏｰｸ = R-3V010

 2
48202-37890

XZU304,504..T4..20T..(DCRTH,DCRTJ)..IV3

3-LEAF

 2
48212-37E90

XZU508..T4..6FC..DCRTJ..IV3;XZU508..T4..5F..(DCRTH,DCRTJ)..IV3;XZU30#,504..SCB..T4..20T..(DCRTH,DCRTJ)..IV3

6-LEAF

 2
48213 - LEAF, REAR SPRING, NO.3
48203-37890

XZU304,504..T4..20T..(DCRTH,DCRTJ)..IV3

3-LEAF

 2
48203-3V010

BZU300,TRU300,500,XZU30#,50#..T4..20T..(DCRTH,DCRTJ,EFI,LPG)

ｲﾗｽﾄｻﾝｼｮｳ ﾏｰｸ = R-3V010

 2
48213-37E90

XZU508..T4..6FC..DCRTJ..IV3;XZU508..T4..5F..(DCRTH,DCRTJ)..IV3;XZU30#,504..SCB..T4..20T..(DCRTH,DCRTJ)..IV3

6-LEAF

 2
48220 - SPRING ASSY, REAR LH
48210-37E90

XZU508..T4..6FC..DCRTJ..IV3;XZU508..T4..5F..(DCRTH,DCRTJ)..IV3;XZU30#,504..SCB..T4..20T..(DCRTH,DCRTJ)..IV3

6枚ﾘｰﾌ,厚さ=86.0

 1
48210-3V010

BZU300,TRU300,500,XZU30#,50#..T4..20T..(DCRTH,DCRTJ,EFI,LPG)

3枚ﾘｰﾌ,ｲﾗｽﾄｻﾝｼｮｳ ﾏｰｸ = R-3V010,厚さ=65.0

 1
48210-37890

TRU500..T2;XZU304,504..T4..20T..(DCRTH,DCRTJ)

3枚ﾘｰﾌ,厚さ=61.0

 1
48246 - CASE, REAR SPRING CLIP BOLT
48246-36052

BZU300,TRU300,500,XZU30#,314,338,354,368,50#,538,554,568..03S,06S,DM3,DM5,T2,T4,T5

 2
48247 - BOLT, REAR SPRING, CENTER
48247-37880

BZU300,TRU300,500,XZU304,504..T4..20T..(DCRTH,DCRTJ,EFI,LPG)

ｲﾗｽﾄｻﾝｼｮｳ ﾏｰｸ = R-37890

 2
48247-3V010

BZU300,TRU300,500,XZU30#,50#..T4..20T..(DCRTH,DCRTJ,DCRTM,EFI,LPG)

ｲﾗｽﾄｻﾝｼｮｳ ﾏｰｸ = R-3V010

 2
48247-3C130

XZU508..T4..6FC..DCRTJ..IV3;XZU508..T4..5F..(DCRTH,DCRTJ)..IV3;XZU30#,504..SCB..T4..20T..(DCRTH,DCRTJ)..IV3

 2
48251 - SPACER, REAR SPRING LEAF
48251-36530

XZU508..T4..5F..IV3;XZU304..T4..5F..30T..IV3;XZU508..T4..6FC..DCRTJ..IV3;XZU308..SCB..T4..(DCRTJ,DCRTK,DCRUE)..IV3;XZU304,504..T4..20T..(DCRTH,DCRTJ,DCRUD)..IV3

6-LEAF

 2
48251-36530

XZU304..T4..30T..DCRUE..IV3;XZU508..T4..6FC..DCRTJ..IV3;XZU508..T4..5F..(DCRTH,DCRTJ)..IV3;XZU30#,504..SCB..T4..20T..(DCRTH,DCRTJ)..IV3

3-LEAF

 6
48251 - SPACER, REAR SPRING LEAF
48251-36530

XZU508..T4..5F..IV3;XZU304..T4..5F..30T..IV3;XZU508..T4..6FC..DCRTJ..IV3;XZU308..SCB..T4..(DCRTJ,DCRTK,DCRUE)..IV3;XZU304,504..T4..20T..(DCRTH,DCRTJ,DCRUD)..IV3

6-LEAF

 2
48251-36530

XZU304..T4..30T..DCRUE..IV3;XZU508..T4..6FC..DCRTJ..IV3;XZU508..T4..5F..(DCRTH,DCRTJ)..IV3;XZU30#,504..SCB..T4..20T..(DCRTH,DCRTJ)..IV3

3-LEAF

 6
48251 - SPACER, REAR SPRING LEAF
48251-36530

XZU508..T4..5F..IV3;XZU304..T4..5F..30T..IV3;XZU508..T4..6FC..DCRTJ..IV3;XZU308..SCB..T4..(DCRTJ,DCRTK,DCRUE)..IV3;XZU304,504..T4..20T..(DCRTH,DCRTJ,DCRUD)..IV3

6-LEAF

 2
48251-36530

XZU304..T4..30T..DCRUE..IV3;XZU508..T4..6FC..DCRTJ..IV3;XZU508..T4..5F..(DCRTH,DCRTJ)..IV3;XZU30#,504..SCB..T4..20T..(DCRTH,DCRTJ)..IV3

3-LEAF

 6
48252B - SILENCER, REAR SPRING, NO.1
48252-37670

XZU304..DM3,T5;XZU304..T4..5F..20T;XZU304..T4..(6F,6FC);XZU304..T4..5F..30T..CBU;XZU324,34#,378,388,548..20T;BZU300,340,TRU300,340,500,XZU308,314,338,354,368,50#,524,538,554,568..(03S,06S,DM5,DM7,T2,T4,T5)..WT

 4
48252B - SILENCER, REAR SPRING, NO.1
48252-37670

XZU304..DM3,T5;XZU304..T4..5F..20T;XZU304..T4..(6F,6FC);XZU304..T4..5F..30T..CBU;XZU324,34#,378,388,548..20T;BZU300,340,TRU300,340,500,XZU308,314,338,354,368,50#,524,538,554,568..(03S,06S,DM5,DM7,T2,T4,T5)..WT

 4
48252C - SILENCER, REAR SPRING, NO.2
48252-37890

BZU300,TRU300,500,XZU30#,314,338,354,368,50#,538,554,568..(03S,06S,DM3,DM5,T2,T4,T5)..WT

 4
48252C - SILENCER, REAR SPRING, NO.2
48252-37890

BZU300,TRU300,500,XZU30#,314,338,354,368,50#,538,554,568..(03S,06S,DM3,DM5,T2,T4,T5)..WT

 4
48252F - SILENCER, REAR SPRING, NO.3
48252-37630

XZU508..T4..6FC..DCRTJ..IV3;XZU508..T4..5F..(DCRTH,DCRTJ)..IV3;XZU308..SCB..T4..(DCRTJ,DCRUE)..IV3;XZU304,504..T4..20T..(DCRTH,DCRTJ)..IV3

6-LEAF,NO.1

 4
48252-37380

BZU300,TRU300,500,XZU30#,314,338,354,368,50#,538,554,568..03S,06S,DM3,DM5,T2,T4,T5

NO.2

 8
48252-37880

XZU508..T4..6FC..DCRTJ..IV3;XZU508..T4..5F..(DCRTH,DCRTJ)..IV3;XZU30#,504..SCB..T4..20T..(DCRTH,DCRTJ)..IV3

3-LEAF,NO.1

 4
48252F - SILENCER, REAR SPRING, NO.3
48252-37630

XZU508..T4..6FC..DCRTJ..IV3;XZU508..T4..5F..(DCRTH,DCRTJ)..IV3;XZU308..SCB..T4..(DCRTJ,DCRUE)..IV3;XZU304,504..T4..20T..(DCRTH,DCRTJ)..IV3

6-LEAF,NO.1

 4
48252-37380

BZU300,TRU300,500,XZU30#,314,338,354,368,50#,538,554,568..03S,06S,DM3,DM5,T2,T4,T5

NO.2

 8
48252-37880

XZU508..T4..6FC..DCRTJ..IV3;XZU508..T4..5F..(DCRTH,DCRTJ)..IV3;XZU30#,504..SCB..T4..20T..(DCRTH,DCRTJ)..IV3

3-LEAF,NO.1

 4
48252F - SILENCER, REAR SPRING, NO.3
48252-37630

XZU508..T4..6FC..DCRTJ..IV3;XZU508..T4..5F..(DCRTH,DCRTJ)..IV3;XZU308..SCB..T4..(DCRTJ,DCRUE)..IV3;XZU304,504..T4..20T..(DCRTH,DCRTJ)..IV3

6-LEAF,NO.1

 4
48252-37380

BZU300,TRU300,500,XZU30#,314,338,354,368,50#,538,554,568..03S,06S,DM3,DM5,T2,T4,T5

NO.2

 8
48252-37880

XZU508..T4..6FC..DCRTJ..IV3;XZU508..T4..5F..(DCRTH,DCRTJ)..IV3;XZU30#,504..SCB..T4..20T..(DCRTH,DCRTJ)..IV3

3-LEAF,NO.1

 4
48252F - SILENCER, REAR SPRING, NO.3
48252-37630

XZU508..T4..6FC..DCRTJ..IV3;XZU508..T4..5F..(DCRTH,DCRTJ)..IV3;XZU308..SCB..T4..(DCRTJ,DCRUE)..IV3;XZU304,504..T4..20T..(DCRTH,DCRTJ)..IV3

6-LEAF,NO.1

 4
48252-37380

BZU300,TRU300,500,XZU30#,314,338,354,368,50#,538,554,568..03S,06S,DM3,DM5,T2,T4,T5

NO.2

 8
48252-37880

XZU508..T4..6FC..DCRTJ..IV3;XZU508..T4..5F..(DCRTH,DCRTJ)..IV3;XZU30#,504..SCB..T4..20T..(DCRTH,DCRTJ)..IV3

3-LEAF,NO.1

 4
48253 - SPACER, REAR SPRING, NO.1
48253-25670

XZU324..30T;BZU300,TRU300,500,XZU30#,338,50#,538..(T2,T4,T5)..20T..WT

 2
48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET)
48256-3B770

BZU300,TRU300,500,XZU30#,314,338,354,368,50#,538,554,568..03S,06S,DM3,DM5,T2,T4,T5

 2
48284 - NUT, REAR SPRING CENTER BOLT
48299-27620

XZU324..30T;BZU300,TRU300,500,XZU30#,314,338,354,368,50#,538,554,568..(03S,06S,DM3,DM5,DM6,T2,T4,T5)..WT

 2
Common parts
94130-00802
94184-61000

ILLUST NO. 3 OF 3(0610- )

Click highlighted areas on diagram

diagram
Part # Description Qty Price

ILLUST NO. 2 OF 2(7708- )

Click highlighted areas on diagram

diagram 48210 48210 48210 48210C 48210C 48210C 48211 48211 48211 48212 48212 48212 48213 48213 48213 48214 48214 48214 48215 48215 48215 48216 48217 48220 48220 48220 48241 48241 48241 48242 48242 48242 48247 48247 48247 48261 48261 48261 48262 48262 48262 48263 48263 48263 48264 48264 48264 48265 48265 48265 48266 48281 48281 48281 9411041000 9411041000 9411041000 9511100816 9511100816 9511100816 9511100818 9511100818 9511100818 9511100818 9511100820 9511100822 9511100822 9511100822
Part # Description Qty Price
Common parts
94110-41000
95111-00816
95111-00818
95111-00820
95111-00822

ILLUST NO. 2 OF 2(7708- )

Click highlighted areas on diagram

diagram 48210 48210 48210C 48210C 48211 48211 48212 48212 48213 48213 48214 48214 48215 48215 48216 48217 48220 48220 48241 48241 48242 48242 48247 48247 48261 48261 48262 48262 48263 48263 48264 48265 48265 48266 48266 48267 48281 48281 9411041000 9411041000 9511100816 9511100816 9511100816 9511100818 9511100818 9511100822
Part # Description Qty Price
Common parts
94110-41000
95111-00816
95111-00818
95111-00822
