XZU304-TQMMB3 (2006)

Toyota Dyna/Toyoace

Production Oct 2006 - Jun 2011
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0610- )XZU304,334,344,504,548..DM6,T3,T4,T5..5F..CBU,IV3 ; (0610- )XZU308,33

Click highlighted areas on diagram

ﾊﾞｷｭｰﾑｼｷ 25KG

diagram 33162B 35775B 36421B 36422B 36422B 36605C 36605C 36605C 36610 36621 36621A 36631 36641 36714 36718 36723 36723A 36723A 36723B 36723B 36723C 36723J 36723J 36728 36728F 36728F 36728G 36728H 36737B 36811 36814 36851 8421012040 9003119132 9003170107 9003387011 9010108156 9011908124 9011910372 9017914066 9020108091 9020115011 9020115011 9040751002 9050129040 9213281025 9413061000 9451201000 9453101400 9453101400
Part # Description Qty Price
33162B - GASKET, POWER TAKE-OFF COVER
33162-37030

XZU304,334,344,504..5F..(CBU,IV3,IV6);XZU308,348,508..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,354,538,548..SCB..5F..(20T,40T)..(DCRTJ,DCRTK,DCRUE,EFI)..1NO

 1
35775B - SLEEVE, OUTPUT SHAFT
35775-37030

XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)

 1
36421B - DIAPHRAGM (FOR POWER TAKE-OFF)
36421-93100

XZU308,348..5F..(DCRTJ,DCRTK,DCRTM)..(CBU,IV3);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,EFI);BZU300,340,XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3)

 1
36421-37010

XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3)

 1
36422B - PLATE, DIAPHRAGM (FOR POWER TAKE-OFF)
36422-93101

XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3)

NO.2

 1
36422-93100

XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3)

NO.1

 1
36422B - PLATE, DIAPHRAGM (FOR POWER TAKE-OFF)
36422-93101

XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3)

NO.2

 1
36422-93100

XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3)

NO.1

 1
36605C - POWER TAKE-OFF SET
36605-37030

XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6)

TYPE A:ｲﾗｽﾄ参照

 1
36605-37050

XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6)

TYPE C:ｲﾗｽﾄ参照

 1
36605-37040

XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6)

TYPE B:ｲﾗｽﾄ参照

 1
36605C - POWER TAKE-OFF SET
36605-37030

XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6)

TYPE A:ｲﾗｽﾄ参照

 1
36605-37050

XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6)

TYPE C:ｲﾗｽﾄ参照

 1
36605-37040

XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6)

TYPE B:ｲﾗｽﾄ参照

 1
36605C - POWER TAKE-OFF SET
36605-37030

XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6)

TYPE A:ｲﾗｽﾄ参照

 1
36605-37050

XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6)

TYPE C:ｲﾗｽﾄ参照

 1
36605-37040

XZU308,338,348,508,538..(DCB,SCB)..MTM..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,368,378,388,504,548,568..(DM6,T3,T4,T5)..MTM..(CBU,IV3,IV6)

TYPE B:ｲﾗｽﾄ参照

 1
36610 - POWER TAKE-OFF ASSY
36610-37280

XZU334,344,504,548..SCB..5F;XZU508,538..SCB..5F..(DCRTJ,DCRUE);XZU30#,338,348..(DM6,T2,T3,T4,T5)..5F..(DCRTJ,DCRTK,DCRTM)..(CBU,IV3)

ﾊﾞｷﾕ-ﾑｼｷ 25KG

 1
36610-37281

XZU304,334,344,504,548..5F..(CBU,IV3);XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3)

ﾊﾞｷﾕ-ﾑｼｷ 25KG

 1
36621 - RETAINER, POWER TAKE-OFF BEARING
36621-37071

XZU304,334,344,354,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6);XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)

 1
36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER)
90311-25110

XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)

 1
36631 - GASKET, POWER TAKE-OFF BEARING RETAINER
36632-37030

XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)

 1
36641 - CAP, POWER TAKE-OFF SHIFT SHAFT
36641-93100

XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3)

 1
36714 - GEAR, POWER TAKE-OFF OUTPUT
36714-37171

XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)

 1
36718 - GEAR, POWER TAKE-OFF IDLER
36718-37110

XZU304,334,344,354,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6);XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)

 1
36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1
36723-37100

XZU304,334,344,354,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6);XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)

 1
36723-37101

XZU304,334,344,354,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6);XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)

 1
36723A - BEARING (FOR OUTPUT SHAFT FRONT)
90366-22001

XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3);XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3)

 2
36723A - BEARING (FOR OUTPUT SHAFT FRONT)
90366-22001

XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3);XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3)

 2
36723B - BEARING (FOR OUTPUT SHAFT REAR)
90366-25011

XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3);XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3)

厚さ=14

 2
36723B - BEARING (FOR OUTPUT SHAFT REAR)
90366-25011

XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3);XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3)

厚さ=14

 2
36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
90364-28020

XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)

 2
36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
90364-28020

XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)

 2
36728 - SHAFT, POWER TAKE-OFF IDLER
36728-37020

XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)

 1
36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT)
90521-56108

XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)

 2
36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT)
90521-56108

XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)

 2
36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT)
90254-04002

XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)

 1
36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT)
90564-25002

XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)

厚さ=0.1

 1
90564-25001

XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)

厚さ=0.05

 1
90564-25004

XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)

厚さ=0.5

 1
90564-25003

XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM3,DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)

厚さ=0.2

 1
36737B - SHIM (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT)
90564-42003

XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3)

厚さ=0.17−0.23

 1
90564-42004

XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3)

厚さ=0.47−0.53

 1
90564-42002

XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3)

厚さ=0.07−0.13

 1
90564-42001

XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3)

厚さ=0.02−0.08

 1
36811 - FORK, POWR TAKE-OFF SHIFT, NO.1
36811-93104

XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,354,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3,IV6)

 1
36814 - SHAFT, POWR TAKE-OFF FORK, NO.1
36814-37030

XZU334..T3..5F..CBU;XZU334,348..5F..(20T,40T)..(DCRTJ,DCRTK,DCRTM);BZU300,340,XZU304,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3);XZU308,33#,508,538..(T2,T4,T5)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3)

 1
36851 - RETAINER, POWER TAKE-OFF JOINT
36851-37030

XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3);XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3)

 1
Common parts
84210-12040
90031-19132
90031-70107
90033-87011
90101-08156
90119-08124
90119-10372
90179-14066
90201-08091
90201-15011
90407-51002
90501-29040
92132-81025
94130-61000
94512-01000
94531-01400

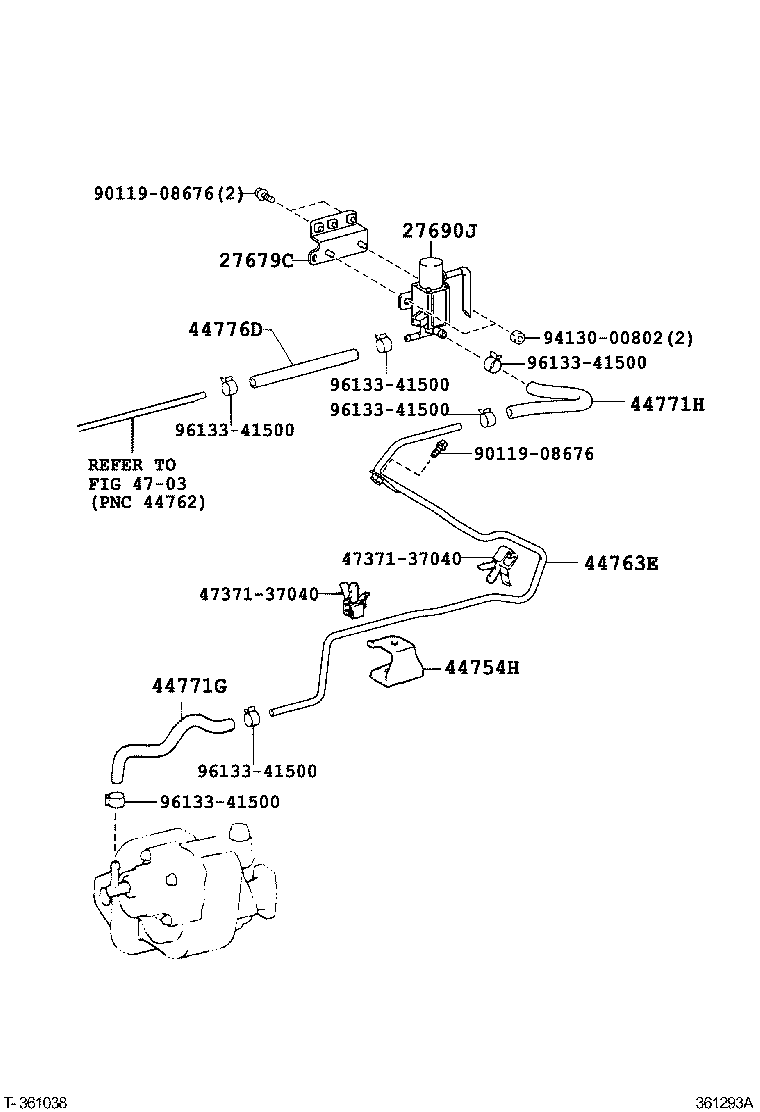

ILLUST NO. 2 OF 2(0610- )XZU304,334,344,504,548..T3,T4,T5..5F..CBU,IV3 ; (0610- )XZU308,338,34

Click highlighted areas on diagram

ﾊﾞｷｭｰﾑｼｷ 21.5KG,25KG

diagram 27679C 27690J 44754H 44763E 44771G 44771H 44776D 4703 4737137040 4737137040 9011908676 9011908676 9413000802 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
27679C - BRACKET, POWER TAKE-OFF SOLENOID
27679-78041

N04C,1BZFPE..BZU300,340,XZU334,344,504,548..SCB..5F;N04C,2TRFE..TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);N04C..XZU30#,348..(T2,T3,T4,T5)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3)

 1
27690J - SOLENOID ASSY, POWER TAKE-OFF
27690-78080

N04C..XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3);N04C..XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3)

 1
44754H - BRACKET, VACUUM TUBE
44754-37110

XZU308,348..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3);TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);BZU300,340,XZU304,334,344,504,548..(DM6,T3,T4,T5)..5F..(CBU,IV3)

 1
44763E - TUBE, HOSE TO HOSE, NO.1
44763-37760

XZU304,334,344,504,548..(T3,T4,T5)..5F..(CBU,IV3);XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3)

 1
44771G - HOSE, VACUUM TUBE CONNECTOR, NO.1
44771-37770

XZU304,334,344,504,548..(T3,T4,T5)..5F..(CBU,IV3);XZU308,338,348,508,538..(DCB,SCB)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3)

 1
44771H - HOSE, VACUUM TUBE CONNECTOR, NO.2
95446-09300

BZU300,340,XZU334,344,504,548..SCB..5F;TRU300,XZU338,508,538..SCB..5F..20T..(DCRTJ,DCRUE,EFI);XZU30#,348..(T2,T3,T4,T5)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3)

 1
44776D - HOSE, BRAKE BOOSTER
44776-37270

XZU504..DCRTJ,DCRUD;XZU304..T4..5F..20T..DCRTJ;XZU338,348,508..T2..5F..DCRTJ;XZU308,504..T5..(DCRTH,DCRTK);XZU308..(T2,T4)..5F..(DCRTJ,DCRTK,DCRTM,DCRUE)..(CBU,IV3);XZU304,334,34#,508,538,548..(T3,T4,T5)..5F..(DCRTK,DCRTM,DCRUE)..(CBU,IV3)

 1
Common parts
47371-37040
90119-08676
94130-00802
96133-41500
Linked diagrams
4703

(7708- )

Click highlighted areas on diagram

diagram 36610 36610A 36610B 36610C 36610D 36610E 36610F 36611 36611A 36611B 36621 36621A 36624 36631 36631 36633 36714 36718 36718A 36718B 36718C 36718C 36718D 36723 36723A 36723B 36723C 36728 36728A 36728A 36811 36814 36851 9111140814 9111140820 9161161025 9411051000 9414541200 9451200800 9451200800 9451201000 9461211200 9538103028
Part # Description Qty Price
Common parts
91111-40814
91111-40820
91611-61025
94110-51000
94145-41200
94512-00800
94512-01000
94612-11200
95381-03028

(7708- )

Click highlighted areas on diagram

diagram 36610 36610A 36610B 36610C 36610D 36610E 36610J 36611 36611A 36611C 36621 36621A 36622 36631 36631 36633 36633 36714 36718 36718A 36718B 36718C 36718C 36718D 36723 36723A 36723B 36723C 36723E 36723E 36728 36728A 36728A 36811 36814 36814E 36814P 36851 9010110052 9010110052 9020114002 9021414001 9111140816 9111140820 9111140820 9411051000 9411051000 9412541400 9451100800 9451100800 9451100800 9451201000 9451201000
Part # Description Qty Price
Common parts
90101-10052
90201-14002
90214-14001
91111-40816
91111-40820
94110-51000
94125-41400
94511-00800
94512-01000
