XZU304-TQFQG3 (2010)

Toyota Dyna/Toyoace

Production Mar 2010 - Jun 2011
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

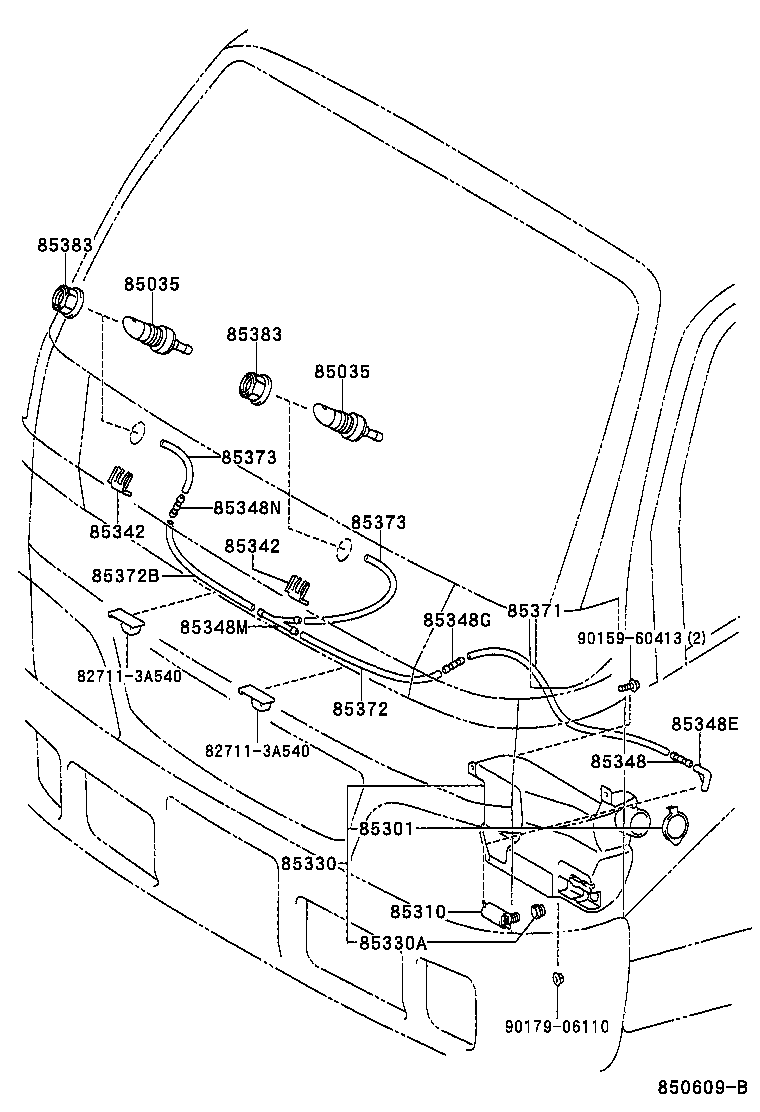

(9905- )

Click highlighted areas on diagram

diagram 827113A540 827113A540 85035 85035 85301 85310 85330 85330A 85342 85342 85348 85348E 85348G 85348M 85348N 85371 85372 85372B 85373 85373 85383 85383 9015960413 9017906110
Part # Description Qty Price
Common parts
82711-3A540
90159-60413
90179-06110

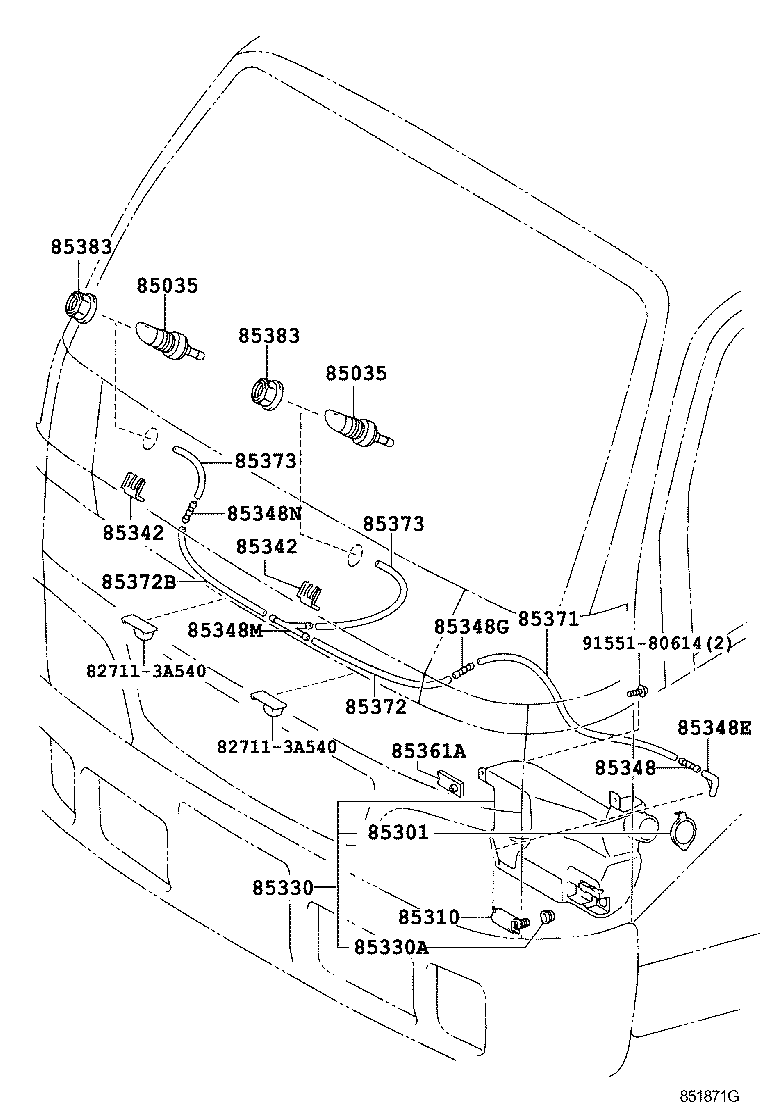

(0610- )

Click highlighted areas on diagram

diagram 827113A540 827113A540 85035 85035 85301 85310 85330 85330A 85342 85342 85348 85348E 85348G 85348M 85348N 85361A 85371 85372 85372B 85373 85373 85383 85383 9155180614
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-37030

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-37030

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 2
85301 - INLET SUB-ASSY, WASHER
85301-17010

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-90B00

XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-37090

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
85342 - HOLDER, WASHER NOZZLE
85342-95J01

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 2
85342 - HOLDER, WASHER NOZZLE
85342-95J01

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85376-46040

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2
85355-14481

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85349-89122

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3
85348-12250

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
85348N - JOINT, WINDSHIELD WASHER HOSE, NO.4
85349-89122

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-07001

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

*H,L=720

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

*H,L=220

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90446-06013

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

*H,L=460

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

*H,L=190

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

*H,L=190

 1
85383 - HOLDER, FRONT WASHER NOZZLE
85383-37010

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 2
85383 - HOLDER, FRONT WASHER NOZZLE
85383-37010

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 2
Common parts
82711-3A540
91551-80614

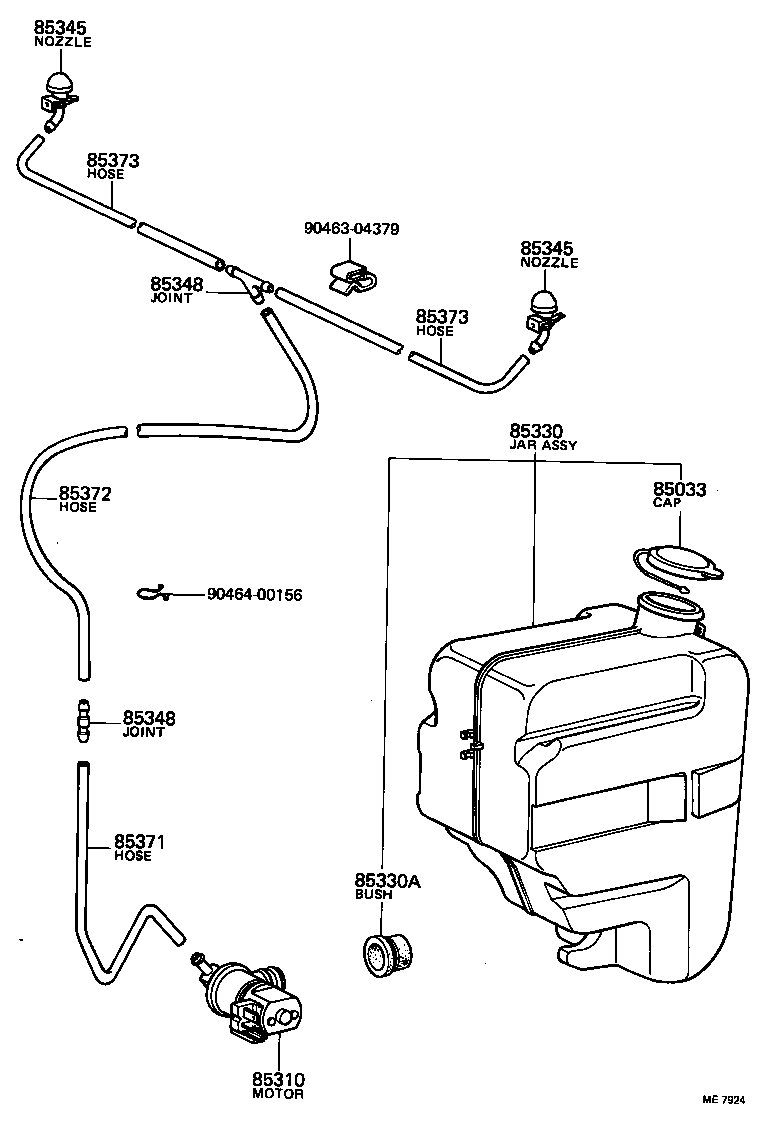

(7708- )HU30,JU20,RU2#,3#

Click highlighted areas on diagram

diagram 85033 85310 85330 85330A 85345 85345 85348 85348 85371 85372 85373 85373 9046304379 9046400156
Part # Description Qty Price
Common parts
90463-04379
90464-00156
