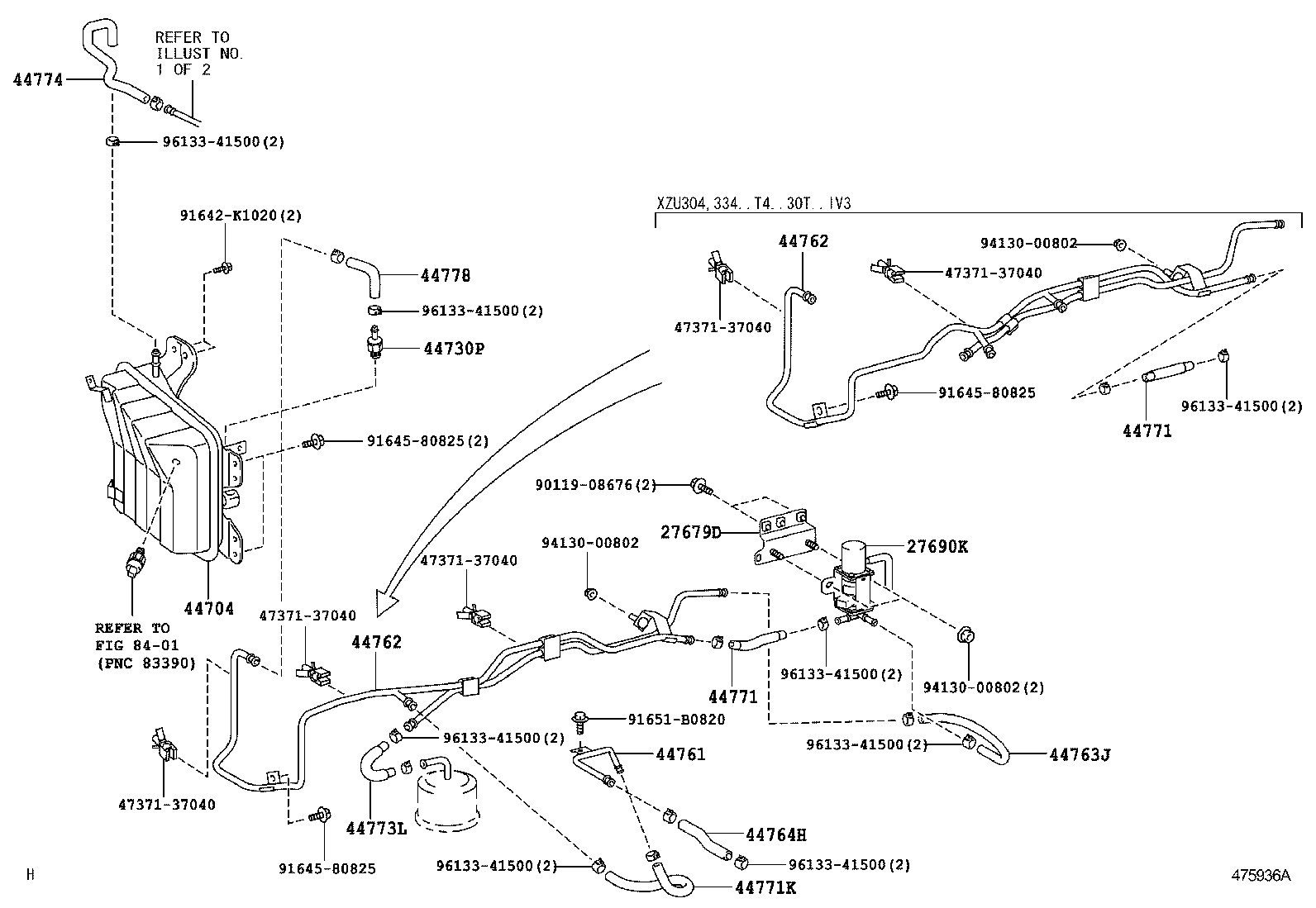

Toyota Dyna/toyoace XZU304 BRAKE BOOSTER & VACUUM TUBE

Part #	Description	Period	Qty
27679D - BRACKET, EXHAUST BRAKE SOLENOID
27679-78041	N04C..XZU50#..T4..IV3;N04C..XZU304,354..T3..IV6;N04C..XZU348..SCB..T4..(DCRTJ,DCRUE)..IV3;N04C..XZU344..T4..30T..(DCRTJ,DCRUE)..IV3;N04C..XZU30#,33#,538,548..SCB..(DM6,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE)..(IV3,IV6)	10/2006 - 12/2999	1
27679-78041	N04C..XZU50#..T4..IV3;N04C..XZU304,354..T3..IV6;N04C..XZU348..SCB..T4..(DCRTJ,DCRUE)..IV3;N04C..XZU344..T4..30T..(DCRTJ,DCRUE)..IV3;N04C..XZU30#,33#,538,548..SCB..(DM6,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE)..(IV3,IV6)	10/2006 - 12/2999	1
27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE)
27690-78140	N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..SCB..(DM3,DM5,DM7,T2,T3,T4,T5)..(CBU,IV3,IV7) ﾏｰｸ 27690−78140	10/2006 - 06/2011	1
27690-78140	N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..SCB..(DM3,DM5,DM7,T2,T3,T4,T5)..(CBU,IV3,IV7) ﾏｰｸ 27690−78140	10/2006 - 06/2011	1
27690-78150	N04C..XZU334,378..DCB;N04C..XZU304..IV4,IV6;N04C..XZU308,348..DCB..CBU;N04C..XZU308,50#..T4..(IV3,IV6);N04C..XZU348..T4..(DCRTJ,DCRUE)..IV3;N04C..XZU344..T4..30T..(DCRTJ,DCRUE)..IV3;N04C..XZU354,388,508..(03S,06S,T3)..(20T,40T);N04C..XZU304,33#,538,548..(DM6,T4)..(DCRTJ,DCRTM,DCRUE)..IV3 ﾏｰｸ 27690−78150	10/2006 - 06/2011	1
27690-78150	N04C..XZU334,378..DCB;N04C..XZU304..IV4,IV6;N04C..XZU308,348..DCB..CBU;N04C..XZU308,50#..T4..(IV3,IV6);N04C..XZU348..T4..(DCRTJ,DCRUE)..IV3;N04C..XZU344..T4..30T..(DCRTJ,DCRUE)..IV3;N04C..XZU354,388,508..(03S,06S,T3)..(20T,40T);N04C..XZU304,33#,538,548..(DM6,T4)..(DCRTJ,DCRTM,DCRUE)..IV3 ﾏｰｸ 27690−78150	10/2006 - 06/2011	1
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-37190	XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..SCB..(DM3,DM5,DM7,T2,T3,T4,T5)..(CBU,IV3,IV7)	10/2006 - 10/2008	1
44704-37190	XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..SCB..(DM3,DM5,DM7,T2,T3,T4,T5)..(CBU,IV3,IV7)	10/2006 - 10/2008	1
44704-37250	XZU50#..T4..IV3;XZU348..SCB..T4..DCRTJ..IV3;XZU344..T4..30T..DCRTJ..IV3;XZU30#,33#,538,548..SCB..T4..(DCRTJ,DCRTK,DCRTM,DCRUE)..IV3 ｺｳｼｮｻｷﾞｮｳｼｬ OR ﾚｲﾄｳｼｬ(4ﾅﾝﾊﾞｰｶｰｲｶﾞｲ) OR ﾎﾞﾄﾙｶｰ	10/2006 - 10/2008	1
44704-37250	XZU50#..T4..IV3;XZU348..SCB..T4..DCRTJ..IV3;XZU344..T4..30T..DCRTJ..IV3;XZU30#,33#,538,548..SCB..T4..(DCRTJ,DCRTK,DCRTM,DCRUE)..IV3 ｺｳｼｮｻｷﾞｮｳｼｬ OR ﾚｲﾄｳｼｬ(4ﾅﾝﾊﾞｰｶｰｲｶﾞｲ) OR ﾎﾞﾄﾙｶｰ	10/2006 - 10/2008	1
44730P - VALVE ASSY, VACUUM CHECK, NO.1
44730-60050	BZU300,340,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	1
44730-60050	BZU300,340,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-37540	XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6	10/2006 - 12/2999	1
44761-37540	XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6	10/2006 - 12/2999	1
44762 - TUBE, BOOSTER VACUUM
44702-37310	XZU304..30T..IV6;XZU304..T4..30T..IV3;XZU304,334..(DM6,T4)..(IV3,IV6)..1NO	10/2006 - 12/2999	1
44702-37310	XZU304..30T..IV6;XZU304..T4..30T..IV3;XZU304,334..(DM6,T4)..(IV3,IV6)..1NO	10/2006 - 12/2999	1
44762 - TUBE, BOOSTER VACUUM
44702-37310	XZU304..30T..IV6;XZU304..T4..30T..IV3;XZU304,334..(DM6,T4)..(IV3,IV6)..1NO	10/2006 - 12/2999	1
44702-37310	XZU304..30T..IV6;XZU304..T4..30T..IV3;XZU304,334..(DM6,T4)..(IV3,IV6)..1NO	10/2006 - 12/2999	1
44763J - HOSE, SOLENOID TO VACUUM TUBE
44771-37230	XZU50#..T4..IV3;XZU304,354..T3..IV6;XZU348..SCB..T4..(DCRTJ,DCRUE)..IV3;XZU344..T4..30T..(DCRTJ,DCRUE)..IV3;XZU30#,33#,538,548..SCB..(DM6,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE)..(IV3,IV6)	10/2006 - 12/2999	1
44771-37230	XZU50#..T4..IV3;XZU304,354..T3..IV6;XZU348..SCB..T4..(DCRTJ,DCRUE)..IV3;XZU344..T4..30T..(DCRTJ,DCRUE)..IV3;XZU30#,33#,538,548..SCB..(DM6,T4)..(DCRTJ,DCRTK,DCRTM,DCRUE)..(IV3,IV6)	10/2006 - 12/2999	1
44764H - HOSE(FOR CONNECTOR TO BRAKE BOOSTER TUBE)
95446-09120	XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6	10/2006 - 12/2999	1
95446-09120	XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV6	10/2006 - 12/2999	1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-37540	XZU30#,314,324,33#,34#,354,50#,524,538,548,554..SCB..(DM3,DM5,DM7,T2,T3,T4,T5)..(CBU,IV3,IV7)	10/2006 - 12/2999	1
44771-37540	XZU30#,314,324,33#,34#,354,50#,524,538,548,554..SCB..(DM3,DM5,DM7,T2,T3,T4,T5)..(CBU,IV3,IV7)	10/2006 - 12/2999	1
44776-37270	XZU50#..T4..IV3;XZU348..SCB..T4..(DCRTJ,DCRUE)..IV3;XZU344..T4..30T..(DCRTJ,DCRUE)..IV3;XZU30#,33#,538,548..SCB..T4..(DCRTJ,DCRTK,DCRTM,DCRUE)..IV3 ｺｳｼﾖｻｷﾞﾖｳｼﾔ OR ﾚｲﾄｳｼﾔ OR ﾎﾞﾄﾙｶ-	10/2006 - 12/2999	1
44776-37270	XZU50#..T4..IV3;XZU348..SCB..T4..(DCRTJ,DCRUE)..IV3;XZU344..T4..30T..(DCRTJ,DCRUE)..IV3;XZU30#,33#,538,548..SCB..T4..(DCRTJ,DCRTK,DCRTM,DCRUE)..IV3 ｺｳｼﾖｻｷﾞﾖｳｼﾔ OR ﾚｲﾄｳｼﾔ OR ﾎﾞﾄﾙｶ-	10/2006 - 12/2999	1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-37540	XZU30#,314,324,33#,34#,354,50#,524,538,548,554..SCB..(DM3,DM5,DM7,T2,T3,T4,T5)..(CBU,IV3,IV7)	10/2006 - 12/2999	1
44771-37540	XZU30#,314,324,33#,34#,354,50#,524,538,548,554..SCB..(DM3,DM5,DM7,T2,T3,T4,T5)..(CBU,IV3,IV7)	10/2006 - 12/2999	1
44776-37270	XZU50#..T4..IV3;XZU348..SCB..T4..(DCRTJ,DCRUE)..IV3;XZU344..T4..30T..(DCRTJ,DCRUE)..IV3;XZU30#,33#,538,548..SCB..T4..(DCRTJ,DCRTK,DCRTM,DCRUE)..IV3 ｺｳｼﾖｻｷﾞﾖｳｼﾔ OR ﾚｲﾄｳｼﾔ OR ﾎﾞﾄﾙｶ-	10/2006 - 12/2999	1
44776-37270	XZU50#..T4..IV3;XZU348..SCB..T4..(DCRTJ,DCRUE)..IV3;XZU344..T4..30T..(DCRTJ,DCRUE)..IV3;XZU30#,33#,538,548..SCB..T4..(DCRTJ,DCRTK,DCRTM,DCRUE)..IV3 ｺｳｼﾖｻｷﾞﾖｳｼﾔ OR ﾚｲﾄｳｼﾔ OR ﾎﾞﾄﾙｶ-	10/2006 - 12/2999	1
44771K - HOSE, VACUUM TUBE TO VACUUM PUMP
44771-37A50	XZU344..35T;XZU304..30T..4NO;XZU334,354..SCB..1NO;XZU304..(DM3,DM6,T3)..(CBU,IV3,IV6)	10/2006 - 12/2999	1
44771-37A50	XZU344..35T;XZU304..30T..4NO;XZU334,354..SCB..1NO;XZU304..(DM3,DM6,T3)..(CBU,IV3,IV6)	10/2006 - 12/2999	1
44773L - HOSE, SOLENOID TO EXHAUST RETARDER
44771-37410	XZU50#..T4..IV3;XZU348..SCB..T4..(DCRTJ,DCRUE)..IV3;XZU344..T4..30T..(DCRTJ,DCRUE)..IV3;XZU30#,33#,538,548..SCB..T4..(DCRTJ,DCRTK,DCRTM,DCRUE)..IV3 ｺｳｼﾖｻｷﾞﾖｳｼﾔ OR ﾚｲﾄｳｼﾔ OR ﾎﾞﾄﾙｶ-	10/2006 - 06/2011	1
44771-37410	XZU50#..T4..IV3;XZU348..SCB..T4..(DCRTJ,DCRUE)..IV3;XZU344..T4..30T..(DCRTJ,DCRUE)..IV3;XZU30#,33#,538,548..SCB..T4..(DCRTJ,DCRTK,DCRTM,DCRUE)..IV3 ｺｳｼﾖｻｷﾞﾖｳｼﾔ OR ﾚｲﾄｳｼﾔ OR ﾎﾞﾄﾙｶ-	10/2006 - 06/2011	1
44773-37060	XZU30#,314,324,33#,34#,354,50#,524,538,548,554..SCB..(DM3,DM5,DM7,T2,T3,T4,T5)..(CBU,IV3,IV7)	10/2006 - 12/2999	1
44773-37060	XZU30#,314,324,33#,34#,354,50#,524,538,548,554..SCB..(DM3,DM5,DM7,T2,T3,T4,T5)..(CBU,IV3,IV7)	10/2006 - 12/2999	1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-37320	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..SCB	10/2006 - 06/2011	1
44774-37320	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..SCB	10/2006 - 06/2011	1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-37060	BZU300;BZU340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7)	10/2006 - 06/2011	1
44778-37060	BZU300;BZU340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7)	10/2006 - 06/2011	1
Common parts
47371-37040
90119-08676
91642-K1020
91645-80825
91651-B0820
94130-00802
96133-41500
Linked diagrams
8401

Part #	Description	Period	Qty	Price
Common parts
90119-08126
90179-08146
90461-08050
90461-10376
90461-12090
90467-16141
91611-40610
91611-40820
91651-40816
91651-40820
94110-40800

XZU304-TQFQG3 (2010)

ILLUST NO. 2 OF 2(0610- )XZU30#,33#,538,548..SCB..T4..DCRTJ,DCRTK,DCRTM,DCRUE..IV3

ILLUST NO. 1 OF 2(7708- )HU30,JU20,RU2#,3#

ILLUST NO. 2 OF 2(7708- )

Part Price Details

Part #	Description	Period	Qty	Price
Common parts
90179-08146
93319-14008
94110-70600
94120-41000
Linked diagrams
4702
