XZU304-TPPLS (2004)

Toyota Dyna/Toyoace

Production Jun 2004 - Oct 2006
Engine N04C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0406- )RZU300..T2,T3,T4..CBU ; (0406- )BZU300,340,RZU301,340,XZU301,304,306,

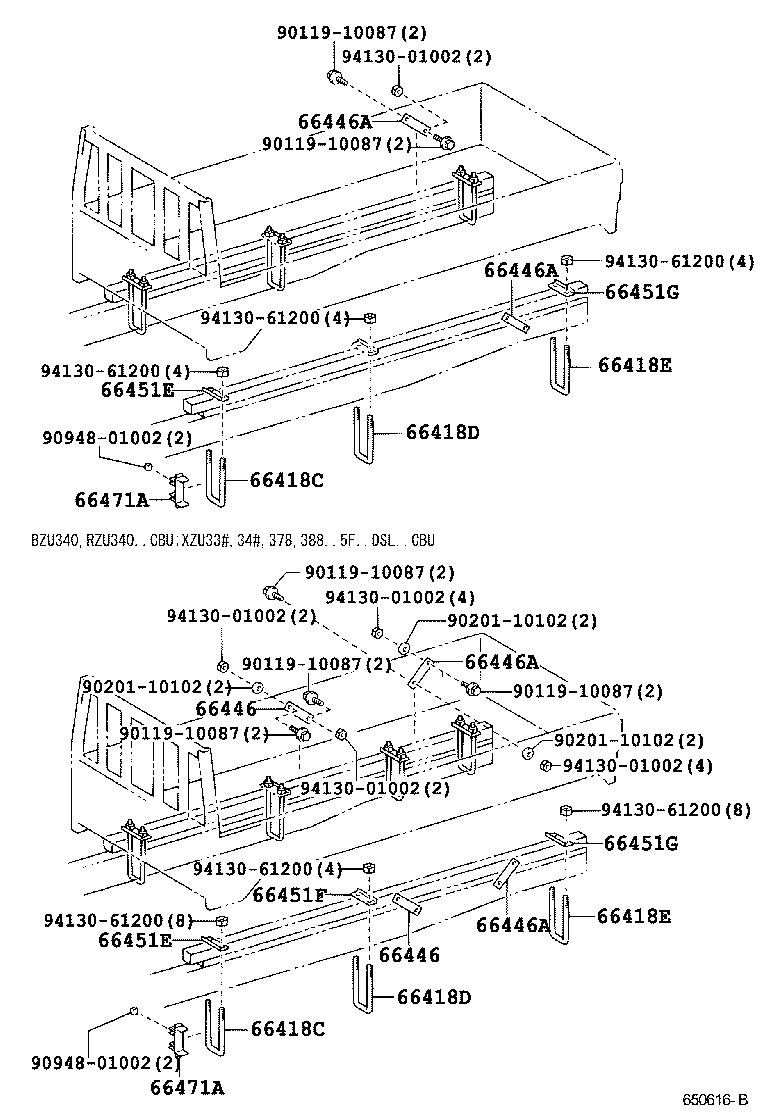

Click highlighted areas on diagram

diagram 66418C 66418C 66418D 66418D 66418E 66418E 66446 66446 66446A 66446A 66446A 66446A 66451E 66451E 66451F 66451G 66451G 66471A 66471A 9011910087 9011910087 9011910087 9011910087 9011910087 9011910087 9020110102 9020110102 9020110102 9094801002 9094801002 9413001002 9413001002 9413001002 9413001002 9413001002 9413061200 9413061200 9413061200 9413061200 9413061200 9413061200
Part # Description Qty Price
66418C - BOLT, U, FRONT
90117-12040

XZU301,304,306,308..T5..CBU;XZU331,334,378..T3..30T..CBU

長さ=355

 2
66418C - BOLT, U, FRONT
90117-12040

XZU301,304,306,308..T5..CBU;XZU331,334,378..T3..30T..CBU

長さ=355

 2
66418E - BOLT, U, REAR
90117-12038

XZU331,334,378..T3..CBU;XZU301,304,306,308..T5..CBU

長さ=320

 2
66418E - BOLT, U, REAR
90117-12038

XZU331,334,378..T3..CBU;XZU301,304,306,308..T5..CBU

長さ=320

 2
66446A - BRACE, FRAME TO REAR BODY FLOOR
66447-92803

BZU300,340..T4..CNG;XZU301,304..T5..ST..CBU;XZU341,346,388..T3..CBU;RZU300,XZU306,308..DCB..CBU;BZU300,340,RZU300,XZU301,304,344..(T3,T5)..(30T,35T)..CBU

 2
66446A - BRACE, FRAME TO REAR BODY FLOOR
66447-92803

BZU300,340..T4..CNG;XZU301,304..T5..ST..CBU;XZU341,346,388..T3..CBU;RZU300,XZU306,308..DCB..CBU;BZU300,340,RZU300,XZU301,304,344..(T3,T5)..(30T,35T)..CBU

 2
66446A - BRACE, FRAME TO REAR BODY FLOOR
66447-92803

BZU300,340..T4..CNG;XZU301,304..T5..ST..CBU;XZU341,346,388..T3..CBU;RZU300,XZU306,308..DCB..CBU;BZU300,340,RZU300,XZU301,304,344..(T3,T5)..(30T,35T)..CBU

 2
66446A - BRACE, FRAME TO REAR BODY FLOOR
66447-92803

BZU300,340..T4..CNG;XZU301,304..T5..ST..CBU;XZU341,346,388..T3..CBU;RZU300,XZU306,308..DCB..CBU;BZU300,340,RZU300,XZU301,304,344..(T3,T5)..(30T,35T)..CBU

 2
Common parts
90119-10087
90201-10102
90948-01002
94130-01002
94130-61200
