XZU304-TPPLS (2004)
Toyota Dyna/Toyoace
ILLUST NO. 1 OF 5(0406- )XZU301,304,305,331,334,341,344,354..DM3,DM6,T1,T3,T4,T5..CBU,IV3,IV4,IV6
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-37160 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 47311-37162 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 47311-37161 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 47391-37010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-37440 |
XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 NO.1 |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-37440 |
XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 NO.1 |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02D83 |
XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 ｱﾘ(ABS) |
2 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02D83 |
XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 ｱﾘ(ABS) |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37060 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 NO.1 |
1 | ||
| 47312-37490 |
XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T NO.2 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37060 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 NO.1 |
1 | ||
| 47312-37490 |
XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T NO.2 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37060 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 NO.1 |
1 | ||
| 47312-37490 |
XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T NO.2 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-37440 |
XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 ｱﾘ(ABS) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-37440 |
XZU354;XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,306,308,31#,321,33#,34#,351,368,378,388..CBU,IV3,IV4,IV7 ｱﾘ(ABS) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02B27 |
BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T 左側 |
1 | ||
| 90947-02A72 |
BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T 右側 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02B27 |
BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T 左側 |
1 | ||
| 90947-02A72 |
BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T 右側 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-37570 |
XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;XZU304,305,31#,321,331,334,341,344,35#..SCB..(20T,30T) ｱﾘ(ABS) |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37160 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 NO.1 |
1 | ||
| 47321-37420 |
XZU30#,31#,321,33#,34#,35#,368,378,388 ｱﾘ(ABS),NO.2 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37160 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 NO.1 |
1 | ||
| 47321-37420 |
XZU30#,31#,321,33#,34#,35#,368,378,388 ｱﾘ(ABS),NO.2 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37160 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388 NO.1 |
1 | ||
| 47321-37420 |
XZU30#,31#,321,33#,34#,35#,368,378,388 ｱﾘ(ABS),NO.2 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-37530 |
XZU301..(DM6,T3,T4,T5)..IV3;XZU301,354..(DM3,DM6,T3,T4,T5)..(CBU,IV6);XZU304,305,306,308,33#,34#..CBU,IV3,IV4,IV7 ｱﾘ(ABS) |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-37240 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-37240 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-37320 |
XZU301..(DM6,T3,T4,T5)..IV3;XZU301,354..(DM3,DM6,T3,T4,T5)..(CBU,IV6);XZU304,305,306,308,33#,34#..CBU,IV3,IV4,IV7 ｱﾘ(ABS) |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-37130 |
BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-37050 |
BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-37150 |
BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-37160 |
BZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-37030 |
BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 |
1 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-37310 |
XZU30#,33#,34#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV6) NO.2 |
1 | ||
| 47391-37300 |
XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 NO.1 |
1 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-37310 |
XZU30#,33#,34#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV6) NO.2 |
1 | ||
| 47391-37300 |
XZU30#,31#,321,33#,34#,35#,368,378,388..CBU,IV3,IV4,IV6 NO.1 |
1 | ||
| Common parts | ||||
| 47371-37050 | ||||
| 47371-37080 | ||||
| 90119-08676 | ||||
| 90129-08007 | ||||
| 90464-00726 | ||||
| 90468-08035 | ||||
| 90480-01054 | ||||
| 90480-01275 | ||||
| 90480-01628 | ||||
| 90959-01593 | ||||
| 90959-01594 | ||||
| 90959-01602 | ||||
| 90959-01603 | ||||
| 90959-01604 | ||||
| 90959-01605 | ||||
| 90959-01616 | ||||
| 91611-G0820 | ||||
| 94130-00802 | ||||
| Linked diagrams | ||||
| 3102 | ||||
ILLUST NO. 2 OF 5(0406- )XZU30#,33#,34#,354..DM3,DM6,T1,T2,T3,T4,T5..CBU,IV3,IV6,IV7
W(ABS) 4X2 SHORT,S/LONG,LONG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37080 |
BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47312-37500 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47312-37501 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37080 |
BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47312-37500 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47312-37501 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37080 |
BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47312-37500 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47312-37501 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10229 |
XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;RZU301,XZU305,331,336,341,344,346,354,378,388..(5F,6FC)..1NO;XZU304,306,308,334,338,348,368..(DCB,SCB)..(CBU,IV3,IV4,IV7) NO.4 |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37220 |
BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47322-37590 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47322-37880 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37220 |
BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47322-37590 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47322-37880 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37220 |
BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47322-37590 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47322-37880 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-37510 |
XZU301,304..ST |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-37360 |
XZU301,304..ST |
1 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90464-00778 | ||||
| 90464-00833 | ||||
| 90480-01620 | ||||
| 90480-01621 | ||||
| 90959-01593 | ||||
| 90959-01594 | ||||
ILLUST NO. 2 OF 5(0406- )ST
W(ABS) SINGLE TIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37080 |
BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47312-37500 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47312-37501 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10229 |
XZU301..CBU,IV6;XZU301..(DM6,T3,T4,T5)..IV3;RZU301,XZU305,331,336,341,344,346,354,378,388..(5F,6FC)..1NO;XZU304,306,308,334,338,348,368..(DCB,SCB)..(CBU,IV3,IV4,IV7) NO.4 |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37220 |
BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47322-37590 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47322-37880 |
XZU30#,354..(DM3,DM6,T1,T2,T3,T4,T5)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-37510 |
XZU301,304..ST |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-37360 |
XZU301,304..ST |
1 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90464-00833 | ||||
| 90480-01620 | ||||
| 90959-01594 | ||||

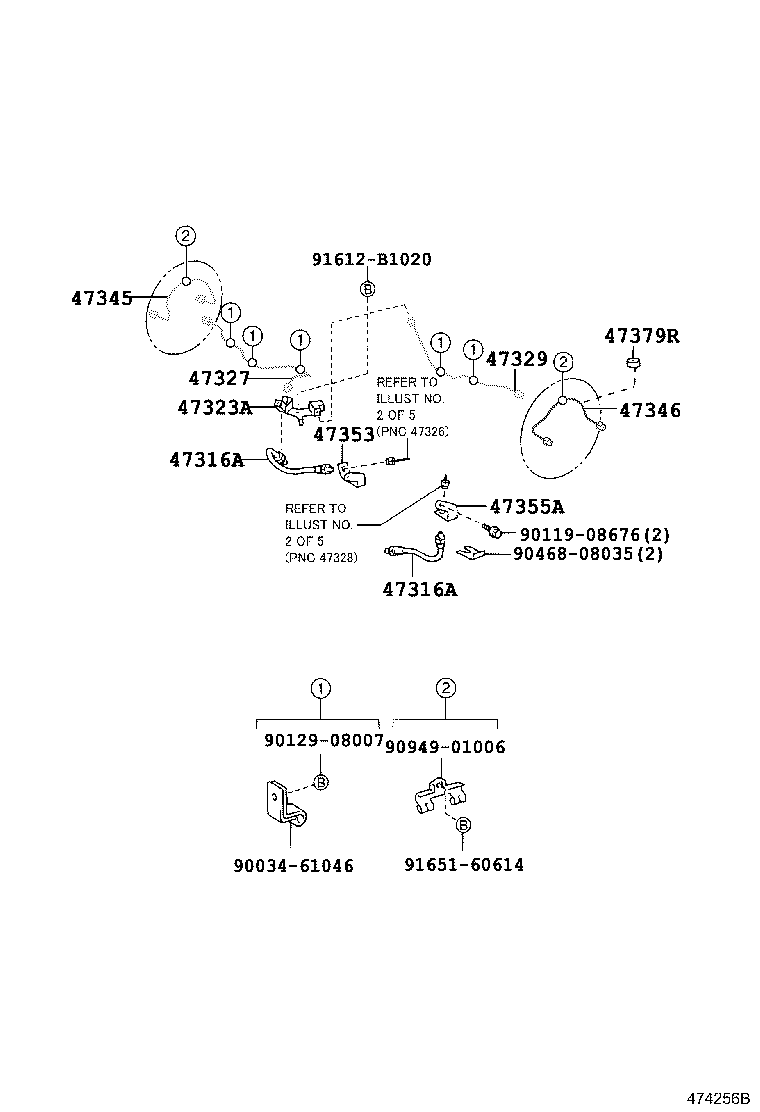

ILLUST NO. 3 OF 5(0406- )03S..ATM ; (0406- )XZU306..SCB,VAN..03S,T4..5F..CBU,IV3 ; (0406- )
W/O(ABS) CLAMP:LH SIDE=2,RH SIDE=3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B72 |
XZU301,304..ST |
2 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 47391-37050 |
XZU301,304..ST |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-37170 |
XZU301,304..ST |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-37040 |
XZU301,304..ST |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-37040 |
XZU301,304..ST |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47345-37040 |
XZU301,304..ST |
1 | ||
| Common parts | ||||
| 90034-61046 | ||||
| 90119-08676 | ||||
| 90129-08007 | ||||
| 90468-08035 | ||||
| 90949-01006 | ||||
| 91612-B1020 | ||||
| 91651-60614 | ||||
ILLUST NO. 3 OF 5(0406- )ST
W(ABS) CLAMP:LH SIDE=2,RH SIDE=3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B72 |
XZU301,304..ST |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B72 |
XZU301,304..ST |
2 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 47391-37050 |
XZU301,304..ST |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-37170 |
XZU301,304..ST |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-37040 |
XZU301,304..ST |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-37040 |
XZU301,304..ST |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47345-37040 |
XZU301,304..ST |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-37070 |
XZU301,304..ST |
1 | ||
| Common parts | ||||
| 90034-61046 | ||||
| 90119-08676 | ||||
| 90129-08007 | ||||
| 90468-08035 | ||||
| 90949-01034 | ||||
| 91612-B1020 | ||||
| 91651-60614 | ||||
ILLUST NO. 3 OF 5(0406- )XZU368..T4 ; (0406- )BZU300,340,RZU30#,340,XZU30#,33#,34#,378,388..20
W(ABS) CLAMP:LH SIDE=2,RH SIDE=3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B72 |
XZU301,304..ST |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B72 |
XZU301,304..ST |
2 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 47391-37050 |
XZU301,304..ST |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-37170 |
XZU301,304..ST |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-37040 |
XZU301,304..ST |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-37040 |
XZU301,304..ST |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47345-37040 |
XZU301,304..ST |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-37070 |
XZU301,304..ST |
1 | ||
| Common parts | ||||
| 90034-61046 | ||||
| 90119-08676 | ||||
| 90129-08007 | ||||
| 90468-08035 | ||||
| 90949-01006 | ||||
| 91612-B1020 | ||||
| 91651-60614 | ||||
ILLUST NO. 4 OF 5(0406- )XZU30#,31#,321,33#,34#,35#,368,378,388
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44540 - ACTUATOR ASSY, ABS & TRACTION | ||||
| 44540-37010 |
BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 44050-37040 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| Common parts | ||||
| 90099-05277 | ||||
| 90119-08676 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
