XZU304-TPMQW3 (2003)
Toyota Dyna/Toyoace
(0310- )XZU304..SCB..DSLL ; (0310- )XZU304..T4..DCRL..CBU ; (0310- )XZU304

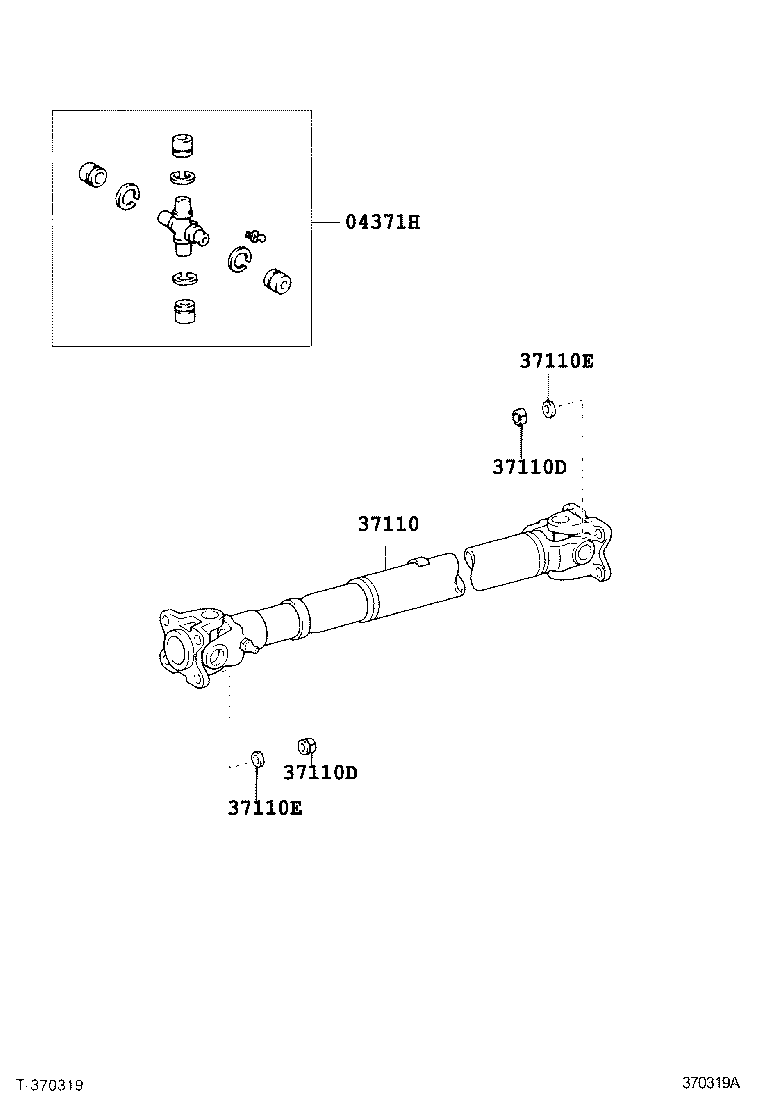

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-37011 |
XZU304,305,344 |
2 | ||
| 04371-37011 |
XZU301..DM3..20T..CBU;XZU301..6FC..20T..4NO;XZU301..30T..(CBU,IV6);XZU301..(DM6,T5)..20T..WT;XZU306,336..(03S,T2)..6FC;XZU301..(T3,T4,T5)..30T..IV3;XZU306,336..(T4,T5)..(CBU,IV3);XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
3 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-37760 |
XZU304,305 |
1 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-12005 |
XZU304,305,344 |
8 | ||
| 90170-12005 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
8 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-12005 |
XZU304,305,344 |
8 | ||
| 90170-12005 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 94512-01200 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
8 | ||
| 94512-01200 |
XZU304,305,344 |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 94512-01200 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
8 | ||
| 94512-01200 |
XZU304,305,344 |
8 | ||
(0406- )BZU300,XZU304,305,314,334,354..CNG,DCRL,DSLL,LPG ; (0406- )XZU306,311
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-37011 |
XZU304,305,344 |
2 | ||
| 04371-37011 |
XZU304,305,344 |
2 | ||
| 04371-37011 |
XZU301..DM3..20T..CBU;XZU301..6FC..20T..4NO;XZU301..30T..(CBU,IV6);XZU301..(DM6,T5)..20T..WT;XZU306,336..(03S,T2)..6FC;XZU301..(T3,T4,T5)..30T..IV3;XZU306,336..(T4,T5)..(CBU,IV3);XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
3 | ||
| 04371-37011 |
XZU301..DM3..20T..CBU;XZU301..6FC..20T..4NO;XZU301..30T..(CBU,IV6);XZU301..(DM6,T5)..20T..WT;XZU306,336..(03S,T2)..6FC;XZU301..(T3,T4,T5)..30T..IV3;XZU306,336..(T4,T5)..(CBU,IV3);XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
3 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-12005 |
XZU304,305,344 |
8 | ||
| 90170-12005 |
XZU304,305,344 |
8 | ||
| 90170-12005 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
8 | ||
| 90170-12005 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
8 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-12005 |
XZU304,305,344 |
8 | ||
| 90170-12005 |
XZU304,305,344 |
8 | ||
| 90170-12005 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
8 | ||
| 90170-12005 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 94512-01200 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
8 | ||
| 94512-01200 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
8 | ||
| 94512-01200 |
XZU304,305,344 |
8 | ||
| 94512-01200 |
XZU304,305,344 |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 94512-01200 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
8 | ||
| 94512-01200 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
8 | ||
| 94512-01200 |
XZU304,305,344 |
8 | ||
| 94512-01200 |
XZU304,305,344 |
8 | ||
| 37110F - SHAFT ASSY, PROPELLER, REAR | ||||
| 37110-37760 |
XZU306..03S..6FC;XZU306..(T4,T5)..5F;XZU301..T4..5F..30T;XZU304..(DCRL,DSLL)..(CBU,IV3);XZU301,305..(DM3,DM6,T3,T5)..5F..WT |
1 | ||
| 37110-37760 |
XZU306..03S..6FC;XZU306..(T4,T5)..5F;XZU301..T4..5F..30T;XZU304..(DCRL,DSLL)..(CBU,IV3);XZU301,305..(DM3,DM6,T3,T5)..5F..WT |
1 | ||
| 37302B - YOKE SUB-ASSY, RR PROPELLER SHAFT UNIVERSAL J0INT SLEEV | ||||
| 37302-37021 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
1 | ||
| 37302-37021 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
1 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-37021 |
XZU301..T4..30T;XZU306,331,336..T3,T4,T5;XZU301,351..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;BZU300,XZU304,305,334,354..(DM6,T3,T4,T5)..(CNG,DCRL,DSLL,LPG) |
2 | ||
| 37315-37021 |
XZU301..T4..30T;XZU306,331,336..T3,T4,T5;XZU301,351..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;BZU300,XZU304,305,334,354..(DM6,T3,T4,T5)..(CNG,DCRL,DSLL,LPG) |
2 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-37021 |
XZU301..T4..30T;XZU306,331,336..T3,T4,T5;XZU301,351..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;BZU300,XZU304,305,334,354..(DM6,T3,T4,T5)..(CNG,DCRL,DSLL,LPG) |
2 | ||
| 37315-37021 |
XZU301..T4..30T;XZU306,331,336..T3,T4,T5;XZU301,351..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;BZU300,XZU304,305,334,354..(DM6,T3,T4,T5)..(CNG,DCRL,DSLL,LPG) |
2 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21024 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.60 |
8 | ||
| 90035-21024 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.60 |
8 | ||
| 90035-21023 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.55 |
8 | ||
| 90035-21023 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.55 |
8 | ||
| 90035-21026 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.70 |
8 | ||
| 90035-21026 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.70 |
8 | ||
| 90035-21025 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.65 |
8 | ||
| 90035-21025 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.65 |
8 | ||
| 90035-21022 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.50 |
8 | ||
| 90035-21022 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.50 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21024 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.60 |
8 | ||
| 90035-21024 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.60 |
8 | ||
| 90035-21023 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.55 |
8 | ||
| 90035-21023 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.55 |
8 | ||
| 90035-21026 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.70 |
8 | ||
| 90035-21026 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.70 |
8 | ||
| 90035-21025 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.65 |
8 | ||
| 90035-21025 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.65 |
8 | ||
| 90035-21022 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.50 |
8 | ||
| 90035-21022 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.50 |
8 | ||
| 37402D - BEARING, REAR PROPELLER SHAFT UNIVERSAL JOINT SPIDER | ||||
| 37402-37020 |
XZU301..T4..30T;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;BZU300,XZU304,305,314,334,354..CNG,DCRL,DSLL,LPG;XZU306,311,321,331,336,351,368,378..DM2,DM5,DM7,T3,T4,T5 |
8 | ||
| 37402-37020 |
XZU301..T4..30T;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;BZU300,XZU304,305,314,334,354..CNG,DCRL,DSLL,LPG;XZU306,311,321,331,336,351,368,378..DM2,DM5,DM7,T3,T4,T5 |
8 | ||
| 37402D - BEARING, REAR PROPELLER SHAFT UNIVERSAL JOINT SPIDER | ||||
| 37402-37020 |
XZU301..T4..30T;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;BZU300,XZU304,305,314,334,354..CNG,DCRL,DSLL,LPG;XZU306,311,321,331,336,351,368,378..DM2,DM5,DM7,T3,T4,T5 |
8 | ||
| 37402-37020 |
XZU301..T4..30T;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;BZU300,XZU304,305,314,334,354..CNG,DCRL,DSLL,LPG;XZU306,311,321,331,336,351,368,378..DM2,DM5,DM7,T3,T4,T5 |
8 | ||
| Common parts | ||||
| 90034-08006 | ||||
(0406- )XZU301..T4..30T ; (0406- )XZU301..6FC..20T..4NO ; (0406- )XZU306,3
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-37011 |
XZU304,305,344 |
2 | ||
| 04371-37011 |
XZU304,305,344 |
2 | ||
| 04371-37011 |
XZU301..DM3..20T..CBU;XZU301..6FC..20T..4NO;XZU301..30T..(CBU,IV6);XZU301..(DM6,T5)..20T..WT;XZU306,336..(03S,T2)..6FC;XZU301..(T3,T4,T5)..30T..IV3;XZU306,336..(T4,T5)..(CBU,IV3);XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
3 | ||
| 04371-37011 |
XZU301..DM3..20T..CBU;XZU301..6FC..20T..4NO;XZU301..30T..(CBU,IV6);XZU301..(DM6,T5)..20T..WT;XZU306,336..(03S,T2)..6FC;XZU301..(T3,T4,T5)..30T..IV3;XZU306,336..(T4,T5)..(CBU,IV3);XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
3 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-12005 |
XZU304,305,344 |
8 | ||
| 90170-12005 |
XZU304,305,344 |
8 | ||
| 90170-12005 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
8 | ||
| 90170-12005 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
8 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-12005 |
XZU304,305,344 |
8 | ||
| 90170-12005 |
XZU304,305,344 |
8 | ||
| 90170-12005 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
8 | ||
| 90170-12005 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 94512-01200 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
8 | ||
| 94512-01200 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
8 | ||
| 94512-01200 |
XZU304,305,344 |
8 | ||
| 94512-01200 |
XZU304,305,344 |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 94512-01200 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
8 | ||
| 94512-01200 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
8 | ||
| 94512-01200 |
XZU304,305,344 |
8 | ||
| 94512-01200 |
XZU304,305,344 |
8 | ||
| 37110F - SHAFT ASSY, PROPELLER, REAR | ||||
| 37110-37760 |
XZU306..03S..6FC;XZU306..(T4,T5)..5F;XZU301..T4..5F..30T;XZU304..(DCRL,DSLL)..(CBU,IV3);XZU301,305..(DM3,DM6,T3,T5)..5F..WT |
1 | ||
| 37110-37760 |
XZU306..03S..6FC;XZU306..(T4,T5)..5F;XZU301..T4..5F..30T;XZU304..(DCRL,DSLL)..(CBU,IV3);XZU301,305..(DM3,DM6,T3,T5)..5F..WT |
1 | ||
| 37302B - YOKE SUB-ASSY, RR PROPELLER SHAFT UNIVERSAL J0INT SLEEV | ||||
| 37302-37021 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
1 | ||
| 37302-37021 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
1 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-37021 |
XZU301..T4..30T;XZU306,331,336..T3,T4,T5;XZU301,351..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;BZU300,XZU304,305,334,354..(DM6,T3,T4,T5)..(CNG,DCRL,DSLL,LPG) |
2 | ||
| 37315-37021 |
XZU301..T4..30T;XZU306,331,336..T3,T4,T5;XZU301,351..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;BZU300,XZU304,305,334,354..(DM6,T3,T4,T5)..(CNG,DCRL,DSLL,LPG) |
2 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-37021 |
XZU301..T4..30T;XZU306,331,336..T3,T4,T5;XZU301,351..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;BZU300,XZU304,305,334,354..(DM6,T3,T4,T5)..(CNG,DCRL,DSLL,LPG) |
2 | ||
| 37315-37021 |
XZU301..T4..30T;XZU306,331,336..T3,T4,T5;XZU301,351..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;BZU300,XZU304,305,334,354..(DM6,T3,T4,T5)..(CNG,DCRL,DSLL,LPG) |
2 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21024 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.60 |
8 | ||
| 90035-21024 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.60 |
8 | ||
| 90035-21023 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.55 |
8 | ||
| 90035-21023 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.55 |
8 | ||
| 90035-21026 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.70 |
8 | ||
| 90035-21026 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.70 |
8 | ||
| 90035-21025 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.65 |
8 | ||
| 90035-21025 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.65 |
8 | ||
| 90035-21022 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.50 |
8 | ||
| 90035-21022 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.50 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21024 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.60 |
8 | ||
| 90035-21024 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.60 |
8 | ||
| 90035-21023 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.55 |
8 | ||
| 90035-21023 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.55 |
8 | ||
| 90035-21026 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.70 |
8 | ||
| 90035-21026 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.70 |
8 | ||
| 90035-21025 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.65 |
8 | ||
| 90035-21025 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.65 |
8 | ||
| 90035-21022 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.50 |
8 | ||
| 90035-21022 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.50 |
8 | ||
| 37402D - BEARING, REAR PROPELLER SHAFT UNIVERSAL JOINT SPIDER | ||||
| 37402-37020 |
XZU301..T4..30T;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;BZU300,XZU304,305,314,334,354..CNG,DCRL,DSLL,LPG;XZU306,311,321,331,336,351,368,378..DM2,DM5,DM7,T3,T4,T5 |
8 | ||
| 37402-37020 |
XZU301..T4..30T;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;BZU300,XZU304,305,314,334,354..CNG,DCRL,DSLL,LPG;XZU306,311,321,331,336,351,368,378..DM2,DM5,DM7,T3,T4,T5 |
8 | ||
| 37402D - BEARING, REAR PROPELLER SHAFT UNIVERSAL JOINT SPIDER | ||||
| 37402-37020 |
XZU301..T4..30T;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;BZU300,XZU304,305,314,334,354..CNG,DCRL,DSLL,LPG;XZU306,311,321,331,336,351,368,378..DM2,DM5,DM7,T3,T4,T5 |
8 | ||
| 37402-37020 |
XZU301..T4..30T;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;BZU300,XZU304,305,314,334,354..CNG,DCRL,DSLL,LPG;XZU306,311,321,331,336,351,368,378..DM2,DM5,DM7,T3,T4,T5 |
8 | ||
| Common parts | ||||
| 90034-08006 | ||||
(9905-0406)DCB..T5 ; (9905-0406)XZU412..T2,T3,T4; (9905-0406)BU410,BZU410,XZU410,4
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90031-01164 | ||||
| 90031-01165 | ||||
| 90031-01177 | ||||
| 90031-01191 | ||||
| 90031-70075 | ||||
| 90031-75011 | ||||
| 90032-01069 | ||||
| 90032-04005 | ||||
| 90032-04031 | ||||
| 90034-08006 | ||||
| 90035-60057 | ||||
| 90170-10028 | ||||
| 90170-12005 | ||||
| 90170-12018 | ||||
| 94511-00800 | ||||
| 94512-01200 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
