XZU304-TPMLS (2004)
Toyota Dyna/Toyoace

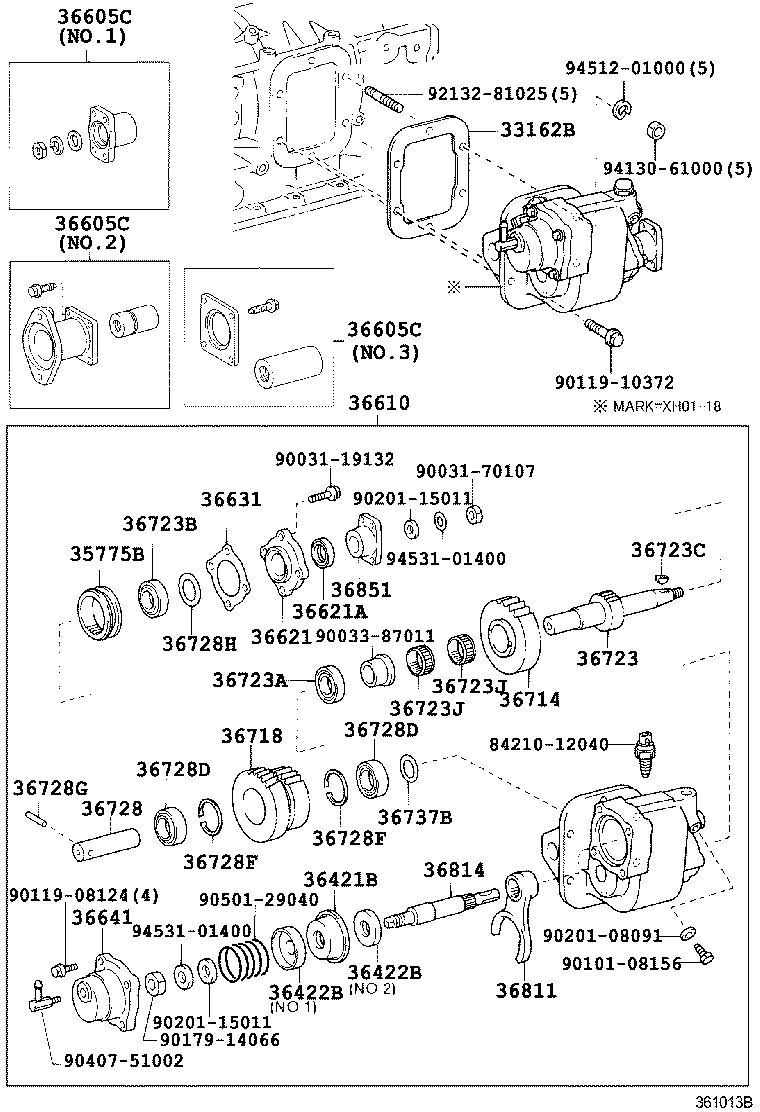

ILLUST NO. 1 OF 2(0406- )XZU304,334..DCRL,DSLL..CBU,IV3 ; (0406- )XZU301,305,306,331,336,341,3
ﾊﾞｷｭｰﾑｼｷ25KG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33162B - GASKET, POWER TAKE-OFF COVER | ||||
| 33162-37030 |
XZU354..1NO;RZU30#,340,XZU301,304,305,306,331,334,336,341,344,346..(DCB,SCB)..5F..(CBU,IV3,IV6) |
1 | ||
| 35775B - SLEEVE, OUTPUT SHAFT | ||||
| 35775-37010 |
XZU304,334..5F..DSL |
1 | ||
| 36421B - DIAPHRAGM (FOR POWER TAKE-OFF) | ||||
| 36421-93100 |
XZU301,304,305,306,331,334,336,341,344,346..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3) |
1 | ||
| 36422B - PLATE, DIAPHRAGM (FOR POWER TAKE-OFF) | ||||
| 36422-93100 |
XZU301,304,305,306,331,334,336,341,344,346..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3) NO.1 |
1 | ||
| 36422-93101 |
XZU301,304,305,306,331,334,336,341,344,346..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3) NO.2 |
1 | ||
| 36422B - PLATE, DIAPHRAGM (FOR POWER TAKE-OFF) | ||||
| 36422-93100 |
XZU301,304,305,306,331,334,336,341,344,346..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3) NO.1 |
1 | ||
| 36422-93101 |
XZU301,304,305,306,331,334,336,341,344,346..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3) NO.2 |
1 | ||
| 36610 - POWER TAKE-OFF ASSY | ||||
| 36610-37140 |
XZU304,334..5F..DSL |
1 | ||
| 36621 - RETAINER, POWER TAKE-OFF BEARING | ||||
| 36621-93200 |
XZU304,334..5F..DSL |
1 | ||
| 36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER) | ||||
| 90311-25110 |
XZU301,304,305,306,331,334,336,341,344,346,354..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) |
1 | ||
| 36631 - GASKET, POWER TAKE-OFF BEARING RETAINER | ||||
| 36632-37030 |
XZU301,304,305,306,331,334,336,341,344,346,354..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) |
1 | ||
| 36641 - CAP, POWER TAKE-OFF SHIFT SHAFT | ||||
| 36641-93100 |
XZU301,304,305,306,331,334,336,341,344,346..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3) |
1 | ||
| 36714 - GEAR, POWER TAKE-OFF OUTPUT | ||||
| 36714-93108 |
XZU304,334..5F..DSL |
1 | ||
| 36718 - GEAR, POWER TAKE-OFF IDLER | ||||
| 36718-93112 |
XZU304,334..5F..DSL |
1 | ||
| 36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1 | ||||
| 36723-93107 |
XZU304,334..5F..DSL |
1 | ||
| 36723A - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 97100-06205 |
XZU304,334..5F..DSL |
1 | ||
| 36723B - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90366-22001 |
XZU301..DM3;XZU304,334..5F..DSL;XZU301,306,354..5F..IV6 厚さ=16.25 |
1 | ||
| 36723C - KEY, WOODRUFF (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90280-07011 |
XZU304,334..5F..DSL;XZU331,334..T3..5F..30T..IV3 |
1 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90364-28020 |
XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) |
2 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90364-28020 |
XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) |
2 | ||
| 36728 - SHAFT, POWER TAKE-OFF IDLER | ||||
| 36728-93107 |
XZU304,334..5F..DSL |
1 | ||
| 36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90564-25002 |
XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.1 |
1 | ||
| 90564-25004 |
XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.5 |
1 | ||
| 90564-25003 |
XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.2 |
1 | ||
| 90564-25001 |
XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.05 |
1 | ||
| 36737B - SHIM (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT) | ||||
| 90564-42002 |
XZU301,304,305,306,331,334,336,341,344,346..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3) 厚さ=0.07−0.13 |
1 | ||
| 90564-42001 |
XZU301,304,305,306,331,334,336,341,344,346..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3) 厚さ=0.02−0.08 |
1 | ||
| 90564-42003 |
XZU301,304,305,306,331,334,336,341,344,346..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3) 厚さ=0.17−0.23 |
1 | ||
| 90564-42004 |
XZU301,304,305,306,331,334,336,341,344,346..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3) 厚さ=0.47−0.53 |
1 | ||
| 36811 - FORK, POWR TAKE-OFF SHIFT, NO.1 | ||||
| 36811-93104 |
XZU301,304,305,306,331,334,336,341,344,346,354..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) |
1 | ||
| 36814 - SHAFT, POWR TAKE-OFF FORK, NO.1 | ||||
| 36814-93104 |
XZU304,334..5F..DSL |
1 | ||
| 36851 - RETAINER, POWER TAKE-OFF JOINT | ||||
| 36851-37010 |
XZU304,334..5F..DSL |
1 | ||
| Common parts | ||||
| 84210-12040 | ||||
| 90031-19132 | ||||
| 90031-70107 | ||||
| 90033-87011 | ||||
| 90101-08156 | ||||
| 90119-08124 | ||||
| 90119-10372 | ||||
| 90179-14066 | ||||
| 90201-08091 | ||||
| 90201-15011 | ||||
| 90407-51002 | ||||
| 90501-29040 | ||||
| 92132-81025 | ||||
| 94130-61000 | ||||
| 94512-01000 | ||||
| 94531-01400 | ||||

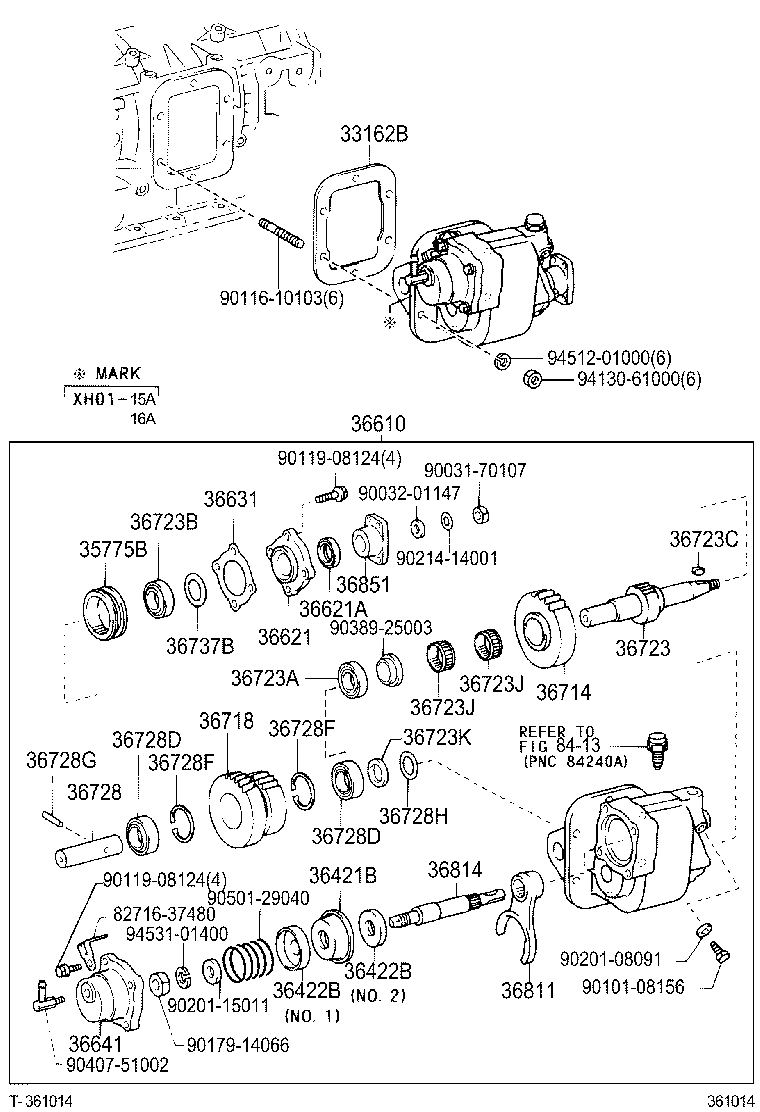

ILLUST NO. 1 OF 2(0406- )XZU368..DM5 ; (0406- )XZU304,334..5F..DSL ; (0406- )RZU30#,340,XZU
ﾊﾞｷｭｰﾑｼｷ15KG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33162B - GASKET, POWER TAKE-OFF COVER | ||||
| 33162-37030 |
XZU354..1NO;RZU30#,340,XZU301,304,305,306,331,334,336,341,344,346..(DCB,SCB)..5F..(CBU,IV3,IV6) |
1 | ||
| 35775B - SLEEVE, OUTPUT SHAFT | ||||
| 35775-37010 |
XZU304,334..5F..DSL |
1 | ||
| 36421B - DIAPHRAGM (FOR POWER TAKE-OFF) | ||||
| 36421-93100 |
XZU301,304,305,306,331,334,336,341,344,346..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3) |
1 | ||
| 36422B - PLATE, DIAPHRAGM (FOR POWER TAKE-OFF) | ||||
| 36422-93100 |
XZU301,304,305,306,331,334,336,341,344,346..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3) NO.1 |
1 | ||
| 36422-93101 |
XZU301,304,305,306,331,334,336,341,344,346..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3) NO.2 |
1 | ||
| 36422B - PLATE, DIAPHRAGM (FOR POWER TAKE-OFF) | ||||
| 36422-93100 |
XZU301,304,305,306,331,334,336,341,344,346..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3) NO.1 |
1 | ||
| 36422-93101 |
XZU301,304,305,306,331,334,336,341,344,346..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3) NO.2 |
1 | ||
| 36610 - POWER TAKE-OFF ASSY | ||||
| 36610-37140 |
XZU304,334..5F..DSL |
1 | ||
| 36621 - RETAINER, POWER TAKE-OFF BEARING | ||||
| 36621-93200 |
XZU304,334..5F..DSL |
1 | ||
| 36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER) | ||||
| 90311-25110 |
XZU301,304,305,306,331,334,336,341,344,346,354..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) |
1 | ||
| 36631 - GASKET, POWER TAKE-OFF BEARING RETAINER | ||||
| 36632-37030 |
XZU301,304,305,306,331,334,336,341,344,346,354..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) |
1 | ||
| 36641 - CAP, POWER TAKE-OFF SHIFT SHAFT | ||||
| 36641-93100 |
XZU301,304,305,306,331,334,336,341,344,346..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3) |
1 | ||
| 36714 - GEAR, POWER TAKE-OFF OUTPUT | ||||
| 36714-93108 |
XZU304,334..5F..DSL |
1 | ||
| 36718 - GEAR, POWER TAKE-OFF IDLER | ||||
| 36718-93112 |
XZU304,334..5F..DSL |
1 | ||
| 36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1 | ||||
| 36723-93107 |
XZU304,334..5F..DSL |
1 | ||
| 36723A - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 97100-06205 |
XZU304,334..5F..DSL |
1 | ||
| 36723B - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90366-22001 |
XZU301..DM3;XZU304,334..5F..DSL;XZU301,306,354..5F..IV6 厚さ=16.25 |
1 | ||
| 36723C - KEY, WOODRUFF (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90280-07011 |
XZU304,334..5F..DSL;XZU331,334..T3..5F..30T..IV3 |
1 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90364-28020 |
XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) |
2 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90364-28020 |
XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) |
2 | ||
| 36723K - COLLAR (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90387-25009 |
XZU304,334..5F..DSL |
1 | ||
| 36728 - SHAFT, POWER TAKE-OFF IDLER | ||||
| 36728-93107 |
XZU304,334..5F..DSL |
1 | ||
| 36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90564-25002 |
XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.1 |
1 | ||
| 90564-25004 |
XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.5 |
1 | ||
| 90564-25003 |
XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.2 |
1 | ||
| 90564-25001 |
XZU301,304,305,306,331,334,336,341,344,346,354..(DM3,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) 厚さ=0.05 |
1 | ||
| 36737B - SHIM (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT) | ||||
| 90564-42002 |
XZU301,304,305,306,331,334,336,341,344,346..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3) 厚さ=0.07−0.13 |
1 | ||
| 90564-42001 |
XZU301,304,305,306,331,334,336,341,344,346..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3) 厚さ=0.02−0.08 |
1 | ||
| 90564-42003 |
XZU301,304,305,306,331,334,336,341,344,346..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3) 厚さ=0.17−0.23 |
1 | ||
| 90564-42004 |
XZU301,304,305,306,331,334,336,341,344,346..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3) 厚さ=0.47−0.53 |
1 | ||
| 36811 - FORK, POWR TAKE-OFF SHIFT, NO.1 | ||||
| 36811-93104 |
XZU301,304,305,306,331,334,336,341,344,346,354..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3,IV6) |
1 | ||
| 36814 - SHAFT, POWR TAKE-OFF FORK, NO.1 | ||||
| 36814-93104 |
XZU304,334..5F..DSL |
1 | ||
| 36851 - RETAINER, POWER TAKE-OFF JOINT | ||||
| 36851-37010 |
XZU304,334..5F..DSL |
1 | ||
| Common parts | ||||
| 82716-37480 | ||||
| 90031-70107 | ||||
| 90032-01147 | ||||
| 90101-08156 | ||||
| 90116-10103 | ||||
| 90119-08124 | ||||
| 90179-14066 | ||||
| 90201-08091 | ||||
| 90201-15011 | ||||
| 90214-14001 | ||||
| 90389-25003 | ||||
| 90407-51002 | ||||
| 90501-29040 | ||||
| 94130-61000 | ||||
| 94512-01000 | ||||
| 94531-01400 | ||||
| Linked diagrams | ||||
| 8413 | ||||
ILLUST NO. 2 OF 2(0406- )XZU304,331..T1,T4,T5..5F,6FC..CBU,IV3; (0406- )XZU304,331..T3..5F..D
ﾊﾞｷｭｰﾑｼｷ15KG,25KG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27679C - BRACKET, POWER TAKE-OFF SOLENOID | ||||
| 27679-78041 |
1BZFPE..BZU300..T3,T4;N04C,S05D,1BZFPE,3RZ#..BZU340,RZU30#,340,XZU301,304,306,331,334,336,341,344,346..(T1,T2,T3,T4,T5)..5F..(CBU,IV3) |
1 | ||
| 27679-78041 |
1BZFPE..BZU300..T3,T4;N04C,S05D,1BZFPE,3RZ#..BZU340,RZU30#,340,XZU301,304,306,331,334,336,341,344,346..(T1,T2,T3,T4,T5)..5F..(CBU,IV3) |
1 | ||
| 27690J - SOLENOID ASSY, POWER TAKE-OFF | ||||
| 27690-78080 |
N04C,S05D..XZU301,304,305,306,331,334,336,341,344,346..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3) |
1 | ||
| 27690-78080 |
N04C,S05D..XZU301,304,305,306,331,334,336,341,344,346..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3) |
1 | ||
| 44754H - BRACKET, VACUUM TUBE | ||||
| 44754-37110 |
BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG;RZU30#,340,XZU301,304,305,306,331,334,336,341,344,346..(DM5,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3) |
1 | ||
| 44754-37110 |
BZU340..LPG;BZU300..DM6,T3;BZU300..T4..LPG;RZU30#,340,XZU301,304,305,306,331,334,336,341,344,346..(DM5,DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3) |
1 | ||
| 44763E - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-37170 |
XZU301,304,306,331,334,336,341,344,346..(T1,T2,T3,T4,T5)..5F..(CBU,IV3) |
1 | ||
| 44763-37170 |
XZU301,304,306,331,334,336,341,344,346..(T1,T2,T3,T4,T5)..5F..(CBU,IV3) |
1 | ||
| 44771G - HOSE, VACUUM TUBE CONNECTOR, NO.1 | ||||
| 44771-37290 |
XZU304,334..5F..DSL |
1 | ||
| 44771-37290 |
XZU304,334..5F..DSL |
1 | ||
| 44771H - HOSE, VACUUM TUBE CONNECTOR, NO.2 | ||||
| 95446-09300 |
BU30#,346,RZU300,340,XZU30#,33#,34#..(T1,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 95446-09300 |
BU30#,346,RZU300,340,XZU30#,33#,34#..(T1,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 95446-09300 |
BZU340..LPG;BZU300,RZU30#,340,XZU301,304,306,331,334,336,341,344,346..(T1,T2,T3,T4,T5)..5F..(DCRL,DSL,DSLL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 95446-09300 |
BZU340..LPG;BZU300,RZU30#,340,XZU301,304,306,331,334,336,341,344,346..(T1,T2,T3,T4,T5)..5F..(DCRL,DSL,DSLL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 44776D - HOSE, BRAKE BOOSTER | ||||
| 44776-37180 |
XZU301,304,306,331,334,336,341,344,346..(T1,T2,T3,T4,T5)..5F..(CBU,IV3) |
1 | ||
| 44776-37180 |
XZU301,304,306,331,334,336,341,344,346..(T1,T2,T3,T4,T5)..5F..(CBU,IV3) |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 90119-08676 | ||||
| 94130-00802 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 4703 | ||||
(0406-0610)XZU404,414..40T..IV3 ; (0501-0610)XZU414..T3..35T..IV3 ; (0610- )DM7,
ﾏﾆｭｱﾙﾚﾊﾞｰｼｷ20KG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90031-16079 | ||||
| 94130-61000 | ||||
| 94512-01000 | ||||
| SU002-00719 | ||||
| SU002-00731 | ||||
| SU002-00737 | ||||
| SU002-00786 | ||||
| SU002-00861 | ||||
| SU002-00863 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
