XZU304-TPFQG3 (2010)
Toyota Dyna/Toyoace

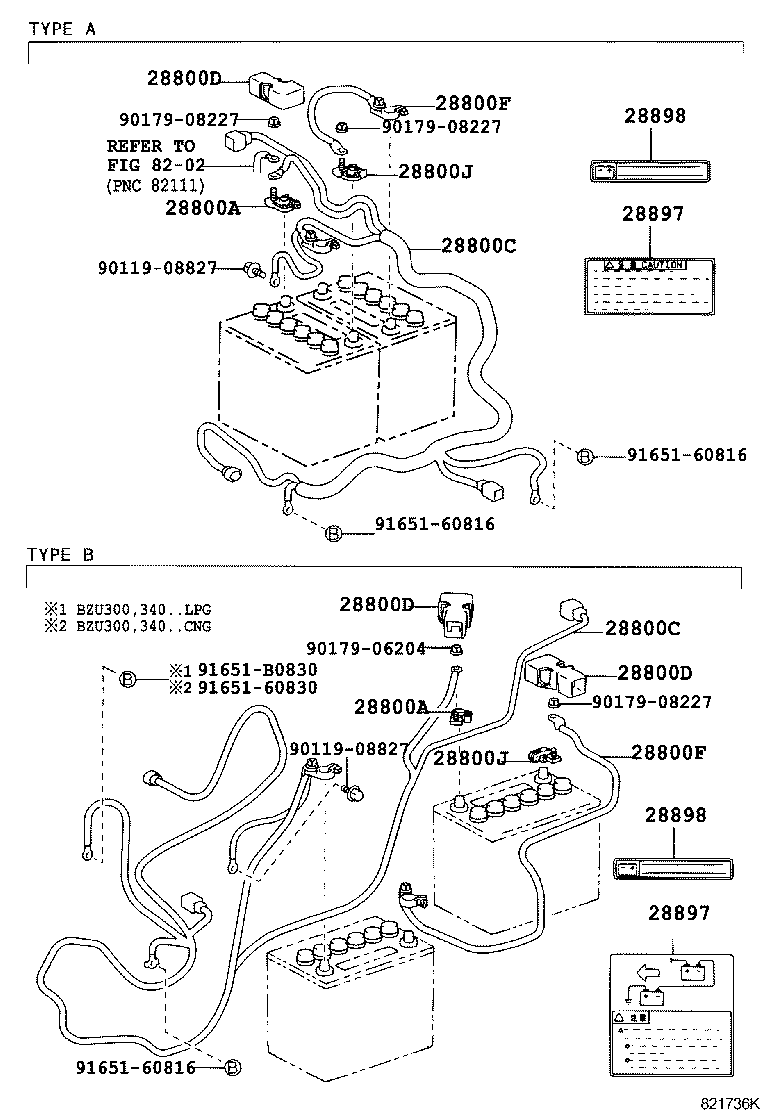

ILLUST NO. 1 OF 3(9905- )
2BATTERY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08827 | ||||
| 90179-06204 | ||||
| 90179-08227 | ||||
| 91651-60816 | ||||
| 91651-60830 | ||||
| 91651-B0830 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 2 OF 3(9905- )
ｸﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-10460 | ||||
| 82715-35490 | ||||
| 82715-35600 | ||||
| 82715-36020 | ||||
| 82715-37400 | ||||
| 82715-37690 | ||||
| 82715-37760 | ||||
| 82715-37860 | ||||
| 82715-37A30 | ||||
| 82715-37B00 | ||||
| 82715-3V090 | ||||
| 82715-3V120 | ||||
| 82715-3V260 | ||||
| 82715-3V470 | ||||
| 82715-3V490 | ||||
| 82715-3V500 | ||||
| 82715-3V510 | ||||
| 82715-95D04 | ||||
| 82716-37520 | ||||
| 82729-37170 | ||||
| 82729-37230 | ||||
| 82729-37300 | ||||
| 82729-37330 | ||||
| 82729-37670 | ||||
| 87124-35100 | ||||
| 90179-08227 | ||||
| 90201-10282 | ||||
| 91651-60614 | ||||
| 91651-60616 | ||||
| 91651-60816 | ||||
| 91651-B0820 | ||||
| 91651-B0825 | ||||
| 94130-00802 | ||||
ILLUST NO. 3 OF 3(9905- )
| Part # | Description | Qty | Price |
|---|

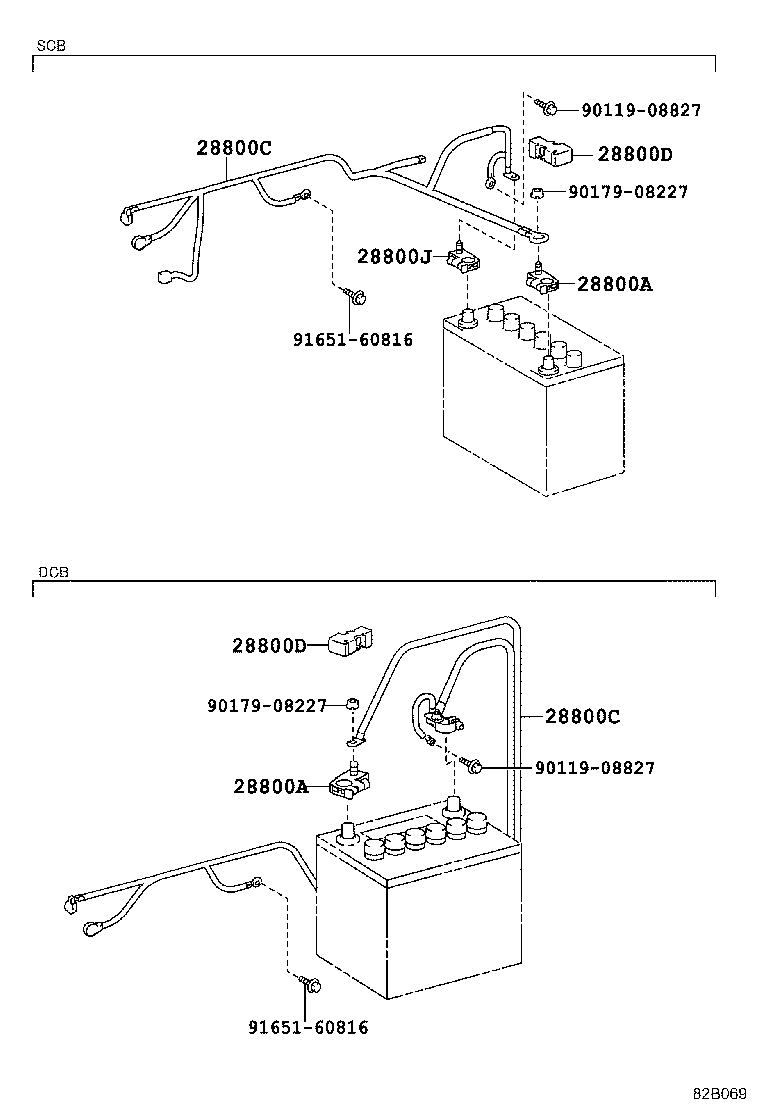

ILLUST NO. 1 OF 3(9905- )
1BATTERY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08827 | ||||
| 90179-08227 | ||||
| 91651-60816 | ||||

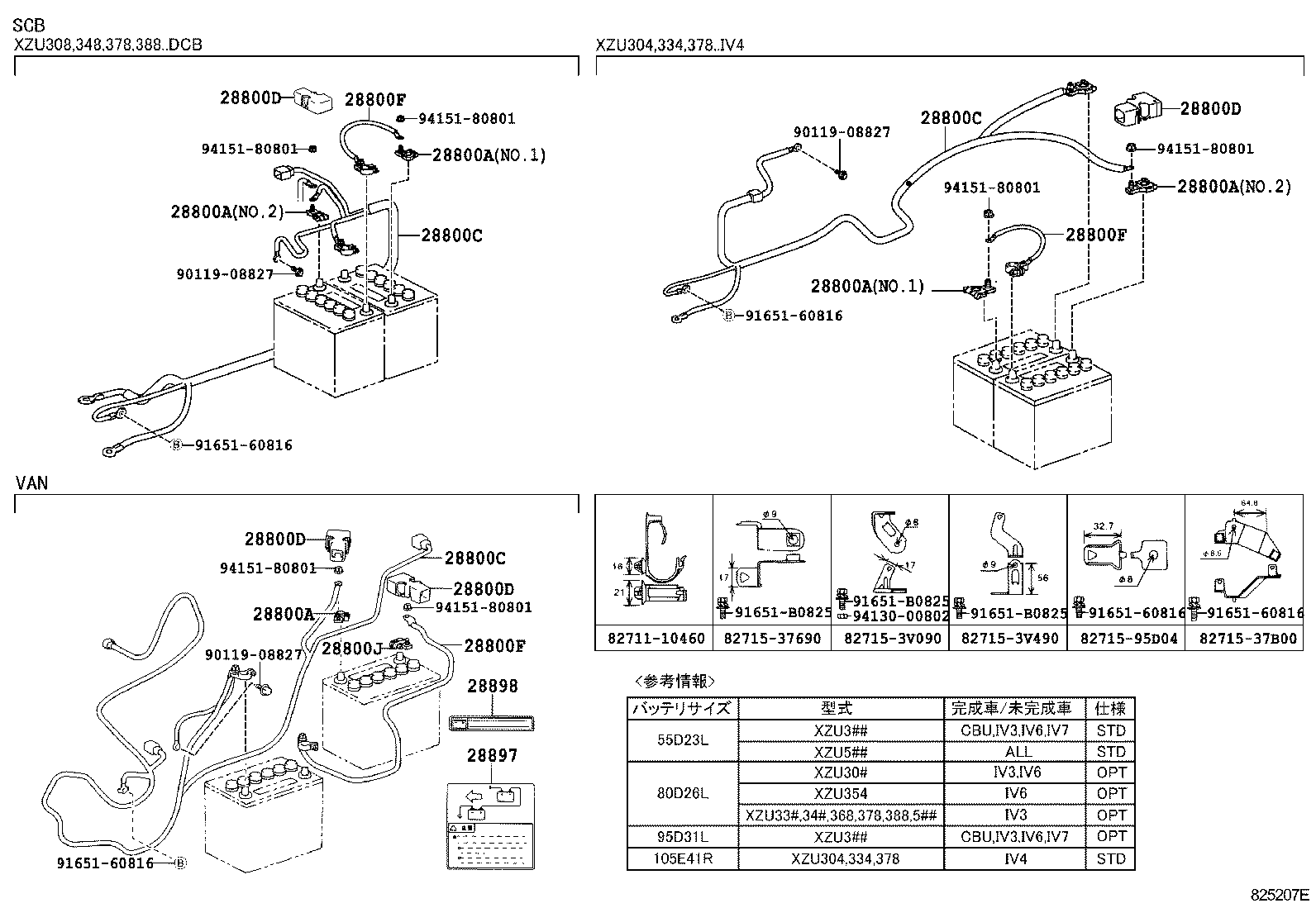

(0610- )XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28800A - TERMINAL, BATTERY POSITIVE | ||||
| 90982-05040 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCB,SCB NO.1 |
1 | ||
| 90982-05056 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCB,SCB NO.2 |
1 | ||
| 28800A - TERMINAL, BATTERY POSITIVE | ||||
| 90982-05040 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCB,SCB NO.1 |
1 | ||
| 90982-05056 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCB,SCB NO.2 |
1 | ||
| 28800A - TERMINAL, BATTERY POSITIVE | ||||
| 90982-05040 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCB,SCB NO.1 |
1 | ||
| 90982-05056 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCB,SCB NO.2 |
1 | ||
| 28800A - TERMINAL, BATTERY POSITIVE | ||||
| 90982-05040 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCB,SCB NO.1 |
1 | ||
| 90982-05056 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCB,SCB NO.2 |
1 | ||
| 28800A - TERMINAL, BATTERY POSITIVE | ||||
| 90982-05040 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCB,SCB NO.1 |
1 | ||
| 90982-05056 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCB,SCB NO.2 |
1 | ||
| 28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH) | ||||
| 82122-37B80 |
N04C..XZU304..6FC..(CBU,IV3);N04C..XZU304,354,554..MTM..(CBU,IV3,IV6);N04C..XZU308,314,33#,34#,50#,538,548..(DCB,SCB)..(CBU,IV3,IV6) |
1 | ||
| 28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH) | ||||
| 82122-37B80 |
N04C..XZU304..6FC..(CBU,IV3);N04C..XZU304,354,554..MTM..(CBU,IV3,IV6);N04C..XZU308,314,33#,34#,50#,538,548..(DCB,SCB)..(CBU,IV3,IV6) |
1 | ||
| 28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH) | ||||
| 82122-37B80 |
N04C..XZU304..6FC..(CBU,IV3);N04C..XZU304,354,554..MTM..(CBU,IV3,IV6);N04C..XZU308,314,33#,34#,50#,538,548..(DCB,SCB)..(CBU,IV3,IV6) |
1 | ||
| 28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL) | ||||
| 82821-37071 |
N04C,2TRFE..TRU300,XZU304,334,34#,354,378,388,548;N04C,1BZFPE,2TRFE..BZU300,TRU340,500,XZU308,314,324,338,368,50#,524,538,554,568..DM5,DM6,DM7,T2,T4,T5 |
1 | ||
| 28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL) | ||||
| 82821-37071 |
N04C,2TRFE..TRU300,XZU304,334,34#,354,378,388,548;N04C,1BZFPE,2TRFE..BZU300,TRU340,500,XZU308,314,324,338,368,50#,524,538,554,568..DM5,DM6,DM7,T2,T4,T5 |
1 | ||
| 28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL) | ||||
| 82821-37071 |
N04C,2TRFE..TRU300,XZU304,334,34#,354,378,388,548;N04C,1BZFPE,2TRFE..BZU300,TRU340,500,XZU308,314,324,338,368,50#,524,538,554,568..DM5,DM6,DM7,T2,T4,T5 |
1 | ||
| 28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL) | ||||
| 82821-37071 |
N04C,2TRFE..TRU300,XZU304,334,34#,354,378,388,548;N04C,1BZFPE,2TRFE..BZU300,TRU340,500,XZU308,314,324,338,368,50#,524,538,554,568..DM5,DM6,DM7,T2,T4,T5 |
1 | ||
| 28800F - CABLE, BATTERY TO BATTERY | ||||
| 82123-37170 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCB,SCB |
1 | ||
| 28800F - CABLE, BATTERY TO BATTERY | ||||
| 82123-37170 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCB,SCB |
1 | ||
| 28800F - CABLE, BATTERY TO BATTERY | ||||
| 82123-37170 |
N04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCB,SCB |
1 | ||
| Common parts | ||||
| 82711-10460 | ||||
| 82715-37690 | ||||
| 82715-37B00 | ||||
| 82715-3V090 | ||||
| 82715-3V490 | ||||
| 82715-95D04 | ||||
| 90119-08827 | ||||
| 91651-60816 | ||||
| 91651-B0825 | ||||
| 94130-00802 | ||||
| 94151-80801 | ||||
(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90461-08109 | ||||
| 90461-08282 | ||||
| 90461-08746 | ||||
| 90461-10294 | ||||
| 90461-10295 | ||||
| 90463-08124 | ||||
| 90463-08375 | ||||
| 90463-15298 | ||||
| 91611-40816 | ||||
| 91611-40820 | ||||
| 94110-40800 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 2 OF 2(9905- )
| Part # | Description | Qty | Price |
|---|
