XZU304-TPFQG (2010)
Toyota Dyna/Toyoace
(9905- )SCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82712-37070 | ||||
| 90530-04005P3 | ||||
| 90530-06001 | ||||
| 91631-G0618 | ||||
| 93560-55020 | ||||

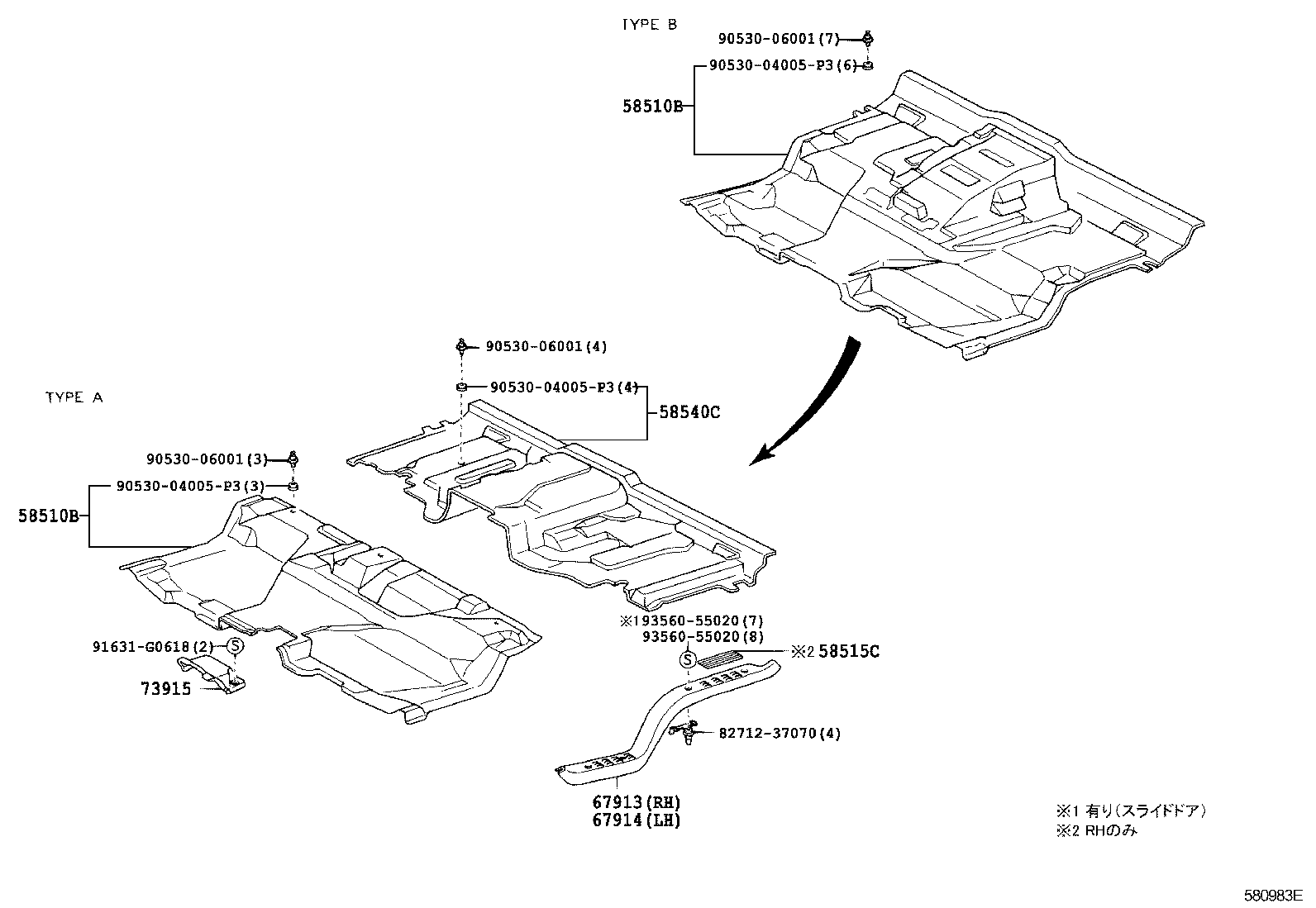

(0610- )SCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58510B - MAT, FRONT FLOOR, FRONT | ||||
| 58510-37D70B0 |
TRU300,340,500,XZU30#,314,324,33#,34#,354,50#,524,538,548,554..SCB..MTM TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ｱﾘ(*80),DARK CHARCOAL,TRIM1# |
1 | ||
| 58510-37E30B0 |
XZU304..(T3,T4,T5)..MTM..IV3;XZU304..(DM6,T3,T4,T5)..MTM..(CBU,IV6);TRU300,340,500,XZU308,33#,34#,354,50#,538,548..SCB..(T2,T3,T4,T5)..MTM TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ｱﾘ(*80 & ﾌﾛﾝﾄ ｼ-ﾄ=02S ﾖｳ),DARK CHARCOAL,TRIM1# |
1 | ||
| 58510-37E20B0 |
XZU304..(T3,T5)..MTM..30T..CBU;XZU334,34#..SCB..MTM..(20T,30T)..(DCRTJ,DCRTK,DCRUE)..CBU TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ｱﾘ(ﾌﾛﾝﾄ ｼ-ﾄ=02S ﾖｳ),DARK CHARCOAL,TRIM1# |
1 | ||
| 58510-37D60B0 |
XZU304..MTM..20T..IV3..1NO;XZU304..(T3,T5)..MTM..30T..CBU;XZU334,34#..SCB..MTM..(20T,30T)..(DCRTJ,DCRTK,DCRUE)..CBU TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,DARK CHARCOAL,TRIM1# |
1 | ||
| 58510-37D90B0 |
XZU304..MTM..20T..IV3..1NO;XZU304..(T3,T5)..MTM..30T..CBU;XZU334,34#..SCB..MTM..(20T,30T)..(DCRTJ,DCRTK,DCRUE)..CBU TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ｱﾘ(ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ ﾌﾞﾝｶﾂ ﾀｲﾌﾟ = 03S ﾖｳ),DARK CHARCOAL,TRIM1# |
1 | ||
| 58510-37E00B0 |
TRU300,340,500,XZU30#,314,324,33#,34#,354,50#,524,538,548,554..SCB..MTM TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ｱﾘ(*80 & ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ ﾌﾞﾝｶﾂ ﾀｲﾌﾟ = 03S ﾖｳ),DARK CHARCOAL,TRIM1# |
1 | ||
| 58510-37F60B0 |
XZU304..(T3,T5)..MTM..30T..CBU;XZU334,34#..SCB..MTM..(20T,30T)..(DCRTJ,DCRTK,DCRUE)..CBU TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ﾄﾘﾑ ｺｰﾄﾞ = FE** & ｱﾘ(ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ ﾌﾞﾝｶﾂ ﾀｲﾌﾟ = 03S ﾖｳ),DARK CHARCOAL,TRIM1# |
1 | ||
| 58510-37F70B0 |
XZU314,324,338,344,504,524..MTM;XZU30#,334,348,354,508,538,548,554..SCB..(DM3,DM5,T2,T3,T4,T5)..MTM..(DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE)..(CBU,IV3) ﾄﾘﾑ ｺｰﾄﾞ = FE** & ｱﾘ(*80 & ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ ﾌﾞﾝｶﾂ ﾀｲﾌﾟ = 03S ﾖｳ);TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,DARK CHARCOAL,TRIM1# |
1 | ||
| 58510B - MAT, FRONT FLOOR, FRONT | ||||
| 58510-37D70B0 |
TRU300,340,500,XZU30#,314,324,33#,34#,354,50#,524,538,548,554..SCB..MTM TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ｱﾘ(*80),DARK CHARCOAL,TRIM1# |
1 | ||
| 58510-37E30B0 |
XZU304..(T3,T4,T5)..MTM..IV3;XZU304..(DM6,T3,T4,T5)..MTM..(CBU,IV6);TRU300,340,500,XZU308,33#,34#,354,50#,538,548..SCB..(T2,T3,T4,T5)..MTM TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ｱﾘ(*80 & ﾌﾛﾝﾄ ｼ-ﾄ=02S ﾖｳ),DARK CHARCOAL,TRIM1# |
1 | ||
| 58510-37E20B0 |
XZU304..(T3,T5)..MTM..30T..CBU;XZU334,34#..SCB..MTM..(20T,30T)..(DCRTJ,DCRTK,DCRUE)..CBU TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ｱﾘ(ﾌﾛﾝﾄ ｼ-ﾄ=02S ﾖｳ),DARK CHARCOAL,TRIM1# |
1 | ||
| 58510-37D60B0 |
XZU304..MTM..20T..IV3..1NO;XZU304..(T3,T5)..MTM..30T..CBU;XZU334,34#..SCB..MTM..(20T,30T)..(DCRTJ,DCRTK,DCRUE)..CBU TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,DARK CHARCOAL,TRIM1# |
1 | ||
| 58510-37D90B0 |
XZU304..MTM..20T..IV3..1NO;XZU304..(T3,T5)..MTM..30T..CBU;XZU334,34#..SCB..MTM..(20T,30T)..(DCRTJ,DCRTK,DCRUE)..CBU TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ｱﾘ(ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ ﾌﾞﾝｶﾂ ﾀｲﾌﾟ = 03S ﾖｳ),DARK CHARCOAL,TRIM1# |
1 | ||
| 58510-37E00B0 |
TRU300,340,500,XZU30#,314,324,33#,34#,354,50#,524,538,548,554..SCB..MTM TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ｱﾘ(*80 & ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ ﾌﾞﾝｶﾂ ﾀｲﾌﾟ = 03S ﾖｳ),DARK CHARCOAL,TRIM1# |
1 | ||
| 58510-37F60B0 |
XZU304..(T3,T5)..MTM..30T..CBU;XZU334,34#..SCB..MTM..(20T,30T)..(DCRTJ,DCRTK,DCRUE)..CBU TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ﾄﾘﾑ ｺｰﾄﾞ = FE** & ｱﾘ(ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ ﾌﾞﾝｶﾂ ﾀｲﾌﾟ = 03S ﾖｳ),DARK CHARCOAL,TRIM1# |
1 | ||
| 58510-37F70B0 |
XZU314,324,338,344,504,524..MTM;XZU30#,334,348,354,508,538,548,554..SCB..(DM3,DM5,T2,T3,T4,T5)..MTM..(DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE)..(CBU,IV3) ﾄﾘﾑ ｺｰﾄﾞ = FE** & ｱﾘ(*80 & ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ ﾌﾞﾝｶﾂ ﾀｲﾌﾟ = 03S ﾖｳ);TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,DARK CHARCOAL,TRIM1# |
1 | ||
| 58515C - MAT, FRONT FLOOR, REAR NO.1 | ||||
| 58515-37080B1 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 MD.CHARCOAL,TRIM1# |
1 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-37010B0 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 MD.CHARCOAL,TRIM1# |
1 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-37010B0 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 MD.CHARCOAL,TRIM1# |
1 | ||
| 73915 - COVER, SEAT AIR BAG NO.1, RH | ||||
| 73915-37010 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| Common parts | ||||
| 82712-37070 | ||||
| 90530-04005P3 | ||||
| 90530-06001 | ||||
| 91631-B0618 | ||||
| 93560-55020 | ||||

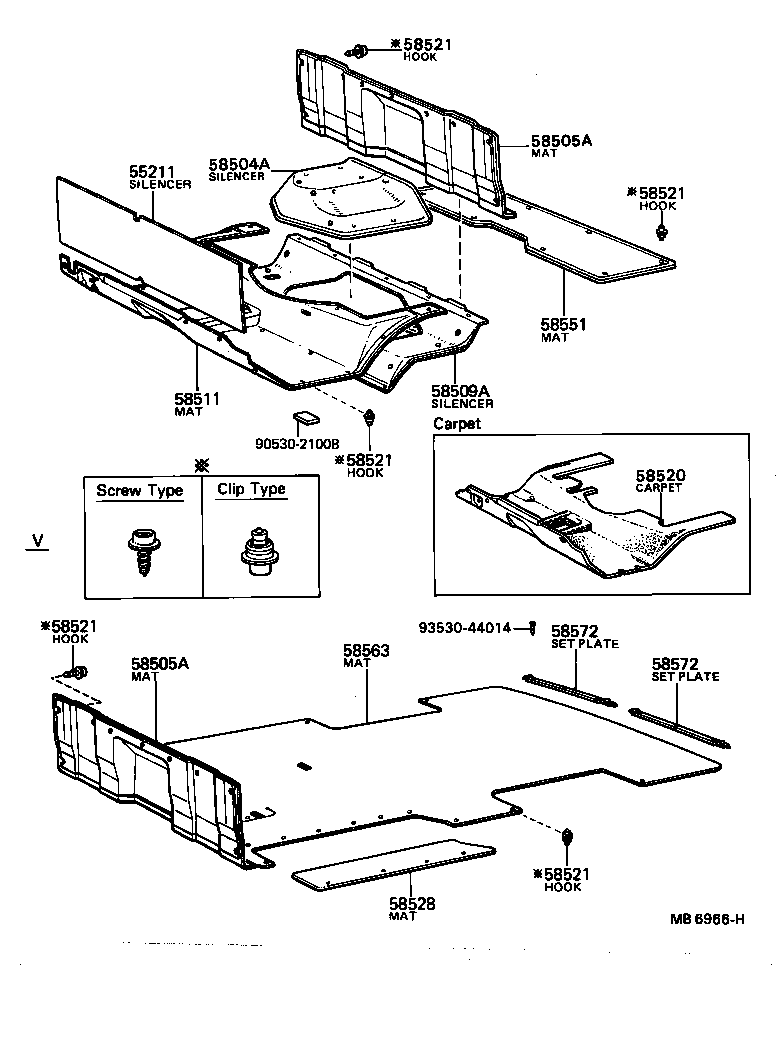

(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90530-21008 | ||||
| 93530-44014 | ||||

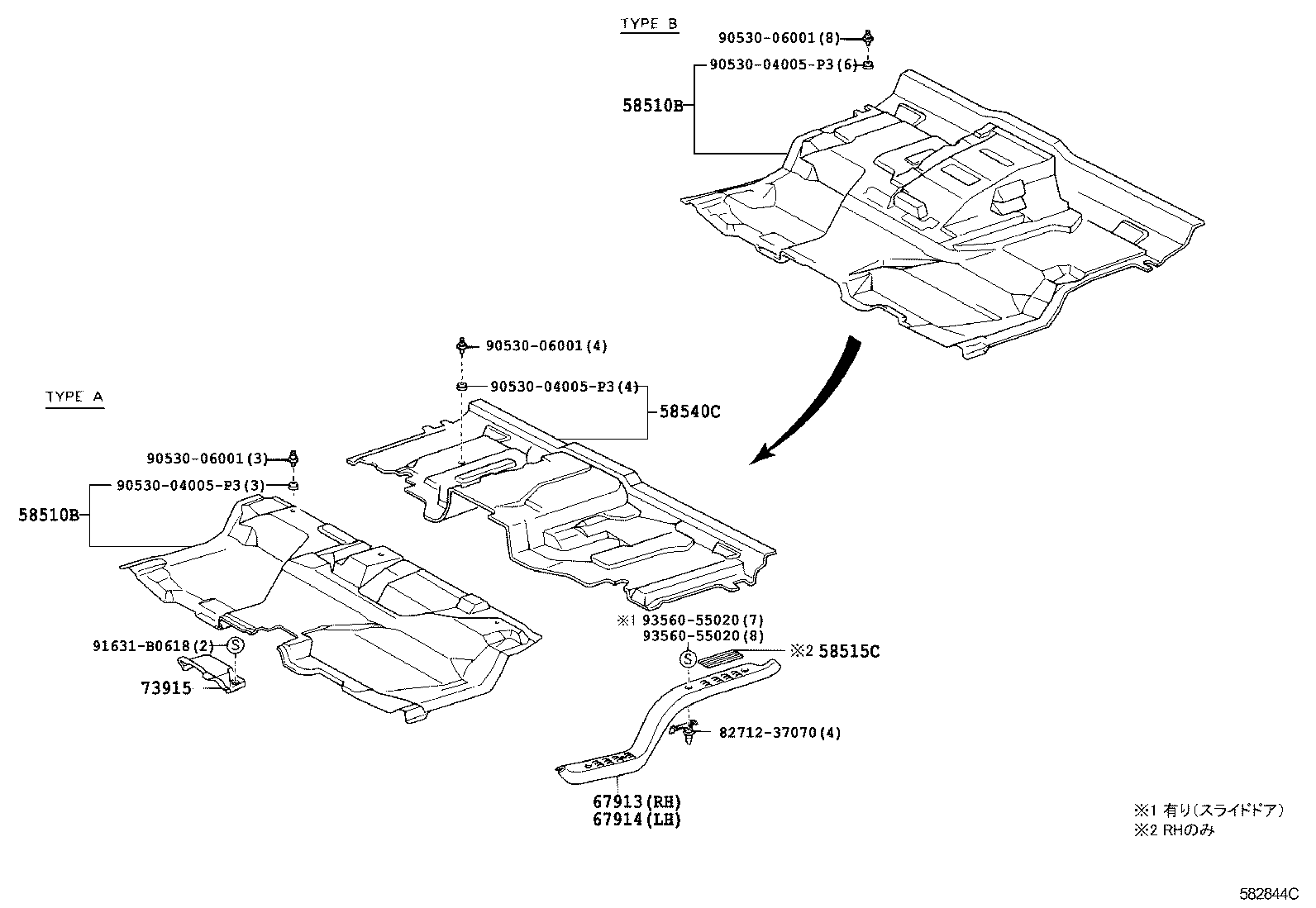

(9905- )SCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82712-37070 | ||||
| 90530-04005P3 | ||||
| 90530-06001 | ||||
| 91631-B0618 | ||||
| 93560-55020 | ||||
