XZU304-TPFMG3 (2010)

Toyota Dyna/Toyoace

Production Mar 2010 - Jun 2011
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

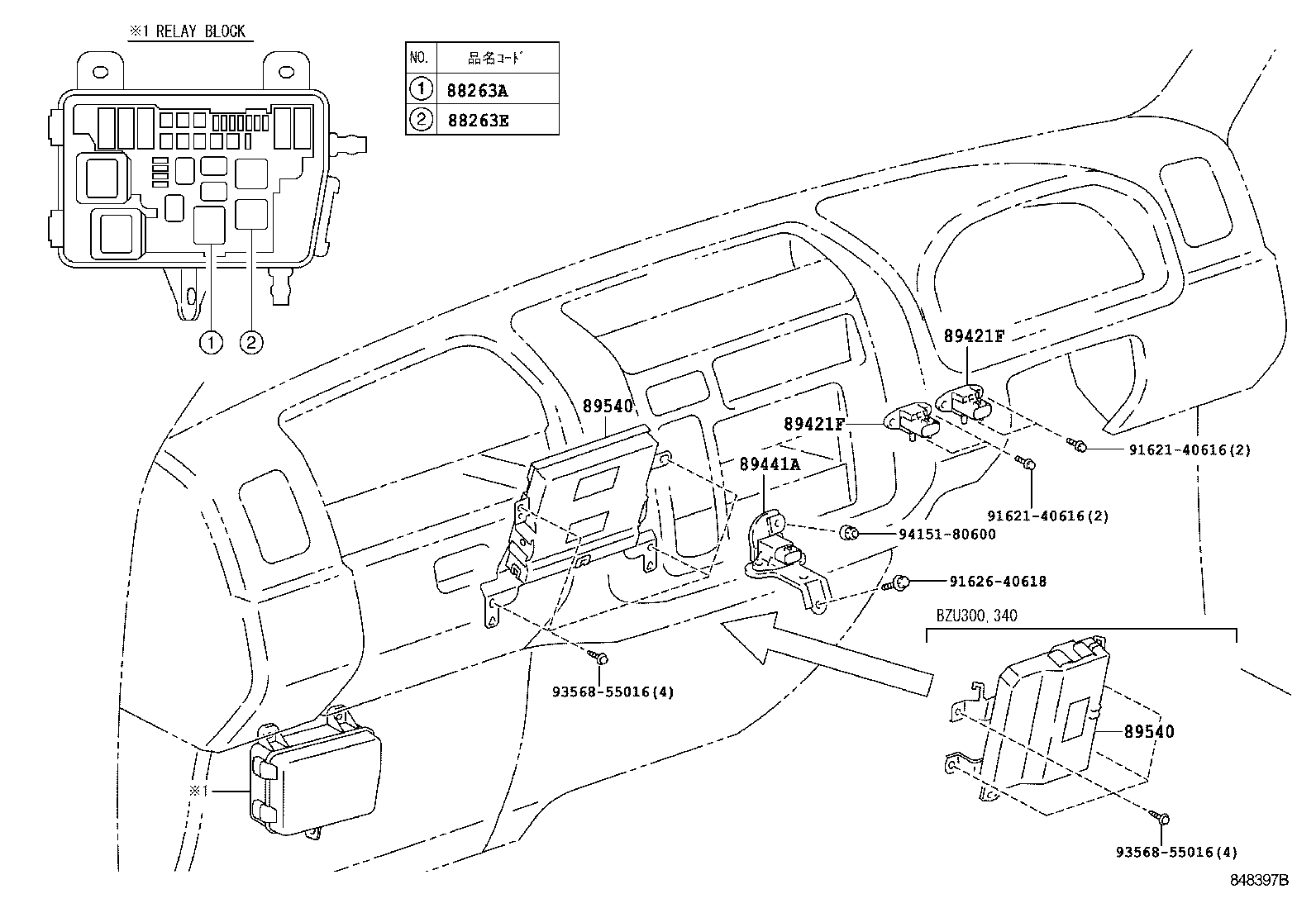

ILLUST NO. 1 OF 3(0610- )

Click highlighted areas on diagram

ｶｳﾙ

diagram 88263A 88263E 89421F 89421F 89441A 89540 89540 9162140616 9162140616 9162640618 9356855016 9356855016 9415180600
Part # Description Qty Price
88263A - RELAY, SKID CONTROL
88263-36040

XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
88263E - RELAY, SKID CONTROL NO.2
88263-36050

XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
89421F - SENSOR, VACUUM (FOR SKID CONTROL)
89421-37010

XZU50#,538,548,554..5F;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,524,568

 2
89421-37030

XZU50#,538,548,554..5F;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,524,568

 2
89421F - SENSOR, VACUUM (FOR SKID CONTROL)
89421-37010

XZU50#,538,548,554..5F;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,524,568

 2
89421-37030

XZU50#,538,548,554..5F;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,524,568

 2
89540 - COMPUTER ASSY, SKID CONTROL
89540-37310

XZU30#,314,324,33#,354,50#,524,538,554..MTM

ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89540-37310

 1
89540-37290

XZU504..ST;XZU304..6FC..IV6;XZU30#,314,324,33#,354..CBU,IV3,IV4,IV7

ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89540-37290

 1
89540 - COMPUTER ASSY, SKID CONTROL
89540-37310

XZU30#,314,324,33#,354,50#,524,538,554..MTM

ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89540-37310

 1
89540-37290

XZU504..ST;XZU304..6FC..IV6;XZU30#,314,324,33#,354..CBU,IV3,IV4,IV7

ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89540-37290

 1
Common parts
91621-40616
91626-40618
93568-55016
94151-80600

ILLUST NO. 3 OF 3(0610- )

Click highlighted areas on diagram

ﾘﾔ ｽﾋﾟ-ﾄﾞｾﾝｻ

diagram 4214137010 42141A 8951535040 8951535040 8951535040 8951535040 89544 89544 89545 89546 9012908007 9012908007 9012908007 9012908007 9012908007 9048010022 9048010022 9048010022 9048010022 9155180620 9155180620 9155180620 9155180640 9413000802
Part # Description Qty Price
42141A - ATTACHMENT, SKID CONTROL WIRE, NO.1
42141-37160

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..(20T,30T)..WT

 2
89544 - SENSOR, SKID CONTROL
89544-36030

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..20T,30T

 2
89544 - SENSOR, SKID CONTROL
89544-36030

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..20T,30T

 2
Common parts
42141-37010
89515-35040
90129-08007
90480-10022
91551-80620
91551-80640
94130-00802

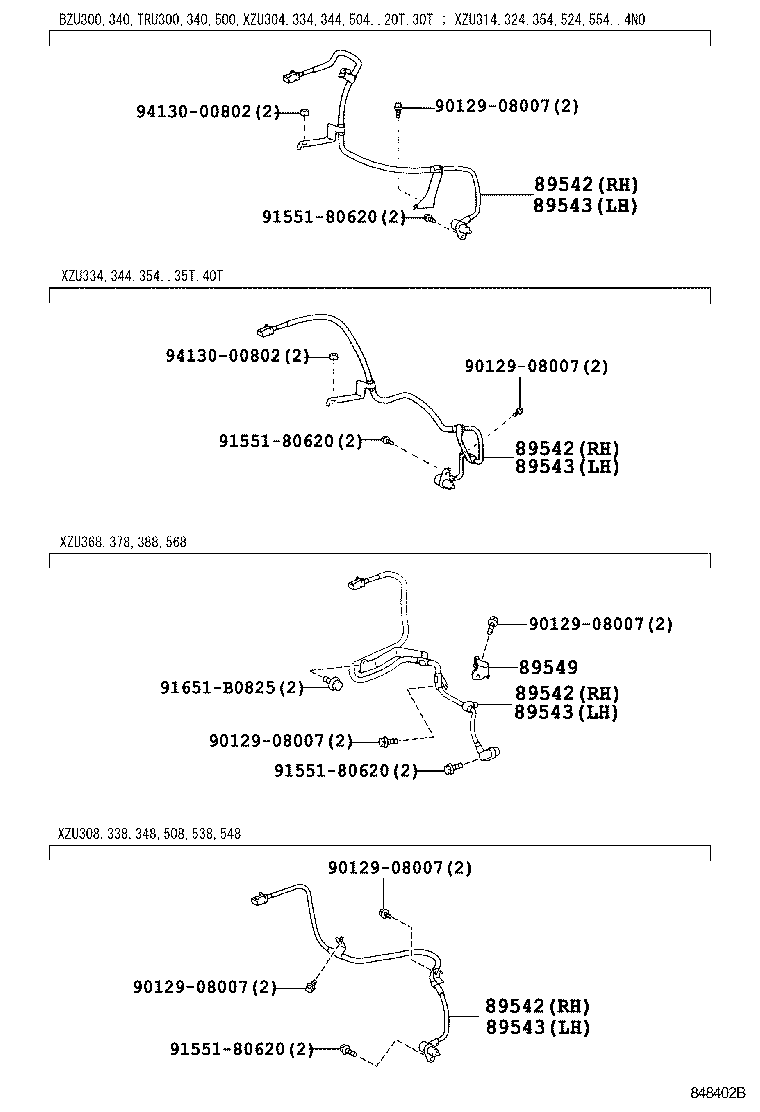

ILLUST NO. 2 OF 3(0610- )

Click highlighted areas on diagram

ﾌﾛﾝﾄ ｽﾋﾟ-ﾄﾞｾﾝｻ

diagram 89542 89542 89542 89542 89543 89543 89543 89543 89549 9012908007 9012908007 9012908007 9012908007 9012908007 9012908007 9155180620 9155180620 9155180620 9155180620 91651B0825 9413000802 9413000802
Part # Description Qty Price
89542 - SENSOR, SPEED, FRONT RH
89542-37070

BZU300,340,TRU300,340,500,XZU304,334,344,504..20T,30T

 1
89542 - SENSOR, SPEED, FRONT RH
89542-37070

BZU300,340,TRU300,340,500,XZU304,334,344,504..20T,30T

 1
89542 - SENSOR, SPEED, FRONT RH
89542-37070

BZU300,340,TRU300,340,500,XZU304,334,344,504..20T,30T

 1
89542 - SENSOR, SPEED, FRONT RH
89542-37070

BZU300,340,TRU300,340,500,XZU304,334,344,504..20T,30T

 1
89543 - SENSOR, SPEED, FRONT LH
89543-37100

TRU300,340,500,XZU304,334,344,504..20T,30T

 1
89543 - SENSOR, SPEED, FRONT LH
89543-37100

TRU300,340,500,XZU304,334,344,504..20T,30T

 1
89543 - SENSOR, SPEED, FRONT LH
89543-37100

TRU300,340,500,XZU304,334,344,504..20T,30T

 1
89543 - SENSOR, SPEED, FRONT LH
89543-37100

TRU300,340,500,XZU304,334,344,504..20T,30T

 1
Common parts
90129-08007
91551-80620
91651-B0825
94130-00802

ILLUST NO. 2 OF 3(9905- )

Click highlighted areas on diagram

ﾌﾛﾝﾄ ｽﾋﾟ-ﾄﾞｾﾝｻ

diagram 89542 89542 89542 89542 89543 89543 89543 89543 89549 9012908007 9012908007 9012908007 9012908007 9012908007 9012908007 9155180614 9155180620 9155180620 91651B0616 91651B0825 91651B0825 91651B0825 91651B0825 9413000802 9413000802 9413000802 9413000802
Part # Description Qty Price
Common parts
90129-08007
91551-80614
91551-80620
91651-B0616
91651-B0825
94130-00802
