XZU304-TPFMG3 (2010)
Toyota Dyna/Toyoace

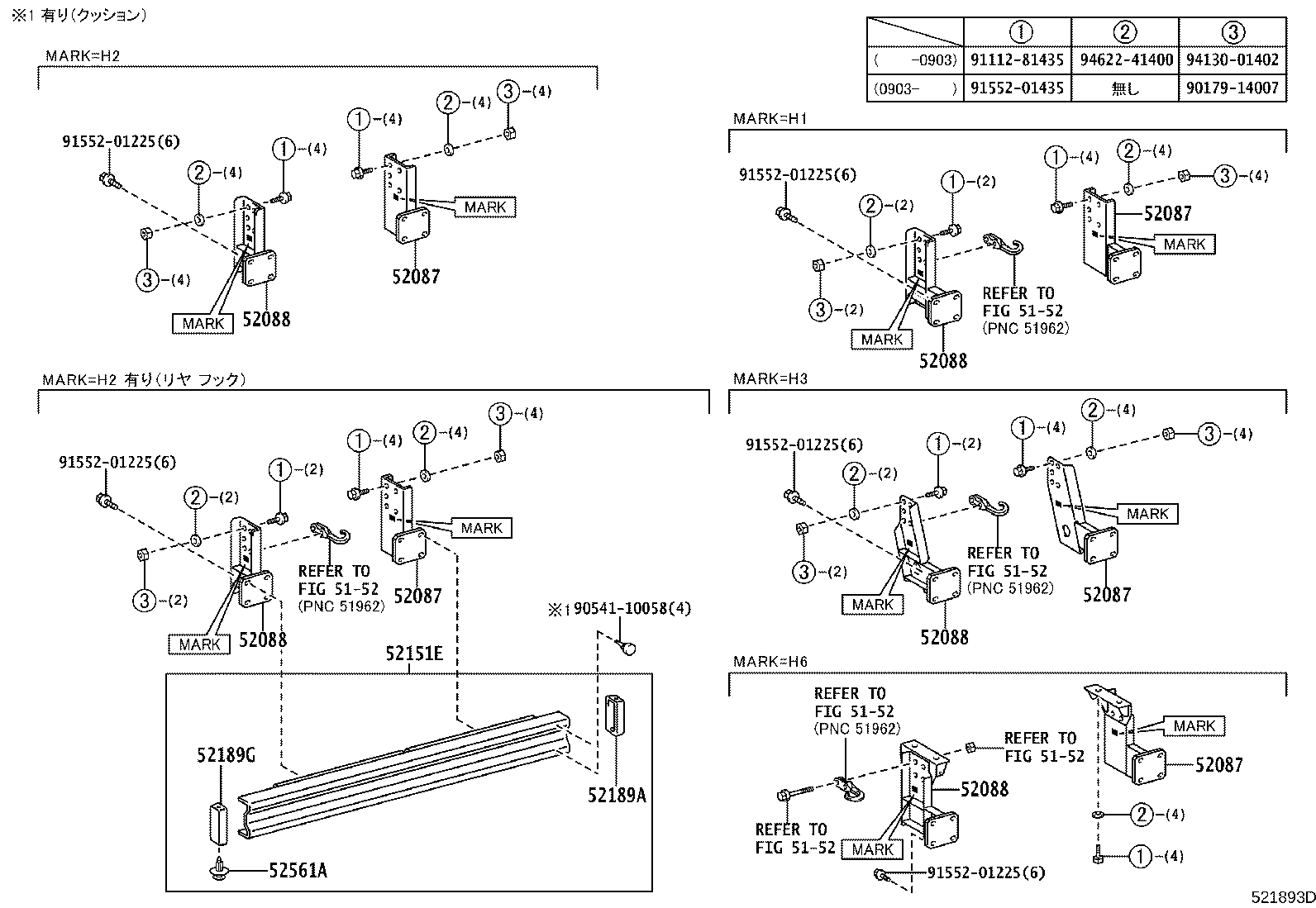

ILLUST NO. 1 OF 2(0610- )DCB,SCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52087 - STAY SUB-ASSY, REAR BUMPER SIDE, RH | ||||
| 52151-37210 |
XZU368..30T..IV3;XZU378..SCB..30T;XZU338,378,538..20T..IV3;XZU30#,50#..T5..20T..IV3;BZU300,TRU300,XZU304..(T4,T5)..30T;BZU340,TRU340,XZU334,34#,388,548..CBU,IV3 ﾏｰｸ=H2 |
1 | ||
| 52087 - STAY SUB-ASSY, REAR BUMPER SIDE, RH | ||||
| 52151-37210 |
XZU368..30T..IV3;XZU378..SCB..30T;XZU338,378,538..20T..IV3;XZU30#,50#..T5..20T..IV3;BZU300,TRU300,XZU304..(T4,T5)..30T;BZU340,TRU340,XZU334,34#,388,548..CBU,IV3 ﾏｰｸ=H2 |
1 | ||
| 52087 - STAY SUB-ASSY, REAR BUMPER SIDE, RH | ||||
| 52151-37210 |
XZU368..30T..IV3;XZU378..SCB..30T;XZU338,378,538..20T..IV3;XZU30#,50#..T5..20T..IV3;BZU300,TRU300,XZU304..(T4,T5)..30T;BZU340,TRU340,XZU334,34#,388,548..CBU,IV3 ﾏｰｸ=H2 |
1 | ||
| 52087 - STAY SUB-ASSY, REAR BUMPER SIDE, RH | ||||
| 52151-37210 |
XZU368..30T..IV3;XZU378..SCB..30T;XZU338,378,538..20T..IV3;XZU30#,50#..T5..20T..IV3;BZU300,TRU300,XZU304..(T4,T5)..30T;BZU340,TRU340,XZU334,34#,388,548..CBU,IV3 ﾏｰｸ=H2 |
1 | ||
| 52087 - STAY SUB-ASSY, REAR BUMPER SIDE, RH | ||||
| 52151-37210 |
XZU368..30T..IV3;XZU378..SCB..30T;XZU338,378,538..20T..IV3;XZU30#,50#..T5..20T..IV3;BZU300,TRU300,XZU304..(T4,T5)..30T;BZU340,TRU340,XZU334,34#,388,548..CBU,IV3 ﾏｰｸ=H2 |
1 | ||
| 52088 - STAY SUB-ASSY, REAR BUMPER SIDE, LH | ||||
| 52152-37090 |
XZU368..30T..IV3;XZU378..SCB..30T;XZU338,378,538..20T..IV3;XZU30#,50#..T5..20T..IV3;BZU300,TRU300,XZU304..(T4,T5)..30T;BZU340,TRU340,XZU334,34#,388,548..CBU,IV3 ﾏｰｸ=H2 |
1 | ||
| 52088 - STAY SUB-ASSY, REAR BUMPER SIDE, LH | ||||
| 52152-37090 |
XZU368..30T..IV3;XZU378..SCB..30T;XZU338,378,538..20T..IV3;XZU30#,50#..T5..20T..IV3;BZU300,TRU300,XZU304..(T4,T5)..30T;BZU340,TRU340,XZU334,34#,388,548..CBU,IV3 ﾏｰｸ=H2 |
1 | ||
| 52088 - STAY SUB-ASSY, REAR BUMPER SIDE, LH | ||||
| 52152-37090 |
XZU368..30T..IV3;XZU378..SCB..30T;XZU338,378,538..20T..IV3;XZU30#,50#..T5..20T..IV3;BZU300,TRU300,XZU304..(T4,T5)..30T;BZU340,TRU340,XZU334,34#,388,548..CBU,IV3 ﾏｰｸ=H2 |
1 | ||
| 52088 - STAY SUB-ASSY, REAR BUMPER SIDE, LH | ||||
| 52152-37090 |
XZU368..30T..IV3;XZU378..SCB..30T;XZU338,378,538..20T..IV3;XZU30#,50#..T5..20T..IV3;BZU300,TRU300,XZU304..(T4,T5)..30T;BZU340,TRU340,XZU334,34#,388,548..CBU,IV3 ﾏｰｸ=H2 |
1 | ||
| 52088 - STAY SUB-ASSY, REAR BUMPER SIDE, LH | ||||
| 52152-37090 |
XZU368..30T..IV3;XZU378..SCB..30T;XZU338,378,538..20T..IV3;XZU30#,50#..T5..20T..IV3;BZU300,TRU300,XZU304..(T4,T5)..30T;BZU340,TRU340,XZU334,34#,388,548..CBU,IV3 ﾏｰｸ=H2 |
1 | ||
| 52151E - BAR, REAR BUMPER | ||||
| 52105-37310 |
XZU368..T4..IV3;BZU300,XZU304..(T4,T5)..30T;TRU300,XZU324,524..SCB..(DM7,T4);BZU300,TRU300,500,XZU30#,338,50#,538,568..(T2,T4,T5)..20T..IV3 塗装不要 |
1 | ||
| 52189A - PROTECTOR, REAR BUMPER ARM EDGE, RH | ||||
| 52189-37050 |
XZU368..T4..IV3;BZU300,TRU300,XZU304,378..30T..(CBU,IV3);BZU340,TRU340,XZU324,334,34#,388,524,548..CBU,IV3;BZU300,TRU300,500,XZU30#,338,378,50#,538,568..(T2,T3,T4,T5)..20T..IV3 |
1 | ||
| 52189G - PROTECTOR, REAR BUMPER ARM EDGE, LH | ||||
| 52189-37050 |
XZU368..T4..IV3;BZU300,TRU300,XZU304,378..30T..(CBU,IV3);BZU340,TRU340,XZU324,334,34#,388,524,548..CBU,IV3;BZU300,TRU300,500,XZU30#,338,378,50#,538,568..(T2,T3,T4,T5)..20T..IV3 |
1 | ||
| 52561A - CLIP(FOR REAR BUMPER RETAINER) | ||||
| 90467-07043C0 |
XZU368..T4..IV3;BZU300,TRU300,XZU304,378..30T..(CBU,IV3);BZU340,TRU340,XZU324,334,34#,388,524,548..CBU,IV3;BZU300,TRU300,500,XZU30#,338,378,50#,538,568..(T2,T3,T4,T5)..20T..IV3 BLACK |
4 | ||
| Common parts | ||||
| 90179-14007 | ||||
| 90541-10058 | ||||
| 91112-81435 | ||||
| 91552-01225 | ||||
| 91552-01435 | ||||
| 94130-01402 | ||||
| 94622-41400 | ||||
| Linked diagrams | ||||
| 5152 | ||||

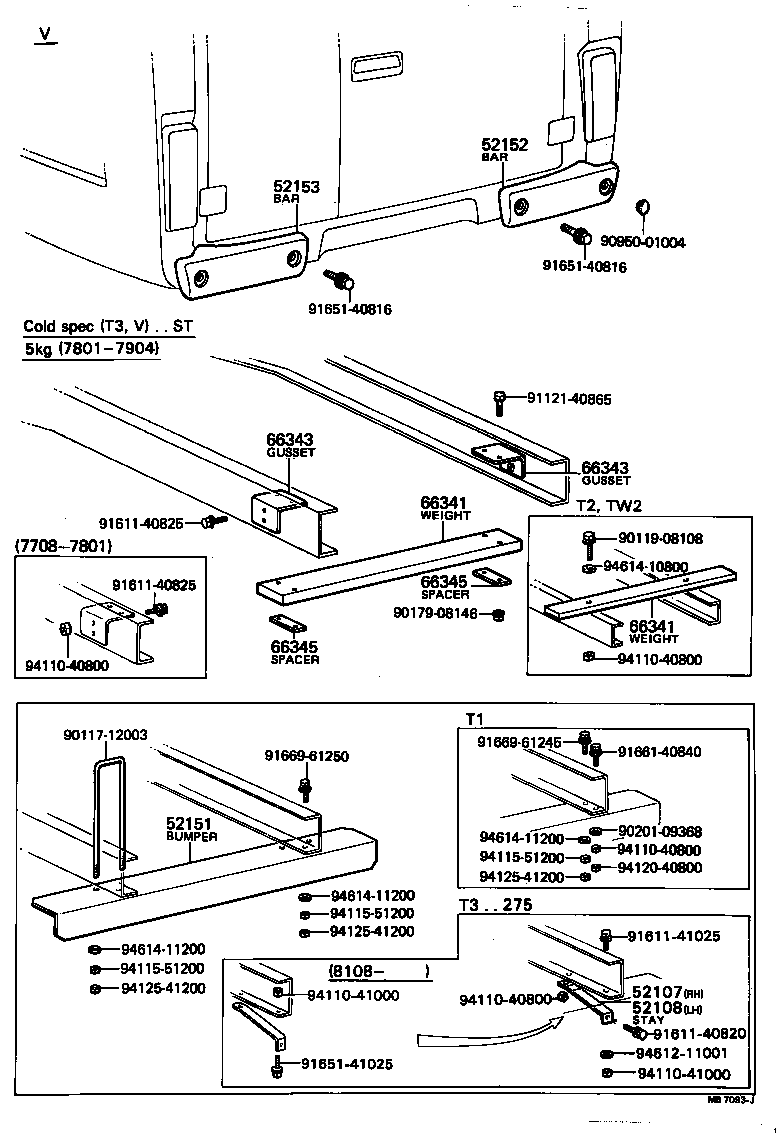

ILLUST NO. 1 OF 2(7708- )HU30,JU20,RU2#,3#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90117-12003 | ||||
| 90119-08108 | ||||
| 90179-08146 | ||||
| 90201-09368 | ||||
| 90950-01004 | ||||
| 91121-40865 | ||||
| 91611-40820 | ||||
| 91611-40825 | ||||
| 91611-41025 | ||||
| 91651-40816 | ||||
| 91651-41025 | ||||
| 91661-40840 | ||||
| 91669-61245 | ||||
| 91669-61250 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94115-51200 | ||||
| 94120-40800 | ||||
| 94125-41200 | ||||
| 94612-11001 | ||||
| 94614-10800 | ||||
| 94614-11200 | ||||
