XZU302A-TYMMS3 (1999)

Toyota Dyna/Toyoace

Production May 1999 - Jun 2004
Engine S05C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9905-0406)XZU341,352..4FC,5F..20T,295T..DSL ; (9905-0406)BZU300,340,XZU300,301,302

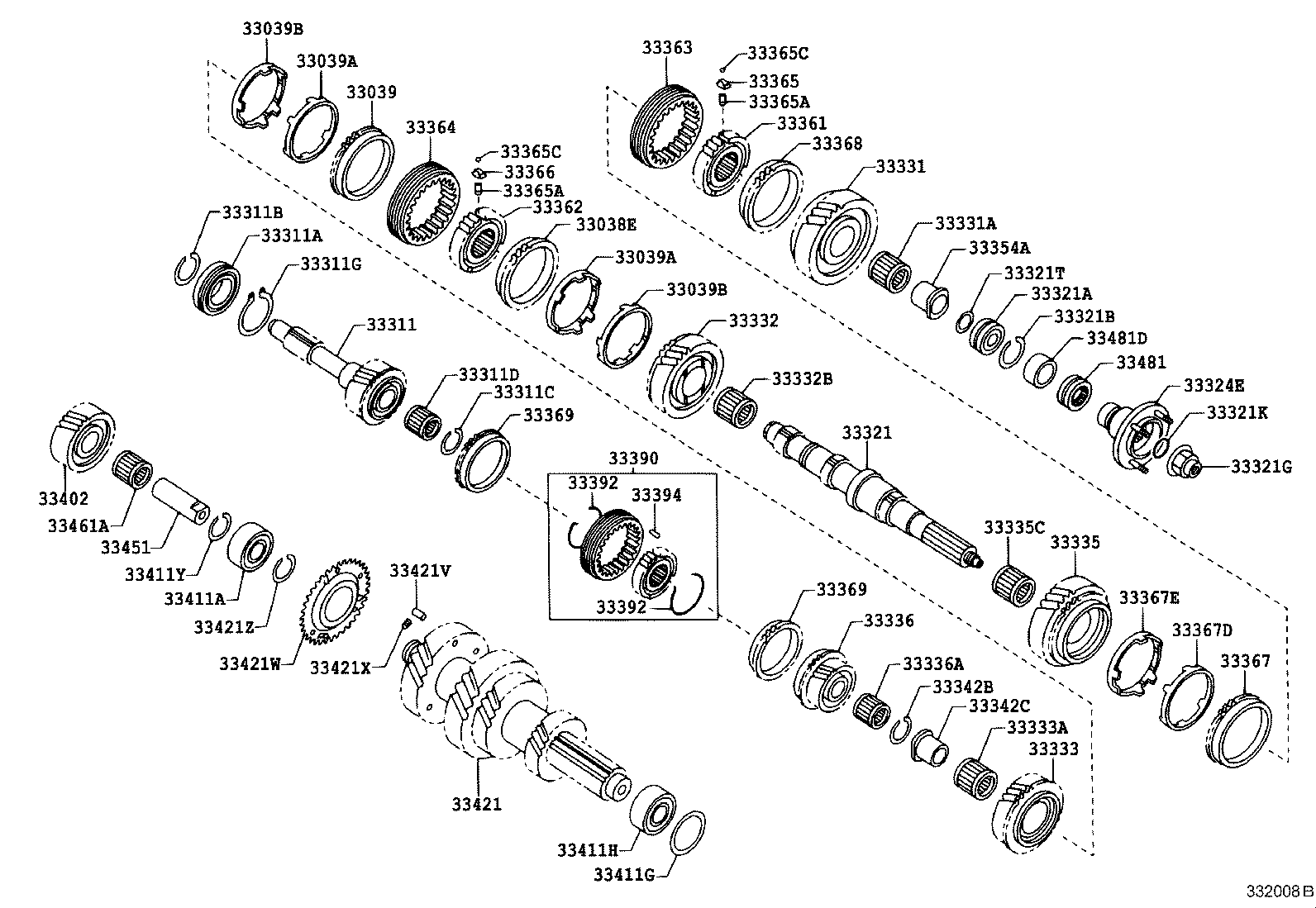

Click highlighted areas on diagram

H350,H351

diagram 33037B 33038E 33039 33147 33311 33311A 33311B 33311C 33311D 33311F 33311F 33311P 33321 33321A 33321G 33321K 33321M 33321V 33321X 33331 33331A 33332 33332B 33333 33333A 33335 33335C 33336 33336A 33354A 33361 33361B 33362 33362A 33363 33364 33365 33366 33368 33368J 33371 33371 33391 33391 33392 33392 33393 33394B 33395 33402A 33411A 33411D 33411P 33411Q 33411R 33411X 33421 33451 33451A 33461 33462 33462 33481 33481A 33481A 33481D 36155B 36155B 4601
Part # Description Qty Price
33037B - RING SET, SYNCHRONIZER, NO.1
33037-37030

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33037-37030

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33038E - RING SET, SYNCHRONIZER, NO.2
33037-37021

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33037-37021

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00184

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00184

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33039 - RING SET, SYNCHRONIZER, NO.3
33038-37011

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33038-37011

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00184

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00184

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33147 - RETAINER, BEARING, CENTER
33147-37011

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33147-37011

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33311 - SHAFT, INPUT
33301-37150

XZU302..(DM3,DM6,T3)..5F;XZU302..(T4,T5)..(295T,30T);XZU300,301,306,31#,32#,330,331,341,342,346,347,35#..5F..(DSL,DSLL)

 1
33301-37150

XZU302..(DM3,DM6,T3)..5F;XZU302..(T4,T5)..(295T,30T);XZU300,301,306,31#,32#,330,331,341,342,346,347,35#..5F..(DSL,DSLL)

 1
SU002-00178

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00178

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33311A - BEARING (FOR INPUT SHAFT FRONT)
90363-50007

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
90363-50007

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00179

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00179

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33311B - RING, SHAFT SNAP (FOR FRONT BEARING)
90520-99010

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.36−2.46

 1
90520-99010

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.36−2.46

 1
SU002-00198

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00198

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33311C - RING, HOLE SNAP (FOR NEEDLE ROLLER)
96151-04500

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
96151-04500

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00180

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00180

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33311D - BEARING, INPUT SHAFT
90361-09002

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 12
90361-09002

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 12
SU002-00222

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00222

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33311F - SPACER (FOR INPUT SHAFT)
90560-38004

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 2
90560-38004

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 2
33311F - SPACER (FOR INPUT SHAFT)
90560-38004

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 2
90560-38004

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 2
33311P - RING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING)
90520-45005

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.60−2.65,ﾏｰｸ C

 1
90520-45005

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.60−2.65,ﾏｰｸ C

 1
90520-45004

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.55−2.60,ﾏｰｸ B

 1
90520-45004

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.55−2.60,ﾏｰｸ B

 1
90520-45006

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.65−2.70,ﾏｰｸ D

 1
90520-45006

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.65−2.70,ﾏｰｸ D

 1
90520-45003

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.50−2.55,ﾏｰｸ A

 1
90520-45003

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.50−2.55,ﾏｰｸ A

 1
90520-45008

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.75−2.80,ﾏｰｸ F

 1
90520-45008

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.75−2.80,ﾏｰｸ F

 1
90520-45007

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.70−2.75,ﾏｰｸ E

 1
90520-45007

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.70−2.75,ﾏｰｸ E

 1
33321 - SHAFT, OUTPUT
SU002-00189

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00189

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33321-37060

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33321-37060

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33321A - BEARING (FOR OUTPUT SHAFT REAR)
90363-38007

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
90363-38007

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00221

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00221

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
90179-24008

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
90179-24008

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00197

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00197

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33321K - RING, O(FOR MANUAL TRANSMISSON OUTPUT SHAFT REAR SET NU
SU002-00202

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00202

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
90301-31003

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
90301-31003

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33321M - RING, SHAFT SNAP (FOR BEARING)
90520-99009

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

内径=106.1,外径=115.64

 1
90520-99009

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

内径=106.1,外径=115.64

 1
33321V - BEARING (FOR OUTPUT SHAFT CENTER)
90363-45019

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
90363-45019

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33321X - RING, SHAFT SNAP (FOR OUTPUT SHAFT CENTER BEARING)
90520-41006

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.40−2.45,ﾏｰｸ A

 1
90520-41006

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.40−2.45,ﾏｰｸ A

 1
90520-41008

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.50−2.55,ﾏｰｸ C

 1
90520-41008

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.50−2.55,ﾏｰｸ C

 1
90520-41009

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.55−2.60,ﾏｰｸ D

 1
90520-41009

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.55−2.60,ﾏｰｸ D

 1
90520-41011

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.65,ﾏｰｸ F

 1
90520-41011

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.65,ﾏｰｸ F

 1
90520-41013

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.75,ﾏｰｸ H

 1
90520-41013

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.75,ﾏｰｸ H

 1
90520-41010

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.60,ﾏｰｸ E

 1
90520-41010

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.60,ﾏｰｸ E

 1
90520-41012

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.70,ﾏｰｸ G

 1
90520-41012

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.70,ﾏｰｸ G

 1
90520-41007

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.45−2.50,ﾏｰｸ B

 1
90520-41007

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.45−2.50,ﾏｰｸ B

 1
33331 - GEAR, REVERSE
33331-37050

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33331-37050

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00186

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00186

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33331A - BEARING (FOR REVERSE GEAR)
90364-47008

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
90364-47008

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00223

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00223

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33332 - GEAR, 2ND
33033-37030

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33033-37030

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00185

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00185

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR)
90364-50003

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
90364-50003

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00223

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00223

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33333 - GEAR, 3RD
33034-37030

XZU302..CNG,LPG;XZU302..(DM3,DM6,T3)..5F;XZU302..(T4,T5)..(295T,30T);XZU300,301,306,31#,32#,330,331,341,342,346,347,35#..5F

 1
33034-37030

XZU302..CNG,LPG;XZU302..(DM3,DM6,T3)..5F;XZU302..(T4,T5)..(295T,30T);XZU300,301,306,31#,32#,330,331,341,342,346,347,35#..5F

 1
SU002-00183

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00183

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR)
90364-58007

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
90364-58007

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00223

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00223

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33335 - GEAR, 1ST
SU002-00187

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00187

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33335-37080

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33335-37080

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR)
SU002-00223

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00223

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
90364-44004

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
90364-44004

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33336 - GEAR, 5TH
33036-37040

XZU302..CNG,LPG;XZU302..(DM3,DM6,T3)..5F;XZU302..(T4,T5)..(295T,30T);XZU300,301,306,31#,32#,330,331,341,342,346,347,35#..5F

 1
33036-37040

XZU302..CNG,LPG;XZU302..(DM3,DM6,T3)..5F;XZU302..(T4,T5)..(295T,30T);XZU300,301,306,31#,32#,330,331,341,342,346,347,35#..5F

 1
SU002-00235

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00235

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33336A - BEARING, NEEDLE ROLLER (FOR 5TH GEAR)
SU002-00238

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00238

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
90364-38020

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
90364-38020

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33354A - RACE, REVERSE GEAR BEARING, INNER
33354-37010

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33354-37010

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00227

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00227

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33361 - HUB, TRANSMISSION CLUTCH, NO.1
SU002-00231

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00231

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33361-37030

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33361-37030

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33361B - RING, SHAFT SNAP (FOR CLUTCH HUB NO.1)
90520-46006

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=3.00−3.05,ﾏｰｸ C

 1
90520-46006

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=3.00−3.05,ﾏｰｸ C

 1
90520-46009

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=3.15−3.20,ﾏｰｸ F

 1
90520-46009

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=3.15−3.20,ﾏｰｸ F

 1
90520-46005

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.95−3.00,ﾏｰｸ B

 1
90520-46005

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.95−3.00,ﾏｰｸ B

 1
90520-46007

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=3.05−3.10,ﾏｰｸ D

 1
90520-46007

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=3.05−3.10,ﾏｰｸ D

 1
90520-46008

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=3.10−3.15,ﾏｰｸ E

 1
90520-46008

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=3.10−3.15,ﾏｰｸ E

 1
90520-46004

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.90−2.95,ﾏｰｸ A

 1
90520-46004

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.90−2.95,ﾏｰｸ A

 1
33362 - HUB, TRANSMISSION CLUTCH, NO.2
33361-37040

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33361-37040

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00231

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00231

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33362A - RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
90520-28055

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=1.95−2.00,ﾏｰｸ 5

 1
90520-28055

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=1.95−2.00,ﾏｰｸ 5

 1
90520-28056

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.00−2.05,ﾏｰｸ 6

 1
90520-28056

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.00−2.05,ﾏｰｸ 6

 1
90520-28054

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=1.90−1.95,ﾏｰｸ 4

 1
90520-28054

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=1.90−1.95,ﾏｰｸ 4

 1
90520-28057

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.05−2.10,ﾏｰｸ 7

 1
90520-28057

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.05−2.10,ﾏｰｸ 7

 1
90520-28058

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.10−2.15,ﾏｰｸ 8

 1
90520-28058

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.10−2.15,ﾏｰｸ 8

 1
90520-28059

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.15−2.20,ﾏｰｸ 9

 1
90520-28059

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.15−2.20,ﾏｰｸ 9

 1
33363 - SLEEVE, TRANSMISSION HUB, NO.1
33363-37040

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33363-37040

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00194

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00194

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33364 - SLEEVE, TRANSMISSION HUB, NO.2
SU002-00194

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00194

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33364-37030

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33364-37030

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33365 - KEY, SYNCHROMESH SHIFTING, NO.1
33365-37030

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 3
33365-37030

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 3
SU002-00181

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 3
SU002-00181

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 3
33366 - KEY, SYNCHROMESH SHIFTING, NO.2
33365-60010

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 3
33365-60010

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 3
SU002-00181

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 3
SU002-00181

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 3
33368 - RING, SYNCHRONIZER, NO.2
33368-60022

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33368-60022

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33368-60021

XZU300,301,302,306,31#,32#,330,331,341,346,347,35#..5F

 1
33368-60021

XZU300,301,302,306,31#,32#,330,331,341,346,347,35#..5F

 1
SU002-00239

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00239

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33368J - RING, SYNCHRONIZER (FOR 5TH GEAR)
33368-60042

XZU300,301,302,306,31#,32#,330,331,341,346,347,35#..5F

 1
33368-60042

XZU300,301,302,306,31#,32#,330,331,341,346,347,35#..5F

 1
33368-60043

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33368-60043

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33371-37030

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 2
33371-37030

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 2
33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33371-37030

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 2
33371-37030

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 2
33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33371-37030

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 2
33371-37030

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 2
33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33371-37030

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 2
33371-37030

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 2
33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3
33371-60010

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 2
33371-60010

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 2
SU002-00224

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 2
SU002-00224

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 2
33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3
33371-60010

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 2
33371-60010

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 2
SU002-00224

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 2
SU002-00224

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 2
33393 - HUB, TRANSMISSION CLUTCH, NO.3
33393-37020

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33393-37020

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33394B - KEY, SYNCHROMESH SHIFTING, NO.3
33394-37010

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 3
33394-37010

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 3
33395 - SLEEVE, TRANSMISSION HUB, NO.3
33395-37020

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33395-37020

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33402A - BUSH OR BEARING (FOR REVERSE IDLER GEAR)
90364-28010

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
90364-28010

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT)
90365-30030

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
90365-30030

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00228

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00228

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33411D - RING, COUNTER GEAR FRONT BEARING SNAP, NO.1
90520-27053

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.45−2.50,ﾏｰｸ A

 1
90520-27053

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.45−2.50,ﾏｰｸ A

 1
90520-27056

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.60−2.65,ﾏｰｸ D

 1
90520-27056

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.60−2.65,ﾏｰｸ D

 1
90520-27058

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.70−2.75,ﾏｰｸ F

 1
90520-27058

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.70−2.75,ﾏｰｸ F

 1
90520-27054

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.50−2.55,ﾏｰｸ B

 1
90520-27054

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.50−2.55,ﾏｰｸ B

 1
90520-27057

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.65−2.70,ﾏｰｸ E

 1
90520-27057

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.65−2.70,ﾏｰｸ E

 1
90520-27055

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.55−2.60,ﾏｰｸ C

 1
90520-27055

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.55−2.60,ﾏｰｸ C

 1
33411P - BEARING, COUNTER SHAFT CENTER
90365-36004

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
90365-36004

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33411Q - RING, COUNTER GEAR FRONT BEARING SNAP, NO.2
90520-63001

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=1.60−1.70

 1
90520-63001

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=1.60−1.70

 1
33411R - RING, SNAP, COUNTER GEAR REAR BEARING
90520-29032

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.40−2.45,ﾏｰｸ A

 1
90520-29032

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.40−2.45,ﾏｰｸ A

 1
90520-29038

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.70−2.75,ﾏｰｸ G

 1
90520-29038

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.70−2.75,ﾏｰｸ G

 1
90520-29037

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.65−2.70,ﾏｰｸ F

 1
90520-29037

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.65−2.70,ﾏｰｸ F

 1
90520-29035

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.55−2.60,ﾏｰｸ D

 1
90520-29035

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.55−2.60,ﾏｰｸ D

 1
90520-29033

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.45−2.50,ﾏｰｸ B

 1
90520-29033

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.45−2.50,ﾏｰｸ B

 1
90520-29036

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.60−2.65,ﾏｰｸ E

 1
90520-29036

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.60−2.65,ﾏｰｸ E

 1
90520-29034

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.50−2.55,ﾏｰｸ C

 1
90520-29034

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.50−2.55,ﾏｰｸ C

 1
33411X - BEARING, RADIAL BALL
90363-32038

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
90363-32038

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33421 - GEAR, COUNTER
33421-37070

XZU302..CNG,LPG;XZU302..(DM3,DM6,T3)..5F;XZU302..(T4,T5)..(295T,30T);XZU300,301,306,31#,32#,330,331,341,342,346,347,35#..5F

 1
33421-37070

XZU302..CNG,LPG;XZU302..(DM3,DM6,T3)..5F;XZU302..(T4,T5)..(295T,30T);XZU300,301,306,31#,32#,330,331,341,342,346,347,35#..5F

 1
SU002-00193

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00193

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33451 - SHAFT, REVERSE IDLER GEAR
33451-37020

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33451-37020

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00195

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00195

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33451A - KEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT)
90280-03002

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
90280-03002

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33461 - GEAR, REVERSE IDLER
33461-37030

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33461-37030

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33462 - WASHER, REVERSE IDLER THRUST
33462-60020

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 2
33462-60020

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 2
33462 - WASHER, REVERSE IDLER THRUST
33462-60020

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 2
33462-60020

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 2
33481 - GEAR, SPEEDOMETER DRIVE (MTM)
33481-36160

XZU312..DCB;XZU341..6F..DSL;XZU321..DM7..5F..4NO;XZU322,340..(DM7,DM8,T4)..MTM;XZU301,302,340,35#..(DM2,DM6,T3)..MTM..(20T,35T,40T)

歯数=6,ﾏｰｸ 6X23−25

 1
33481-36160

XZU312..DCB;XZU341..6F..DSL;XZU321..DM7..5F..4NO;XZU322,340..(DM7,DM8,T4)..MTM;XZU301,302,340,35#..(DM2,DM6,T3)..MTM..(20T,35T,40T)

歯数=6,ﾏｰｸ 6X23−25

 1
SU002-00188

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

歯数=4

 1
SU002-00188

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

歯数=4

 1
33481A - KEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)
90360-06004

XZU302..CNG,LPG;XZU302..(DM3,DM6,T3)..5F;XZU302..(T4,T5)..(295T,30T);XZU300,301,306,31#,32#,330,331,341,342,346,347,35#..5F

 1
90360-06004

XZU302..CNG,LPG;XZU302..(DM3,DM6,T3)..5F;XZU302..(T4,T5)..(295T,30T);XZU300,301,306,31#,32#,330,331,341,342,346,347,35#..5F

 1
33481A - KEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)
90360-06004

XZU302..CNG,LPG;XZU302..(DM3,DM6,T3)..5F;XZU302..(T4,T5)..(295T,30T);XZU300,301,306,31#,32#,330,331,341,342,346,347,35#..5F

 1
90360-06004

XZU302..CNG,LPG;XZU302..(DM3,DM6,T3)..5F;XZU302..(T4,T5)..(295T,30T);XZU300,301,306,31#,32#,330,331,341,342,346,347,35#..5F

 1
33481D - SPACER (FOR SPEEDOMETER DRIVE GEAR)
33487-37020

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33487-37020

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00234

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00234

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
36155B - RING, TRANSFER OIL SEAL
36155-36020

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 2
36155-36020

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 2
36155B - RING, TRANSFER OIL SEAL
36155-36020

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 2
36155-36020

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 2
Linked diagrams
4601

(9905-0406)BU30#,346,XZU302,307,337..5F..DSL

Click highlighted areas on diagram

M153,M155

diagram 33038E 33039 33311 33311A 33311B 33311C 33311D 33311F 33311F 33311G 33321 33321A 33321B 33321G 33321K 33323A 33323A 33331 33331A 33332 33332B 33333 33333A 33335 33335C 33336 33336A 33336B 33338C 33342A 33342B 33342C 33354A 33361 33362 33362A 33363 33364 33365 33366 33367 33369 33369 33371 33371 33391 33391 33392 33392 33393 33393A 33394 33395 33402 33411A 33411H 33411R 33421 33451 33451A 33461A 33462 33464 33481 33481D 4601
Part # Description Qty Price
33038E - RING SET, SYNCHRONIZER, NO.2
33037-37021

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00184

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33039 - RING SET, SYNCHRONIZER, NO.3
33038-37011

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00184

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33311 - SHAFT, INPUT
33301-37150

XZU302..(DM3,DM6,T3)..5F;XZU302..(T4,T5)..(295T,30T);XZU300,301,306,31#,32#,330,331,341,342,346,347,35#..5F..(DSL,DSLL)

 1
SU002-00178

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33311A - BEARING (FOR INPUT SHAFT FRONT)
90363-50007

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00179

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33311B - RING, SHAFT SNAP (FOR FRONT BEARING)
90520-99010

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.36−2.46

 1
SU002-00198

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33311C - RING, HOLE SNAP (FOR NEEDLE ROLLER)
96151-04500

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00180

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33311D - BEARING, INPUT SHAFT
90361-09002

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 12
SU002-00222

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33311F - SPACER (FOR INPUT SHAFT)
90560-38004

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 2
33311F - SPACER (FOR INPUT SHAFT)
90560-38004

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 2
33311G - RING, SHAFT SNAP (FOR FRONT BEARING)
SU002-00200

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33321 - SHAFT, OUTPUT
SU002-00189

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33321-37060

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33321A - BEARING (FOR OUTPUT SHAFT REAR)
90363-38007

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00221

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33321B - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
SU002-00219

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
90179-24008

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00197

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33321K - RING, O(FOR MANUAL TRANSMISSON OUTPUT SHAFT REAR SET NU
SU002-00202

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
90301-31003

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33331 - GEAR, REVERSE
33331-37050

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00186

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33331A - BEARING (FOR REVERSE GEAR)
90364-47008

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00223

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33332 - GEAR, 2ND
33033-37030

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00185

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR)
90364-50003

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00223

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33333 - GEAR, 3RD
33034-37030

XZU302..CNG,LPG;XZU302..(DM3,DM6,T3)..5F;XZU302..(T4,T5)..(295T,30T);XZU300,301,306,31#,32#,330,331,341,342,346,347,35#..5F

 1
SU002-00183

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR)
90364-58007

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00223

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33335 - GEAR, 1ST
SU002-00187

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33335-37080

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR)
SU002-00223

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
90364-44004

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33336 - GEAR, 5TH
33036-37040

XZU302..CNG,LPG;XZU302..(DM3,DM6,T3)..5F;XZU302..(T4,T5)..(295T,30T);XZU300,301,306,31#,32#,330,331,341,342,346,347,35#..5F

 1
SU002-00235

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33336A - BEARING, NEEDLE ROLLER (FOR 5TH GEAR)
SU002-00238

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
90364-38020

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33342B - RING, SHAFT SNAP (FOR GEAR THRUST WASHER)
SU002-00182

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33342C - WASHER, 3RD GEAR THRUST
SU002-00227

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33354A - RACE, REVERSE GEAR BEARING, INNER
33354-37010

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00227

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33361 - HUB, TRANSMISSION CLUTCH, NO.1
SU002-00231

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33361-37030

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33362 - HUB, TRANSMISSION CLUTCH, NO.2
33361-37040

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00231

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33362A - RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
90520-28055

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=1.95−2.00,ﾏｰｸ 5

 1
90520-28056

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.00−2.05,ﾏｰｸ 6

 1
90520-28054

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=1.90−1.95,ﾏｰｸ 4

 1
90520-28057

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.05−2.10,ﾏｰｸ 7

 1
90520-28058

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.10−2.15,ﾏｰｸ 8

 1
90520-28059

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.15−2.20,ﾏｰｸ 9

 1
33363 - SLEEVE, TRANSMISSION HUB, NO.1
33363-37040

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00194

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33364 - SLEEVE, TRANSMISSION HUB, NO.2
SU002-00194

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33364-37030

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33365 - KEY, SYNCHROMESH SHIFTING, NO.1
33365-37030

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 3
SU002-00181

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 3
33366 - KEY, SYNCHROMESH SHIFTING, NO.2
33365-60010

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 3
SU002-00181

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 3
33367 - RING, SYNCHRONIZER, NO.1
SU002-00184

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33369 - RING, SYNCHRONIZER, NO.3
SU002-00237

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 2
33369 - RING, SYNCHRONIZER, NO.3
SU002-00237

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 2
33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33371-37030

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 2
33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33371-37030

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 2
33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33371-37030

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 2
33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33371-37030

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 2
33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3
33371-60010

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 2
SU002-00224

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 2
33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3
33371-60010

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 2
SU002-00224

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 2
33393 - HUB, TRANSMISSION CLUTCH, NO.3
33393-37020

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33394 - KEY, SYNCHROMESH SHIFTING, NO.3
SU002-00204

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 3
33395 - SLEEVE, TRANSMISSION HUB, NO.3
33395-37020

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33402 - GEAR SUB-ASSY, REVERSE IDLER
SU002-00196

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT)
90365-30030

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00228

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33411H - BEARING OR ROLLER(FOR COUNTER GEAR REAR)
SU002-00228

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33411R - RING, SNAP, COUNTER GEAR REAR BEARING
90520-29032

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.40−2.45,ﾏｰｸ A

 1
90520-29038

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.70−2.75,ﾏｰｸ G

 1
90520-29037

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.65−2.70,ﾏｰｸ F

 1
90520-29035

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.55−2.60,ﾏｰｸ D

 1
90520-29033

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.45−2.50,ﾏｰｸ B

 1
90520-29036

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.60−2.65,ﾏｰｸ E

 1
90520-29034

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.50−2.55,ﾏｰｸ C

 1
33421 - GEAR, COUNTER
33421-37070

XZU302..CNG,LPG;XZU302..(DM3,DM6,T3)..5F;XZU302..(T4,T5)..(295T,30T);XZU300,301,306,31#,32#,330,331,341,342,346,347,35#..5F

 1
SU002-00193

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33451 - SHAFT, REVERSE IDLER GEAR
33451-37020

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00195

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33451A - KEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT)
90280-03002

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33461A - BEARING, REVERSE IDLER GEAR
SU002-00203

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33462 - WASHER, REVERSE IDLER THRUST
33462-60020

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 2
33481 - GEAR, SPEEDOMETER DRIVE (MTM)
33481-36160

XZU312..DCB;XZU341..6F..DSL;XZU321..DM7..5F..4NO;XZU322,340..(DM7,DM8,T4)..MTM;XZU301,302,340,35#..(DM2,DM6,T3)..MTM..(20T,35T,40T)

歯数=6,ﾏｰｸ 6X23−25

 1
SU002-00188

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

歯数=4

 1
33481D - SPACER (FOR SPEEDOMETER DRIVE GEAR)
33487-37020

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00234

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
Linked diagrams
4601

(0206-0406)XZU32#,350..5F ; (0206-0406)XZU302..5F..20T..1NO ; (0206-0406)XZU301,330

Click highlighted areas on diagram

MYY5A

diagram 33038E 33039 33039A 33039A 33039B 33039B 33311 33311A 33311B 33311C 33311D 33311G 33321 33321A 33321B 33321G 33321K 33321T 33324E 33331 33331A 33332 33332B 33333 33333A 33335 33335C 33336 33336A 33342B 33342C 33354A 33361 33362 33363 33364 33365 33365A 33365A 33365C 33365C 33366 33367 33367D 33367E 33368 33369 33369 33390 33392 33392 33394 33402 33411A 33411G 33411H 33411Y 33421 33421V 33421W 33421X 33421Z 33451 33461A 33481 33481D
Part # Description Qty Price
33038E - RING SET, SYNCHRONIZER, NO.2
33037-37021

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33037-37021

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00184

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00184

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33039 - RING SET, SYNCHRONIZER, NO.3
33038-37011

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33038-37011

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00184

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00184

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33039A - RING, OUTSIDE, 3RD & 2ND
SU002-00225

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 2
SU002-00225

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 2
33039A - RING, OUTSIDE, 3RD & 2ND
SU002-00225

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 2
SU002-00225

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 2
33039B - RING, INSIDE, 3RD & 2ND
SU002-00226

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 2
SU002-00226

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 2
33039B - RING, INSIDE, 3RD & 2ND
SU002-00226

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 2
SU002-00226

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 2
33311 - SHAFT, INPUT
33301-37150

XZU302..(DM3,DM6,T3)..5F;XZU302..(T4,T5)..(295T,30T);XZU300,301,306,31#,32#,330,331,341,342,346,347,35#..5F..(DSL,DSLL)

 1
33301-37150

XZU302..(DM3,DM6,T3)..5F;XZU302..(T4,T5)..(295T,30T);XZU300,301,306,31#,32#,330,331,341,342,346,347,35#..5F..(DSL,DSLL)

 1
SU002-00178

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00178

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33311A - BEARING (FOR INPUT SHAFT FRONT)
90363-50007

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
90363-50007

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00179

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00179

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33311B - RING, SHAFT SNAP (FOR FRONT BEARING)
90520-99010

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.36−2.46

 1
90520-99010

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.36−2.46

 1
SU002-00198

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00198

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33311C - RING, HOLE SNAP (FOR NEEDLE ROLLER)
96151-04500

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
96151-04500

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00180

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00180

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33311D - BEARING, INPUT SHAFT
90361-09002

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 12
90361-09002

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 12
SU002-00222

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00222

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33311G - RING, SHAFT SNAP (FOR FRONT BEARING)
SU002-00200

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00200

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33321 - SHAFT, OUTPUT
SU002-00189

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00189

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33321-37060

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33321-37060

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33321A - BEARING (FOR OUTPUT SHAFT REAR)
90363-38007

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
90363-38007

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00221

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00221

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33321B - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
SU002-00219

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00219

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
90179-24008

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
90179-24008

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00197

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00197

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33321K - RING, O(FOR MANUAL TRANSMISSON OUTPUT SHAFT REAR SET NU
SU002-00202

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00202

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
90301-31003

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
90301-31003

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33321T - SPACER (FOR OUTPUT SHAFT)
SU002-00201

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00201

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33324E - DRIVE ASSY, COUPLING
SU002-00220

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00220

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33331 - GEAR, REVERSE
33331-37050

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33331-37050

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00186

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00186

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33331A - BEARING (FOR REVERSE GEAR)
90364-47008

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
90364-47008

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00223

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00223

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33332 - GEAR, 2ND
33033-37030

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33033-37030

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00185

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00185

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR)
90364-50003

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
90364-50003

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00223

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00223

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33333 - GEAR, 3RD
33034-37030

XZU302..CNG,LPG;XZU302..(DM3,DM6,T3)..5F;XZU302..(T4,T5)..(295T,30T);XZU300,301,306,31#,32#,330,331,341,342,346,347,35#..5F

 1
33034-37030

XZU302..CNG,LPG;XZU302..(DM3,DM6,T3)..5F;XZU302..(T4,T5)..(295T,30T);XZU300,301,306,31#,32#,330,331,341,342,346,347,35#..5F

 1
SU002-00183

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00183

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR)
90364-58007

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
90364-58007

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00223

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00223

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33335 - GEAR, 1ST
SU002-00187

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00187

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33335-37080

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33335-37080

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR)
SU002-00223

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00223

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
90364-44004

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
90364-44004

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33336 - GEAR, 5TH
33036-37040

XZU302..CNG,LPG;XZU302..(DM3,DM6,T3)..5F;XZU302..(T4,T5)..(295T,30T);XZU300,301,306,31#,32#,330,331,341,342,346,347,35#..5F

 1
33036-37040

XZU302..CNG,LPG;XZU302..(DM3,DM6,T3)..5F;XZU302..(T4,T5)..(295T,30T);XZU300,301,306,31#,32#,330,331,341,342,346,347,35#..5F

 1
SU002-00235

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00235

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33336A - BEARING, NEEDLE ROLLER (FOR 5TH GEAR)
SU002-00238

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00238

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
90364-38020

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
90364-38020

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33342B - RING, SHAFT SNAP (FOR GEAR THRUST WASHER)
SU002-00182

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00182

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33342C - WASHER, 3RD GEAR THRUST
SU002-00227

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00227

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33354A - RACE, REVERSE GEAR BEARING, INNER
33354-37010

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33354-37010

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00227

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00227

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33361 - HUB, TRANSMISSION CLUTCH, NO.1
SU002-00231

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00231

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33361-37030

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33361-37030

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33362 - HUB, TRANSMISSION CLUTCH, NO.2
33361-37040

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33361-37040

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00231

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00231

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33363 - SLEEVE, TRANSMISSION HUB, NO.1
33363-37040

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33363-37040

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00194

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00194

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33364 - SLEEVE, TRANSMISSION HUB, NO.2
SU002-00194

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00194

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33364-37030

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33364-37030

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33365 - KEY, SYNCHROMESH SHIFTING, NO.1
33365-37030

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 3
33365-37030

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 3
SU002-00181

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 3
SU002-00181

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 3
33365A - SPRING, COMPRESSION
SU002-00232

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 6
SU002-00232

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 6
33365A - SPRING, COMPRESSION
SU002-00232

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 6
SU002-00232

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 6
33365C - BALL(FOR SYNCHROMESH SHIFTING KEY)
SU002-00233

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 6
SU002-00233

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 6
33365C - BALL(FOR SYNCHROMESH SHIFTING KEY)
SU002-00233

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 6
SU002-00233

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 6
33366 - KEY, SYNCHROMESH SHIFTING, NO.2
33365-60010

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 3
33365-60010

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 3
SU002-00181

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 3
SU002-00181

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 3
33367 - RING, SYNCHRONIZER, NO.1
SU002-00184

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00184

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33367D - RING, OUTSIDE LOW & REVERSE
SU002-00225

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00225

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33367E - RING, INSIDE LOW & REVERSE
SU002-00226

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00226

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33368 - RING, SYNCHRONIZER, NO.2
33368-60022

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33368-60022

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33368-60021

XZU300,301,302,306,31#,32#,330,331,341,346,347,35#..5F

 1
33368-60021

XZU300,301,302,306,31#,32#,330,331,341,346,347,35#..5F

 1
SU002-00239

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00239

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33369 - RING, SYNCHRONIZER, NO.3
SU002-00237

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 2
SU002-00237

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 2
33369 - RING, SYNCHRONIZER, NO.3
SU002-00237

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 2
SU002-00237

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 2
33390 - SLEEVE & HUB ASSY, TOP-O/D
SU002-00236

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00236

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3
33371-60010

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 2
33371-60010

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 2
SU002-00224

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 2
SU002-00224

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 2
33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3
33371-60010

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 2
33371-60010

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 2
SU002-00224

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 2
SU002-00224

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 2
33394 - KEY, SYNCHROMESH SHIFTING, NO.3
SU002-00204

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 3
SU002-00204

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 3
33402 - GEAR SUB-ASSY, REVERSE IDLER
SU002-00196

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00196

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT)
90365-30030

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
90365-30030

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00228

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00228

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33411G - SHIM(FOR COUNTER GEAR SHAFT BEARING SETTING)
SU002-00207

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

内径=62.7 厚さ=2.53

 1
SU002-00207

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

内径=62.7 厚さ=2.53

 1
SU002-00209

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

内径=62.7 厚さ=2.65

 1
SU002-00209

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

内径=62.7 厚さ=2.65

 1
SU002-00215

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

内径=62.7 厚さ=3.01

 1
SU002-00215

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

内径=62.7 厚さ=3.01

 1
SU002-00217

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

内径=62.7 厚さ=3.13

 1
SU002-00217

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

内径=62.7 厚さ=3.13

 1
SU002-00205

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

内径=62.7 厚さ=2.41

 1
SU002-00205

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

内径=62.7 厚さ=2.41

 1
SU002-00218

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

内径=62.7 厚さ=3.19

 1
SU002-00218

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

内径=62.7 厚さ=3.19

 1
SU002-00208

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

内径=62.7 厚さ=2.59

 1
SU002-00208

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

内径=62.7 厚さ=2.59

 1
SU002-00211

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

内径=62.7 厚さ=2.77

 1
SU002-00211

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

内径=62.7 厚さ=2.77

 1
SU002-00213

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

内径=62.7 厚さ=2.89

 1
SU002-00213

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

内径=62.7 厚さ=2.89

 1
SU002-00206

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

内径=62.7 厚さ=2.47

 1
SU002-00206

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

内径=62.7 厚さ=2.47

 1
SU002-00212

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

内径=62.7 厚さ=2.83

 1
SU002-00212

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

内径=62.7 厚さ=2.83

 1
SU002-00210

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

内径=62.7 厚さ=2.71

 1
SU002-00210

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

内径=62.7 厚さ=2.71

 1
SU002-00214

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

内径=62.7 厚さ=2.95

 1
SU002-00214

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

内径=62.7 厚さ=2.95

 1
SU002-00216

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

内径=62.7 厚さ=3.07

 1
SU002-00216

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

内径=62.7 厚さ=3.07

 1
33411H - BEARING OR ROLLER(FOR COUNTER GEAR REAR)
SU002-00228

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00228

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33411Y - RING, SNAP, BAG, COUNTERSHAFT
SU002-00190

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

内径=30.7 厚さ=1.9

 1
SU002-00190

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

内径=30.7 厚さ=1.9

 1
SU002-00191

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

内径=30.7 厚さ=2.1

 1
SU002-00191

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

内径=30.7 厚さ=2.1

 1
SU002-00192

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

内径=30.7 厚さ=2.3

 1
SU002-00192

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

内径=30.7 厚さ=2.3

 1
33421 - GEAR, COUNTER
33421-37070

XZU302..CNG,LPG;XZU302..(DM3,DM6,T3)..5F;XZU302..(T4,T5)..(295T,30T);XZU300,301,306,31#,32#,330,331,341,342,346,347,35#..5F

 1
33421-37070

XZU302..CNG,LPG;XZU302..(DM3,DM6,T3)..5F;XZU302..(T4,T5)..(295T,30T);XZU300,301,306,31#,32#,330,331,341,342,346,347,35#..5F

 1
SU002-00193

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00193

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33421V - PIN, ANTI-LASH PLATE
SU002-00229

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 3
SU002-00229

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 3
33421W - PLATE, ANTI-LASH
SU002-00199

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00199

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33421X - SPRING, ANTI-LASH PLATE
SU002-00081

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 3
SU002-00081

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 3
33421Z - RING, SNAP, ANTI-LASH
SU002-00230

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00230

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33451 - SHAFT, REVERSE IDLER GEAR
33451-37020

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33451-37020

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00195

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00195

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33461A - BEARING, REVERSE IDLER GEAR
SU002-00203

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00203

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33481 - GEAR, SPEEDOMETER DRIVE (MTM)
33481-36160

XZU312..DCB;XZU341..6F..DSL;XZU321..DM7..5F..4NO;XZU322,340..(DM7,DM8,T4)..MTM;XZU301,302,340,35#..(DM2,DM6,T3)..MTM..(20T,35T,40T)

歯数=6,ﾏｰｸ 6X23−25

 1
33481-36160

XZU312..DCB;XZU341..6F..DSL;XZU321..DM7..5F..4NO;XZU322,340..(DM7,DM8,T4)..MTM;XZU301,302,340,35#..(DM2,DM6,T3)..MTM..(20T,35T,40T)

歯数=6,ﾏｰｸ 6X23−25

 1
SU002-00188

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

歯数=4

 1
SU002-00188

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

歯数=4

 1
33481D - SPACER (FOR SPEEDOMETER DRIVE GEAR)
33487-37020

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33487-37020

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00234

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
SU002-00234

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1

(0310-0406)XZU304,305,344 ; (0406- )XZU304,334..5F..DCRL,DSLL ; (0406- )XZU30

Click highlighted areas on diagram

M550

diagram 33037B 33038E 33311 33311A 33311B 33311B 33311G 33321 33321A 33321G 33321K 33321N 33321V 33331 33331A 33332 33332B 33333 33333A 33335 33335C 33336 33336A 33341A 33342A 33342A 33342A 33342B 33342C 33346B 33361 33361B 33362 33362A 33363 33364 33365 33366 33368G 33368H 33368J 33371 33371 33371 33387A 33393 33393A 33394 33395 33402A 33411A 33411H 33411Q 33421 33421D 33451 33451H 33451J 33461 33462 33481 33481A 33481D 9017952001
Part # Description Qty Price
33037B - RING SET, SYNCHRONIZER, NO.1
33037-37030

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33038E - RING SET, SYNCHRONIZER, NO.2
33037-37021

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00184

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33311 - SHAFT, INPUT
33301-37150

XZU302..(DM3,DM6,T3)..5F;XZU302..(T4,T5)..(295T,30T);XZU300,301,306,31#,32#,330,331,341,342,346,347,35#..5F..(DSL,DSLL)

 1
SU002-00178

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33311A - BEARING (FOR INPUT SHAFT FRONT)
90363-50007

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00179

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33311B - RING, SHAFT SNAP (FOR FRONT BEARING)
90520-99010

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.36−2.46

 1
SU002-00198

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33311B - RING, SHAFT SNAP (FOR FRONT BEARING)
90520-99010

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.36−2.46

 1
SU002-00198

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33311G - RING, SHAFT SNAP (FOR FRONT BEARING)
SU002-00200

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33321 - SHAFT, OUTPUT
SU002-00189

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33321-37060

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33321A - BEARING (FOR OUTPUT SHAFT REAR)
90363-38007

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00221

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
90179-24008

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00197

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33321K - RING, O(FOR MANUAL TRANSMISSON OUTPUT SHAFT REAR SET NU
SU002-00202

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
90301-31003

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33321V - BEARING (FOR OUTPUT SHAFT CENTER)
90363-45019

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33331 - GEAR, REVERSE
33331-37050

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00186

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33331A - BEARING (FOR REVERSE GEAR)
90364-47008

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00223

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33332 - GEAR, 2ND
33033-37030

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00185

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR)
90364-50003

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00223

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33333 - GEAR, 3RD
33034-37030

XZU302..CNG,LPG;XZU302..(DM3,DM6,T3)..5F;XZU302..(T4,T5)..(295T,30T);XZU300,301,306,31#,32#,330,331,341,342,346,347,35#..5F

 1
SU002-00183

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR)
90364-58007

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00223

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33335 - GEAR, 1ST
SU002-00187

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33335-37080

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR)
SU002-00223

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
90364-44004

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33336 - GEAR, 5TH
33036-37040

XZU302..CNG,LPG;XZU302..(DM3,DM6,T3)..5F;XZU302..(T4,T5)..(295T,30T);XZU300,301,306,31#,32#,330,331,341,342,346,347,35#..5F

 1
SU002-00235

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33336A - BEARING, NEEDLE ROLLER (FOR 5TH GEAR)
SU002-00238

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
90364-38020

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33342B - RING, SHAFT SNAP (FOR GEAR THRUST WASHER)
SU002-00182

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33342C - WASHER, 3RD GEAR THRUST
SU002-00227

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33361 - HUB, TRANSMISSION CLUTCH, NO.1
SU002-00231

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33361-37030

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33361B - RING, SHAFT SNAP (FOR CLUTCH HUB NO.1)
90520-46006

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=3.00−3.05,ﾏｰｸ C

 1
90520-46009

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=3.15−3.20,ﾏｰｸ F

 1
90520-46005

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.95−3.00,ﾏｰｸ B

 1
90520-46007

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=3.05−3.10,ﾏｰｸ D

 1
90520-46008

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=3.10−3.15,ﾏｰｸ E

 1
90520-46004

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.90−2.95,ﾏｰｸ A

 1
33362 - HUB, TRANSMISSION CLUTCH, NO.2
33361-37040

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00231

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33362A - RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
90520-28055

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=1.95−2.00,ﾏｰｸ 5

 1
90520-28056

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.00−2.05,ﾏｰｸ 6

 1
90520-28054

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=1.90−1.95,ﾏｰｸ 4

 1
90520-28057

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.05−2.10,ﾏｰｸ 7

 1
90520-28058

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.10−2.15,ﾏｰｸ 8

 1
90520-28059

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=2.15−2.20,ﾏｰｸ 9

 1
33363 - SLEEVE, TRANSMISSION HUB, NO.1
33363-37040

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00194

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33364 - SLEEVE, TRANSMISSION HUB, NO.2
SU002-00194

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33364-37030

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33365 - KEY, SYNCHROMESH SHIFTING, NO.1
33365-37030

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 3
SU002-00181

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 3
33366 - KEY, SYNCHROMESH SHIFTING, NO.2
33365-60010

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 3
SU002-00181

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 3
33368J - RING, SYNCHRONIZER (FOR 5TH GEAR)
33368-60042

XZU300,301,302,306,31#,32#,330,331,341,346,347,35#..5F

 1
33368-60043

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33371-37030

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 2
33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33371-37030

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 2
33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33371-37030

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 2
33393 - HUB, TRANSMISSION CLUTCH, NO.3
33393-37020

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33394 - KEY, SYNCHROMESH SHIFTING, NO.3
SU002-00204

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 3
33395 - SLEEVE, TRANSMISSION HUB, NO.3
33395-37020

XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33402A - BUSH OR BEARING (FOR REVERSE IDLER GEAR)
90364-28010

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT)
90365-30030

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00228

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33411H - BEARING OR ROLLER(FOR COUNTER GEAR REAR)
SU002-00228

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33411Q - RING, COUNTER GEAR FRONT BEARING SNAP, NO.2
90520-63001

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

厚さ=1.60−1.70

 1
33421 - GEAR, COUNTER
33421-37070

XZU302..CNG,LPG;XZU302..(DM3,DM6,T3)..5F;XZU302..(T4,T5)..(295T,30T);XZU300,301,306,31#,32#,330,331,341,342,346,347,35#..5F

 1
SU002-00193

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33451 - SHAFT, REVERSE IDLER GEAR
33451-37020

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00195

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
33461 - GEAR, REVERSE IDLER
33461-37030

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
33462 - WASHER, REVERSE IDLER THRUST
33462-60020

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 2
33481 - GEAR, SPEEDOMETER DRIVE (MTM)
33481-36160

XZU312..DCB;XZU341..6F..DSL;XZU321..DM7..5F..4NO;XZU322,340..(DM7,DM8,T4)..MTM;XZU301,302,340,35#..(DM2,DM6,T3)..MTM..(20T,35T,40T)

歯数=6,ﾏｰｸ 6X23−25

 1
SU002-00188

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

歯数=4

 1
33481A - KEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)
90360-06004

XZU302..CNG,LPG;XZU302..(DM3,DM6,T3)..5F;XZU302..(T4,T5)..(295T,30T);XZU300,301,306,31#,32#,330,331,341,342,346,347,35#..5F

 1
33481D - SPACER (FOR SPEEDOMETER DRIVE GEAR)
33487-37020

XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)

 1
SU002-00234

XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO

 1
Common parts
90179-52001
