XZU302A-TYMMS3 (1999)
Toyota Dyna/Toyoace

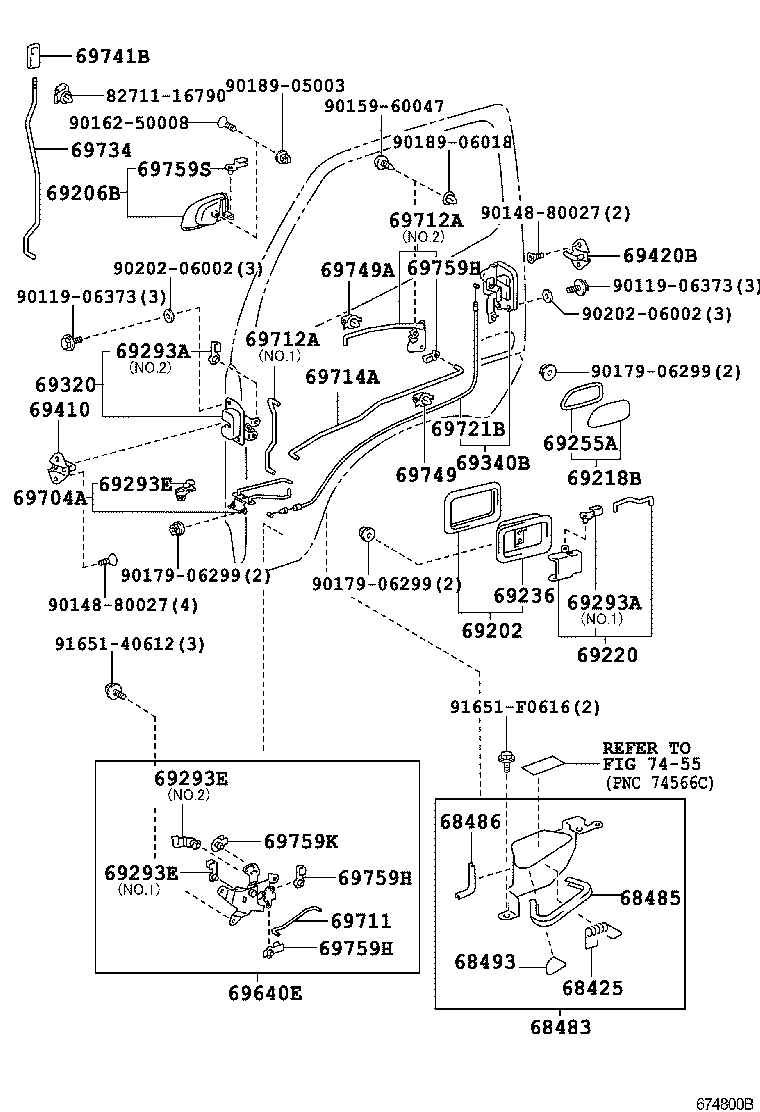

ILLUST NO. 2 OF 2(9905- )
ｱﾘ(ﾌﾛﾝﾄ ｽﾗｲﾄﾞﾄﾞｱ = LH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68425 - SPRING, FRONT SLIDE DOOR CATCH | ||||
| 68425-37010 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 |
1 | ||
| 68483 - GUARD, FRONT SLIDE DOOR ARM | ||||
| 68483-37010 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 |
1 | ||
| 68485 - PROTECTOR, FRONT SLIDE DOOR ARM GUARD | ||||
| 68485-37010 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 |
1 | ||
| 68486 - PROTECTOR, FRONT SLIDE DOOR BRACKET COVER | ||||
| 68486-37010 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 |
1 | ||
| 68493 - CUSHION, FRONT SLIDE DOOR ARM GUARD | ||||
| 68493-37010 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 |
1 | ||
| 69202 - HANDLE SUB-ASSY, DOOR OUTSIDE, LH | ||||
| 69202-37020 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 |
1 | ||
| 69218B - COVER, SLIDE DOOR OUTSIDE HANDLE, LH | ||||
| 69218-37010 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-37030 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 塗装不要,ｱﾘ(ｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 69220-37020 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 塗装不要 |
1 | ||
| 69236 - BEZEL, FRONT SLIDE DOOR OUTSIDE HANDLE | ||||
| 69236-95402 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 |
1 | ||
| 69255A - PROTECTOR, FRONT SLIDE DOOR OUTSIDE HANDLE HOLE | ||||
| 69255-37010 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-12060 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 左側 |
1 | ||
| 69293-12050 |
BU301,BZU300,XZU301,302..DM6..IV3 ｱﾘ(ｽﾗｲﾄﾞﾄﾞｱ),左側,NO.1 |
1 | ||
| 69293-12060 |
BU301,BZU300,XZU301,302..DM6..IV3 ｱﾘ(ｽﾗｲﾄﾞﾄﾞｱ),左側,NO.2 |
1 | ||
| 69293-12050 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 右側 |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-12060 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 左側 |
1 | ||
| 69293-12050 |
BU301,BZU300,XZU301,302..DM6..IV3 ｱﾘ(ｽﾗｲﾄﾞﾄﾞｱ),左側,NO.1 |
1 | ||
| 69293-12060 |
BU301,BZU300,XZU301,302..DM6..IV3 ｱﾘ(ｽﾗｲﾄﾞﾄﾞｱ),左側,NO.2 |
1 | ||
| 69293-12050 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 右側 |
1 | ||
| 69293E - SNAP, SLIDE DOOR LOCK CONTROL LINK | ||||
| 69293-12030 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 69293-12050 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 NO.1:ｲﾗｽﾄ参照 |
3 | ||
| 69293E - SNAP, SLIDE DOOR LOCK CONTROL LINK | ||||
| 69293-12030 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 69293-12050 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 NO.1:ｲﾗｽﾄ参照 |
3 | ||
| 69293E - SNAP, SLIDE DOOR LOCK CONTROL LINK | ||||
| 69293-12030 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 69293-12050 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 NO.1:ｲﾗｽﾄ参照 |
3 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-37110 |
XZU31#..30T..4NO;XZU322,351,352..5F;XZU321..DM7..5F..4NO;XZU301,306..(T3,T4)..DSLL..IV3;XZU301,302..(DM3,DM6)..5F..(DSL,DSLL)..(CBU,IV3) ﾀｸﾊｲ ｼﾖｳ |
1 | ||
| 69320-37060 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 69320-37090 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 ｱﾘ(ｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 69340B - LOCK ASSY, SLIDE DOOR, LH | ||||
| 69340-37030 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-20110 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 ｱﾘ(ｽﾗｲﾄﾞﾄﾞｱ & ﾏﾆﾕｱﾙ ﾄﾞｱﾛﾂｸ),右側 |
1 | ||
| 69410-37020 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 ｱﾘ(ｽﾗｲﾄﾞﾄﾞｱ & ﾏﾆﾕｱﾙ ﾄﾞｱﾛﾂｸ),左側ﾌﾛﾝﾄ |
1 | ||
| 69410-20110 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
2 | ||
| 69420B - PLATE ASSY, DOOR LOCK STRIKER, REAR | ||||
| 69420-37010 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 |
1 | ||
| 69640E - CONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH | ||||
| 69640-37020 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 |
1 | ||
| 69704A - ROD SUB-ASSY, SLIDE DOOR LOCK CONTROL, LH | ||||
| 69704-37030 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 |
1 | ||
| 69711 - LINK, FRONT SLIDE DOOR KEY CYLINDER | ||||
| 69711-37030 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 |
1 | ||
| 69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69712-37040 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 ｱﾘ(ｽﾗｲﾄﾞﾄﾞｱ),NO.1 |
1 | ||
| 69710-37010 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 ｱﾘ(ｽﾗｲﾄﾞﾄﾞｱ),NO.2 |
1 | ||
| 69712-37010 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69712-37040 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 ｱﾘ(ｽﾗｲﾄﾞﾄﾞｱ),NO.1 |
1 | ||
| 69710-37010 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 ｱﾘ(ｽﾗｲﾄﾞﾄﾞｱ),NO.2 |
1 | ||
| 69712-37010 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 69714A - LINK, DOOR LOCK REMOTE CONTROL, NO.2 LH | ||||
| 69714-37020 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 |
1 | ||
| 69721B - CABLE, FRONT SLIDE DOOR LOCK CONTROL | ||||
| 69721-37010 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 |
1 | ||
| 69734 - LINK, FRONT DOOR INSIDE LOCKING, LH | ||||
| 69734-37030 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 |
1 | ||
| 69741B - KNOB, FRONT DOOR LOCK CONTROL | ||||
| 69741-12040B3 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 MD.CHARCOAL,TRIM1# |
2 | ||
| 69749 - CLAMP, FRONT DOOR LOCK LINK | ||||
| 69749-12070 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
2 | ||
| 69749-12070 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 ｱﾘ(ｽﾗｲﾄﾞﾄﾞｱ) |
3 | ||
| 69749A - CLAMP, FRONT DOOR LOCK LINK, NO.1 | ||||
| 69749-89101 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 |
1 | ||
| 69759H - SNAP, DOOR LOCK CONTROL LINK, NO.2 | ||||
| 69759-20050 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 ﾌﾞﾗｳﾝ |
2 | ||
| 69759-20060 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 ｸﾞﾚｰ |
1 | ||
| 69759-20100 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 ﾚｯﾄﾞ |
1 | ||
| 69759H - SNAP, DOOR LOCK CONTROL LINK, NO.2 | ||||
| 69759-20050 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 ﾌﾞﾗｳﾝ |
2 | ||
| 69759-20060 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 ｸﾞﾚｰ |
1 | ||
| 69759-20100 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 ﾚｯﾄﾞ |
1 | ||
| 69759H - SNAP, DOOR LOCK CONTROL LINK, NO.2 | ||||
| 69759-20050 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 ﾌﾞﾗｳﾝ |
2 | ||
| 69759-20060 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 ｸﾞﾚｰ |
1 | ||
| 69759-20100 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 ﾚｯﾄﾞ |
1 | ||
| 69759K - SNAP, DOOR LOCK CONTROL LINK | ||||
| 69759-20050 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 右側,ﾌﾞﾗｳﾝ |
1 | ||
| 69759-95701 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 ｱﾘ(ｽﾗｲﾄﾞﾄﾞｱ),左側,ﾌﾞﾗｳﾝ |
1 | ||
| 69759-24020 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 左側,ﾌﾞﾙｰ |
1 | ||
| 69759-24010 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 右側,ｼﾛ |
1 | ||
| 69759-20040 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 左側,ｲｴﾛｰ |
1 | ||
| Common parts | ||||
| 82711-16790 | ||||
| 90119-06373 | ||||
| 90148-80027 | ||||
| 90159-60047 | ||||
| 90179-06299 | ||||
| 90189-06018 | ||||
| 90202-06002 | ||||
| 91651-40612 | ||||
| 91651-F0616 | ||||
| Linked diagrams | ||||
| 7455 | ||||
ILLUST NO. 1 OF 2(9905- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69110 - ACTUATOR ASSY, FRONT DOOR LOCK, RH | ||||
| 69110-37060 |
XZU301..DSLL..4NO;XZU306..4FC..DSLL;XZU301,306..SCB..DSL;XZU306..5F..DSLL..CBU;BU30#,346,XZU300,302,307,31#,32#,33#,340,341,342,346,347,351,352,362,372,382..(DSL,DSLL)..(CBU,IV3) |
1 | ||
| 69110-37030 |
BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7) |
1 | ||
| 69120A - ACTUATOR ASSY, FRONT DOOR LOCK, LH | ||||
| 69120-37030 |
BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL,DSLL |
1 | ||
| 69120-37060 |
XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU301,306,331..DSL;XZU306..4FC..DSLL..IV3;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL |
1 | ||
| 69120A - ACTUATOR ASSY, FRONT DOOR LOCK, LH | ||||
| 69120-37030 |
BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL,DSLL |
1 | ||
| 69120-37060 |
XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU301,306,331..DSL;XZU306..4FC..DSLL..IV3;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-37010B0 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 MD.CHARCOAL,TRIM1# |
1 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-37010B0 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 MD.CHARCOAL,TRIM1# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-37020 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 塗装不要 |
1 | ||
| 69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE) | ||||
| 90541-04015 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 ｱﾘ(ｽﾗｲﾄﾞﾄﾞｱ) |
2 | ||
| 90541-04015 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
4 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-37030 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 塗装不要,ｱﾘ(ｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 69220-37020 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 塗装不要 |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-12060 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 左側 |
1 | ||
| 69293-12050 |
BU301,BZU300,XZU301,302..DM6..IV3 ｱﾘ(ｽﾗｲﾄﾞﾄﾞｱ),左側,NO.1 |
1 | ||
| 69293-12060 |
BU301,BZU300,XZU301,302..DM6..IV3 ｱﾘ(ｽﾗｲﾄﾞﾄﾞｱ),左側,NO.2 |
1 | ||
| 69293-12050 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 右側 |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-37070 |
XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,306,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,351,352,362,37#,382 ﾅｼ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) & ﾅｼ(ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ) |
1 | ||
| 69310-37080 |
XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..4NO;XZU306..5F..DSLL..CBU;XZU301,306..SCB..(CNG,DSL,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,351,352,362,372,382..CBU,IV3 ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 69310-37090 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 ﾅｼ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) & ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ) |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-37070 |
XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,306,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,351,352,362,37#,382 ﾅｼ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) & ﾅｼ(ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ) |
1 | ||
| 69310-37080 |
XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..4NO;XZU306..5F..DSLL..CBU;XZU301,306..SCB..(CNG,DSL,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,351,352,362,372,382..CBU,IV3 ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 69310-37090 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 ﾅｼ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) & ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ) |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-37070 |
XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,306,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,351,352,362,37#,382 ﾅｼ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) & ﾅｼ(ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ) |
1 | ||
| 69310-37080 |
XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..4NO;XZU306..5F..DSLL..CBU;XZU301,306..SCB..(CNG,DSL,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,351,352,362,372,382..CBU,IV3 ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 69310-37090 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 ﾅｼ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) & ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ) |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-37110 |
XZU31#..30T..4NO;XZU322,351,352..5F;XZU321..DM7..5F..4NO;XZU301,306..(T3,T4)..DSLL..IV3;XZU301,302..(DM3,DM6)..5F..(DSL,DSLL)..(CBU,IV3) ﾀｸﾊｲ ｼﾖｳ |
1 | ||
| 69320-37060 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 69320-37090 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 ｱﾘ(ｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-37110 |
XZU31#..30T..4NO;XZU322,351,352..5F;XZU321..DM7..5F..4NO;XZU301,306..(T3,T4)..DSLL..IV3;XZU301,302..(DM3,DM6)..5F..(DSL,DSLL)..(CBU,IV3) ﾀｸﾊｲ ｼﾖｳ |
1 | ||
| 69320-37060 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 69320-37090 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 ｱﾘ(ｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-37110 |
XZU31#..30T..4NO;XZU322,351,352..5F;XZU321..DM7..5F..4NO;XZU301,306..(T3,T4)..DSLL..IV3;XZU301,302..(DM3,DM6)..5F..(DSL,DSLL)..(CBU,IV3) ﾀｸﾊｲ ｼﾖｳ |
1 | ||
| 69320-37060 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 69320-37090 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 ｱﾘ(ｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-20110 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 ｱﾘ(ｽﾗｲﾄﾞﾄﾞｱ & ﾏﾆﾕｱﾙ ﾄﾞｱﾛﾂｸ),右側 |
1 | ||
| 69410-37020 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 ｱﾘ(ｽﾗｲﾄﾞﾄﾞｱ & ﾏﾆﾕｱﾙ ﾄﾞｱﾛﾂｸ),左側ﾌﾛﾝﾄ |
1 | ||
| 69410-20110 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
2 | ||
| 69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69711-37010 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69712-37040 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 ｱﾘ(ｽﾗｲﾄﾞﾄﾞｱ),NO.1 |
1 | ||
| 69710-37010 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 ｱﾘ(ｽﾗｲﾄﾞﾄﾞｱ),NO.2 |
1 | ||
| 69712-37010 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 69741B - KNOB, FRONT DOOR LOCK CONTROL | ||||
| 69741-12040B3 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 MD.CHARCOAL,TRIM1# |
2 | ||
| 69749 - CLAMP, FRONT DOOR LOCK LINK | ||||
| 69749-12070 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
2 | ||
| 69749-12070 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 ｱﾘ(ｽﾗｲﾄﾞﾄﾞｱ) |
3 | ||
| 69759K - SNAP, DOOR LOCK CONTROL LINK | ||||
| 69759-20050 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 右側,ﾌﾞﾗｳﾝ |
1 | ||
| 69759-95701 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 ｱﾘ(ｽﾗｲﾄﾞﾄﾞｱ),左側,ﾌﾞﾗｳﾝ |
1 | ||
| 69759-24020 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 左側,ﾌﾞﾙｰ |
1 | ||
| 69759-24010 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 右側,ｼﾛ |
1 | ||
| 69759-20040 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 左側,ｲｴﾛｰ |
1 | ||
| 69759K - SNAP, DOOR LOCK CONTROL LINK | ||||
| 69759-20050 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 右側,ﾌﾞﾗｳﾝ |
1 | ||
| 69759-95701 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 ｱﾘ(ｽﾗｲﾄﾞﾄﾞｱ),左側,ﾌﾞﾗｳﾝ |
1 | ||
| 69759-24020 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 左側,ﾌﾞﾙｰ |
1 | ||
| 69759-24010 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 右側,ｼﾛ |
1 | ||
| 69759-20040 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 左側,ｲｴﾛｰ |
1 | ||
| 69759K - SNAP, DOOR LOCK CONTROL LINK | ||||
| 69759-20050 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 右側,ﾌﾞﾗｳﾝ |
1 | ||
| 69759-95701 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 ｱﾘ(ｽﾗｲﾄﾞﾄﾞｱ),左側,ﾌﾞﾗｳﾝ |
1 | ||
| 69759-24020 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 左側,ﾌﾞﾙｰ |
1 | ||
| 69759-24010 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 右側,ｼﾛ |
1 | ||
| 69759-20040 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 左側,ｲｴﾛｰ |
1 | ||
| 69759K - SNAP, DOOR LOCK CONTROL LINK | ||||
| 69759-20050 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 右側,ﾌﾞﾗｳﾝ |
1 | ||
| 69759-95701 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 ｱﾘ(ｽﾗｲﾄﾞﾄﾞｱ),左側,ﾌﾞﾗｳﾝ |
1 | ||
| 69759-24020 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 左側,ﾌﾞﾙｰ |
1 | ||
| 69759-24010 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 右側,ｼﾛ |
1 | ||
| 69759-20040 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 左側,ｲｴﾛｰ |
1 | ||
| 69759K - SNAP, DOOR LOCK CONTROL LINK | ||||
| 69759-20050 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 右側,ﾌﾞﾗｳﾝ |
1 | ||
| 69759-95701 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 ｱﾘ(ｽﾗｲﾄﾞﾄﾞｱ),左側,ﾌﾞﾗｳﾝ |
1 | ||
| 69759-24020 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 左側,ﾌﾞﾙｰ |
1 | ||
| 69759-24010 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 右側,ｼﾛ |
1 | ||
| 69759-20040 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 左側,ｲｴﾛｰ |
1 | ||
| 69759K - SNAP, DOOR LOCK CONTROL LINK | ||||
| 69759-20050 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 右側,ﾌﾞﾗｳﾝ |
1 | ||
| 69759-95701 |
BU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3 ｱﾘ(ｽﾗｲﾄﾞﾄﾞｱ),左側,ﾌﾞﾗｳﾝ |
1 | ||
| 69759-24020 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 左側,ﾌﾞﾙｰ |
1 | ||
| 69759-24010 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 右側,ｼﾛ |
1 | ||
| 69759-20040 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 左側,ｲｴﾛｰ |
1 | ||
| 69759S - SNAP, FRONT DOOR INSIDE HANDLE | ||||
| 69759-22050 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 右側 |
1 | ||
| 69759-22040 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 左側 |
1 | ||
| Common parts | ||||
| 90148-60049 | ||||
| 90148-80027 | ||||
| 90159-40202 | ||||
| 90162-50008 | ||||
| 90189-05003 | ||||
| 91651-40612 | ||||
ILLUST NO. 1 OF 2(0610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90148-60049 | ||||
| 90148-80027 | ||||
| 90159-40202 | ||||
| 90162-50008 | ||||
| 90189-05003 | ||||
| 91551-80612 | ||||
| 91651-40612 | ||||
ILLUST NO. 2 OF 2(0610- )DM6..IV3
ｱﾘ(ﾌﾛﾝﾄ ｽﾗｲﾄﾞ ﾄﾞｱ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-16790 | ||||
| 90119-06373 | ||||
| 90148-80027 | ||||
| 90159-60047 | ||||
| 90162-50008 | ||||
| 90179-06299 | ||||
| 90189-05003 | ||||
| 90189-06018 | ||||
| 90202-06002 | ||||
| 91651-40612 | ||||
| 91651-F0616 | ||||
| Linked diagrams | ||||
| 7455 | ||||
(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-60081 | ||||
| 90159-80001 | ||||
| 90179-06070 | ||||
| 90189-06018 | ||||
| 93330-16016 | ||||
| 93530-54010 | ||||
| 93590-16014 | ||||
(9905- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90148-60049 | ||||
| 90148-80027 | ||||
| 90159-40202 | ||||
| 90162-50008 | ||||
| 90189-05003 | ||||
| 91551-80612 | ||||
| 91651-40612 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
