XZU302A-TYMMS3 (1999)
Toyota Dyna/Toyoace
(9905- )DCB,SCB
ﾊｲﾙｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

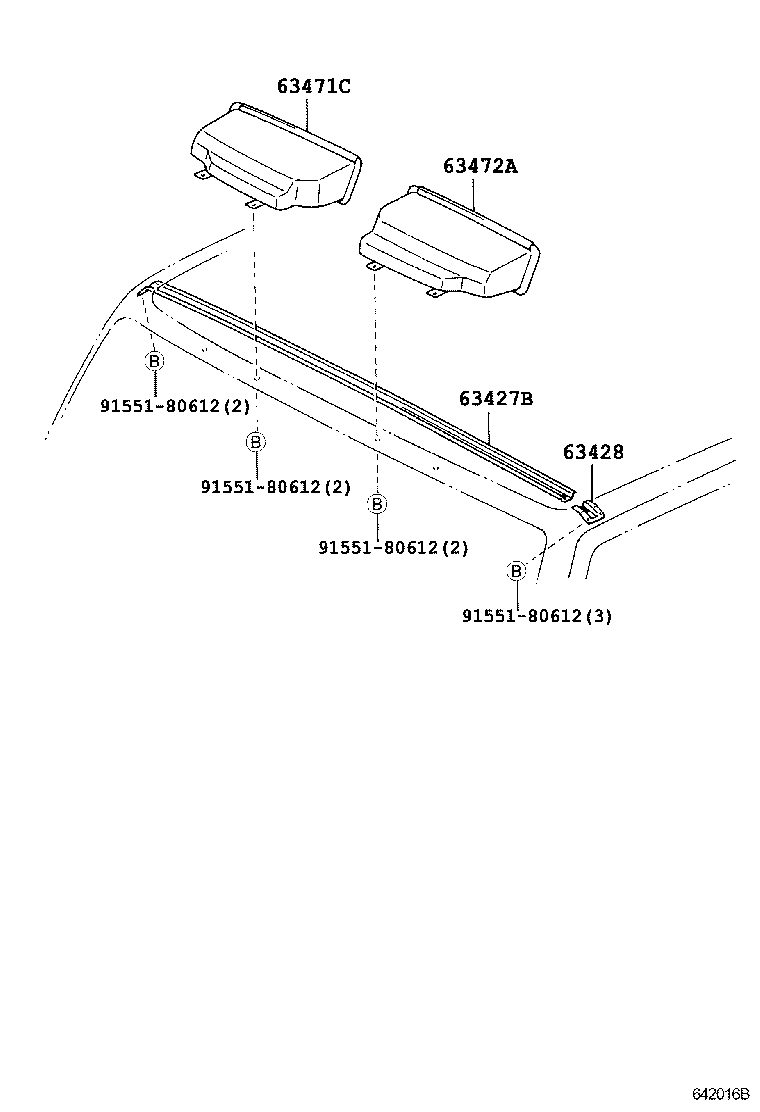

| 63427B - BRACKET, ROOM RACK FRAME | ||||
| 63401-37010 |
XZU302..T3;XZU301..IV7;XZU301..IV6..4NO;XZU301..295T..1NO;XZU322..T5..5F..IV3;XZU301..295T..IV3..4NO;XZU306..T4..4FC..DSL..IV3;XZU301..(T4,T5)..4FC..IV3..4NO;XZU301..SCB..(DM6,T3)..4FC..DSL;BU30#,XZU307..SCB..WT..IV3..4NO;XZU302..(T4,T5)..(295T,30T)..IV3..4NO;XZU331,341..SCB..(4FC,6F)..(DSL,DSLL);XZU302..(DM6,T4,T5)..20T..WT..DSL..IV3;XZU301,306,346..(DM6,T3,T4)..DSLL..IV3;BU346,XZU300,330,337,340,342,347,350,362,372,382..SCB..DSL..1NO |
1 | ||
| 63428 - BRACKET, ROOF INNER RACK, FRONT LH | ||||
| 63428-37010 |
XZU302..T3;XZU301..IV7;XZU301..IV6..4NO;XZU301..295T..1NO;XZU322..T5..5F..IV3;XZU301..295T..IV3..4NO;XZU306..T4..4FC..DSL..IV3;XZU301..(T4,T5)..4FC..IV3..4NO;XZU301..SCB..(DM6,T3)..4FC..DSL;BU30#,XZU307..SCB..WT..IV3..4NO;XZU302..(T4,T5)..(295T,30T)..IV3..4NO;XZU331,341..SCB..(4FC,6F)..(DSL,DSLL);XZU302..(DM6,T4,T5)..20T..WT..DSL..IV3;XZU301,306,346..(DM6,T3,T4)..DSLL..IV3;BU346,XZU300,330,337,340,342,347,350,362,372,382..SCB..DSL..1NO |
1 | ||
| 63471C - LEG, ROOF RACK, FRONT RH | ||||
| 63471-37010 |
XZU302..T3;XZU301..IV7;XZU301..IV6..4NO;XZU301..295T..1NO;XZU322..T5..5F..IV3;XZU301..295T..IV3..4NO;XZU306..T4..4FC..DSL..IV3;XZU301..(T4,T5)..4FC..IV3..4NO;XZU301..SCB..(DM6,T3)..4FC..DSL;BU30#,XZU307..SCB..WT..IV3..4NO;XZU302..(T4,T5)..(295T,30T)..IV3..4NO;XZU331,341..SCB..(4FC,6F)..(DSL,DSLL);XZU302..(DM6,T4,T5)..20T..WT..DSL..IV3;XZU301,306,346..(DM6,T3,T4)..DSLL..IV3;BU346,XZU300,330,337,340,342,347,350,362,372,382..SCB..DSL..1NO |
1 | ||
| 63472A - LEG, ROOF RACK, FRONT LH | ||||
| 63472-37010 |
XZU302..T3;XZU301..IV7;XZU301..IV6..4NO;XZU301..295T..1NO;XZU322..T5..5F..IV3;XZU301..295T..IV3..4NO;XZU306..T4..4FC..DSL..IV3;XZU301..(T4,T5)..4FC..IV3..4NO;XZU301..SCB..(DM6,T3)..4FC..DSL;BU30#,XZU307..SCB..WT..IV3..4NO;XZU302..(T4,T5)..(295T,30T)..IV3..4NO;XZU331,341..SCB..(4FC,6F)..(DSL,DSLL);XZU302..(DM6,T4,T5)..20T..WT..DSL..IV3;XZU301,306,346..(DM6,T3,T4)..DSLL..IV3;BU346,XZU300,330,337,340,342,347,350,362,372,382..SCB..DSL..1NO |
1 | ||
| Common parts | ||||
| 91626-40616 | ||||
(9905-0406) ; (0406- )VAN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63427B - BRACKET, ROOM RACK FRAME | ||||
| 63401-37010 |
XZU302..T3;XZU301..IV7;XZU301..IV6..4NO;XZU301..295T..1NO;XZU322..T5..5F..IV3;XZU301..295T..IV3..4NO;XZU306..T4..4FC..DSL..IV3;XZU301..(T4,T5)..4FC..IV3..4NO;XZU301..SCB..(DM6,T3)..4FC..DSL;BU30#,XZU307..SCB..WT..IV3..4NO;XZU302..(T4,T5)..(295T,30T)..IV3..4NO;XZU331,341..SCB..(4FC,6F)..(DSL,DSLL);XZU302..(DM6,T4,T5)..20T..WT..DSL..IV3;XZU301,306,346..(DM6,T3,T4)..DSLL..IV3;BU346,XZU300,330,337,340,342,347,350,362,372,382..SCB..DSL..1NO |
1 | ||
| 63427C - BRACKET, ROOM RACK, UPPER FRONT | ||||
| 63427-37020 |
XZU302..DM6,T4,T5;RZU300,XZU347..DCB..CBU;XZU301,362..(T4,T5)..CBU;XZU302,372,382..SCB..(T3,T4)..IV3..1NO;BU30#,XZU306,307,312,322,350..(DM5,T1,T2,T3,T4,T5)..(175T,20T,40T)..DSL;BU346,RZU300,340,XZU300,301,33#,34#,362..(DM6,DM7,T2,T3,T4,T5)..(CNG,DSL,EFI,LPG)..(IV3,IV6,IV7) |
1 | ||
| 63427-37020 |
XZU301..IV7;XZU362..T4..CBU;XZU306..4FC..DSL;XZU347..DCB..CBU;XZU301..IV6..4NO;XZU301..295T..IV3;XZU301..295T..CBU..4NO;XZU302..(DM6,T4,T5)..DSL;XZU301,306,346..SCB..DSLL;XZU301..4FC..30T..CBU..4NO;XZU341..(295T,30T)..(DSL,DSLL)..IV3;XZU362,372,382..SCB..(DM7,T3,T4)..IV3;XZU301,331..(DM6,T3,T4,T5)..4FC..DSL..(IV3,IV6);BU30#,XZU307,312,322,350..(DM5,T1,T2,T3,T4,T5)..(175T,20T,40T);BU346,XZU300,302,330,337,340,342,347..(T2,T3,T4)..DSL..IV3..1NO |
1 | ||
| 63427-37020 |
XZU302..20T;XZU311,321..4NO;XZU301,362..CBU..4NO;XZU302..(295T,30T)..IV3;RZU300,XZU347..DCB..CBU;XZU302..(295T,30T)..CBU..4NO;XZU311,321,372,382..SCB..IV3..1NO;BU30#,XZU306,307,312,322,35#..DCB,SCB;BU346,RZU300,340,XZU300,301,320,33#,34#,362..IV3,IV6,IV7 |
1 | ||
| 63471D - LEG, ROOF RACK, FRONT RH | ||||
| 63471-37020B0 |
XZU347..DCB..CBU;XZU362..CBU..4NO;XZU362,372,382..SCB..IV3;BU30#,XZU301,302,306,307,31#,321,322,35#..(DCB,SCB)..(175T,20T,40T);BU346,XZU300,301,302,311,320,321,33#,34#..(DM5,DM7,T2,T3,T4)..(IV3,IV7)..1NO MEDIUM CHARCOAL,TRIM15 |
1 | ||
| 63471-37020B1 |
XZU306..T4..DSL;RZU300..30T..LPG;RZU300..DCB..CBU;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU306,322..T5..5F..DSL;XZU302..(T3,T5)..30T..IV3;XZU302..(DM6,T4,T5)..20T..DSL;BU30#,XZU307,350..T1,T2,T3,T4,T5;XZU301,362..(T4,T5)..(CBU,IV6)..4NO;XZU301,302..T4..(295T,30T)..IV3..4NO;XZU302..(T4,T5)..(295T,30T)..CBU..4NO;RZU300,XZU341,342..(DSL,DSLL,EFI)..IV3;XZU301..(DM6,T3,T5)..DSL..(IV3,IV6,IV7);BU346,BZU300,340,RZU301,340,XZU300,33#,340,346,347,362,372,382..SCB..(DM6,DM7,T2,T3,T4)..IV3 MD.CHARCOAL,TRIM1# |
1 | ||
| Common parts | ||||
| 90179-06288 | ||||
| 91621-40610 | ||||
| 91621-40612 | ||||
| 93240-56016 | ||||
(0610- )SCB..DM6,T2,T3,T4..1NO ; (0610- )XZU30#,368,50#,568..SCB..T2,T4,T5..W
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91551-80612 | ||||
(9905- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91551-80612 | ||||
