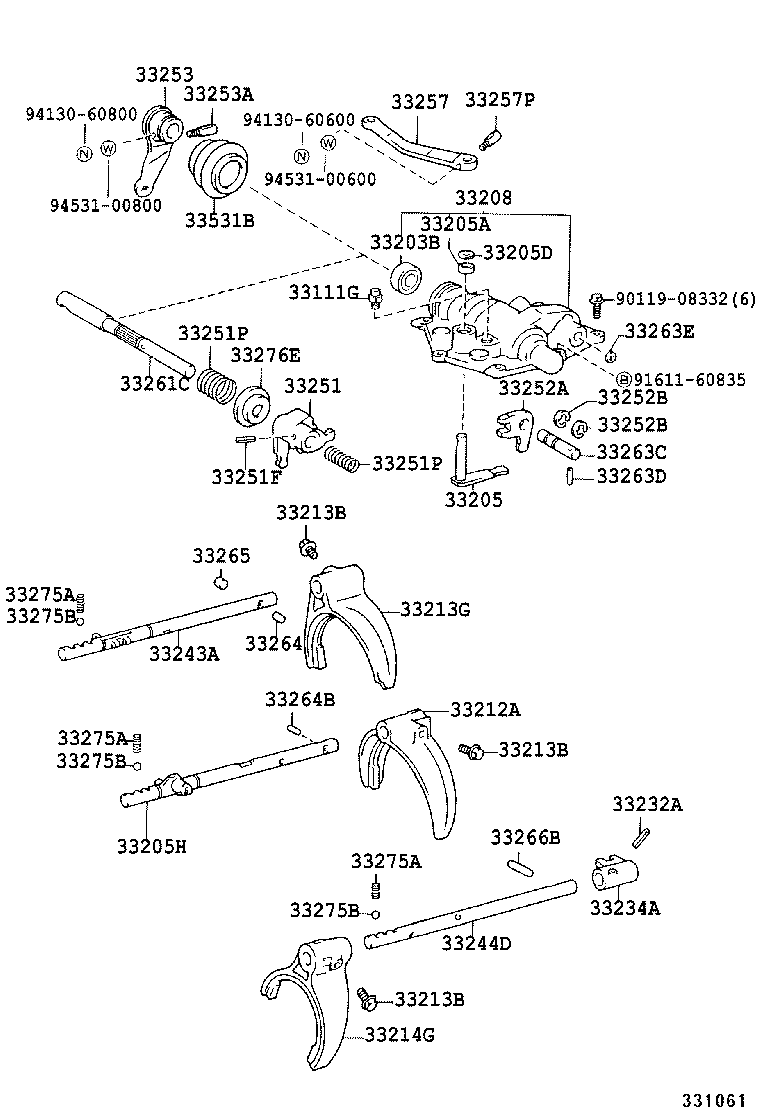

XZU302A-TYMMS3 (1999)
Toyota Dyna/Toyoace
(9905-0406)XZU302..5F..DSL ; (9905-0406)BU30#,346,RZU30#,340,XZU307,337,362,37#,382
M153,M155
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33111G - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| 90930-03090 |
XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| 90930-03090 |
XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| SU002-00274 |
XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO |
1 | ||
| SU002-00274 |
XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO |
1 | ||
| 33203B - SEAL, OIL(FOR SHIFT LEVER SHAFT) | ||||
| SU002-00263 |
XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO |
1 | ||
| SU002-00263 |
XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO |
1 | ||
| 90311-22009 |
XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| 90311-22009 |
XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| 33205 - SHAFT SUB-ASSY, SELECT LEVER | ||||
| 33262-37020 |
XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| 33262-37020 |
XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| 33205A - SEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT) | ||||
| SU002-00264 |
XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO |
1 | ||
| SU002-00264 |
XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO |
1 | ||
| 90311-13001 |
XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| 90311-13001 |
XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| 33205D - WASHER(FOR OUTER LEVER OIL SETTING) | ||||
| 90201-13029 |
XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) 外径=28 |
1 | ||
| 90201-13029 |
XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) 外径=28 |
1 | ||
| SU002-00257 |
XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO |
1 | ||
| SU002-00257 |
XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO |
1 | ||
| 33208 - HOUSING SUB-ASSY, SHIFT LEVER SHAFT | ||||
| SU002-00261 |
XZU302..5F..20T..1NO;XZU301,330,350..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO |
1 | ||
| SU002-00261 |
XZU302..5F..20T..1NO;XZU301,330,350..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO |
1 | ||
| 33212A - FORK, GEAR SHIFT, NO.1 | ||||
| 33212-60050 |
XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| 33212-60050 |
XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| SU002-00240 |
XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO |
1 | ||
| SU002-00240 |
XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO |
1 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-08211 |
XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
2 | ||
| 90105-08211 |
XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
2 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-08211 |
XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
2 | ||
| 90105-08211 |
XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
2 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-08211 |
XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
2 | ||
| 90105-08211 |
XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
2 | ||
| 33213G - FORK, GEAR SHIFT, NO.2 | ||||
| 33213-60060 |
XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| 33213-60060 |
XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| SU002-00242 |
XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO |
1 | ||
| SU002-00242 |
XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO |
1 | ||
| 33214G - FORK, GEAR SHIFT, NO.3 | ||||
| SU002-00245 |
XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO |
1 | ||
| SU002-00245 |
XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO |
1 | ||
| 33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) | ||||
| SU002-00127 |
XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO |
4 | ||
| SU002-00127 |
XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO |
4 | ||
| 33234A - HEAD, GEAR SHIFT, NO.3 | ||||
| SU002-00281 |
XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO |
1 | ||
| SU002-00281 |
XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO |
1 | ||
| 33243A - SHAFT, GEAR SHIFT FORK, NO.2 | ||||
| SU002-00280 |
XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO |
1 | ||
| SU002-00280 |
XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO |
1 | ||
| 33244-37040 |
XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| 33244-37040 |
XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| 33251 - LEVER, SHIFT & SELECT | ||||
| 33251-37040 |
XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| 33251-37040 |
XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| SU002-00249 |
XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO |
1 | ||
| SU002-00249 |
XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO |
1 | ||
| 33251F - PIN OR BOLT (FOR SHIFT & SELECT LEVER) | ||||
| 90254-05016 |
XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| 90254-05016 |
XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| 33251P - SPRING (FOR SHIFT & SELECT LEVER) | ||||
| SU002-00269 |
XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO NO.2 |
1 | ||
| SU002-00269 |
XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO NO.2 |
1 | ||
| SU002-00268 |
XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO NO.1 |
1 | ||
| SU002-00268 |
XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO NO.1 |
1 | ||
| 90501-12185 |
XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| 90501-12185 |
XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| 33251P - SPRING (FOR SHIFT & SELECT LEVER) | ||||
| SU002-00269 |
XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO NO.2 |
1 | ||
| SU002-00269 |
XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO NO.2 |
1 | ||
| SU002-00268 |
XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO NO.1 |
1 | ||
| SU002-00268 |
XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO NO.1 |
1 | ||
| 90501-12185 |
XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| 90501-12185 |
XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| 33252A - LEVER, SHIFT, INNER NO.2 | ||||
| 33252-37020 |
XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| 33252-37020 |
XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| SU002-00241 |
XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO |
1 | ||
| SU002-00241 |
XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO |
1 | ||
| 33253 - LEVER, SHIFT OUTER, NO.1 | ||||
| 33253-37080 |
XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| 33253-37080 |
XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| SU002-00246 |
XZU302..5F..20T..1NO;XZU301,330,350..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO |
1 | ||
| SU002-00246 |
XZU302..5F..20T..1NO;XZU301,330,350..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO |
1 | ||
| 33253A - PIN, LEVER LOCK (FOR SHIFT OUTER LEVER) | ||||
| 33282-36030 |
XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| 33282-36030 |
XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| 33257 - LEVER, SELECT OUTER | ||||
| 33257-37080 |
XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| 33257-37080 |
XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| SU002-00253 |
XZU302..5F..20T..1NO;XZU301,330,350..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO |
1 | ||
| SU002-00253 |
XZU302..5F..20T..1NO;XZU301,330,350..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO |
1 | ||
| 33257P - PIN, SELECT OUTER LEVER LOCK | ||||
| 33282-35010 |
XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| 33282-35010 |
XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| SU002-00271 |
XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO |
1 | ||
| SU002-00271 |
XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO |
1 | ||
| 33263C - SHAFT, SHIFT LEVER, NO.2 | ||||
| 33263-37010 |
XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| 33263-37010 |
XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| 33263D - PIN (FOR SHIFT LEVER SHAFT) | ||||
| 90250-04110 |
XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| 90250-04110 |
XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| 33263E - PLUG (FOR SHIFT LEVER SHAFT) | ||||
| 90331-14004 |
XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| 90331-14004 |
XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90250-10023 |
XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) 長さ=15.45 |
1 | ||
| 90250-10023 |
XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) 長さ=15.45 |
1 | ||
| 33264B - ROLLER, NO.1 (FOR SHIFT INTER LOCK ) | ||||
| 90361-10003 |
XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) 長さ=13.6,外径=9.5 |
1 | ||
| 90361-10003 |
XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) 長さ=13.6,外径=9.5 |
1 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 90250-10035 |
XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) 長さ=81.9,外径=9.53 |
1 | ||
| 90250-10035 |
XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) 長さ=81.9,外径=9.53 |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14155 |
XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) 長さ=29.3 |
3 | ||
| 90501-14155 |
XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) 長さ=29.3 |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14155 |
XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) 長さ=29.3 |
3 | ||
| 90501-14155 |
XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) 長さ=29.3 |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14155 |
XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) 長さ=29.3 |
3 | ||
| 90501-14155 |
XZU322,350..5F;XZU302..5F..20T..1NO;XZU321..DM7..5F..4NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) 長さ=29.3 |
3 | ||
| 33276E - SEAT, SELECT SPRING, NO.1 | ||||
| SU002-00250 |
XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO |
1 | ||
| SU002-00250 |
XZU32#,350..5F;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..5F..(20T,30T)..DSL..1NO |
1 | ||
| 33531B - BOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 33531-37020 |
XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| 33531-37020 |
XZU341..6F..DSL;XZU322,340,350..MTM;XZU321..DM7..5F..4NO;XZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..SCB..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL) |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 91611-60835 | ||||
| 94130-60600 | ||||
| 94130-60800 | ||||
| 94531-00600 | ||||
| 94531-00800 | ||||
(0610- )XZU30#,33#,34#,354,50#,538,548..03S,06S,DM3,DM6,T2,T3,T4,T5..5F
M550
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91611-B0825 | ||||
| 94130-60600 | ||||
| 94531-00600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
