XZU302-TQPMS3 (2000)
Toyota Dyna/Toyoace

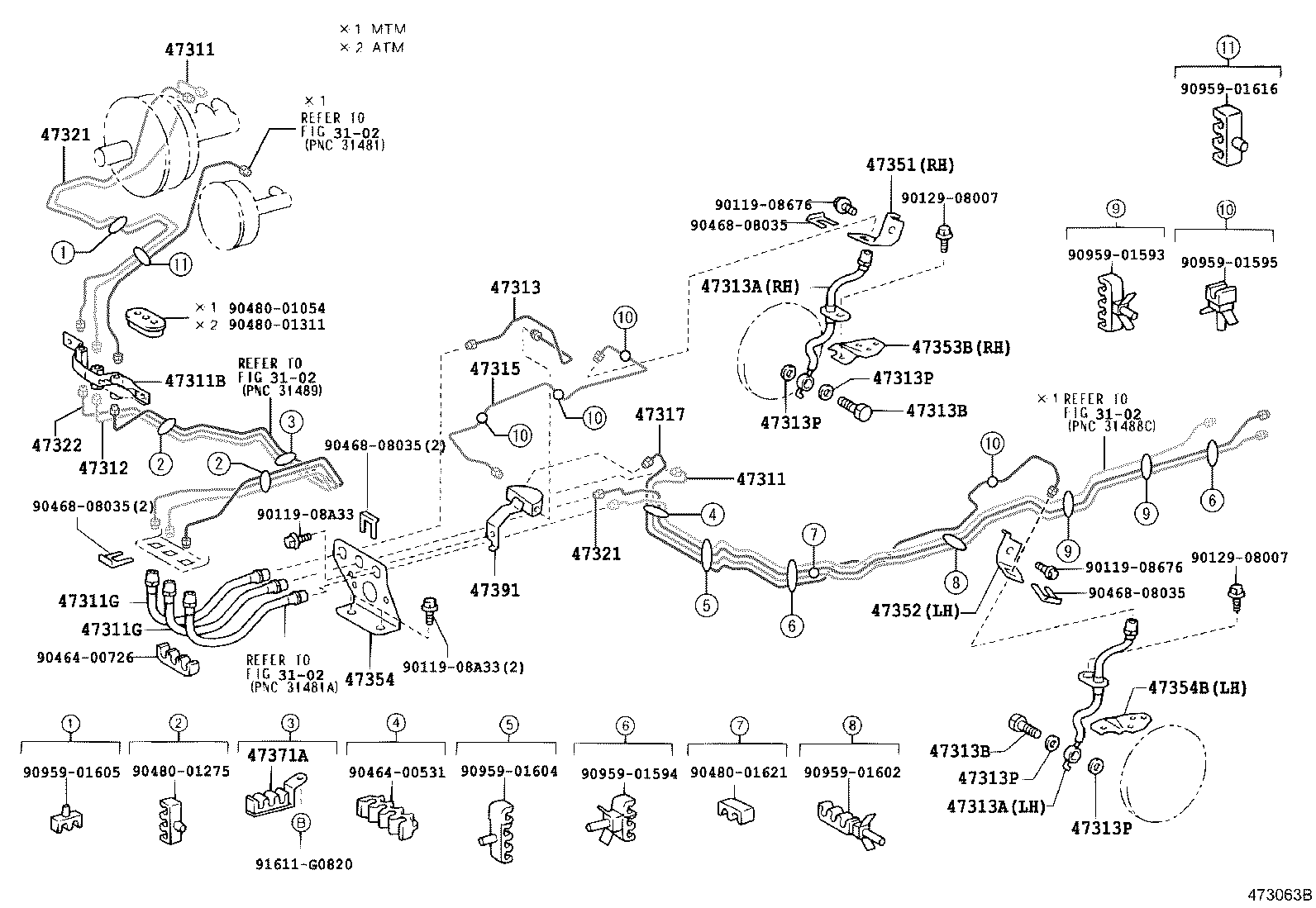

ILLUST NO. 1 OF 4(9905-0406)BU301,BZU300,340,RZU30#,XZU300,301,302,330,331,340,341,350
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-37161 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 47311-37160 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 47391-37010 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-37370 |
XZU307..SCB..T4..5F;XZU302..T4..20T..DSL ﾅｼ(ABS) |
1 | ||
| 47311-37180 |
XZU300,301,302,306,307,33#,340,341,342,346,347,350..(DCB,SCB)..(DSL,DSLL) |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02A79 |
XZU362..4NO;BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35# |
2 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02A79 |
XZU362..4NO;BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35# |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37060 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37080 |
BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47312-37080 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306,307..(T2,T3,T4,T5)..4FC..CBU;BU30#,RZU300,XZU300,301,306,307,350..(DCB,SCB)..5F..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 47312-37080 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306..4FC..20T..DSLL;BU30#,BZU300,RZU30#,XZU300,350..DCB,SCB;XZU301,306,307..(DCB,SCB)..5F..(CBU,IV3,IV6);XZU301,306,307..(T2,T3,T4,T5)..4FC..DSL..CBU |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A72 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 右側 |
1 | ||
| 90947-02B27 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 左側 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A72 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 右側 |
1 | ||
| 90947-02B27 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 左側 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A72 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 右側 |
1 | ||
| 90947-02B27 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 左側 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
4 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-37070 |
XZU301..20T..(IV6,IV7);BU301,RZU300,340,XZU300,301,302,330,331,340,341,342..(T1,T2,T3,T4,T5)..(175T,20T,295T,30T) |
1 | ||
| 47315-37071 |
XZU301..20T..(IV6,IV7);BU301,RZU300,340,XZU300,301,302,330,331,340,341,342..(T1,T2,T3,T4,T5)..(175T,20T,295T,30T) |
1 | ||
| 47315-37072 |
XZU301..20T..(IV6,IV7);BU301,RZU300,340,XZU300,301,302,330,331,340,341,342..(T1,T2,T3,T4,T5)..(175T,20T,295T,30T) |
1 | ||
| 47315-37072 |
XZU301..20T..(IV6,IV7);BU301,RZU300,340,XZU300,301,302,330,331,340,341,342..(T1,T2,T3,T4,T5)..(175T,20T,295T,30T)..(CNG,DSL,EFI,LPG) |
1 | ||
| 47315-37072 |
XZU301..20T..(IV6,IV7);BU301,BZU300,340,RZU30#,340,XZU300,301,302,330,331,340,341,342..(T1,T2,T3,T4,T5)..(175T,20T,295T,30T) |
1 | ||
| 47315-37370 |
XZU302..T4..20T..DSL;BU301,RZU30#..5F..20T..WT..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 47315-37073 |
XZU301..20T..(IV6,IV7);BU301,BZU300,340,RZU30#,340,XZU300,301,302,330,331,340,341,342..(T1,T2,T3,T4,T5)..(175T,20T,295T,30T) |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-37040 |
XZU300,301,302,340,341,342..SCB..(20T,295T,30T)..(DSL,DSLL) |
1 | ||
| 47317-37041 |
XZU300,301,302,340,341,342..SCB..(20T,295T,30T)..(DSL,DSLL) |
1 | ||
| 47317-37042 |
XZU300,301,302,340,341,342..SCB..(20T,295T,30T)..(DSL,DSLL) |
1 | ||
| 47317-37430 |
XZU302..T4..20T..DSL;BU301,RZU30#..5F..20T..WT..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37160 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 47321G - TUBE, REAR BRAKE, FRAME NO.1 | ||||
| 47321-37180 |
XZU300,301,302,306,307,33#,340,341,342,346,347,350..(DCB,SCB)..(DSL,DSLL) |
1 | ||
| 47321-37360 |
XZU307..SCB..T4..5F;XZU302..T4..20T..DSL ﾅｼ(ABS) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37200 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.1 |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37220 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306,307..(T2,T3,T4,T5)..4FC..CBU;BU30#,RZU300,XZU300,301,306,307,350..(DCB,SCB)..5F..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 47322-37220 |
BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47322-37220 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306..4FC..20T..DSLL;BU30#,BZU300,RZU30#,XZU300,350..DCB,SCB;XZU301,306,307..(DCB,SCB)..5F..(CBU,IV3,IV6);XZU301,306,307..(T2,T3,T4,T5)..4FC..DSL..CBU |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-37130 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-37130 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-37050 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-37050 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-37150 |
XZU312..DCB;XZU322..T5..5F;XZU321..DM7..4NO;XZU302..20T..DSL;XZU301..T4..4FC..4NO;XZU301..4FC..20T..4NO;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);RZU300,XZU341,342..DSL,DSLL,EFI;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BZU300,XZU322,351..DM2,DM5,DM6,DM7,DM8,T3,T4;BU301,BZU340,RZU301,340,XZU300,330,331,340,352..(DM2,DM5,T1,T3,T4,T5)..(175T,20T,30T)..(CNG,DSL,EFI,LPG) |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-37150 |
XZU312..DCB;XZU322..T5..5F;XZU321..DM7..4NO;XZU302..20T..DSL;XZU301..T4..4FC..4NO;XZU301..4FC..20T..4NO;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);RZU300,XZU341,342..DSL,DSLL,EFI;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BZU300,XZU322,351..DM2,DM5,DM6,DM7,DM8,T3,T4;BU301,BZU340,RZU301,340,XZU300,330,331,340,352..(DM2,DM5,T1,T3,T4,T5)..(175T,20T,30T)..(CNG,DSL,EFI,LPG) |
1 | ||
| 47354 - BRACKET, FRONT FLEXIBLE HOSE | ||||
| 47351-37240 |
BU306,346,XZU30#,33#,34# |
1 | ||
| 47354-37111 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,33#,340,341,342,346,347,350,362,37#,382 |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-37160 |
XZU312..DCB;XZU322..T5..5F;XZU321..DM7..4NO;XZU302..20T..DSL;XZU301..T4..4FC..4NO;XZU301..4FC..20T..4NO;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);RZU300,XZU341,342..DSL,DSLL,EFI;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BZU300,XZU322,351..DM2,DM5,DM6,DM7,DM8,T3,T4;BU301,BZU340,RZU301,340,XZU300,330,331,340,352..(DM2,DM5,T1,T3,T4,T5)..(175T,20T,30T)..(CNG,DSL,EFI,LPG) |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-37160 |
XZU312..DCB;XZU322..T5..5F;XZU321..DM7..4NO;XZU302..20T..DSL;XZU301..T4..4FC..4NO;XZU301..4FC..20T..4NO;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);RZU300,XZU341,342..DSL,DSLL,EFI;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BZU300,XZU322,351..DM2,DM5,DM6,DM7,DM8,T3,T4;BU301,BZU340,RZU301,340,XZU300,330,331,340,352..(DM2,DM5,T1,T3,T4,T5)..(175T,20T,30T)..(CNG,DSL,EFI,LPG) |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-37030 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-37050 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,33#,340,341,342,346,347,350 |
1 | ||
| Common parts | ||||
| 90119-08676 | ||||
| 90119-08A33 | ||||
| 90129-08007 | ||||
| 90464-00726 | ||||
| 90467-14006 | ||||
| 90468-08035 | ||||
| 90480-01054 | ||||
| 90480-01275 | ||||
| 90480-01311 | ||||
| 90959-01593 | ||||
| 90959-01594 | ||||
| 90959-01595 | ||||
| 90959-01602 | ||||
| 90959-01605 | ||||
| 90959-01616 | ||||
| 91611-G0820 | ||||
| 94130-00802 | ||||
| Linked diagrams | ||||
| 3102 | ||||
ILLUST NO. 4 OF 4(9905-0406)XZU302,307,312,321,322,331,337,347,351..CNG,DSL,DSLL..CBU,IV3
ｱﾘ(LSPV)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04477 - BUSH & BOOT KIT, LOAD SENSING SPRING | ||||
| 04477-37010 |
XZU302..5F..ST;XZU302..4FC..4NO;BU301,RZU300..(175T,20T)..(DSL,LPG);BU306,XZU302,307..SCB..T4..5F..20T..DSL |
1 | ||
| 04477-37010 |
XZU302..5F..ST;XZU302..4FC..4NO;BU301,RZU300..(175T,20T)..(DSL,LPG);BU306,XZU302,307..SCB..T4..5F..20T..DSL |
1 | ||
| 04477-37010 |
XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7) |
1 | ||
| 04477-37010 |
XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7) |
1 | ||
| 04477-37010 |
XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7) |
1 | ||
| 04477-37010 |
XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7) |
1 | ||
| 04477-37010 |
XZU302..5F..ST;XZU302..4FC..4NO;BU301,RZU300..(175T,20T)..(DSL,LPG);BU306,XZU302,307..SCB..T4..5F..20T..DSL |
1 | ||
| 04477-37010 |
XZU302..5F..ST;XZU302..4FC..4NO;BU301,RZU300..(175T,20T)..(DSL,LPG);BU306,XZU302,307..SCB..T4..5F..20T..DSL |
1 | ||
| 04477-37010 |
XZU302..5F..ST;XZU302..4FC..4NO;BU301,RZU301..5F;XZU307..03S..4FC;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T |
1 | ||
| 04477-37010 |
XZU302..5F..ST;XZU302..4FC..4NO;BU301,RZU301..5F;XZU307..03S..4FC;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T |
1 | ||
| 04477-37010 |
XZU302..5F..ST;XZU302..4FC..4NO;BU301,RZU301..5F;XZU307..03S..4FC;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T |
1 | ||
| 04477-37010 |
XZU302..5F..ST;XZU302..4FC..4NO;BU301,RZU301..5F;XZU307..03S..4FC;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T |
1 | ||
| 47910 - VALVE ASSY, LOAD SENSING PROPORTIONING | ||||
| 47910-37090 |
XZU302..5F..ST;XZU302..4FC..4NO;BU306,XZU302,307..SCB..T4..5F..20T..DSL;BU301,RZU300,XZU351,352..(DM5,T1,T4,T5)..5F..(175T,20T)..(DSL,DSLL,LPG) |
1 | ||
| 47910-37090 |
XZU302..5F..ST;XZU302..4FC..4NO;BU306,XZU302,307..SCB..T4..5F..20T..DSL;BU301,RZU300,XZU351,352..(DM5,T1,T4,T5)..5F..(175T,20T)..(DSL,DSLL,LPG) |
1 | ||
| 47910-37090 |
XZU302..5F..ST;XZU302..4FC..4NO;BU306,XZU302,307..SCB..T4..5F..20T..DSL;BU301,RZU300,XZU351,352..(DM5,T1,T4,T5)..5F..(175T,20T)..(DSL,DSLL,LPG) |
1 | ||
| 47910-37090 |
XZU302..5F..ST;XZU302..4FC..4NO;BU306,XZU302,307..SCB..T4..5F..20T..DSL;BU301,RZU300,XZU351,352..(DM5,T1,T4,T5)..5F..(175T,20T)..(DSL,DSLL,LPG) |
1 | ||
| 47910-37090 |
XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T |
1 | ||
| 47910-37090 |
XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T |
1 | ||
| 47910-37090 |
XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T |
1 | ||
| 47910-37090 |
XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T |
1 | ||
| 47910-37090 |
XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47910-37090 |
XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47910-37090 |
XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47910-37090 |
XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47920 - SPRING ASSY, LOAD SENSING | ||||
| 47920-37070 |
XZU302..T4..20T..DSL;BU30#,RZU300,XZU307..SCB..T4..5F..20T..(DSL,LPG) |
1 | ||
| 47920-37070 |
XZU302..T4..20T..DSL;BU30#,RZU300,XZU307..SCB..T4..5F..20T..(DSL,LPG) |
1 | ||
| 47920-37070 |
XZU302..T4..20T..DSL;BU30#,RZU300,XZU307..SCB..T4..5F..20T..(DSL,LPG) |
1 | ||
| 47920-37070 |
XZU302..T4..20T..DSL;BU30#,RZU300,XZU307..SCB..T4..5F..20T..(DSL,LPG) |
1 | ||
| 47920-37070 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(03S,06S,T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47920-37070 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(03S,06S,T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47920-37070 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(03S,06S,T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47920-37070 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(03S,06S,T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47920-37070 |
XZU302..T4..20T;XZU307..03S..4FC;BU30#,RZU301,XZU307..(SCB,VAN)..(03S,06S,T4)..5F |
1 | ||
| 47920-37070 |
XZU302..T4..20T;XZU307..03S..4FC;BU30#,RZU301,XZU307..(SCB,VAN)..(03S,06S,T4)..5F |
1 | ||
| 47920-37070 |
XZU302..T4..20T;XZU307..03S..4FC;BU30#,RZU301,XZU307..(SCB,VAN)..(03S,06S,T4)..5F |
1 | ||
| 47920-37070 |
XZU302..T4..20T;XZU307..03S..4FC;BU30#,RZU301,XZU307..(SCB,VAN)..(03S,06S,T4)..5F |
1 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
XZU302..5F..ST;XZU302..4FC..4NO;BU306,XZU302,307..SCB..T4..5F..20T..DSL;BU301,RZU300,XZU351,352..(DM5,T1,T4,T5)..5F..(175T,20T)..(DSL,DSLL,LPG) |
2 | ||
| 90387-08099 |
XZU302..5F..ST;XZU302..4FC..4NO;BU306,XZU302,307..SCB..T4..5F..20T..DSL;BU301,RZU300,XZU351,352..(DM5,T1,T4,T5)..5F..(175T,20T)..(DSL,DSLL,LPG) |
2 | ||
| 90387-08099 |
XZU302..5F..ST;XZU302..4FC..4NO;BU306,XZU302,307..SCB..T4..5F..20T..DSL;BU301,RZU300,XZU351,352..(DM5,T1,T4,T5)..5F..(175T,20T)..(DSL,DSLL,LPG) |
2 | ||
| 90387-08099 |
XZU302..5F..ST;XZU302..4FC..4NO;BU306,XZU302,307..SCB..T4..5F..20T..DSL;BU301,RZU300,XZU351,352..(DM5,T1,T4,T5)..5F..(175T,20T)..(DSL,DSLL,LPG) |
2 | ||
| 90387-08099 |
XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7) |
2 | ||
| 90387-08099 |
XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7) |
2 | ||
| 90387-08099 |
XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7) |
2 | ||
| 90387-08099 |
XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7) |
2 | ||
| 90387-08099 |
XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T |
2 | ||
| 90387-08099 |
XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T |
2 | ||
| 90387-08099 |
XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T |
2 | ||
| 90387-08099 |
XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T |
2 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
XZU302..5F..ST;XZU302..4FC..4NO;BU306,XZU302,307..SCB..T4..5F..20T..DSL;BU301,RZU300,XZU351,352..(DM5,T1,T4,T5)..5F..(175T,20T)..(DSL,DSLL,LPG) |
2 | ||
| 90387-08099 |
XZU302..5F..ST;XZU302..4FC..4NO;BU306,XZU302,307..SCB..T4..5F..20T..DSL;BU301,RZU300,XZU351,352..(DM5,T1,T4,T5)..5F..(175T,20T)..(DSL,DSLL,LPG) |
2 | ||
| 90387-08099 |
XZU302..5F..ST;XZU302..4FC..4NO;BU306,XZU302,307..SCB..T4..5F..20T..DSL;BU301,RZU300,XZU351,352..(DM5,T1,T4,T5)..5F..(175T,20T)..(DSL,DSLL,LPG) |
2 | ||
| 90387-08099 |
XZU302..5F..ST;XZU302..4FC..4NO;BU306,XZU302,307..SCB..T4..5F..20T..DSL;BU301,RZU300,XZU351,352..(DM5,T1,T4,T5)..5F..(175T,20T)..(DSL,DSLL,LPG) |
2 | ||
| 90387-08099 |
XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7) |
2 | ||
| 90387-08099 |
XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7) |
2 | ||
| 90387-08099 |
XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7) |
2 | ||
| 90387-08099 |
XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7) |
2 | ||
| 90387-08099 |
XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T |
2 | ||
| 90387-08099 |
XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T |
2 | ||
| 90387-08099 |
XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T |
2 | ||
| 90387-08099 |
XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T |
2 | ||
| 47920B - CLIP(FOR LOAD SENSING VALVE BOOT) | ||||
| 90467-31110 |
XZU302..5F..ST;XZU302..4FC..4NO;BU306,XZU302,307..SCB..T4..5F..20T..DSL;BU301,RZU300,XZU351,352..(DM5,T1,T4,T5)..5F..(175T,20T)..(DSL,DSLL,LPG) |
1 | ||
| 90467-31110 |
XZU302..5F..ST;XZU302..4FC..4NO;BU306,XZU302,307..SCB..T4..5F..20T..DSL;BU301,RZU300,XZU351,352..(DM5,T1,T4,T5)..5F..(175T,20T)..(DSL,DSLL,LPG) |
1 | ||
| 90467-31110 |
XZU302..5F..ST;XZU302..4FC..4NO;BU306,XZU302,307..SCB..T4..5F..20T..DSL;BU301,RZU300,XZU351,352..(DM5,T1,T4,T5)..5F..(175T,20T)..(DSL,DSLL,LPG) |
1 | ||
| 90467-31110 |
XZU302..5F..ST;XZU302..4FC..4NO;BU306,XZU302,307..SCB..T4..5F..20T..DSL;BU301,RZU300,XZU351,352..(DM5,T1,T4,T5)..5F..(175T,20T)..(DSL,DSLL,LPG) |
1 | ||
| 90467-31110 |
XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7) |
1 | ||
| 90467-31110 |
XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7) |
1 | ||
| 90467-31110 |
XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7) |
1 | ||
| 90467-31110 |
XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7) |
1 | ||
| 90467-31110 |
XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T |
1 | ||
| 90467-31110 |
XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T |
1 | ||
| 90467-31110 |
XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T |
1 | ||
| 90467-31110 |
XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T |
1 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7) |
2 | ||
| 90202-10103 |
XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7) |
2 | ||
| 90202-10103 |
XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7) |
2 | ||
| 90202-10103 |
XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7) |
2 | ||
| 90202-10103 |
XZU302..5F..ST;XZU302..4FC..4NO;BU306,XZU302,307..SCB..T4..5F..20T..DSL;BU301,RZU300,XZU351,352..(DM5,T1,T4,T5)..5F..(175T,20T)..(DSL,DSLL,LPG) |
2 | ||
| 90202-10103 |
XZU302..5F..ST;XZU302..4FC..4NO;BU306,XZU302,307..SCB..T4..5F..20T..DSL;BU301,RZU300,XZU351,352..(DM5,T1,T4,T5)..5F..(175T,20T)..(DSL,DSLL,LPG) |
2 | ||
| 90202-10103 |
XZU302..5F..ST;XZU302..4FC..4NO;BU306,XZU302,307..SCB..T4..5F..20T..DSL;BU301,RZU300,XZU351,352..(DM5,T1,T4,T5)..5F..(175T,20T)..(DSL,DSLL,LPG) |
2 | ||
| 90202-10103 |
XZU302..5F..ST;XZU302..4FC..4NO;BU306,XZU302,307..SCB..T4..5F..20T..DSL;BU301,RZU300,XZU351,352..(DM5,T1,T4,T5)..5F..(175T,20T)..(DSL,DSLL,LPG) |
2 | ||
| 90202-10103 |
XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T |
2 | ||
| 90202-10103 |
XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T |
2 | ||
| 90202-10103 |
XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T |
2 | ||
| 90202-10103 |
XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T |
2 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7) |
2 | ||
| 90202-10103 |
XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7) |
2 | ||
| 90202-10103 |
XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7) |
2 | ||
| 90202-10103 |
XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7) |
2 | ||
| 90202-10103 |
XZU302..5F..ST;XZU302..4FC..4NO;BU306,XZU302,307..SCB..T4..5F..20T..DSL;BU301,RZU300,XZU351,352..(DM5,T1,T4,T5)..5F..(175T,20T)..(DSL,DSLL,LPG) |
2 | ||
| 90202-10103 |
XZU302..5F..ST;XZU302..4FC..4NO;BU306,XZU302,307..SCB..T4..5F..20T..DSL;BU301,RZU300,XZU351,352..(DM5,T1,T4,T5)..5F..(175T,20T)..(DSL,DSLL,LPG) |
2 | ||
| 90202-10103 |
XZU302..5F..ST;XZU302..4FC..4NO;BU306,XZU302,307..SCB..T4..5F..20T..DSL;BU301,RZU300,XZU351,352..(DM5,T1,T4,T5)..5F..(175T,20T)..(DSL,DSLL,LPG) |
2 | ||
| 90202-10103 |
XZU302..5F..ST;XZU302..4FC..4NO;BU306,XZU302,307..SCB..T4..5F..20T..DSL;BU301,RZU300,XZU351,352..(DM5,T1,T4,T5)..5F..(175T,20T)..(DSL,DSLL,LPG) |
2 | ||
| 90202-10103 |
XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T |
2 | ||
| 90202-10103 |
XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T |
2 | ||
| 90202-10103 |
XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T |
2 | ||
| 90202-10103 |
XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T |
2 | ||
| 47924 - BUSH, LOAD SENSING VALVE | ||||
| 47924-35010 |
XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7) |
2 | ||
| 47924-35010 |
XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7) |
2 | ||
| 47924-35010 |
XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7) |
2 | ||
| 47924-35010 |
XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7) |
2 | ||
| 47924-35010 |
XZU302..5F..ST;XZU302..4FC..4NO;BU306,XZU302,307..SCB..T4..5F..20T..DSL;BU301,RZU300,XZU351,352..(DM5,T1,T4,T5)..5F..(175T,20T)..(DSL,DSLL,LPG) |
2 | ||
| 47924-35010 |
XZU302..5F..ST;XZU302..4FC..4NO;BU306,XZU302,307..SCB..T4..5F..20T..DSL;BU301,RZU300,XZU351,352..(DM5,T1,T4,T5)..5F..(175T,20T)..(DSL,DSLL,LPG) |
2 | ||
| 47924-35010 |
XZU302..5F..ST;XZU302..4FC..4NO;BU306,XZU302,307..SCB..T4..5F..20T..DSL;BU301,RZU300,XZU351,352..(DM5,T1,T4,T5)..5F..(175T,20T)..(DSL,DSLL,LPG) |
2 | ||
| 47924-35010 |
XZU302..5F..ST;XZU302..4FC..4NO;BU306,XZU302,307..SCB..T4..5F..20T..DSL;BU301,RZU300,XZU351,352..(DM5,T1,T4,T5)..5F..(175T,20T)..(DSL,DSLL,LPG) |
2 | ||
| 47924-35010 |
XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T |
2 | ||
| 47924-35010 |
XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T |
2 | ||
| 47924-35010 |
XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T |
2 | ||
| 47924-35010 |
XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T |
2 | ||
| 47924 - BUSH, LOAD SENSING VALVE | ||||
| 47924-35010 |
XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7) |
2 | ||
| 47924-35010 |
XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7) |
2 | ||
| 47924-35010 |
XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7) |
2 | ||
| 47924-35010 |
XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7) |
2 | ||
| 47924-35010 |
XZU302..5F..ST;XZU302..4FC..4NO;BU306,XZU302,307..SCB..T4..5F..20T..DSL;BU301,RZU300,XZU351,352..(DM5,T1,T4,T5)..5F..(175T,20T)..(DSL,DSLL,LPG) |
2 | ||
| 47924-35010 |
XZU302..5F..ST;XZU302..4FC..4NO;BU306,XZU302,307..SCB..T4..5F..20T..DSL;BU301,RZU300,XZU351,352..(DM5,T1,T4,T5)..5F..(175T,20T)..(DSL,DSLL,LPG) |
2 | ||
| 47924-35010 |
XZU302..5F..ST;XZU302..4FC..4NO;BU306,XZU302,307..SCB..T4..5F..20T..DSL;BU301,RZU300,XZU351,352..(DM5,T1,T4,T5)..5F..(175T,20T)..(DSL,DSLL,LPG) |
2 | ||
| 47924-35010 |
XZU302..5F..ST;XZU302..4FC..4NO;BU306,XZU302,307..SCB..T4..5F..20T..DSL;BU301,RZU300,XZU351,352..(DM5,T1,T4,T5)..5F..(175T,20T)..(DSL,DSLL,LPG) |
2 | ||
| 47924-35010 |
XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T |
2 | ||
| 47924-35010 |
XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T |
2 | ||
| 47924-35010 |
XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T |
2 | ||
| 47924-35010 |
XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T |
2 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-37020 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(03S,06S,T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47931-37020 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(03S,06S,T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47931-37020 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(03S,06S,T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47931-37020 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(03S,06S,T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47931-37020 |
XZU302..T4..20T;BU30#,RZU301,XZU307..SCB..T4..5F |
1 | ||
| 47931-37020 |
XZU302..T4..20T;BU30#,RZU301,XZU307..SCB..T4..5F |
1 | ||
| 47931-37020 |
XZU302..T4..20T;BU30#,RZU301,XZU307..SCB..T4..5F |
1 | ||
| 47931-37020 |
XZU302..T4..20T;BU30#,RZU301,XZU307..SCB..T4..5F |
1 | ||
| 47933 - BRACKET, LOAD SENSING SHACKLE, NO.1 | ||||
| 47933-37060 |
XZU302..5F..ST;XZU302..4FC..4NO;BU301,RZU301..5F;XZU307..03S..4FC;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T |
1 | ||
| 47933-37060 |
XZU302..5F..ST;XZU302..4FC..4NO;BU301,RZU301..5F;XZU307..03S..4FC;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T |
1 | ||
| 47933-37060 |
XZU302..5F..ST;XZU302..4FC..4NO;BU301,RZU301..5F;XZU307..03S..4FC;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T |
1 | ||
| 47933-37060 |
XZU302..5F..ST;XZU302..4FC..4NO;BU301,RZU301..5F;XZU307..03S..4FC;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T |
1 | ||
| 47933-37060 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(03S,06S,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47933-37060 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(03S,06S,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47933-37060 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(03S,06S,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47933-37060 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(03S,06S,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47933-37060 |
XZU302..5F..ST;XZU302..4FC..4NO;BU301,RZU300..(175T,20T)..(DSL,LPG);BU306,XZU302,307..SCB..T4..5F..20T..DSL |
1 | ||
| 47933-37060 |
XZU302..5F..ST;XZU302..4FC..4NO;BU301,RZU300..(175T,20T)..(DSL,LPG);BU306,XZU302,307..SCB..T4..5F..20T..DSL |
1 | ||
| 47933-37060 |
XZU302..5F..ST;XZU302..4FC..4NO;BU301,RZU300..(175T,20T)..(DSL,LPG);BU306,XZU302,307..SCB..T4..5F..20T..DSL |
1 | ||
| 47933-37060 |
XZU302..5F..ST;XZU302..4FC..4NO;BU301,RZU300..(175T,20T)..(DSL,LPG);BU306,XZU302,307..SCB..T4..5F..20T..DSL |
1 | ||
| 47935 - SHACKLE, LOAD SENSING SPRING, NO.1 | ||||
| 47935-35030 |
XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T |
1 | ||
| 47935-35030 |
XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T |
1 | ||
| 47935-35030 |
XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T |
1 | ||
| 47935-35030 |
XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T |
1 | ||
| 47935-35030 |
XZU302..5F..ST;XZU302..4FC..4NO;BU306,XZU302,307..SCB..T4..5F..20T..DSL;BU301,RZU300,XZU351,352..(DM5,T1,T4,T5)..5F..(175T,20T)..(DSL,DSLL,LPG) |
1 | ||
| 47935-35030 |
XZU302..5F..ST;XZU302..4FC..4NO;BU306,XZU302,307..SCB..T4..5F..20T..DSL;BU301,RZU300,XZU351,352..(DM5,T1,T4,T5)..5F..(175T,20T)..(DSL,DSLL,LPG) |
1 | ||
| 47935-35030 |
XZU302..5F..ST;XZU302..4FC..4NO;BU306,XZU302,307..SCB..T4..5F..20T..DSL;BU301,RZU300,XZU351,352..(DM5,T1,T4,T5)..5F..(175T,20T)..(DSL,DSLL,LPG) |
1 | ||
| 47935-35030 |
XZU302..5F..ST;XZU302..4FC..4NO;BU306,XZU302,307..SCB..T4..5F..20T..DSL;BU301,RZU300,XZU351,352..(DM5,T1,T4,T5)..5F..(175T,20T)..(DSL,DSLL,LPG) |
1 | ||
| 47935-35030 |
XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47935-35030 |
XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47935-35030 |
XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47935-35030 |
XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90387-08099 |
XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7) |
1 | ||
| 90387-08099 |
XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7) |
1 | ||
| 90387-08099 |
XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7) |
1 | ||
| 90387-08099 |
XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7) |
1 | ||
| 90387-08099 |
XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T |
1 | ||
| 90387-08099 |
XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T |
1 | ||
| 90387-08099 |
XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T |
1 | ||
| 90387-08099 |
XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T |
1 | ||
| 90387-08099 |
XZU302..5F..ST;XZU302..4FC..4NO;BU306,XZU302,307..SCB..T4..5F..20T..DSL;BU301,RZU300,XZU351,352..(DM5,T1,T4,T5)..5F..(175T,20T)..(DSL,DSLL,LPG) |
1 | ||
| 90387-08099 |
XZU302..5F..ST;XZU302..4FC..4NO;BU306,XZU302,307..SCB..T4..5F..20T..DSL;BU301,RZU300,XZU351,352..(DM5,T1,T4,T5)..5F..(175T,20T)..(DSL,DSLL,LPG) |
1 | ||
| 90387-08099 |
XZU302..5F..ST;XZU302..4FC..4NO;BU306,XZU302,307..SCB..T4..5F..20T..DSL;BU301,RZU300,XZU351,352..(DM5,T1,T4,T5)..5F..(175T,20T)..(DSL,DSLL,LPG) |
1 | ||
| 90387-08099 |
XZU302..5F..ST;XZU302..4FC..4NO;BU306,XZU302,307..SCB..T4..5F..20T..DSL;BU301,RZU300,XZU351,352..(DM5,T1,T4,T5)..5F..(175T,20T)..(DSL,DSLL,LPG) |
1 | ||
| 47936 - SHACKLE, LOAD SENSING SPRING, NO.2 | ||||
| 47936-26020 |
XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47936-26020 |
XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47936-26020 |
XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47936-26020 |
XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47936-26020 |
XZU302..5F..ST;XZU302..4FC..4NO;BU306,XZU302,307..SCB..T4..5F..20T..DSL;BU301,RZU300,XZU351,352..(DM5,T1,T4,T5)..5F..(175T,20T)..(DSL,DSLL,LPG) |
1 | ||
| 47936-26020 |
XZU302..5F..ST;XZU302..4FC..4NO;BU306,XZU302,307..SCB..T4..5F..20T..DSL;BU301,RZU300,XZU351,352..(DM5,T1,T4,T5)..5F..(175T,20T)..(DSL,DSLL,LPG) |
1 | ||
| 47936-26020 |
XZU302..5F..ST;XZU302..4FC..4NO;BU306,XZU302,307..SCB..T4..5F..20T..DSL;BU301,RZU300,XZU351,352..(DM5,T1,T4,T5)..5F..(175T,20T)..(DSL,DSLL,LPG) |
1 | ||
| 47936-26020 |
XZU302..5F..ST;XZU302..4FC..4NO;BU306,XZU302,307..SCB..T4..5F..20T..DSL;BU301,RZU300,XZU351,352..(DM5,T1,T4,T5)..5F..(175T,20T)..(DSL,DSLL,LPG) |
1 | ||
| 47936-26020 |
XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T |
1 | ||
| 47936-26020 |
XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T |
1 | ||
| 47936-26020 |
XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T |
1 | ||
| 47936-26020 |
XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T |
1 | ||
| 47937 - PLATE, LOAD SENSING VALVE SET | ||||
| 47937-60010 |
XZU302..5F..ST;XZU302..4FC..4NO;BU306,XZU302,307..SCB..T4..5F..20T..DSL;BU301,RZU300,XZU351,352..(DM5,T1,T4,T5)..5F..(175T,20T)..(DSL,DSLL,LPG) |
1 | ||
| 47937-60010 |
XZU302..5F..ST;XZU302..4FC..4NO;BU306,XZU302,307..SCB..T4..5F..20T..DSL;BU301,RZU300,XZU351,352..(DM5,T1,T4,T5)..5F..(175T,20T)..(DSL,DSLL,LPG) |
1 | ||
| 47937-60010 |
XZU302..5F..ST;XZU302..4FC..4NO;BU306,XZU302,307..SCB..T4..5F..20T..DSL;BU301,RZU300,XZU351,352..(DM5,T1,T4,T5)..5F..(175T,20T)..(DSL,DSLL,LPG) |
1 | ||
| 47937-60010 |
XZU302..5F..ST;XZU302..4FC..4NO;BU306,XZU302,307..SCB..T4..5F..20T..DSL;BU301,RZU300,XZU351,352..(DM5,T1,T4,T5)..5F..(175T,20T)..(DSL,DSLL,LPG) |
1 | ||
| 47937-60010 |
XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47937-60010 |
XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47937-60010 |
XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47937-60010 |
XZU301..20T..IV7;BU30#,346,RZU300,340..03S,06S,T1,T2,T3,T4,T5;XZU30#,31#,32#,33#,34#,351,352,362,372,382..(03S,DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47937-60010 |
XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T |
1 | ||
| 47937-60010 |
XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T |
1 | ||
| 47937-60010 |
XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T |
1 | ||
| 47937-60010 |
XZU302..5F..ST;XZU302..4FC..4NO;XZU307..03S..4FC;BU301,RZU301,XZU351,352..(DM5,T1,T4,T5)..5F;BU306,XZU302,307..(SCB,VAN)..(03S,06S,T4)..5F..20T |
1 | ||
| Common parts | ||||
| 90119-08A33 | ||||
| 90170-08016 | ||||
| 90179-08204 | ||||
| 90201-08062 | ||||
| 90201-23360 | ||||
| 91131-50840 | ||||
| 91611-B0816 | ||||
| 94130-00802 | ||||
| 94612-10800 | ||||

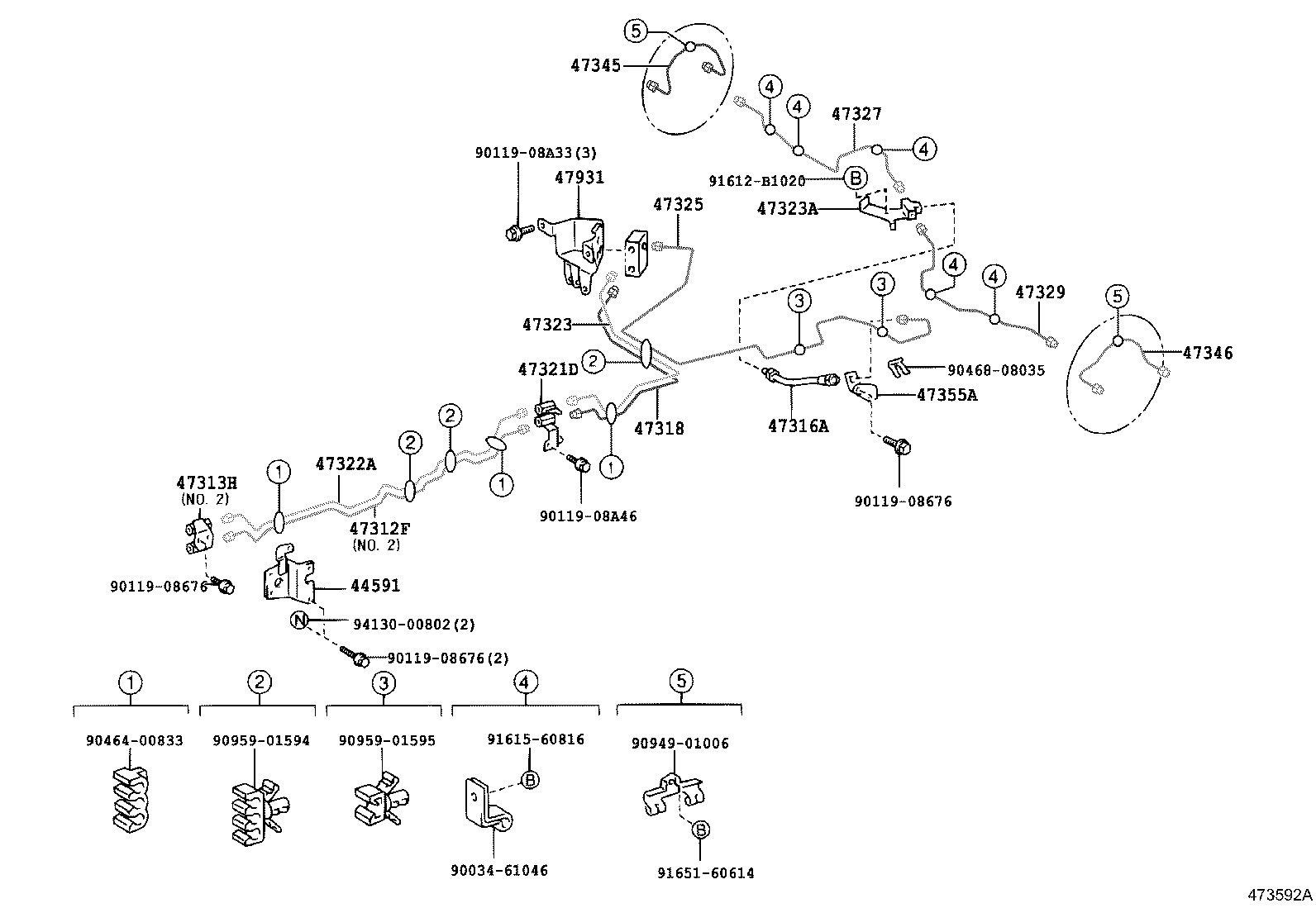

ILLUST NO. 2 OF 4(9905-0406)XZU301,302..WT..DSL..CBU,IV3..4NO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-37050 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,32#,33#,340,341,342,346,347,350..DCB,SCB |
1 | ||
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37080 |
BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47312-37080 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306,307..(T2,T3,T4,T5)..4FC..CBU;BU30#,RZU300,XZU300,301,306,307,350..(DCB,SCB)..5F..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 47312-37080 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306..4FC..20T..DSLL;BU30#,BZU300,RZU30#,XZU300,350..DCB,SCB;XZU301,306,307..(DCB,SCB)..5F..(CBU,IV3,IV6);XZU301,306,307..(T2,T3,T4,T5)..4FC..DSL..CBU |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-37140 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47313-37240 |
XZU302..T4..20T..DSL;BU30#,RZU300,XZU307,351,352..SCB..(DM5,T4)..5F..20T..(DSL,DSLL,LPG) ﾅｼ(ABS) |
1 | ||
| 47313H - WAY, NO.3(FOR FRONT BRAKE TUBE) | ||||
| 90904-12076 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 90904-12076 |
BU30#,346,RZU300,340,XZU30#,31#,33#,34#,35#,362,37#,382 |
1 | ||
| 90904-12076 |
BU30#;XZU301..4FC..IV6;BU346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..CBU,IV3,IV4 |
1 | ||
| 90904-12076 |
XZU341..20T,30T;XZU341..6F..295T;BU30#,346,RZU300,340,XZU30#,31#,32#,33#,340,342,346,347,35#,362,37#,382..CBU,IV3,IV4,IV6 |
1 | ||
| 90904-12076 |
XZU341..20T,30T;XZU341..6F..295T;BU30#,346,RZU300,340,XZU30#,31#,32#,33#,340,342,346,347,35#,362,37#,382..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV4,IV6) |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-37110 |
XZU347..SCB;XZU347..DCB..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU347..DCB..T4..4FC;XZU301..20T..(IV6,IV7);XZU306..4FC..DSLL..IV3;BU30#,XZU301,306..(T2,T3,T4,T5)..WT..(DSL,LPG)..(CBU,IV3,IV6,IV7);BU346,BZU300,340,RZU30#,340,XZU300,302,307,33#,340,341,342,346,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B73 |
BU301,XZU300,301,302,31#,351,352..DM2,DM3,DM5,DM6,T4 |
2 | ||
| 90947-02B29 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6) |
2 | ||
| 90947-02B29 |
XZU307..SCB..T4..5F;XZU302..T4..20T..DSL;BU30#,RZU30#..SCB..(T2,T4)..5F..20T..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B73 |
BU301,XZU300,301,302,31#,351,352..DM2,DM3,DM5,DM6,T4 |
2 | ||
| 90947-02B29 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6) |
2 | ||
| 90947-02B29 |
XZU307..SCB..T4..5F;XZU302..T4..20T..DSL;BU30#,RZU30#..SCB..(T2,T4)..5F..20T..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-37050 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47318-37070 |
XZU341..LPG;XZU340..35T,40T;XZU331..T3..IV3;XZU301..20T..IV7;BU30#,XZU30#,330..(T3,T4,T5)..WT..(DSL,DSLL,LPG)..(IV3,IV7) ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 47318-37230 |
XZU306..T4..DSLL;XZU301,306..T4..4FC..IV3..4NO;XZU301,331..(T3,T5)..4FC..IV3;BU30#,XZU302,307,340..(T3,T4,T5)..(20T,35T,40T)..WT..DSL..IV3 ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 47318-37140 |
XZU347..DCB..5F;XZU341..6F..295T;XZU306..T5..DSLL;XZU347..DCB..T4..4FC;XZU341..(20T,30T)..(DSL,LPG);XZU302,342,347..SCB..(T2,T3,T4,T5)..WT..DSL;BU30#,346,RZU300,340,XZU300,301,306,307,33#,340,346,362,372,382..(T2,T3,T4,T5)..WT..(DSL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 47318-37180 |
XZU302..T4..20T..DSL;BU30#,RZU30#,XZU307..SCB..T4..5F..20T..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90413-12009 |
XZU362..DM5,DM7;XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#..(DM3,T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 90412-12059 |
XZU362..DM5,DM7;XZU347..DCB..5F;XZU306..T5..DSLL;XZU341..6F..295T;XZU301..20T..IV7;XZU347..DCB..T4..4FC;XZU341..(20T,30T)..(DSL,LPG);XZU302,342,347..SCB..(DM3,T2,T3,T4,T5)..WT..DSL;BU30#,346,RZU300,340,XZU300,301,306,307,33#,340,346..(DM3,T2,T3,T4,T5)..WT..(DSL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 90412-10229 |
XZU302..T4..20T..DSL;BU30#,RZU30#,XZU307..SCB..T4..5F..20T..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37220 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306,307..(T2,T3,T4,T5)..4FC..CBU;BU30#,RZU300,XZU300,301,306,307,350..(DCB,SCB)..5F..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 47322-37220 |
BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47322-37220 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306..4FC..20T..DSLL;BU30#,BZU300,RZU30#,XZU300,350..DCB,SCB;XZU301,306,307..(DCB,SCB)..5F..(CBU,IV3,IV6);XZU301,306,307..(T2,T3,T4,T5)..4FC..DSL..CBU |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-37050 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47323-37070 |
XZU301..DSL..IV4;XZU306..T4..DSLL;XZU331..5F..DSL..IV4;XZU301..4FC..20T..IV6;XZU301..4FC..DSLL..IV4;XZU331..T3..4FC..(IV3,IV4);XZU301,306..T4..4FC..IV3..4NO;XZU301..(T3,T5)..4FC..(IV3,IV6);BU30#,XZU302,307,340..(T3,T4,T5)..(20T,35T,40T)..WT..DSL..IV3 ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 47323-37140 |
XZU347..DCB..5F;XZU341..6F..295T;XZU306..T5..DSLL;XZU347..DCB..T4..4FC;XZU341..(20T,30T)..(DSL,LPG);XZU302,342,347..SCB..(T2,T3,T4,T5)..WT..DSL;BU30#,346,RZU300,340,XZU300,301,306,307,33#,340,346,362,372,382..(T2,T3,T4,T5)..WT..(DSL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 47323-37200 |
XZU302..T4..20T..DSL;BU30#,RZU30#,XZU307..SCB..T4..5F..20T..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 90412-12051 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6) |
1 | ||
| 90904-13052 |
XZU307..SCB..T4..5F;XZU302..T4..20T..DSL;BU30#,RZU300..SCB..(T2,T4)..20T..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 90904-13052 |
XZU302..T4..20T;XZU307..03S..4FC;XZU307..(SCB,VAN)..(03S,T4)..5F;BU30#,RZU301..(SCB,VAN)..(03S,06S,T2,T4)..5F ﾅｼ(ABS) |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-37210 |
XZU307..SCB..T4..5F;XZU302..T4..20T..DSL;BU30#,RZU30#..SCB..(T2,T4)..5F..20T..(DSL,LPG) |
1 | ||
| 47325-37150 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-37170 |
XZU347..SCB;XZU347..DCB..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;BZU300,RZU300,XZU300,301,302..SCB..T3..(DSL,EFI,LPG);BZU300,RZU300,XZU301,302,306..(T2,T4,T5)..20T..WT..(CNG,DSL,EFI,LPG);BU30#,346,BZU340,RZU301,340,XZU307,33#,340,341,342,346,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-37200 |
BU30#,BZU300,RZU30#,XZU302,306,307,337..(03S,06S,T2,T4)..20T |
1 | ||
| 47327-37530 |
XZU307..SCB..T4..5F;XZU302..T4..20T..DSL;BU30#,RZU300..SCB..(T2,T4)..20T..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 47327-37530 |
XZU302..T4..20T;XZU307..03S..4FC;XZU307..(SCB,VAN)..(03S,T4)..5F;BU30#,RZU301..(SCB,VAN)..(03S,06S,T2,T4)..5F ﾅｼ(ABS) |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-37010 |
XZU347..SCB;XZU347..DCB..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;BZU300,RZU300,XZU300,301,302..SCB..T3..(DSL,EFI,LPG);BZU300,RZU300,XZU301,302,306..(T2,T4,T5)..20T..WT..(CNG,DSL,EFI,LPG);BU30#,346,BZU340,RZU301,340,XZU307,33#,340,341,342,346,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-37060 |
BU30#,BZU300,RZU30#,XZU302,306,307,337..(03S,06S,T2,T4)..20T |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-37050 |
BU30#,346,BZU300,340,RZU30#,340,XZU302,306,307,31#,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47345-37050 |
BU30#,346,BZU300,340,RZU30#,340,XZU302,306,307,31#,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-37110 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6) |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47353-37240 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BZU300,RZU300,XZU301,302..(T2,T4,T5)..20T..WT;BU30#,346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 47390 - VALVE ASSY, HILL HOLDER BRAKE LOCK | ||||
| 47390-37011 |
XZU301,306..T4..4FC..IV3..4NO;XZU302,307..(DM6,T4,T5)..4FC..WT..IV3;XZU301,331..(DM6,T3,T5)..4FC..(IV3,IV4,IV6) |
1 | ||
| Common parts | ||||
| 90034-61046 | ||||
| 90119-08676 | ||||
| 90119-08A46 | ||||
| 90464-00778 | ||||
| 90464-00833 | ||||
| 90468-08035 | ||||
| 90480-01431 | ||||
| 90480-01577 | ||||
| 90949-01006 | ||||
| 90959-01594 | ||||
| 91612-B1020 | ||||
| 91615-60816 | ||||
| 91641-K0816 | ||||
| 91651-60614 | ||||
| 94130-00802 | ||||
| 94150-80800 | ||||

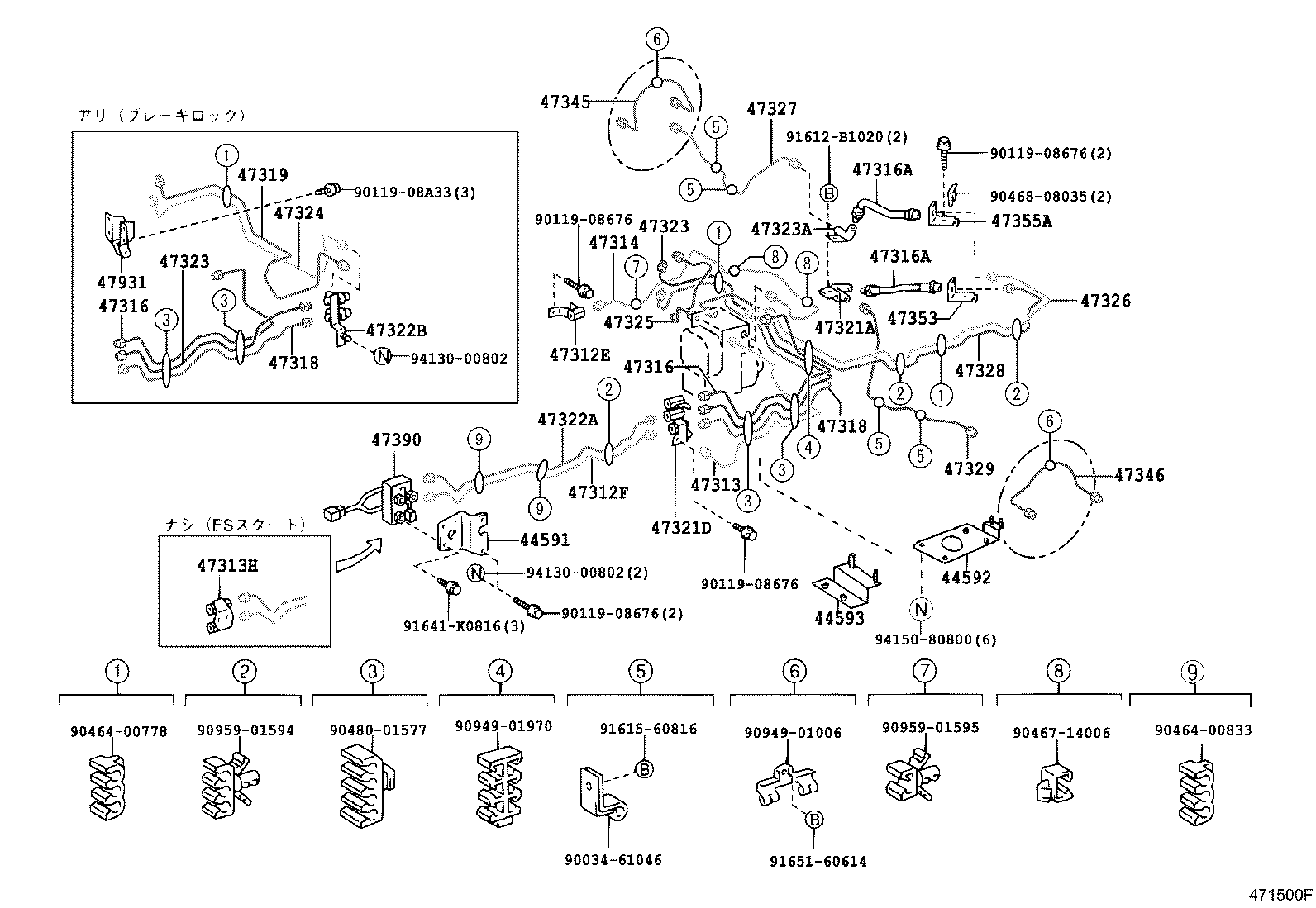

ILLUST NO. 2 OF 4(9905-0406)XZU302,306..CNG,DSL ; (9905-0406)XZU306..5F..DSLL..IV3 ; (9905-0406)XZU3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-37050 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,32#,33#,340,341,342,346,347,350..DCB,SCB |
1 | ||
| 44591-37050 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,32#,33#,340,341,342,346,347,350..DCB,SCB |
1 | ||
| 44591-37050 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,32#,33#,340,341,342,346,347,350..DCB,SCB |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-12060 |
XZU362..DM5,DM7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..20T..(IV6,IV7);XZU301,331..5F..DSLL..(CBU,IV4);BU30#,BZU300,RZU30#,XZU300,301,302,306,307,33#,350..(03S,06S,T1,T2,T3,T4,T5)..(CNG,DSL,EFI,LPG) |
1 | ||
| 90412-12060 |
XZU362..DM5,DM7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..20T..(IV6,IV7);XZU301,331..5F..DSLL..(CBU,IV4);BU30#,BZU300,RZU30#,XZU300,301,302,306,307,33#,350..(03S,06S,T1,T2,T3,T4,T5)..(CNG,DSL,EFI,LPG) |
1 | ||
| 90412-12060 |
XZU362..DM5,DM7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..20T..(IV6,IV7);XZU301,331..5F..DSLL..(CBU,IV4);BU30#,BZU300,RZU30#,XZU300,301,302,306,307,33#,350..(03S,06S,T1,T2,T3,T4,T5)..(CNG,DSL,EFI,LPG) |
1 | ||
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37080 |
BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47312-37080 |
BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47312-37080 |
BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47312-37080 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306,307..(T2,T3,T4,T5)..4FC..CBU;BU30#,RZU300,XZU300,301,306,307,350..(DCB,SCB)..5F..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 47312-37080 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306,307..(T2,T3,T4,T5)..4FC..CBU;BU30#,RZU300,XZU300,301,306,307,350..(DCB,SCB)..5F..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 47312-37080 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306,307..(T2,T3,T4,T5)..4FC..CBU;BU30#,RZU300,XZU300,301,306,307,350..(DCB,SCB)..5F..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 47312-37080 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306..4FC..20T..DSLL;BU30#,BZU300,RZU30#,XZU300,350..DCB,SCB;XZU301,306,307..(DCB,SCB)..5F..(CBU,IV3,IV6);XZU301,306,307..(T2,T3,T4,T5)..4FC..DSL..CBU |
1 | ||
| 47312-37080 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306..4FC..20T..DSLL;BU30#,BZU300,RZU30#,XZU300,350..DCB,SCB;XZU301,306,307..(DCB,SCB)..5F..(CBU,IV3,IV6);XZU301,306,307..(T2,T3,T4,T5)..4FC..DSL..CBU |
1 | ||
| 47312-37080 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306..4FC..20T..DSLL;BU30#,BZU300,RZU30#,XZU300,350..DCB,SCB;XZU301,306,307..(DCB,SCB)..5F..(CBU,IV3,IV6);XZU301,306,307..(T2,T3,T4,T5)..4FC..DSL..CBU |
1 | ||
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37080 |
BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47312-37080 |
BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47312-37080 |
BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47312-37080 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306,307..(T2,T3,T4,T5)..4FC..CBU;BU30#,RZU300,XZU300,301,306,307,350..(DCB,SCB)..5F..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 47312-37080 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306,307..(T2,T3,T4,T5)..4FC..CBU;BU30#,RZU300,XZU300,301,306,307,350..(DCB,SCB)..5F..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 47312-37080 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306,307..(T2,T3,T4,T5)..4FC..CBU;BU30#,RZU300,XZU300,301,306,307,350..(DCB,SCB)..5F..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 47312-37080 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306..4FC..20T..DSLL;BU30#,BZU300,RZU30#,XZU300,350..DCB,SCB;XZU301,306,307..(DCB,SCB)..5F..(CBU,IV3,IV6);XZU301,306,307..(T2,T3,T4,T5)..4FC..DSL..CBU |
1 | ||
| 47312-37080 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306..4FC..20T..DSLL;BU30#,BZU300,RZU30#,XZU300,350..DCB,SCB;XZU301,306,307..(DCB,SCB)..5F..(CBU,IV3,IV6);XZU301,306,307..(T2,T3,T4,T5)..4FC..DSL..CBU |
1 | ||
| 47312-37080 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306..4FC..20T..DSLL;BU30#,BZU300,RZU30#,XZU300,350..DCB,SCB;XZU301,306,307..(DCB,SCB)..5F..(CBU,IV3,IV6);XZU301,306,307..(T2,T3,T4,T5)..4FC..DSL..CBU |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-37140 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47313-37140 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47313-37140 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47313-37240 |
XZU302..T4..20T..DSL;BU30#,RZU300,XZU307,351,352..SCB..(DM5,T4)..5F..20T..(DSL,DSLL,LPG) ﾅｼ(ABS) |
1 | ||
| 47313-37240 |
XZU302..T4..20T..DSL;BU30#,RZU300,XZU307,351,352..SCB..(DM5,T4)..5F..20T..(DSL,DSLL,LPG) ﾅｼ(ABS) |
1 | ||
| 47313-37240 |
XZU302..T4..20T..DSL;BU30#,RZU300,XZU307,351,352..SCB..(DM5,T4)..5F..20T..(DSL,DSLL,LPG) ﾅｼ(ABS) |
1 | ||
| 47313H - WAY, NO.3(FOR FRONT BRAKE TUBE) | ||||
| 90904-12076 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 90904-12076 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 90904-12076 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 90904-12076 |
BU30#,346,RZU300,340,XZU30#,31#,33#,34#,35#,362,37#,382 |
1 | ||
| 90904-12076 |
BU30#,346,RZU300,340,XZU30#,31#,33#,34#,35#,362,37#,382 |
1 | ||
| 90904-12076 |
BU30#,346,RZU300,340,XZU30#,31#,33#,34#,35#,362,37#,382 |
1 | ||
| 90904-12076 |
BU30#;XZU301..4FC..IV6;BU346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..CBU,IV3,IV4 |
1 | ||
| 90904-12076 |
BU30#;XZU301..4FC..IV6;BU346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..CBU,IV3,IV4 |
1 | ||
| 90904-12076 |
BU30#;XZU301..4FC..IV6;BU346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..CBU,IV3,IV4 |
1 | ||
| 90904-12076 |
XZU341..20T,30T;XZU341..6F..295T;BU30#,346,RZU300,340,XZU30#,31#,32#,33#,340,342,346,347,35#,362,37#,382..CBU,IV3,IV4,IV6 |
1 | ||
| 90904-12076 |
XZU341..20T,30T;XZU341..6F..295T;BU30#,346,RZU300,340,XZU30#,31#,32#,33#,340,342,346,347,35#,362,37#,382..CBU,IV3,IV4,IV6 |
1 | ||
| 90904-12076 |
XZU341..20T,30T;XZU341..6F..295T;BU30#,346,RZU300,340,XZU30#,31#,32#,33#,340,342,346,347,35#,362,37#,382..CBU,IV3,IV4,IV6 |
1 | ||
| 90904-12076 |
XZU341..20T,30T;XZU341..6F..295T;BU30#,346,RZU300,340,XZU30#,31#,32#,33#,340,342,346,347,35#,362,37#,382..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV4,IV6) |
1 | ||
| 90904-12076 |
XZU341..20T,30T;XZU341..6F..295T;BU30#,346,RZU300,340,XZU30#,31#,32#,33#,340,342,346,347,35#,362,37#,382..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV4,IV6) |
1 | ||
| 90904-12076 |
XZU341..20T,30T;XZU341..6F..295T;BU30#,346,RZU300,340,XZU30#,31#,32#,33#,340,342,346,347,35#,362,37#,382..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV4,IV6) |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-37170 |
XZU306..DSL;XZU306..T5..DSLL;XZU301..20T..(IV6,IV7);BU30#,346,RZU300,340,XZU300,301,302,307,34#,350..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7) |
1 | ||
| 47314-37170 |
XZU306..DSL;XZU306..T5..DSLL;XZU301..20T..(IV6,IV7);BU30#,346,RZU300,340,XZU300,301,302,307,34#,350..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7) |
1 | ||
| 47314-37170 |
XZU306..DSL;XZU306..T5..DSLL;XZU301..20T..(IV6,IV7);BU30#,346,RZU300,340,XZU300,301,302,307,34#,350..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7) |
1 | ||
| 47314-37171 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301..20T..(IV6,IV7);XZU301,306..SCB..(T3,T4,T5)..(DSL,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,340,341,342,346,347,350..(03S,06S,T2,T3,T4,T5)..WT |
1 | ||
| 47314-37171 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301..20T..(IV6,IV7);XZU301,306..SCB..(T3,T4,T5)..(DSL,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,340,341,342,346,347,350..(03S,06S,T2,T3,T4,T5)..WT |
1 | ||
| 47314-37171 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301..20T..(IV6,IV7);XZU301,306..SCB..(T3,T4,T5)..(DSL,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,340,341,342,346,347,350..(03S,06S,T2,T3,T4,T5)..WT |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-37110 |
XZU347..SCB;XZU347..DCB..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU347..DCB..T4..4FC;XZU301..20T..(IV6,IV7);XZU306..4FC..DSLL..IV3;BU30#,XZU301,306..(T2,T3,T4,T5)..WT..(DSL,LPG)..(CBU,IV3,IV6,IV7);BU346,BZU300,340,RZU30#,340,XZU300,302,307,33#,340,341,342,346,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 47316-37110 |
XZU347..SCB;XZU347..DCB..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU347..DCB..T4..4FC;XZU301..20T..(IV6,IV7);XZU306..4FC..DSLL..IV3;BU30#,XZU301,306..(T2,T3,T4,T5)..WT..(DSL,LPG)..(CBU,IV3,IV6,IV7);BU346,BZU300,340,RZU30#,340,XZU300,302,307,33#,340,341,342,346,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 47316-37110 |
XZU347..SCB;XZU347..DCB..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU347..DCB..T4..4FC;XZU301..20T..(IV6,IV7);XZU306..4FC..DSLL..IV3;BU30#,XZU301,306..(T2,T3,T4,T5)..WT..(DSL,LPG)..(CBU,IV3,IV6,IV7);BU346,BZU300,340,RZU30#,340,XZU300,302,307,33#,340,341,342,346,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-37110 |
XZU347..SCB;XZU347..DCB..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU347..DCB..T4..4FC;XZU301..20T..(IV6,IV7);XZU306..4FC..DSLL..IV3;BU30#,XZU301,306..(T2,T3,T4,T5)..WT..(DSL,LPG)..(CBU,IV3,IV6,IV7);BU346,BZU300,340,RZU30#,340,XZU300,302,307,33#,340,341,342,346,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 47316-37110 |
XZU347..SCB;XZU347..DCB..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU347..DCB..T4..4FC;XZU301..20T..(IV6,IV7);XZU306..4FC..DSLL..IV3;BU30#,XZU301,306..(T2,T3,T4,T5)..WT..(DSL,LPG)..(CBU,IV3,IV6,IV7);BU346,BZU300,340,RZU30#,340,XZU300,302,307,33#,340,341,342,346,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 47316-37110 |
XZU347..SCB;XZU347..DCB..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU347..DCB..T4..4FC;XZU301..20T..(IV6,IV7);XZU306..4FC..DSLL..IV3;BU30#,XZU301,306..(T2,T3,T4,T5)..WT..(DSL,LPG)..(CBU,IV3,IV6,IV7);BU346,BZU300,340,RZU30#,340,XZU300,302,307,33#,340,341,342,346,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B73 |
BU301,XZU300,301,302,31#,351,352..DM2,DM3,DM5,DM6,T4 |
2 | ||
| 90947-02B73 |
BU301,XZU300,301,302,31#,351,352..DM2,DM3,DM5,DM6,T4 |
2 | ||
| 90947-02B73 |
BU301,XZU300,301,302,31#,351,352..DM2,DM3,DM5,DM6,T4 |
2 | ||
| 90947-02B29 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6) |
2 | ||
| 90947-02B29 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6) |
2 | ||
| 90947-02B29 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6) |
2 | ||
| 90947-02B29 |
XZU307..SCB..T4..5F;XZU302..T4..20T..DSL;BU30#,RZU30#..SCB..(T2,T4)..5F..20T..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 90947-02B29 |
XZU307..SCB..T4..5F;XZU302..T4..20T..DSL;BU30#,RZU30#..SCB..(T2,T4)..5F..20T..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 90947-02B29 |
XZU307..SCB..T4..5F;XZU302..T4..20T..DSL;BU30#,RZU30#..SCB..(T2,T4)..5F..20T..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B73 |
BU301,XZU300,301,302,31#,351,352..DM2,DM3,DM5,DM6,T4 |
2 | ||
| 90947-02B73 |
BU301,XZU300,301,302,31#,351,352..DM2,DM3,DM5,DM6,T4 |
2 | ||
| 90947-02B73 |
BU301,XZU300,301,302,31#,351,352..DM2,DM3,DM5,DM6,T4 |
2 | ||
| 90947-02B29 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6) |
2 | ||
| 90947-02B29 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6) |
2 | ||
| 90947-02B29 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6) |
2 | ||
| 90947-02B29 |
XZU307..SCB..T4..5F;XZU302..T4..20T..DSL;BU30#,RZU30#..SCB..(T2,T4)..5F..20T..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 90947-02B29 |
XZU307..SCB..T4..5F;XZU302..T4..20T..DSL;BU30#,RZU30#..SCB..(T2,T4)..5F..20T..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 90947-02B29 |
XZU307..SCB..T4..5F;XZU302..T4..20T..DSL;BU30#,RZU30#..SCB..(T2,T4)..5F..20T..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-37050 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47318-37050 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47318-37050 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47318-37070 |
XZU341..LPG;XZU340..35T,40T;XZU331..T3..IV3;XZU301..20T..IV7;BU30#,XZU30#,330..(T3,T4,T5)..WT..(DSL,DSLL,LPG)..(IV3,IV7) ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 47318-37070 |
XZU341..LPG;XZU340..35T,40T;XZU331..T3..IV3;XZU301..20T..IV7;BU30#,XZU30#,330..(T3,T4,T5)..WT..(DSL,DSLL,LPG)..(IV3,IV7) ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 47318-37070 |
XZU341..LPG;XZU340..35T,40T;XZU331..T3..IV3;XZU301..20T..IV7;BU30#,XZU30#,330..(T3,T4,T5)..WT..(DSL,DSLL,LPG)..(IV3,IV7) ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 47318-37230 |
XZU306..T4..DSLL;XZU301,306..T4..4FC..IV3..4NO;XZU301,331..(T3,T5)..4FC..IV3;BU30#,XZU302,307,340..(T3,T4,T5)..(20T,35T,40T)..WT..DSL..IV3 ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 47318-37230 |
XZU306..T4..DSLL;XZU301,306..T4..4FC..IV3..4NO;XZU301,331..(T3,T5)..4FC..IV3;BU30#,XZU302,307,340..(T3,T4,T5)..(20T,35T,40T)..WT..DSL..IV3 ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 47318-37230 |
XZU306..T4..DSLL;XZU301,306..T4..4FC..IV3..4NO;XZU301,331..(T3,T5)..4FC..IV3;BU30#,XZU302,307,340..(T3,T4,T5)..(20T,35T,40T)..WT..DSL..IV3 ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 47318-37140 |
XZU347..DCB..5F;XZU341..6F..295T;XZU306..T5..DSLL;XZU347..DCB..T4..4FC;XZU341..(20T,30T)..(DSL,LPG);XZU302,342,347..SCB..(T2,T3,T4,T5)..WT..DSL;BU30#,346,RZU300,340,XZU300,301,306,307,33#,340,346,362,372,382..(T2,T3,T4,T5)..WT..(DSL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 47318-37140 |
XZU347..DCB..5F;XZU341..6F..295T;XZU306..T5..DSLL;XZU347..DCB..T4..4FC;XZU341..(20T,30T)..(DSL,LPG);XZU302,342,347..SCB..(T2,T3,T4,T5)..WT..DSL;BU30#,346,RZU300,340,XZU300,301,306,307,33#,340,346,362,372,382..(T2,T3,T4,T5)..WT..(DSL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 47318-37140 |
XZU347..DCB..5F;XZU341..6F..295T;XZU306..T5..DSLL;XZU347..DCB..T4..4FC;XZU341..(20T,30T)..(DSL,LPG);XZU302,342,347..SCB..(T2,T3,T4,T5)..WT..DSL;BU30#,346,RZU300,340,XZU300,301,306,307,33#,340,346,362,372,382..(T2,T3,T4,T5)..WT..(DSL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 47318-37180 |
XZU302..T4..20T..DSL;BU30#,RZU30#,XZU307..SCB..T4..5F..20T..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 47318-37180 |
XZU302..T4..20T..DSL;BU30#,RZU30#,XZU307..SCB..T4..5F..20T..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 47318-37180 |
XZU302..T4..20T..DSL;BU30#,RZU30#,XZU307..SCB..T4..5F..20T..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-37050 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47318-37050 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47318-37050 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47318-37070 |
XZU341..LPG;XZU340..35T,40T;XZU331..T3..IV3;XZU301..20T..IV7;BU30#,XZU30#,330..(T3,T4,T5)..WT..(DSL,DSLL,LPG)..(IV3,IV7) ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 47318-37070 |
XZU341..LPG;XZU340..35T,40T;XZU331..T3..IV3;XZU301..20T..IV7;BU30#,XZU30#,330..(T3,T4,T5)..WT..(DSL,DSLL,LPG)..(IV3,IV7) ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 47318-37070 |
XZU341..LPG;XZU340..35T,40T;XZU331..T3..IV3;XZU301..20T..IV7;BU30#,XZU30#,330..(T3,T4,T5)..WT..(DSL,DSLL,LPG)..(IV3,IV7) ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 47318-37230 |
XZU306..T4..DSLL;XZU301,306..T4..4FC..IV3..4NO;XZU301,331..(T3,T5)..4FC..IV3;BU30#,XZU302,307,340..(T3,T4,T5)..(20T,35T,40T)..WT..DSL..IV3 ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 47318-37230 |
XZU306..T4..DSLL;XZU301,306..T4..4FC..IV3..4NO;XZU301,331..(T3,T5)..4FC..IV3;BU30#,XZU302,307,340..(T3,T4,T5)..(20T,35T,40T)..WT..DSL..IV3 ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 47318-37230 |
XZU306..T4..DSLL;XZU301,306..T4..4FC..IV3..4NO;XZU301,331..(T3,T5)..4FC..IV3;BU30#,XZU302,307,340..(T3,T4,T5)..(20T,35T,40T)..WT..DSL..IV3 ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 47318-37140 |
XZU347..DCB..5F;XZU341..6F..295T;XZU306..T5..DSLL;XZU347..DCB..T4..4FC;XZU341..(20T,30T)..(DSL,LPG);XZU302,342,347..SCB..(T2,T3,T4,T5)..WT..DSL;BU30#,346,RZU300,340,XZU300,301,306,307,33#,340,346,362,372,382..(T2,T3,T4,T5)..WT..(DSL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 47318-37140 |
XZU347..DCB..5F;XZU341..6F..295T;XZU306..T5..DSLL;XZU347..DCB..T4..4FC;XZU341..(20T,30T)..(DSL,LPG);XZU302,342,347..SCB..(T2,T3,T4,T5)..WT..DSL;BU30#,346,RZU300,340,XZU300,301,306,307,33#,340,346,362,372,382..(T2,T3,T4,T5)..WT..(DSL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 47318-37140 |
XZU347..DCB..5F;XZU341..6F..295T;XZU306..T5..DSLL;XZU347..DCB..T4..4FC;XZU341..(20T,30T)..(DSL,LPG);XZU302,342,347..SCB..(T2,T3,T4,T5)..WT..DSL;BU30#,346,RZU300,340,XZU300,301,306,307,33#,340,346,362,372,382..(T2,T3,T4,T5)..WT..(DSL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 47318-37180 |
XZU302..T4..20T..DSL;BU30#,RZU30#,XZU307..SCB..T4..5F..20T..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 47318-37180 |
XZU302..T4..20T..DSL;BU30#,RZU30#,XZU307..SCB..T4..5F..20T..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 47318-37180 |
XZU302..T4..20T..DSL;BU30#,RZU30#,XZU307..SCB..T4..5F..20T..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-37050 |
XZU341..LPG;XZU340..35T,40T;XZU331..T3..IV3;XZU301..20T..IV7;BU30#,XZU30#,330..(T3,T4,T5)..WT..(DSL,DSLL,LPG)..(IV3,IV7) |
1 | ||
| 47319-37050 |
XZU341..LPG;XZU340..35T,40T;XZU331..T3..IV3;XZU301..20T..IV7;BU30#,XZU30#,330..(T3,T4,T5)..WT..(DSL,DSLL,LPG)..(IV3,IV7) |
1 | ||
| 47319-37050 |
XZU341..LPG;XZU340..35T,40T;XZU331..T3..IV3;XZU301..20T..IV7;BU30#,XZU30#,330..(T3,T4,T5)..WT..(DSL,DSLL,LPG)..(IV3,IV7) |
1 | ||
| 47319-37060 |
XZU340..35T,40T;XZU341,342..LPG;XZU331..T3..IV3;XZU301..20T..(IV6,IV7);BU30#,XZU30#,330,350..(T3,T4,T5)..WT..(DSL,DSLL,LPG)..(IV3,IV6,IV7) |
1 | ||
| 47319-37060 |
XZU340..35T,40T;XZU341,342..LPG;XZU331..T3..IV3;XZU301..20T..(IV6,IV7);BU30#,XZU30#,330,350..(T3,T4,T5)..WT..(DSL,DSLL,LPG)..(IV3,IV6,IV7) |
1 | ||
| 47319-37060 |
XZU340..35T,40T;XZU341,342..LPG;XZU331..T3..IV3;XZU301..20T..(IV6,IV7);BU30#,XZU30#,330,350..(T3,T4,T5)..WT..(DSL,DSLL,LPG)..(IV3,IV6,IV7) |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90413-12009 |
XZU362..DM5,DM7;XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#..(DM3,T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 90413-12009 |
XZU362..DM5,DM7;XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#..(DM3,T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 90413-12009 |
XZU362..DM5,DM7;XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#..(DM3,T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 90412-12059 |
XZU362..DM5,DM7;XZU347..DCB..5F;XZU306..T5..DSLL;XZU341..6F..295T;XZU301..20T..IV7;XZU347..DCB..T4..4FC;XZU341..(20T,30T)..(DSL,LPG);XZU302,342,347..SCB..(DM3,T2,T3,T4,T5)..WT..DSL;BU30#,346,RZU300,340,XZU300,301,306,307,33#,340,346..(DM3,T2,T3,T4,T5)..WT..(DSL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 90412-12059 |
XZU362..DM5,DM7;XZU347..DCB..5F;XZU306..T5..DSLL;XZU341..6F..295T;XZU301..20T..IV7;XZU347..DCB..T4..4FC;XZU341..(20T,30T)..(DSL,LPG);XZU302,342,347..SCB..(DM3,T2,T3,T4,T5)..WT..DSL;BU30#,346,RZU300,340,XZU300,301,306,307,33#,340,346..(DM3,T2,T3,T4,T5)..WT..(DSL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 90412-12059 |
XZU362..DM5,DM7;XZU347..DCB..5F;XZU306..T5..DSLL;XZU341..6F..295T;XZU301..20T..IV7;XZU347..DCB..T4..4FC;XZU341..(20T,30T)..(DSL,LPG);XZU302,342,347..SCB..(DM3,T2,T3,T4,T5)..WT..DSL;BU30#,346,RZU300,340,XZU300,301,306,307,33#,340,346..(DM3,T2,T3,T4,T5)..WT..(DSL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 90412-10229 |
XZU302..T4..20T..DSL;BU30#,RZU30#,XZU307..SCB..T4..5F..20T..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 90412-10229 |
XZU302..T4..20T..DSL;BU30#,RZU30#,XZU307..SCB..T4..5F..20T..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 90412-10229 |
XZU302..T4..20T..DSL;BU30#,RZU30#,XZU307..SCB..T4..5F..20T..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37220 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306,307..(T2,T3,T4,T5)..4FC..CBU;BU30#,RZU300,XZU300,301,306,307,350..(DCB,SCB)..5F..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 47322-37220 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306,307..(T2,T3,T4,T5)..4FC..CBU;BU30#,RZU300,XZU300,301,306,307,350..(DCB,SCB)..5F..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 47322-37220 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306,307..(T2,T3,T4,T5)..4FC..CBU;BU30#,RZU300,XZU300,301,306,307,350..(DCB,SCB)..5F..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 47322-37220 |
BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47322-37220 |
BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47322-37220 |
BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47322-37220 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306..4FC..20T..DSLL;BU30#,BZU300,RZU30#,XZU300,350..DCB,SCB;XZU301,306,307..(DCB,SCB)..5F..(CBU,IV3,IV6);XZU301,306,307..(T2,T3,T4,T5)..4FC..DSL..CBU |
1 | ||
| 47322-37220 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306..4FC..20T..DSLL;BU30#,BZU300,RZU30#,XZU300,350..DCB,SCB;XZU301,306,307..(DCB,SCB)..5F..(CBU,IV3,IV6);XZU301,306,307..(T2,T3,T4,T5)..4FC..DSL..CBU |
1 | ||
| 47322-37220 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306..4FC..20T..DSLL;BU30#,BZU300,RZU30#,XZU300,350..DCB,SCB;XZU301,306,307..(DCB,SCB)..5F..(CBU,IV3,IV6);XZU301,306,307..(T2,T3,T4,T5)..4FC..DSL..CBU |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37220 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306,307..(T2,T3,T4,T5)..4FC..CBU;BU30#,RZU300,XZU300,301,306,307,350..(DCB,SCB)..5F..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 47322-37220 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306,307..(T2,T3,T4,T5)..4FC..CBU;BU30#,RZU300,XZU300,301,306,307,350..(DCB,SCB)..5F..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 47322-37220 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306,307..(T2,T3,T4,T5)..4FC..CBU;BU30#,RZU300,XZU300,301,306,307,350..(DCB,SCB)..5F..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 47322-37220 |
BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47322-37220 |
BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47322-37220 |
BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47322-37220 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306..4FC..20T..DSLL;BU30#,BZU300,RZU30#,XZU300,350..DCB,SCB;XZU301,306,307..(DCB,SCB)..5F..(CBU,IV3,IV6);XZU301,306,307..(T2,T3,T4,T5)..4FC..DSL..CBU |
1 | ||
| 47322-37220 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306..4FC..20T..DSLL;BU30#,BZU300,RZU30#,XZU300,350..DCB,SCB;XZU301,306,307..(DCB,SCB)..5F..(CBU,IV3,IV6);XZU301,306,307..(T2,T3,T4,T5)..4FC..DSL..CBU |
1 | ||
| 47322-37220 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306..4FC..20T..DSLL;BU30#,BZU300,RZU30#,XZU300,350..DCB,SCB;XZU301,306,307..(DCB,SCB)..5F..(CBU,IV3,IV6);XZU301,306,307..(T2,T3,T4,T5)..4FC..DSL..CBU |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90904-13055 |
XZU340..35T,40T;XZU341,342..LPG;XZU331..T3..(IV3,IV4);XZU302..(DM6,T3,T4,T5)..WT..(DSL,LPG)..IV3;BU30#,XZU300,301,306,307,330,350..(DM6,T3,T4,T5)..WT..(IV3,IV4,IV6,IV7) |
1 | ||
| 90904-13055 |
XZU340..35T,40T;XZU341,342..LPG;XZU331..T3..(IV3,IV4);XZU302..(DM6,T3,T4,T5)..WT..(DSL,LPG)..IV3;BU30#,XZU300,301,306,307,330,350..(DM6,T3,T4,T5)..WT..(IV3,IV4,IV6,IV7) |
1 | ||
| 90904-13055 |
XZU340..35T,40T;XZU341,342..LPG;XZU331..T3..(IV3,IV4);XZU302..(DM6,T3,T4,T5)..WT..(DSL,LPG)..IV3;BU30#,XZU300,301,306,307,330,350..(DM6,T3,T4,T5)..WT..(IV3,IV4,IV6,IV7) |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-37050 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47323-37050 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47323-37050 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47323-37070 |
XZU301..DSL..IV4;XZU306..T4..DSLL;XZU331..5F..DSL..IV4;XZU301..4FC..20T..IV6;XZU301..4FC..DSLL..IV4;XZU331..T3..4FC..(IV3,IV4);XZU301,306..T4..4FC..IV3..4NO;XZU301..(T3,T5)..4FC..(IV3,IV6);BU30#,XZU302,307,340..(T3,T4,T5)..(20T,35T,40T)..WT..DSL..IV3 ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 47323-37070 |
XZU301..DSL..IV4;XZU306..T4..DSLL;XZU331..5F..DSL..IV4;XZU301..4FC..20T..IV6;XZU301..4FC..DSLL..IV4;XZU331..T3..4FC..(IV3,IV4);XZU301,306..T4..4FC..IV3..4NO;XZU301..(T3,T5)..4FC..(IV3,IV6);BU30#,XZU302,307,340..(T3,T4,T5)..(20T,35T,40T)..WT..DSL..IV3 ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 47323-37070 |
XZU301..DSL..IV4;XZU306..T4..DSLL;XZU331..5F..DSL..IV4;XZU301..4FC..20T..IV6;XZU301..4FC..DSLL..IV4;XZU331..T3..4FC..(IV3,IV4);XZU301,306..T4..4FC..IV3..4NO;XZU301..(T3,T5)..4FC..(IV3,IV6);BU30#,XZU302,307,340..(T3,T4,T5)..(20T,35T,40T)..WT..DSL..IV3 ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 47323-37140 |
XZU347..DCB..5F;XZU341..6F..295T;XZU306..T5..DSLL;XZU347..DCB..T4..4FC;XZU341..(20T,30T)..(DSL,LPG);XZU302,342,347..SCB..(T2,T3,T4,T5)..WT..DSL;BU30#,346,RZU300,340,XZU300,301,306,307,33#,340,346,362,372,382..(T2,T3,T4,T5)..WT..(DSL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 47323-37140 |
XZU347..DCB..5F;XZU341..6F..295T;XZU306..T5..DSLL;XZU347..DCB..T4..4FC;XZU341..(20T,30T)..(DSL,LPG);XZU302,342,347..SCB..(T2,T3,T4,T5)..WT..DSL;BU30#,346,RZU300,340,XZU300,301,306,307,33#,340,346,362,372,382..(T2,T3,T4,T5)..WT..(DSL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 47323-37140 |
XZU347..DCB..5F;XZU341..6F..295T;XZU306..T5..DSLL;XZU347..DCB..T4..4FC;XZU341..(20T,30T)..(DSL,LPG);XZU302,342,347..SCB..(T2,T3,T4,T5)..WT..DSL;BU30#,346,RZU300,340,XZU300,301,306,307,33#,340,346,362,372,382..(T2,T3,T4,T5)..WT..(DSL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 47323-37200 |
XZU302..T4..20T..DSL;BU30#,RZU30#,XZU307..SCB..T4..5F..20T..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 47323-37200 |
XZU302..T4..20T..DSL;BU30#,RZU30#,XZU307..SCB..T4..5F..20T..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 47323-37200 |
XZU302..T4..20T..DSL;BU30#,RZU30#,XZU307..SCB..T4..5F..20T..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-37050 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47323-37050 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47323-37050 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47323-37070 |
XZU301..DSL..IV4;XZU306..T4..DSLL;XZU331..5F..DSL..IV4;XZU301..4FC..20T..IV6;XZU301..4FC..DSLL..IV4;XZU331..T3..4FC..(IV3,IV4);XZU301,306..T4..4FC..IV3..4NO;XZU301..(T3,T5)..4FC..(IV3,IV6);BU30#,XZU302,307,340..(T3,T4,T5)..(20T,35T,40T)..WT..DSL..IV3 ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 47323-37070 |
XZU301..DSL..IV4;XZU306..T4..DSLL;XZU331..5F..DSL..IV4;XZU301..4FC..20T..IV6;XZU301..4FC..DSLL..IV4;XZU331..T3..4FC..(IV3,IV4);XZU301,306..T4..4FC..IV3..4NO;XZU301..(T3,T5)..4FC..(IV3,IV6);BU30#,XZU302,307,340..(T3,T4,T5)..(20T,35T,40T)..WT..DSL..IV3 ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 47323-37070 |
XZU301..DSL..IV4;XZU306..T4..DSLL;XZU331..5F..DSL..IV4;XZU301..4FC..20T..IV6;XZU301..4FC..DSLL..IV4;XZU331..T3..4FC..(IV3,IV4);XZU301,306..T4..4FC..IV3..4NO;XZU301..(T3,T5)..4FC..(IV3,IV6);BU30#,XZU302,307,340..(T3,T4,T5)..(20T,35T,40T)..WT..DSL..IV3 ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 47323-37140 |
XZU347..DCB..5F;XZU341..6F..295T;XZU306..T5..DSLL;XZU347..DCB..T4..4FC;XZU341..(20T,30T)..(DSL,LPG);XZU302,342,347..SCB..(T2,T3,T4,T5)..WT..DSL;BU30#,346,RZU300,340,XZU300,301,306,307,33#,340,346,362,372,382..(T2,T3,T4,T5)..WT..(DSL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 47323-37140 |
XZU347..DCB..5F;XZU341..6F..295T;XZU306..T5..DSLL;XZU347..DCB..T4..4FC;XZU341..(20T,30T)..(DSL,LPG);XZU302,342,347..SCB..(T2,T3,T4,T5)..WT..DSL;BU30#,346,RZU300,340,XZU300,301,306,307,33#,340,346,362,372,382..(T2,T3,T4,T5)..WT..(DSL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 47323-37140 |
XZU347..DCB..5F;XZU341..6F..295T;XZU306..T5..DSLL;XZU347..DCB..T4..4FC;XZU341..(20T,30T)..(DSL,LPG);XZU302,342,347..SCB..(T2,T3,T4,T5)..WT..DSL;BU30#,346,RZU300,340,XZU300,301,306,307,33#,340,346,362,372,382..(T2,T3,T4,T5)..WT..(DSL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 47323-37200 |
XZU302..T4..20T..DSL;BU30#,RZU30#,XZU307..SCB..T4..5F..20T..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 47323-37200 |
XZU302..T4..20T..DSL;BU30#,RZU30#,XZU307..SCB..T4..5F..20T..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 47323-37200 |
XZU302..T4..20T..DSL;BU30#,RZU30#,XZU307..SCB..T4..5F..20T..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 90412-12051 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6) |
1 | ||
| 90412-12051 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6) |
1 | ||
| 90412-12051 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6) |
1 | ||
| 90904-13052 |
XZU307..SCB..T4..5F;XZU302..T4..20T..DSL;BU30#,RZU300..SCB..(T2,T4)..20T..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 90904-13052 |
XZU307..SCB..T4..5F;XZU302..T4..20T..DSL;BU30#,RZU300..SCB..(T2,T4)..20T..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 90904-13052 |
XZU307..SCB..T4..5F;XZU302..T4..20T..DSL;BU30#,RZU300..SCB..(T2,T4)..20T..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 90904-13052 |
XZU302..T4..20T;XZU307..03S..4FC;XZU307..(SCB,VAN)..(03S,T4)..5F;BU30#,RZU301..(SCB,VAN)..(03S,06S,T2,T4)..5F ﾅｼ(ABS) |
1 | ||
| 90904-13052 |
XZU302..T4..20T;XZU307..03S..4FC;XZU307..(SCB,VAN)..(03S,T4)..5F;BU30#,RZU301..(SCB,VAN)..(03S,06S,T2,T4)..5F ﾅｼ(ABS) |
1 | ||
| 90904-13052 |
XZU302..T4..20T;XZU307..03S..4FC;XZU307..(SCB,VAN)..(03S,T4)..5F;BU30#,RZU301..(SCB,VAN)..(03S,06S,T2,T4)..5F ﾅｼ(ABS) |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 90412-12051 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6) |
1 | ||
| 90412-12051 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6) |
1 | ||
| 90412-12051 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6) |
1 | ||
| 90904-13052 |
XZU307..SCB..T4..5F;XZU302..T4..20T..DSL;BU30#,RZU300..SCB..(T2,T4)..20T..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 90904-13052 |
XZU307..SCB..T4..5F;XZU302..T4..20T..DSL;BU30#,RZU300..SCB..(T2,T4)..20T..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 90904-13052 |
XZU307..SCB..T4..5F;XZU302..T4..20T..DSL;BU30#,RZU300..SCB..(T2,T4)..20T..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 90904-13052 |
XZU302..T4..20T;XZU307..03S..4FC;XZU307..(SCB,VAN)..(03S,T4)..5F;BU30#,RZU301..(SCB,VAN)..(03S,06S,T2,T4)..5F ﾅｼ(ABS) |
1 | ||
| 90904-13052 |
XZU302..T4..20T;XZU307..03S..4FC;XZU307..(SCB,VAN)..(03S,T4)..5F;BU30#,RZU301..(SCB,VAN)..(03S,06S,T2,T4)..5F ﾅｼ(ABS) |
1 | ||
| 90904-13052 |
XZU302..T4..20T;XZU307..03S..4FC;XZU307..(SCB,VAN)..(03S,T4)..5F;BU30#,RZU301..(SCB,VAN)..(03S,06S,T2,T4)..5F ﾅｼ(ABS) |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-37290 |
XZU341..LPG;XZU340..35T,40T;XZU331..T3..IV3;XZU301..20T..IV7;BU30#,XZU30#,330..(T3,T4,T5)..WT..(DSL,DSLL,LPG)..(IV3,IV7) |
1 | ||
| 47324-37290 |
XZU341..LPG;XZU340..35T,40T;XZU331..T3..IV3;XZU301..20T..IV7;BU30#,XZU30#,330..(T3,T4,T5)..WT..(DSL,DSLL,LPG)..(IV3,IV7) |
1 | ||
| 47324-37290 |
XZU341..LPG;XZU340..35T,40T;XZU331..T3..IV3;XZU301..20T..IV7;BU30#,XZU30#,330..(T3,T4,T5)..WT..(DSL,DSLL,LPG)..(IV3,IV7) |
1 | ||
| 47324-37310 |
XZU340..35T,40T;XZU341,342..LPG;XZU331..T3..IV3;XZU301..20T..(IV6,IV7);BU30#,XZU30#,330,350..(T3,T4,T5)..WT..(DSL,DSLL,LPG)..(IV3,IV6,IV7) |
1 | ||
| 47324-37310 |
XZU340..35T,40T;XZU341,342..LPG;XZU331..T3..IV3;XZU301..20T..(IV6,IV7);BU30#,XZU30#,330,350..(T3,T4,T5)..WT..(DSL,DSLL,LPG)..(IV3,IV6,IV7) |
1 | ||
| 47324-37310 |
XZU340..35T,40T;XZU341,342..LPG;XZU331..T3..IV3;XZU301..20T..(IV6,IV7);BU30#,XZU30#,330,350..(T3,T4,T5)..WT..(DSL,DSLL,LPG)..(IV3,IV6,IV7) |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-37210 |
XZU307..SCB..T4..5F;XZU302..T4..20T..DSL;BU30#,RZU30#..SCB..(T2,T4)..5F..20T..(DSL,LPG) |
1 | ||
| 47325-37210 |
XZU307..SCB..T4..5F;XZU302..T4..20T..DSL;BU30#,RZU30#..SCB..(T2,T4)..5F..20T..(DSL,LPG) |
1 | ||
| 47325-37210 |
XZU307..SCB..T4..5F;XZU302..T4..20T..DSL;BU30#,RZU30#..SCB..(T2,T4)..5F..20T..(DSL,LPG) |
1 | ||
| 47325-37150 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47325-37150 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47325-37150 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-37170 |
XZU347..SCB;XZU347..DCB..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;BZU300,RZU300,XZU300,301,302..SCB..T3..(DSL,EFI,LPG);BZU300,RZU300,XZU301,302,306..(T2,T4,T5)..20T..WT..(CNG,DSL,EFI,LPG);BU30#,346,BZU340,RZU301,340,XZU307,33#,340,341,342,346,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 47326-37170 |
XZU347..SCB;XZU347..DCB..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;BZU300,RZU300,XZU300,301,302..SCB..T3..(DSL,EFI,LPG);BZU300,RZU300,XZU301,302,306..(T2,T4,T5)..20T..WT..(CNG,DSL,EFI,LPG);BU30#,346,BZU340,RZU301,340,XZU307,33#,340,341,342,346,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 47326-37170 |
XZU347..SCB;XZU347..DCB..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;BZU300,RZU300,XZU300,301,302..SCB..T3..(DSL,EFI,LPG);BZU300,RZU300,XZU301,302,306..(T2,T4,T5)..20T..WT..(CNG,DSL,EFI,LPG);BU30#,346,BZU340,RZU301,340,XZU307,33#,340,341,342,346,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-37200 |
BU30#,BZU300,RZU30#,XZU302,306,307,337..(03S,06S,T2,T4)..20T |
1 | ||
| 47327-37200 |
BU30#,BZU300,RZU30#,XZU302,306,307,337..(03S,06S,T2,T4)..20T |
1 | ||
| 47327-37200 |
BU30#,BZU300,RZU30#,XZU302,306,307,337..(03S,06S,T2,T4)..20T |
1 | ||
| 47327-37530 |
XZU307..SCB..T4..5F;XZU302..T4..20T..DSL;BU30#,RZU300..SCB..(T2,T4)..20T..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 47327-37530 |
XZU307..SCB..T4..5F;XZU302..T4..20T..DSL;BU30#,RZU300..SCB..(T2,T4)..20T..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 47327-37530 |
XZU307..SCB..T4..5F;XZU302..T4..20T..DSL;BU30#,RZU300..SCB..(T2,T4)..20T..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 47327-37530 |
XZU302..T4..20T;XZU307..03S..4FC;XZU307..(SCB,VAN)..(03S,T4)..5F;BU30#,RZU301..(SCB,VAN)..(03S,06S,T2,T4)..5F ﾅｼ(ABS) |
1 | ||
| 47327-37530 |
XZU302..T4..20T;XZU307..03S..4FC;XZU307..(SCB,VAN)..(03S,T4)..5F;BU30#,RZU301..(SCB,VAN)..(03S,06S,T2,T4)..5F ﾅｼ(ABS) |
1 | ||
| 47327-37530 |
XZU302..T4..20T;XZU307..03S..4FC;XZU307..(SCB,VAN)..(03S,T4)..5F;BU30#,RZU301..(SCB,VAN)..(03S,06S,T2,T4)..5F ﾅｼ(ABS) |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-37010 |
XZU347..SCB;XZU347..DCB..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;BZU300,RZU300,XZU300,301,302..SCB..T3..(DSL,EFI,LPG);BZU300,RZU300,XZU301,302,306..(T2,T4,T5)..20T..WT..(CNG,DSL,EFI,LPG);BU30#,346,BZU340,RZU301,340,XZU307,33#,340,341,342,346,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 47328-37010 |
XZU347..SCB;XZU347..DCB..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;BZU300,RZU300,XZU300,301,302..SCB..T3..(DSL,EFI,LPG);BZU300,RZU300,XZU301,302,306..(T2,T4,T5)..20T..WT..(CNG,DSL,EFI,LPG);BU30#,346,BZU340,RZU301,340,XZU307,33#,340,341,342,346,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 47328-37010 |
XZU347..SCB;XZU347..DCB..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;BZU300,RZU300,XZU300,301,302..SCB..T3..(DSL,EFI,LPG);BZU300,RZU300,XZU301,302,306..(T2,T4,T5)..20T..WT..(CNG,DSL,EFI,LPG);BU30#,346,BZU340,RZU301,340,XZU307,33#,340,341,342,346,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-37060 |
BU30#,BZU300,RZU30#,XZU302,306,307,337..(03S,06S,T2,T4)..20T |
1 | ||
| 47329-37060 |
BU30#,BZU300,RZU30#,XZU302,306,307,337..(03S,06S,T2,T4)..20T |
1 | ||
| 47329-37060 |
BU30#,BZU300,RZU30#,XZU302,306,307,337..(03S,06S,T2,T4)..20T |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-37050 |
BU30#,346,BZU300,340,RZU30#,340,XZU302,306,307,31#,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T |
1 | ||
| 47345-37050 |
BU30#,346,BZU300,340,RZU30#,340,XZU302,306,307,31#,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T |
1 | ||
| 47345-37050 |
BU30#,346,BZU300,340,RZU30#,340,XZU302,306,307,31#,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47345-37050 |
BU30#,346,BZU300,340,RZU30#,340,XZU302,306,307,31#,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T |
1 | ||
| 47345-37050 |
BU30#,346,BZU300,340,RZU30#,340,XZU302,306,307,31#,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T |
1 | ||
| 47345-37050 |
BU30#,346,BZU300,340,RZU30#,340,XZU302,306,307,31#,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-37110 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6) |
1 | ||
| 47353-37110 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6) |
1 | ||
| 47353-37110 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6) |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47353-37240 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BZU300,RZU300,XZU301,302..(T2,T4,T5)..20T..WT;BU30#,346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 47353-37240 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BZU300,RZU300,XZU301,302..(T2,T4,T5)..20T..WT;BU30#,346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 47353-37240 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BZU300,RZU300,XZU301,302..(T2,T4,T5)..20T..WT;BU30#,346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 47390 - VALVE ASSY, HILL HOLDER BRAKE LOCK | ||||
| 47390-37011 |
XZU301,306..T4..4FC..IV3..4NO;XZU302,307..(DM6,T4,T5)..4FC..WT..IV3;XZU301,331..(DM6,T3,T5)..4FC..(IV3,IV4,IV6) |
1 | ||
| 47390-37011 |
XZU301,306..T4..4FC..IV3..4NO;XZU302,307..(DM6,T4,T5)..4FC..WT..IV3;XZU301,331..(DM6,T3,T5)..4FC..(IV3,IV4,IV6) |
1 | ||
| 47390-37011 |
XZU301,306..T4..4FC..IV3..4NO;XZU302,307..(DM6,T4,T5)..4FC..WT..IV3;XZU301,331..(DM6,T3,T5)..4FC..(IV3,IV4,IV6) |
1 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-37020 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(03S,06S,T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47931-37020 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(03S,06S,T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47931-37020 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(03S,06S,T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47931-37020 |
XZU302..T4..20T;BU30#,RZU301,XZU307..SCB..T4..5F |
1 | ||
| 47931-37020 |
XZU302..T4..20T;BU30#,RZU301,XZU307..SCB..T4..5F |
1 | ||
| 47931-37020 |
XZU302..T4..20T;BU30#,RZU301,XZU307..SCB..T4..5F |
1 | ||
| Common parts | ||||
| 90034-61046 | ||||
| 90119-08676 | ||||
| 90119-08A33 | ||||
| 90464-00778 | ||||
| 90464-00833 | ||||
| 90467-14006 | ||||
| 90468-08035 | ||||
| 90480-01577 | ||||
| 90949-01006 | ||||
| 90949-01970 | ||||
| 90959-01594 | ||||
| 90959-01595 | ||||
| 91612-B1020 | ||||
| 91615-60816 | ||||
| 91641-K0816 | ||||
| 91651-60614 | ||||
| 94130-00802 | ||||
ILLUST NO. 3 OF 4(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3
ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44540 - ACTUATOR ASSY, ABS & TRACTION | ||||
| 44540-37010 |
BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-37010 |
XZU306..T4..DSL;XZU306..DSLL..CBU;XZU306..T5..5F..DSL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,350,352,362,37#,382..CNG,DSL,EFI,LPG |
1 | ||
| Common parts | ||||
| 90099-05277 | ||||
| 90119-08676 | ||||
ILLUST NO. 2 OF 4(9905-0406)XZU300,302..T4 ; (9905-0406)XZU301..T4..1NO ; (9905-0406)XZU301..T4..DSL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-37050 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,32#,33#,340,341,342,346,347,350..DCB,SCB |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-12060 |
XZU362..DM5,DM7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..20T..(IV6,IV7);XZU301,331..5F..DSLL..(CBU,IV4);BU30#,BZU300,RZU30#,XZU300,301,302,306,307,33#,350..(03S,06S,T1,T2,T3,T4,T5)..(CNG,DSL,EFI,LPG) |
1 | ||
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37080 |
BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47312-37080 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306,307..(T2,T3,T4,T5)..4FC..CBU;BU30#,RZU300,XZU300,301,306,307,350..(DCB,SCB)..5F..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 47312-37080 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306..4FC..20T..DSLL;BU30#,BZU300,RZU30#,XZU300,350..DCB,SCB;XZU301,306,307..(DCB,SCB)..5F..(CBU,IV3,IV6);XZU301,306,307..(T2,T3,T4,T5)..4FC..DSL..CBU |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-37140 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47313-37240 |
XZU302..T4..20T..DSL;BU30#,RZU300,XZU307,351,352..SCB..(DM5,T4)..5F..20T..(DSL,DSLL,LPG) ﾅｼ(ABS) |
1 | ||
| 47313H - WAY, NO.3(FOR FRONT BRAKE TUBE) | ||||
| 90904-12076 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 90904-12076 |
BU30#,346,RZU300,340,XZU30#,31#,33#,34#,35#,362,37#,382 |
1 | ||
| 90904-12076 |
BU30#;XZU301..4FC..IV6;BU346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..CBU,IV3,IV4 |
1 | ||
| 90904-12076 |
XZU341..20T,30T;XZU341..6F..295T;BU30#,346,RZU300,340,XZU30#,31#,32#,33#,340,342,346,347,35#,362,37#,382..CBU,IV3,IV4,IV6 |
1 | ||
| 90904-12076 |
XZU341..20T,30T;XZU341..6F..295T;BU30#,346,RZU300,340,XZU30#,31#,32#,33#,340,342,346,347,35#,362,37#,382..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV4,IV6) |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-37170 |
XZU306..DSL;XZU306..T5..DSLL;XZU301..20T..(IV6,IV7);BU30#,346,RZU300,340,XZU300,301,302,307,34#,350..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6,IV7) |
1 | ||
| 47314-37171 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301..20T..(IV6,IV7);XZU301,306..SCB..(T3,T4,T5)..(DSL,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,340,341,342,346,347,350..(03S,06S,T2,T3,T4,T5)..WT |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-37110 |
XZU347..SCB;XZU347..DCB..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU347..DCB..T4..4FC;XZU301..20T..(IV6,IV7);XZU306..4FC..DSLL..IV3;BU30#,XZU301,306..(T2,T3,T4,T5)..WT..(DSL,LPG)..(CBU,IV3,IV6,IV7);BU346,BZU300,340,RZU30#,340,XZU300,302,307,33#,340,341,342,346,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-37110 |
XZU347..SCB;XZU347..DCB..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU347..DCB..T4..4FC;XZU301..20T..(IV6,IV7);XZU306..4FC..DSLL..IV3;BU30#,XZU301,306..(T2,T3,T4,T5)..WT..(DSL,LPG)..(CBU,IV3,IV6,IV7);BU346,BZU300,340,RZU30#,340,XZU300,302,307,33#,340,341,342,346,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B73 |
BU301,XZU300,301,302,31#,351,352..DM2,DM3,DM5,DM6,T4 |
2 | ||
| 90947-02B29 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6) |
2 | ||
| 90947-02B29 |
XZU307..SCB..T4..5F;XZU302..T4..20T..DSL;BU30#,RZU30#..SCB..(T2,T4)..5F..20T..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B73 |
BU301,XZU300,301,302,31#,351,352..DM2,DM3,DM5,DM6,T4 |
2 | ||
| 90947-02B29 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6) |
2 | ||
| 90947-02B29 |
XZU307..SCB..T4..5F;XZU302..T4..20T..DSL;BU30#,RZU30#..SCB..(T2,T4)..5F..20T..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-37050 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47318-37070 |
XZU341..LPG;XZU340..35T,40T;XZU331..T3..IV3;XZU301..20T..IV7;BU30#,XZU30#,330..(T3,T4,T5)..WT..(DSL,DSLL,LPG)..(IV3,IV7) ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 47318-37230 |
XZU306..T4..DSLL;XZU301,306..T4..4FC..IV3..4NO;XZU301,331..(T3,T5)..4FC..IV3;BU30#,XZU302,307,340..(T3,T4,T5)..(20T,35T,40T)..WT..DSL..IV3 ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 47318-37140 |
XZU347..DCB..5F;XZU341..6F..295T;XZU306..T5..DSLL;XZU347..DCB..T4..4FC;XZU341..(20T,30T)..(DSL,LPG);XZU302,342,347..SCB..(T2,T3,T4,T5)..WT..DSL;BU30#,346,RZU300,340,XZU300,301,306,307,33#,340,346,362,372,382..(T2,T3,T4,T5)..WT..(DSL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 47318-37180 |
XZU302..T4..20T..DSL;BU30#,RZU30#,XZU307..SCB..T4..5F..20T..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-37050 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47318-37070 |
XZU341..LPG;XZU340..35T,40T;XZU331..T3..IV3;XZU301..20T..IV7;BU30#,XZU30#,330..(T3,T4,T5)..WT..(DSL,DSLL,LPG)..(IV3,IV7) ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 47318-37230 |
XZU306..T4..DSLL;XZU301,306..T4..4FC..IV3..4NO;XZU301,331..(T3,T5)..4FC..IV3;BU30#,XZU302,307,340..(T3,T4,T5)..(20T,35T,40T)..WT..DSL..IV3 ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 47318-37140 |
XZU347..DCB..5F;XZU341..6F..295T;XZU306..T5..DSLL;XZU347..DCB..T4..4FC;XZU341..(20T,30T)..(DSL,LPG);XZU302,342,347..SCB..(T2,T3,T4,T5)..WT..DSL;BU30#,346,RZU300,340,XZU300,301,306,307,33#,340,346,362,372,382..(T2,T3,T4,T5)..WT..(DSL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 47318-37180 |
XZU302..T4..20T..DSL;BU30#,RZU30#,XZU307..SCB..T4..5F..20T..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-37050 |
XZU341..LPG;XZU340..35T,40T;XZU331..T3..IV3;XZU301..20T..IV7;BU30#,XZU30#,330..(T3,T4,T5)..WT..(DSL,DSLL,LPG)..(IV3,IV7) |
1 | ||
| 47319-37060 |
XZU340..35T,40T;XZU341,342..LPG;XZU331..T3..IV3;XZU301..20T..(IV6,IV7);BU30#,XZU30#,330,350..(T3,T4,T5)..WT..(DSL,DSLL,LPG)..(IV3,IV6,IV7) |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90413-12009 |
XZU362..DM5,DM7;XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#..(DM3,T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 90412-12059 |
XZU362..DM5,DM7;XZU347..DCB..5F;XZU306..T5..DSLL;XZU341..6F..295T;XZU301..20T..IV7;XZU347..DCB..T4..4FC;XZU341..(20T,30T)..(DSL,LPG);XZU302,342,347..SCB..(DM3,T2,T3,T4,T5)..WT..DSL;BU30#,346,RZU300,340,XZU300,301,306,307,33#,340,346..(DM3,T2,T3,T4,T5)..WT..(DSL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 90412-10229 |
XZU302..T4..20T..DSL;BU30#,RZU30#,XZU307..SCB..T4..5F..20T..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37220 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306,307..(T2,T3,T4,T5)..4FC..CBU;BU30#,RZU300,XZU300,301,306,307,350..(DCB,SCB)..5F..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 47322-37220 |
BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47322-37220 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306..4FC..20T..DSLL;BU30#,BZU300,RZU30#,XZU300,350..DCB,SCB;XZU301,306,307..(DCB,SCB)..5F..(CBU,IV3,IV6);XZU301,306,307..(T2,T3,T4,T5)..4FC..DSL..CBU |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90904-13055 |
XZU340..35T,40T;XZU341,342..LPG;XZU331..T3..(IV3,IV4);XZU302..(DM6,T3,T4,T5)..WT..(DSL,LPG)..IV3;BU30#,XZU300,301,306,307,330,350..(DM6,T3,T4,T5)..WT..(IV3,IV4,IV6,IV7) |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-37050 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47323-37070 |
XZU301..DSL..IV4;XZU306..T4..DSLL;XZU331..5F..DSL..IV4;XZU301..4FC..20T..IV6;XZU301..4FC..DSLL..IV4;XZU331..T3..4FC..(IV3,IV4);XZU301,306..T4..4FC..IV3..4NO;XZU301..(T3,T5)..4FC..(IV3,IV6);BU30#,XZU302,307,340..(T3,T4,T5)..(20T,35T,40T)..WT..DSL..IV3 ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 47323-37140 |
XZU347..DCB..5F;XZU341..6F..295T;XZU306..T5..DSLL;XZU347..DCB..T4..4FC;XZU341..(20T,30T)..(DSL,LPG);XZU302,342,347..SCB..(T2,T3,T4,T5)..WT..DSL;BU30#,346,RZU300,340,XZU300,301,306,307,33#,340,346,362,372,382..(T2,T3,T4,T5)..WT..(DSL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 47323-37200 |
XZU302..T4..20T..DSL;BU30#,RZU30#,XZU307..SCB..T4..5F..20T..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-37050 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47323-37070 |
XZU301..DSL..IV4;XZU306..T4..DSLL;XZU331..5F..DSL..IV4;XZU301..4FC..20T..IV6;XZU301..4FC..DSLL..IV4;XZU331..T3..4FC..(IV3,IV4);XZU301,306..T4..4FC..IV3..4NO;XZU301..(T3,T5)..4FC..(IV3,IV6);BU30#,XZU302,307,340..(T3,T4,T5)..(20T,35T,40T)..WT..DSL..IV3 ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 47323-37140 |
XZU347..DCB..5F;XZU341..6F..295T;XZU306..T5..DSLL;XZU347..DCB..T4..4FC;XZU341..(20T,30T)..(DSL,LPG);XZU302,342,347..SCB..(T2,T3,T4,T5)..WT..DSL;BU30#,346,RZU300,340,XZU300,301,306,307,33#,340,346,362,372,382..(T2,T3,T4,T5)..WT..(DSL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 47323-37200 |
XZU302..T4..20T..DSL;BU30#,RZU30#,XZU307..SCB..T4..5F..20T..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 90412-12051 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6) |
1 | ||
| 90904-13052 |
XZU307..SCB..T4..5F;XZU302..T4..20T..DSL;BU30#,RZU300..SCB..(T2,T4)..20T..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 90904-13052 |
XZU302..T4..20T;XZU307..03S..4FC;XZU307..(SCB,VAN)..(03S,T4)..5F;BU30#,RZU301..(SCB,VAN)..(03S,06S,T2,T4)..5F ﾅｼ(ABS) |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-37290 |
XZU341..LPG;XZU340..35T,40T;XZU331..T3..IV3;XZU301..20T..IV7;BU30#,XZU30#,330..(T3,T4,T5)..WT..(DSL,DSLL,LPG)..(IV3,IV7) |
1 | ||
| 47324-37310 |
XZU340..35T,40T;XZU341,342..LPG;XZU331..T3..IV3;XZU301..20T..(IV6,IV7);BU30#,XZU30#,330,350..(T3,T4,T5)..WT..(DSL,DSLL,LPG)..(IV3,IV6,IV7) |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-37210 |
XZU307..SCB..T4..5F;XZU302..T4..20T..DSL;BU30#,RZU30#..SCB..(T2,T4)..5F..20T..(DSL,LPG) |
1 | ||
| 47325-37150 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-37170 |
XZU347..SCB;XZU347..DCB..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;BZU300,RZU300,XZU300,301,302..SCB..T3..(DSL,EFI,LPG);BZU300,RZU300,XZU301,302,306..(T2,T4,T5)..20T..WT..(CNG,DSL,EFI,LPG);BU30#,346,BZU340,RZU301,340,XZU307,33#,340,341,342,346,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-37200 |
BU30#,BZU300,RZU30#,XZU302,306,307,337..(03S,06S,T2,T4)..20T |
1 | ||
| 47327-37530 |
XZU307..SCB..T4..5F;XZU302..T4..20T..DSL;BU30#,RZU300..SCB..(T2,T4)..20T..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 47327-37530 |
XZU302..T4..20T;XZU307..03S..4FC;XZU307..(SCB,VAN)..(03S,T4)..5F;BU30#,RZU301..(SCB,VAN)..(03S,06S,T2,T4)..5F ﾅｼ(ABS) |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-37010 |
XZU347..SCB;XZU347..DCB..5F;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;BZU300,RZU300,XZU300,301,302..SCB..T3..(DSL,EFI,LPG);BZU300,RZU300,XZU301,302,306..(T2,T4,T5)..20T..WT..(CNG,DSL,EFI,LPG);BU30#,346,BZU340,RZU301,340,XZU307,33#,340,341,342,346,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-37060 |
BU30#,BZU300,RZU30#,XZU302,306,307,337..(03S,06S,T2,T4)..20T |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-37050 |
BU30#,346,BZU300,340,RZU30#,340,XZU302,306,307,31#,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47345-37050 |
BU30#,346,BZU300,340,RZU30#,340,XZU302,306,307,31#,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-37110 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6) |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47353-37240 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BZU300,RZU300,XZU301,302..(T2,T4,T5)..20T..WT;BU30#,346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 47390 - VALVE ASSY, HILL HOLDER BRAKE LOCK | ||||
| 47390-37011 |
XZU301,306..T4..4FC..IV3..4NO;XZU302,307..(DM6,T4,T5)..4FC..WT..IV3;XZU301,331..(DM6,T3,T5)..4FC..(IV3,IV4,IV6) |
1 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-37020 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(03S,06S,T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47931-37020 |
XZU302..T4..20T;BU30#,RZU301,XZU307..SCB..T4..5F |
1 | ||
| Common parts | ||||
| 90034-61046 | ||||
| 90119-08676 | ||||
| 90119-08A33 | ||||
| 90464-00778 | ||||
| 90464-00833 | ||||
| 90467-14006 | ||||
| 90468-08035 | ||||
| 90480-01577 | ||||
| 90949-01006 | ||||
| 90949-01970 | ||||
| 90959-01594 | ||||
| 90959-01595 | ||||
| 91612-B1020 | ||||
| 91615-60816 | ||||
| 91641-K0816 | ||||
| 91651-60614 | ||||
| 94130-00802 | ||||
| 94150-80800 | ||||
ILLUST NO. 1 OF 4(0206-0406)IV6..4NO ; (0206-0406)4FC..295T..DSL; (0206-0406)XZU307..SCB..T4..5F ;
ﾅｼ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-37161 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 47311-37160 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 47391-37010 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-37370 |
XZU307..SCB..T4..5F;XZU302..T4..20T..DSL ﾅｼ(ABS) |
1 | ||
| 47311-37180 |
XZU300,301,302,306,307,33#,340,341,342,346,347,350..(DCB,SCB)..(DSL,DSLL) |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02A79 |
XZU362..4NO;BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35# |
2 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02A79 |
XZU362..4NO;BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35# |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37060 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-37140 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47313-37240 |
XZU302..T4..20T..DSL;BU30#,RZU300,XZU307,351,352..SCB..(DM5,T4)..5F..20T..(DSL,DSLL,LPG) ﾅｼ(ABS) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A72 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 右側 |
1 | ||
| 90947-02B27 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 左側 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A72 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 右側 |
1 | ||
| 90947-02B27 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 左側 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
4 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-37070 |
XZU301..20T..(IV6,IV7);BU301,RZU300,340,XZU300,301,302,330,331,340,341,342..(T1,T2,T3,T4,T5)..(175T,20T,295T,30T) |
1 | ||
| 47315-37071 |
XZU301..20T..(IV6,IV7);BU301,RZU300,340,XZU300,301,302,330,331,340,341,342..(T1,T2,T3,T4,T5)..(175T,20T,295T,30T) |
1 | ||
| 47315-37072 |
XZU301..20T..(IV6,IV7);BU301,RZU300,340,XZU300,301,302,330,331,340,341,342..(T1,T2,T3,T4,T5)..(175T,20T,295T,30T) |
1 | ||
| 47315-37072 |
XZU301..20T..(IV6,IV7);BU301,RZU300,340,XZU300,301,302,330,331,340,341,342..(T1,T2,T3,T4,T5)..(175T,20T,295T,30T)..(CNG,DSL,EFI,LPG) |
1 | ||
| 47315-37072 |
XZU301..20T..(IV6,IV7);BU301,BZU300,340,RZU30#,340,XZU300,301,302,330,331,340,341,342..(T1,T2,T3,T4,T5)..(175T,20T,295T,30T) |
1 | ||
| 47315-37370 |
XZU302..T4..20T..DSL;BU301,RZU30#..5F..20T..WT..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 47315-37073 |
XZU301..20T..(IV6,IV7);BU301,BZU300,340,RZU30#,340,XZU300,301,302,330,331,340,341,342..(T1,T2,T3,T4,T5)..(175T,20T,295T,30T) |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-37040 |
XZU300,301,302,340,341,342..SCB..(20T,295T,30T)..(DSL,DSLL) |
1 | ||
| 47317-37041 |
XZU300,301,302,340,341,342..SCB..(20T,295T,30T)..(DSL,DSLL) |
1 | ||
| 47317-37042 |
XZU300,301,302,340,341,342..SCB..(20T,295T,30T)..(DSL,DSLL) |
1 | ||
| 47317-37430 |
XZU302..T4..20T..DSL;BU301,RZU30#..5F..20T..WT..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37160 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 47321G - TUBE, REAR BRAKE, FRAME NO.1 | ||||
| 47321-37180 |
XZU300,301,302,306,307,33#,340,341,342,346,347,350..(DCB,SCB)..(DSL,DSLL) |
1 | ||
| 47321-37360 |
XZU307..SCB..T4..5F;XZU302..T4..20T..DSL ﾅｼ(ABS) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37200 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.1 |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-37130 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-37050 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-37150 |
XZU312..DCB;XZU322..T5..5F;XZU321..DM7..4NO;XZU302..20T..DSL;XZU301..T4..4FC..4NO;XZU301..4FC..20T..4NO;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);RZU300,XZU341,342..DSL,DSLL,EFI;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BZU300,XZU322,351..DM2,DM5,DM6,DM7,DM8,T3,T4;BU301,BZU340,RZU301,340,XZU300,330,331,340,352..(DM2,DM5,T1,T3,T4,T5)..(175T,20T,30T)..(CNG,DSL,EFI,LPG) |
1 | ||
| 47354 - BRACKET, FRONT FLEXIBLE HOSE | ||||
| 47351-37240 |
BU306,346,XZU30#,33#,34# |
1 | ||
| 47354-37111 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,33#,340,341,342,346,347,350,362,37#,382 |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-37160 |
XZU312..DCB;XZU322..T5..5F;XZU321..DM7..4NO;XZU302..20T..DSL;XZU301..T4..4FC..4NO;XZU301..4FC..20T..4NO;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);RZU300,XZU341,342..DSL,DSLL,EFI;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BZU300,XZU322,351..DM2,DM5,DM6,DM7,DM8,T3,T4;BU301,BZU340,RZU301,340,XZU300,330,331,340,352..(DM2,DM5,T1,T3,T4,T5)..(175T,20T,30T)..(CNG,DSL,EFI,LPG) |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-37030 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-37060 |
XZU302..T4..20T..DSL;BU30#,RZU300,XZU307,351,352..SCB..(DM5,T4)..5F..20T..(DSL,DSLL,LPG) |
1 | ||
| 47391-37060 |
XZU302..T4..20T;XZU307..03S..4FC;BU30#,RZU301,XZU307,351,352..(SCB,VAN)..(03S,06S,DM5,T4)..5F |
1 | ||
| Common parts | ||||
| 90119-08676 | ||||
| 90119-08A33 | ||||
| 90129-08007 | ||||
| 90464-00531 | ||||
| 90464-00726 | ||||
| 90467-14006 | ||||
| 90468-08035 | ||||
| 90480-01054 | ||||
| 90480-01275 | ||||
| 90480-01621 | ||||
| 90959-01593 | ||||
| 90959-01594 | ||||
| 90959-01595 | ||||
| 90959-01602 | ||||
| 90959-01604 | ||||
| 90959-01605 | ||||
| 90959-01616 | ||||
| 91611-G0820 | ||||
| Linked diagrams | ||||
| 3102 | ||||
ILLUST NO. 1 OF 4(0206-0406)XZU302..T4..20T..DSL ; (0206-0406)BU301,RZU30#..5F..20T..WT..DSL,LPG
ﾅｼ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-37161 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 47311-37160 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-37161 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 47311-37160 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 47391-37010 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02A79 |
XZU362..4NO;BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35# |
2 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02A79 |
XZU362..4NO;BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35# |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37060 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-37140 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47313-37240 |
XZU302..T4..20T..DSL;BU30#,RZU300,XZU307,351,352..SCB..(DM5,T4)..5F..20T..(DSL,DSLL,LPG) ﾅｼ(ABS) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A72 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 右側 |
1 | ||
| 90947-02B27 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 左側 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A72 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 右側 |
1 | ||
| 90947-02B27 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T 左側 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
4 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-37070 |
XZU301..20T..(IV6,IV7);BU301,RZU300,340,XZU300,301,302,330,331,340,341,342..(T1,T2,T3,T4,T5)..(175T,20T,295T,30T) |
1 | ||
| 47315-37071 |
XZU301..20T..(IV6,IV7);BU301,RZU300,340,XZU300,301,302,330,331,340,341,342..(T1,T2,T3,T4,T5)..(175T,20T,295T,30T) |
1 | ||
| 47315-37072 |
XZU301..20T..(IV6,IV7);BU301,RZU300,340,XZU300,301,302,330,331,340,341,342..(T1,T2,T3,T4,T5)..(175T,20T,295T,30T) |
1 | ||
| 47315-37072 |
XZU301..20T..(IV6,IV7);BU301,RZU300,340,XZU300,301,302,330,331,340,341,342..(T1,T2,T3,T4,T5)..(175T,20T,295T,30T)..(CNG,DSL,EFI,LPG) |
1 | ||
| 47315-37072 |
XZU301..20T..(IV6,IV7);BU301,BZU300,340,RZU30#,340,XZU300,301,302,330,331,340,341,342..(T1,T2,T3,T4,T5)..(175T,20T,295T,30T) |
1 | ||
| 47315-37370 |
XZU302..T4..20T..DSL;BU301,RZU30#..5F..20T..WT..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 47315-37073 |
XZU301..20T..(IV6,IV7);BU301,BZU300,340,RZU30#,340,XZU300,301,302,330,331,340,341,342..(T1,T2,T3,T4,T5)..(175T,20T,295T,30T) |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-37040 |
XZU300,301,302,340,341,342..SCB..(20T,295T,30T)..(DSL,DSLL) |
1 | ||
| 47317-37041 |
XZU300,301,302,340,341,342..SCB..(20T,295T,30T)..(DSL,DSLL) |
1 | ||
| 47317-37042 |
XZU300,301,302,340,341,342..SCB..(20T,295T,30T)..(DSL,DSLL) |
1 | ||
| 47317-37430 |
XZU302..T4..20T..DSL;BU301,RZU30#..5F..20T..WT..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37160 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37160 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37200 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 NO.1 |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-37130 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-37050 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352..175T,20T,295T,30T |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-37150 |
XZU312..DCB;XZU322..T5..5F;XZU321..DM7..4NO;XZU302..20T..DSL;XZU301..T4..4FC..4NO;XZU301..4FC..20T..4NO;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);RZU300,XZU341,342..DSL,DSLL,EFI;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BZU300,XZU322,351..DM2,DM5,DM6,DM7,DM8,T3,T4;BU301,BZU340,RZU301,340,XZU300,330,331,340,352..(DM2,DM5,T1,T3,T4,T5)..(175T,20T,30T)..(CNG,DSL,EFI,LPG) |
1 | ||
| 47354 - BRACKET, FRONT FLEXIBLE HOSE | ||||
| 47351-37240 |
BU306,346,XZU30#,33#,34# |
1 | ||
| 47354-37111 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,33#,340,341,342,346,347,350,362,37#,382 |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-37160 |
XZU312..DCB;XZU322..T5..5F;XZU321..DM7..4NO;XZU302..20T..DSL;XZU301..T4..4FC..4NO;XZU301..4FC..20T..4NO;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);RZU300,XZU341,342..DSL,DSLL,EFI;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BZU300,XZU322,351..DM2,DM5,DM6,DM7,DM8,T3,T4;BU301,BZU340,RZU301,340,XZU300,330,331,340,352..(DM2,DM5,T1,T3,T4,T5)..(175T,20T,30T)..(CNG,DSL,EFI,LPG) |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-37030 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-37060 |
XZU302..T4..20T..DSL;BU30#,RZU300,XZU307,351,352..SCB..(DM5,T4)..5F..20T..(DSL,DSLL,LPG) |
1 | ||
| 47391-37060 |
XZU302..T4..20T;XZU307..03S..4FC;BU30#,RZU301,XZU307,351,352..(SCB,VAN)..(03S,06S,DM5,T4)..5F |
1 | ||
| Common parts | ||||
| 90119-08676 | ||||
| 90119-08A33 | ||||
| 90129-08007 | ||||
| 90464-00531 | ||||
| 90464-00726 | ||||
| 90468-08035 | ||||
| 90480-01054 | ||||
| 90480-01275 | ||||
| 90480-01311 | ||||
| 90480-01621 | ||||
| 90959-01593 | ||||
| 90959-01594 | ||||
| 90959-01595 | ||||
| 90959-01602 | ||||
| 90959-01604 | ||||
| 90959-01605 | ||||
| 90959-01616 | ||||
| 91611-G0820 | ||||
| Linked diagrams | ||||
| 3102 | ||||
ILLUST NO. 2 OF 4(0206-0406)XZU302..T4..20T..DSL ; (0206-0406)BU30#,RZU30#,XZU307..SCB..T4..5F..20T.
ﾅｼ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-37050 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,32#,33#,340,341,342,346,347,350..DCB,SCB |
1 | ||
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37080 |
BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47312-37080 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306,307..(T2,T3,T4,T5)..4FC..CBU;BU30#,RZU300,XZU300,301,306,307,350..(DCB,SCB)..5F..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 47312-37080 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306..4FC..20T..DSLL;BU30#,BZU300,RZU30#,XZU300,350..DCB,SCB;XZU301,306,307..(DCB,SCB)..5F..(CBU,IV3,IV6);XZU301,306,307..(T2,T3,T4,T5)..4FC..DSL..CBU |
1 | ||
| 47313H - WAY, NO.3(FOR FRONT BRAKE TUBE) | ||||
| 90904-12076 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
1 | ||
| 90904-12076 |
BU30#,346,RZU300,340,XZU30#,31#,33#,34#,35#,362,37#,382 |
1 | ||
| 90904-12076 |
BU30#;XZU301..4FC..IV6;BU346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..CBU,IV3,IV4 |
1 | ||
| 90904-12076 |
XZU341..20T,30T;XZU341..6F..295T;BU30#,346,RZU300,340,XZU30#,31#,32#,33#,340,342,346,347,35#,362,37#,382..CBU,IV3,IV4,IV6 |
1 | ||
| 90904-12076 |
XZU341..20T,30T;XZU341..6F..295T;BU30#,346,RZU300,340,XZU30#,31#,32#,33#,340,342,346,347,35#,362,37#,382..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV4,IV6) |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B73 |
BU301,XZU300,301,302,31#,351,352..DM2,DM3,DM5,DM6,T4 |
2 | ||
| 90947-02B29 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6) |
2 | ||
| 90947-02B29 |
XZU307..SCB..T4..5F;XZU302..T4..20T..DSL;BU30#,RZU30#..SCB..(T2,T4)..5F..20T..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-37050 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47318-37070 |
XZU341..LPG;XZU340..35T,40T;XZU331..T3..IV3;XZU301..20T..IV7;BU30#,XZU30#,330..(T3,T4,T5)..WT..(DSL,DSLL,LPG)..(IV3,IV7) ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 47318-37230 |
XZU306..T4..DSLL;XZU301,306..T4..4FC..IV3..4NO;XZU301,331..(T3,T5)..4FC..IV3;BU30#,XZU302,307,340..(T3,T4,T5)..(20T,35T,40T)..WT..DSL..IV3 ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 47318-37140 |
XZU347..DCB..5F;XZU341..6F..295T;XZU306..T5..DSLL;XZU347..DCB..T4..4FC;XZU341..(20T,30T)..(DSL,LPG);XZU302,342,347..SCB..(T2,T3,T4,T5)..WT..DSL;BU30#,346,RZU300,340,XZU300,301,306,307,33#,340,346,362,372,382..(T2,T3,T4,T5)..WT..(DSL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 47318-37180 |
XZU302..T4..20T..DSL;BU30#,RZU30#,XZU307..SCB..T4..5F..20T..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90413-12009 |
XZU362..DM5,DM7;XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#..(DM3,T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 90412-12059 |
XZU362..DM5,DM7;XZU347..DCB..5F;XZU306..T5..DSLL;XZU341..6F..295T;XZU301..20T..IV7;XZU347..DCB..T4..4FC;XZU341..(20T,30T)..(DSL,LPG);XZU302,342,347..SCB..(DM3,T2,T3,T4,T5)..WT..DSL;BU30#,346,RZU300,340,XZU300,301,306,307,33#,340,346..(DM3,T2,T3,T4,T5)..WT..(DSL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 90412-10229 |
XZU302..T4..20T..DSL;BU30#,RZU30#,XZU307..SCB..T4..5F..20T..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37220 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306,307..(T2,T3,T4,T5)..4FC..CBU;BU30#,RZU300,XZU300,301,306,307,350..(DCB,SCB)..5F..(CNG,DSL,EFI,LPG)..(CBU,IV3,IV6) |
1 | ||
| 47322-37220 |
BU30#,RZU300,XZU30#,350..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 47322-37220 |
XZU302..DM3,T3,T4,T5;XZU302..5F..20T..1NO;XZU307..T2..4FC..IV3;XZU301..4FC..20T..4NO;XZU301,306..4FC..20T..DSLL;BU30#,BZU300,RZU30#,XZU300,350..DCB,SCB;XZU301,306,307..(DCB,SCB)..5F..(CBU,IV3,IV6);XZU301,306,307..(T2,T3,T4,T5)..4FC..DSL..CBU |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-37050 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47323-37070 |
XZU301..DSL..IV4;XZU306..T4..DSLL;XZU331..5F..DSL..IV4;XZU301..4FC..20T..IV6;XZU301..4FC..DSLL..IV4;XZU331..T3..4FC..(IV3,IV4);XZU301,306..T4..4FC..IV3..4NO;XZU301..(T3,T5)..4FC..(IV3,IV6);BU30#,XZU302,307,340..(T3,T4,T5)..(20T,35T,40T)..WT..DSL..IV3 ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 47323-37140 |
XZU347..DCB..5F;XZU341..6F..295T;XZU306..T5..DSLL;XZU347..DCB..T4..4FC;XZU341..(20T,30T)..(DSL,LPG);XZU302,342,347..SCB..(T2,T3,T4,T5)..WT..DSL;BU30#,346,RZU300,340,XZU300,301,306,307,33#,340,346,362,372,382..(T2,T3,T4,T5)..WT..(DSL,EFI,LPG)..(CBU,IV3) |
1 | ||
| 47323-37200 |
XZU302..T4..20T..DSL;BU30#,RZU30#,XZU307..SCB..T4..5F..20T..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 90412-12051 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BU30#,BZU300,RZU300,XZU301,302..(03S,06S,T2,T4,T5)..20T..WT;BU346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(03S,T2,T3,T4,T5)..(CBU,IV3,IV6) |
1 | ||
| 90904-13052 |
XZU307..SCB..T4..5F;XZU302..T4..20T..DSL;BU30#,RZU300..SCB..(T2,T4)..20T..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 90904-13052 |
XZU302..T4..20T;XZU307..03S..4FC;XZU307..(SCB,VAN)..(03S,T4)..5F;BU30#,RZU301..(SCB,VAN)..(03S,06S,T2,T4)..5F ﾅｼ(ABS) |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-37210 |
XZU307..SCB..T4..5F;XZU302..T4..20T..DSL;BU30#,RZU30#..SCB..(T2,T4)..5F..20T..(DSL,LPG) |
1 | ||
| 47325-37150 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-37200 |
BU30#,BZU300,RZU30#,XZU302,306,307,337..(03S,06S,T2,T4)..20T |
1 | ||
| 47327-37530 |
XZU307..SCB..T4..5F;XZU302..T4..20T..DSL;BU30#,RZU300..SCB..(T2,T4)..20T..(DSL,LPG) ﾅｼ(ABS) |
1 | ||
| 47327-37530 |
XZU302..T4..20T;XZU307..03S..4FC;XZU307..(SCB,VAN)..(03S,T4)..5F;BU30#,RZU301..(SCB,VAN)..(03S,06S,T2,T4)..5F ﾅｼ(ABS) |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-37060 |
BU30#,BZU300,RZU30#,XZU302,306,307,337..(03S,06S,T2,T4)..20T |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-37050 |
BU30#,346,BZU300,340,RZU30#,340,XZU302,306,307,31#,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47345-37050 |
BU30#,346,BZU300,340,RZU30#,340,XZU302,306,307,31#,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47353-37240 |
BZU300,RZU300,XZU300,301,302..SCB..T3;BZU300,RZU300,XZU301,302..(T2,T4,T5)..20T..WT;BU30#,346,BZU340,RZU301,340,XZU306,307,33#,340,341,342,346,347,350,362,372,382..(T2,T3,T4,T5)..WT..(CBU,IV3,IV6) |
1 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-37020 |
XZU301..20T..IV7;BU30#,346,RZU300,340,XZU30#,33#,34#,362,372,382..(03S,06S,T2,T3,T4,T5)..WT..(DSL,DSLL,EFI,LPG)..(CBU,IV3,IV7) |
1 | ||
| 47931-37020 |
XZU302..T4..20T;BU30#,RZU301,XZU307..SCB..T4..5F |
1 | ||
| Common parts | ||||
| 90034-61046 | ||||
| 90119-08676 | ||||
| 90119-08A33 | ||||
| 90119-08A46 | ||||
| 90464-00833 | ||||
| 90468-08035 | ||||
| 90949-01006 | ||||
| 90959-01594 | ||||
| 90959-01595 | ||||
| 91612-B1020 | ||||
| 91615-60816 | ||||
| 91651-60614 | ||||
| 94130-00802 | ||||
ILLUST NO. 2 OF 4(9905-0406)XZU410..4FC ; (9905-0406)XZU412..CNG; (9905-0406)XZU430..40TOV ; (9905-
ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸ & LSPV)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90034-61046 | ||||
| 90119-08676 | ||||
| 90119-08A46 | ||||
| 90129-08007 | ||||
| 90464-00778 | ||||
| 90467-14006 | ||||
| 90468-08035 | ||||
| 90480-01577 | ||||
| 90949-01006 | ||||
| 90949-01871 | ||||
| 90949-01970 | ||||
| 90959-01593 | ||||
| 90959-01594 | ||||
| 90959-01595 | ||||
| 91611-G0820 | ||||
| 91612-B1020 | ||||
| 91651-60614 | ||||
| 94130-00802 | ||||
ILLUST NO. 2 OF 4(9905-0406)BZU410 ; (9905-0406)XZU410..40T ; (9905-0406)XZU400..40T..IV3,IV6 ; (001
ﾅｼ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ & LSPV)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90034-61046 | ||||
| 90119-08676 | ||||
| 90119-08A46 | ||||
| 90129-08007 | ||||
| 90464-00778 | ||||
| 90467-14006 | ||||
| 90468-08035 | ||||
| 90480-01577 | ||||
| 90949-01970 | ||||
| 90959-01593 | ||||
| 90959-01594 | ||||
| 90959-01595 | ||||
| 91611-G0820 | ||||
| 91612-B1020 | ||||
| 91641-K0816 | ||||
ILLUST NO. 2 OF 4(9905-0406)5F..DSLL ; (9905-0406)T4..30T..DSLL ;(9905-0406)XZU421..5F..IV3 ; (9905
ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸｼｽﾃﾑ) & ﾅｼ(LSPV)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90034-61046 | ||||
| 90119-08676 | ||||
| 90119-08A46 | ||||
| 90129-08007 | ||||
| 90464-00778 | ||||
| 90467-14006 | ||||
| 90468-08035 | ||||
| 90480-01577 | ||||
| 90949-01970 | ||||
| 90959-01593 | ||||
| 90959-01594 | ||||
| 90959-01595 | ||||
| 91611-G0820 | ||||
| 91612-B1020 | ||||
| 91641-K0816 | ||||
ILLUST NO. 1 OF 4(0310-0406)XZU414..30T..DCRL,DSLL ; (0406- )XZU424..6F..35T..DCRL,DCRTK..IV3 ; (
ｱﾘ(ﾌﾞﾚ-ｷﾛﾂｸ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08676 | ||||
| 90129-08007 | ||||
| 90464-00726 | ||||
| 90468-08035 | ||||
| 90480-01054 | ||||
| 90480-01275 | ||||
| 90480-01311 | ||||
| 90480-01621 | ||||
| 90949-01540 | ||||
| 90959-01595 | ||||
| 90959-01602 | ||||
| 90959-01603 | ||||
| 90959-01605 | ||||
| 90959-01616 | ||||
| 91551-80814 | ||||
| 91611-B0816 | ||||
| 91611-G0820 | ||||
| 91641-K0816 | ||||
| 94130-00802 | ||||
| Linked diagrams | ||||
| 3102 | ||||
ILLUST NO. 4 OF 4(9905-0011)XZU382 ; (9905-0012)DSL,DSLL,TDEFI..CBU,IV3
ｱﾘ(LSPV)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08A33 | ||||
| 90170-08016 | ||||
| 90179-08204 | ||||
| 90201-08062 | ||||
| 90201-23360 | ||||
| 91131-50840 | ||||
| 91611-B0816 | ||||
| 94110-40800 | ||||
| 94612-10800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
