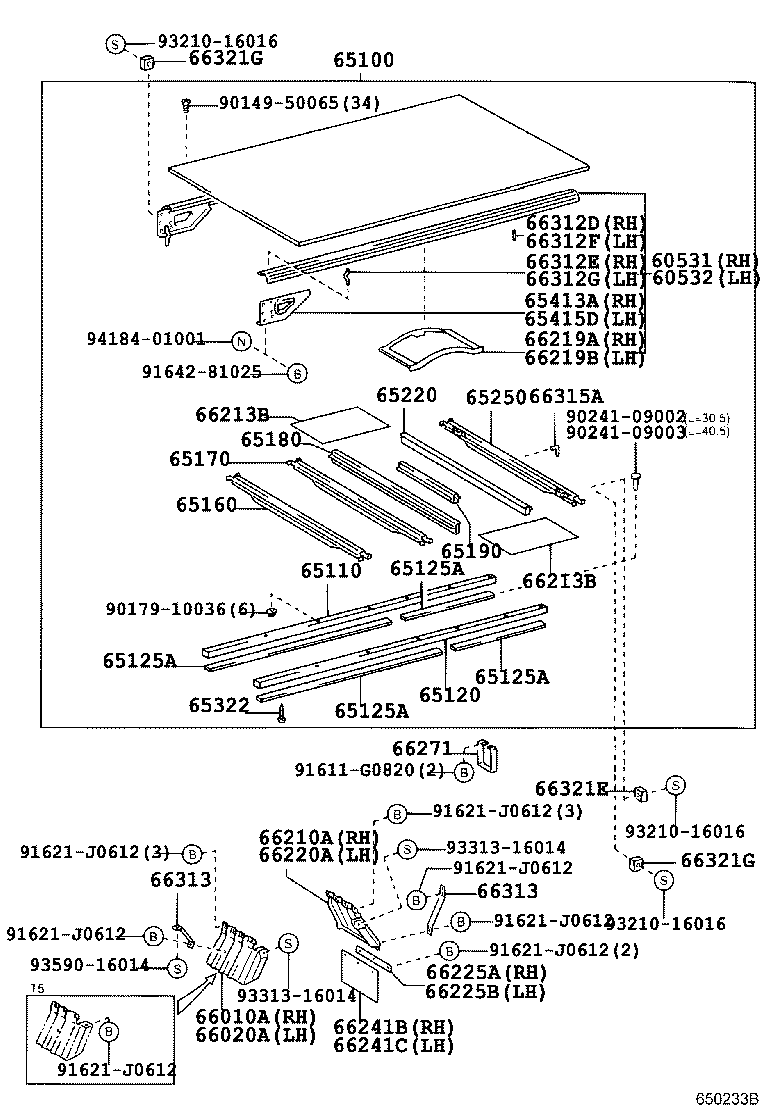

XZU302-TPPLS (1999)
Toyota Dyna/Toyoace
(9905-0206)BU30#,XZU302,306,307..SCB..T4,T5..20T..CBU
TECS=ﾊﾟﾜ-ﾘﾌﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 60531 - FRAME SUB-ASSY, FLOOR SIDE, RH | ||||
| 60531-37180 |
BU301,XZU302..T5..ST..CBU |
1 | ||
| 60531-37690 |
BU301,XZU302..T5..ST..CBU |
1 | ||
| 60532 - FRAME SUB-ASSY, FLOOR SIDE, LH | ||||
| 60532-37170 |
BU301,XZU302..T5..ST..CBU |
1 | ||
| 60532-37690 |
BU301,XZU302..T5..ST..CBU |
1 | ||
| 65100 - FLOOR ASSY, REAR BODY | ||||
| 60530-37120 |
BU301,XZU302..T5..ST..CBU *** |
1 | ||
| 60530-3V440 |
BU301,XZU302..T5..ST..CBU *** |
1 | ||
| 65110 - SILL ASSY, MAIN, RH | ||||
| 65110-37790 |
XZU306..T5..5F..CBU;BU30#,XZU301,302,307..T5..20T..CBU |
1 | ||
| 65120 - SILL ASSY, MAIN, LH | ||||
| 65120-37790 |
XZU306..T5..5F..CBU;BU30#,XZU301,302,307..T5..20T..CBU |
1 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37480 |
BU30#,XZU301,302,306,307..T5..CBU ﾌﾛﾝﾄ |
2 | ||
| 65127-37420 |
BU30#,XZU301,302,306,307..T5..CBU ﾘﾔ右側,ﾘﾔ左側 |
1 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37480 |
BU30#,XZU301,302,306,307..T5..CBU ﾌﾛﾝﾄ |
2 | ||
| 65127-37420 |
BU30#,XZU301,302,306,307..T5..CBU ﾘﾔ右側,ﾘﾔ左側 |
1 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37480 |
BU30#,XZU301,302,306,307..T5..CBU ﾌﾛﾝﾄ |
2 | ||
| 65127-37420 |
BU30#,XZU301,302,306,307..T5..CBU ﾘﾔ右側,ﾘﾔ左側 |
1 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37480 |
BU30#,XZU301,302,306,307..T5..CBU ﾌﾛﾝﾄ |
2 | ||
| 65127-37420 |
BU30#,XZU301,302,306,307..T5..CBU ﾘﾔ右側,ﾘﾔ左側 |
1 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65160-37370 |
BZU300..T4..CNG;XZU306..T5..5F..CBU;XZU301,302..(T4,T5)..20T..CBU;RZU300,XZU306..SCB..(T2,T4)..CBU;BU30#,BZU300,RZU301,XZU300,307,337..SCB..(T4,T5)..CBU |
1 | ||
| 65170 - SILL ASSY, CROSS, NO.2 | ||||
| 65240-37280 |
BZU300..T4..CNG;XZU306..T4..CBU;XZU306..T5..5F..CBU;BU30#,XZU301,302,307..SCB..(T4,T5)..20T..CBU |
1 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65180-37260 |
XZU301..T4..LPG;RZU300..SCB..(T2,T4)..CBU;BU30#,XZU30#..SCB..(T4,T5)..CBU |
1 | ||
| 65180-37400 |
BZU300..T4..CNG;RZU300..30T..LPG;RZU300..(T2,T4)..CBU;BU30#,BZU300,RZU301,XZU300,301,302,306,307..(T4,T5)..CBU |
1 | ||
| 65190 - SILL ASSY, CROSS, NO.5 | ||||
| 65190-37080 |
BZU300..T4..CNG;XZU306..T5..5F..CBU;RZU300,XZU306..(T2,T4)..CBU;XZU301,302..(T4,T5)..CBU..4NO;BU30#,BZU300,RZU301,XZU300,307,337..(T4,T5)..CBU |
1 | ||
| 65220 - SILL ASSY, CROSS, NO.4 | ||||
| 65180-37260 |
RZU300..(T2,T4)..CBU;BU30#,XZU30#,337..(T4,T5)..CBU |
1 | ||
| 65180-37400 |
XZU301,302..(T4,T5)..20T..CBU;XZU300,306,307,337..(T4,T5)..CBU |
1 | ||
| 65250 - SILL ASSY, CROSS, NO.2 | ||||
| 65160-37350 |
RZU300..20T..CBU;BU30#,XZU301,302,306,307..(T4,T5)..20T..CBU |
1 | ||
| 65160-37370 |
RZU300..20T..CBU;RZU300..30T..LPG;BU30#,XZU301,302,306,307..(T4,T5)..20T..DSL..CBU |
1 | ||
| 65322 - NAIL | ||||
| 65322-92820 |
XZU301,302,372..(T3,T5)..20T..CBU;BU30#,XZU306,307,330,331..(T3,T5)..CBU |
1 | ||
| 65322-92820 |
XZU301,302..T5..20T..CBU;BU30#,XZU306,307,330,331..(T3,T5)..CBU |
1 | ||
| 65413A - BRACKET, GUARD FRAME, RH | ||||
| 65413-37050 |
XZU301..T4..LPG;BU30#,RZU300,XZU30#,322,337..(T2,T4,T5)..CBU |
1 | ||
| 65413-37050 |
BZU300..T4..CNG;RZU300,XZU301,302..T4..(CNG,LPG);BU30#,BZU300,RZU30#,XZU300,301,302,306,307,322,337..(T2,T4,T5)..CBU |
1 | ||
| 65415D - BRACKET, GUARD FRAME, LH | ||||
| 65415-37030 |
XZU301..T4..LPG;BU30#,RZU300,XZU30#,322,337..(T2,T4,T5)..CBU |
1 | ||
| 65415-37030 |
BZU300..T4..CNG;RZU300,XZU301,302..T4..(CNG,LPG);BU30#,BZU300,RZU30#,XZU300,301,302,306,307,322,337..(T2,T4,T5)..CBU |
1 | ||
| 66010A - FENDER ASSY, REAR NO.2 RH | ||||
| 66010-37050 |
BU301,XZU302..T5..ST..CBU |
1 | ||
| 66020A - FENDER ASSY, REAR NO.2 LH | ||||
| 66020-37050 |
BU301,XZU302..T5..ST..CBU |
1 | ||
| 66210A - FENDER ASSY, REAR NO.1 RH | ||||
| 66210-37110 |
BU301,XZU302..T5..ST..CBU |
1 | ||
| 66213B - PLATE, REAR FENDER, UPPER | ||||
| 66213-37180 |
XZU301..T4..LPG;RZU300..SCB..CBU;BU306,XZU307..SCB..(T4,T5)..CBU;BU301,346,RZU340,XZU300,301,302,306,33#,34#,362,372,382..(T3,T4,T5)..CBU |
2 | ||
| 66213-37110 |
BU306,XZU307..SCB..(T4,T5)..CBU;BU301,346,XZU300,301,302,306,33#,34#,362,372,382..(T3,T4,T5)..CBU |
2 | ||
| 66213B - PLATE, REAR FENDER, UPPER | ||||
| 66213-37180 |
XZU301..T4..LPG;RZU300..SCB..CBU;BU306,XZU307..SCB..(T4,T5)..CBU;BU301,346,RZU340,XZU300,301,302,306,33#,34#,362,372,382..(T3,T4,T5)..CBU |
2 | ||
| 66213-37110 |
BU306,XZU307..SCB..(T4,T5)..CBU;BU301,346,XZU300,301,302,306,33#,34#,362,372,382..(T3,T4,T5)..CBU |
2 | ||
| 66219A - EXTENSION, REAR FENDER | ||||
| 66219-37080 |
BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU |
1 | ||
| 66219B - EXTENSION, REAR FENDER | ||||
| 66219-37080 |
BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU |
1 | ||
| 66220A - FENDER ASSY, REAR NO.1 LH | ||||
| 66220-37090 |
BU301,XZU302..T5..ST..CBU |
1 | ||
| 66225A - SUPPORT, BAFFLE RUBBER | ||||
| 66242-37070 |
RZU300..20T..CBU;BU30#,XZU301,302,306,307..T5..20T..CBU 長さ=215 |
1 | ||
| 66242-37200 |
BZU300..T4..CNG;RZU300,XZU302..20T..(CNG,LPG);BU30#,BZU300,RZU30#,XZU301,302,306,307,337..(T2,T4,T5)..20T..CBU 長さ=175 |
1 | ||
| 66225B - SUPPORT, BUFFLE RUBBER | ||||
| 66242-37200 |
BU301,XZU302..T5..ST..CBU 長さ=175 |
1 | ||
| 66242-37070 |
BU301,XZU302..T5..ST..CBU 長さ=215 |
1 | ||
| 66241B - BAFFLE, RUBBER | ||||
| 66241-37090 |
BU301,XZU302..T5..ST..CBU TOYOTA |
1 | ||
| 66241-37700 |
BU301,XZU302..T5..ST..CBU DAIHATSU |
1 | ||
| 66241-37160 |
BU301,XZU302..T5..ST..CBU HINO |
1 | ||
| 66241-3V450 |
XZU302..CNG;BU30#,XZU301,302,306,307..T5..20T..CBU DAIHATSU |
1 | ||
| 66241-3V130 |
BZU300,XZU302..T4..CNG;BU30#,XZU301,302,306,307..T5..20T..CBU TOYOTA |
1 | ||
| 66241-3V290 |
BZU300,XZU302..T4..CNG;BU30#,XZU301,302,306,307..T5..20T..CBU HINO |
1 | ||
| 66241C - BUFFLE, RUBBER | ||||
| 66241-37160 |
BU301,XZU302..T5..ST..CBU HINO |
1 | ||
| 66241-37700 |
BU301,XZU302..T5..ST..CBU DAIHATSU |
1 | ||
| 66241-3V580 |
BU301,XZU302..T5..ST..CBU DAIHATSU |
1 | ||
| 66241-37090 |
BU301,XZU302..T5..ST..CBU TOYOTA |
1 | ||
| 66241-3V260 |
BU301,XZU302..T5..ST..CBU TOYOTA |
1 | ||
| 66241-3V420 |
BU301,XZU302..T5..ST..CBU HINO |
1 | ||
| 66271 - STEP, REAR BODY | ||||
| 66271-37010 |
BU30#,XZU301,302,306,307,322,362..(T2,T4,T5)..CBU..4NO |
1 | ||
| 66312D - HOOK, ROPE, NO.2 | ||||
| 66311-37020 |
BU30#,RZU300,XZU30#,322,33#,362,372..SCB..(T2,T3,T4,T5)..CBU |
6 | ||
| 66311-37020 |
BZU300..T4..CNG;RZU300,XZU301,302..(T3,T4)..(CNG,LPG);BU30#,BZU300,RZU30#,XZU300,301,302,306,307,322,33#,362,372..SCB..(T2,T3,T4,T5)..CBU |
6 | ||
| 66312E - HOOK, ROPE, NO.2 | ||||
| 66312-37020 |
XZU301..T3..LPG;BZU300,340..T4..CNG;RZU300,XZU302,341,342..CNG,LPG;BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU |
1 | ||
| 66312-37020 |
BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU |
1 | ||
| 66312F - HOOK, ROPE, NO.2 | ||||
| 66311-37020 |
BU30#,RZU300,XZU30#,322,33#,362,372..SCB..(T2,T3,T4,T5)..CBU |
6 | ||
| 66311-37020 |
BZU300..T4..CNG;RZU300,XZU301,302..(T3,T4)..(CNG,LPG);BU30#,BZU300,RZU30#,XZU300,301,302,306,307,322,33#,362,372..SCB..(T2,T3,T4,T5)..CBU |
6 | ||
| 66312G - HOOK, ROPE, NO.2 | ||||
| 66312-37020 |
XZU301..T4..LPG;BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU |
1 | ||
| 66312-37020 |
BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU |
1 | ||
| 66313 - SUPPORT, REAR FENDER | ||||
| 66235-37090 |
XZU301..T4..LPG;BU30#,346,RZU300,XZU30#,322,330,331,34#,372,382..(T3,T5)..CBU ﾘﾔ |
2 | ||
| 66236-37010 |
XZU301..T4..LPG;BU306,RZU300,XZU307..SCB..CBU;BU301,346,RZU340,XZU300,301,302,306,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU ﾌﾛﾝﾄ |
2 | ||
| 66313 - SUPPORT, REAR FENDER | ||||
| 66235-37090 |
XZU301..T4..LPG;BU30#,346,RZU300,XZU30#,322,330,331,34#,372,382..(T3,T5)..CBU ﾘﾔ |
2 | ||
| 66236-37010 |
XZU301..T4..LPG;BU306,RZU300,XZU307..SCB..CBU;BU301,346,RZU340,XZU300,301,302,306,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU ﾌﾛﾝﾄ |
2 | ||
| 66315A - HOOK, ROPE | ||||
| 66315-37010 |
BZU300..T4..CNG;RZU300,XZU301,302..T4..(CNG,LPG);BU30#,BZU300,RZU30#,XZU300,301,302,306,307,337,362..(T2,T4,T5)..CBU |
2 | ||
| 66315-37010 |
BU30#,RZU300,XZU30#,322,337,362..(T2,T4,T5)..CBU |
2 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66321-92803 |
BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU |
2 | ||
| 66321-92803 |
BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU |
2 | ||
| 66321G - BUMPER, GATE RUBBER | ||||
| 66321-92805 |
BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU |
4 | ||
| 66321-92805 |
BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU |
4 | ||
| 66321G - BUMPER, GATE RUBBER | ||||
| 66321-92805 |
BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU |
4 | ||
| 66321-92805 |
BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU |
4 | ||
| Common parts | ||||
| 90149-50065 | ||||
| 90179-10036 | ||||
| 90241-09002 | ||||
| 90241-09003 | ||||
| 91611-G0820 | ||||
| 91621-J0612 | ||||
| 91642-81025 | ||||
| 93210-16016 | ||||
| 93313-16014 | ||||
| 93590-16014 | ||||
| 94184-01001 | ||||
(0206-0406)BU30#,XZU301,302,304,306,307..T4,T5..CBU
TECS=ﾊﾟﾜ-ﾘﾌﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 60531 - FRAME SUB-ASSY, FLOOR SIDE, RH | ||||
| 60531-37180 |
BU301,XZU302..T5..ST..CBU |
1 | ||
| 60531-37690 |
BU301,XZU302..T5..ST..CBU |
1 | ||
| 60532 - FRAME SUB-ASSY, FLOOR SIDE, LH | ||||
| 60532-37170 |
BU301,XZU302..T5..ST..CBU |
1 | ||
| 60532-37690 |
BU301,XZU302..T5..ST..CBU |
1 | ||
| 65100 - FLOOR ASSY, REAR BODY | ||||
| 60530-37120 |
BU301,XZU302..T5..ST..CBU *** |
1 | ||
| 60530-3V440 |
BU301,XZU302..T5..ST..CBU *** |
1 | ||
| 65110 - SILL ASSY, MAIN, RH | ||||
| 65110-37790 |
XZU306..T5..5F..CBU;BU30#,XZU301,302,307..T5..20T..CBU |
1 | ||
| 65120 - SILL ASSY, MAIN, LH | ||||
| 65120-37790 |
XZU306..T5..5F..CBU;BU30#,XZU301,302,307..T5..20T..CBU |
1 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37480 |
BU30#,XZU301,302,306,307..T5..CBU ﾌﾛﾝﾄ |
2 | ||
| 65127-37420 |
BU30#,XZU301,302,306,307..T5..CBU ﾘﾔ右側,ﾘﾔ左側 |
1 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37480 |
BU30#,XZU301,302,306,307..T5..CBU ﾌﾛﾝﾄ |
2 | ||
| 65127-37420 |
BU30#,XZU301,302,306,307..T5..CBU ﾘﾔ右側,ﾘﾔ左側 |
1 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37480 |
BU30#,XZU301,302,306,307..T5..CBU ﾌﾛﾝﾄ |
2 | ||
| 65127-37420 |
BU30#,XZU301,302,306,307..T5..CBU ﾘﾔ右側,ﾘﾔ左側 |
1 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37480 |
BU30#,XZU301,302,306,307..T5..CBU ﾌﾛﾝﾄ |
2 | ||
| 65127-37420 |
BU30#,XZU301,302,306,307..T5..CBU ﾘﾔ右側,ﾘﾔ左側 |
1 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65160-37370 |
BZU300..T4..CNG;XZU306..T5..5F..CBU;XZU301,302..(T4,T5)..20T..CBU;RZU300,XZU306..SCB..(T2,T4)..CBU;BU30#,BZU300,RZU301,XZU300,307,337..SCB..(T4,T5)..CBU |
1 | ||
| 65170 - SILL ASSY, CROSS, NO.2 | ||||
| 65240-37280 |
BZU300..T4..CNG;XZU306..T4..CBU;XZU306..T5..5F..CBU;BU30#,XZU301,302,307..SCB..(T4,T5)..20T..CBU |
1 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65180-37260 |
XZU301..T4..LPG;RZU300..SCB..(T2,T4)..CBU;BU30#,XZU30#..SCB..(T4,T5)..CBU |
1 | ||
| 65180-37400 |
BZU300..T4..CNG;RZU300..30T..LPG;RZU300..(T2,T4)..CBU;BU30#,BZU300,RZU301,XZU300,301,302,306,307..(T4,T5)..CBU |
1 | ||
| 65190 - SILL ASSY, CROSS, NO.5 | ||||
| 65190-37080 |
BZU300..T4..CNG;XZU306..T5..5F..CBU;RZU300,XZU306..(T2,T4)..CBU;XZU301,302..(T4,T5)..CBU..4NO;BU30#,BZU300,RZU301,XZU300,307,337..(T4,T5)..CBU |
1 | ||
| 65220 - SILL ASSY, CROSS, NO.4 | ||||
| 65180-37260 |
RZU300..(T2,T4)..CBU;BU30#,XZU30#,337..(T4,T5)..CBU |
1 | ||
| 65180-37400 |
XZU301,302..(T4,T5)..20T..CBU;XZU300,306,307,337..(T4,T5)..CBU |
1 | ||
| 65250 - SILL ASSY, CROSS, NO.2 | ||||
| 65160-37350 |
RZU300..20T..CBU;BU30#,XZU301,302,306,307..(T4,T5)..20T..CBU |
1 | ||
| 65160-37370 |
RZU300..20T..CBU;RZU300..30T..LPG;BU30#,XZU301,302,306,307..(T4,T5)..20T..DSL..CBU |
1 | ||
| 65322 - NAIL | ||||
| 65322-92820 |
XZU301,302,372..(T3,T5)..20T..CBU;BU30#,XZU306,307,330,331..(T3,T5)..CBU |
1 | ||
| 65322-92820 |
XZU301,302..T5..20T..CBU;BU30#,XZU306,307,330,331..(T3,T5)..CBU |
1 | ||
| 65349 - FENDER, FLOOR SIDE | ||||
| 65349-37010 |
BZU300,340..T4..CNG;BU306,XZU307,337..(T4,T5)..CBU;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU301,346,BZU300,340,RZU30#,340,XZU300,301,302,306,322,330,331,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU |
2 | ||
| 65413A - BRACKET, GUARD FRAME, RH | ||||
| 65413-37050 |
XZU301..T4..LPG;BU30#,RZU300,XZU30#,322,337..(T2,T4,T5)..CBU |
1 | ||
| 65413-37050 |
BZU300..T4..CNG;RZU300,XZU301,302..T4..(CNG,LPG);BU30#,BZU300,RZU30#,XZU300,301,302,306,307,322,337..(T2,T4,T5)..CBU |
1 | ||
| 65415D - BRACKET, GUARD FRAME, LH | ||||
| 65415-37030 |
XZU301..T4..LPG;BU30#,RZU300,XZU30#,322,337..(T2,T4,T5)..CBU |
1 | ||
| 65415-37030 |
BZU300..T4..CNG;RZU300,XZU301,302..T4..(CNG,LPG);BU30#,BZU300,RZU30#,XZU300,301,302,306,307,322,337..(T2,T4,T5)..CBU |
1 | ||
| 66219A - EXTENSION, REAR FENDER | ||||
| 66219-37080 |
BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU |
1 | ||
| 66219B - EXTENSION, REAR FENDER | ||||
| 66219-37080 |
BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU |
1 | ||
| 66225A - SUPPORT, BAFFLE RUBBER | ||||
| 66242-37070 |
RZU300..20T..CBU;BU30#,XZU301,302,306,307..T5..20T..CBU 長さ=215 |
1 | ||
| 66242-37200 |
BZU300..T4..CNG;RZU300,XZU302..20T..(CNG,LPG);BU30#,BZU300,RZU30#,XZU301,302,306,307,337..(T2,T4,T5)..20T..CBU 長さ=175 |
1 | ||
| 66225A - SUPPORT, BAFFLE RUBBER | ||||
| 66242-37070 |
RZU300..20T..CBU;BU30#,XZU301,302,306,307..T5..20T..CBU 長さ=215 |
1 | ||
| 66242-37200 |
BZU300..T4..CNG;RZU300,XZU302..20T..(CNG,LPG);BU30#,BZU300,RZU30#,XZU301,302,306,307,337..(T2,T4,T5)..20T..CBU 長さ=175 |
1 | ||
| 66225B - SUPPORT, BUFFLE RUBBER | ||||
| 66242-37200 |
BU301,XZU302..T5..ST..CBU 長さ=175 |
1 | ||
| 66242-37070 |
BU301,XZU302..T5..ST..CBU 長さ=215 |
1 | ||
| 66241B - BAFFLE, RUBBER | ||||
| 66241-37090 |
BU301,XZU302..T5..ST..CBU TOYOTA |
1 | ||
| 66241-37700 |
BU301,XZU302..T5..ST..CBU DAIHATSU |
1 | ||
| 66241-37160 |
BU301,XZU302..T5..ST..CBU HINO |
1 | ||
| 66241-3V450 |
XZU302..CNG;BU30#,XZU301,302,306,307..T5..20T..CBU DAIHATSU |
1 | ||
| 66241-3V130 |
BZU300,XZU302..T4..CNG;BU30#,XZU301,302,306,307..T5..20T..CBU TOYOTA |
1 | ||
| 66241-3V290 |
BZU300,XZU302..T4..CNG;BU30#,XZU301,302,306,307..T5..20T..CBU HINO |
1 | ||
| 66241C - BUFFLE, RUBBER | ||||
| 66241-37160 |
BU301,XZU302..T5..ST..CBU HINO |
1 | ||
| 66241-37700 |
BU301,XZU302..T5..ST..CBU DAIHATSU |
1 | ||
| 66241-3V580 |
BU301,XZU302..T5..ST..CBU DAIHATSU |
1 | ||
| 66241-37090 |
BU301,XZU302..T5..ST..CBU TOYOTA |
1 | ||
| 66241-3V260 |
BU301,XZU302..T5..ST..CBU TOYOTA |
1 | ||
| 66241-3V420 |
BU301,XZU302..T5..ST..CBU HINO |
1 | ||
| 66271 - STEP, REAR BODY | ||||
| 66271-37010 |
BU30#,XZU301,302,306,307,322,362..(T2,T4,T5)..CBU..4NO |
1 | ||
| 66312D - HOOK, ROPE, NO.2 | ||||
| 66311-37020 |
BU30#,RZU300,XZU30#,322,33#,362,372..SCB..(T2,T3,T4,T5)..CBU |
6 | ||
| 66311-37020 |
BZU300..T4..CNG;RZU300,XZU301,302..(T3,T4)..(CNG,LPG);BU30#,BZU300,RZU30#,XZU300,301,302,306,307,322,33#,362,372..SCB..(T2,T3,T4,T5)..CBU |
6 | ||
| 66312E - HOOK, ROPE, NO.2 | ||||
| 66312-37020 |
XZU301..T3..LPG;BZU300,340..T4..CNG;RZU300,XZU302,341,342..CNG,LPG;BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU |
1 | ||
| 66312-37020 |
BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU |
1 | ||
| 66312F - HOOK, ROPE, NO.2 | ||||
| 66311-37020 |
BU30#,RZU300,XZU30#,322,33#,362,372..SCB..(T2,T3,T4,T5)..CBU |
6 | ||
| 66311-37020 |
BZU300..T4..CNG;RZU300,XZU301,302..(T3,T4)..(CNG,LPG);BU30#,BZU300,RZU30#,XZU300,301,302,306,307,322,33#,362,372..SCB..(T2,T3,T4,T5)..CBU |
6 | ||
| 66312G - HOOK, ROPE, NO.2 | ||||
| 66312-37020 |
XZU301..T4..LPG;BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU |
1 | ||
| 66312-37020 |
BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU |
1 | ||
| 66315A - HOOK, ROPE | ||||
| 66315-37010 |
BZU300..T4..CNG;RZU300,XZU301,302..T4..(CNG,LPG);BU30#,BZU300,RZU30#,XZU300,301,302,306,307,337,362..(T2,T4,T5)..CBU |
2 | ||
| 66315-37010 |
BU30#,RZU300,XZU30#,322,337,362..(T2,T4,T5)..CBU |
2 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66321-92803 |
BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU |
2 | ||
| 66321-92803 |
BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU |
2 | ||
| 66321G - BUMPER, GATE RUBBER | ||||
| 66321-92805 |
BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU |
4 | ||
| 66321-92805 |
BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU |
4 | ||
| 66321G - BUMPER, GATE RUBBER | ||||
| 66321-92805 |
BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU |
4 | ||
| 66321-92805 |
BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU |
4 | ||
| Common parts | ||||
| 90119-08B66 | ||||
| 90149-50065 | ||||
| 90179-10036 | ||||
| 90241-09002 | ||||
| 90241-09003 | ||||
| 90467-06040 | ||||
| 91611-G0820 | ||||
| 91642-81025 | ||||
| 93210-16016 | ||||
| 94150-80600 | ||||
| 94184-01001 | ||||
(9905-0206)BU30#,RZU300,XZU30#..SCB..T3,T5
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 60531 - FRAME SUB-ASSY, FLOOR SIDE, RH | ||||
| 60531-37180 |
BU301,XZU302..T5..ST..CBU |
1 | ||
| 60531-37690 |
BU301,XZU302..T5..ST..CBU |
1 | ||
| 60532 - FRAME SUB-ASSY, FLOOR SIDE, LH | ||||
| 60532-37170 |
BU301,XZU302..T5..ST..CBU |
1 | ||
| 60532-37690 |
BU301,XZU302..T5..ST..CBU |
1 | ||
| 65026 - BRACKET SUB-ASSY, GATE RUBBER BUMPER, RH | ||||
| 65026-37020 |
XZU302..T3..CBU;XZU347..SCB..CBU;BZU300,340..T4..CNG;XZU301..(T3,T5)..CBU;XZU347..DCB..5F..CBU;XZU306,322..T5..5F..CBU;XZU301,306..T4..CBU..4NO;XZU302..(T4,T5)..CBU..4NO;XZU347..DCB..T4..4FC..CBU;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,33#,340,341,342,346,362,372..(T2,T3,T4,T5)..CBU |
1 | ||
| 65027 - BRACKET SUB-ASSY, GATE RUBBER BUMPER, LH | ||||
| 65027-37020 |
XZU302..T3..CBU;XZU347..SCB..CBU;BZU300,340..T4..CNG;XZU301..(T3,T5)..CBU;XZU347..DCB..5F..CBU;XZU306,322..T5..5F..CBU;XZU301,306..T4..CBU..4NO;XZU302..(T4,T5)..CBU..4NO;XZU347..DCB..T4..4FC..CBU;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,33#,340,341,342,346,362,372..(T2,T3,T4,T5)..CBU |
1 | ||
| 65100 - FLOOR ASSY, REAR BODY | ||||
| 60530-37120 |
BU301,XZU302..T5..ST..CBU *** |
1 | ||
| 60530-3V440 |
BU301,XZU302..T5..ST..CBU *** |
1 | ||
| 65110 - SILL ASSY, MAIN, RH | ||||
| 65110-37790 |
XZU306..T5..5F..CBU;BU30#,XZU301,302,307..T5..20T..CBU |
1 | ||
| 65120 - SILL ASSY, MAIN, LH | ||||
| 65120-37790 |
XZU306..T5..5F..CBU;BU30#,XZU301,302,307..T5..20T..CBU |
1 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37480 |
BU30#,XZU301,302,306,307..T5..CBU ﾌﾛﾝﾄ |
2 | ||
| 65127-37420 |
BU30#,XZU301,302,306,307..T5..CBU ﾘﾔ右側,ﾘﾔ左側 |
1 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37480 |
BU30#,XZU301,302,306,307..T5..CBU ﾌﾛﾝﾄ |
2 | ||
| 65127-37420 |
BU30#,XZU301,302,306,307..T5..CBU ﾘﾔ右側,ﾘﾔ左側 |
1 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37480 |
BU30#,XZU301,302,306,307..T5..CBU ﾌﾛﾝﾄ |
2 | ||
| 65127-37420 |
BU30#,XZU301,302,306,307..T5..CBU ﾘﾔ右側,ﾘﾔ左側 |
1 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37480 |
BU30#,XZU301,302,306,307..T5..CBU ﾌﾛﾝﾄ |
2 | ||
| 65127-37420 |
BU30#,XZU301,302,306,307..T5..CBU ﾘﾔ右側,ﾘﾔ左側 |
1 | ||
| 65137 - COVER, MAIN SILL END | ||||
| 65137-37010 |
BZU300,XZU302..T4..CNG;BU30#,XZU301,302,306,307..T5..20T..CBU |
2 | ||
| 65137-37010 |
BU30#,XZU301,302,306,307..T5..20T..CBU |
2 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65160-37370 |
BZU300..T4..CNG;XZU306..T5..5F..CBU;XZU301,302..(T4,T5)..20T..CBU;RZU300,XZU306..SCB..(T2,T4)..CBU;BU30#,BZU300,RZU301,XZU300,307,337..SCB..(T4,T5)..CBU |
1 | ||
| 65170 - SILL ASSY, CROSS, NO.2 | ||||
| 65240-37280 |
BZU300..T4..CNG;XZU306..T4..CBU;XZU306..T5..5F..CBU;BU30#,XZU301,302,307..SCB..(T4,T5)..20T..CBU |
1 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65180-37260 |
XZU301..T4..LPG;RZU300..SCB..(T2,T4)..CBU;BU30#,XZU30#..SCB..(T4,T5)..CBU |
1 | ||
| 65180-37400 |
BZU300..T4..CNG;RZU300..30T..LPG;RZU300..(T2,T4)..CBU;BU30#,BZU300,RZU301,XZU300,301,302,306,307..(T4,T5)..CBU |
1 | ||
| 65190 - SILL ASSY, CROSS, NO.5 | ||||
| 65190-37080 |
BZU300..T4..CNG;XZU306..T5..5F..CBU;RZU300,XZU306..(T2,T4)..CBU;XZU301,302..(T4,T5)..CBU..4NO;BU30#,BZU300,RZU301,XZU300,307,337..(T4,T5)..CBU |
1 | ||
| 65220 - SILL ASSY, CROSS, NO.4 | ||||
| 65180-37260 |
RZU300..(T2,T4)..CBU;BU30#,XZU30#,337..(T4,T5)..CBU |
1 | ||
| 65180-37400 |
XZU301,302..(T4,T5)..20T..CBU;XZU300,306,307,337..(T4,T5)..CBU |
1 | ||
| 65250 - SILL ASSY, CROSS, NO.2 | ||||
| 65160-37350 |
RZU300..20T..CBU;BU30#,XZU301,302,306,307..(T4,T5)..20T..CBU |
1 | ||
| 65160-37370 |
RZU300..20T..CBU;RZU300..30T..LPG;BU30#,XZU301,302,306,307..(T4,T5)..20T..DSL..CBU |
1 | ||
| 65307A - FRAME SUB-ASSY, FLOOR, REAR | ||||
| 65307-37230 |
BZU300..T4..CNG;XZU306..T5..5F..CBU;BU30#,XZU301,302,307..T5..CBU |
1 | ||
| 65322 - NAIL | ||||
| 65322-92820 |
XZU301,302,372..(T3,T5)..20T..CBU;BU30#,XZU306,307,330,331..(T3,T5)..CBU |
1 | ||
| 65322-92820 |
XZU301,302..T5..20T..CBU;BU30#,XZU306,307,330,331..(T3,T5)..CBU |
1 | ||
| 65413A - BRACKET, GUARD FRAME, RH | ||||
| 65413-37050 |
XZU301..T4..LPG;BU30#,RZU300,XZU30#,322,337..(T2,T4,T5)..CBU |
1 | ||
| 65413-37050 |
BZU300..T4..CNG;RZU300,XZU301,302..T4..(CNG,LPG);BU30#,BZU300,RZU30#,XZU300,301,302,306,307,322,337..(T2,T4,T5)..CBU |
1 | ||
| 65415D - BRACKET, GUARD FRAME, LH | ||||
| 65415-37030 |
XZU301..T4..LPG;BU30#,RZU300,XZU30#,322,337..(T2,T4,T5)..CBU |
1 | ||
| 65415-37030 |
BZU300..T4..CNG;RZU300,XZU301,302..T4..(CNG,LPG);BU30#,BZU300,RZU30#,XZU300,301,302,306,307,322,337..(T2,T4,T5)..CBU |
1 | ||
| 66010A - FENDER ASSY, REAR NO.2 RH | ||||
| 66010-37050 |
BU301,XZU302..T5..ST..CBU |
1 | ||
| 66020A - FENDER ASSY, REAR NO.2 LH | ||||
| 66020-37050 |
BU301,XZU302..T5..ST..CBU |
1 | ||
| 66210A - FENDER ASSY, REAR NO.1 RH | ||||
| 66210-37110 |
BU301,XZU302..T5..ST..CBU |
1 | ||
| 66213B - PLATE, REAR FENDER, UPPER | ||||
| 66213-37180 |
XZU301..T4..LPG;RZU300..SCB..CBU;BU306,XZU307..SCB..(T4,T5)..CBU;BU301,346,RZU340,XZU300,301,302,306,33#,34#,362,372,382..(T3,T4,T5)..CBU |
2 | ||
| 66213-37110 |
BU306,XZU307..SCB..(T4,T5)..CBU;BU301,346,XZU300,301,302,306,33#,34#,362,372,382..(T3,T4,T5)..CBU |
2 | ||
| 66213B - PLATE, REAR FENDER, UPPER | ||||
| 66213-37180 |
XZU301..T4..LPG;RZU300..SCB..CBU;BU306,XZU307..SCB..(T4,T5)..CBU;BU301,346,RZU340,XZU300,301,302,306,33#,34#,362,372,382..(T3,T4,T5)..CBU |
2 | ||
| 66213-37110 |
BU306,XZU307..SCB..(T4,T5)..CBU;BU301,346,XZU300,301,302,306,33#,34#,362,372,382..(T3,T4,T5)..CBU |
2 | ||
| 66219A - EXTENSION, REAR FENDER | ||||
| 66219-37080 |
BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU |
1 | ||
| 66219B - EXTENSION, REAR FENDER | ||||
| 66219-37080 |
BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU |
1 | ||
| 66220A - FENDER ASSY, REAR NO.1 LH | ||||
| 66220-37090 |
BU301,XZU302..T5..ST..CBU |
1 | ||
| 66225A - SUPPORT, BAFFLE RUBBER | ||||
| 66242-37070 |
RZU300..20T..CBU;BU30#,XZU301,302,306,307..T5..20T..CBU 長さ=215 |
1 | ||
| 66242-37200 |
BZU300..T4..CNG;RZU300,XZU302..20T..(CNG,LPG);BU30#,BZU300,RZU30#,XZU301,302,306,307,337..(T2,T4,T5)..20T..CBU 長さ=175 |
1 | ||
| 66225B - SUPPORT, BUFFLE RUBBER | ||||
| 66242-37200 |
BU301,XZU302..T5..ST..CBU 長さ=175 |
1 | ||
| 66242-37070 |
BU301,XZU302..T5..ST..CBU 長さ=215 |
1 | ||
| 66241B - BAFFLE, RUBBER | ||||
| 66241-37090 |
BU301,XZU302..T5..ST..CBU TOYOTA |
1 | ||
| 66241-37700 |
BU301,XZU302..T5..ST..CBU DAIHATSU |
1 | ||
| 66241-37160 |
BU301,XZU302..T5..ST..CBU HINO |
1 | ||
| 66241-3V450 |
XZU302..CNG;BU30#,XZU301,302,306,307..T5..20T..CBU DAIHATSU |
1 | ||
| 66241-3V130 |
BZU300,XZU302..T4..CNG;BU30#,XZU301,302,306,307..T5..20T..CBU TOYOTA |
1 | ||
| 66241-3V290 |
BZU300,XZU302..T4..CNG;BU30#,XZU301,302,306,307..T5..20T..CBU HINO |
1 | ||
| 66241C - BUFFLE, RUBBER | ||||
| 66241-37160 |
BU301,XZU302..T5..ST..CBU HINO |
1 | ||
| 66241-37700 |
BU301,XZU302..T5..ST..CBU DAIHATSU |
1 | ||
| 66241-3V580 |
BU301,XZU302..T5..ST..CBU DAIHATSU |
1 | ||
| 66241-37090 |
BU301,XZU302..T5..ST..CBU TOYOTA |
1 | ||
| 66241-3V260 |
BU301,XZU302..T5..ST..CBU TOYOTA |
1 | ||
| 66241-3V420 |
BU301,XZU302..T5..ST..CBU HINO |
1 | ||
| 66259A - COVER, REAR BODY FLOOR, REAR | ||||
| 66259-37010 |
BU30#,RZU300,XZU30#,322,337,362..(T2,T4,T5)..CBU |
2 | ||
| 66259-37010 |
BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU |
2 | ||
| 66271 - STEP, REAR BODY | ||||
| 66271-37010 |
BU30#,XZU301,302,306,307,322,362..(T2,T4,T5)..CBU..4NO |
1 | ||
| 66312D - HOOK, ROPE, NO.2 | ||||
| 66311-37020 |
BU30#,RZU300,XZU30#,322,33#,362,372..SCB..(T2,T3,T4,T5)..CBU |
6 | ||
| 66311-37020 |
BZU300..T4..CNG;RZU300,XZU301,302..(T3,T4)..(CNG,LPG);BU30#,BZU300,RZU30#,XZU300,301,302,306,307,322,33#,362,372..SCB..(T2,T3,T4,T5)..CBU |
6 | ||
| 66312E - HOOK, ROPE, NO.2 | ||||
| 66312-37020 |
XZU301..T3..LPG;BZU300,340..T4..CNG;RZU300,XZU302,341,342..CNG,LPG;BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU |
1 | ||
| 66312-37020 |
BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU |
1 | ||
| 66312F - HOOK, ROPE, NO.2 | ||||
| 66311-37020 |
BU30#,RZU300,XZU30#,322,33#,362,372..SCB..(T2,T3,T4,T5)..CBU |
6 | ||
| 66311-37020 |
BZU300..T4..CNG;RZU300,XZU301,302..(T3,T4)..(CNG,LPG);BU30#,BZU300,RZU30#,XZU300,301,302,306,307,322,33#,362,372..SCB..(T2,T3,T4,T5)..CBU |
6 | ||
| 66312G - HOOK, ROPE, NO.2 | ||||
| 66312-37020 |
XZU301..T4..LPG;BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU |
1 | ||
| 66312-37020 |
BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU |
1 | ||
| 66313 - SUPPORT, REAR FENDER | ||||
| 66235-37090 |
XZU301..T4..LPG;BU30#,346,RZU300,XZU30#,322,330,331,34#,372,382..(T3,T5)..CBU ﾘﾔ |
2 | ||
| 66236-37010 |
XZU301..T4..LPG;BU306,RZU300,XZU307..SCB..CBU;BU301,346,RZU340,XZU300,301,302,306,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU ﾌﾛﾝﾄ |
2 | ||
| 66313 - SUPPORT, REAR FENDER | ||||
| 66235-37090 |
XZU301..T4..LPG;BU30#,346,RZU300,XZU30#,322,330,331,34#,372,382..(T3,T5)..CBU ﾘﾔ |
2 | ||
| 66236-37010 |
XZU301..T4..LPG;BU306,RZU300,XZU307..SCB..CBU;BU301,346,RZU340,XZU300,301,302,306,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU ﾌﾛﾝﾄ |
2 | ||
| 66315A - HOOK, ROPE | ||||
| 66315-37010 |
BZU300..T4..CNG;RZU300,XZU301,302..T4..(CNG,LPG);BU30#,BZU300,RZU30#,XZU300,301,302,306,307,337,362..(T2,T4,T5)..CBU |
2 | ||
| 66315-37010 |
BU30#,RZU300,XZU30#,322,337,362..(T2,T4,T5)..CBU |
2 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66321-92803 |
BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU |
2 | ||
| 66321-92803 |
BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU |
2 | ||
| 66321G - BUMPER, GATE RUBBER | ||||
| 66321-92805 |
BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU |
4 | ||
| 66321-92805 |
BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU |
4 | ||
| 66321G - BUMPER, GATE RUBBER | ||||
| 66321-92805 |
BU30#,346,RZU300,340,XZU30#,322,33#,34#,362,372,382..(T2,T3,T4,T5)..CBU |
4 | ||
| 66321-92805 |
BZU300,340..T4..CNG;RZU300,XZU301,302,341,342..(T3,T4)..(CNG,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,322,33#,340,341,342,346,347,362,372,382..(T2,T3,T4,T5)..CBU |
4 | ||
| Common parts | ||||
| 90149-50065 | ||||
| 90179-10036 | ||||
| 90201-10180 | ||||
| 90241-09002 | ||||
| 90241-09003 | ||||
| 90241-09004 | ||||
| 91611-G0820 | ||||
| 91621-J0612 | ||||
| 91642-81025 | ||||
| 93210-16016 | ||||
| 93313-16014 | ||||
| 93540-15016 | ||||
| 93590-16014 | ||||
| 94184-01001 | ||||
| 94185-61000 | ||||
(0610- )ST..CBU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08B66 | ||||
| 90149-50065 | ||||
| 90179-10036 | ||||
| 90241-09003 | ||||
| 91611-G0820 | ||||
| 91642-81025 | ||||
| 93210-16016 | ||||
| 93540-15016 | ||||
| 94150-80600 | ||||
| 94184-01001 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
