XZU302-TPPLS (1999)
Toyota Dyna/Toyoace

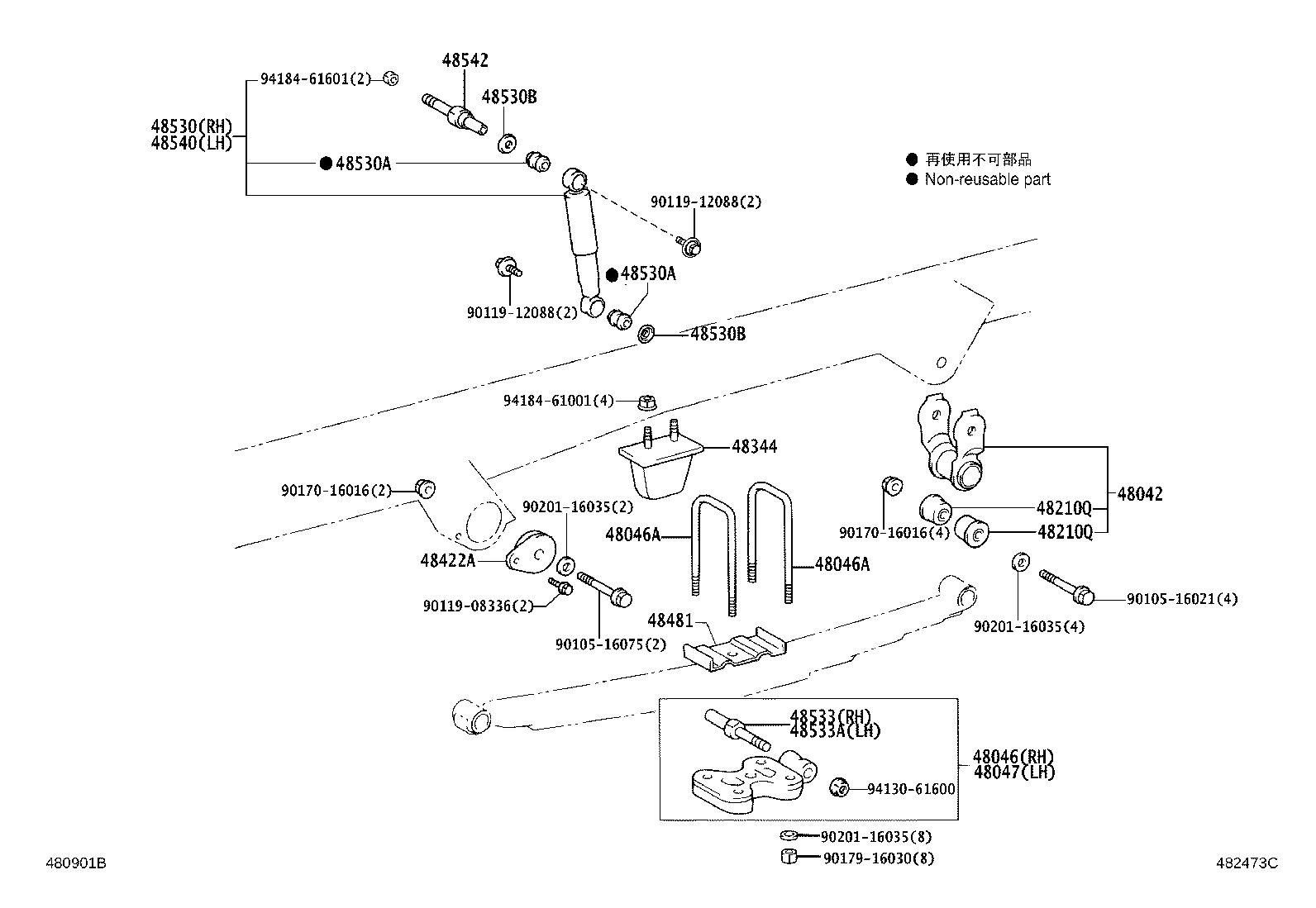

ILLUST NO. 1 OF 3(9905-0406)BU30#,346,BZU340,RZU30#,340,XZU301,302,306,307,337,347,351,352,362..03S,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2 | ||||
| 48042-37020 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 48042-37020 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-37110 |
BU301,XZU302..ST |
1 | ||
| 48046-37110 |
BU301,XZU302..ST |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16142 |
XZU347..T2;BU301,XZU302..ST;BU346,RZU340..T2,T4 長さ=255 |
4 | ||
| 90117-16142 |
XZU347..T2;BU301,XZU302..ST;BU346,RZU340..T2,T4 長さ=255 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16142 |
XZU347..T2;BU301,XZU302..ST;BU346,RZU340..T2,T4 長さ=255 |
4 | ||
| 90117-16142 |
XZU347..T2;BU301,XZU302..ST;BU346,RZU340..T2,T4 長さ=255 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48046-37110 |
BU301,XZU302..ST |
1 | ||
| 48046-37110 |
BU301,XZU302..ST |
1 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
4 | ||
| 90389-16026 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
4 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
4 | ||
| 90389-16026 |
BU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T |
4 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-37190 |
BU301,XZU302..T5..ST |
2 | ||
| 48344-37190 |
BU301,XZU302..T5..ST |
2 | ||
| 48422A - SUPPORT, REAR SPRING PIN | ||||
| 48422-36090 |
BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,32#,337,351,352,362..03S,06S,DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T4,T5 |
2 | ||
| 48422-36090 |
BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,32#,337,351,352,362..03S,06S,DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T4,T5 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80671 |
BU301,XZU302..T5..ST ﾏｰｸ 48531−37040 |
1 | ||
| 48531-80671 |
BU301,XZU302..T5..ST ﾏｰｸ 48531−37040 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90385-19011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90385-19011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 90385-19011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90385-19011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90385-19011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 90385-19011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 90948-03011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 90948-03011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90948-03011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 90948-03011 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382 |
4 | ||
| 90948-03011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 90948-03011 |
BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382 |
4 | ||
| 48533 - PIN, REAR SHOCK ABSORBER LOWER PIVOT, RH | ||||
| 48522-37030 |
BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,32#,337,351,352,362..03S,06S,DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T4,T5 |
1 | ||
| 48522-37030 |
BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,32#,337,351,352,362..03S,06S,DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T4,T5 |
1 | ||
| 48533A - PIN, REAR SHOCK ABSORBER LOWER PIVOT, LH | ||||
| 48522-37030 |
BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,32#,337,351,352,362..03S,06S,DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T4,T5 |
1 | ||
| 48522-37030 |
BU30#,BZU300,RZU30#,XZU300,301,302,306,307,31#,32#,337,351,352,362..03S,06S,DM2,DM3,DM5,DM6,DM7,DM8,T1,T2,T4,T5 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80671 |
BU301,XZU302..T5..ST ﾏｰｸ 48531−37040 |
1 | ||
| 48531-80671 |
BU301,XZU302..T5..ST ﾏｰｸ 48531−37040 |
1 | ||
| Common parts | ||||
| 90105-10438 | ||||
| 90105-16021 | ||||
| 90105-16075 | ||||
| 90119-08336 | ||||
| 90119-10740 | ||||
| 90119-12088 | ||||
| 90170-16016 | ||||
| 90179-16030 | ||||
| 90201-16035 | ||||
| 91512-81045 | ||||
| 94130-61600 | ||||
| 94150-80800 | ||||
| 94150-81000 | ||||
| 94184-61001 | ||||
ILLUST NO. 3 OF 3(9905- )
| Part # | Description | Qty | Price |
|---|

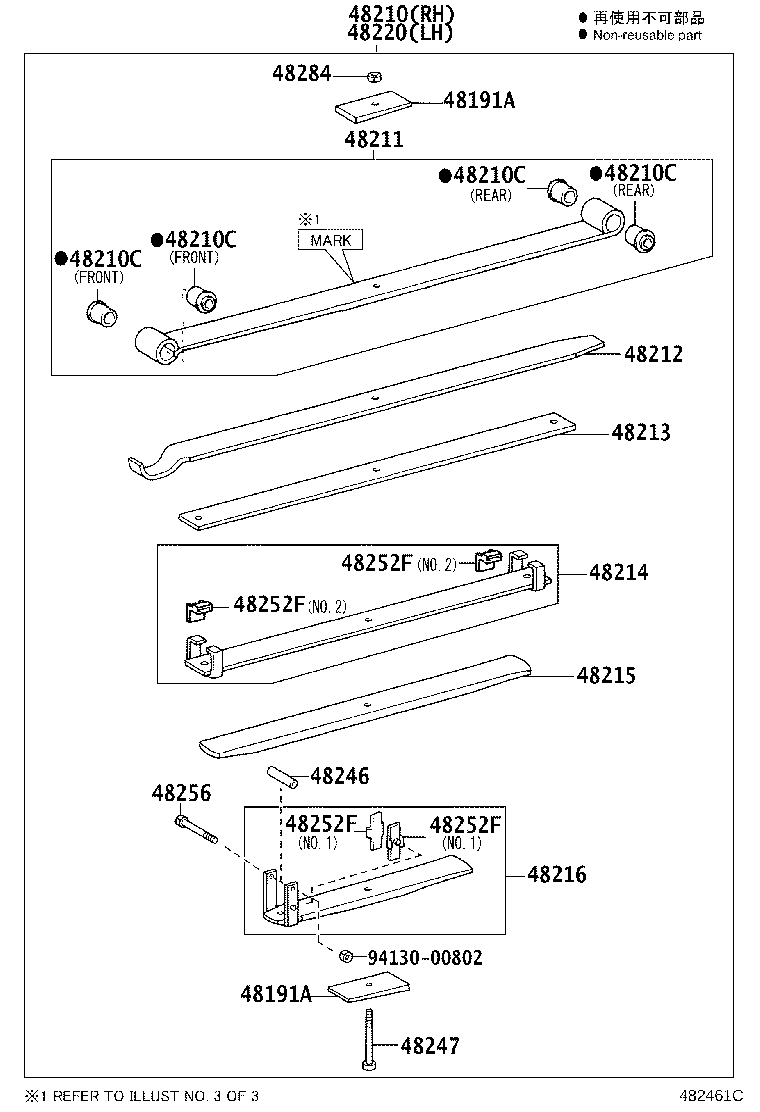

ILLUST NO. 2 OF 3(0610- )ST
6-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 94130-00802 | ||||
ILLUST NO. 1 OF 3(0610- )ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-16021 | ||||
| 90105-16075 | ||||
| 90119-08336 | ||||
| 90119-12088 | ||||
| 90170-16016 | ||||
| 90179-16030 | ||||
| 90201-16035 | ||||
| 94130-61600 | ||||
| 94184-61001 | ||||
| 94184-61601 | ||||
ILLUST NO. 3 OF 3(0610- )
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 1 OF 2(7708- )ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90101-14003 | ||||
| 90170-16139 | ||||
| 91611-61020 | ||||
| 94110-40800 | ||||
| 94115-41200 | ||||
| 94115-41600 | ||||
| 94115-71400 | ||||
| 94512-00800 | ||||
| 94512-01400 | ||||
| 94512-01600 | ||||
| 94531-01200 | ||||
ILLUST NO. 2 OF 2(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 94110-41000 | ||||
| 95111-00816 | ||||
| 95111-00818 | ||||
| 95111-00820 | ||||
| 95111-00822 | ||||
ILLUST NO. 2 OF 2(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 94110-41000 | ||||
| 95111-00816 | ||||
| 95111-00818 | ||||
| 95111-00822 | ||||
ILLUST NO. 2 OF 2(9905-0206)T5 ; (9905-0406)XZU412..20T..CNG ; (9905-0406)BU400,410,420,XZU402..T4..
MAIN 3+HELPER 3-LEAF
| Part # | Description | Qty | Price |
|---|
