XZU302-TPPLS (1999)
Toyota Dyna/Toyoace
(9905-0406)XZU302,342..DSL ; (9905-0406)XZU301,304,305,306,307,31#,321,322,331,337,

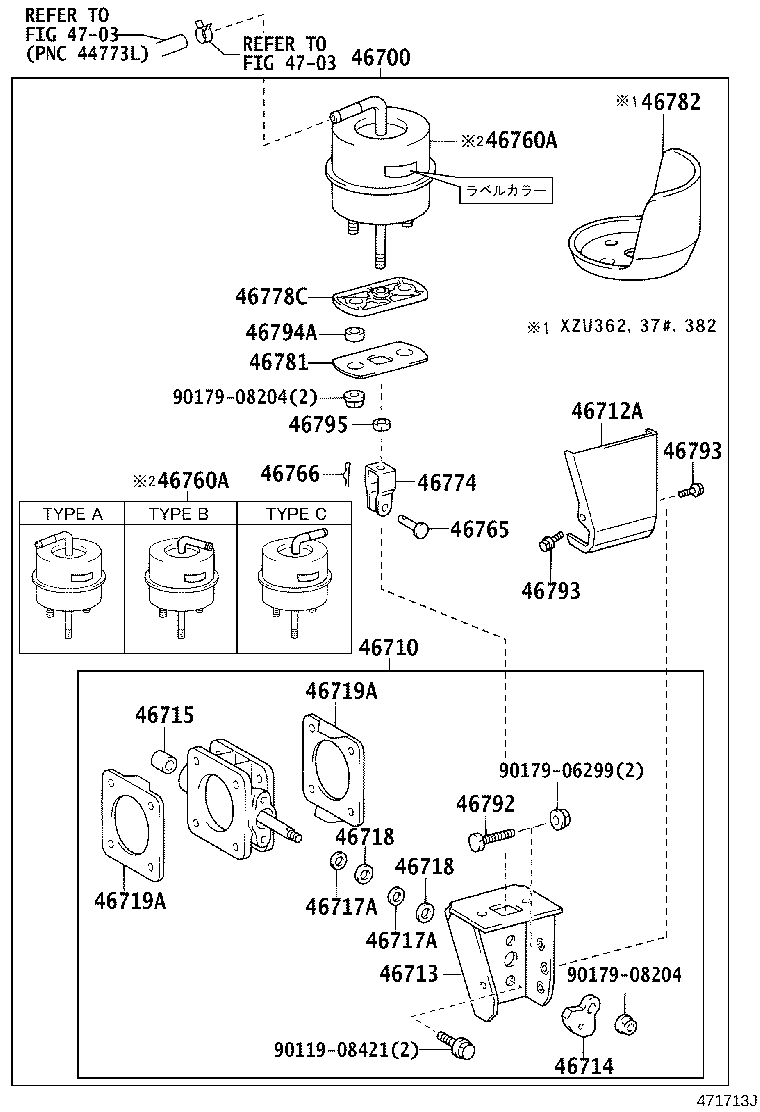

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46700 - RETARDER ASSY, EXHAUST | ||||
| 46700-37031 |
XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301,306..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);XZU302,307,31#,321,322,331,337,341,342,346,347,351,352..SCB..(DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL) PNC 46760A=TYPE B |
1 | ||
| 46700-37030 |
XZU307,31#..SCB;XZU301..20T..IV7;XZU306..T5..DSLL;XZU301,302,306,321,322,331,337,341,342,346,347,351,352..SCB..(DM2,DM3,DM7,DM8,T2,T3,T4,T5)..DSL..(CBU,IV3,IV7) |
1 | ||
| 46710 - VALVE ASSY, EXHAUST BRAKE | ||||
| 46710-37030 |
XZU306..DSL;XZU301..DSL..IV3;XZU301..CBU,IV4,IV6,IV7;XZU301,306..(DM6,T5)..DSLL;XZU302,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382..DSL,DSLL |
1 | ||
| 46710-37031 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;XZU302,307,31#,321,322,337,341,342,346,347,351,352..SCB..(DSL,DSLL) |
1 | ||
| 46712A - COVER, EXHAUST BRAKE BRACKET | ||||
| 46712-37030 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;XZU302,307,31#,321,322,337,341,342,346,347,351,352,362,37#,382..DSL,DSLL |
1 | ||
| 46713 - BRACKET, EXHAUST VALVE | ||||
| 46713-37030 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;XZU302,307,31#,321,322,337,341,342,346,347,351,352,362,37#,382..DSL,DSLL |
1 | ||
| 46714 - LEVER, EXHAUST VALVE | ||||
| 46714-37030 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;XZU302,307,31#,321,322,337,341,342,346,347,351,352,362,37#,382..DSL,DSLL |
1 | ||
| 46715 - BUSH, EXHAUST VALVE, NO.1 | ||||
| 46715-37031 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;XZU302,307,31#,321,322,337,341,342,346,347,351,352,362,37#,382..DSL,DSLL 長さ=14,外径=18 |
2 | ||
| 46715-37030 |
XZU306..DSL;XZU301..DSL..IV3;XZU301..CBU,IV4,IV6,IV7;XZU301,306..(DM6,T5)..DSLL;XZU302,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382..DSL,DSLL 長さ=14,外径=18 |
2 | ||
| 46717A - RING, EXHAUST VALVE SEAL, NO.1 | ||||
| 46717-37030 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;XZU302,307,31#,321,322,337,341,342,346,347,351,352,362,37#,382..DSL,DSLL |
2 | ||
| 46717A - RING, EXHAUST VALVE SEAL, NO.1 | ||||
| 46717-37030 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;XZU302,307,31#,321,322,337,341,342,346,347,351,352,362,37#,382..DSL,DSLL |
2 | ||
| 46718 - RING, EXHAUST VALVE SEAL, NO.2 | ||||
| 46718-37030 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;XZU302,307,31#,321,322,337,341,342,346,347,351,352,362,37#,382..DSL,DSLL |
2 | ||
| 46718 - RING, EXHAUST VALVE SEAL, NO.2 | ||||
| 46718-37030 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;XZU302,307,31#,321,322,337,341,342,346,347,351,352,362,37#,382..DSL,DSLL |
2 | ||
| 46719A - GASKET, EXHAUST RETARDER | ||||
| 46719-37030 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;XZU302,307,31#,321,322,337,341,342,346,347,351,352,362,37#,382..DSL,DSLL |
2 | ||
| 46719A - GASKET, EXHAUST RETARDER | ||||
| 46719-37030 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;XZU302,307,31#,321,322,337,341,342,346,347,351,352,362,37#,382..DSL,DSLL |
2 | ||
| 46760A - CHAMBER ASSY, EXHAUST BRAKE | ||||
| 46760-37030 |
XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301,306..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);XZU302,307,31#,321,322,331,337,341,342,346,347,351,352..SCB..(DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL) ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=46700-37030/37031 |
1 | ||
| 46760A - CHAMBER ASSY, EXHAUST BRAKE | ||||
| 46760-37030 |
XZU301..20T..IV7;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301,306..(DM3,T3,T4,T5)..DSL..(CBU,IV3,IV7);XZU302,307,31#,321,322,331,337,341,342,346,347,351,352..SCB..(DM2,DM3,DM5,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL) ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=46700-37030/37031 |
1 | ||
| 46765 - PIN, VACUUM CYLINDER CLEVIS | ||||
| 46765-37030 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;XZU302,307,31#,321,322,337,341,342,346,347,351,352,362,37#,382..DSL,DSLL |
1 | ||
| 46766 - PIN, VACUUM CYLINDER CLEVIS SNAP | ||||
| 46766-37030 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;XZU302,307,31#,321,322,337,341,342,346,347,351,352,362,37#,382..DSL,DSLL |
1 | ||
| 46774 - CLEVIS, EXHAUST BRAKE ROD | ||||
| 46774-37030 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;XZU302,307,31#,321,322,337,341,342,346,347,351,352,362,37#,382..DSL,DSLL |
1 | ||
| 46778C - GUIDE, EXHAUST RETARDER ACTUATOR ROD | ||||
| 46778-37030 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;XZU302,307,31#,321,322,337,341,342,346,347,351,352,362,37#,382..DSL,DSLL |
1 | ||
| 46781 - INSULATOR, EXHAUST BRAKE CHAMBER, NO.1 | ||||
| 46781-37030 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;XZU302,307,31#,321,322,337,341,342,346,347,351,352,362,37#,382..DSL,DSLL |
1 | ||
| 46792 - BOLT, EXHAUST VALVE STOPPER | ||||
| 46792-37030 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;XZU302,307,31#,321,322,337,341,342,346,347,351,352,362,37#,382..DSL,DSLL |
2 | ||
| 46793 - BOLT, EXHAUST VALVE LINK COVER | ||||
| 93381-16008 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;XZU302,307,31#,321,322,337,341,342,346,347,351,352..SCB..(DSL,DSLL) |
2 | ||
| 46793 - BOLT, EXHAUST VALVE LINK COVER | ||||
| 93381-16008 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;XZU302,307,31#,321,322,337,341,342,346,347,351,352..SCB..(DSL,DSLL) |
2 | ||
| 46794A - COLLAR, ACTUATOR ROD GUIDE | ||||
| 46794-37030 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;XZU302,307,31#,321,322,337,341,342,346,347,351,352,362,37#,382..DSL,DSLL |
2 | ||
| 46795 - NUT, EXHAUST VALVE BRACKET | ||||
| 46795-37030 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;XZU302,307,31#,321,322,337,341,342,346,347,351,352,362,37#,382..DSL,DSLL |
1 | ||
| Common parts | ||||
| 90119-08421 | ||||
| 90179-06299 | ||||
| 90179-08204 | ||||
| Linked diagrams | ||||
| 4703 | ||||
(0610- )XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08421 | ||||
| 90179-06299 | ||||
| 90179-08204 | ||||
| Linked diagrams | ||||
| 4703 | ||||
