XZU302-TPPLS (1999)
Toyota Dyna/Toyoace

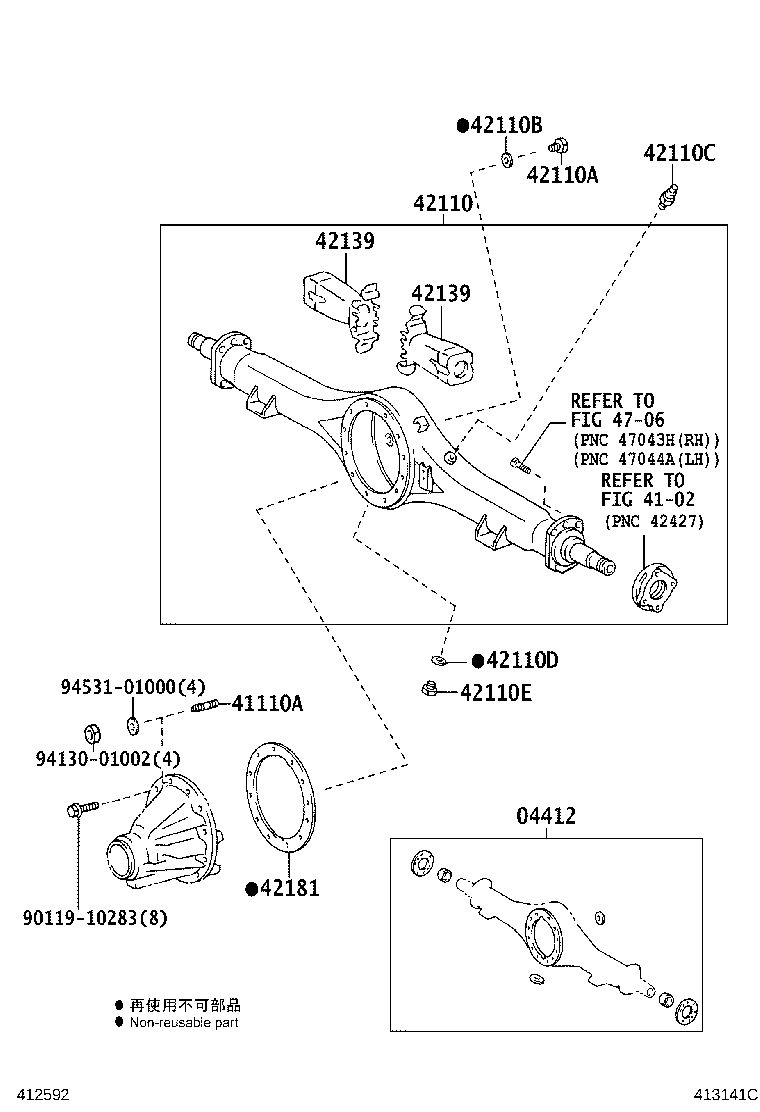

ILLUST NO. 2 OF 2(9905- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER | ||||
| 04412-37030 |
XZU306..T4;XZU347..T2;BU30#,346,XZU302,307,322,337,351,352..(03S,06S,DM2,T1,T2,T4,T5)..(175T,20T) |
1 | ||
| 04412-37031 |
XZU306..T4;XZU347..T2;BU30#,346,BZU300,RZU30#,340,XZU302,307,322,337,351,352..(03S,06S,DM2,T1,T2,T4,T5)..(175T,20T) |
1 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-10211 |
XZU347..T2;XZU306..T4..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU30#,346,BZU300,RZU30#,340,XZU302,307,322,337,351,352..(03S,06S,DM2,T1,T2,T4,T5)..(175T,20T) ﾈｼﾞ部長さ=17&12.5,長さ41.5 |
4 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-37310 |
BU301,XZU302..ST |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18006 |
XZU306..T5..5F;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);RZU300,XZU306..(T2,T4)..(DSL,EFI,LPG);BU30#,346,BZU300,340,RZU301,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
XZU306..T5..5F;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);RZU300,XZU306..(T2,T4)..(DSL,EFI,LPG);BU30#,346,BZU300,340,RZU301,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03138 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);RZU300,XZU306..(T2,T4,T5)..5F..(DSL,EFI,LPG);BU30#,346,BZU300,340,RZU301,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
XZU306..T5..5F;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);RZU300,XZU306..(T2,T4)..(DSL,EFI,LPG);BU30#,346,BZU300,340,RZU301,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
XZU306..T5..5F;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);RZU300,XZU306..(T2,T4)..(DSL,EFI,LPG);BU30#,346,BZU300,340,RZU301,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 42139 - DEFLECTOR, REAR AXLE HOUSING OIL | ||||
| 42108-36050 |
BU301,XZU302..ST |
2 | ||
| 42139 - DEFLECTOR, REAR AXLE HOUSING OIL | ||||
| 42108-36050 |
BU301,XZU302..ST |
2 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-36060 |
XZU347..T2;XZU306..T4..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU30#,346,BZU300,RZU30#,340,XZU302,307,322,337,351,352..(03S,06S,DM2,T1,T2,T4,T5)..(175T,20T) |
1 | ||
| Common parts | ||||
| 90119-10283 | ||||
| 94130-01002 | ||||
| 94531-01000 | ||||
ILLUST NO. 2 OF 2(0610- )ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-10283 | ||||
| 94130-01002 | ||||
| 94531-01000 | ||||
| Linked diagrams | ||||
| 4102 | ||||
| 4706 | ||||
ILLUST NO. 1 OF 2(7708- )HU30,JU20,RU2#,3#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91111-40814 | ||||
| 94512-00800 | ||||
| 94512-01400 | ||||
| 94512-01600 | ||||
ILLUST NO. 2 OF 2(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-10227 | ||||
| 90119-10283 | ||||
| 94110-51000 | ||||
| 94120-41000 | ||||
| 94512-01000 | ||||
ILLUST NO. 2 OF 2(9905-0406)20T,295T,30T,35T ; (0406-0610)XZU423,433..T4 ; (0406-0610)BZU410,XZU388,
10.5ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ:12ｲﾝﾁ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-10283 | ||||
| 94130-01002 | ||||
| 94531-01000 | ||||
